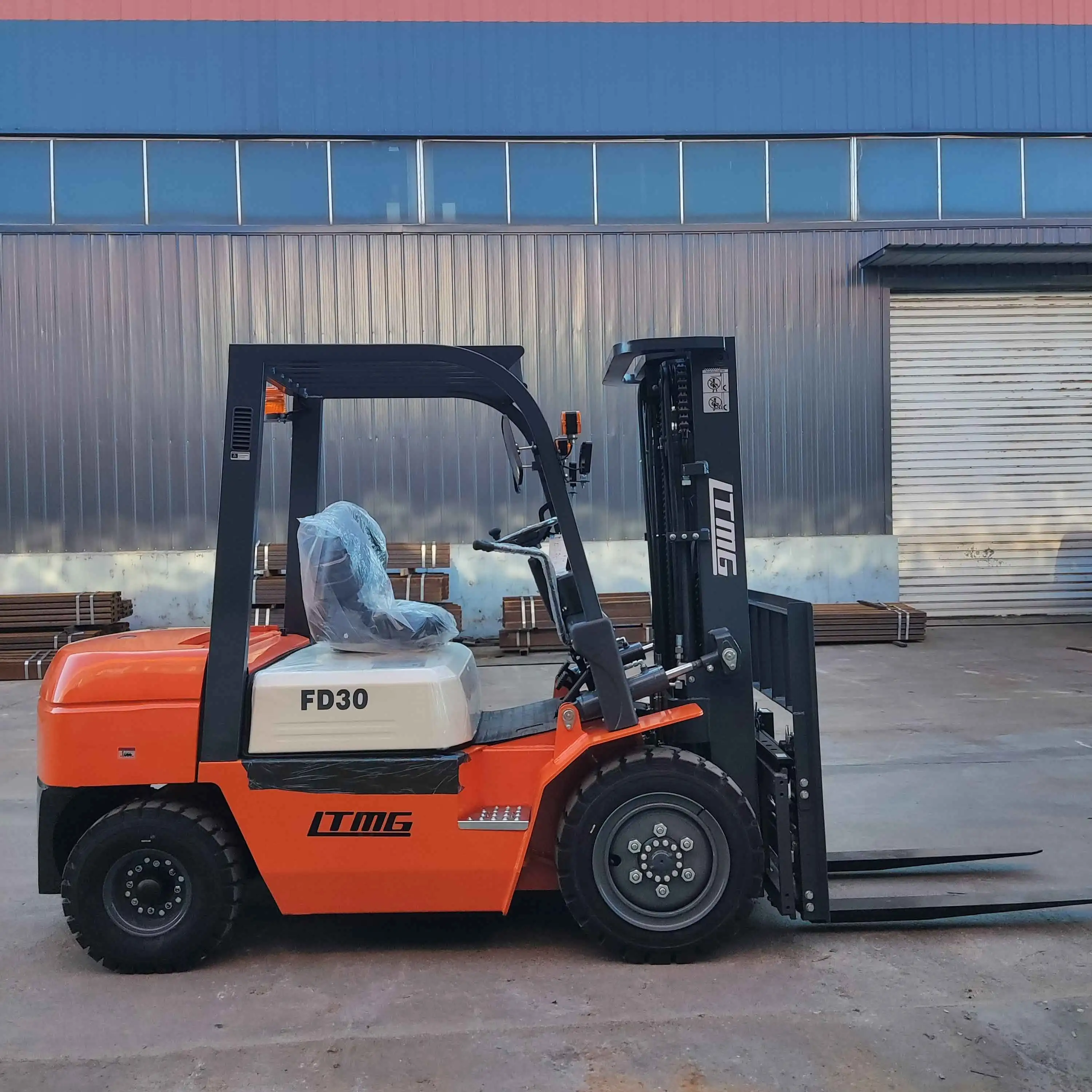

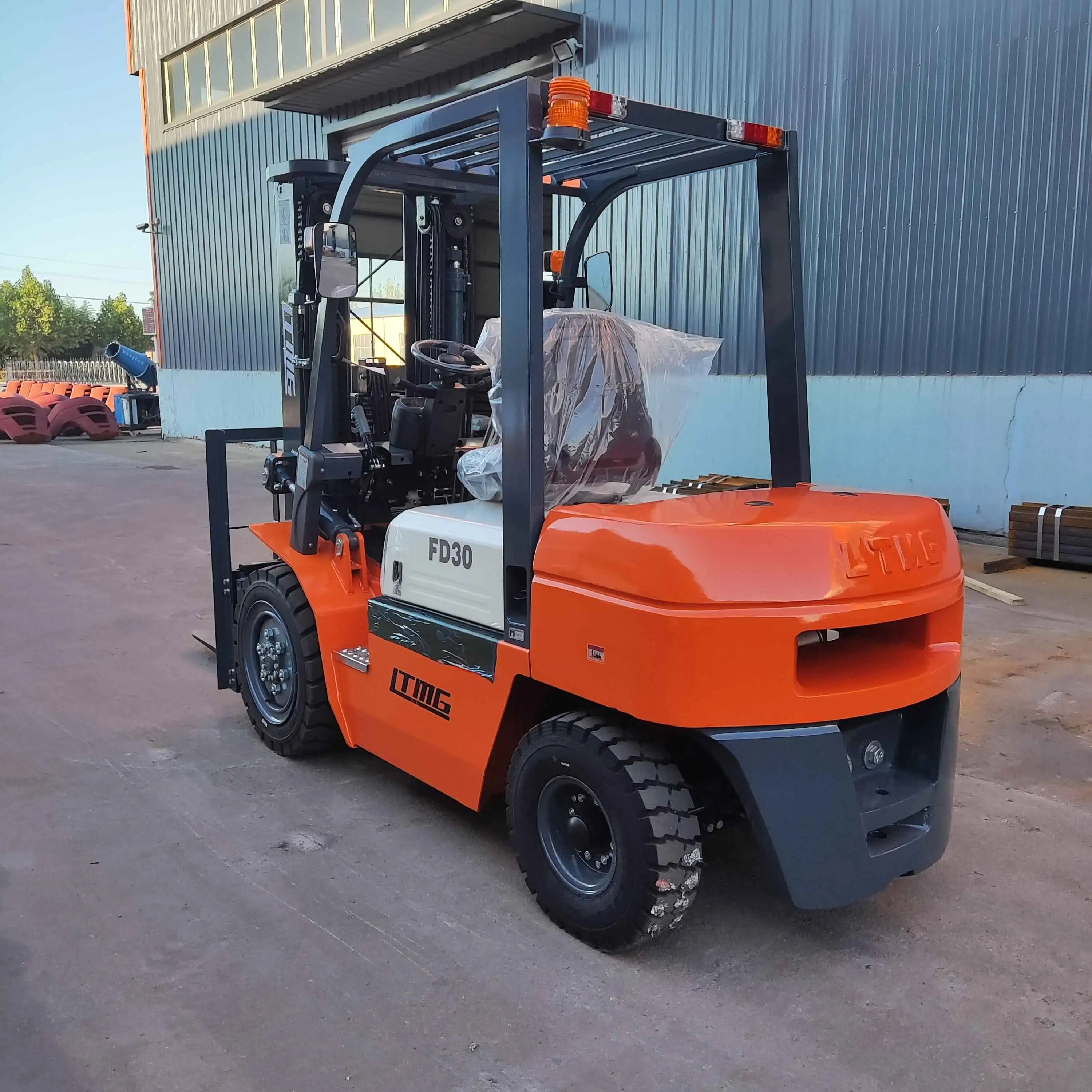

LTMG high quality portable forklifts 3ton 3.5ton 4ton diesel forklift with optional engine brands
LTMG high quality portable forklifts 3ton 3.5ton 4ton diesel forklift with optional engine brands
LTMG high quality portable forklifts 3ton 3.5ton 4ton diesel forklift with optional engine brands
LTMG high quality portable forklifts 3ton 3.5ton 4ton diesel forklift with optional engine brands
LTMG high quality portable forklifts 3ton 3.5ton 4ton diesel forklift with optional engine brands
LTMG high quality portable forklifts 3ton 3.5ton 4ton diesel forklift with optional engine brands
LTMG high quality portable forklifts 3ton 3.5ton 4ton diesel forklift with optional engine brands

LTMG high quality portable forklifts 3ton 3.5ton 4ton diesel forklift with optional engine brands

Share on (1600426905278):


Price:$7,988.00

Quantity:


Product Overview

Description

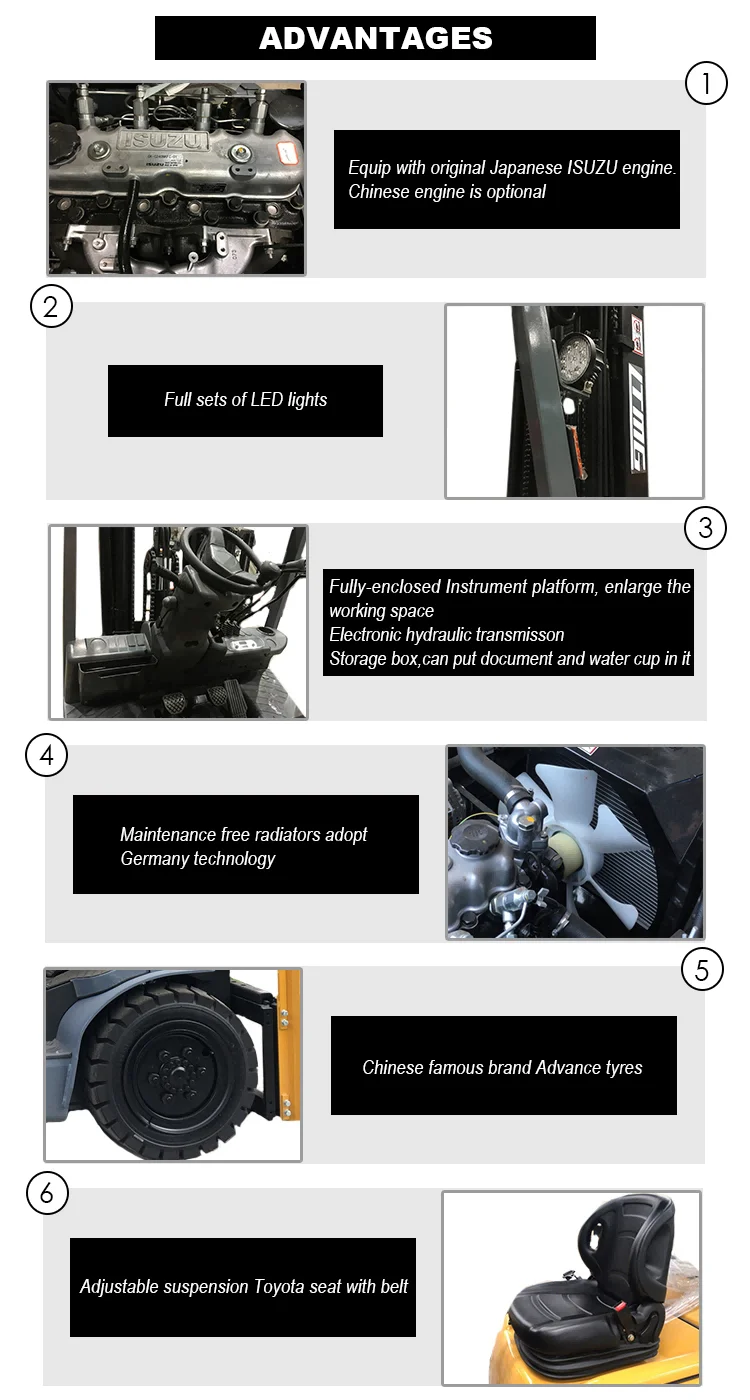

Standard Configuration:
》Hydraulic Automatic Transmission.
》Shimadzu Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
》Electric-hydraulic Directional Control Valve.
》The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
》The Maintenance Free Radiators adopt Germany Technology.
》Adopt Priority Steering System, which improve the work efficiency.
》Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
》Thicker reinforcing overhead guard protective device, ensure the safety.
》Middle muffler, more environmental.


LTMG always treat after-sale service as important as sale.
.All the product of LTMG supplied with one year or 2000 working hours (which occurs
first) period quality warranty.Detail clauses and policies please check our website and product certificate.


General
1
Model
FD30
2
Power Type
Diesel
3
Rated Capacity
kg
3000
4
Load Centre
mm
500
Characteristic&Dimension
5
Lift Height
mm
3000
6
Fork Size
L×W×T
mm
1070×125×45
7
Mast Tilt Angle
F/R
Deg
6°/12°
8
Front Overhang (Wheel center to fork face)
mm
480
9
Ground Clearance（Bottom of mast）
mm
140
10
Overall Dimension
Length to face of fork(Without fork)
mm
2730
11
Overall Width
mm
1225
12
Mast Lowered Height
mm
2115
13
Mast Extended Height(With backrest)
mm
4150
14
Overhead Guard Height
mm
2090
15
Turning Radius (outside)
mm
2440
Performance
16
Speed
Travel (Empty load)
km/h
20
17
Lifting (Full load)
mm/s
510
18
Max.Gradeability (No load/Full load)
%
20
Chassis
19
Tire
Front
mm
28×9-15-12PR
20
Rear
mm
6.50-10-10PR
21
Wheelbase
mm
1700
22
Service weight
kg
4300
Power&Transmission
23
Battery
Voltage/Capacity
V/Ah
12/80
24
Engine
Model
C240
25
Manufacture
ISUZU
26
Rated output/r.p.m.
kw
35.4/2500
27
Rated torque/r.p.m.
N·m
137.7/1800
28
No.of Cylinder
4
29
Bore×Stroke
mm
86×102
30
Displacement
cc
2369
31
Fuel Tank Capacity
L
60
32
Transmission
Type
Hydraulic
33
Stage
FWD/RVS
1/1
