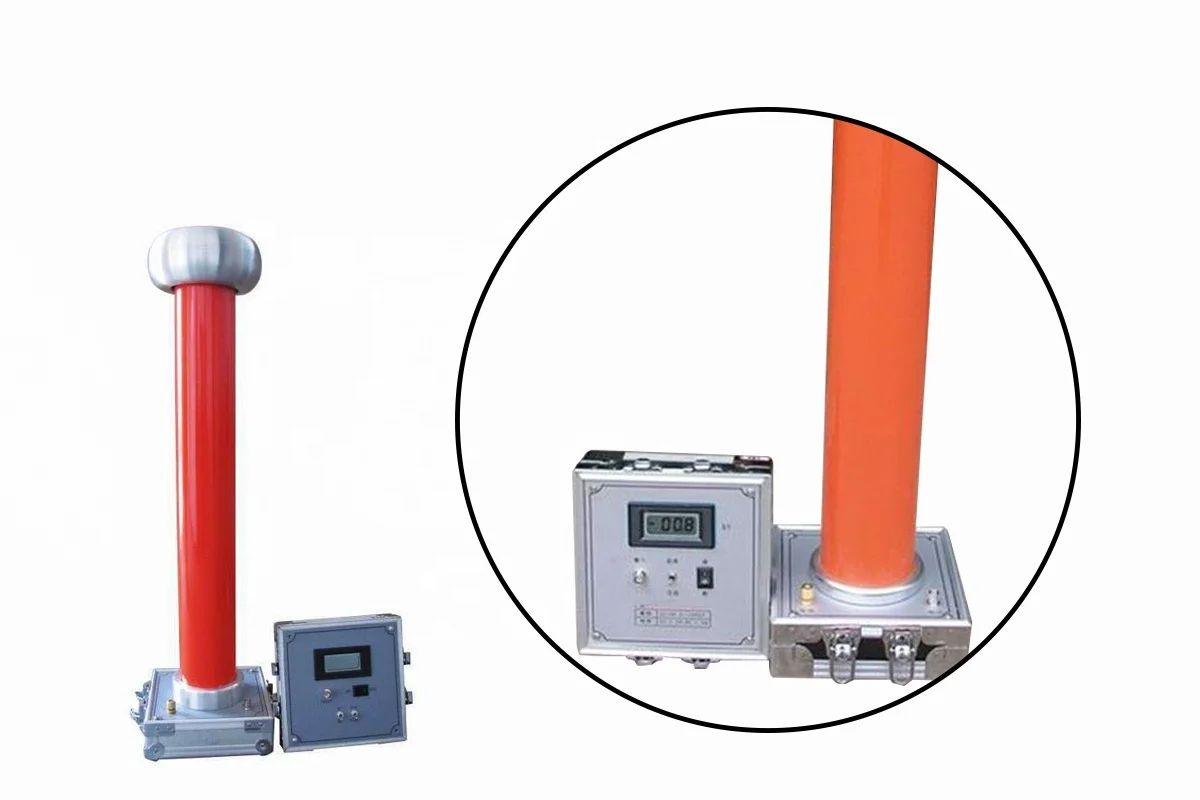

100 KV Digital AC/DC Millivoltmeter Portable Resistive Capacitive Electrical High Voltage Divider
100 KV Digital AC/DC Millivoltmeter Portable Resistive Capacitive Electrical High Voltage Divider
100 KV Digital AC/DC Millivoltmeter Portable Resistive Capacitive Electrical High Voltage Divider
100 KV Digital AC/DC Millivoltmeter Portable Resistive Capacitive Electrical High Voltage Divider
100 KV Digital AC/DC Millivoltmeter Portable Resistive Capacitive Electrical High Voltage Divider
100 KV Digital AC/DC Millivoltmeter Portable Resistive Capacitive Electrical High Voltage Divider
100 KV Digital AC/DC Millivoltmeter Portable Resistive Capacitive Electrical High Voltage Divider

100 KV Digital AC/DC Millivoltmeter Portable Resistive Capacitive Electrical High Voltage Divider

Share on (1600426908492):


Price:

Quantity:


Product Overview

Description



Feature


Uses high precision HV thin-film capacitor and HV glass glaze resistor, input impedance is high, lower the measured current, small power consumption, improves the accuracy and stability of the device. For signal processing, adopts high performance OP to amplify the signal, uses the newest dual integrating A/D sampling technique, four and half LCD display, the maximum resolution up to 0.001kV.
This device is composed by HV divider and LV display meter, the HV divider uses America Dupont packing material, special technique to embed, with smaller structure, lighter weight, lower the internal partial discharge to the least, more reliable, do not leak oil. Coaxial cable connect the HV divider and LV display meter when working, the HV and LV parts are far away from each 7 other, safe and reliable.


Specification


Voltage grade
AC/DC50kV
AC/DC100kV
AC/DC200kV
AC/DC300kV
Pressure ratio
1000:1
1000:1
1000:1
1000:1
Impedance
200MΩ
400MΩ
800MΩ
1200MΩ
Accuracy
DC value
1.0 stage
1.0stage
1.0stage
1.0stage
Exchange value
1.5 stage
1.5stage
1.5stage
1.5stage


Product Description


100 KV Digital AC/DC Millivoltmeter Portable Resistive Capacitive Electrical High Voltage Divider
This series of AC and DC high voltage divider is dedicated instrumentation for locale measurements, both high voltage DC measurements, and can measure AC high voltage. The equipment consists of pressure device and measuring instrument is composed of two parts. Divided voltage regulator with balanced equipotential shielding structure, in completely sealed insulating cylinder internal use of high-quality electronic components, and the whole device with accurate testing, good linearity, stable performance, reasonable structure, easy to carry, simple operation, intuitive display characteristics. Therefore, it is an ideal field measurement instrument.
