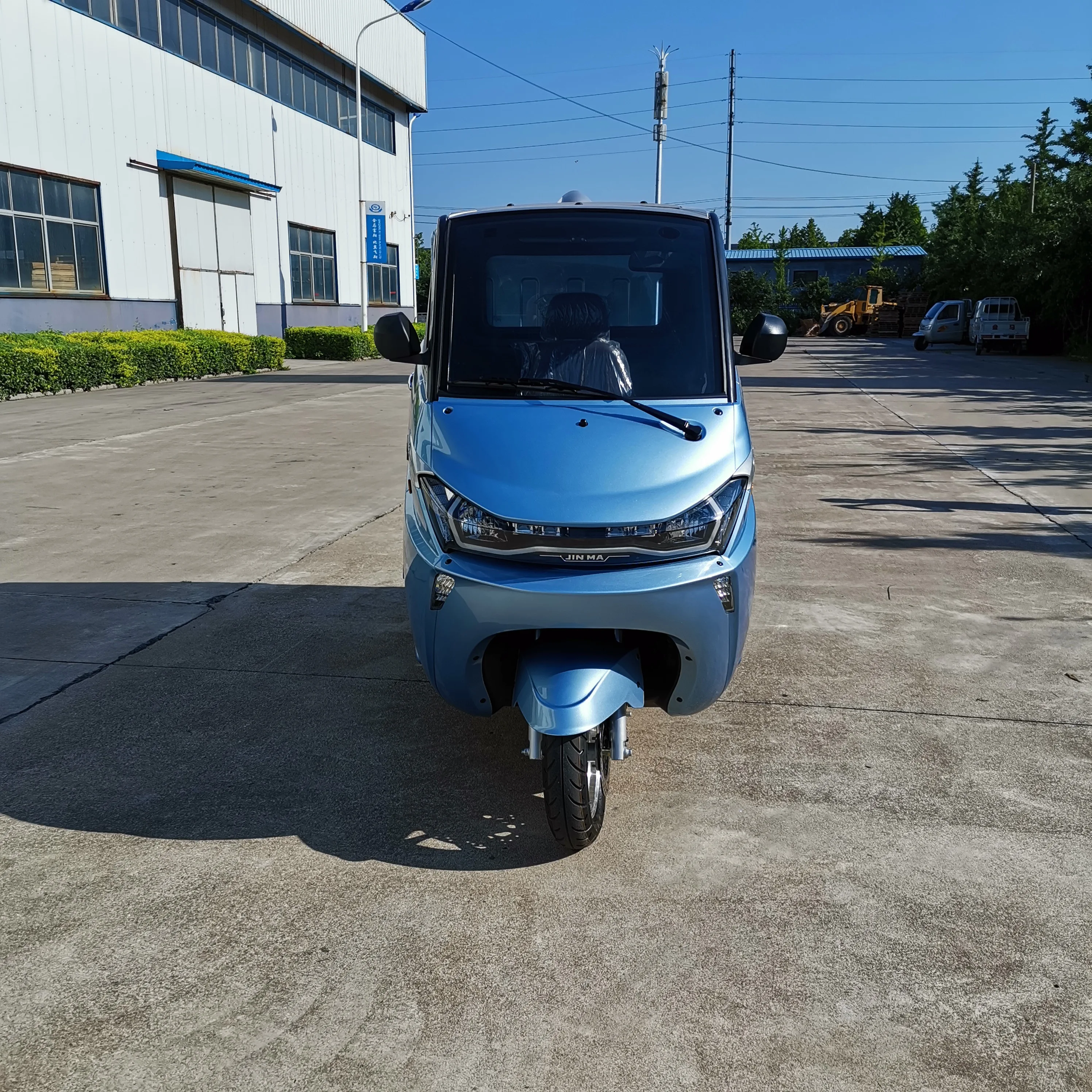

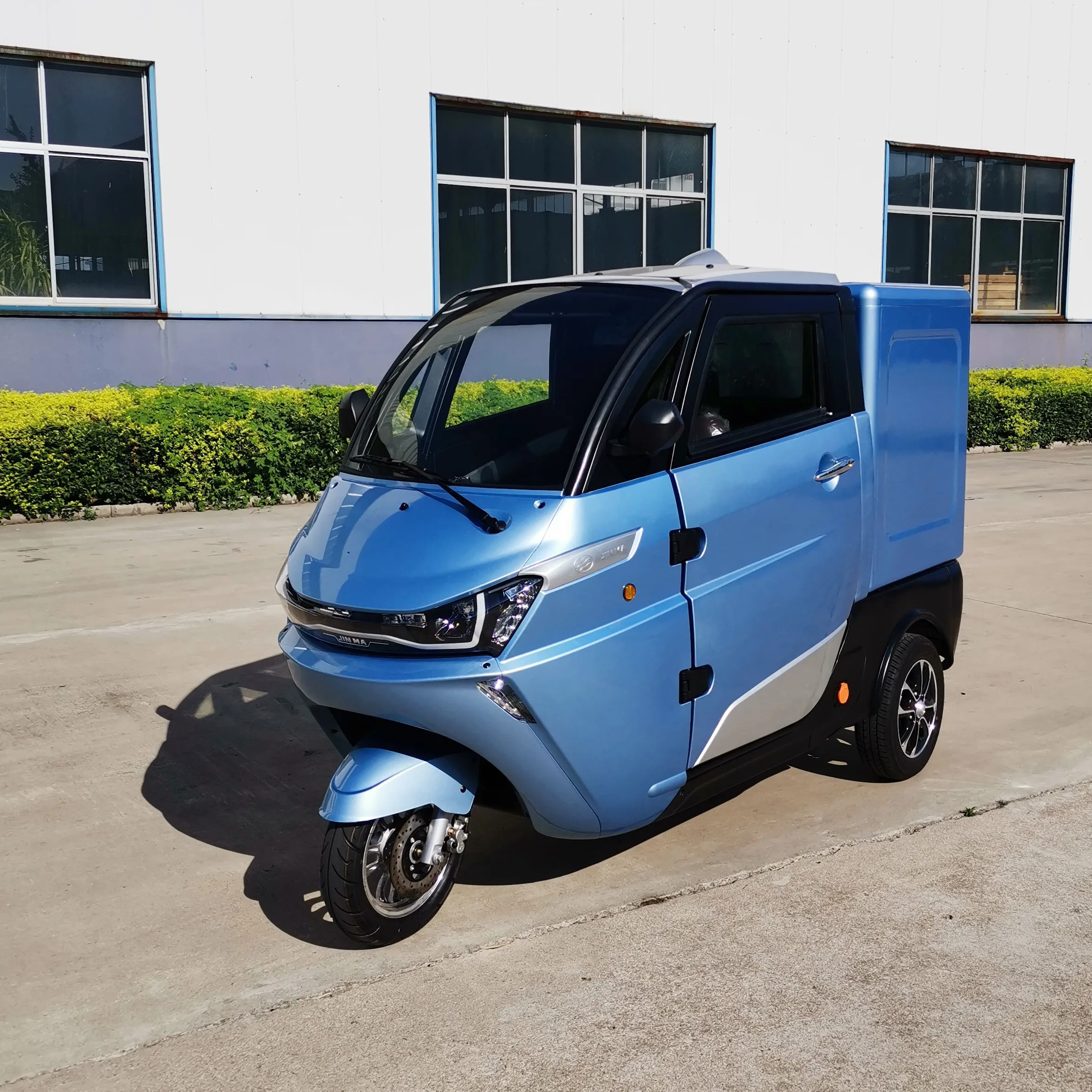

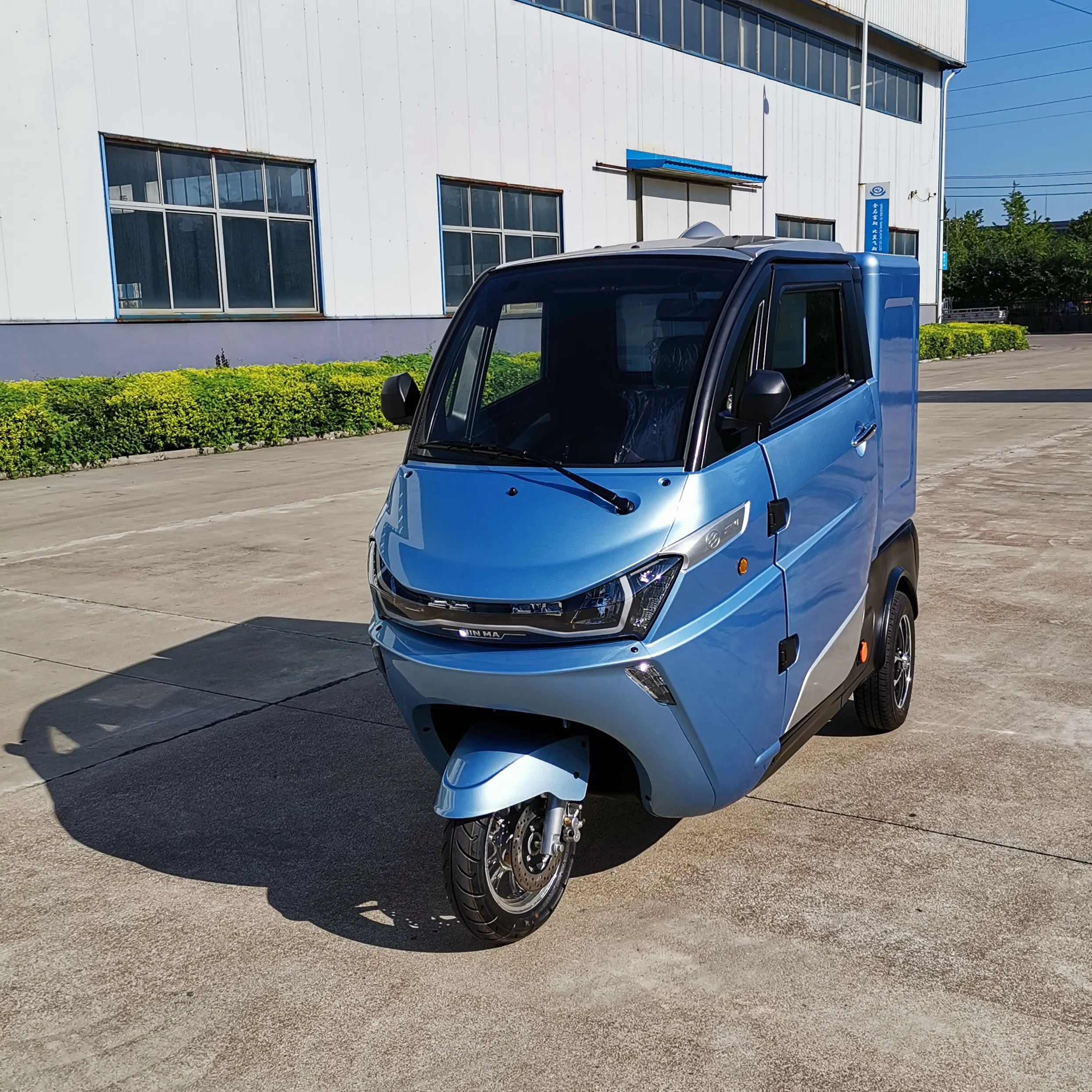

Enclosed 3 Wheel Electric Vehicle Mobility Scooter Trike Motorcycle

Product Overview

Description

Enclosed 3 Wheel Electric Vehicle Mobility Scooter Trike Motorcycle





      Eco-Green   Fashionable    Simple    Reliable

Position:Last miles solution for city delivery&Logistics, Take-away Service,Express, Supermarket Logistics. Replace current auto or manual vehicles electric delivery truck



       Parameter



No.	Configuration	Item	J1-C
1	Parameter	L*W*H (mm)	2800*1260*1700
2		Axle base(mm)	2400
3		Wheel base(F/R)(mm)	1015/1200
4		Max. Speed(km/h)	≥45
5		Max.distance (km)	≥140
6		Capacity(person)	1
7		Curb weight(kg)	350
8		Rate load(kg)	450
9		cargo box(mm)	875*1150*995
10		Steering mode	Middle Steering
11	Power system	Motor	60V 3000W
12		Lithium battery	100A·h Lithium iron phosphate battery
13		Charger system	Intelligent Fast charger for lithium battery
14		Charging time	2-3 hours
15	Brake system	Type	Hydraulic system
16		Front	Disc
17		Rear	Drum
18	Suspension system	Front	McPherson Independent Suspension
19		Rear	Spiral Spring Integral Suspension
20	Wheel suspension	Tyre	Front 120/70-12 Rear145/70-12
21		Wheel hub	Wheel Hub Aluminum Alloy Hub
22	Function device	Mutil media	MP5+rearview camera
23		Electric heater	60V900W
24		Central lock	Auto Level
25		One Button Start	Auto Level
26		Electric door and window	2
27		Skylight	Manual Operation
28		Air Conditioner	optional
29		Seats	Genuine Leather

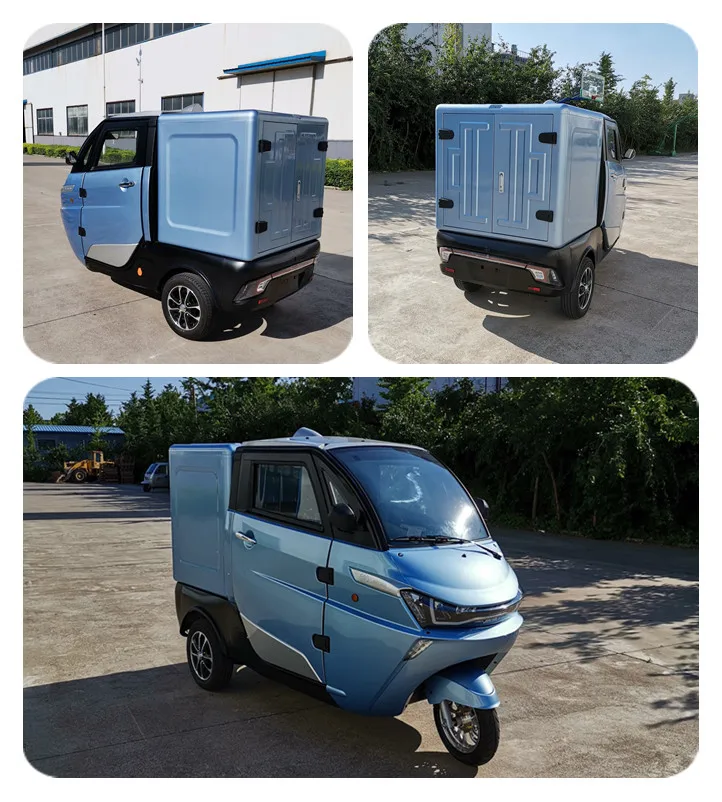

--- USAGE DISPLAY ---



Delivery hot dog food,hamburger car, pizza truck, takeaway van, food delivery scooter, motorcycle for food delivery, food delivery cars,food delivery truck, frozen food delivery car



--- OUR ADVANTAGE ---



 CKD

(Completely Knocked Down) assembly reduce and save customs duty& transportation cost

 Car-sharing

Personal & Commercial APP, to manage and monitor all vehicles

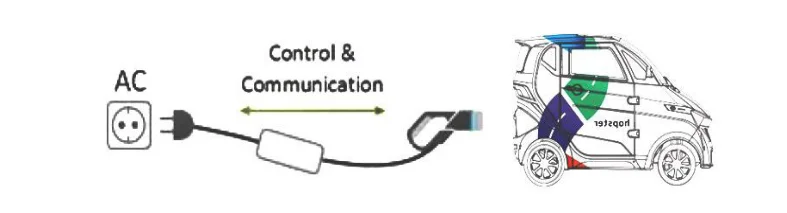

Fast   charger

within 2-3 hours under home charger, power consumption cost of each100Km is less than 0.5$.

Motor	AC motor, auto-hold function
Battery	Iron Phosphate battery with BMS system. 2,000 times charging cycles(8-10 years)  Working environment from -20 to 80 °C Fast charge within 2-3 hours
Electronic Control System	Use En-power electric control system , reliable and water-proof, steadily current control makes motor output much stronger and higher efficiency. Adopt the first-class AC motor control algorithm to achieve accurate control of motor speed.
Front Windshield	3C certified tempered and laminated glass Improve visual effect and safety performance.

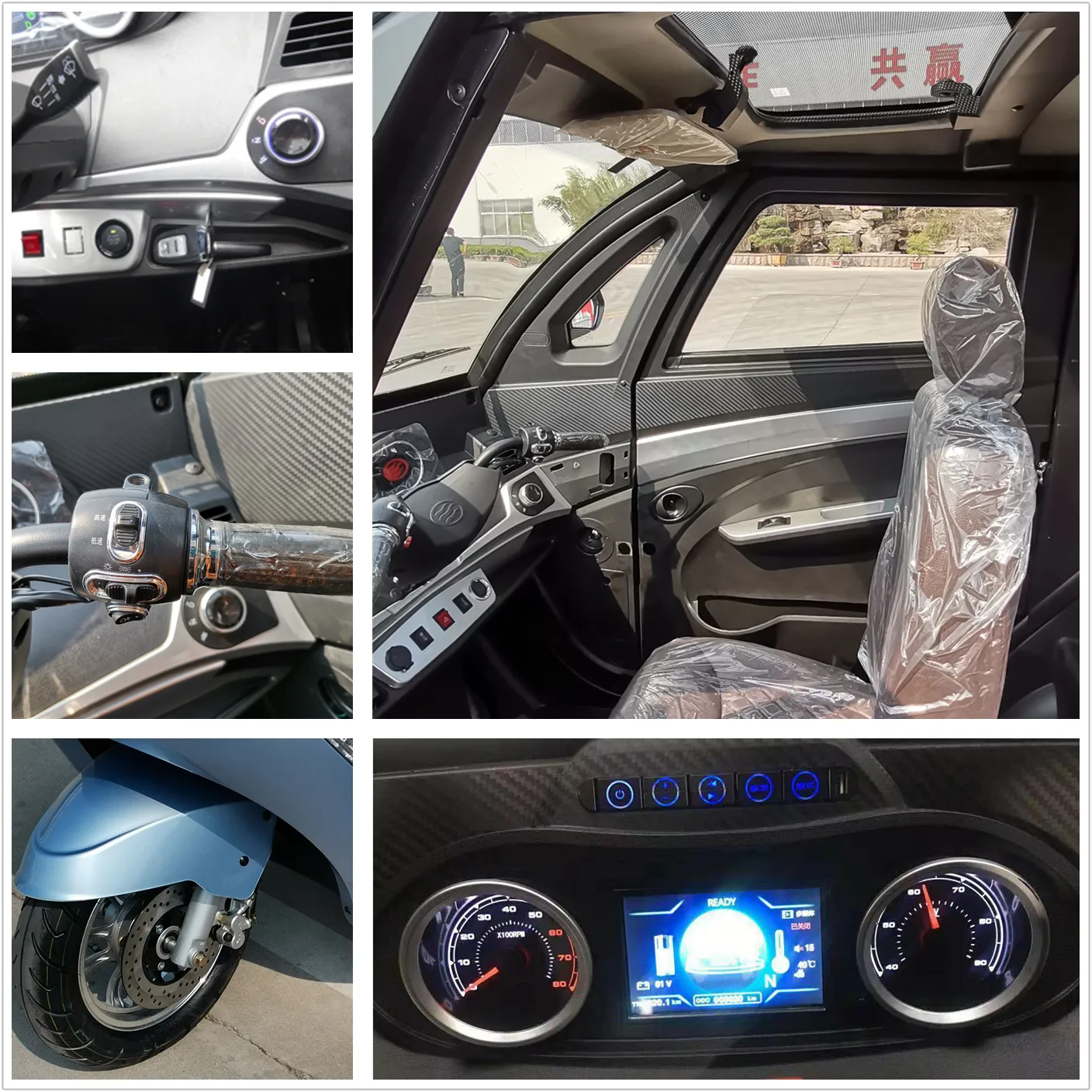

Dashboard	LCD display, volt meter, power meter, kilometer and reverse camera, plus Bluetooth, MP5,USB connection.
Light System	Integral LED headlight , Turn lights, brake lights, reverse lights.  Low power consumption and increase 50% more in light transmittance.
Plastic Cover	ABS resin , Luxury interior with sunroof. The most important mechanical properties of ABS have excellent comprehensive physical,  impact resistance and toughness,Stability, two-thirds lighter weight than iron parts.
Brake System	Front-disc Rear-drum,two-circuit hydraulic brake, for the higher safety and stability.
Suspension  System	The   front axle and  suspension are  independent  suspensions, simple  structure and excellent stability. The integrated rear axle, axle housing welded by seamless steel tube, lower noise,more durable  and reliable.
Steering System	Use double output steering gear box to adjust the gap automatically. There is no dead angle when rotate, Operate   will   be   more   lighter.
Frame&Chassis	GB Standard Steel, the surface under pickling&Photostatting and  corrosion-resistant treatment to ensure the excellent drive sense  with stationary and solidity.
Seat	Adjustable seat,Genuine Leather + High Resilience PU for the comfortable and pleasant driving.
Tyre and Rim	Aluminum Wheels Hub, Vacuum Radial Tire.
Painting	Automobile-grade,Computer Painting Mixing, Robot-painting.

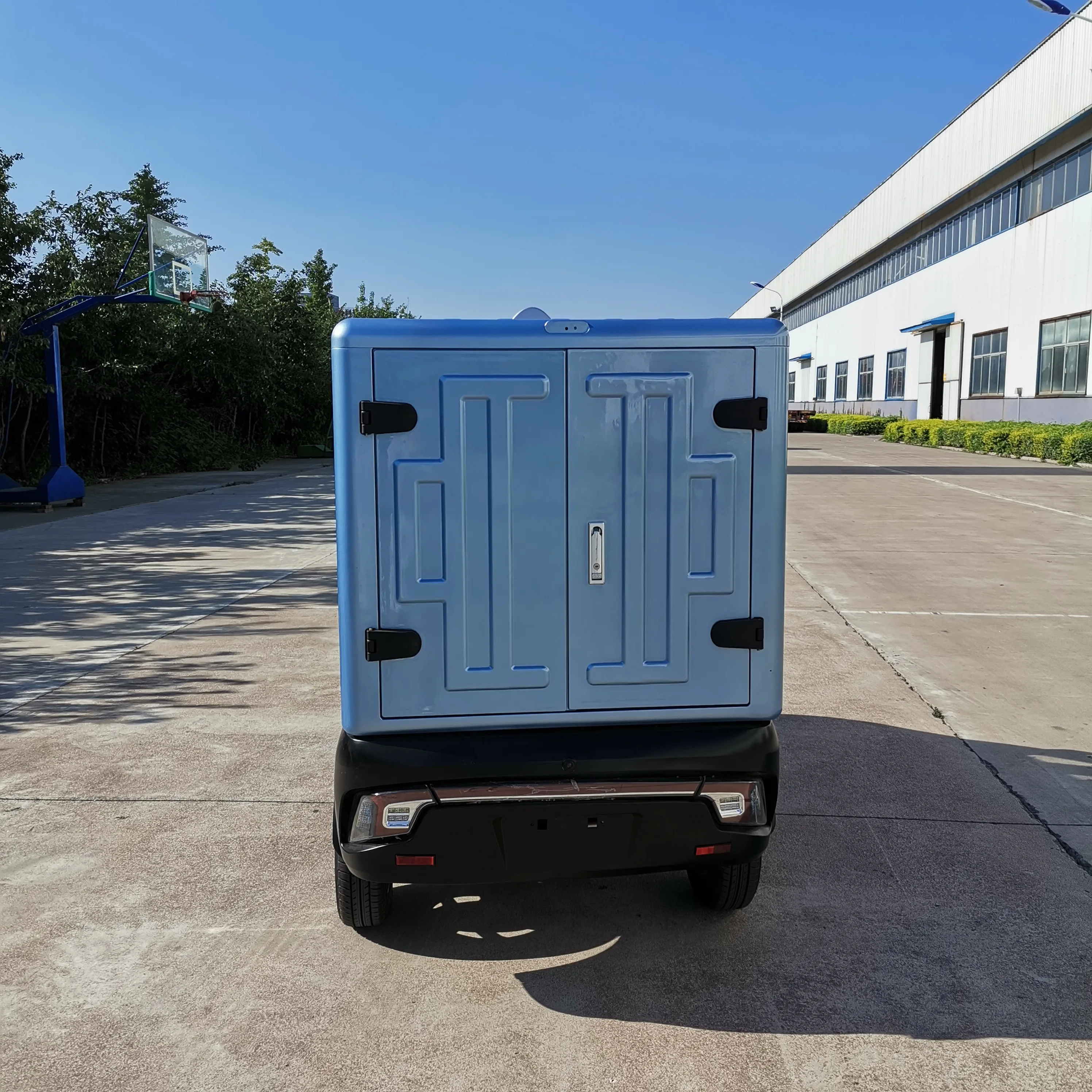

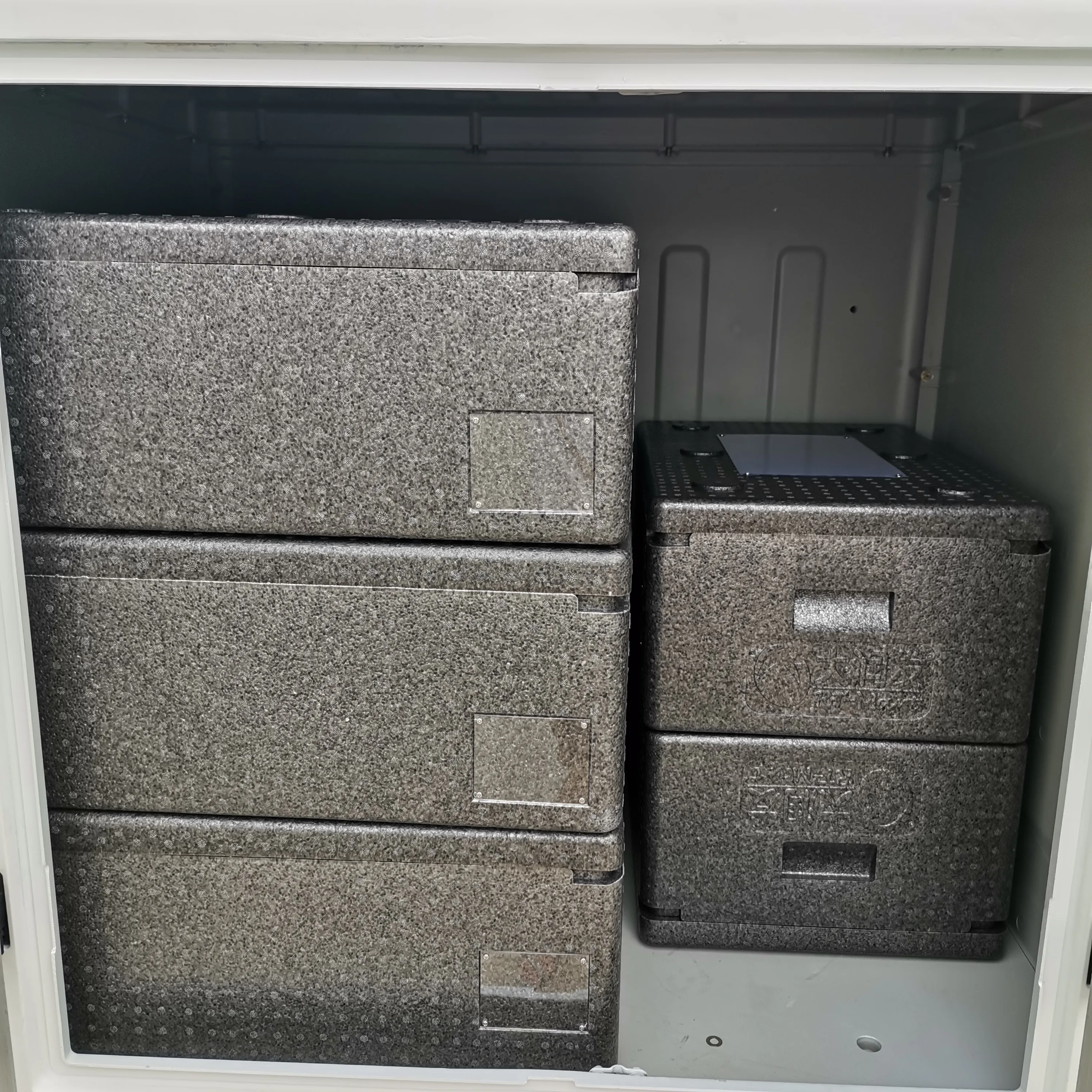

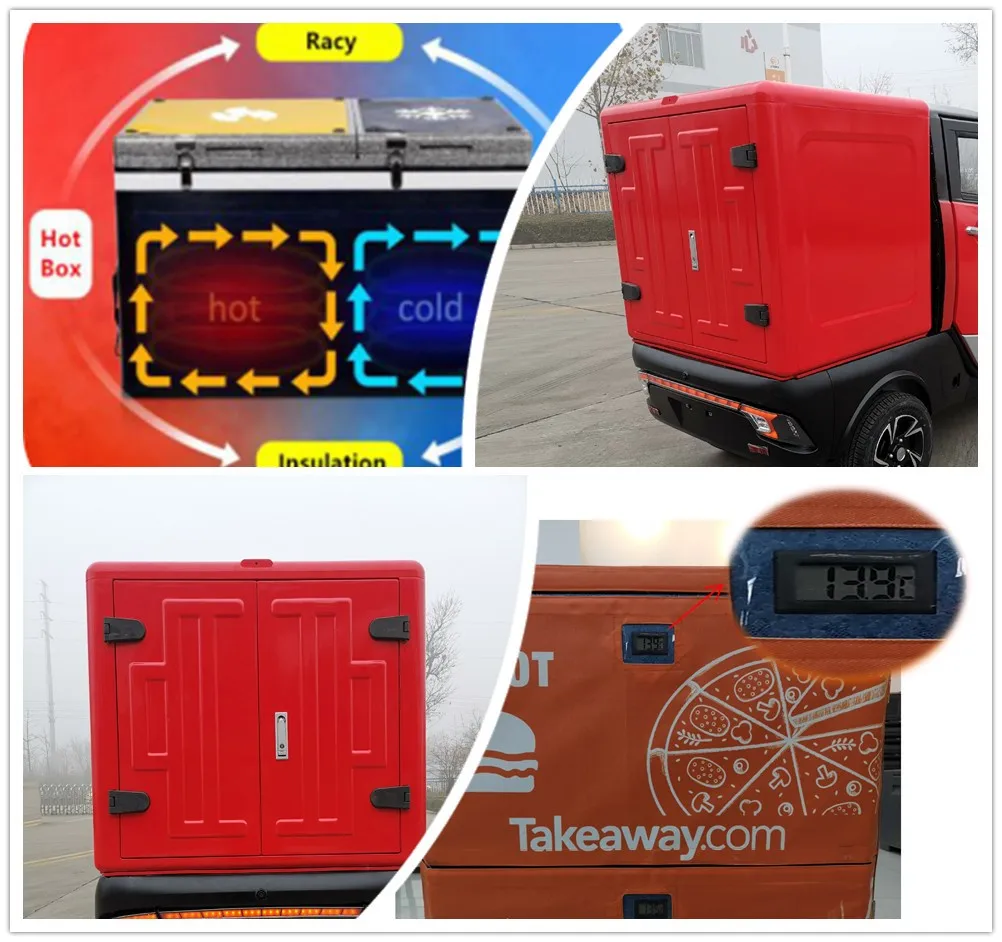

Cargo Box--BF  :	The box material is a composite material of basalt fiber (BF) reinforcement.   It is a new type of inorganic environmental protection with high-performance , can be directly degraded in the environment after being discarded. With excellent properties such as electrical insulation, corrosion resistance and high temperature resistance.

 --- PACKING & DELIVERY ---



Delivery time	20-30days after your advance payment
20ft	2 sets	Packing with Iron shelf
40ft	4 sets	Packing with Iron shelf
40HQ	6 sets	Packing with Iron shelf

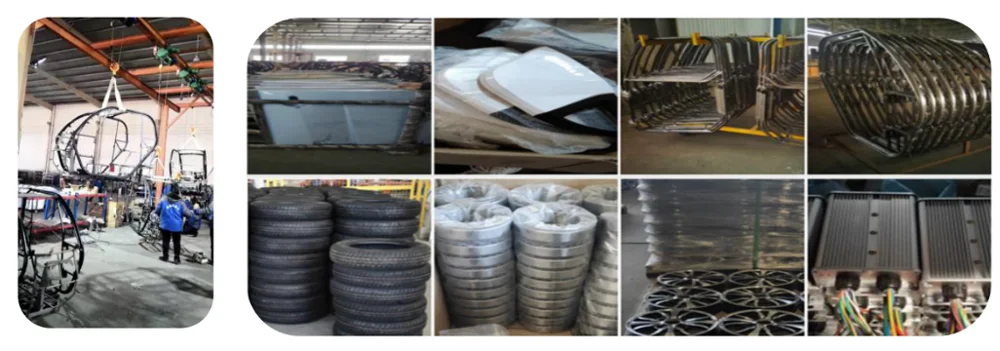

--- OUR FACTORY ---

Runhorse Holding Co.,Ltd. was founded in 2001,dedicated to producing new energy electric vehicles. It covers an area of 270,000 m2 with 700 employees, including 50 senior engineers, with 4 assembly lines for heavy-duty motorcycles, 2 cathodic electrophoresis coating lines, 2 motorcycle inspection lines for all models, 2 automatic paint lines, 3 body welding lines, 2 frame production lines, and various testing equipment. All kinds of different products have been sold to more than 50 countries in the past several years.









--- CERTIFICATE ---



 --- CUSTOMER VISIT ---



 We warmly welcome you come to visit our factory for further business communicate

                                                                                         --- FAQ ---



Q1. Can I order different models to be one container?
A: Surely, different models can be fixed into one container.
Q2. What are your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. Photos of the products and packages will be sent to you before you pay the balance.
Q3. Do you have products in stock?
A: Mostly no. All products are to be produced according to your order including samples.
Q4. How about your delivery time?
A: Generally, it takes 10 to 20 days to finish an order. Exact delivery time would be confirmed by further communication.
Q5. Can you produce according to the samples?
A: Yes, we can also produce according to technical drawing.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, 100% test before delivery is necessary to us.
Q8: What are your terms of packing?
A: Generally, we packing with wooden box and iron shelf.

                                                     --- OUR SERVICE ---



1. 24 hours online.

2. 1- year warranty for the whole car, 5- years warranty for the lithium battery.

3. Arrange technical man to training for dealers.
