12v black /white housing camera monitor 12.1 / 12 inch mini tv
- Category: >>>
- Supplier: Shenzhen Hugview Technology Co. Limited
Share on (1600426982025):
Product Overview
Description
12'' white color vga monitor /computer monitor /lcd monitor 10.4 inch
Product Description
1. Grade: A/A+
2. Size: 12.1 inch
3. Interface:VGA HD RCA TV USB (Default)
VGA HDMI RCA BNC USB for optional
4. Certification: ISO9001, SGS, CE, ROHS
5. OEM
Product name | 12.1 INCH LCD MONITOR |
Model | HG-J-121S |
Panel size | 12.1 Inch TFT LCD 4:3 |
Display Area | 245*185 |
Standard Resolution | 1024*768 |
Brightness | 300cd/m² |
Viewing Angle | 85/85/85/65 (Typ.) |
Display Colors | 16.7M |
Response Time | 5ms |
Contrast Ratio | 800:1 |
Environment | Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Operate relative humidity:20% to 80%; storage relative humidity:10% to 90% | |
Frequency | 30~80KHz/60~75Hz |
Video input format | (analog) RGB |
Touch mode | no touch |
Touch times | no touch |
Connector | VGA HD RCA TV/BNC USB Speaker for video signal |
DC12V | |
Power supply | AC100 to 240V ( External Power Supply ) or DC12V （Build-in power supply） Optional |
Power consumption | Max 25W stand-by 0.5w |

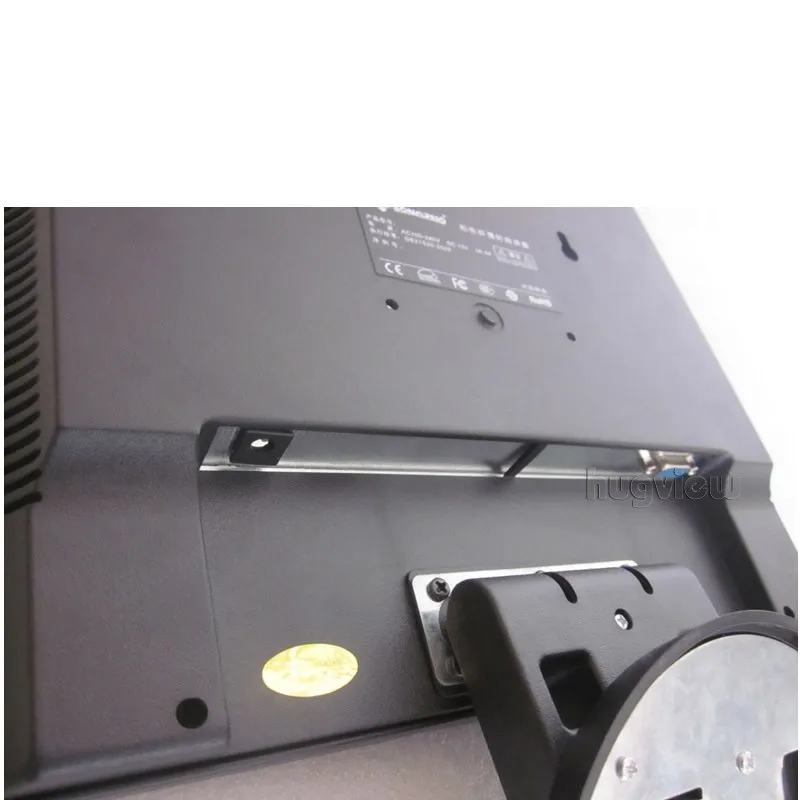

Installation(optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
2) provide base to support the monitor | |
OSD control | AUTO,+,POWER,-,MENU (brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset) |
Multi language | English,French,Spanish,Polish,Portuguese,Italian,German,Dutch,Russian(Option ) |
Operation Syetem | windows,linux,Mac. |
Accessory | Power cable / VGA cable / Audio cable / User's manual |
Monitor size | 300*245*44mm |
Gross weight | 2.5kg/pc |
Packing size | 340*140*300mm for one unit 650*450*420mm/6pcs |
Certificate | CE Rohs |
Warranty | 3 years |
Products Show
Packing & Delivery
1. Special logistics packaging
2. Suitable carton size
3. Waiting for shipping
