Roller glass coating machine
US $10000-$13000

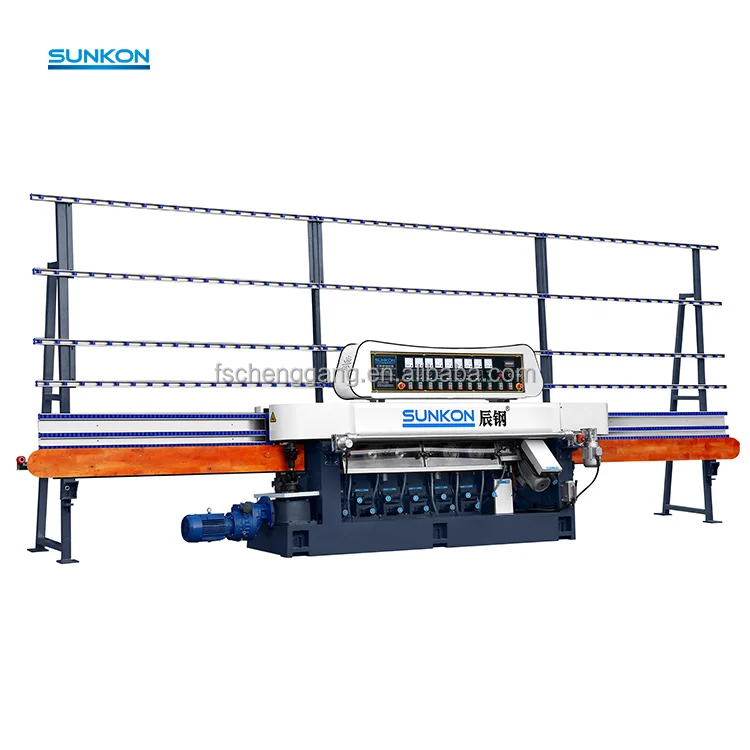

CGY7320, производство Китай, строительное стекло, одиночная круглая шлифовальная машина для окантовки
- Category: Glass Processing Machinery >>>
- Supplier: Cgtech Glass Machinery Co. Ltd.
Share on (1600426990548):
Product Overview
Description
Products Description
Description:

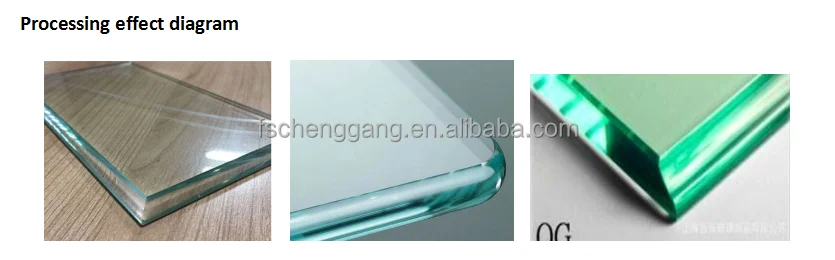

● CGY7320 Its suitable for processing straight-line round edge of glass sheet, and OG edge with various size and thickness.
●Coarse grinding, fine grinding,and polishing can be completed in one time.
●The base, front and rear beams, beds and grinding heads are of casting materials (annealed to prevent deformation), Which can bear large loads and stable.
●The front and rear plates are made of 40Cr forged materials, whose surfaces is much more durable with high-frequency quenching treatment after fine grinding.
●Production speeds is adjusted by step-less motor.
●It is the best glass grinding equipment for processing craft glass, furniture glass, and architecture glass.
●Coarse grinding, fine grinding,and polishing can be completed in one time.
●The base, front and rear beams, beds and grinding heads are of casting materials (annealed to prevent deformation), Which can bear large loads and stable.
●The front and rear plates are made of 40Cr forged materials, whose surfaces is much more durable with high-frequency quenching treatment after fine grinding.
●Production speeds is adjusted by step-less motor.
●It is the best glass grinding equipment for processing craft glass, furniture glass, and architecture glass.
Max.Glass size | 3000×3000mm |
Min.Glass size | 80×80mm |
Glass thickness | 3-19mm |
Transmission speed | 0.5-6m/min |
Max.hemline grinding | 3mm |
Max. arris grinding | 2.5mm |
Power | 16.5KW |
Weight | 2500kg |
Land occupation | 7300×1000×2500mm |
glass diagonal error | ≤0.5mm/m |
glass parallelism error | ≤0.3mm/m |
Details Images

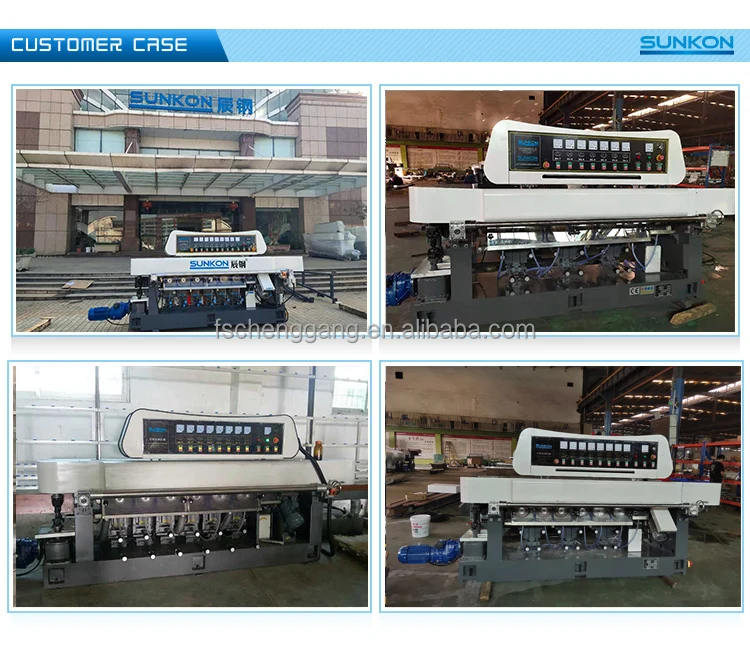

Our Case
