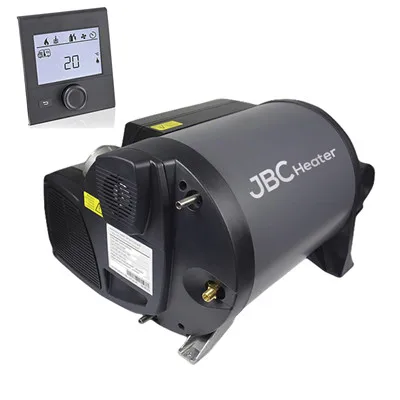

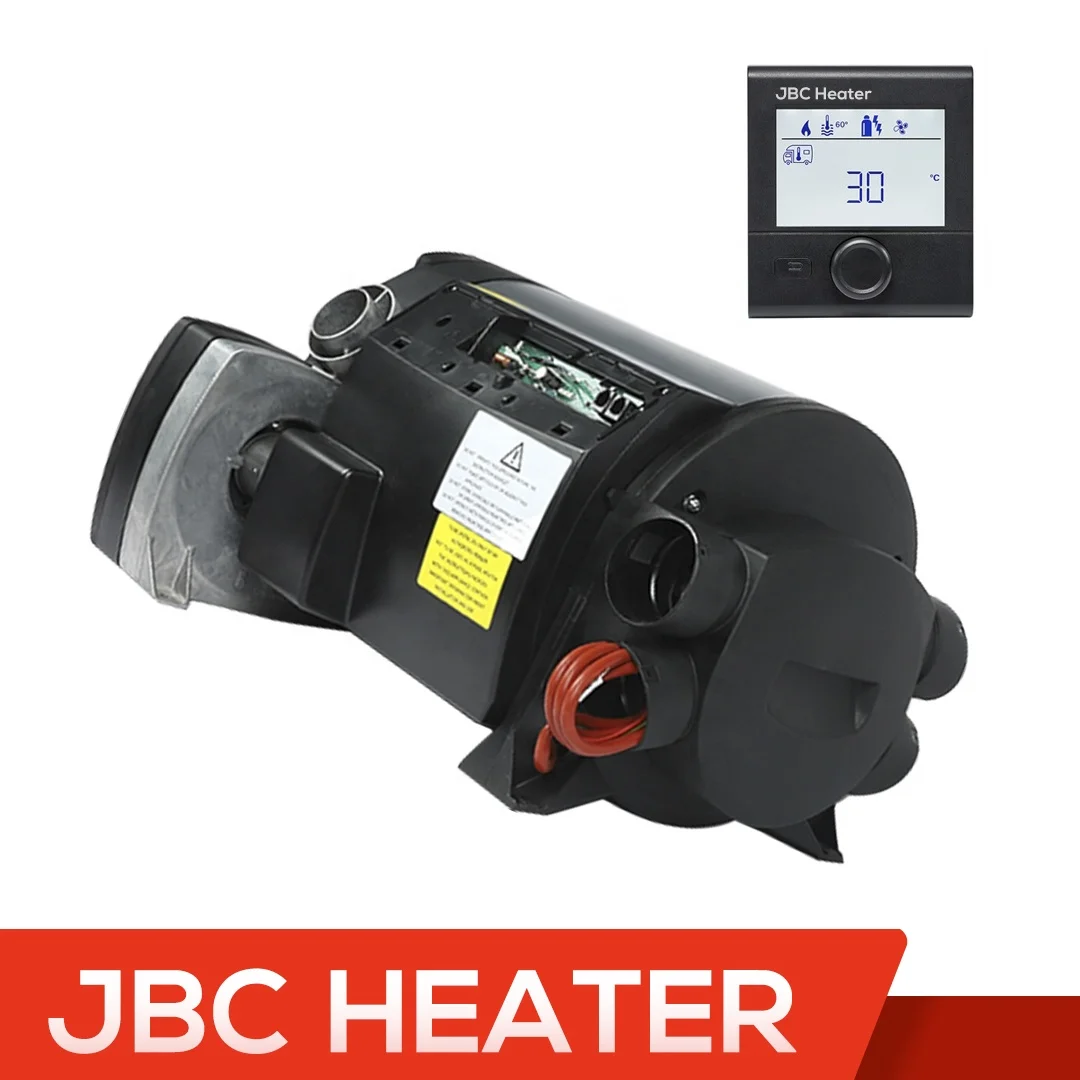

Combi Parking Heater D 6 E Diesel air and hot water Parking Heater For Caravan Similar To Truma
- Category: >>>
- Supplier: Zhongshan Jbc Technology Co. Ltd.
Share on (1600427041042):
Product Overview
Description
Product Description
Product Name | Combi Air and Hot Water Parking Heater 12V | Tomato&Potato | |||||
Rated Voltage | DC12V | ||||||
Operating Voltage Range | DC10.5V～16V | ||||||
Short-term Maximum Power Consumption | 5.6A | ||||||
Average Power Consumption | 1.3A | ||||||
Fuel type | Diesel / Gasoline | ||||||
Fuel Heat Power (W) | 2000 | 4000 | 6000 | ||||
Fuel Consumption (g/h) | 160 | 320 | 480 | ||||
Warm Air Delivery Volume m3/h | 287max | ||||||
Water Tank Capacity | 10L | ||||||
Maximum Pressure of Water Pump | 2.8bar | ||||||
Maximum Pressure of System | 4.5bar | ||||||
Rated Electric Supply Voltage | ～220V/110V | ||||||
Electrical Heating Power | 900W | 1800W | |||||
Electrical Power Dissipation | 3.9A/7.8A | 7.8A/15.6A | |||||
Working (Environment) Temperature | -25℃～+80℃ | ||||||
Weight (kg) | 15.6kg | ||||||
Dimensions (mm) | 510×450×300 | ||||||
Product performance description
The heater is a hot water and warm air integrated machine, which can provide domestic hot water while heating the occupants.
This heater allows use during driving. *** This heater also has the function of using local electricity heating.
This
heater allows use during driving. This heater also has the function of using local electricity heating
heater allows use during driving. This heater also has the function of using local electricity heating
Product Usage
Details Images
There are three working modes, 1. Heating air only 2. Heating water only 3. Heating air and water.
*Diesel/ Gasoline Mode
Heater automatic adjust the power, The heater operates at the lowest power. Stop heating immediately after reaching the set temperature(If only use diesel, it is 4KW )
Heater automatic adjust the power, The heater operates at the lowest power. Stop heating immediately after reaching the set temperature(If only use diesel, it is 4KW )
* Electrical Mode
Manually select the 900W or 1800W heating mode according to the power supply capacity of the RV camp site( If only use electricity, it is 2KW)
Manually select the 900W or 1800W heating mode according to the power supply capacity of the RV camp site( If only use electricity, it is 2KW)
*Hybrid Mode
When the power demand is low (for example, maintaining the room temperature stage), the electrical heating is preferred. Until the city electricity cannot meet, the diesel heating is started, and the diesel heating function is turned off first in the power adjustment phase.(Hybrid diesel and electricity can reach 6KW)
When the power demand is low (for example, maintaining the room temperature stage), the electrical heating is preferred. Until the city electricity cannot meet, the diesel heating is started, and the diesel heating function is turned off first in the power adjustment phase.(Hybrid diesel and electricity can reach 6KW)
Related Products

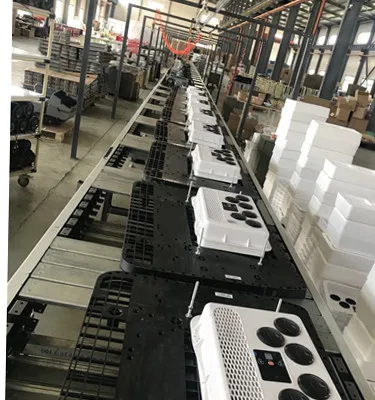

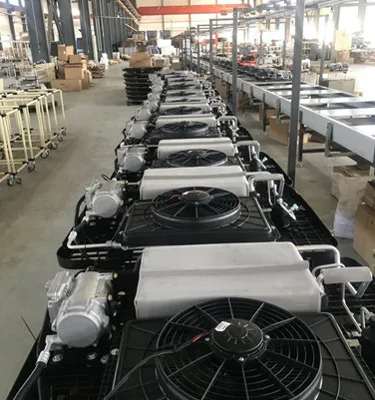

Company Introduction
Zhongshan JBC Technology Co.,Ltd is a modern enterprise, which contains trade, research and development, production, sales and
service. The main products including Air Parking Heaters & Water Parking Heaters), Parking Air Conditioner and other Auto
Products. Our products are made of high quality materials and have obtained CE certificate. We have established long-term business
relationships with customers in more than 20 countries and areas.
We sincerely welcome new and old customers from all over the world to cooperate with us!
service. The main products including Air Parking Heaters & Water Parking Heaters), Parking Air Conditioner and other Auto
Products. Our products are made of high quality materials and have obtained CE certificate. We have established long-term business
relationships with customers in more than 20 countries and areas.
We sincerely welcome new and old customers from all over the world to cooperate with us!
FAQ
1. What is your terms of packing?-----------------------Generally, we pack our goods in neutral brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
2. How about your Trade Terms? ------------------- We can accept trade terms like EXW, FOB, CFR, CIF.
3. How about your payment terms? ---------------T/T 30% as depsoit, balance before shipment. We will show you
the photos of the products and packages before you pay the balance payment.
the photos of the products and packages before you pay the balance payment.
4. Do you provide warranty service? ----------- Yes, we provide 1 year warranty.5. Do you test all the goods before delivery?Yes, we have 100% test before delivery.
5. Do you test all the goods before delivery?--------- Yes, we have 100% test before delivery.
