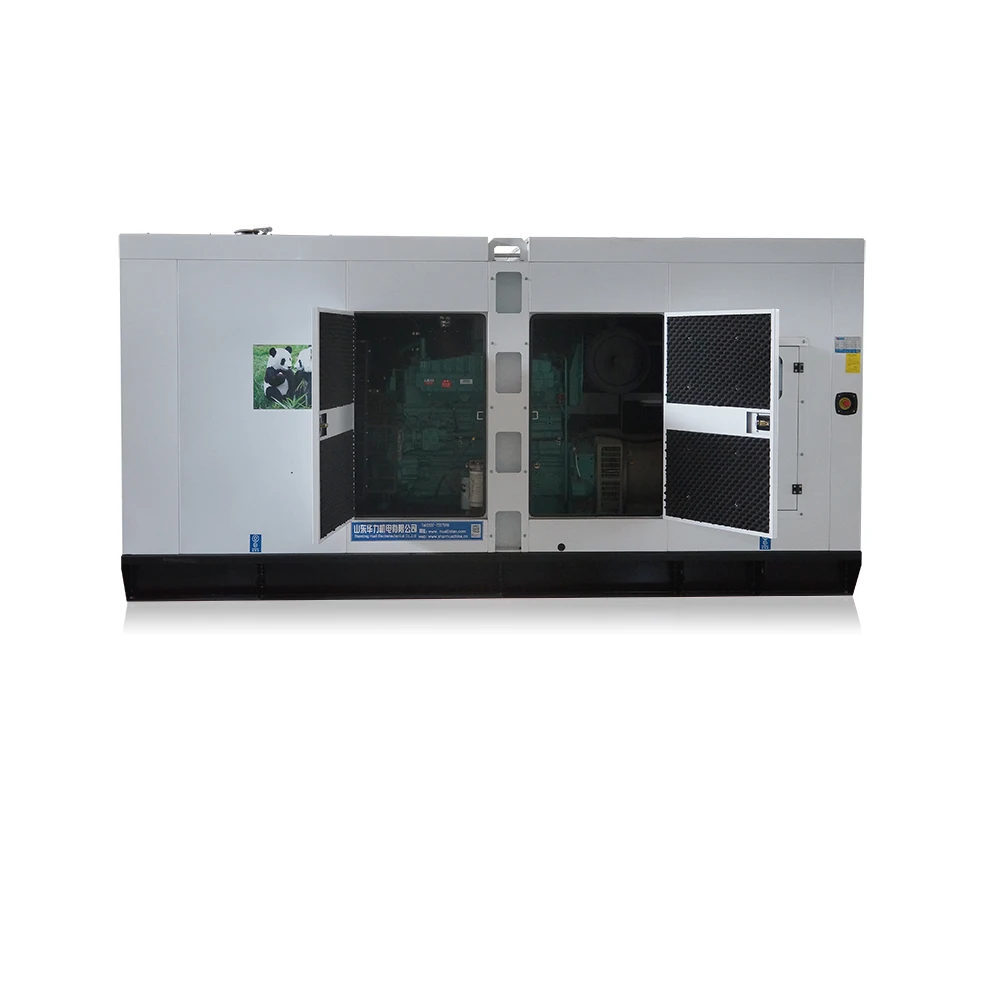

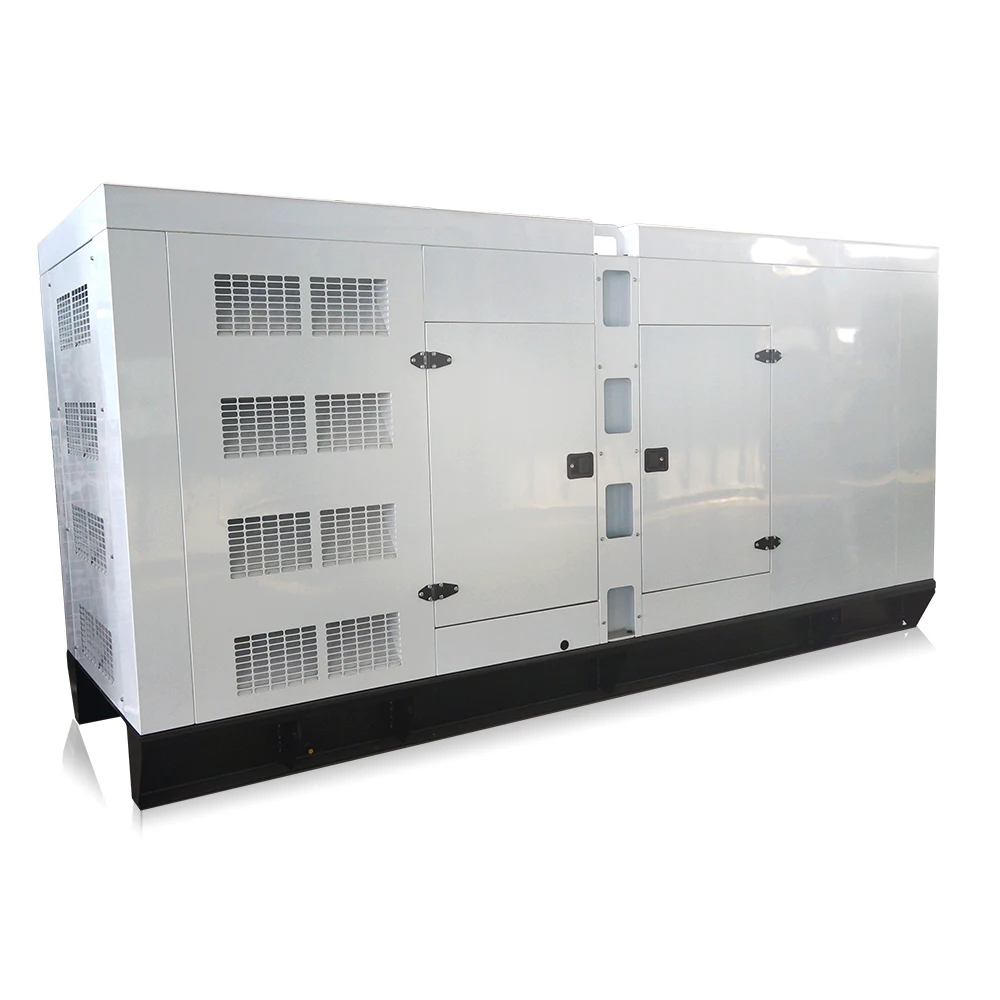

Hot Sale Single Or 3 Phase 500 Kva 400 Kw Silent Type Diesel Generator Powered By Cummins Engine With Ce Iso Certificate
- Category: >>>
- Supplier: Shandong Huali Electromechanical Co. Ltd.
Share on (1600427166383):
Product Overview
Description
Single or 3-phase 500kva 400kw diesel generator powered by Cummins engine silent type with ATS low price with CE ISO Certificate
Product Paramenters
Prime power(KW) | 400 | Full load fuel consumption(g/kwh) | ≤206 |
standby power(KW) | 440 | Fuel model | Chinese No.0(Under room temperature) |
Generator capacity(KVA) | 500 | Coolant flow(m3/min) | / |
Rated RPM(RPM) | 1500 | Gas rate(m3/min) | / |
Rated voltage(V) | 400 | Smoke exhaust rate(m3/min) | / |
Rated current(A) | 720 | Air exhaust rate(m3/min) | / |
Rated frequency(Hz) | 50 | Cooling mode | Closed water cooling |
Rated power factor | 0.8 | Lubricate capacity(L) | 50 |
Phase No. | 3 | Coolant capacity(L) | 106 |
Generator reference weight | 3650 | Reference weight(kg) | 1855 |
Generator reference size(long*wide*height) | 3580*1310*2030mm | Alternator model | HLF-400 |
Engine model | KTA19-G3A | Rated voltage(V) | 400 |
Engine rated power(KW) | 448 | Rated frequency(Hz) | 50 |
Engine standby power(KW) | 504 | Rated RMP | 1500 |
Engine structure characteristics | Four-stroke, turbo charger | Power factor | 0.8 |
Cylinder/arrangement | 6 cylinder/V type | Phase and wiring mode | Three-phase Y type |
Bore*stroke(mm) | 159*159 | Efficiency(%) | 95.19 |
Displacement(L) | 19 | Excitation mode | Brushless excitation |
Compression ratio | 13.9:1 | Insulation grade | H |
Start mode | Electronic start | Protection grade | IP21 |
Reference weight(Kg) | 1308 |
KTA19-G3A diesel Engine
Belt drive system : Belt drive system with tensioner offering automatic belt tension.
Maintenance: Both cylinder bore and cylinder head valve guide tube can be repaired by resisting.
Connecting rod: Alloy steel with high strength and inclined cutting.
Crankshaft: Alloy steel with whole bearing supporting and bearing and round corner harden.
Cylinder block: Dragon door style cylinder block without liner and with water pump turbo house resisted.
Fuel system: AD fuel injection pump with electrical governor or mechanical governor.
Garret turbocharger: Bypass high efficient turbocharger.
Piston: Silicon- aluminium alloy piston with dual Ni-resist and oil cooling.
Starting function: Be started at -12℃ without assistant installation; Be started at -35℃ with assistant installation.
Fuel consumption: Excellent fuel consumption with B.S.F.C 215g/kw.h.
Construction characteristic: Simple and compact construction, fewer components and light weight.
Huali Alternator
Wiring design: alternator wiring adopts 2/3 pitch winding unique technology new sine winding design, to avoid excessive neutral currents under the circumstances of the generator asymmetric load, nonlinear load, parallel connection
Fully damp design:Rotor complete continuous and stable strong damp structure design, strengthen the alternator anti- interference capability, to ensure the alternator stable running and non oscillation under different working condition
Excitation system design: unique orthogonal brushless harmonic excitation principle design excitation system, to ensure alternator
self-excitation and dynamic self-following future, unique AVR design to ensure good adjusting and control protection
characteristics

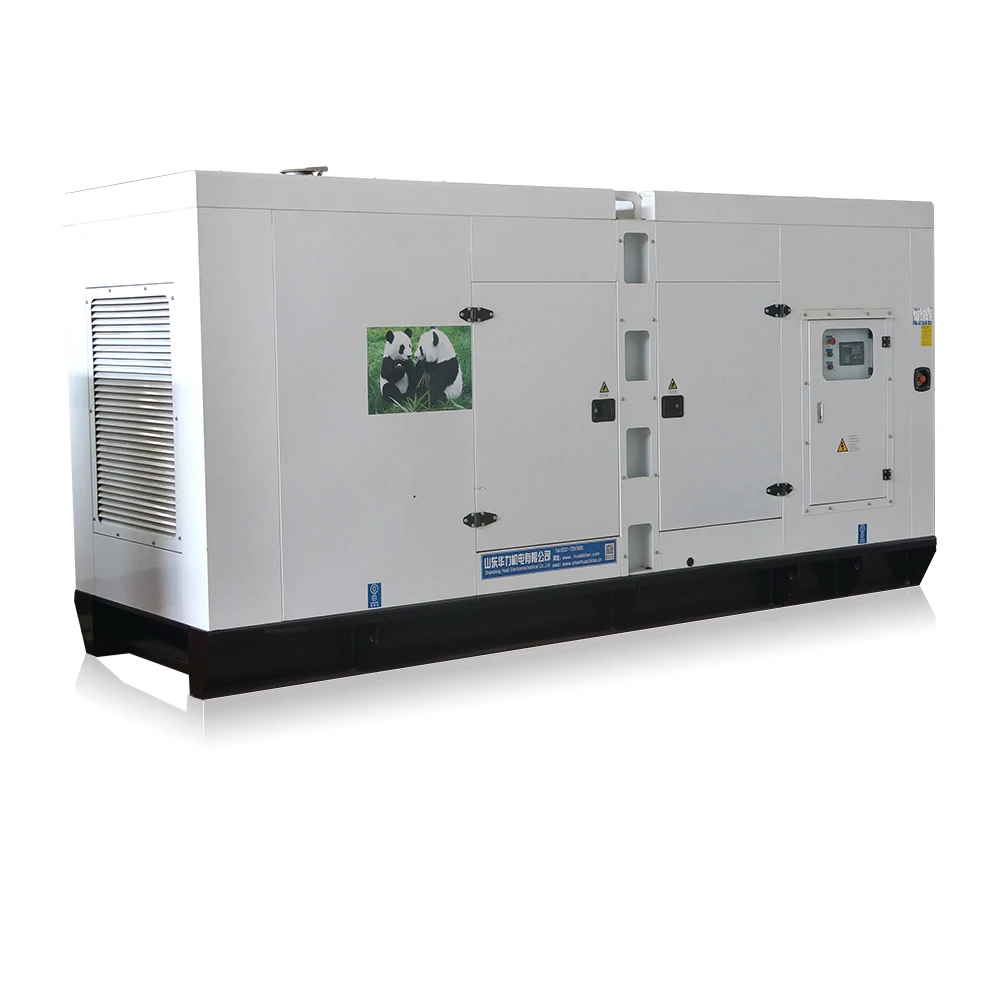

Product Display

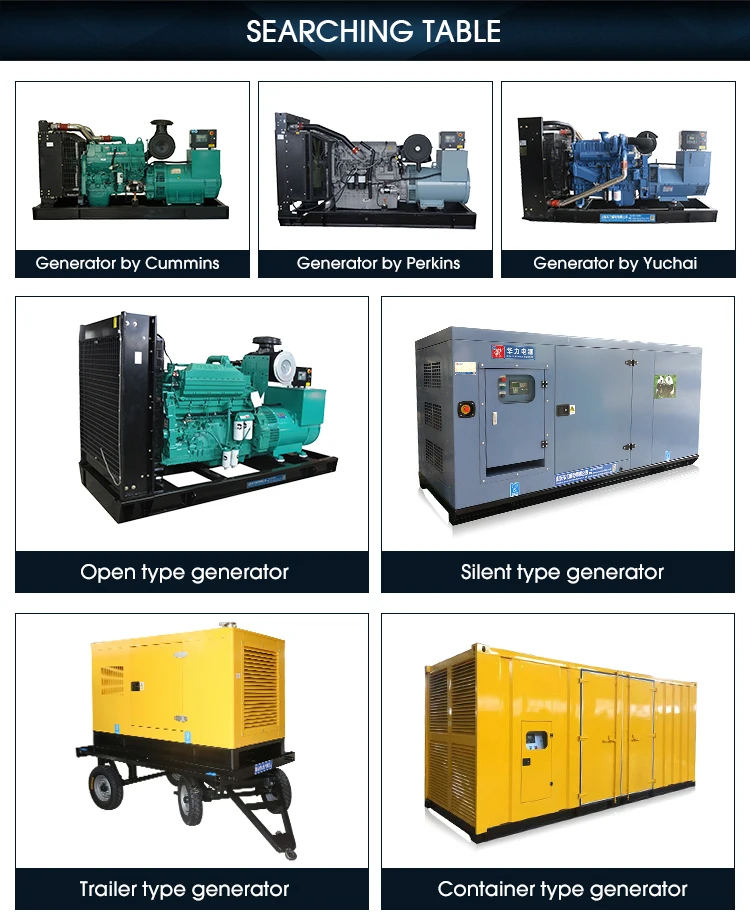

Searching table
Diesel Generator Set Searching Table | ||||||

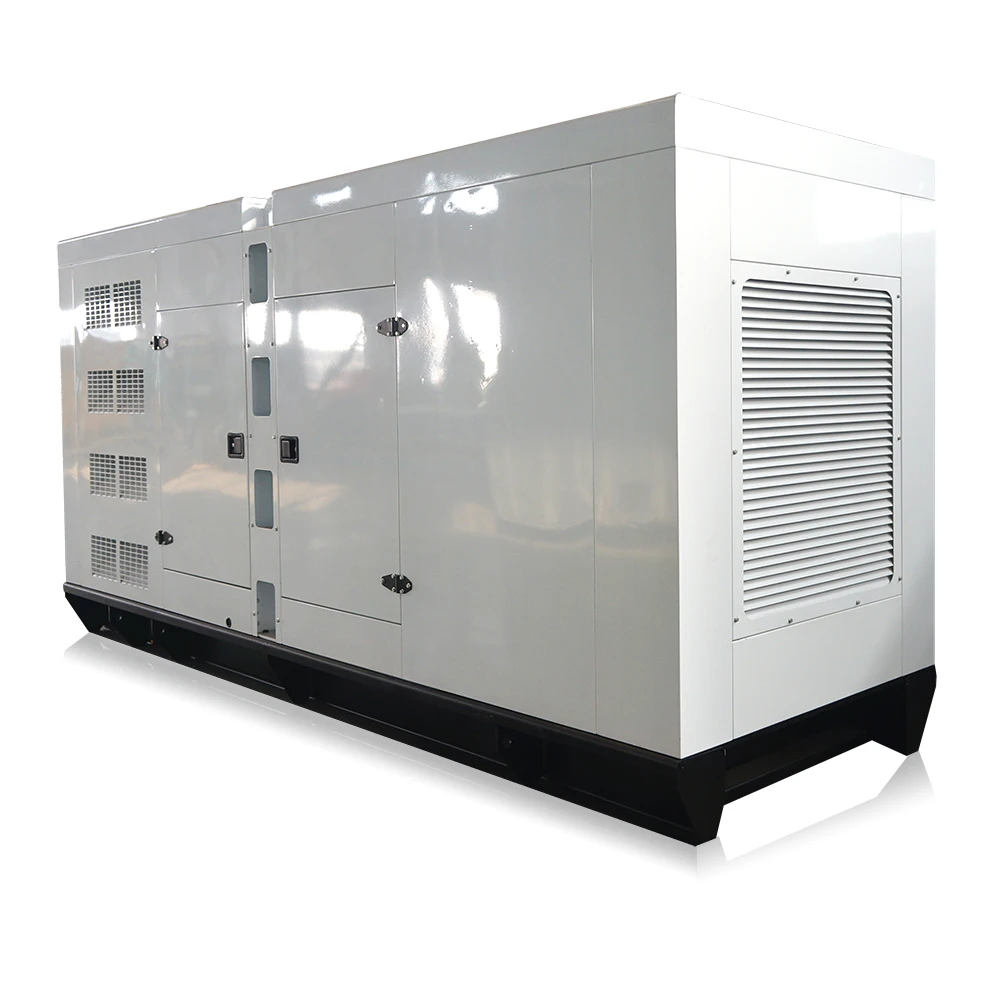

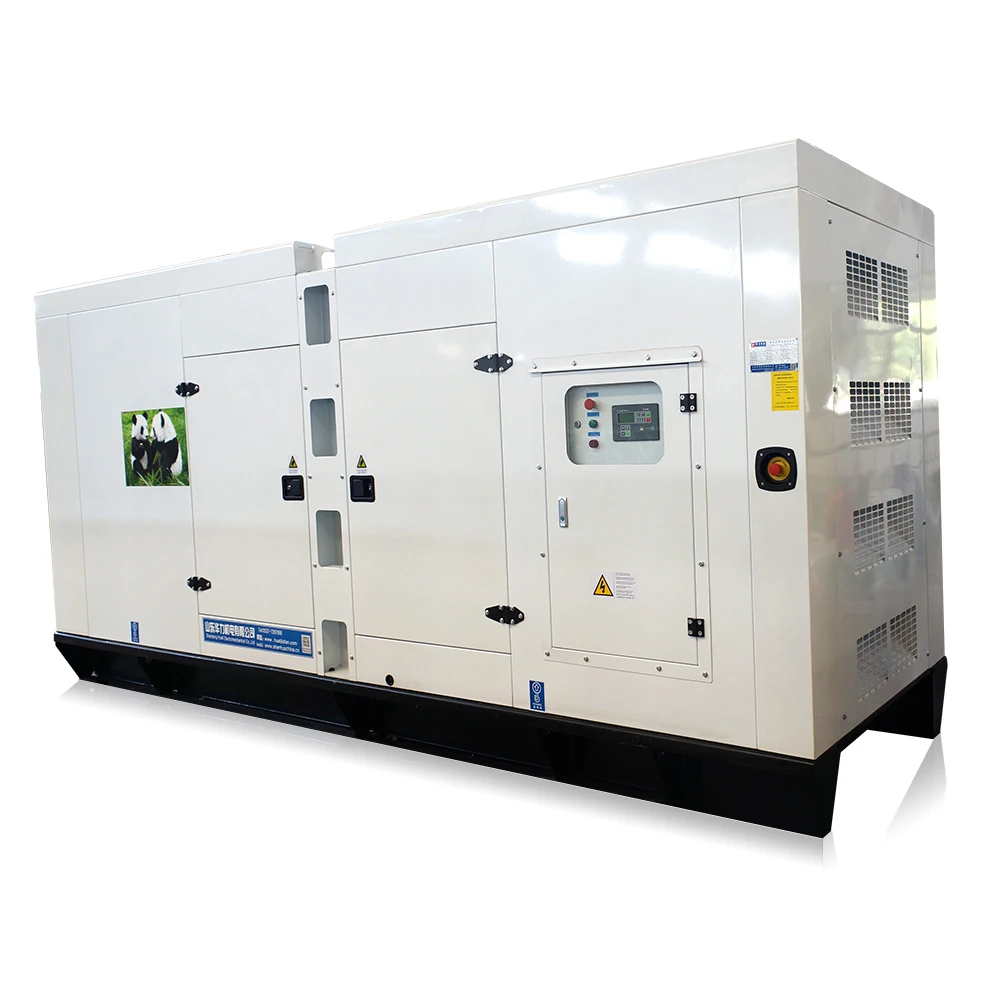

Details Images
Packing & Shipping

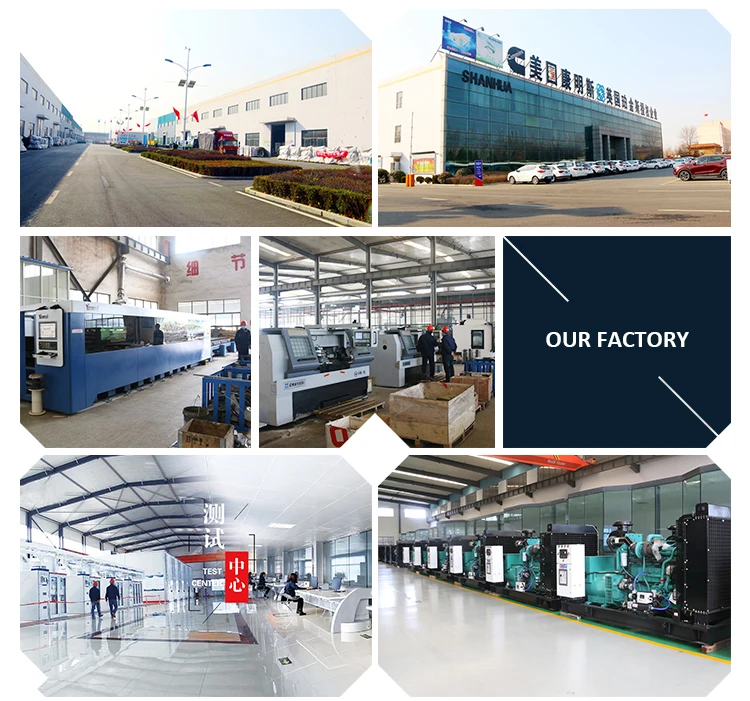

Company Profile
Shandong Huali Electromechanical Co., Ltd. which is located in Jining city, Shandong province, was established in 1999, covering an area of 300 thousand square meters,with a registered capital of USD 43 million.

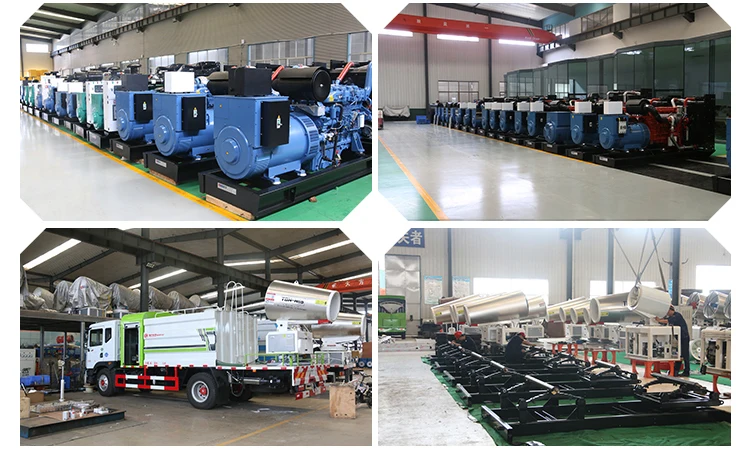

Our company mainly produce all kinds of generator sets, fog cannon and AGV robot. We have 600 employees including 80 engineers and technicians, 6 ordinary producing lines, 10 high precision AGV robot producing lines, and we own more than 300 sets NC equipment, and one national standard testing center. We are honored as “Abide by contract and Keep faith” enterprise. Our products are authorized by ISO9001 certificate, CE certificate, CCC certificate, etc. Through the development during tens of years, our company has become the leading company of generator set industry in north of China and the leading company of fog cannon industry in China. We will continuously create value for customers, and achieve the common goal of win-win cooperation.
Our company mainly produce all kinds of generator sets, fog cannon and AGV robot. We have 600 employees including 80 engineers and technicians, 6 ordinary producing lines, 10 high precision AGV robot producing lines, and we own more than 300 sets NC equipment, and one national standard testing center. We are honored as “Abide by contract and Keep faith” enterprise. Our products are authorized by ISO9001 certificate, CE certificate, CCC certificate, etc. Through the development during tens of years, our company has become the leading company of generator set industry in north of China and the leading company of fog cannon industry in China. We will continuously create value for customers, and achieve the common goal of win-win cooperation.
