Portable Router 3g 4g Router Portable 3g Umts 4g Lte Wireless Router Pocket Wifi
- Category: >>>
- Supplier: Shenzhen Qinxin Technology Co. Ltd.
Share on (1600427213336):
Product Overview
Description
Product Description

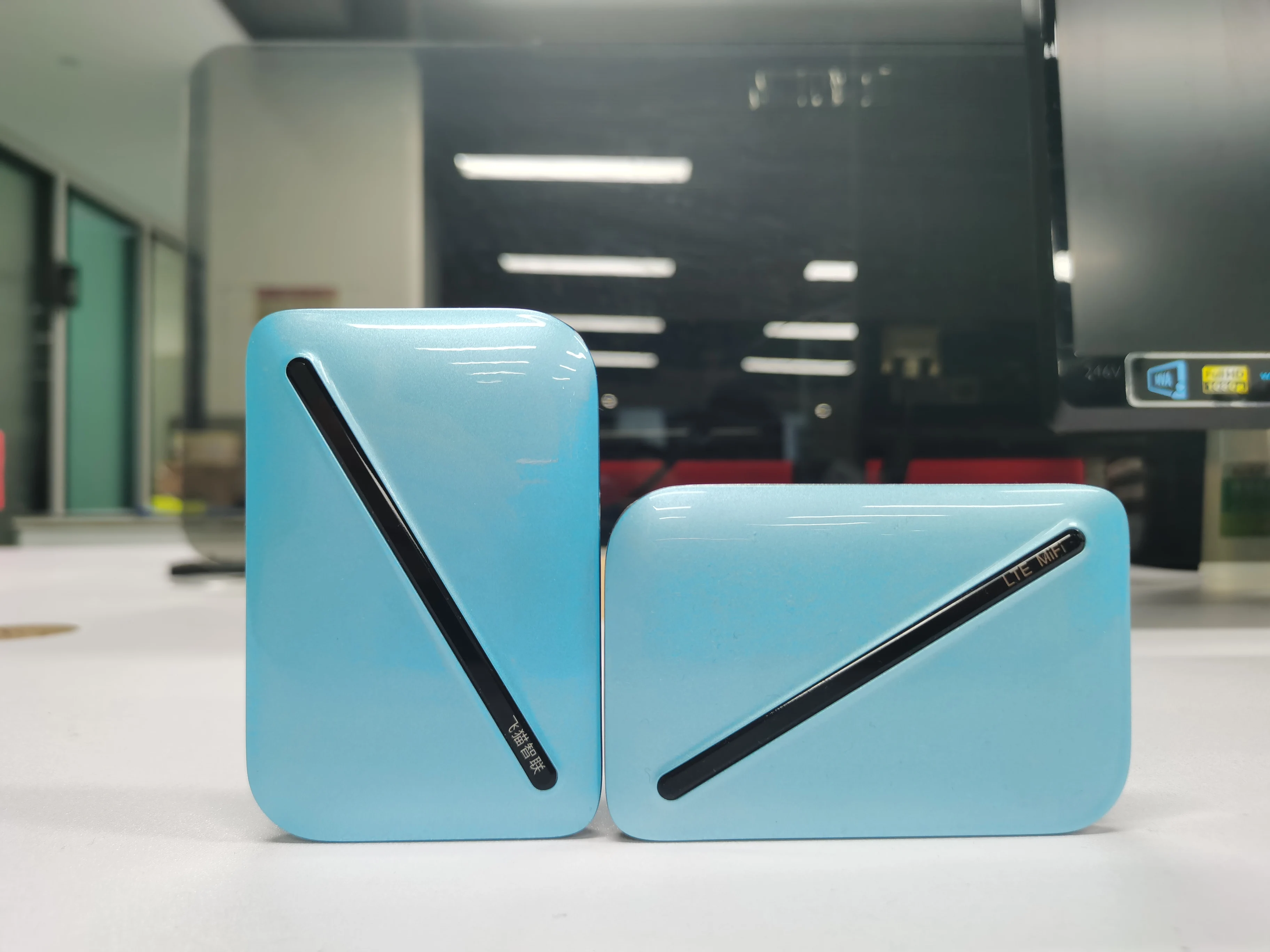

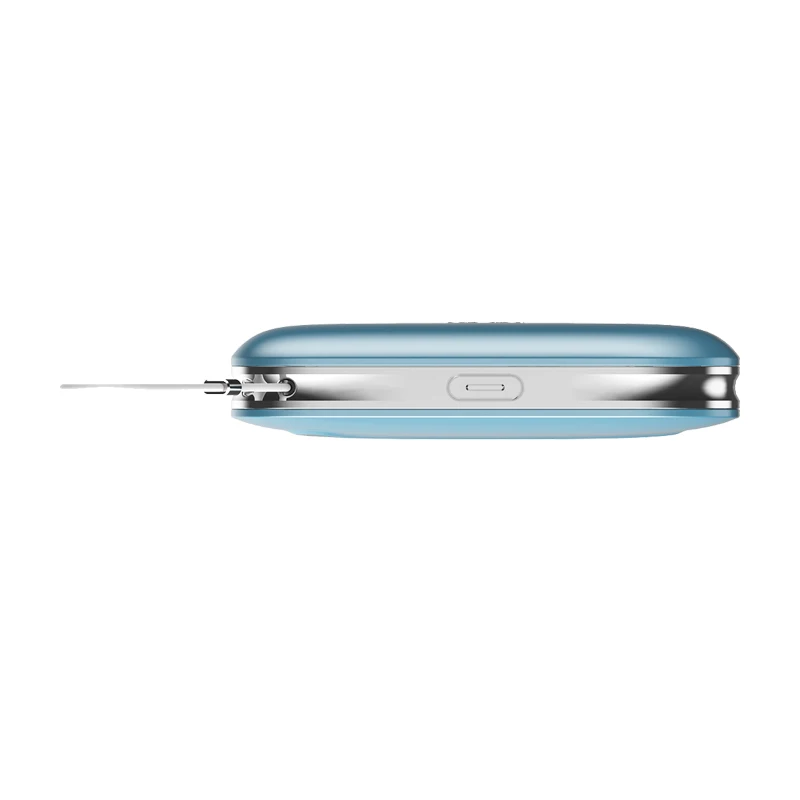

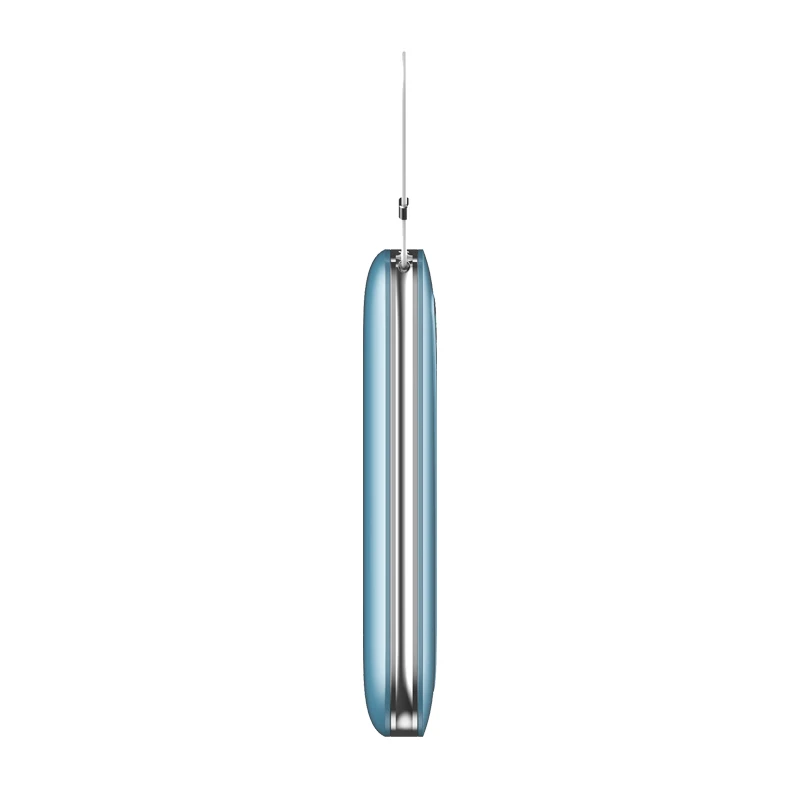

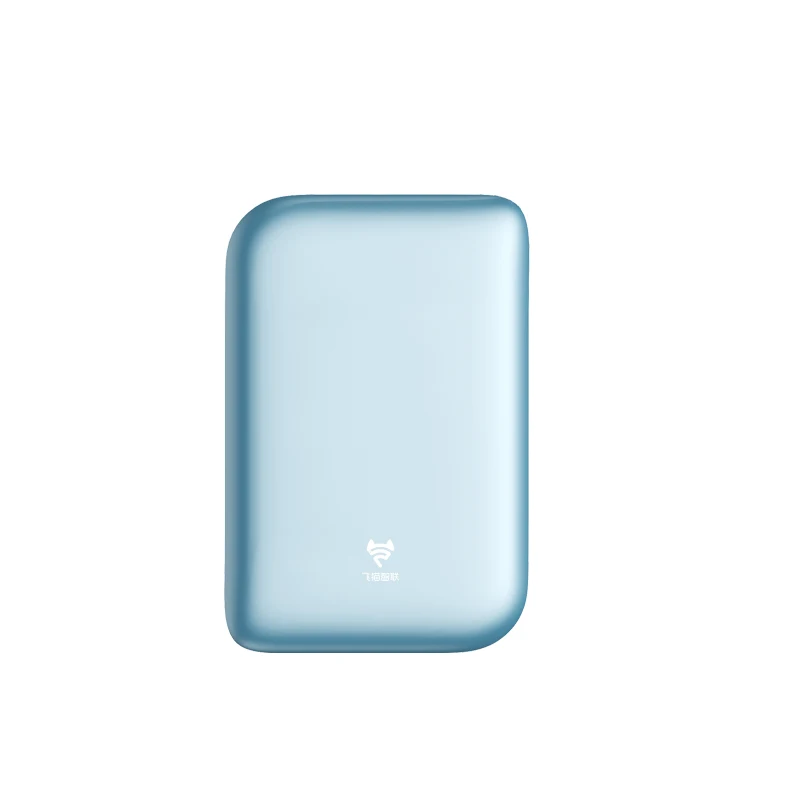

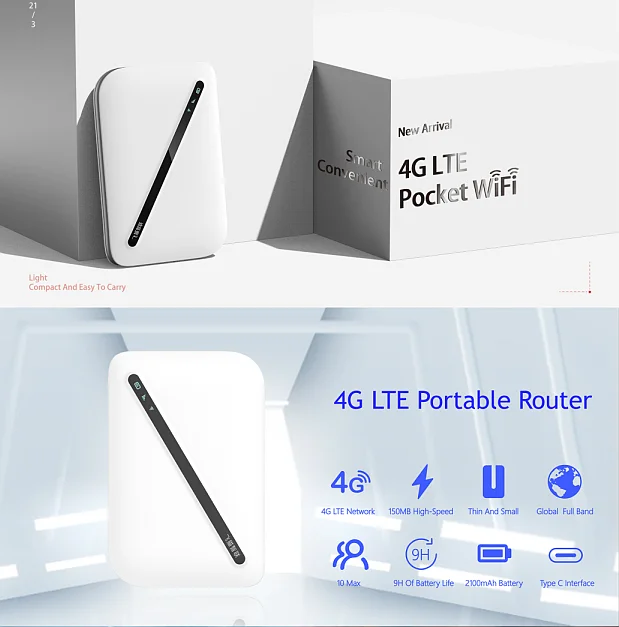

Portable Router 3g 4g Router Portable 3g Umts 4g Lte Wireless Router Pocket Wifi
| Basic Product Information | Item | Remark |
| Model | LTE portable router | LTE portable router/Wifi hot spot/ Pocket WiFi |
| Platform | UIS8310 | 4G LTE chipset, cat4 150Mbps |
| Band/Mode(Option) | GSM: 900/1800 Mhz UMTS:850/900/2100 Mhz FDD-LTE:B1/3/5/7/8/20 /28 TDD-LTE: B38/40/41 | other bands optional |
| Type | 4G Pocket WiFi with LED light | |

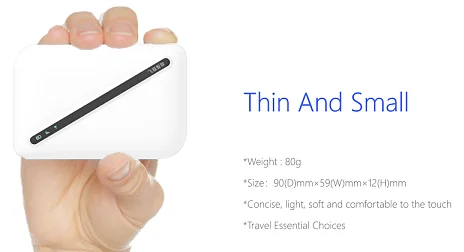

| Size(mm) | 90(D)mm×59(W)mm×14(H)mm | |
| Weight | 80g | |
| System memory | Nand 2Gb+DDR 1Gb | |
| HW Description | Item | Remark/Supplier |
| Main CPU or Co-CPU (MHz) | ||
| CPU (MHz) | ARMv7 Cortex-A5 -550MHz -600MHz | |
| GPRS | YES | 85.6 Kbps DL and 42.8 Kbps UL |
| EDGE | YES | 237 Kbps DL and 118Kbps UL |
| HSPA | YES | 14.4 Mbps DL and 5.76Mbps UL |
| HSPA+ | YES | 21 Mbps DL and 5.76Mbps UL |
| DC-HSDPA | YES | 42 Mbps DL and 5.76Mbps UL |
| TDD-LTE | YES | 61 Mbps DL and 18Mbps UL |
| FDD-LTE | YES | 150 Mbps DL and 50Mbps UL |
| Memory | ||
| System memory | Nand 2Gb+DDR 1Gb | |
| WIFI | ||
| Frequency Band | 2.4GHz | |
| 802.11b/g/n | up to 150Mbps | |
| User amount | Max to 8 | |
| SSID | single SSID Broadcast | service set identifier |
| WPS | supported | wifi-protected setup |
| Interface | ||
| Antenna | 4G/3G/2G Main antenna 4G MIMO/3G Rx Diversity Antenna WIFI antenna | internal, MIMO 2x2 |

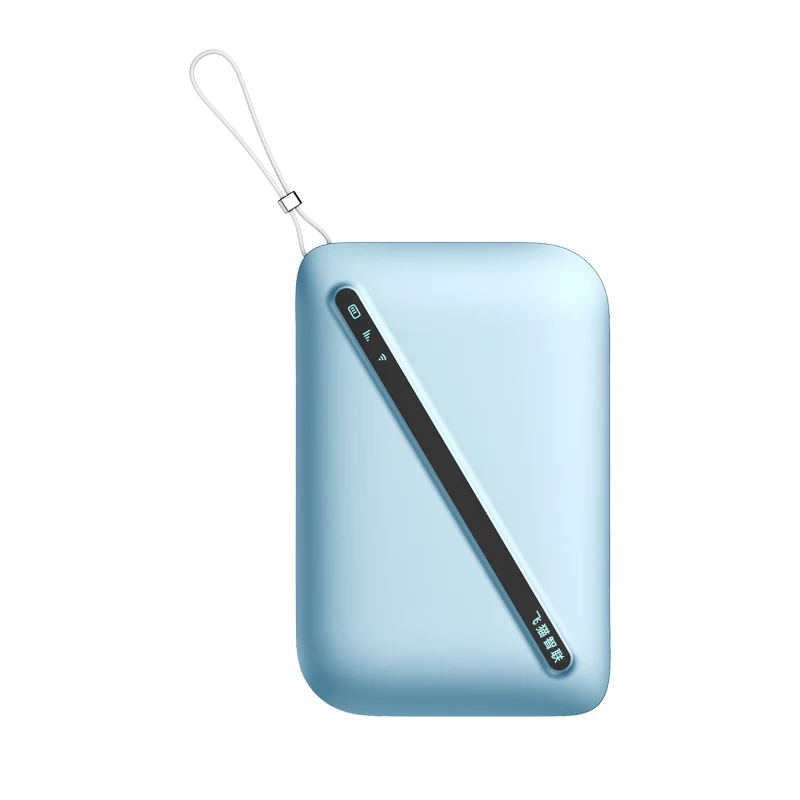

| LED | YES | LED indicators |

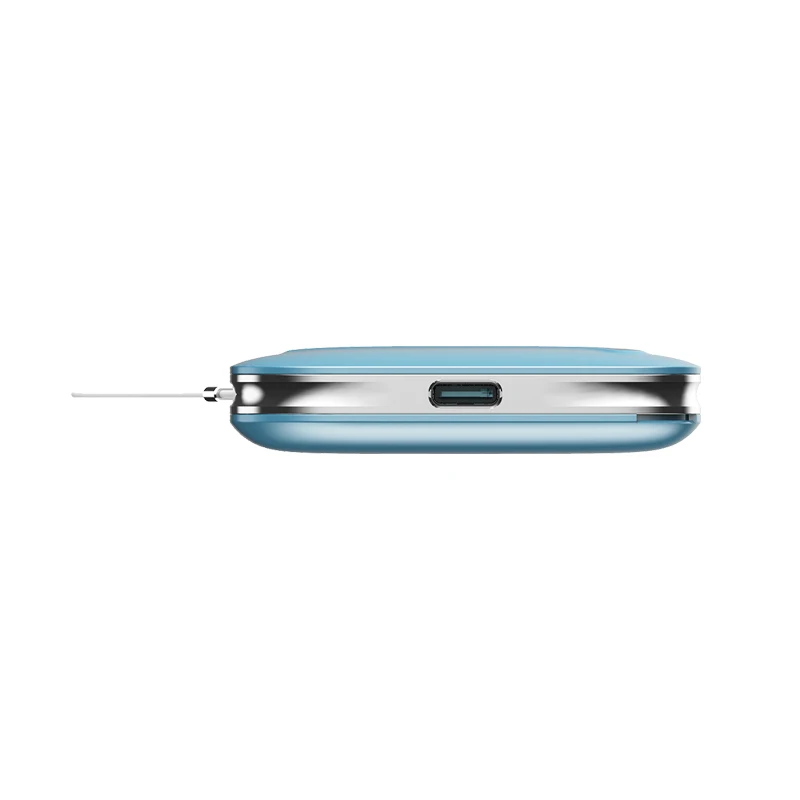

| USB | USB , Type C | USB 2.0 High Speed |
| SIM/USIM Card slot | YES | 2FF ,Standard 6 PIN SIM card interface |
| T flash Card slot | NO | not support |
| Button | ||
| power | YES | |
| WPS/WIFI | WPS | |
| reset | YES | |
| Battery | Item | Remark/Supplier |
| Lion battery 2 | 2100mAh | working time about 8 hours, standby 200 hours |
| Other Description | Item | Remark/Supplier |
| Electrical performance spec | ||
| RF Power Spec | Class 3 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900 | |
| Power supply input | YES | 3.4-4.2 V |
| Environmental reliability test condition | ||
| Normal Operation | 0°C to +45°C | |
| Restricted Operation | -20°C to +55°C | |
| Storage | -20°C to +70°C | |
CompanyInformation
certifications
FAQ
FAQ
- QCan I get the pre-production sample ?
- ASure, it is welcome, we will send you sample, after you confirm,But you need to pay the postage.
- QWhen you ship my order?
- ANormally 4-7 days after receiving your payment, but it can be negotiated based on order qty.
- QHow do you ship the goods?
- ADHL, UPS, FedEx or TNT, Airline and sea shipment are also available.
- QWhen can i get the price?
- AWithin 24 hours. Once receive your inquiry we'll offer you as soon as possible, so don't hesitate to contact us.
- Click Here into Our Homepage
Please don't hesitate to contact us at any time!
Your Best Partner from China!
Please Send Your Inquiry Details in the Below , Click " Send " Now !

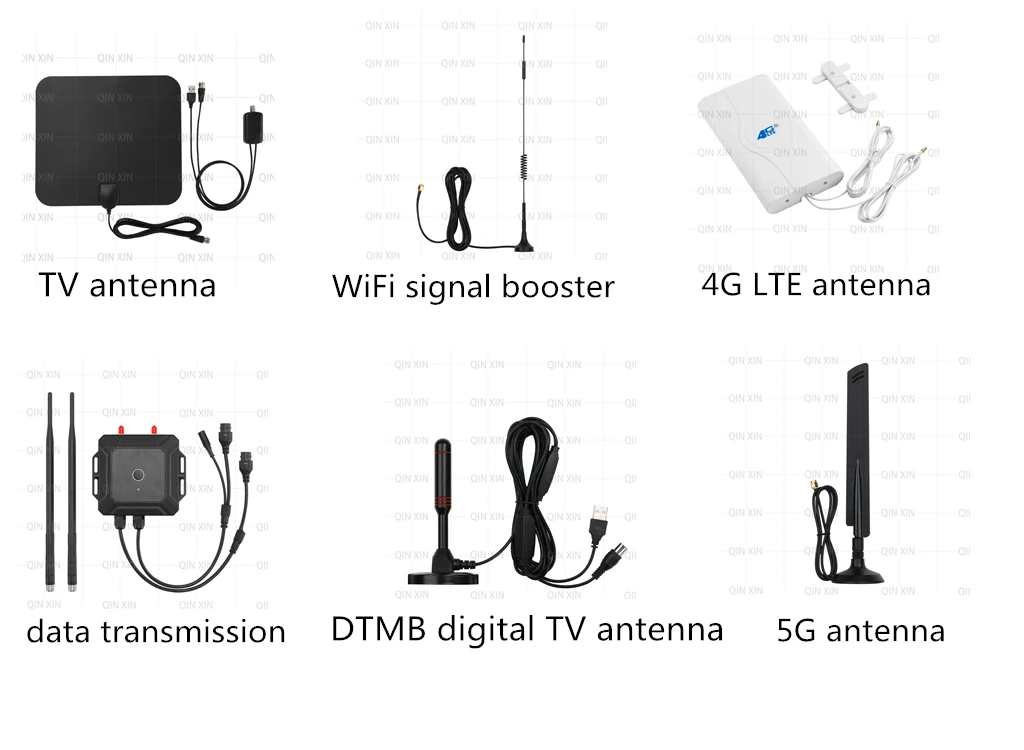

other products
you can check the frequency from the website :
https://en.wikipedia.org/wiki/List_of_LTE_networks
Usually most of 4G frequency in different markets as below :
Europe market :4G B1/7/20 (800/1800/2600MHZ)
American market :4G B2/4/5/7/12/17(700/850/1700/1900MHZ)
Asia market :4G B1/3/5/7(850/1800/2100/2600MHZ) &B40(2300MHZ)
Africa market :4G B1/7/20 (800/1800/2600MHZ)
