One piece casting lathe machine 3 meter C6250C break lathe machine
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (1600427311300):
Product Overview
Description
One piece casting lathe machine 3 meter C6250C break lathe machine
Products Description

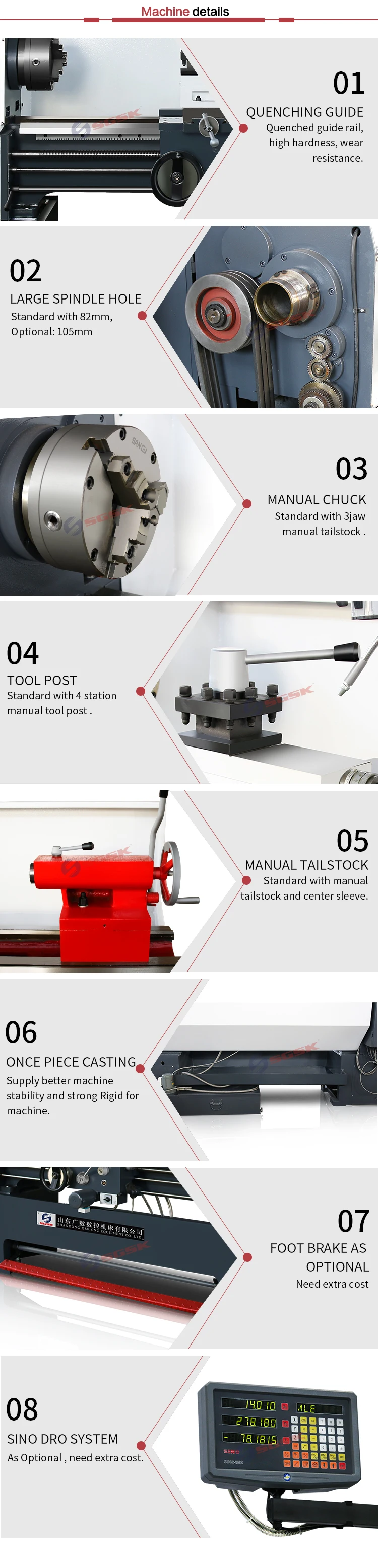

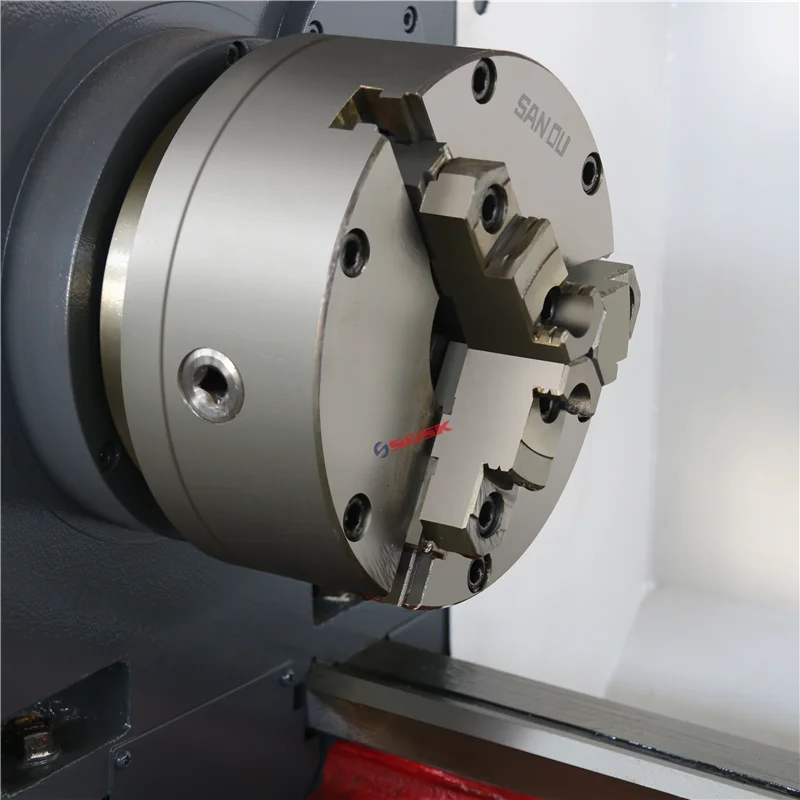

Details Images
Product Paramenters
Features:
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
Product main technical specifications:
Specifications | C6250C | ||
Capacity | Max. Swing over bed | 500mm | |
Max. rotating diameter | 300mm | ||
Max. swing over gap | 720mm | ||
Center distance | 750/1000/1500/2000mm | ||
Spindle | Spindle hole | 52mm(82mm) | |
Spindle nose | ISO-C6(C8) | ||
Spindle tap | MT6 | ||
Spindle speeds(Number) | 36-1600rpm (12 Steps) | ||
Feed | Metric threads range(Kinds) | 0.5-14mm (18 Kinds) | |
Inch threads range(Kinds) | 2-40/inch (28 Kinds) | ||
Module threads range(Kinds) | 0.25-3.5mπ (17 Kinds) | ||
Compound rest travel | 150mm | ||
Cross slide travel | 180mm | ||
Cross-section size of tool shank | 20×20mm2 | ||

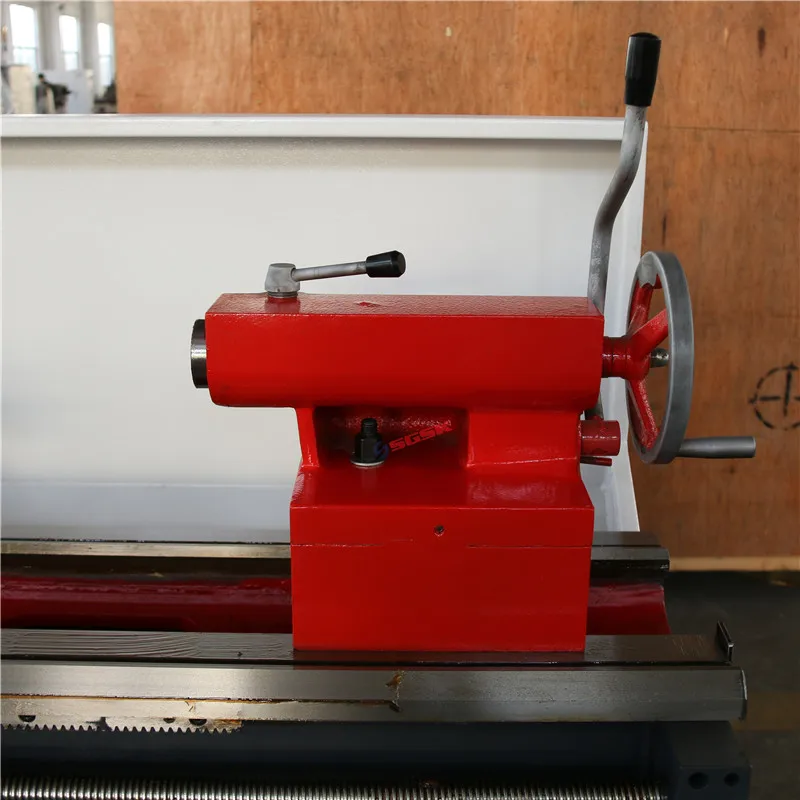

Tailstock | Dia. of tailstock sleeve | 75mm | |
Taper of tailstock sleeve | MT5 | ||
Travel of tailstock sleeve | 160mm | ||
Main motor power | 5.5/7.5 | ||

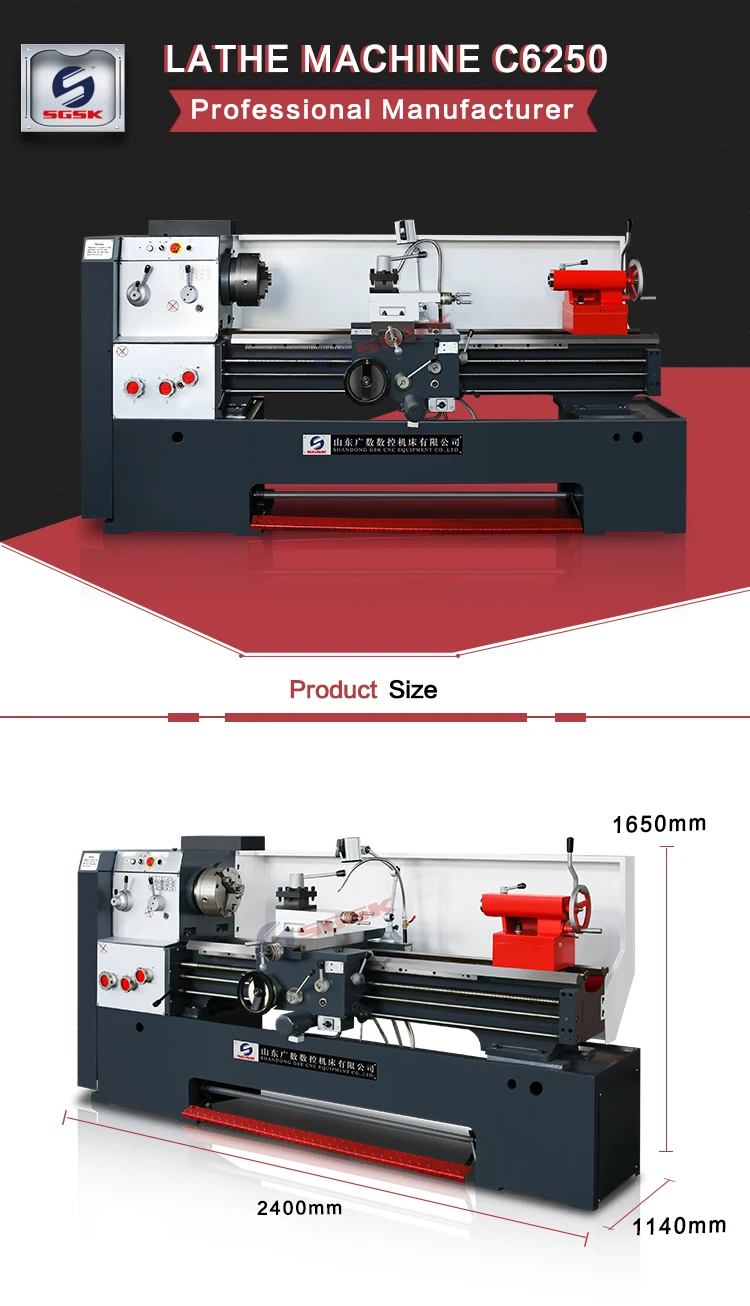

Machine size (L*W*H mm) | Overall dimensions for750mm | 2100×1150×1550mm | |
Overall dimensions for1000mm | 2350×1150×1550mm | ||
Overall dimensions for1500mm | 2850×1150×1550mm | ||
Overall dimensions for2000mm | 3350×1150×1550mm | ||
Weight(kg) | Weight for 750mm | 1700kg | |
Weight for 1000mm | 1800kg | ||
Weight for 1500mm | 2000kg | ||
Weight for 2000mm | 2200kg | ||
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
