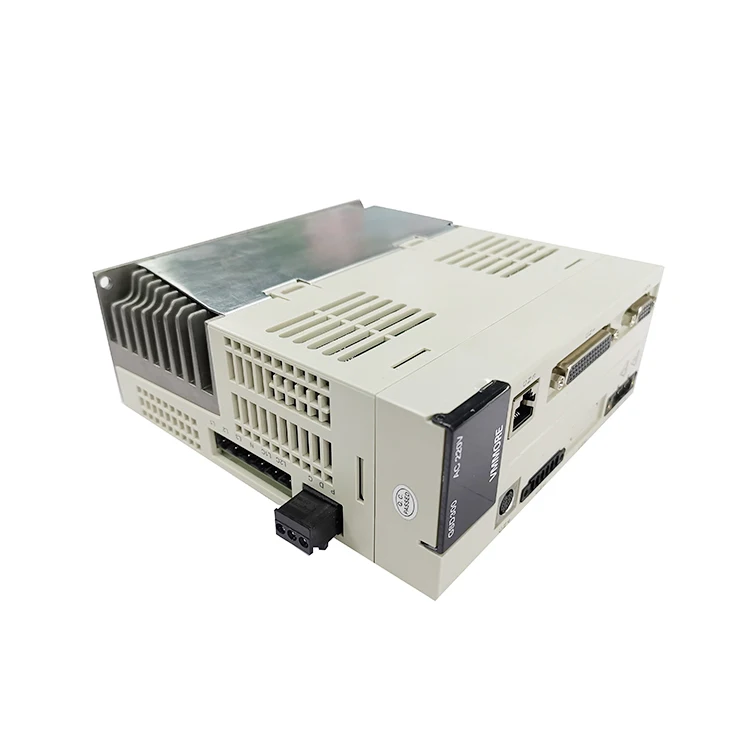

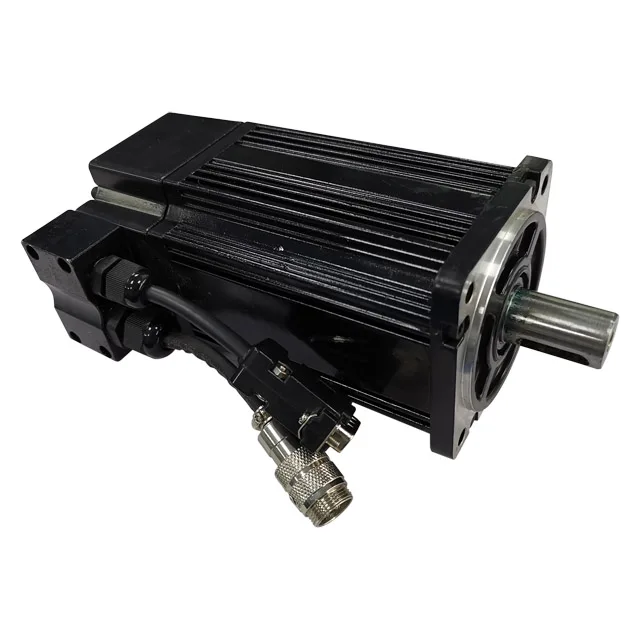

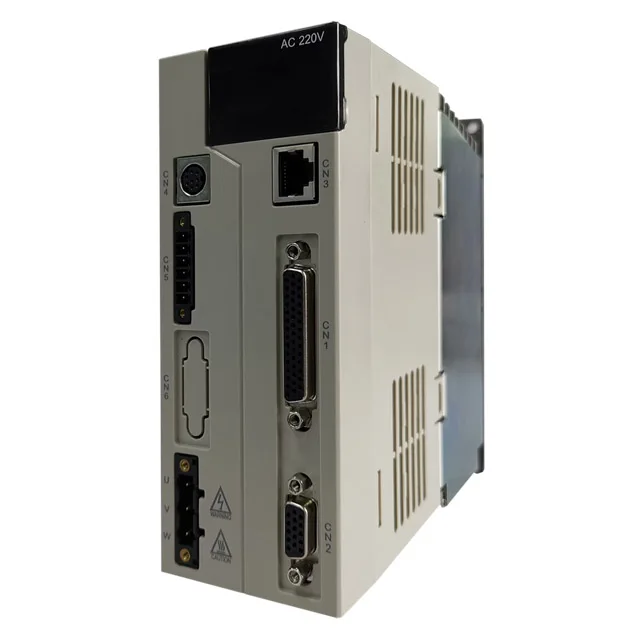

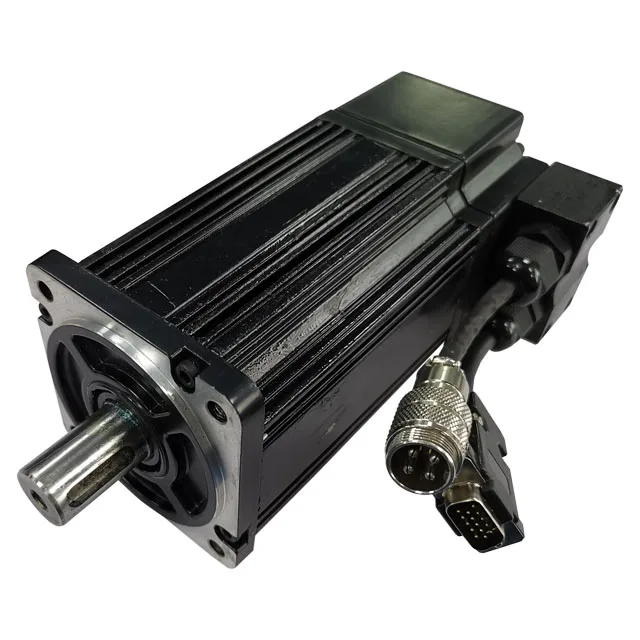

DC Servo Motor And Servo Drive

Model

DSXSE-02C3006GB

DSXSE-7.5C3009GB

DSXSE-30C2015AGF

DSXSE-30Z1018GBH

Rated Power(kw)

200

750

3000

3000

Rated Voltage(V)

220

220

220

220

Rated Current(A)

1.4

4

18

16

Rated Rotary Speed(rpm)

3000

3000

2000

1000

Rated Rotary Torque(N.m)

0.64

2.39

14.5

28.6

Peak Torque(N.m)

1.91

9

30

57

Voltage Constant

(V/1000rpm)

30.9

51

75

130

Torque Coefficient

(N.m/A)

0.53

0.8

1.15

1.8

Rotor Inertia

(10^4kg.m2)

0.18

2.45

0.4

66.5

Resistance(υ)

11.7

1.66

0.5

0.478

Inductance(mH)

22.5

7

1.7

5.4

Electrical Time Constant(ms)

5

2.2

4.61

1.42

Weight(kg)

1.4

3.3

15.2

23.2

Encoder Line Number(PPR)

2500

2500

2500

2500

Insulation Level

Class B

Class B

Class B

Class B

Protection Level

IP65

IP65

IP65

IP65

Operation Environment

Temperature:-20℃~+40℃    Relative Humidity:<90%
