Professional Manufacturer Grading Dewatering Add Edge Vibrating Screen
- Category: >>>
- Supplier: Henan Yuanzhen Machinery Equipment Co. Ltd.
Share on (1600427361194):
Product Overview
Description
Products Description

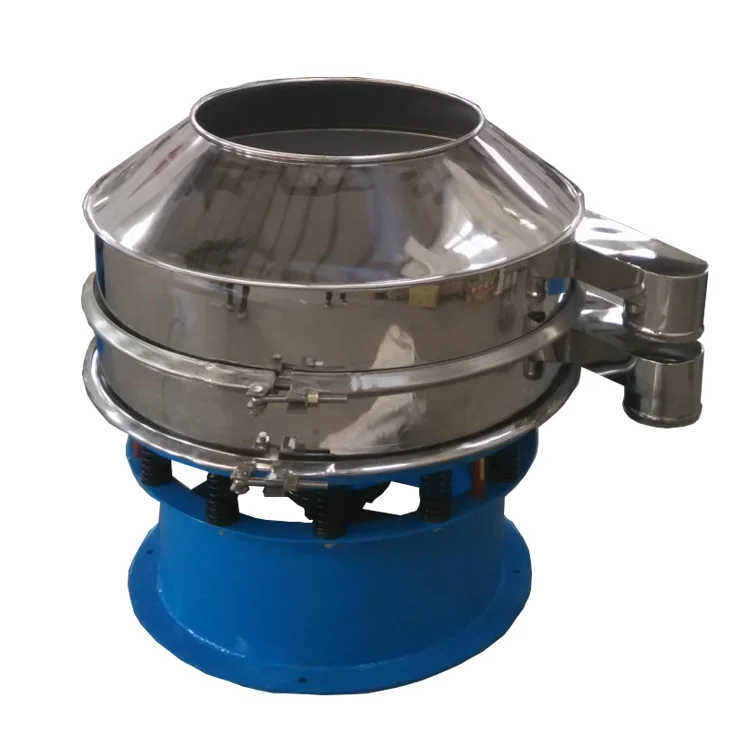

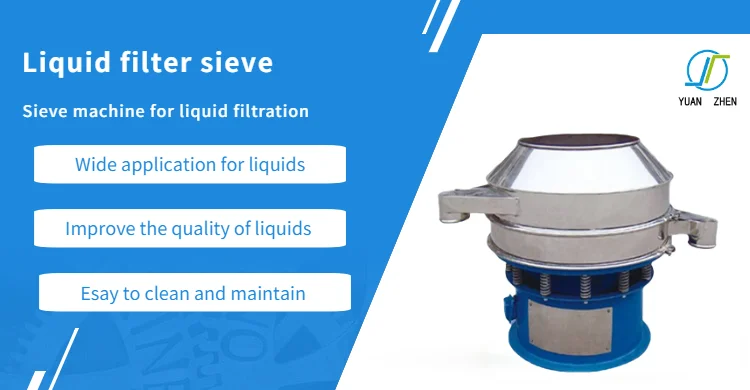

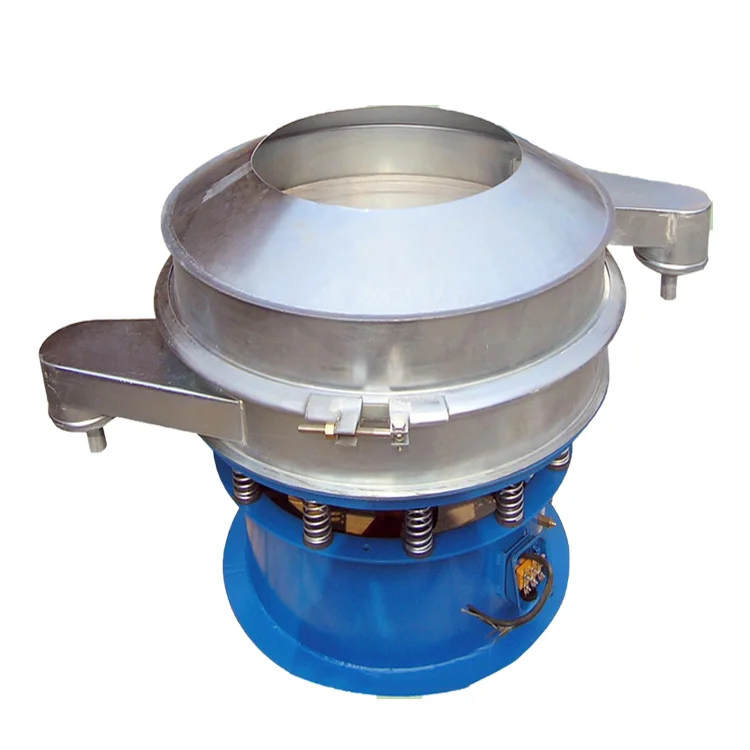

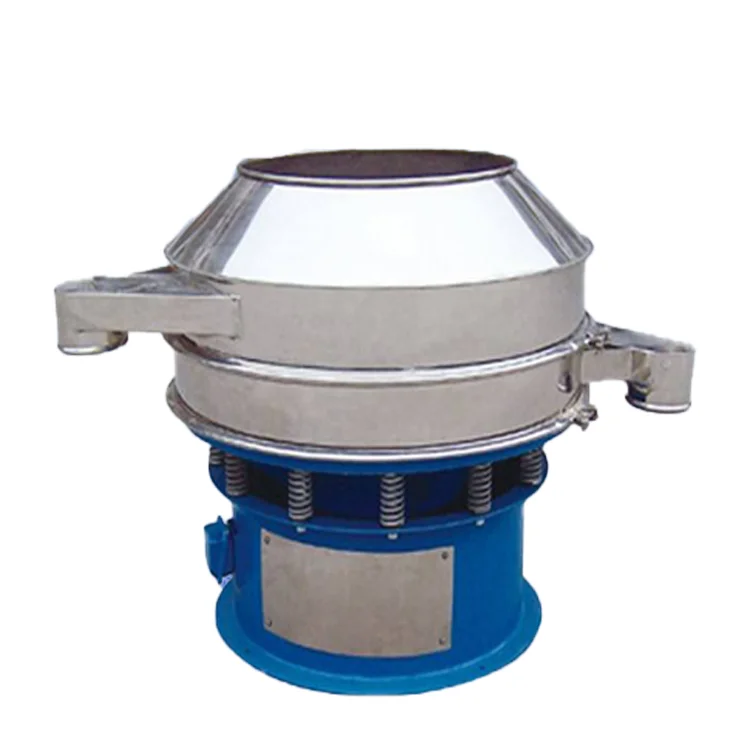

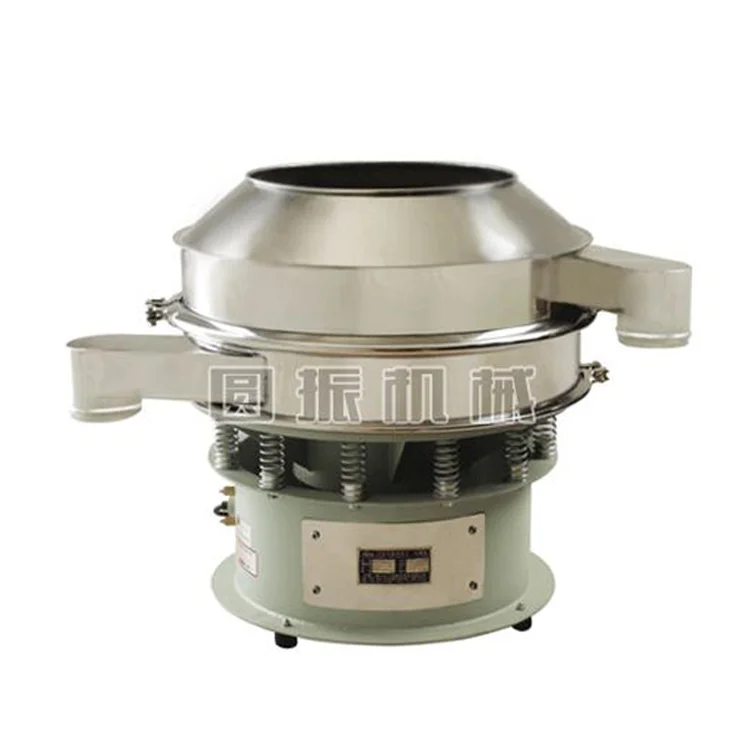

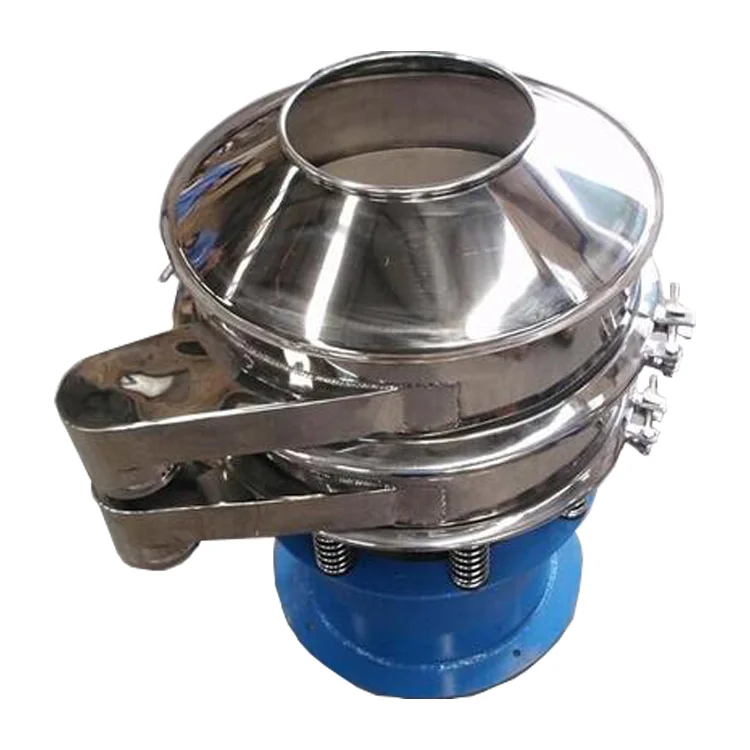

Special screening machines for solid-liquid separation - Add edge vibrating screen
Add edge vibrating screen is a kind of high efficient sieving and filtering machine, which has remarkable effect on sieving and processing of liquid products such as ceramics, pigments, high-grade paints, fruit juices, etc. It is a typical liquid vibrating screen.
Impurities can be discharged automatically, and the rimmed design is convenient for you to observe the sieved and filtered products more directly, fine up to 25 microns. The rimmed rotary vibrating screen is suitable for dry screening and classification of powder, granular, fibrous materials or slurry, and is a new type of high-precision fine particle screening equipment.
Grading and screening: the mixture of different particle sizes is continuously screened and selected to become different size levels of specification products. Screening impurities: high flow powder material processing, quickly remove the content of few large particles or microfine powder.
Solid-liquid separation: the rapid removal of non-soluble solids from various types of slurries.
Slurry impurity separation: remove unqualified impurities from the slurry.
Slurry impurity separation: remove unqualified impurities from the slurry.
Structural principle
The material enters the equipment through the inlet, and according to different material screening requirements, the material passes through 1-5 layers of metal woven screen mesh with different mesh numbers, in this process, the screen cleaning device (bouncing ball) under the screen mesh in each layer continuously hits the screen mesh through frequency vibration, so that the material on the screen mesh can be smoothly screened through the mesh, and effectively solve the problem of material blockage, and the material with different mesh numbers passes through the After each layer of the corresponding mesh screen, in each layer of the discharge port, and finally achieve the purpose of screening out the miscellaneous or filtering classification.
1. Effectively improve the feeding volume and prevent the material from splashing.
2. Easy to observe the sieving of the screen and materials.
3. mature technology, reliable quality.
4. high screening accuracy, high efficiency, suitable for sieving all kinds of powder, viscous liquid, slurry and other materials.
5. exquisite and durable design, low noise, continuous operation.
6. Small volume, does not occupy space, easy to move.
7. Can be used in multiple layers, up to 5 layers.
8. It is easy to change the net, simple to operate and easy to clean. It only takes 3-5 minutes to change the screen.
9. the screen is not blocked, no dust overflow, can sieve 10-400 mesh or 0.028mm particle size materials.
10. coarse material, impurities automatically discharge, the direction of the outlet can be adjusted along the circumference of any change.
2. Easy to observe the sieving of the screen and materials.
3. mature technology, reliable quality.
4. high screening accuracy, high efficiency, suitable for sieving all kinds of powder, viscous liquid, slurry and other materials.
5. exquisite and durable design, low noise, continuous operation.
6. Small volume, does not occupy space, easy to move.
7. Can be used in multiple layers, up to 5 layers.
8. It is easy to change the net, simple to operate and easy to clean. It only takes 3-5 minutes to change the screen.
9. the screen is not blocked, no dust overflow, can sieve 10-400 mesh or 0.028mm particle size materials.
10. coarse material, impurities automatically discharge, the direction of the outlet can be adjusted along the circumference of any change.
Common Model
Model | Power(kW) | Screen mesh diameter(mm) | Number of screen mesh layers | |||
YZ-450 | 0.18 | 350 | 1~3 | |||
YZ-600 | 0.55 | 550 | ||||
YZ-800 | 0.75 | 760 | ||||
YZ-1000 | 1.5 | 930 | ||||
YZ-1200 | 1.75 | 1130 | ||||
YZ-1500 | 2.2 | 1430 | ||||
YZ-1800 | 2.2 | 1730 | ||||
Support customized production（Click here to get accurate quotation） | ||||||
Power | 0.55kw |
Customization | Customized packaging(Min. Order: 2 Sets) Graphic customization(Min. Order: 2 Sets) Customized logo(Min. Order: 2 Sets) |
Shipping | Support Express · Sea freight · Land freight · Air freight |
Support | 1 Year for machinery warranty 1 Year for Core Components |
Protection | Trade Assuranceprotection your alibaba.com order On-time Dispatch GuaranteeRefund Policy |
application | Special purpose for slurry separation, low energy consumption, large output, waterproof and dustproof, long use time |
certification | SGS |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | New Product 2021 |
Voltage | 220V / 380v |
Motor | Vertical Vibrating Motor |
Surface treatment | Mirror polish |
Function | Screening\\separation\\sorting\\ sieving |
Advantage | Special purpose for slurry separation, low energy consumption, large output, waterproof and dustproof, long use time |
Company Profile
Packaging & Shipping
FAQ
Q:What is the quality of the product?
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
