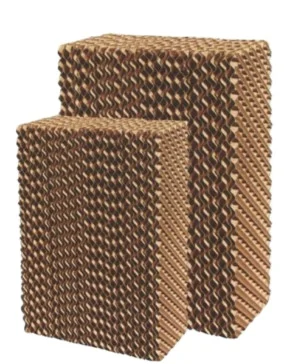

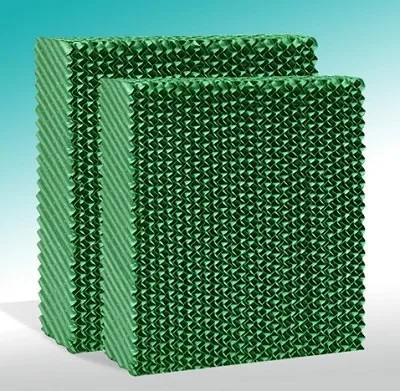

Hot Sale Evaporative Cooling Pad for Greenhouse and Poultry Farm
- Category: Agricultural Equipment >>>
- Supplier: Qingzhou Big Cubic Industry And Trade Co. Ltd.
Share on (1600427371089):
Product Overview
Description
Products Description
Performance Features
●Special treatment of corrugated paper, high structural strength, corrosion resistance, long service life;
●With excellent penetrability and water absorption , it can ensure that the water evenly penetrates the entire wet curtain wal;
●The specific three-dimensional space structure provides the largest evaporation surface area for the heat exchange between water and air;

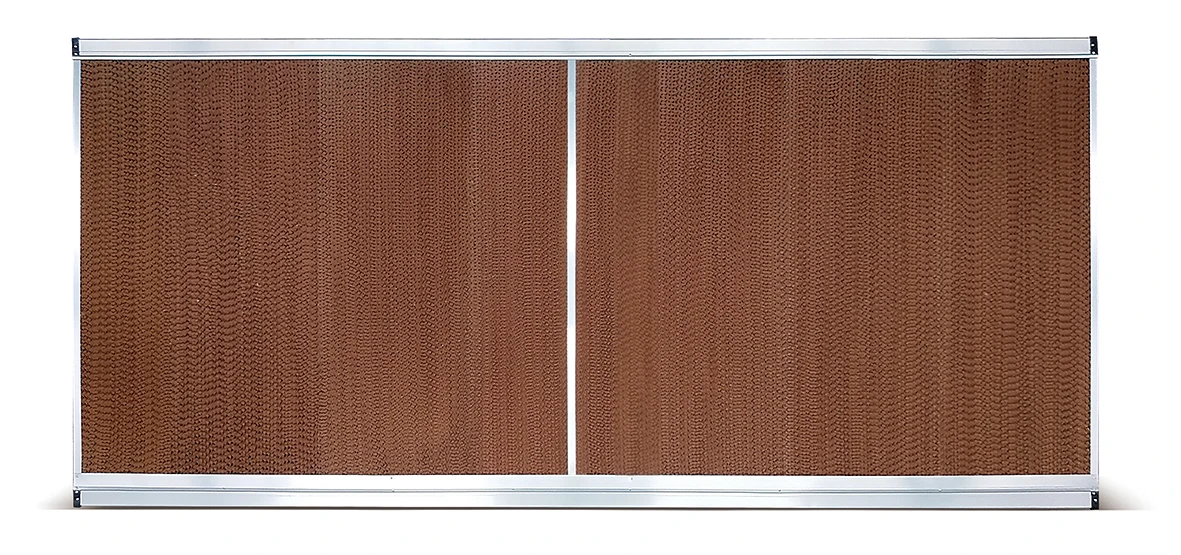

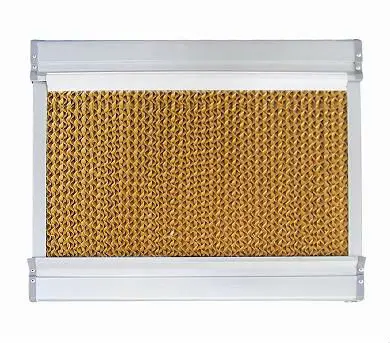

The outer frame is available with aluminum alloy and galvanized sheet.

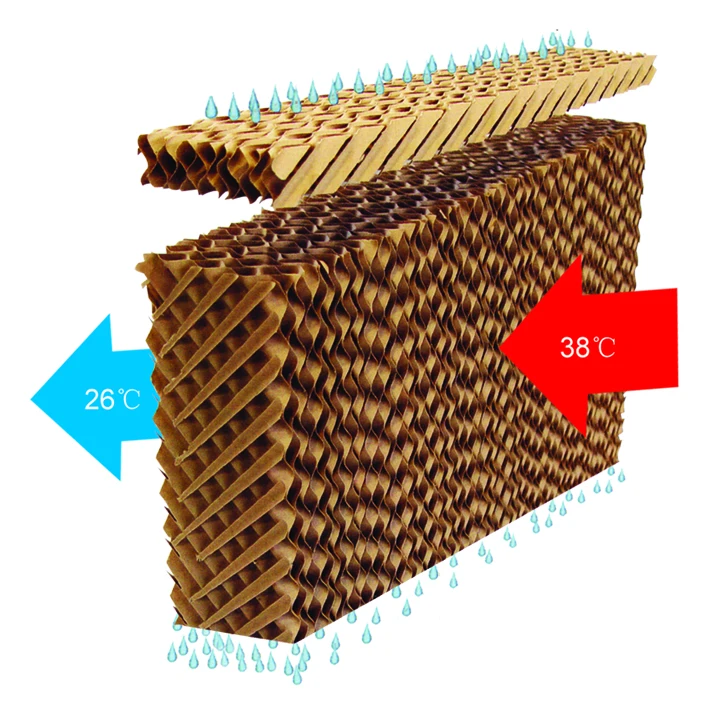

●The coling process of the DLF wet curtain cooling system is completed in the base core-DLF paper pad.
There is a thin water fim on the surface ofthe corrugated fiber paper.When the outdoor dry hot air is sucked by the fan through the paper pad,
the water The water on the membrane willabsorbthe heat in the air and evaporate in the water vapor, so that the cool and humid airafter reatment wil ener the room,
This natural procss s ike windblowing across the water.
●"Wet curtain-fan" longitudinal ventilation cooing combination is the most economical and effectve greenhouse cooling measures in summer.
●With excellent penetrability and water absorption , it can ensure that the water evenly penetrates the entire wet curtain wal;
●The specific three-dimensional space structure provides the largest evaporation surface area for the heat exchange between water and air;
The outer frame is available with aluminum alloy and galvanized sheet.
●The coling process of the DLF wet curtain cooling system is completed in the base core-DLF paper pad.
There is a thin water fim on the surface ofthe corrugated fiber paper.When the outdoor dry hot air is sucked by the fan through the paper pad,
the water The water on the membrane willabsorbthe heat in the air and evaporate in the water vapor, so that the cool and humid airafter reatment wil ener the room,
This natural procss s ike windblowing across the water.
●"Wet curtain-fan" longitudinal ventilation cooing combination is the most economical and effectve greenhouse cooling measures in summer.

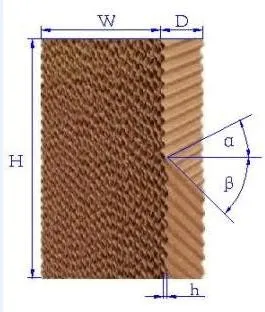

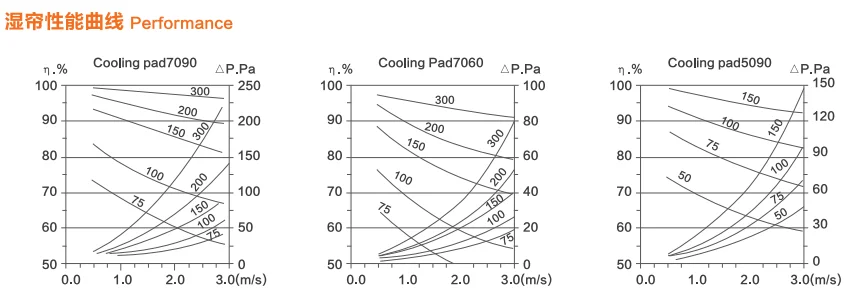

Model | Height(mm) | Width(mm) | Thickness(mm) | Flute | Angle |
7090 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
7060 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
5090 | Customized | Customized | Customized | 5mm | 45°/45° |
Details Images

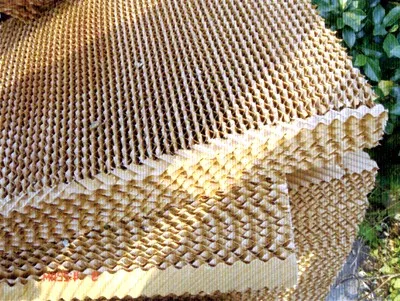

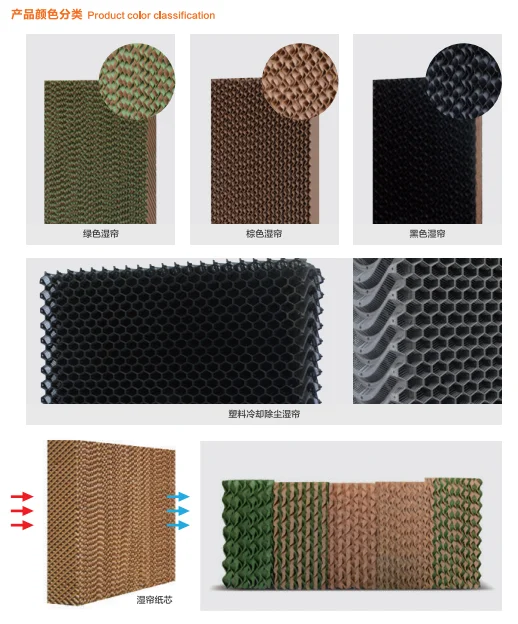

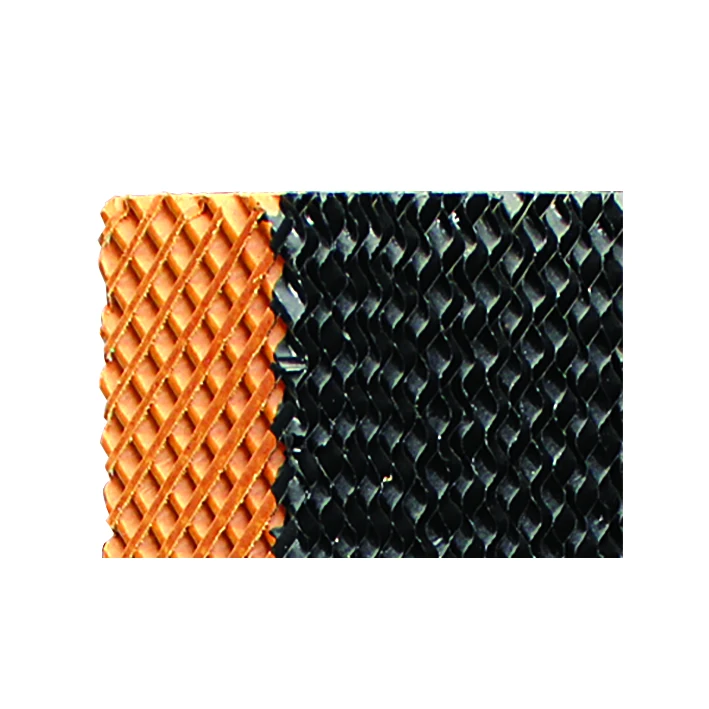

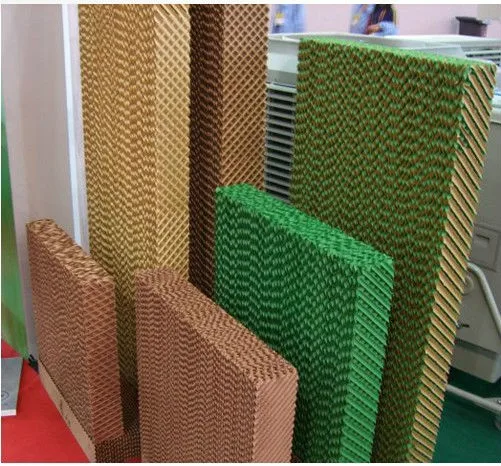

Finished product display
Application Specification
●Water volume control: The water supply should make the wet curlainevenly soaked，and a fine water flow flaws dawn the wet curtainripples.
The water volume can be controlled by adjusting the watersupply valve.
●water quality control: Keep the water source clean, the pH of the wateris between 6-9, and the conductivity is less than 1000 micro ohms.
Clean the pool and water circulation systam regularly to ensure cleanwater supply.(Usually once a week) Keep the water supply in goodquality.
In order to prevent the growth of algae and other microargan一isms on the surface of the wat curtain,
3-5ppm chlorine or brominecan be added to the water for short-term treatment.The concentra一tion is 1ppm during continuous treatment.
The water volume can be controlled by adjusting the watersupply valve.
●water quality control: Keep the water source clean, the pH of the wateris between 6-9, and the conductivity is less than 1000 micro ohms.
Clean the pool and water circulation systam regularly to ensure cleanwater supply.(Usually once a week) Keep the water supply in goodquality.
In order to prevent the growth of algae and other microargan一isms on the surface of the wat curtain,
3-5ppm chlorine or brominecan be added to the water for short-term treatment.The concentra一tion is 1ppm during continuous treatment.

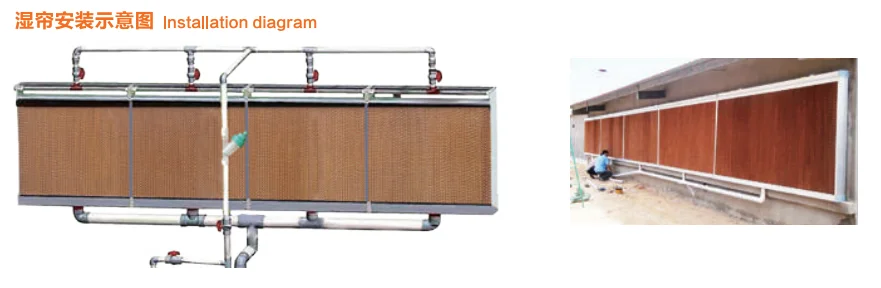

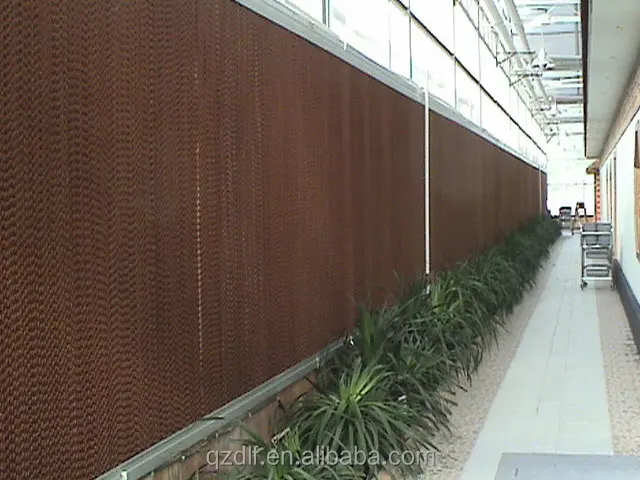

Cooling Pad-Poultry Fan Installation recommendations

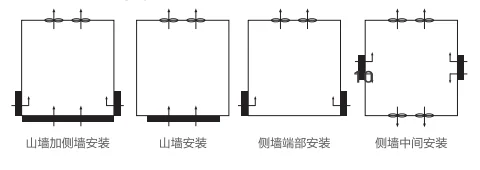

In the cooling system of the wet curtain-lan, the wet curtain is arranged opposite to the fan. The common layout of the wetcurtain cooling system is as fllows:

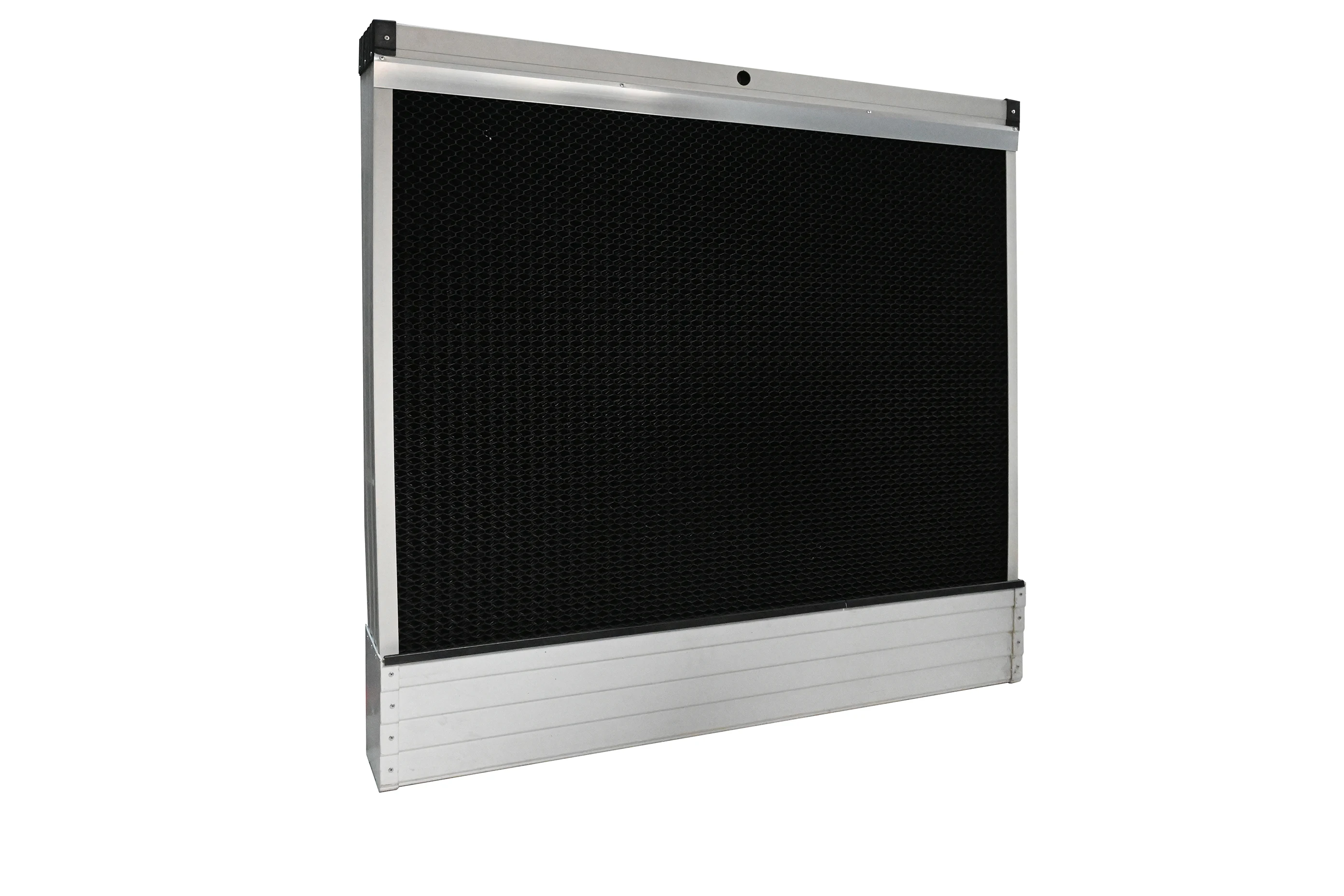

Disassembly-free fushing
When the water quality is not good enough to cause the shower pipe to be blocked, it can be directly rinsed with a high- -pressure
water gun without opening the water curtain frame, which is simple and practical.
water gun without opening the water curtain frame, which is simple and practical.
Packing&Delivery

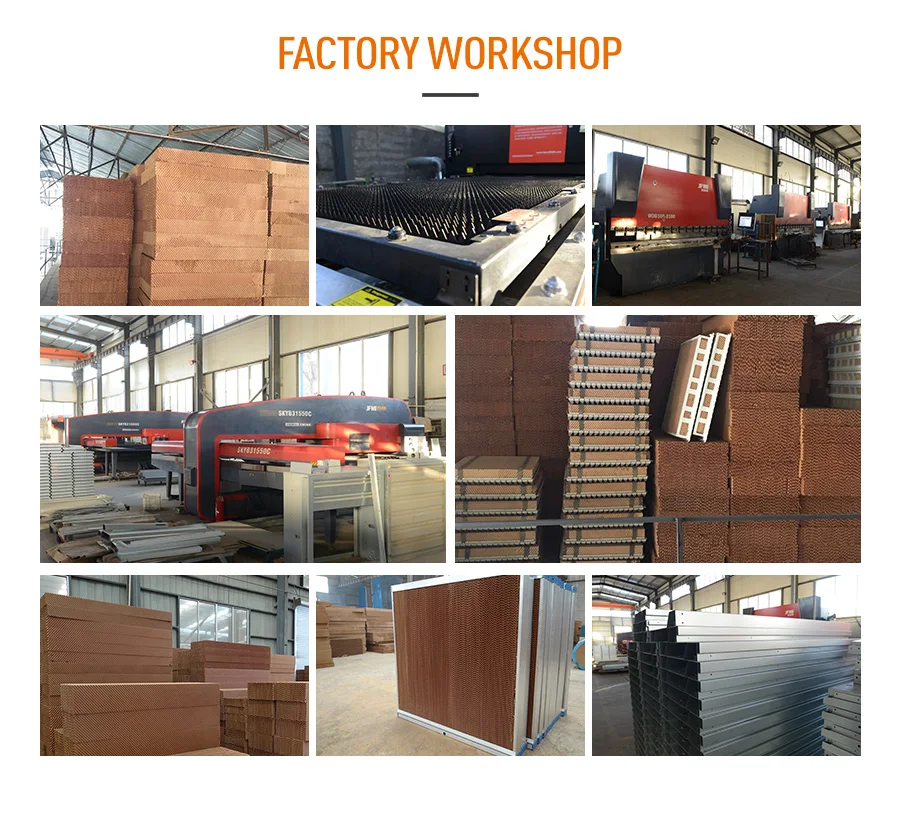

Company Profile
QINGZHOU BIG CUBIC INDUSTRY AND TRADE CO.. LTD is a export company mainly specialized in manufacturing husbandry equipment, whichincludes SERIES Axial Fans, Auto-Drinking System tor chicken, duck and rabbit, Auto-Feeding System, Cooling Ventilation System forhusbandry and poultry greenhouse and Environmental Control System and SO on. The standard and automation of the raising appliance for broiler chickens ,breeder chickens, layer hens and environmental control system in ourcompany can match the advancedintemational level.

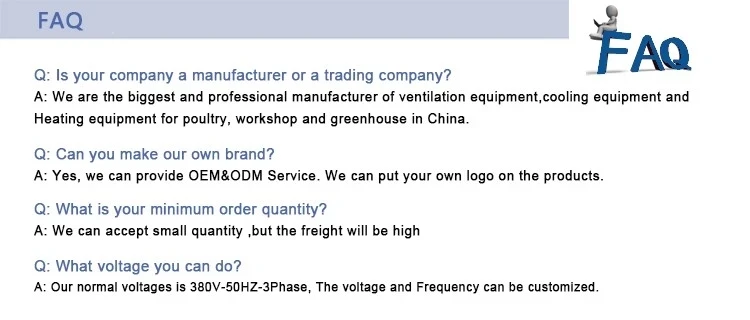

FAQ
