Leraun Fiber Optic Sensor Proximity Photoelectric Digital Display Fiber Optic Amplifier Sensor With Ultra Fast Response
- Category: >>>
- Supplier: Shenzhen Leraun Technology Co. Ltd
Share on (1600427389286):
Product Overview
Description
Why Choose Us

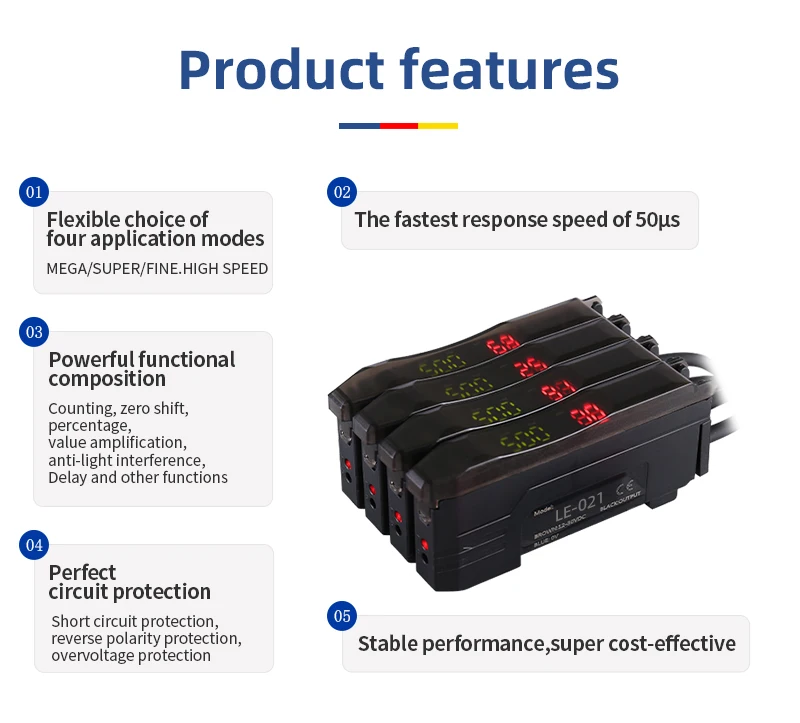

▲Flexible choice of four application modes;
(MEGA/SUPER/FINE/HIGH SPEED)
▲Powerful functional composition:
Counting, zero shift, percentage, value amplification, anti-light interference, normally open and normally closed interchange, area rising edge and falling edge (DTM), delay and other functions.
▲The fastest response speed of 50μs;
▲Perfect circuit protection,
Short circuit protection, reverse polarity protection, overvoltage protection.
▲Stable performance, super cost-effective.
(MEGA/SUPER/FINE/HIGH SPEED)
▲Powerful functional composition:
Counting, zero shift, percentage, value amplification, anti-light interference, normally open and normally closed interchange, area rising edge and falling edge (DTM), delay and other functions.
▲The fastest response speed of 50μs;
▲Perfect circuit protection,
Short circuit protection, reverse polarity protection, overvoltage protection.
▲Stable performance, super cost-effective.
Product Description
Specification
Place of Origin | China |
Brand Name | LERAUN |
Usage | Position Sensor |
Theory | Fiber optic sensor |
Output | NPN/PNP open-collector |
Brand | Fiber optic sensor |
Amplifier Type | dual display fiber amplifiers |
Voltage - Supply | 12-24V DC ±10% |
Output Type | 24v |
Current - Supply | 35mA |
Operating Temperature | -20~+55℃ |
Model Number | LE-021 |
Usage | Position Sensor |
Material | Polycarbonate |
Certificate | CE FCC RoHS |
Weight | 66g |
response speed | 50μs |
Warranty | 1 Year |
