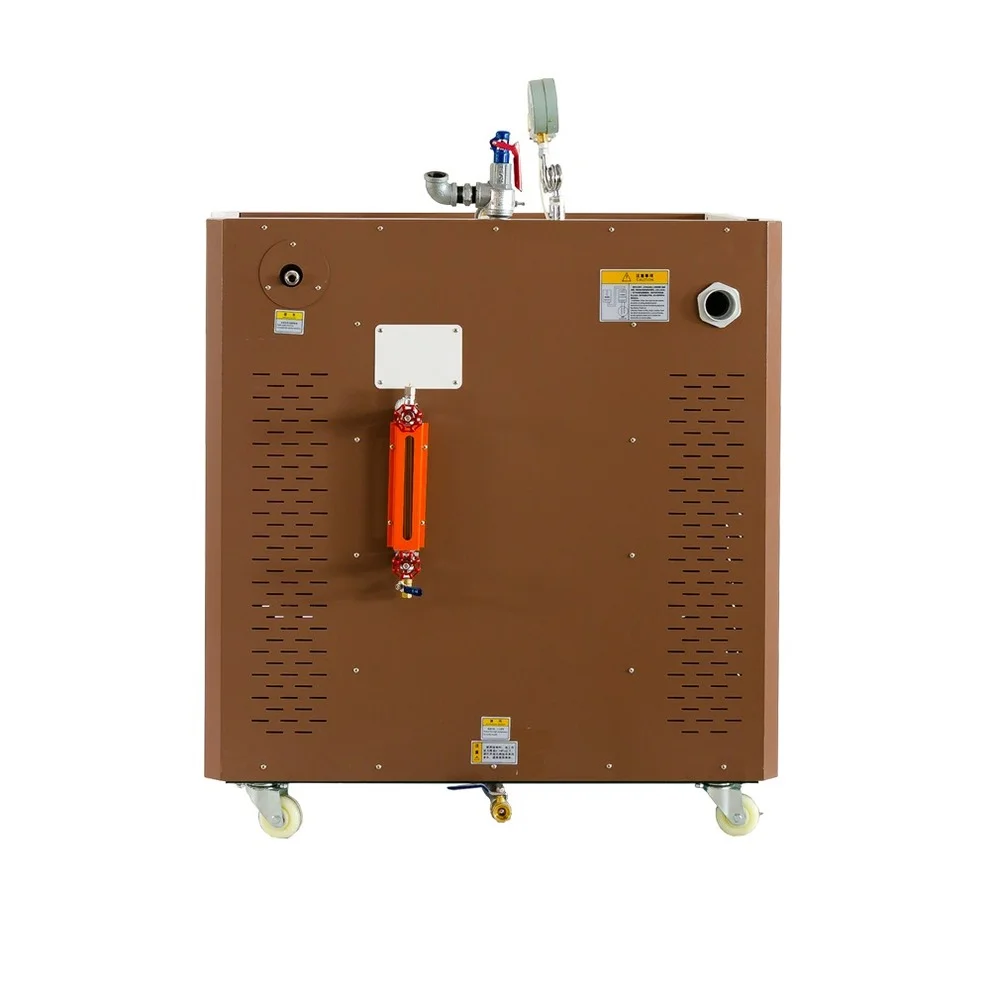

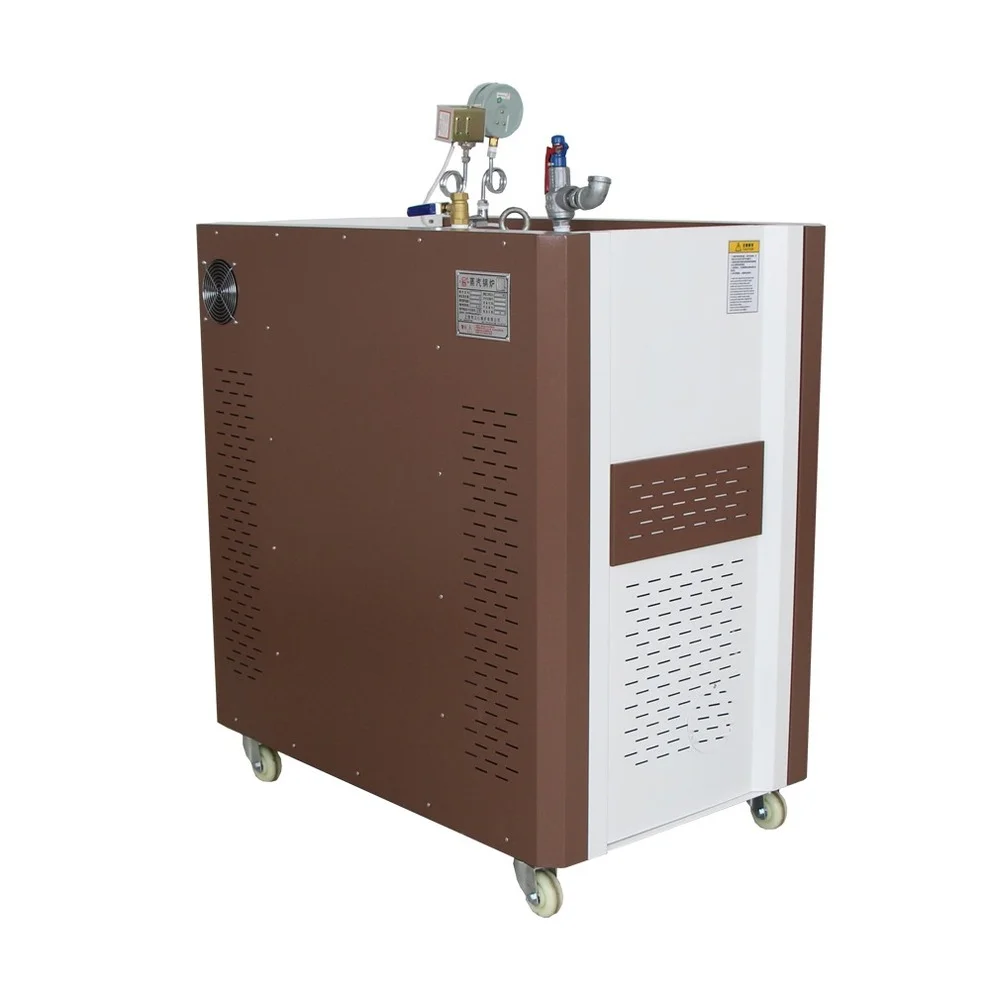

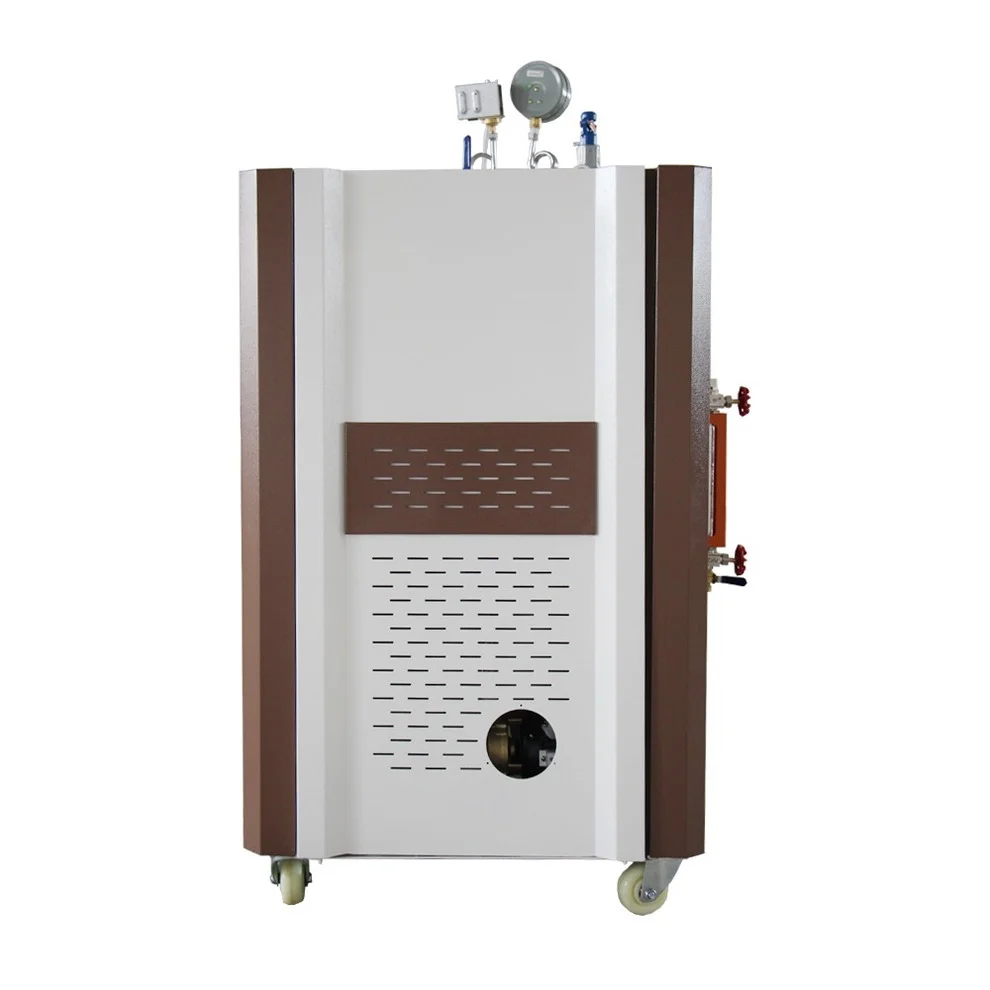

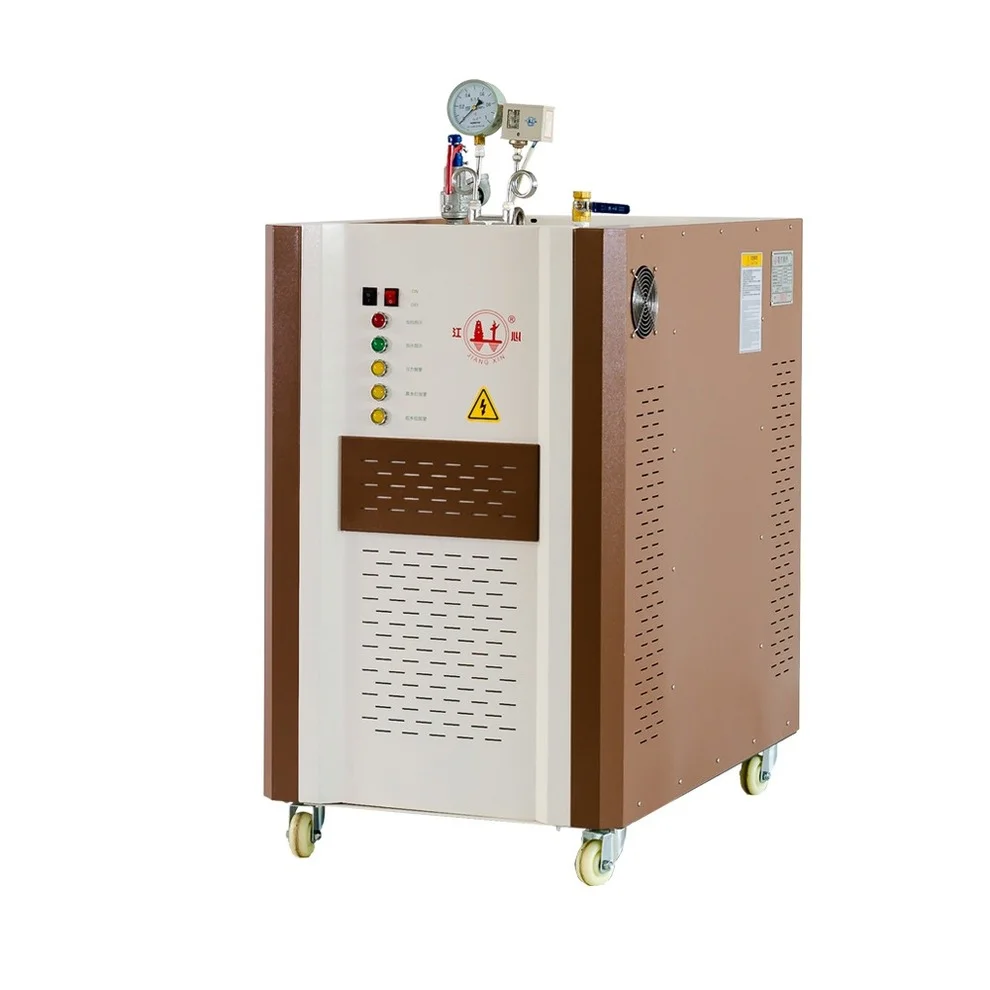

small scale palm oil refining machinery Steam Generator For Small Scale Palm Oil Refining Machinery

Small steam turbine generator for small scale palm oil refining machinery

The power line of the small steam turbine generator is a four-core cable, in which three fire lines and one neutral line. 220V single connection method: 3 fire lines of the boiler are combined with 1 line fire line, and 1 line is connected to the zero line. 380V three-phase connection method: three fire lines of the boiler are respectively connected to the three-way fire line, and the remaining one is connected to the zero line.

Jiangxin steam turbine generator with advantages of high combustion efficiency, low cost and long life span. The product is no need to consider the customer's power cord, 220V and 380V power supply can be. An automatic exhaust valve is installed to prevent vacuum from entering the water. Four sets of heating tube heating system configuration, the intermediate relay is more secure.

The steam turbine generator parameter is as follows:

Features of small steam turbine generator

High Power.

Four sets of high quality heating tubes, the life expectancy has more than doubled.

Three-probe water level control system for safer.

Stainless steel bellows are used in the inlet pipe.

The water volume does not exceed 50L, and the annual inspection is free.

Large evaporation, can replace a variety of large boilers.

Easy to operation and environmental friendly.

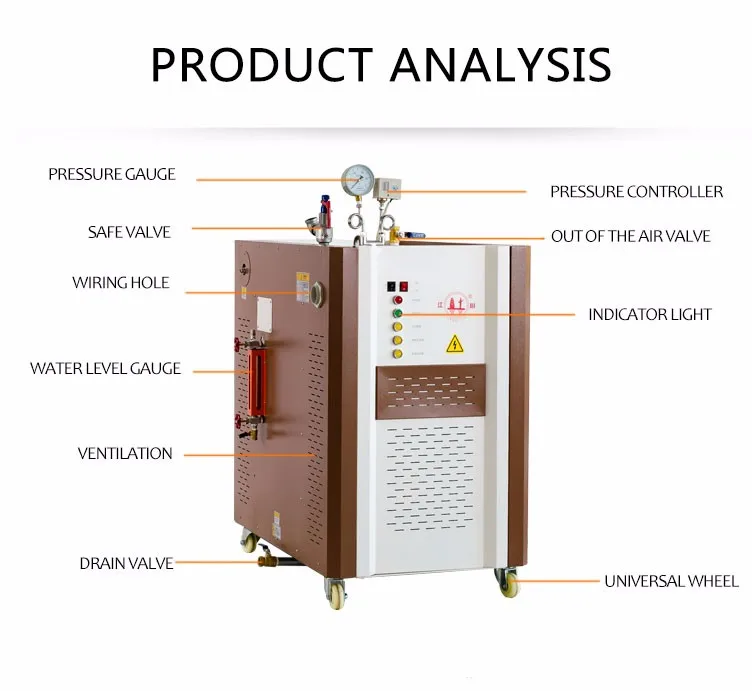

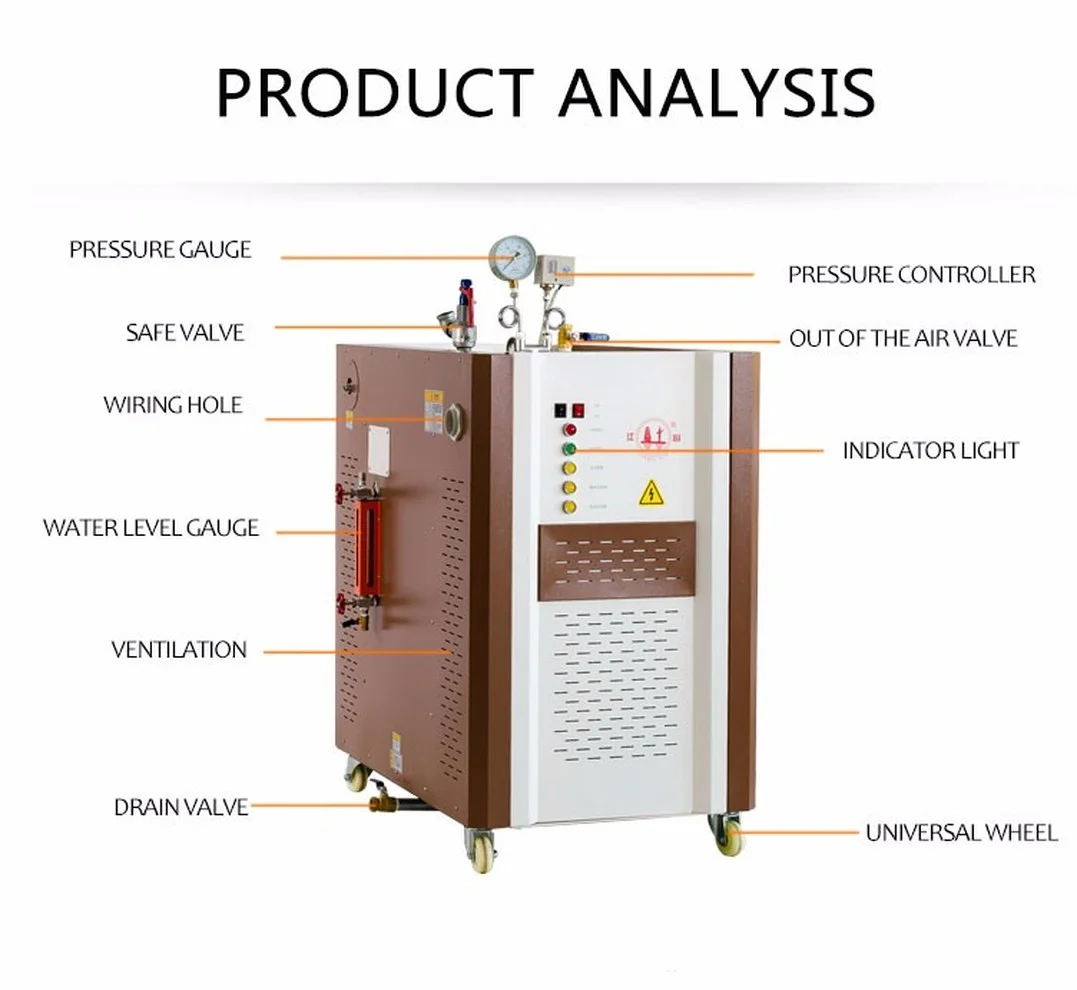

The accessories of the steam generator including outlet valve, pressure gauge, safety valve, pressure controller (white 1, blue 3, green 5), tap water into the water, built-in 3 probes, water level gauge, water level gauge switch, water level gauge drain valve, sewage outlet, switch power control indicator (red button is power switch, black button switches high and low gear), power cord inlet and universal wheel.

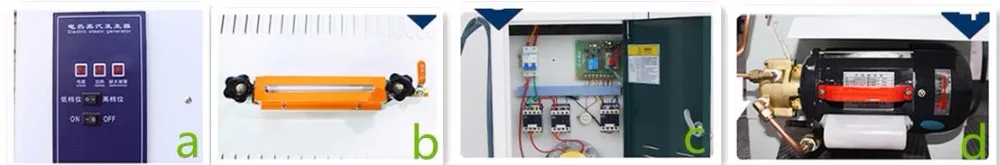

a.Control panel: customized control panel instructions are clear and easy to operate.



b.Water level gauge:



The 24kw and below models are recessed with a liquid level gauge, which is not easily damaged during transportation and use. 36kw and 45kw adopt protective cover, which is more thoughtful protection.



c.Electrical components



Large brand electrical components are neatly laid out



d.Multi-stage vortex water pump



Ultra-high temperature protection to protect motor has more than 10 years' life span.
