submerged sewage treatment injector dirty water aerator no dead angle submersible aerator venturi jet aerator system
- Category: >>>
- Supplier: Xinxiang Yixin Environmental Engineering Co. Ltd.
Share on (1600427434417):
Product Overview
Description

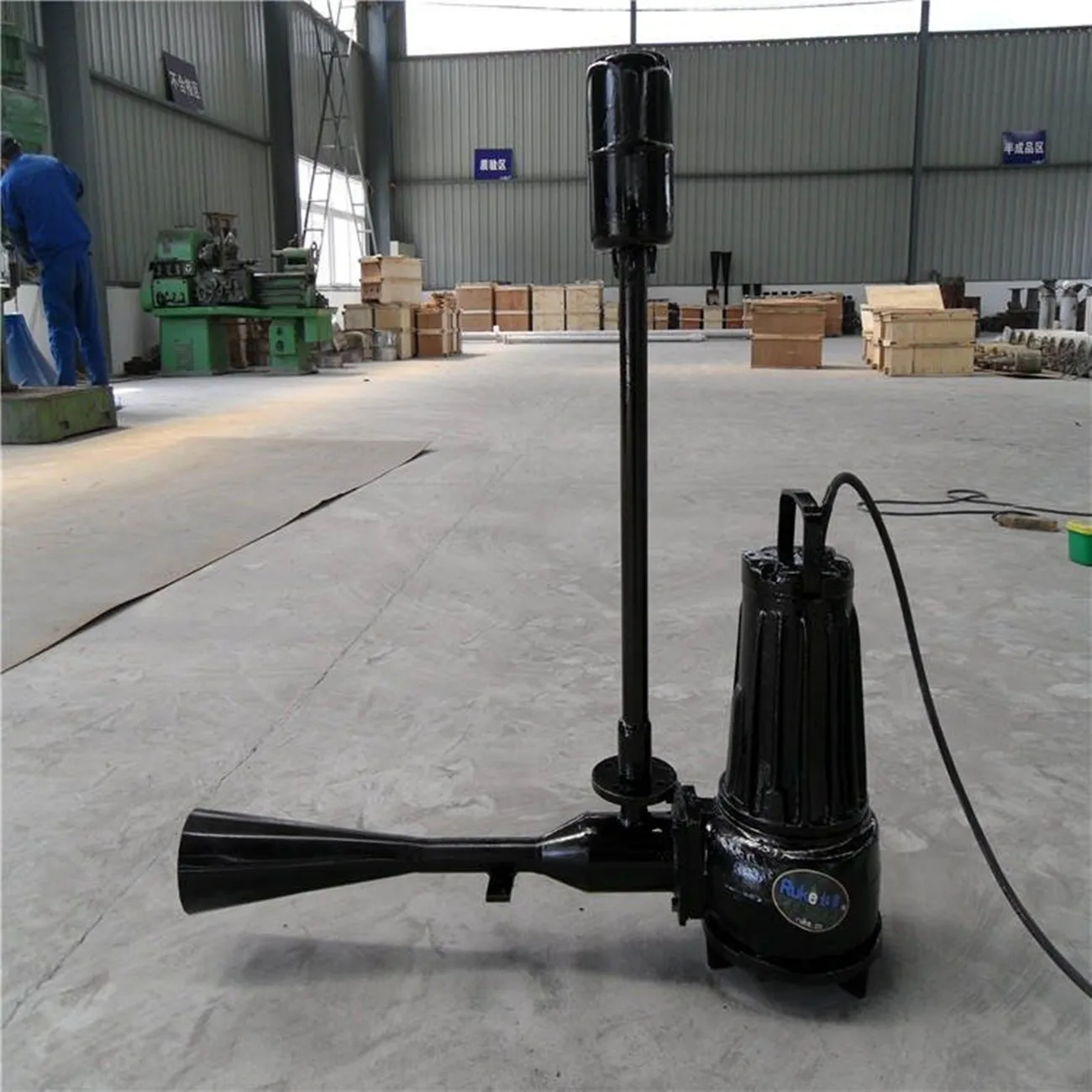

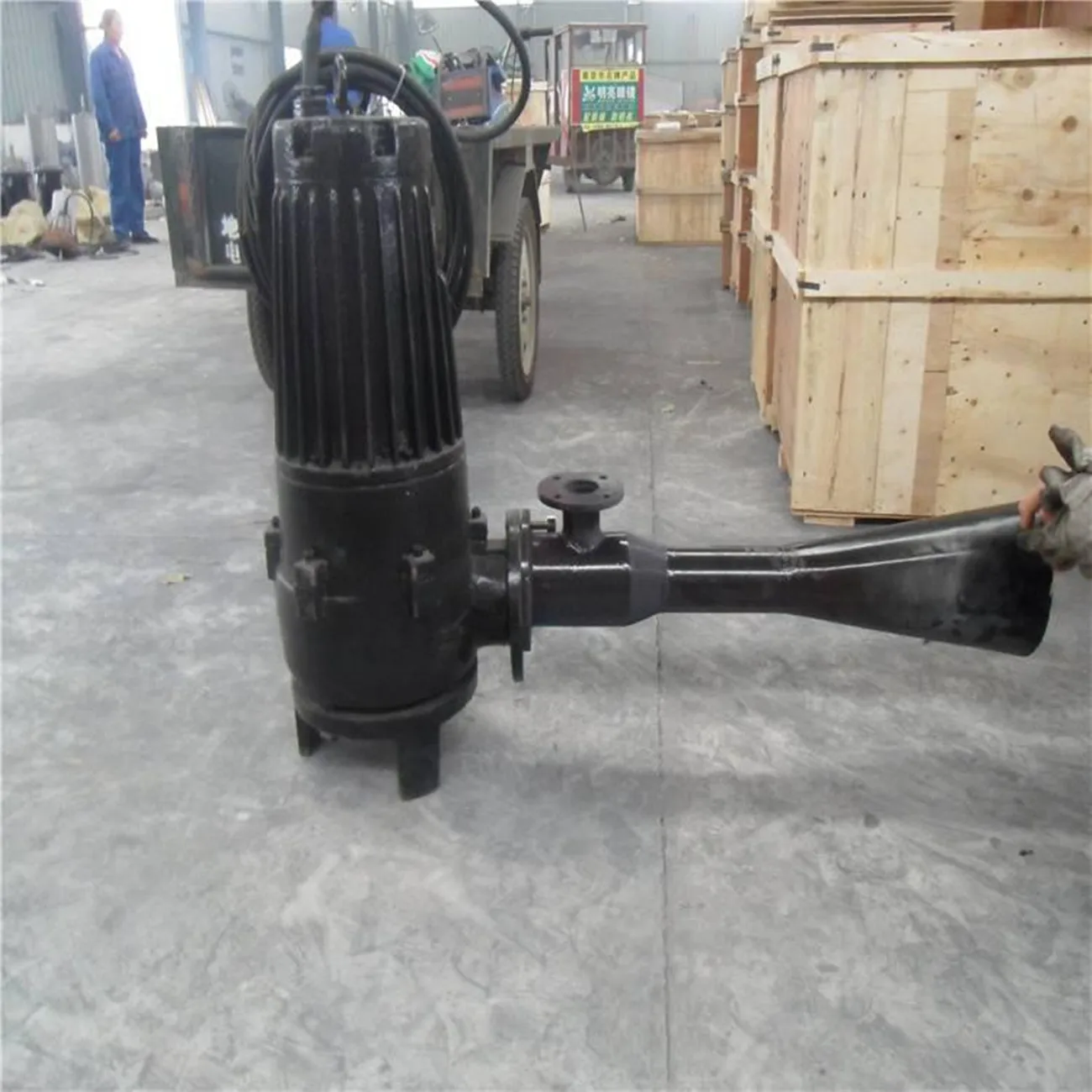

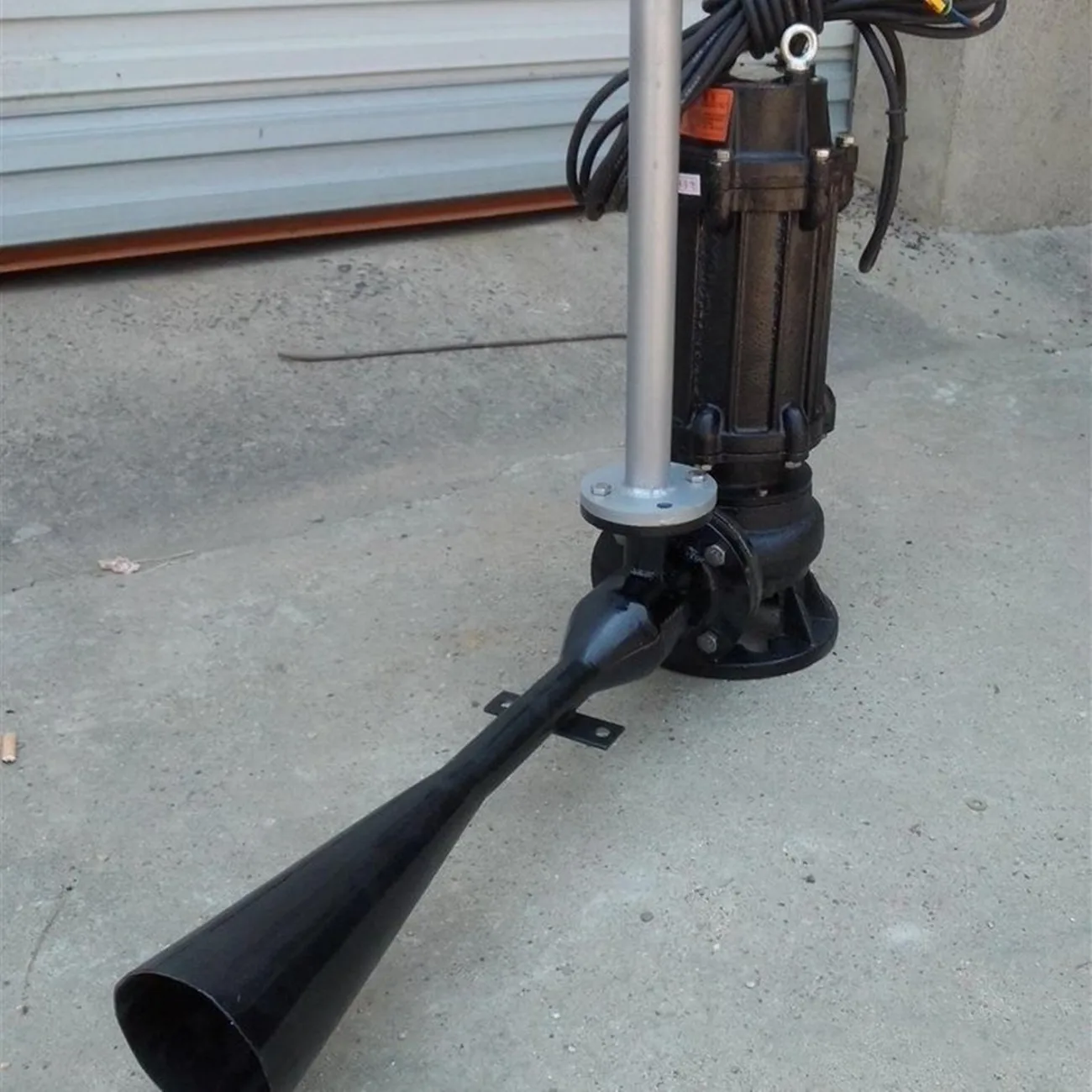

The deep-water self-priming submersible jet aerator is mainly composed of WQ submersible sewage pump, venturi pipe, diffusion pipe, intake pipe and muffler, etc.

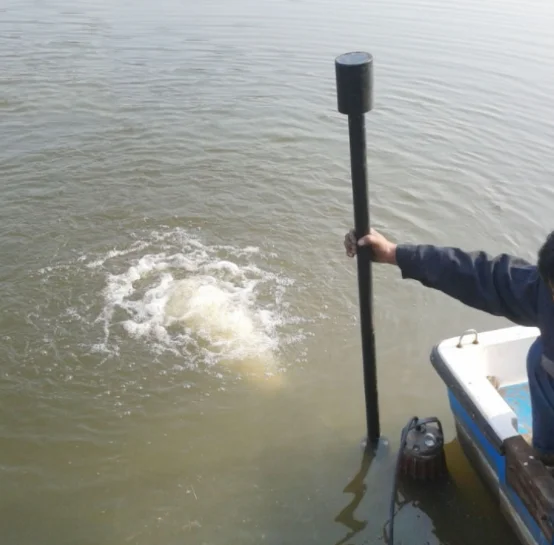

The working principle is: the water flow generated by the submersible pump forms high-speed water flow through the nozzle, and the negative pressure is formed around the nozzle to inhale air from the intake pipe, and the liquid and air mixture flow is spewed out at high speed. The water flow with many bubbles swirls and stirs in the larger area and depth of water to complete aeration.
The working principle is: the water flow generated by the submersible pump forms high-speed water flow through the nozzle, and the negative pressure is formed around the nozzle to inhale air from the intake pipe, and the liquid and air mixture flow is spewed out at high speed. The water flow with many bubbles swirls and stirs in the larger area and depth of water to complete aeration.
Deep water aeration;
Aeration and stirring in biochemical tank;
Aeration and stirring in biochemical tank;
Sludge aeration and stirring;
High concentration organic wastewater treatment process.
High concentration organic wastewater treatment process.
Model | H | h | L | D | F | d | B | E | A |
QSB0.75 | The user determines each piece according to the actual working condition | 438 | 1136 | Φ100 | 85 | DN32 | 260 | 494 | 107 |
QSB1.5 | 438 | 1136 | Φ100 | 85 | DN32 | 260 | 494 | 107 | |
QSB2.2 | 435 | 1249 | Φ104 | 141 | DN50 | 280 | 369 | 126 | |
QSB3 | 435 | 1325 | Φ104 | 14 | DN50 | 280 | 369 | 126 | |
QSB4 | 580 | 1502 | Φ104 | 149 | DN50 | 280 | 414 | 203 | |
QSB5.5 | 915 | 1958 | Φ104 | 137 | DN50 | 280 | 689 | 252 |
Model | QSB0.75 | QSB1.5 | QSB2.2 | QSB3 | QSB4 | QSB5.5 | QSB7.5 | ||||||
A | 107 | 107 | 126 | 126 | 203 | 252 | 252 | ||||||
B | 260 | 260 | 280 | 280 | 280 | 280 | 280 | ||||||
C | 85 | 82 | 85 | 85 | 105 | 105 | 105 | ||||||
D | Φ100 | Φ100 | Φ104 | Φ104 | Φ104 | Φ104 | Φ104 | ||||||
d | DN32 | DN32 | DN50 | DN50 | DN50 | DN50 | DN50 | ||||||
e | Φ48 | Φ48 | Φ48 | Φ48 | Φ60 | Φ60 | Φ60 | ||||||
F | 172 | 172 | 172 | 172 | 175 | 200 | 200 | ||||||
g1×g2 | 800×600 | 800×600 | 800×600 | 800×600 | 900×600 | 1100×800 | 1100×800 | ||||||
H | The user is determined according to the optimal conditions of the actual work department | ||||||||||||
h | The user is determined according to the optimal conditions of the actual work department | ||||||||||||
K | 180 | 180 | 191 | 191 | 359 | 433 | 433 | ||||||
L | 535 | 535 | 754 | 830 | 885 | 1017 | 1128 | ||||||
M | 271 | 271 | 280 | 280 | 411 | 490 | 490 | ||||||
N | 19 | 19 | 19 | 19 | 26 | 13 | 13 | ||||||
Q1 | 220 | 220 | 220 | 220 | 300 | 300 | 300 | ||||||
Q2 | 180 | 180 | 180 | 180 | 220 | 220 | 220 | ||||||
R | 136 | 136 | 136 | 136 | 255 | 250 | 250 | ||||||
T | 160 | 160 | 210 | 210 | 210 | 210 | 210 | ||||||
