android 11 andoid 13 debian RK3566 RS232 HDmI I LVDS RJ45 digital signage development mainboard motherboard circuit board
- Category: >>>
- Supplier: CND Electronic Technology (shenzhen) Co. Ltd.
Share on (1600427444991):
Product Overview
Description

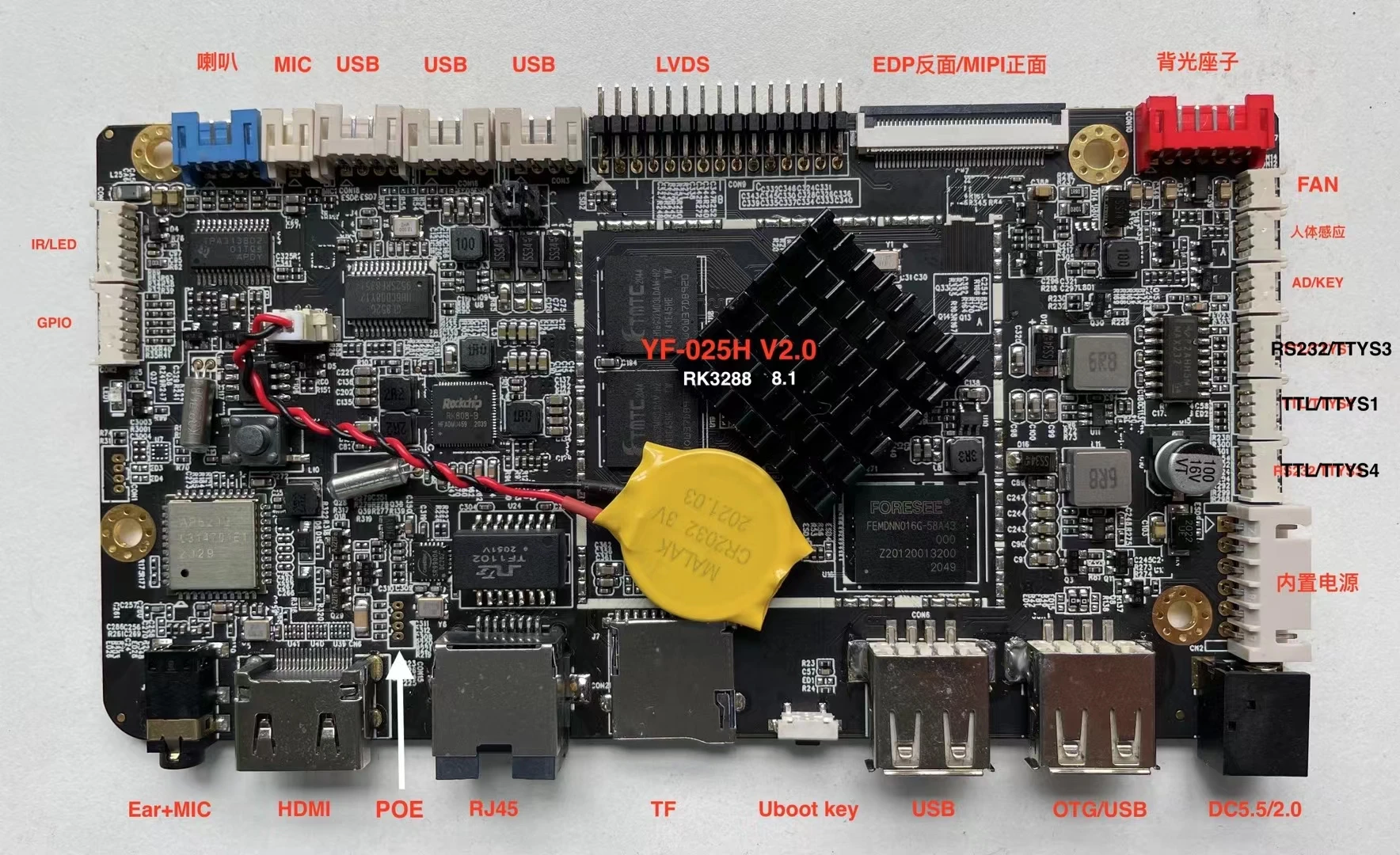

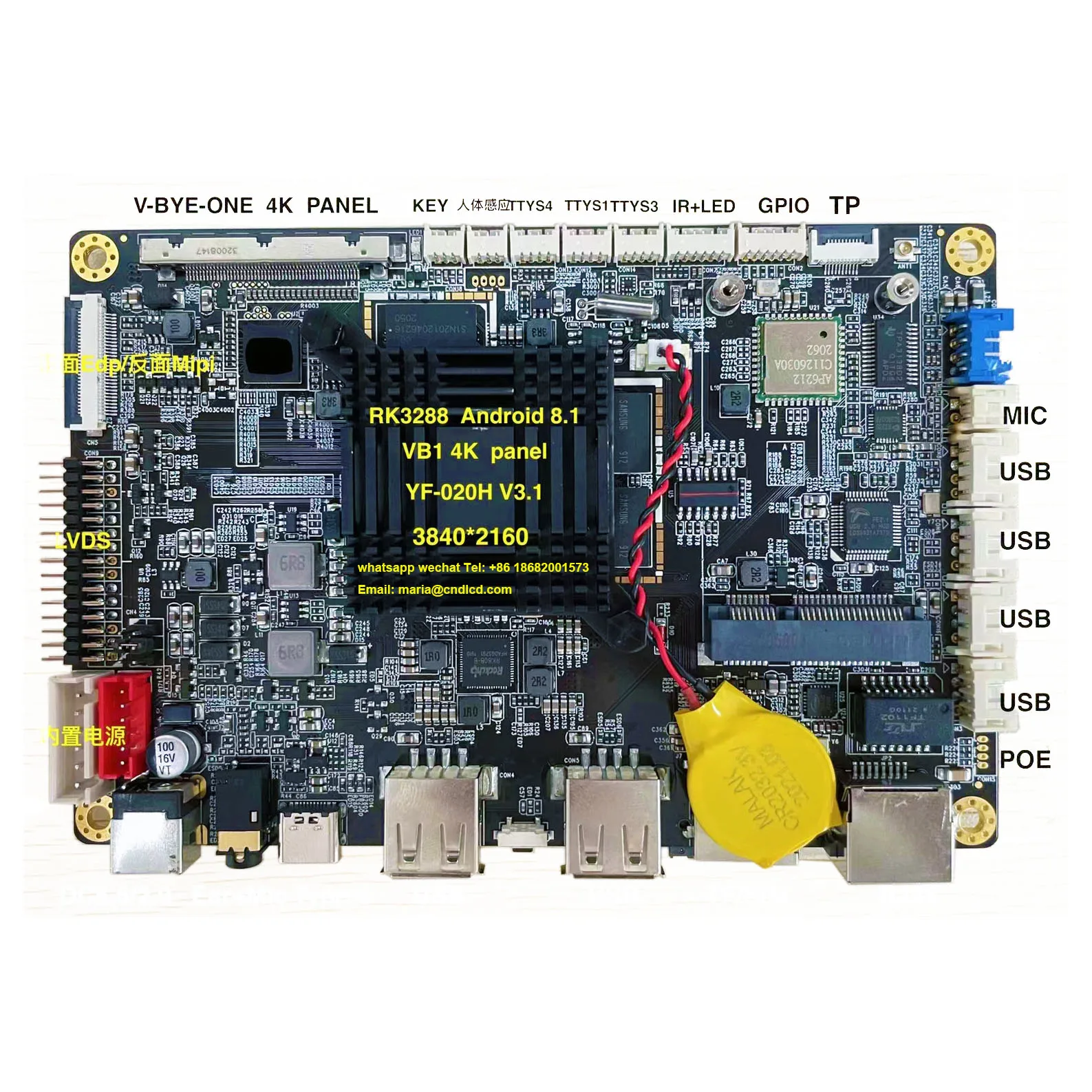

RK3288 020H 025H
Contact US:
Whatsapp:+86 18682001573
Skype wechat: mariageng
Email: maria @cndlcd.com
For Mass order price please contact us by email or instant message
Product Name: android rk3288 2G+16G lvds mipi edp android digital signage tablet Dispenser controller mother Card board
android 11 RK3566 RS232 HDmI-I LVDS eDP digital signage development mainboard motherboard circuit board
Item No.: YF-023D

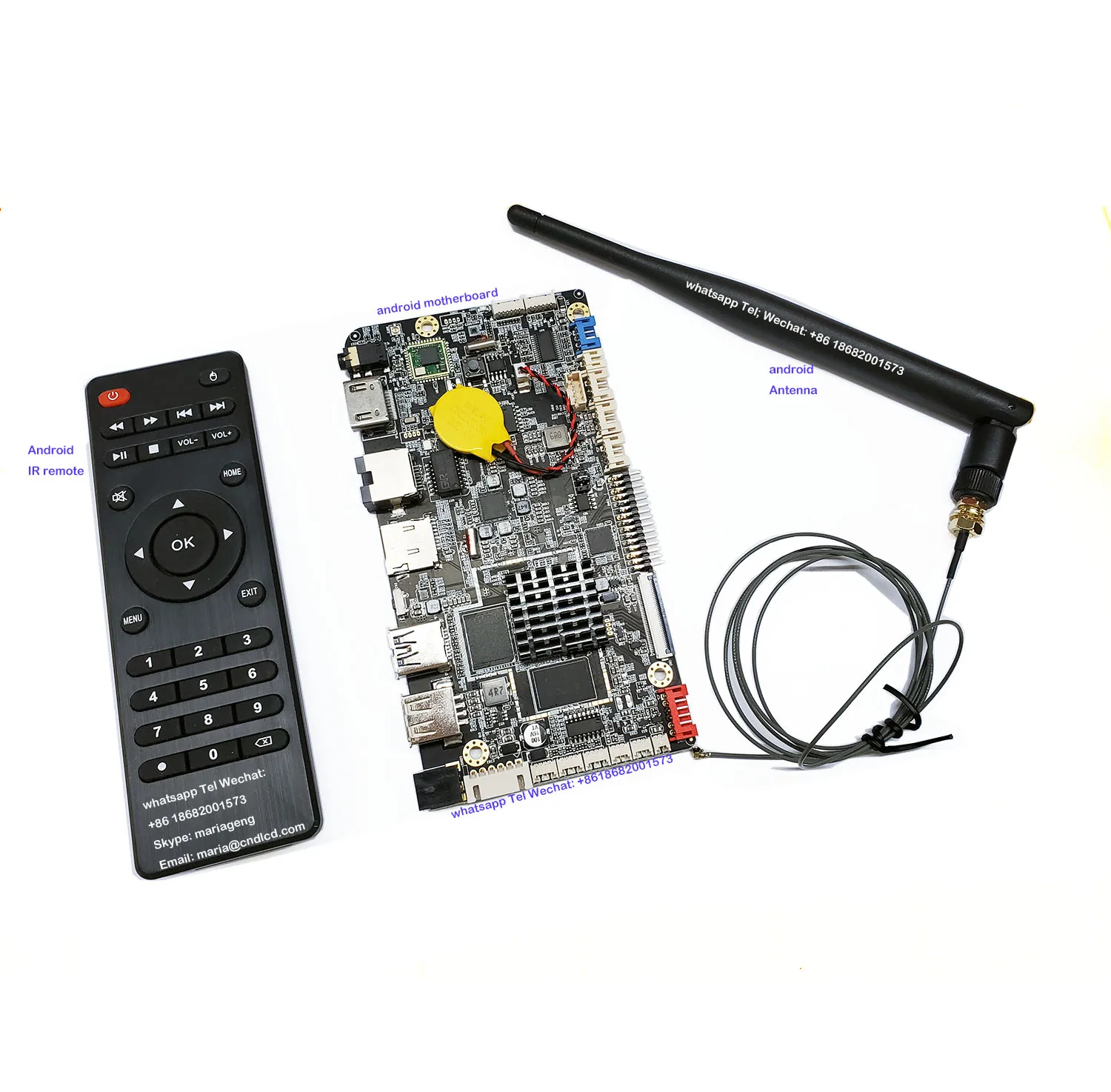

All in one android digital signage board key features
- Rockchip RK3566 Quad Core Cortex-A17, up to 1.8GHz
- Quad-Core Mali-T764
- Dual Channel DDR
- 13MP Camera with ISP
- Dual Screen different display (Dual screen display, need firmware)
- Android board with HDM-I lvds eDP MIPI output
- GPIO,
- USB*6way ,
- USB OTG 1Way,

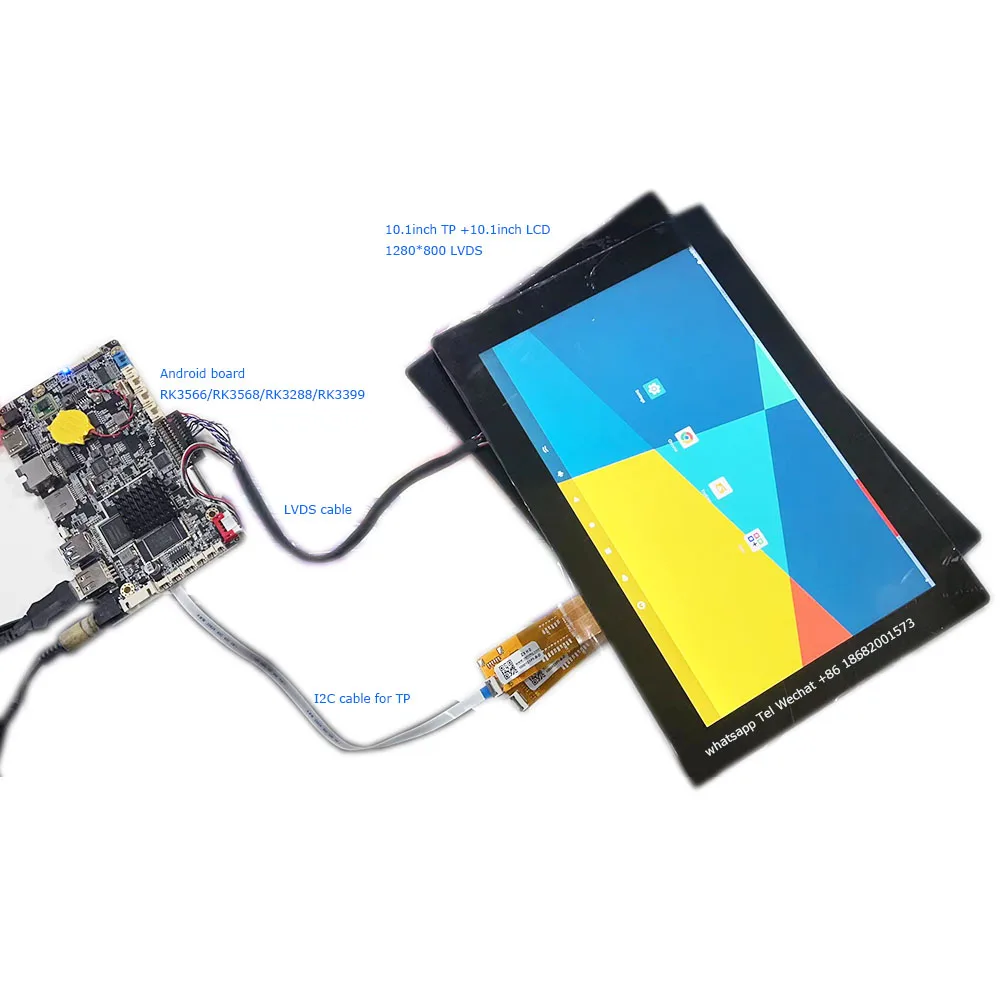

- I2C for Touch panel
- WIFI,
- Serial port *3way
- RJ45
- Blue-tooth
- Android 8.1 Operation System, 2G+16G
- Support 4K*2K 10bits VP9/H265/H264 video decoing,up60fps.
- Apply to Financial mahcine ,Advertising Machine,Vending machine KIOSK, Dispenser, etc.

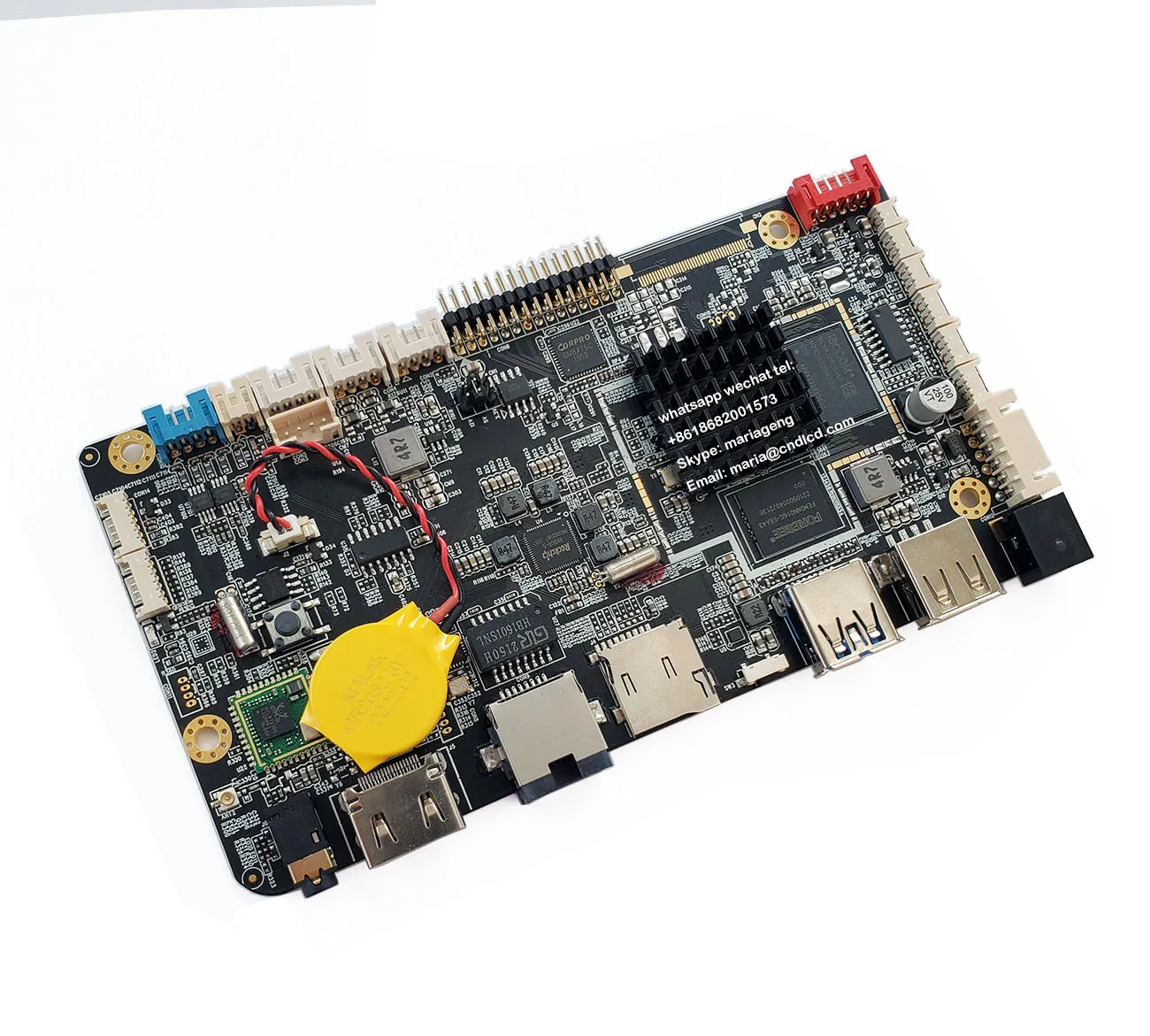

YF-023D Specification
Main hardware spec | |
CPU | Rockchip RK3566UPto1.8GHz |
GPU | Quad-core Mali-G52-2EE High quality GPU |
NPU | NPU support 0.8T and INT8/INT16 |
RAM | 2G\u007FLPDDR4X/LPDDR4 |
ROM | EMMC 16G/32G (Option) Standard 16G |
Decode resolution | Up to 1080P/H.265(4K2K) |
O. S. | Android 11.0 |
Play Mode |
Loop Display, Timing display, Inserting playing etc |
Network | GB Ethenet,WiFi/BT4.1,Wireless extent |
USB2.0 | 6 xUSB HOST,4 x built-in USB |
USB 3.0 | 1 x USB3.0 |
Ethernet | 1x,10M/100M/1000M Self-adaptive |
EDP Output | Up to 1920*1200 |
LVDS output | Up to 1920*1080 |
Mipi output | Up to 2560*1440 |
HDMI Output | 1way up to 3840*2160 |
Audio Output | Right/left channel 8R/3W Loudspeaker |
Serial Port | 1 x RS232, 4 xTTL,1 xDebug |
RTC | Support |
Hardware Watch-dog | Support |
Timing On/Off | Support |
System Update | Through TF Card/ Computer |
Other function | TF/USB Auto input panel resolution file, starting logo |

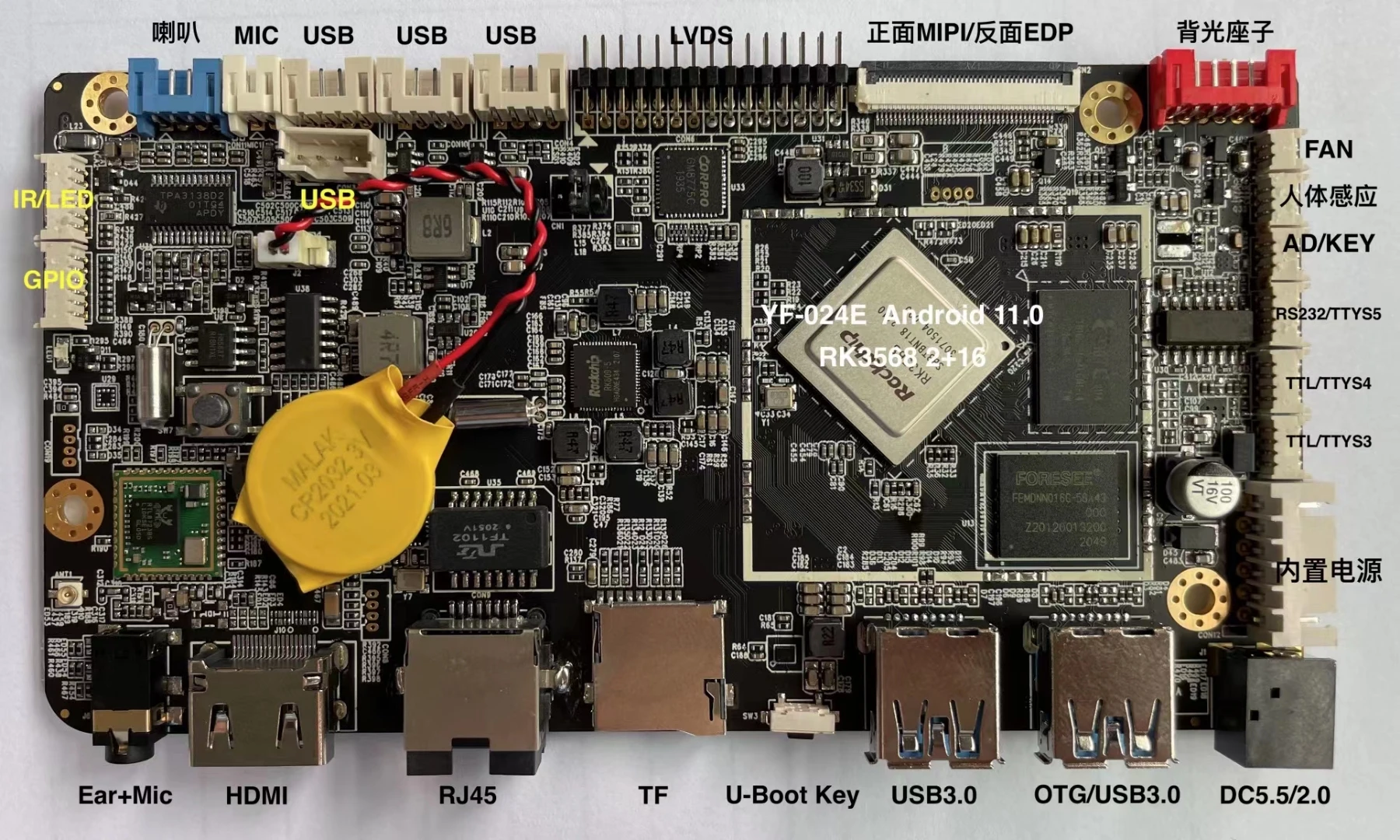

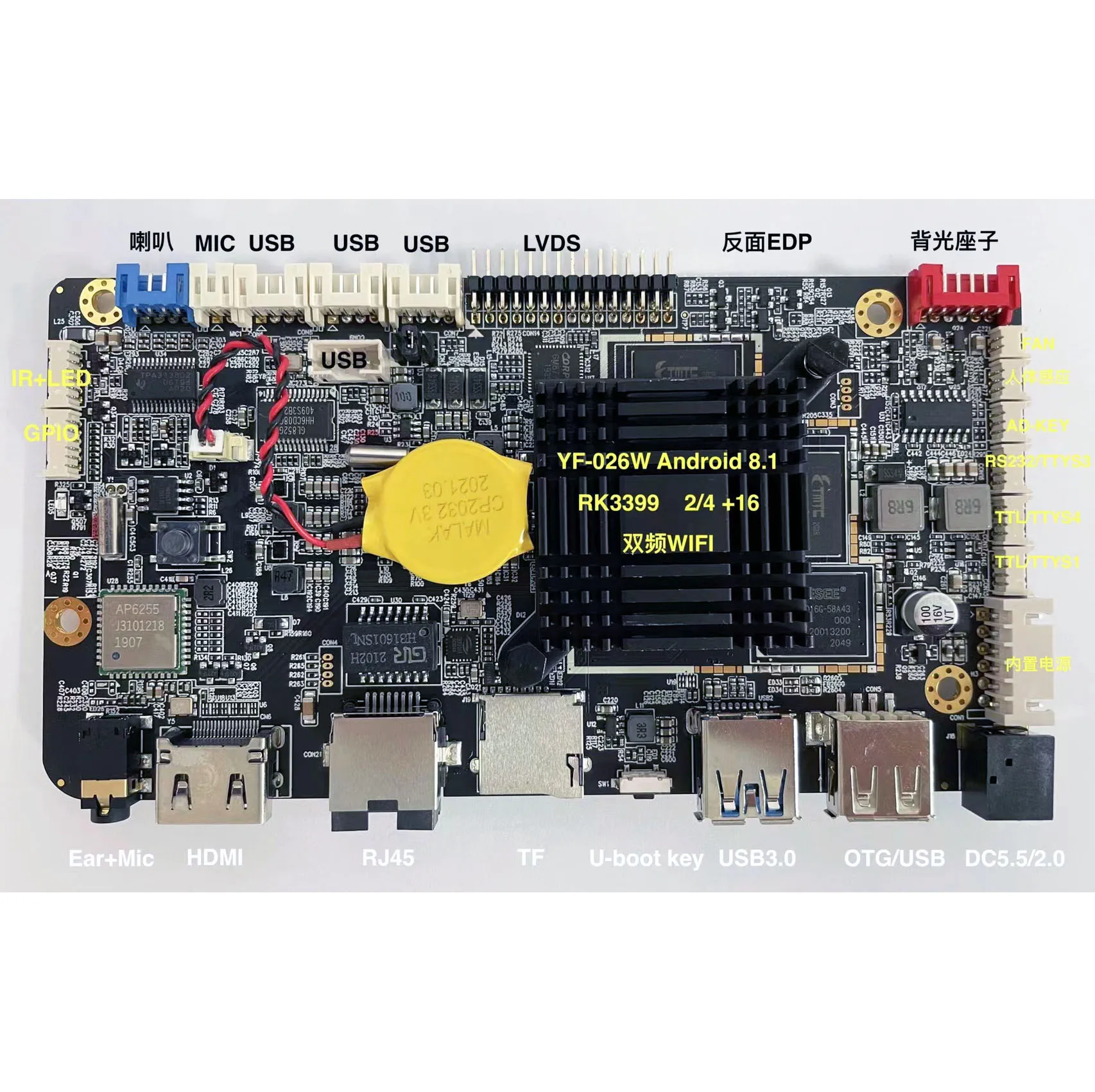

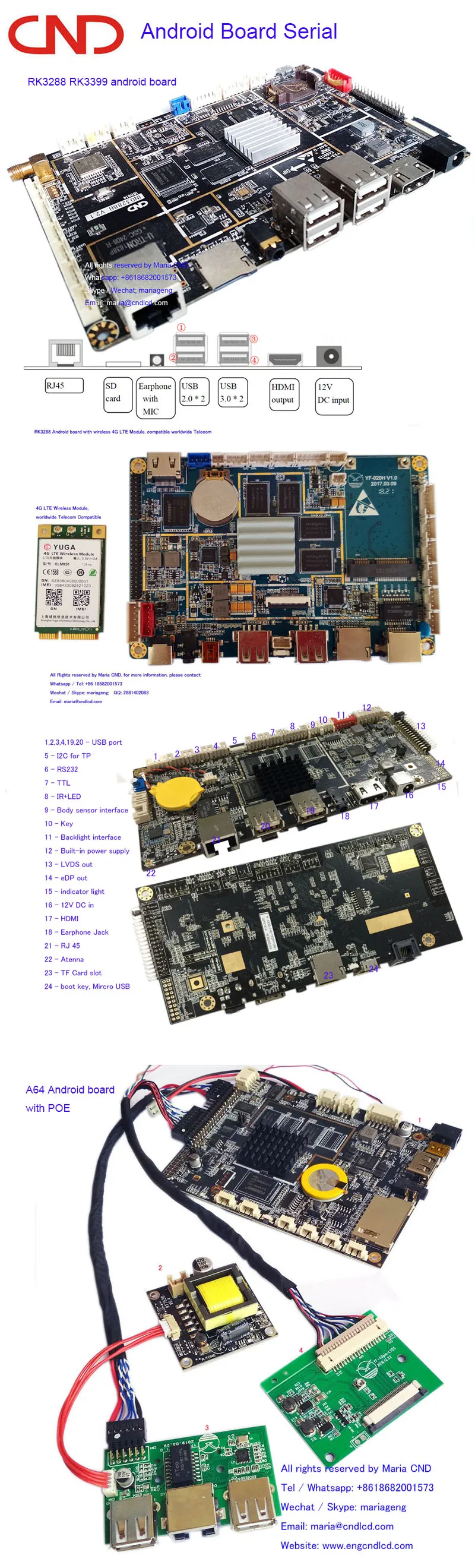

Rockchip android Development Board Serial (RK3288 RK3399 RK3566 RK3568)
- High Integration: Integrated with USB2.0 USB3.0 LVDS Ethernet HDM-I WIFI, All-in-one, Simplifies Integral Machine design, with TF card slot.
- Android 8.1 Operation System, 2G+16G
- High Resolution: Supports 1080P/H.265(4K2K) Video decoding and various LVDS output LCD Display Screen.
- With Audio Amplifier: Supports Dual channel amplifier 5W*2 /10W*2
- Rich Interfaces: Support USB, Serial Port, I2C, ADC, suitable for mainstream AD machine in the market.
- Full Function, Support display screen both landscape and portrait, Video split screen, rolling word screen, On/Off Timing,Data Transfer through USB.
- Easy Management:Humanization software for playlist making, for advertising-display management and control easily. With advertising-display record, which make it easy to check AD display status.
A64 Android mother board cheap price cost-efficient
A64 Android board with POE function SKD kit
RK3288 Android board with 4G LTE module
Our Services
One Year Quality Warranty;
- Provide 1‰ free spares with all goods;
- Hardware & Firmware customization
- Firmware customization to meet any customer request;
Check the following link for more Android boards
A64 Android mother board cheap price cost efficient
RK3288 android mother board with 4G wirless LTE module
Android board with POE SKD kit

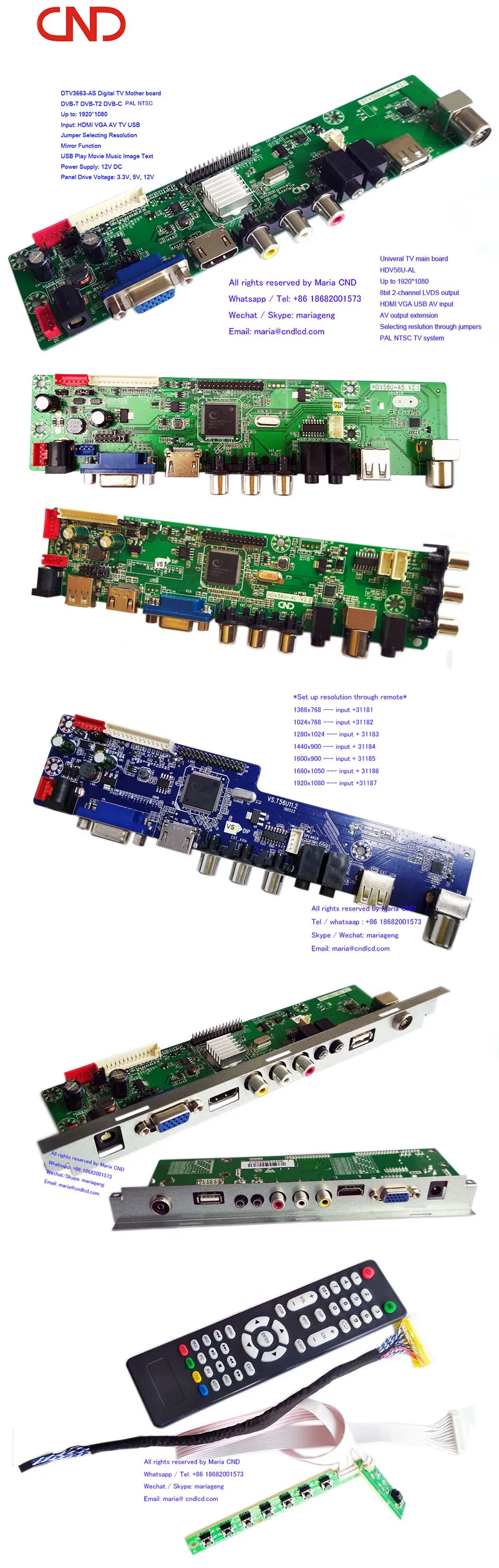

TV mother board
DTV3663 TNT Digital TV DVB-C DVB-T DVB-T2 TV mother board
V59 V56 DS-V56 DS-V59 TL-V59 Universal TV mother board

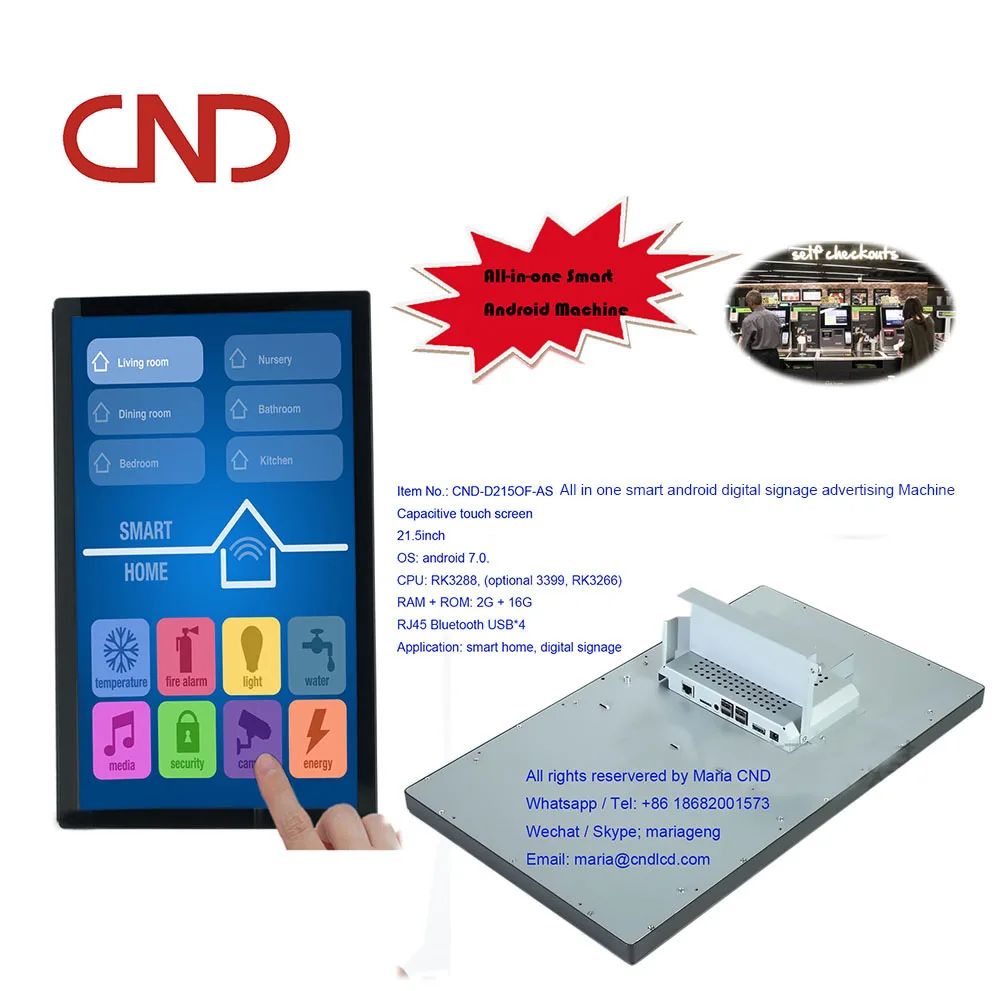

Open Frame Touch screen display
Open frame touch screen digital signage display with android OS RK3288
Open Frame touch screen monitor for HMI KIOSK self-terminal service Financial machine
Services | Service details |
P-CAP Capacitive touch display customization | customize size, shell structure, interface, etc. according to customer requirements |
Android Linux software development and customization
| Customize CMS, backstage management. |
RK3288 RK3399 RK3326 RK3368 and other PCBA motherboard customization | Customized size, enclosure structure, output interface, etc. according to customer requirements) |
Display controller motherboard customization 4K, 2K, HD and special resolution motherboard customization | Customize the size, shell structure, interface, etc. according to customer requirements) |
standard product ready stock inventory products | (HDV56U-AS HDV56U-AL DTV3663 UHD3941 AV6M16B-D TR104 TR106 TR102 MD6820 MT561 MHV7851 MHV7X01 MHD8561 MHD8753 MHD8651 MHD8652 CND-D190OF CND-D215OF CND-D156OF CND-D116OF CND-A156OF-PA |
Company Information
Brief introduction on CND Electronic Technology Co., Ltd.
- l 2020 turnover exceeds USD 30,000,000
- l ISO9001: 2015 international standard quality management system certification
- l Nationally recognized high-tech enterprises
- l Company R&D personnel: 60+ software engineers, 20+ hardware engineers
- l Ten thousand class Non-dust workshop
- l Workshop assembly staff: 150+ people
- l SMT DIP production each 4 lines
Main product solutions:
Main product solutions | Details |
Open Frame touch display solution | used in major banks such as ICBC, Bank of China, Agricultural Bank, China Merchants Bank, China Construction Bank, Postal Savings Bank of China |
Android capacitive touch display panel solution | used in major brands of refrigerators, washing machines, medical equipment, advertising display such as Xiaomi Yunmi Sunmi Eco, JD, Tmall, Juding, etc. |
Rockchip Solutions for Android motherboard mainboard mother board main board | RK3288 RK3399 RK3326 All-winner A64 |

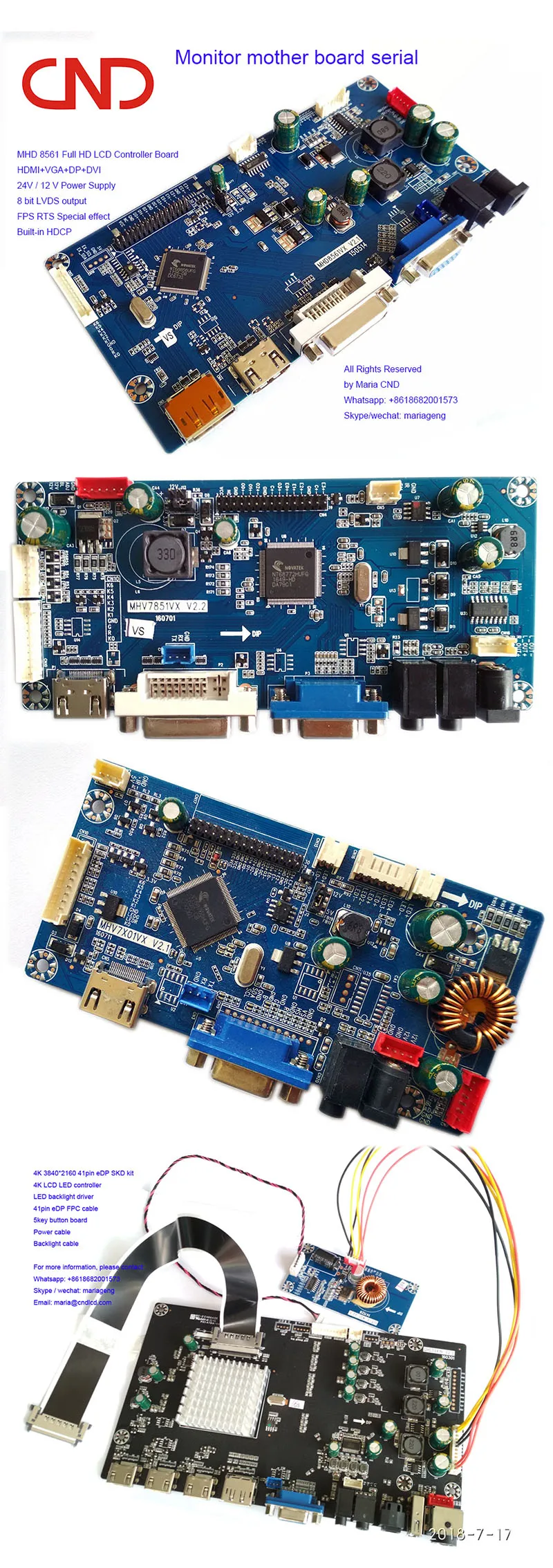

Novatek solutions: 3840*2160 2560*1440 1920*1080 display monitor motherboard, LCD controller board, LCD scaler board, LCD scaling board | used for various commercial and Industrial-grade displays, rail transit such as high-speed rail subway, etc.
|
Mstar TV motherboard, jumper TV board, Universal TV board, TV mother board, LCD spare parts
| the patent of jump cap selecting screen has been very popular in the market. Used for Analog TV, Digital TV DVB-C, DVB-T, DVB-T2. For bus TV, for railway TV |
