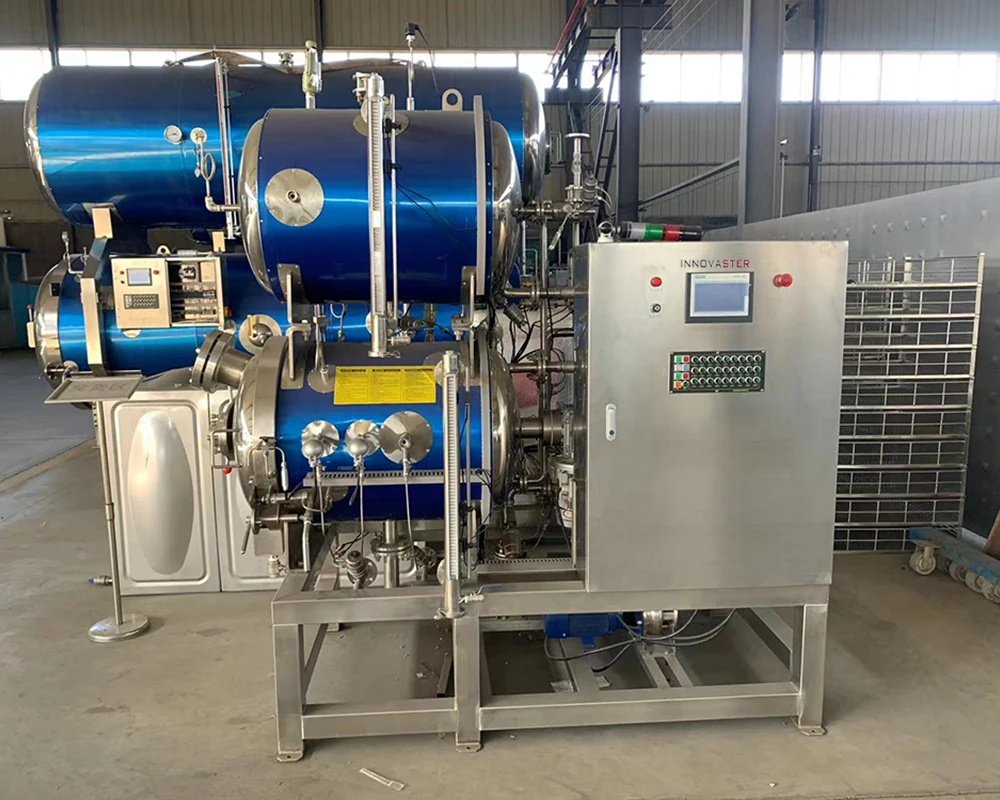

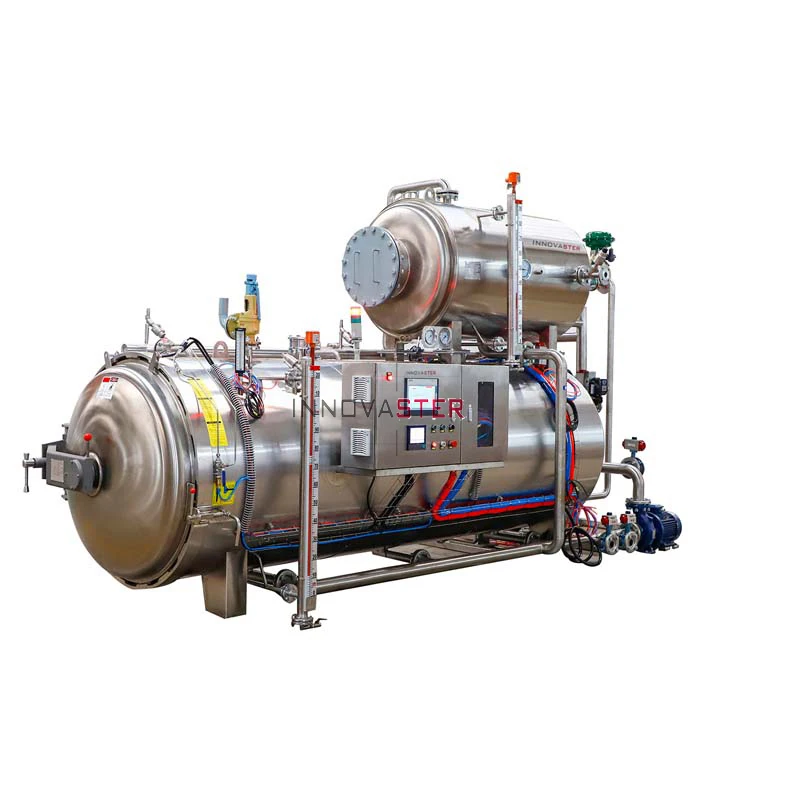

Steam Lab Vessel mini Retort for small scale production

steam retort

Brief Introduction

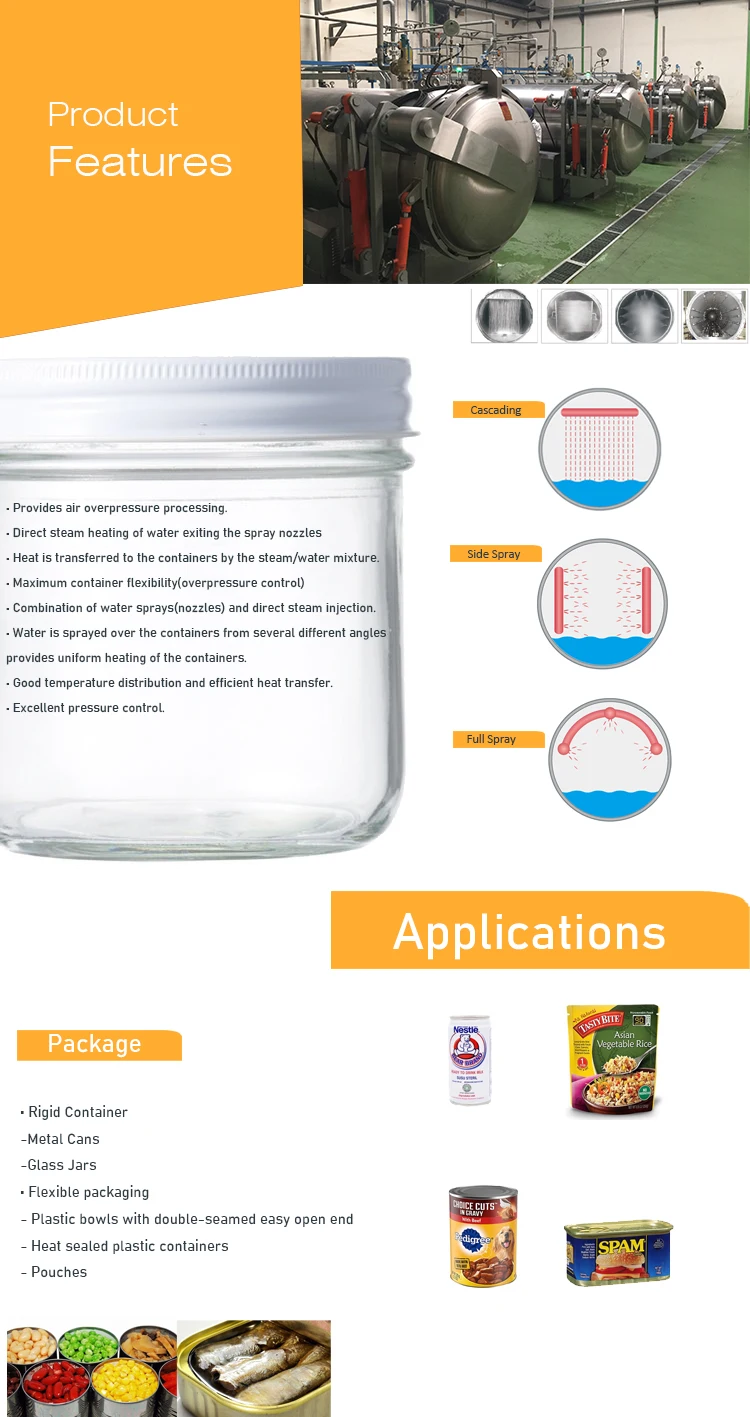

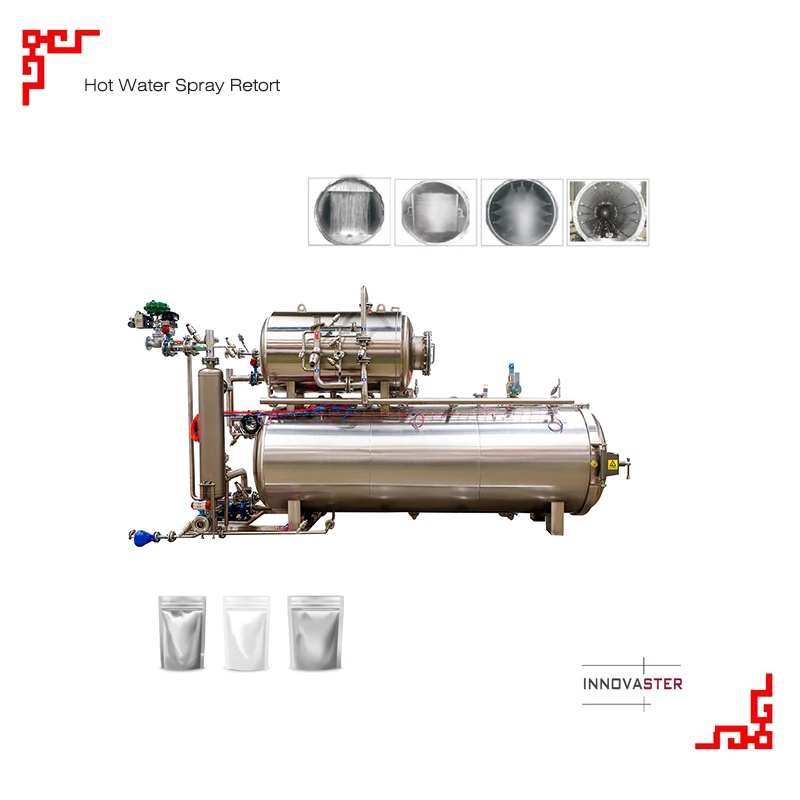

Innovaster Water Spray process is an overpressure process, it's different from Saturated Steam process in that air can be introduced into the vessel during sterilization. Preheat Tank is an OPTIONAL to preheat the process water while operator is entering the process recipe for hot filling products. During process, water is sprayed over the containers from different angles, steam can go through the other loop of the heat exchanger to heat the process water or directly injected into vessel.

Water Spray process can be used for various packages thermal processing, excellent temperature distribution and efficient heat transfer since Innovaster selects all top-class brands components to provide the high-quality retorts and service to our customers worldwide and because of our know-how. HMI controls provide a user-friendly interface to retort control.

In a Water Spray process these steps are:

1.Prepare Tank (OPTIONAL – if an external preheat water tank is used)

2.Come Up Fill (A Sterilization Step)

3.Come Up (A Sterilization Step)

3.Cook (A Sterilization Step)

4.Pressure Cool

5.Atmospheric Cool

6.Drain

Parameters

Model	Dia(mm)	Effective L(mm)	Baskets	Volume (CBM)	Design Te.(Degree.C)	Design Pre. (MPA)	Test Pre.(Mpa)
Ws-0902	900	1800	2	1.32	147	0.35	0.44
Ws-1003	1000	2400	3	2.12	147	0.35	0.44
Ws-1203	1200	3000	3	3.78	147	0.35	0.44
Ws-1204	1200	3600	4	4.45	147	0.35	0.44
Ws-1205	1200	4500	5	5.48	147	0.35	0.44
Ws-1403	1400	3000	3	8.2	147	0.35	0.44
Ws-1404	1400	4000	4	6.77	147	0.35	0.44
Ws-1405	1400	5000	5	8.31	147	0.35	0.44
Ws-1406	1400	6000	6	9.85	147	0.35	0.44
Ws-1604	1600	4500	4	9.95	147	0.35	0.44
Ws-1605	1600	5700	5	12.36	147	0.35	0.44
Ws-1606	1600	6800	6	14.57	147	0.35	0.44
