Product Overview
Description

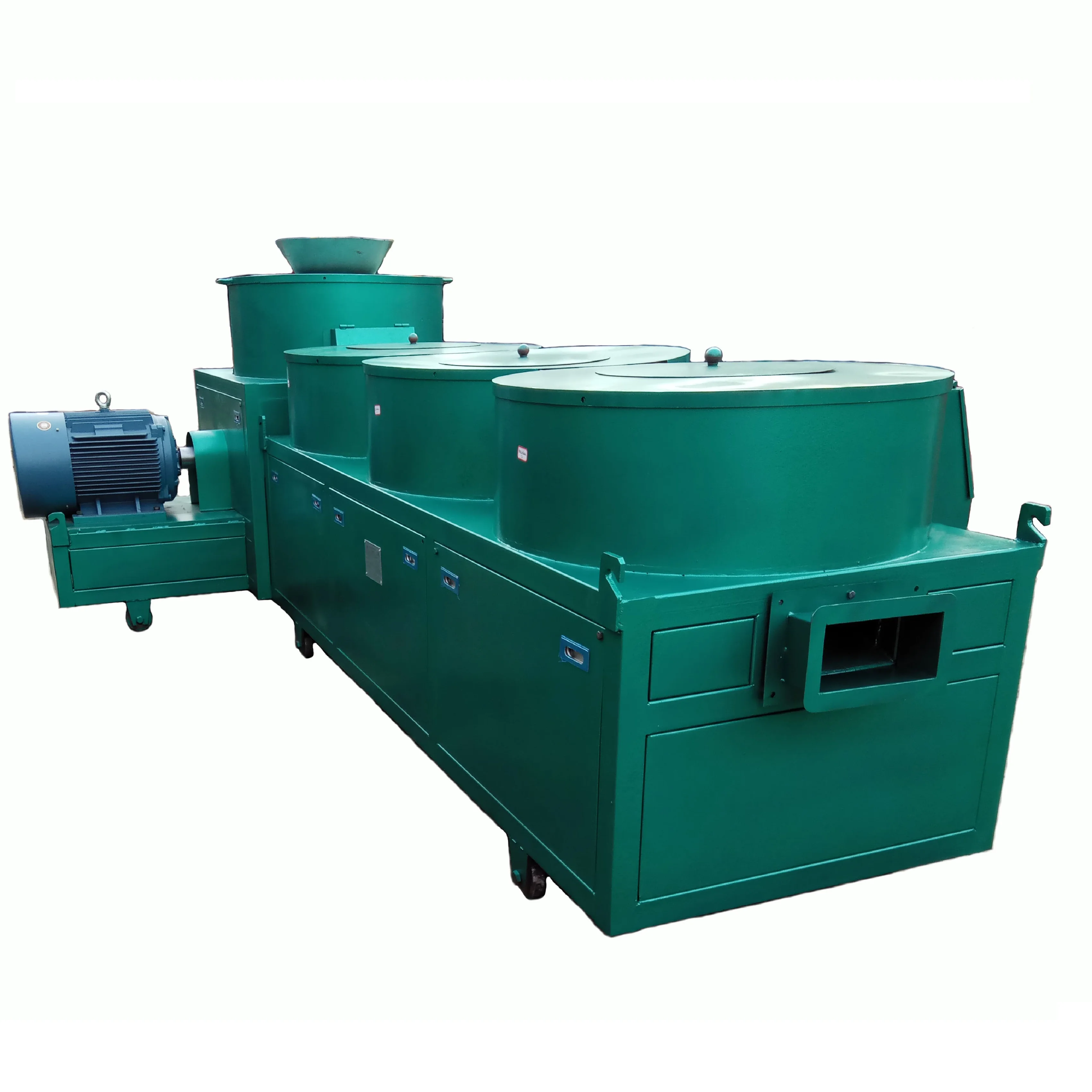

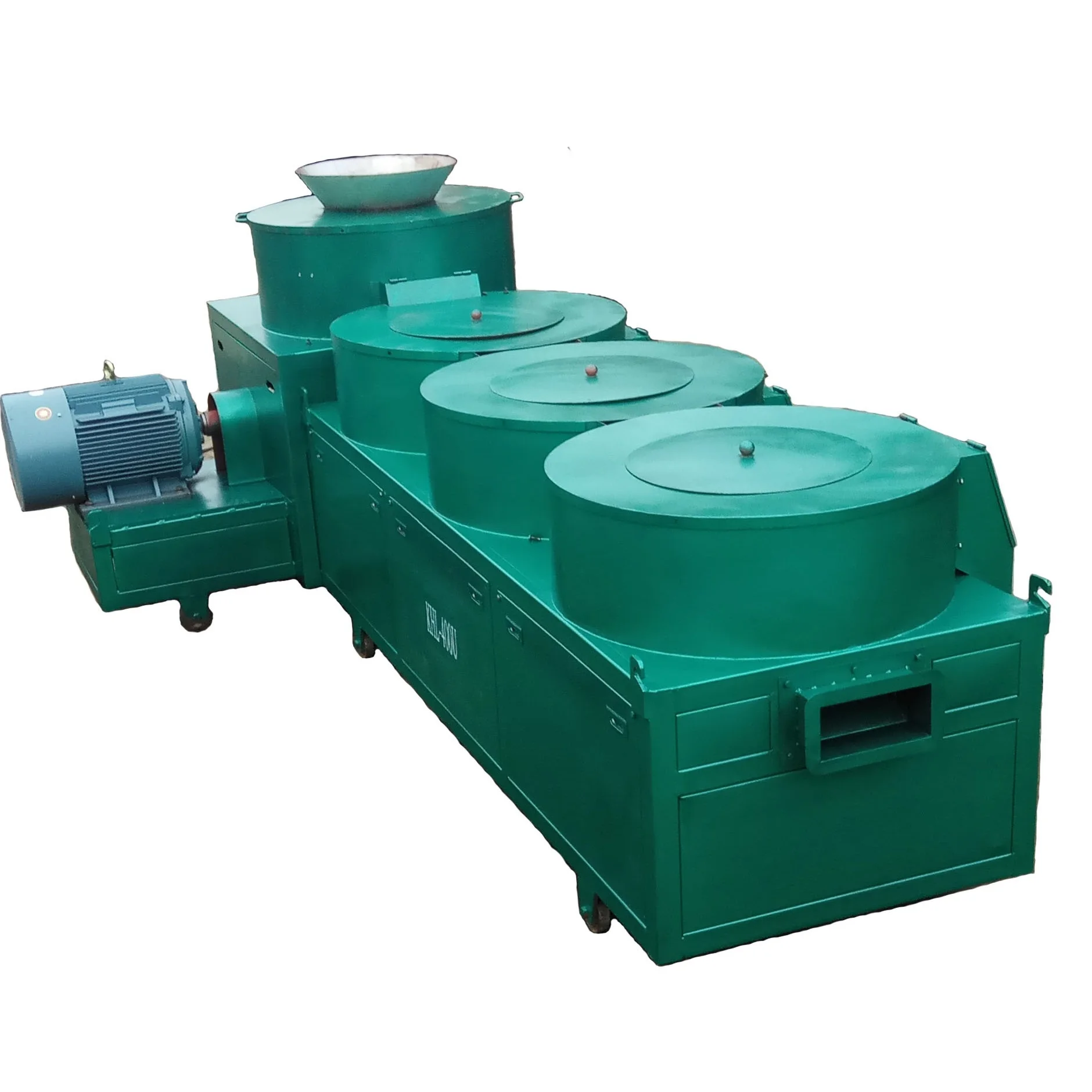

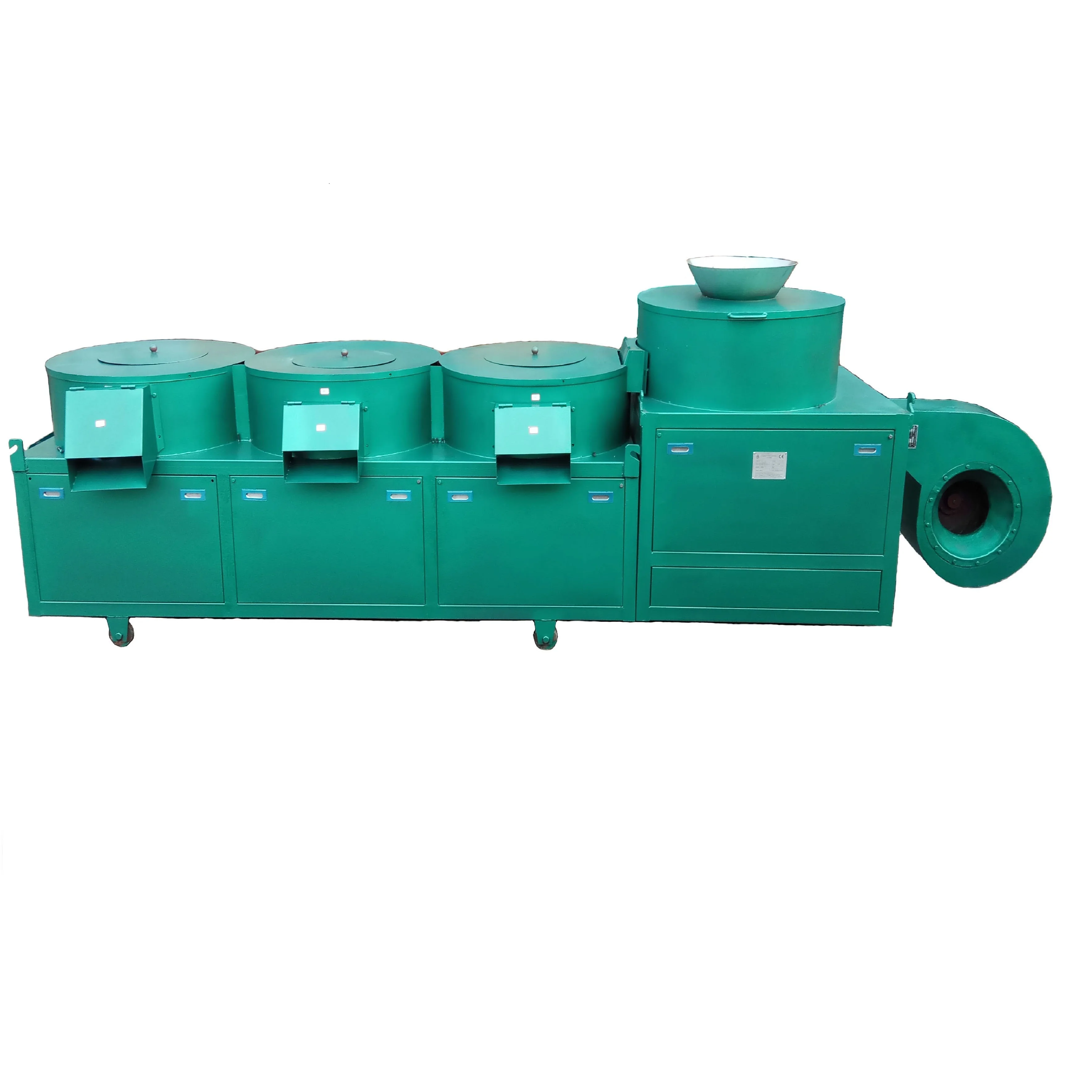

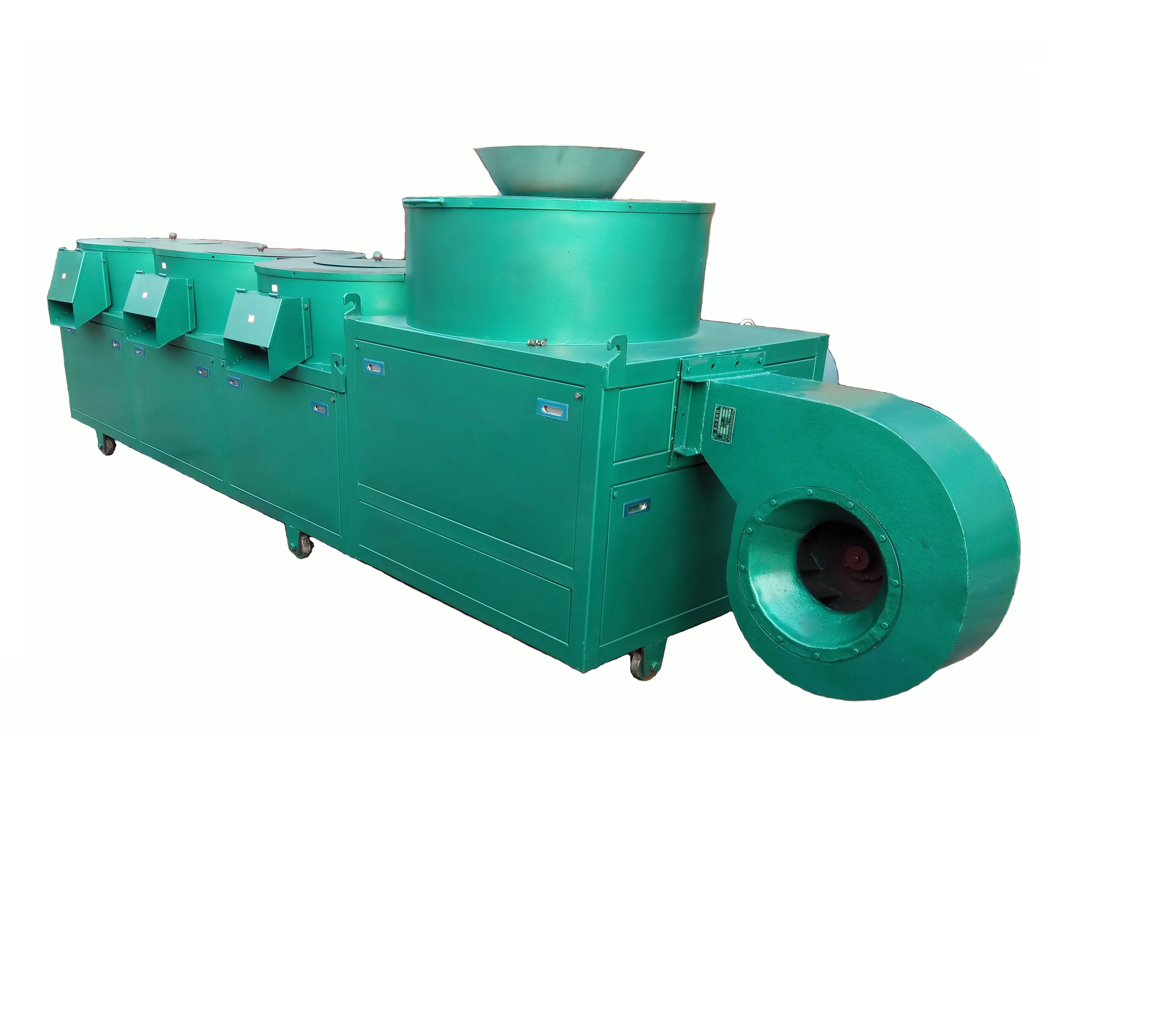

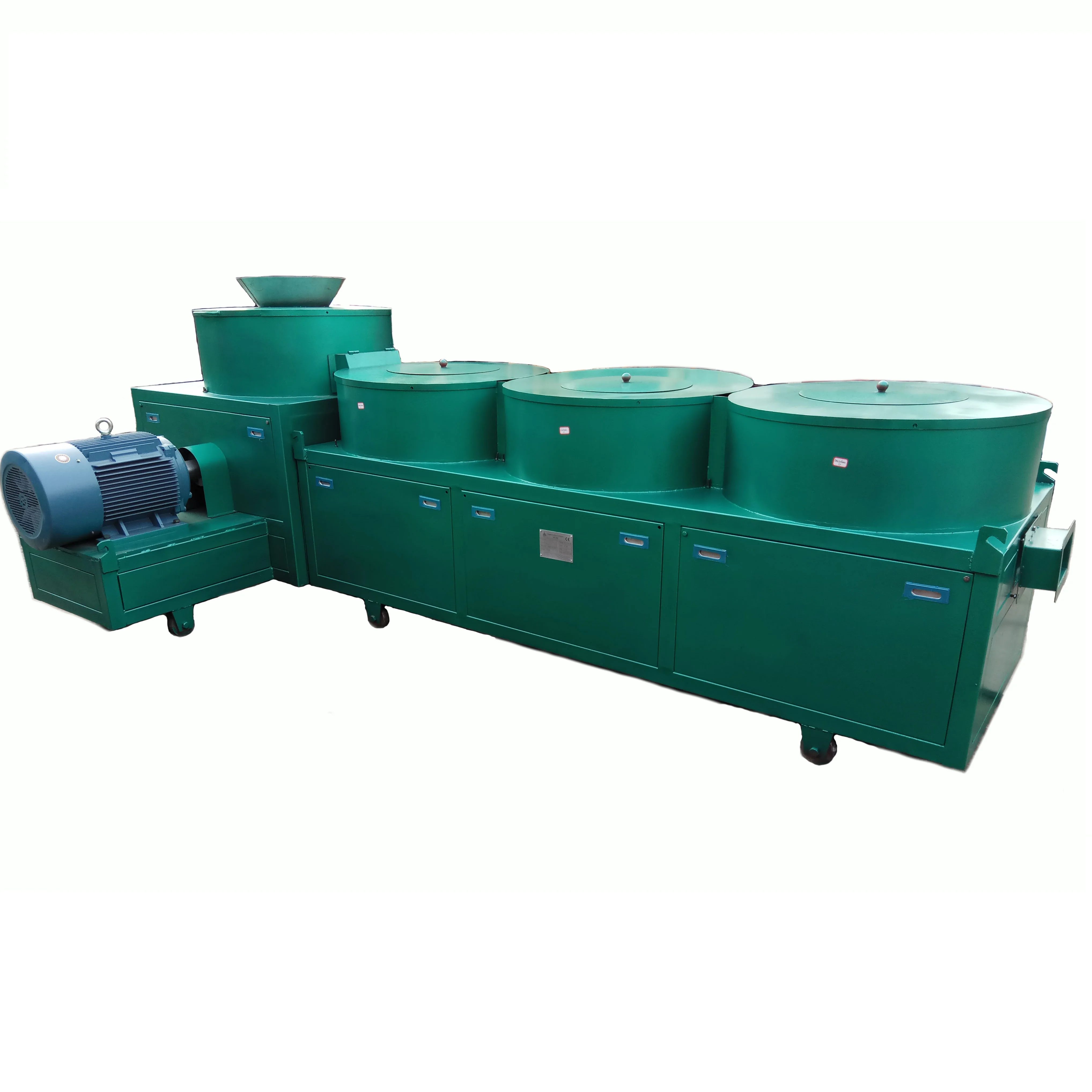

KHL-400U Model New Type Organic Fertilizer Granulation Machine Manufacturers
Model : | KHL-400U |
Capacity: T/h | 1-1.8 |
Input moisture content required: % | 30-35 |
Moisture reduce after granulation : % | 3 |
Input material particle size required : mm | 0.3-0.5 |
Rate of finished products:% | >90 |
Granules size: mm | 3.5-5.5 |
Power: KW | 37 |
Total weight:Kg | 2500 |
Size: m | 4.5 -1.8-1.5 |
bio fertilizer pellet machine

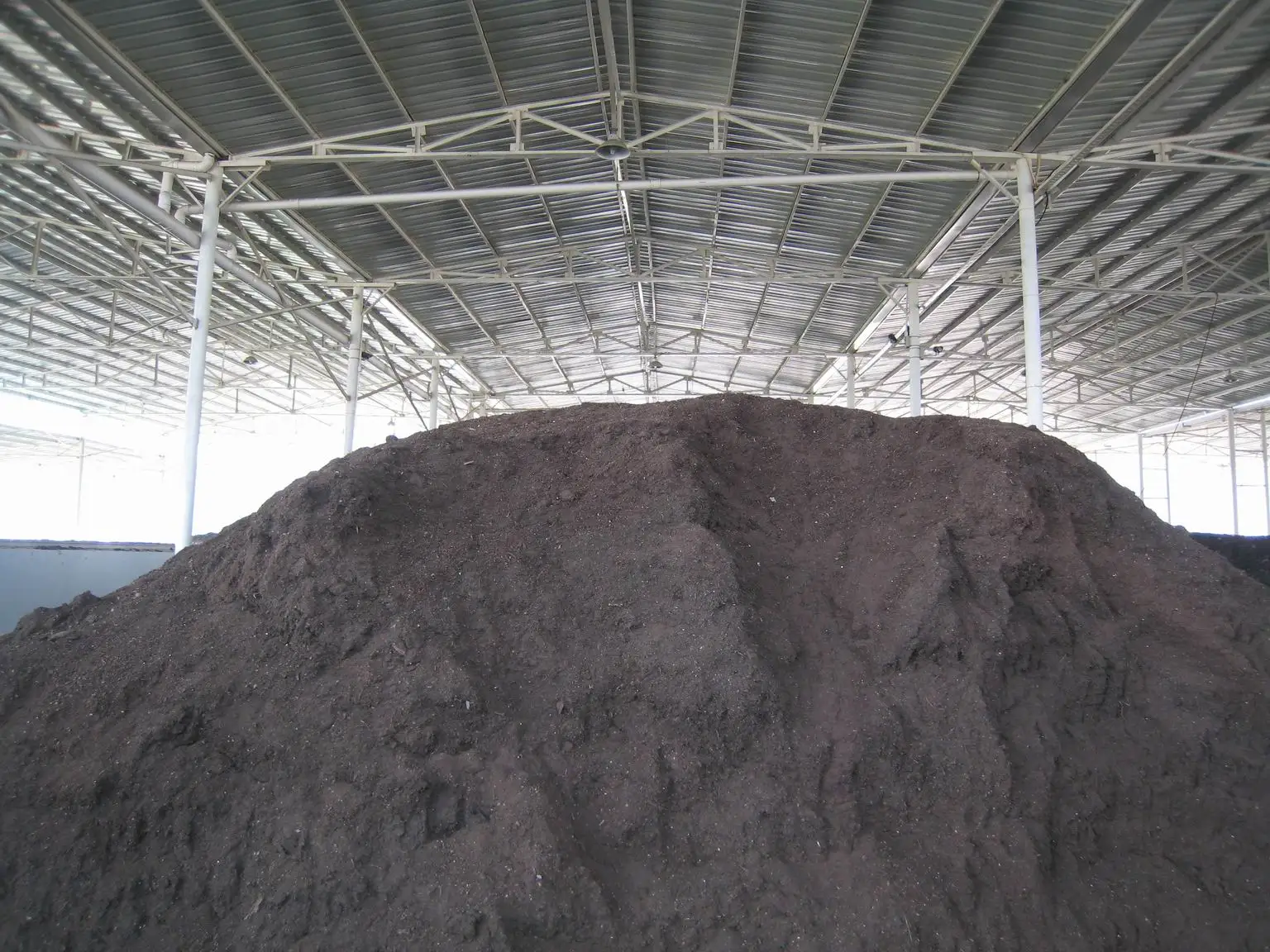

The following raw materials can be transformed into Uniform Round ball organic fertilizer granules by the organic fertilizer granulating machine.
1) Agricultural waste: straw, rice bran, grass, dregs of beans, cotton dregs, etc.
2) Animal manure: poultry litter and animal waste, such as fish market, urine, and dung of Cow, Pig, Sheep, Deer, Chicken, Duck,Geese, Goat, earthworm cast, etc.
3) Industrial waste: biogas residue, palm oil residue, wine lees, vinegar residue, starch pulp, manioc waste, sugar scum, furfural residue, bean cakes, fruit residue, etc.
4) Home scrap: food waste, bones, the roots and leaves of vegetables, etc.
5) Sewage sludge, Pond sludge, Residues of urban rubbish, etc.
6) Bentonite, Diatomite, Zeolite, Lignite, Turfs/Peat, etc.
7) Organic materials mix with Mineral materials.
2) Animal manure: poultry litter and animal waste, such as fish market, urine, and dung of Cow, Pig, Sheep, Deer, Chicken, Duck,Geese, Goat, earthworm cast, etc.
3) Industrial waste: biogas residue, palm oil residue, wine lees, vinegar residue, starch pulp, manioc waste, sugar scum, furfural residue, bean cakes, fruit residue, etc.
4) Home scrap: food waste, bones, the roots and leaves of vegetables, etc.
5) Sewage sludge, Pond sludge, Residues of urban rubbish, etc.
6) Bentonite, Diatomite, Zeolite, Lignite, Turfs/Peat, etc.
7) Organic materials mix with Mineral materials.
Advantage of organic fertilizer granulator :
There are many kinds of granulators to make organic fertilizer granules, such as Disc pan granulator, Rotary drum granulation machine, Double roller granulating machine, but Ring die system Granulator machine is becoming more and more popular. Why?
That's because organic fertilizer granulator has many advantages.
1) A high rate of Finished product. More than 90%.
Granulation rate can reach as high as 100%, all the raw material can be made into round ball granules.One-time production of uniform spherical granules, few returning materials.

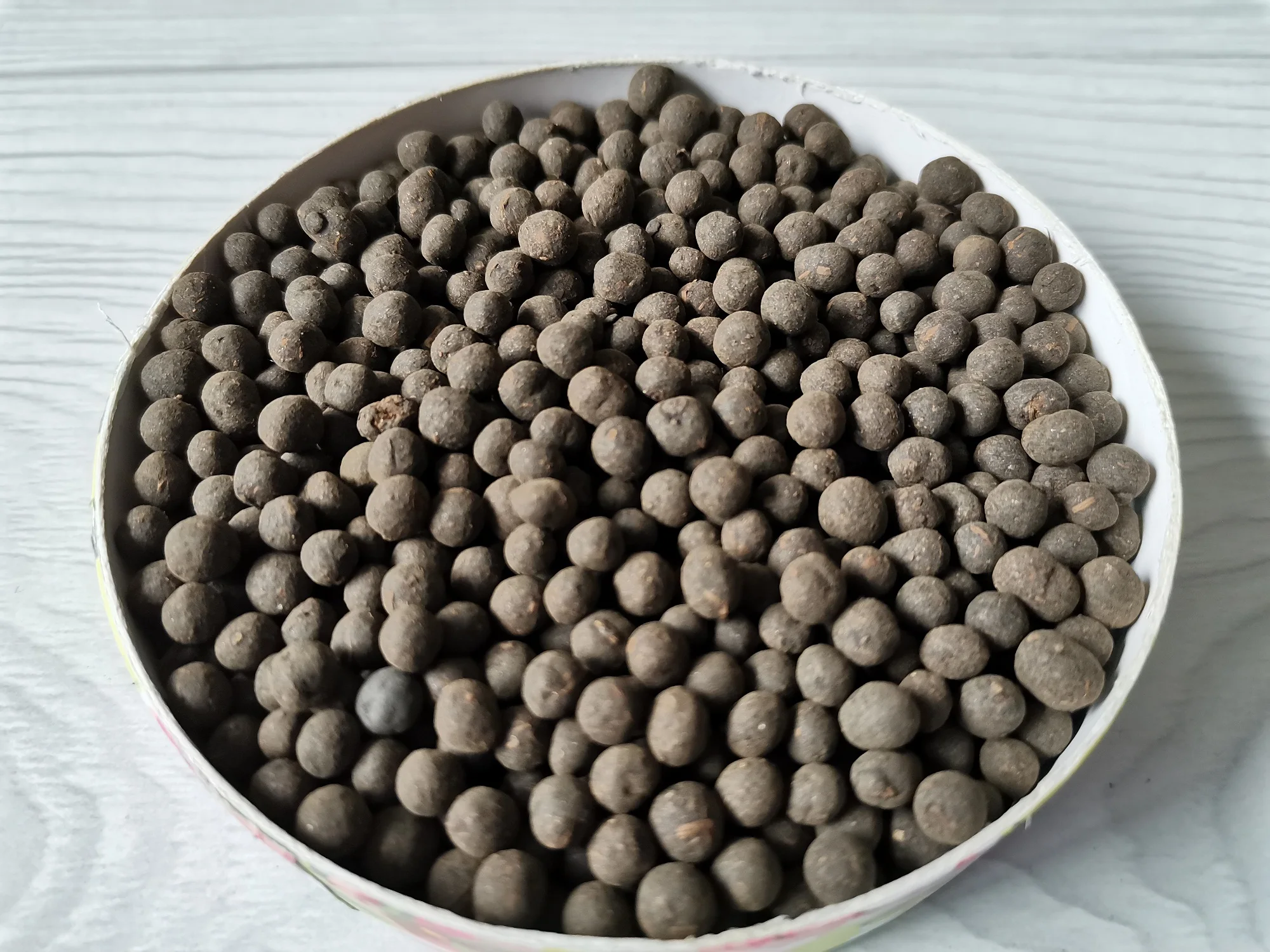

2) Uniform spherical granules, Narrow particle size distribution.The diameter of granules can be controlled easily. Different sizes of granules can be produced to meet your own needs as long as you change the diameter of the ring die.
3) Good hardness, strong enough for packaging.The granules will keep the round ball shape in the storage and transportation process, won't collapse, that's because the granulator machine has a good compressive capacity.
4) Easy operation and maintenance. Labor do not need skill or experience. Just need to adjust the moisture content of raw material before granulation process.
5) Not need binder materials. The organic content can reach to 100%, which is really pure organic material granulation.
6) Save energy consumption.Not need to dry the raw material before granulating because the required moisture content is 30-35%. Moisture content reduced during the granulation process, so it can save drying cost.
7) Running stable, High efficiency, Large productivity.
Granulation rate can reach as high as 100%, all the raw material can be made into round ball granules.One-time production of uniform spherical granules, few returning materials.
2) Uniform spherical granules, Narrow particle size distribution.The diameter of granules can be controlled easily. Different sizes of granules can be produced to meet your own needs as long as you change the diameter of the ring die.
3) Good hardness, strong enough for packaging.The granules will keep the round ball shape in the storage and transportation process, won't collapse, that's because the granulator machine has a good compressive capacity.
4) Easy operation and maintenance. Labor do not need skill or experience. Just need to adjust the moisture content of raw material before granulation process.
5) Not need binder materials. The organic content can reach to 100%, which is really pure organic material granulation.
6) Save energy consumption.Not need to dry the raw material before granulating because the required moisture content is 30-35%. Moisture content reduced during the granulation process, so it can save drying cost.
7) Running stable, High efficiency, Large productivity.
The organic fertilizer granulator includes two parts.
1) The Pellets part with Ring die and rollers system :
The raw material goes into the working chamber and fall on the 'dump tray', the raw materials throw into the ring die by centrifugal effect ; The ring die and rollers system turning drive-by reduction gears & transmission which energy from the motor .

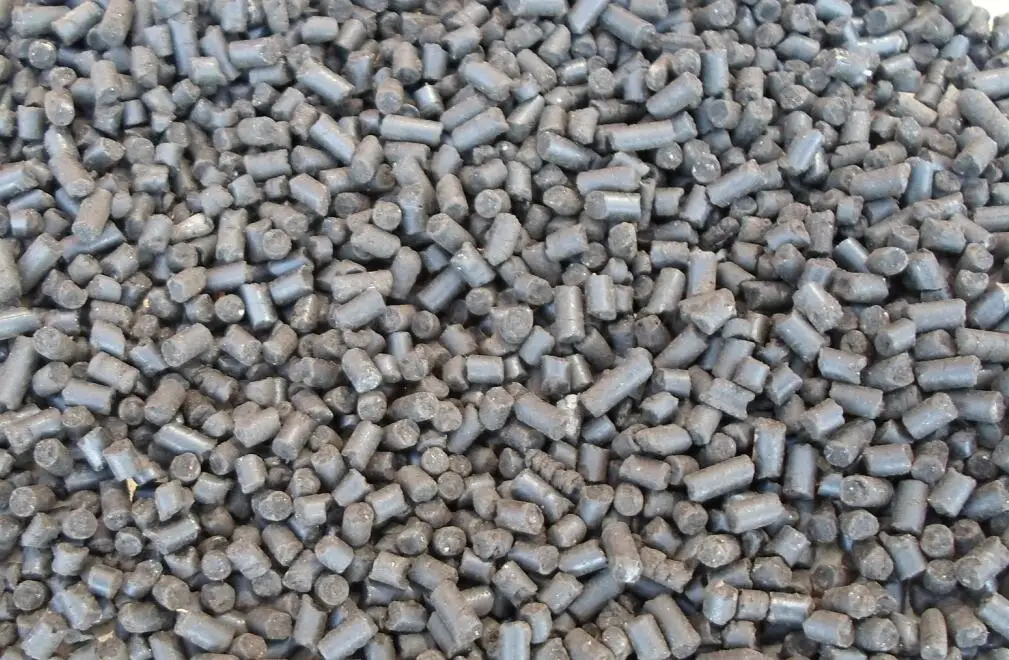

The pressure comes from ring die and rollers system running, cylinder form is forced extrusion from ring die hole,which cutting into small pellets as required by cutting line.
2) Balling Parts are three rotation disk :
The pellets fall onto the disk in the drum, by high-speed rotating disk throw onto the wall of the drum with circumferential movement, the granules in a circular motion at the same time also in radial rotation motion due to centrifugal effect. Mutual friction makes the granules with edges and corners into balls gradually due to granules' moving. At this moment, ball pellets gradually floating on the top, final granules overflow along with the number of granules increased in the drum.
organic fertilizer granulator can LCL and FCL shipment, packages as following:
Service of organic fertilizer granulator equipment
We provide an integrated customer service system.
1.Pre-sales: Consulting, Designing, Equipment Selection, Technology Discussion.
2. During sales: Programs and Drawings Confirmed, Installation Guide, Equipment Debugging.
3.After-sales: Testing Acceptance, Customer Training, Technical Exchanges.
1.Pre-sales: Consulting, Designing, Equipment Selection, Technology Discussion.
2. During sales: Programs and Drawings Confirmed, Installation Guide, Equipment Debugging.
3.After-sales: Testing Acceptance, Customer Training, Technical Exchanges.

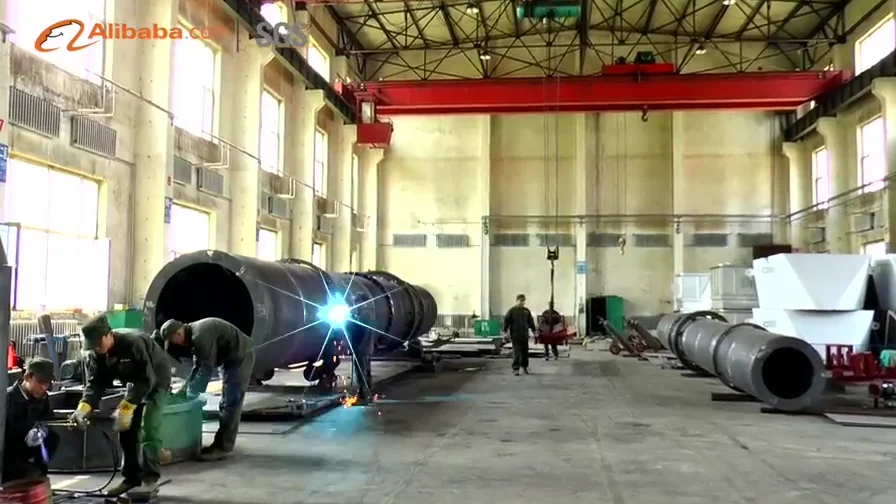

We are a manufacturer specializing in producing organic fertilizer granulator and complete an Organic fertilizer plant with a CE certificate for 14 years.
