Good price design street light 20W 30W 50W 60W 80W 120W 150W 200W 250W full power range LED street light

Product Overview

Description

Good price waterproof cobra led street light 150w 100w 80w 50w  outdoor street solar street led light design







Product Features of TL06 LED Street Light

• Adopt multi-chips package Lumileds LUXEONLuxeon 5050 LEDs. Stable performance,flip chip


• technology, single unit’s damage won't affect others' normal work.


• Optical lens design. TYPE I-S,II-M,III-M,V optional.Uniform lighting distribution apply to different lighting projects.


• Excellent operating temperature -20~50°C.

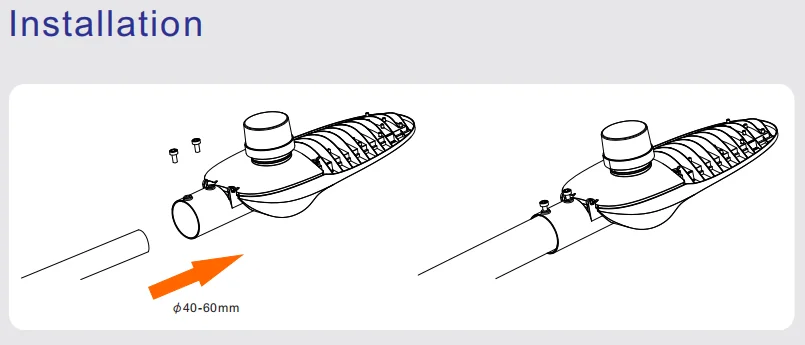

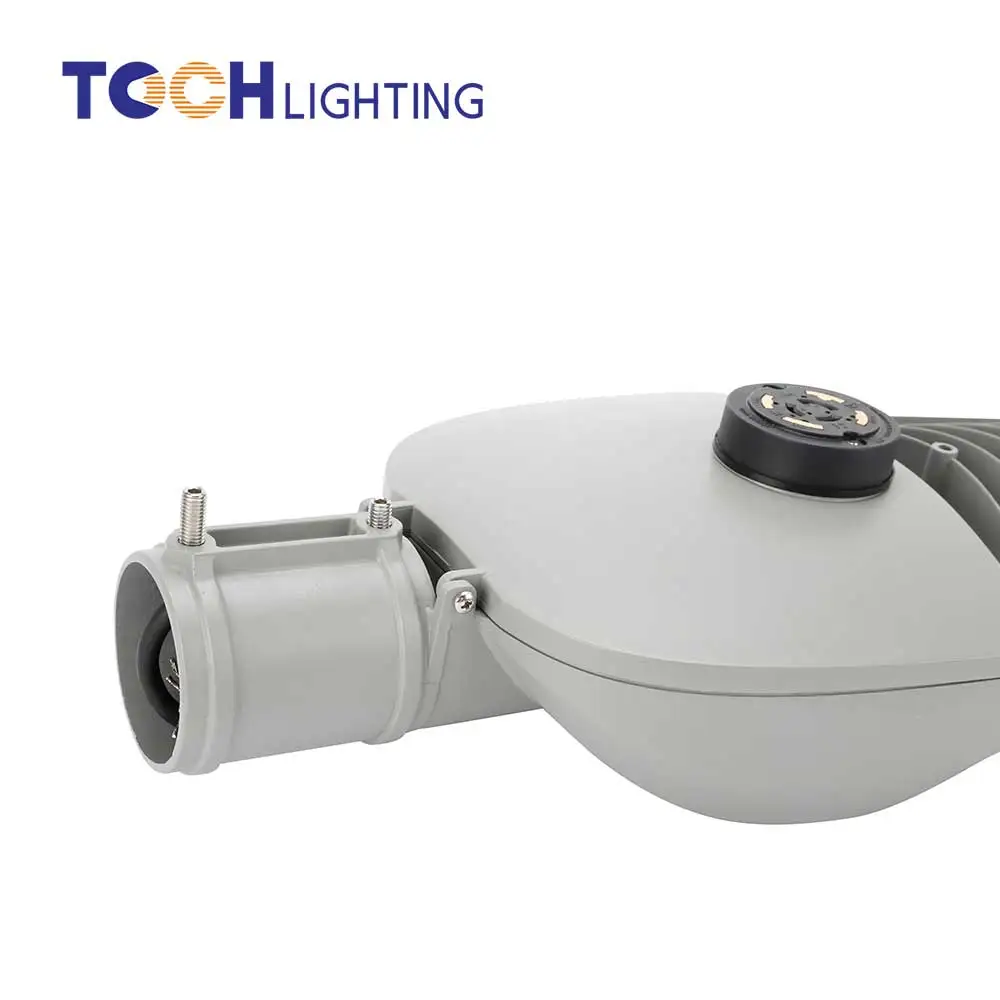

• 60mm bracket applicable different mounting arm.


• With excellent housing design reach IP67/IK09 rating.

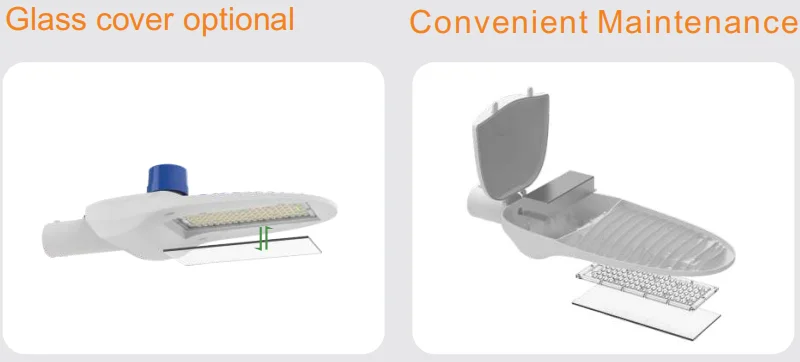

• PC lens/Tempered glass cover design suitable for many installation environment.

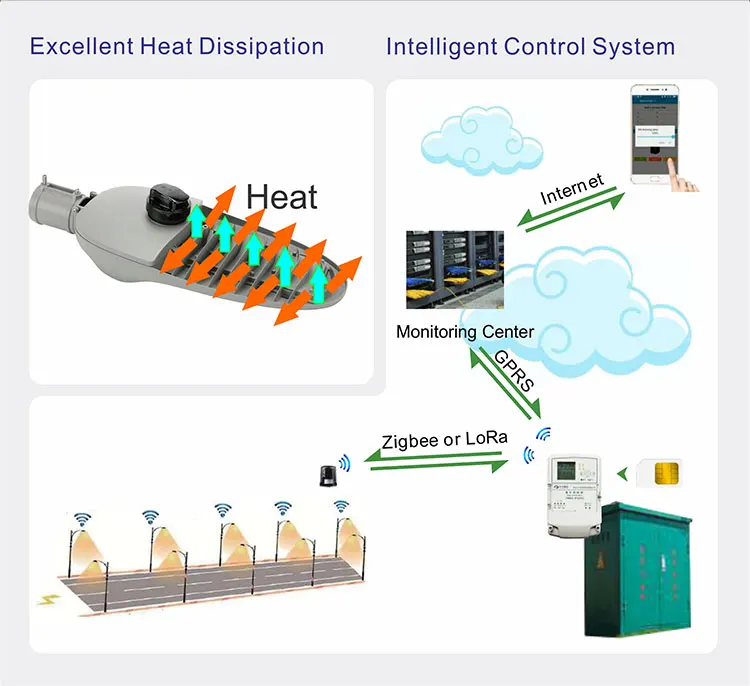

• Daylight Sensor,Dimming & smart controlling system are available upon request.


• High pressure die-cast aluminum alloy housing from 30W to 250W.


• Substantial friction resistant powder spraying process surface treatment.


• Long service life over 50,000 hours, 5 years warranty.



Specification of TL06 LED Street Light



Model	TL0601	TL0602	TL0603	TL0604	TL0605

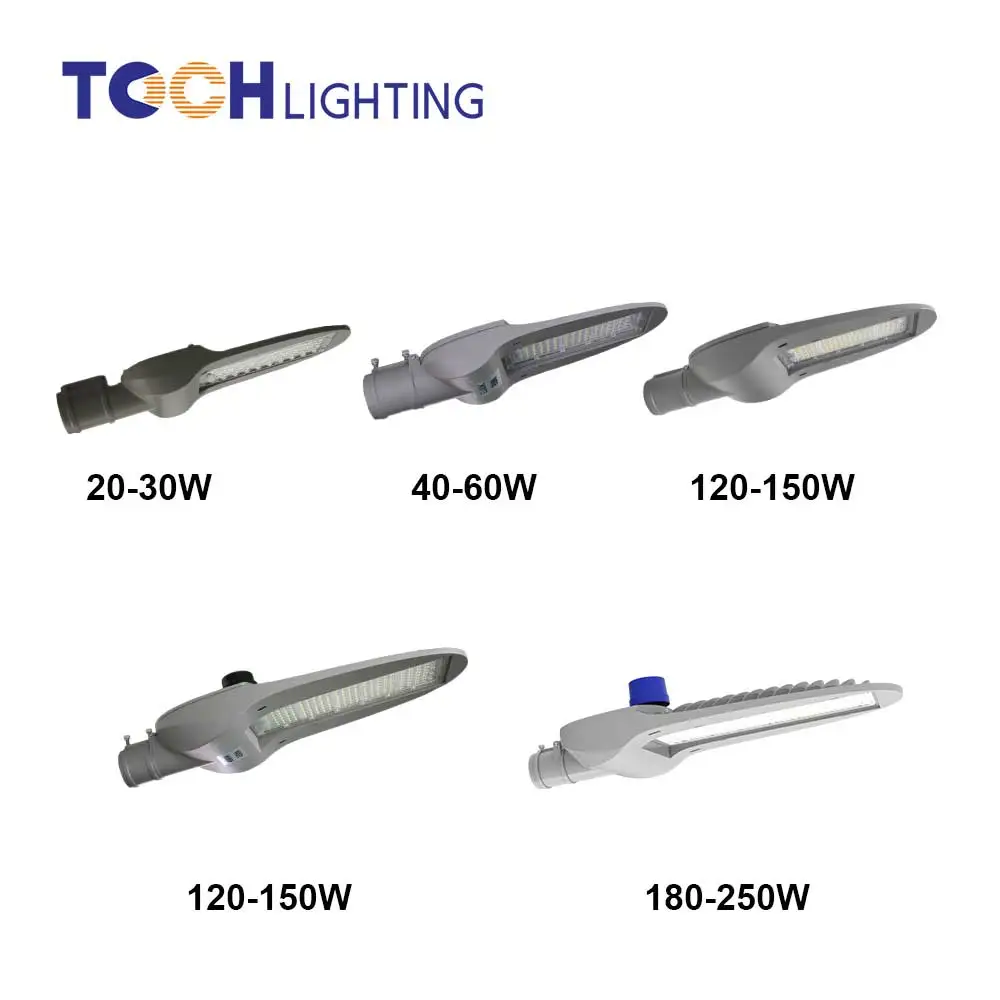

Power	20W-30W	40W-60W	80W-100W	120W-150W	180W-250W
Power Factor	>0.95
Power Supply	MOSO/MEANWELL/SOSEN
Working Voltage	100-277V AC,50-60Hz
LEDs	Lumileds LUXEON 5050 LED
CRI	>70
Luminous Efficiency	120-140lm/w
Class	I, II
CCT	3000K/4000K/5000K/5500K/6000K
SDCM Value	<5 SDCM
Beam angle	TYPE I-S,II-M,III-M,V
IP/IK rate	IP67,IK09
Housing Cover	PC lens/Tempered glass
Housing Material	ADC#12 Excellent Aluminum
Pole diameter	φ40-60mm
Working Temperature	-20℃~ +50℃
Storage Temperature	-20℃~ +60℃
Lifespan	5 years warranty
Surge protection	10KV

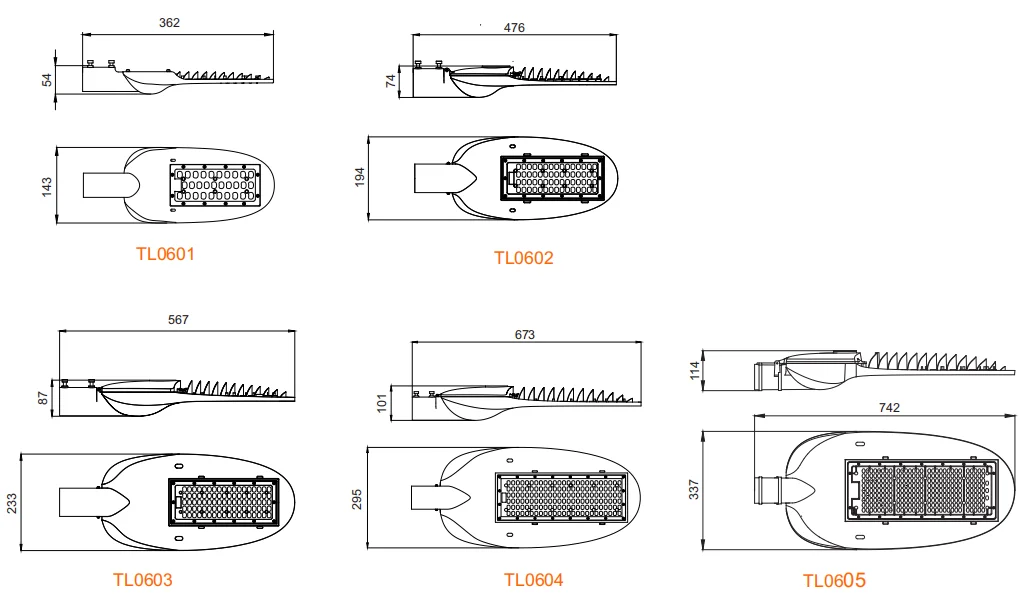

L*W*H(mm)	362*143*54	476*194*74	567*233*87	673*295*101	742*337*114

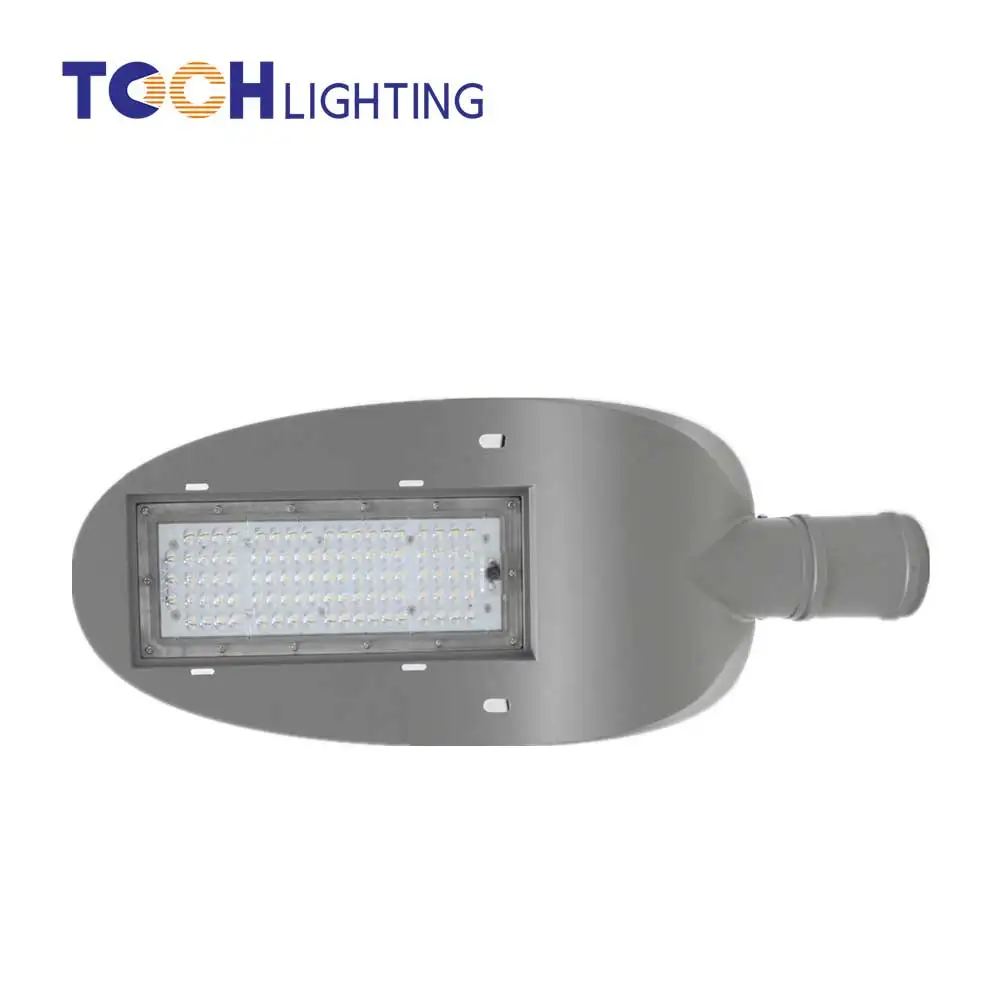

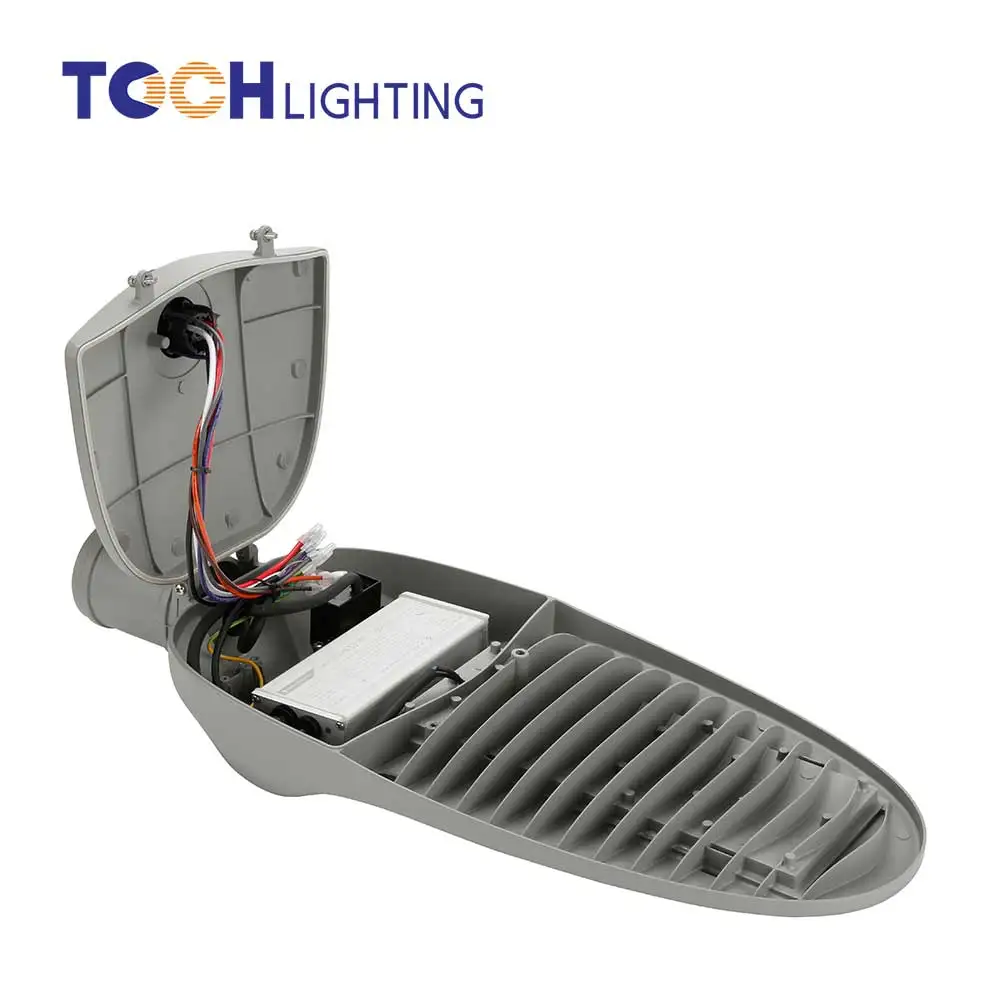

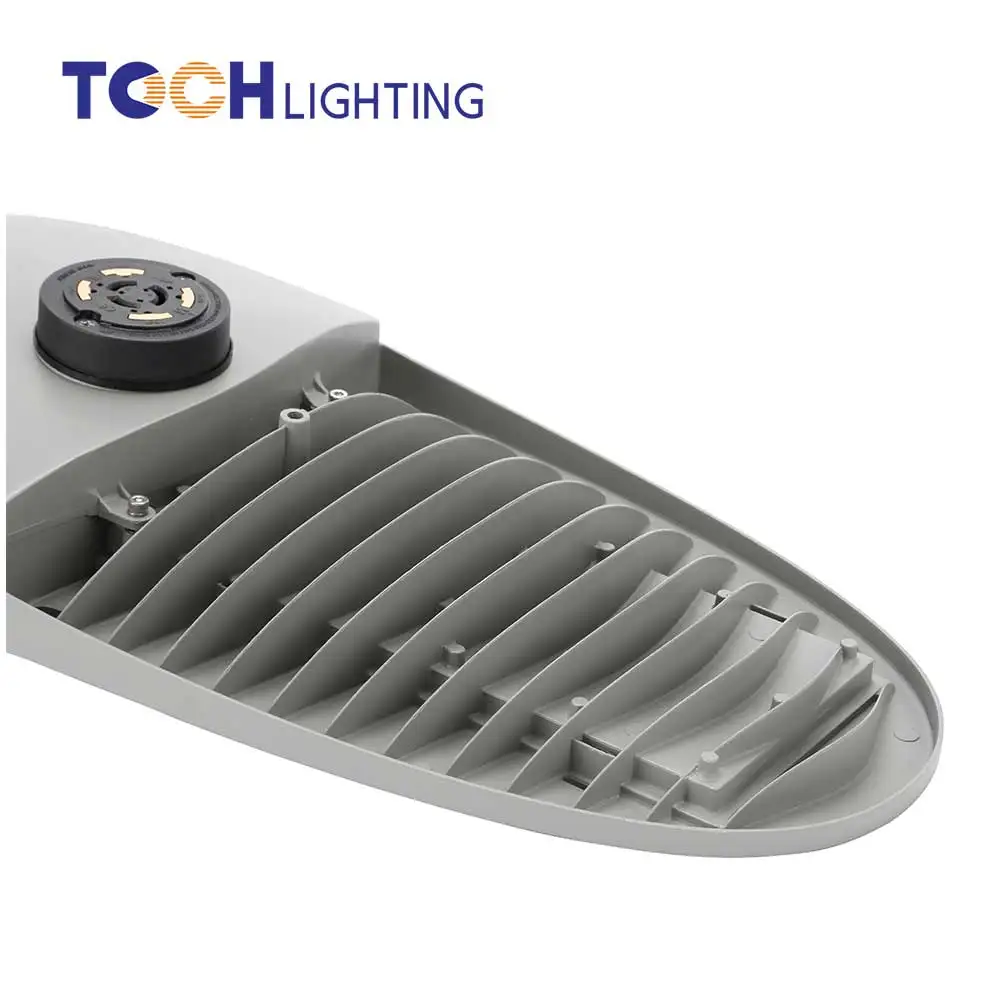

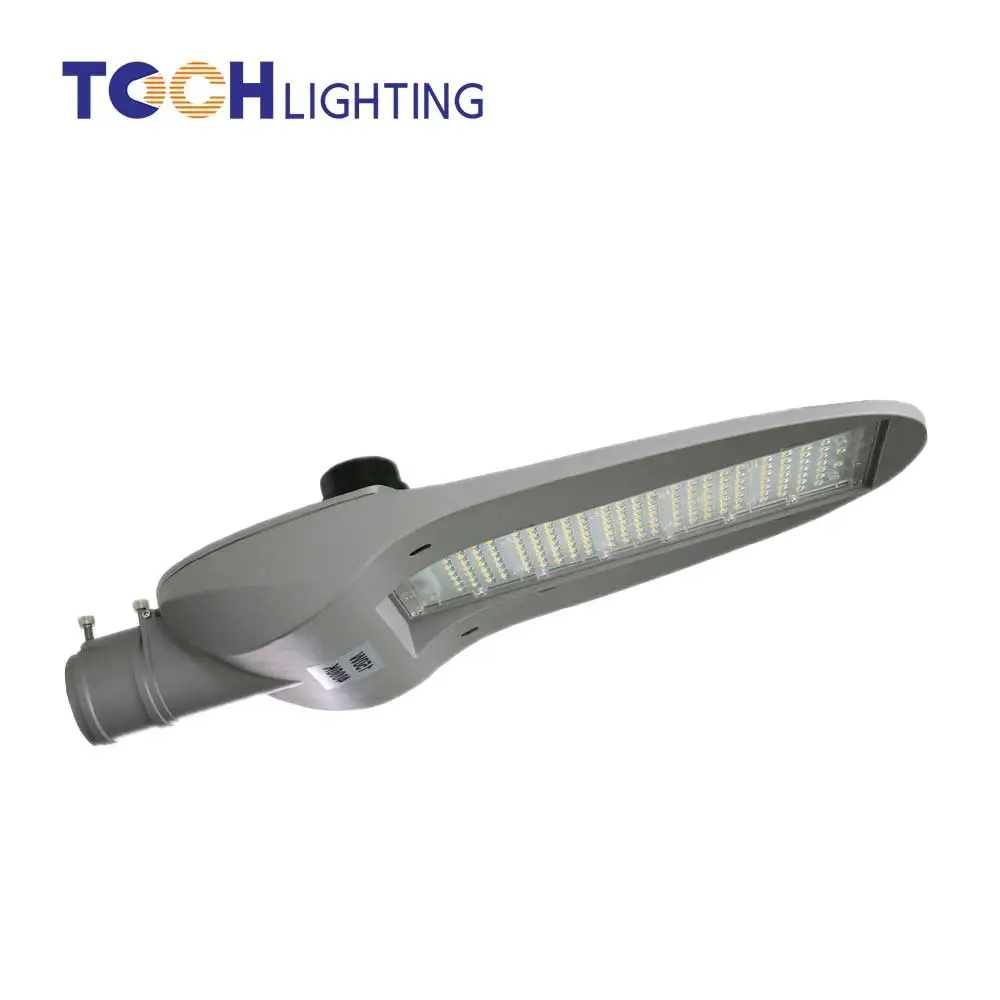

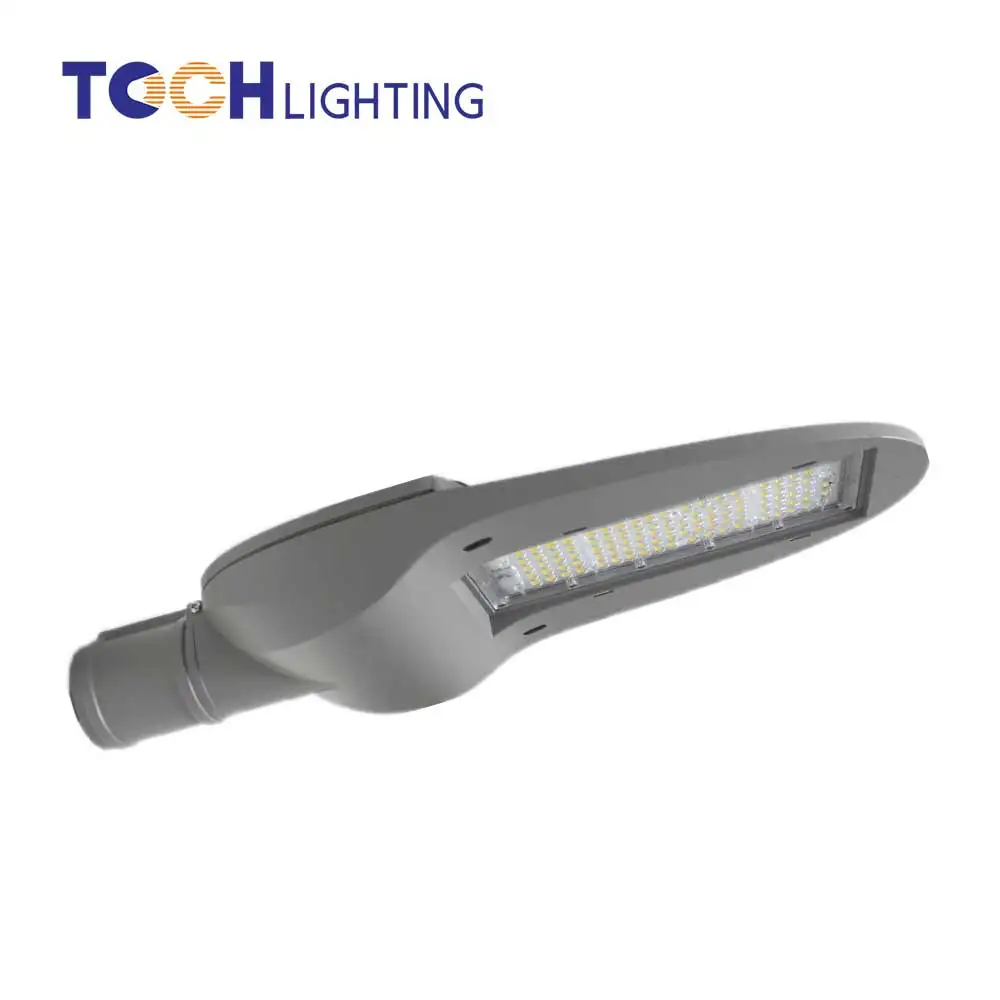

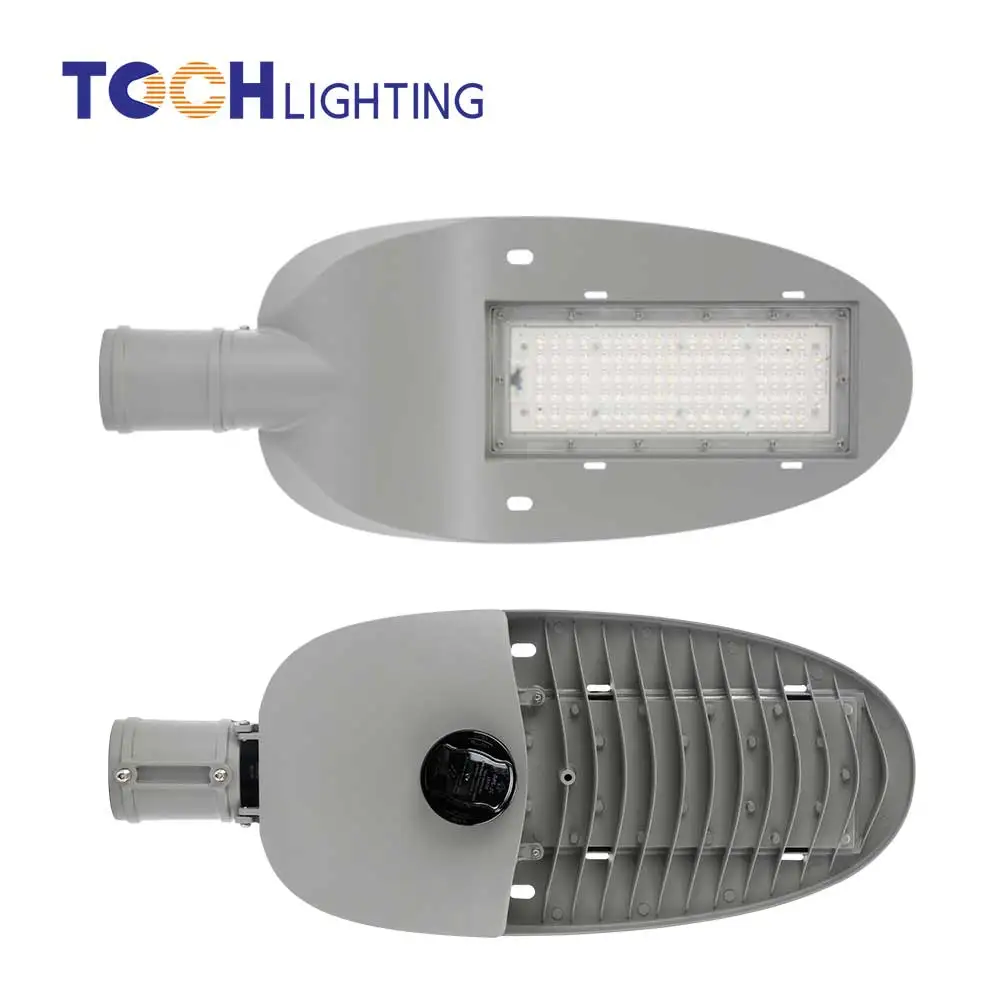

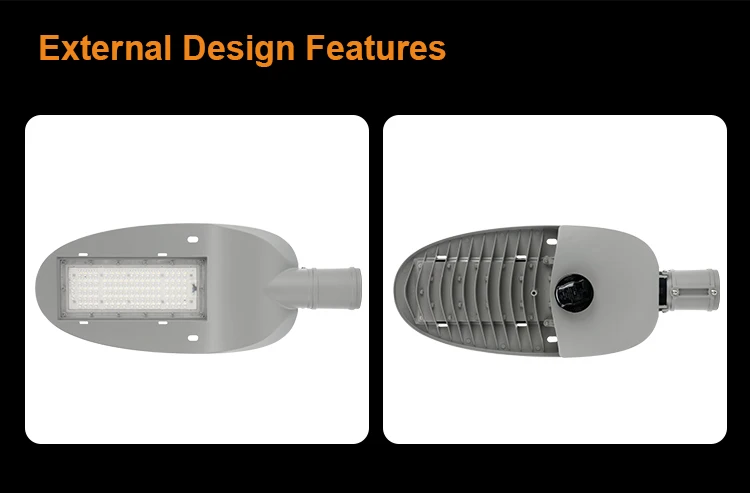

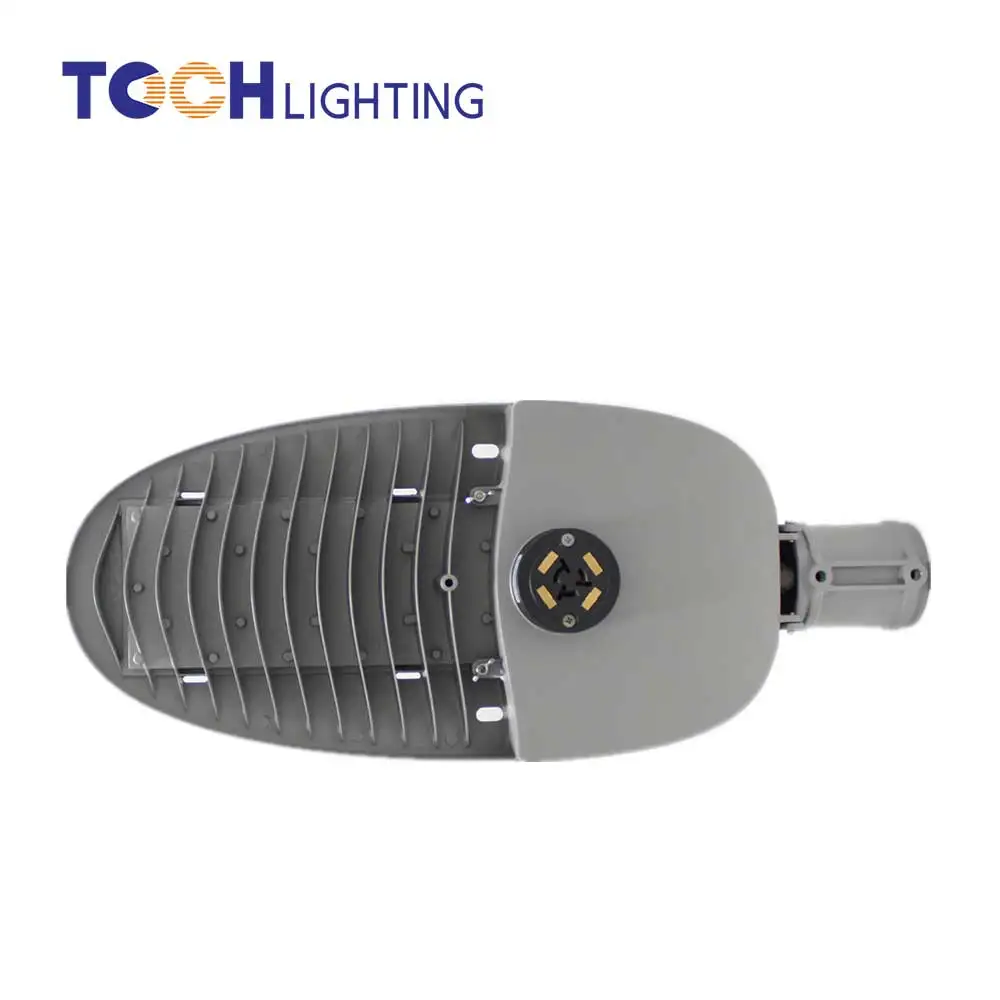

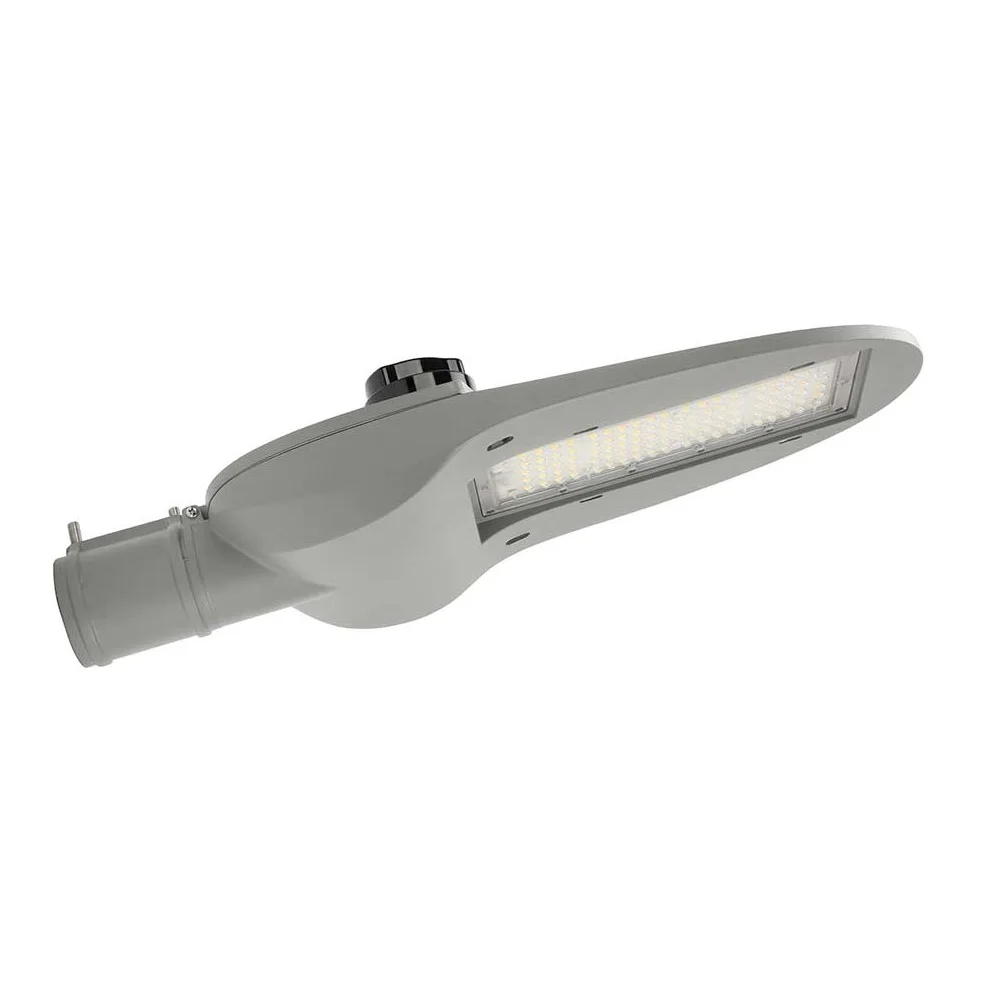

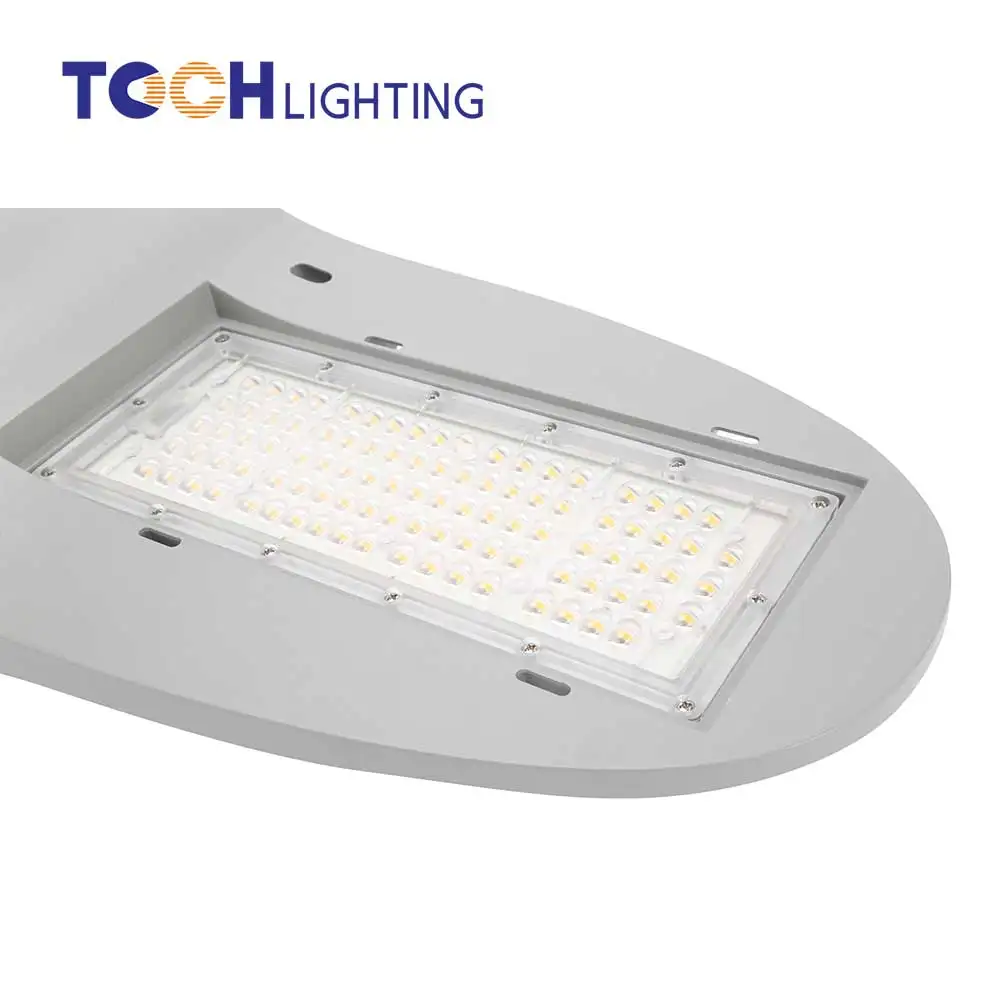

The detail pictures of LED street light 20w-250w series.



Shenzhen Tochlighting Technology Electronics Co.,Ltd, is a professional comprehensive LED lighting enterprise engaged in high power LED encapsulation,optical design and LED lighting researching and developing It has been honored as Chinanational high-tech enterprise,China Top 100 LED Lighting Application Enterprise, Forbes China Top 100 Up-and-Comer Private Unlisted Company.



Tochlight, with more than 16,000 square meters modern productionplant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R&D and innovation capability in China’s LED industry. Lepower has got many national patents, which is able to offer customers professional LED lighting solutions.Lepower strictly carry out ISO9001:2008 quality management system, and most of the products got ENEC, CB, ETL,DLC,CE,ROHS,LM-80,LM-79,CQC,CCC certification etc.





Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.



Quality Control

1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

2. We will be tracing the different phase of production from the beginning.

3. Every LED lights quality checked & cleaned before packing.

4. Before delivery clients could send one QC or point the third party to check the quality.

5. We will try our best to help clients when problem occurred.



Warranty terms

1. 3/5 years warranty.

2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents

3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.



FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide  you the best solution.

And if you have the tech to make design yourself , we can provide the IES files for you.



Q5.I have a street/high way ,what's your suggestion?

Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.







Our services contain the all LED lighting industry chain: LED package to LED lighting, optical lens design to LED lighting solution provide. Depending on the parent company’s R& D advantage,we have perfected intellectual property control system, R&D control mechanism in the initial period. We keep the idea of high quality first all the time,offering LED outdoor lighting products,module products,sport lighting,industrial lighting,smart lighting controlling system to customers. Products have been approved ENEC,CB,ETL,DLC,CE,Rohs,LM79,LM80 etc authorized certificates & reports, We have been listed in Guangdong province LED Benchmarking system, Government Energy-Saving product purchased company.
