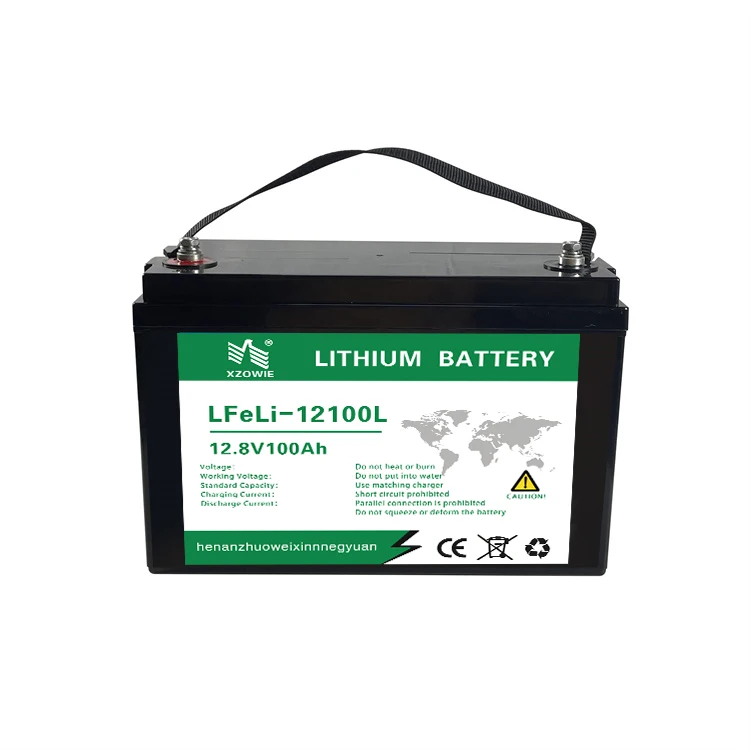

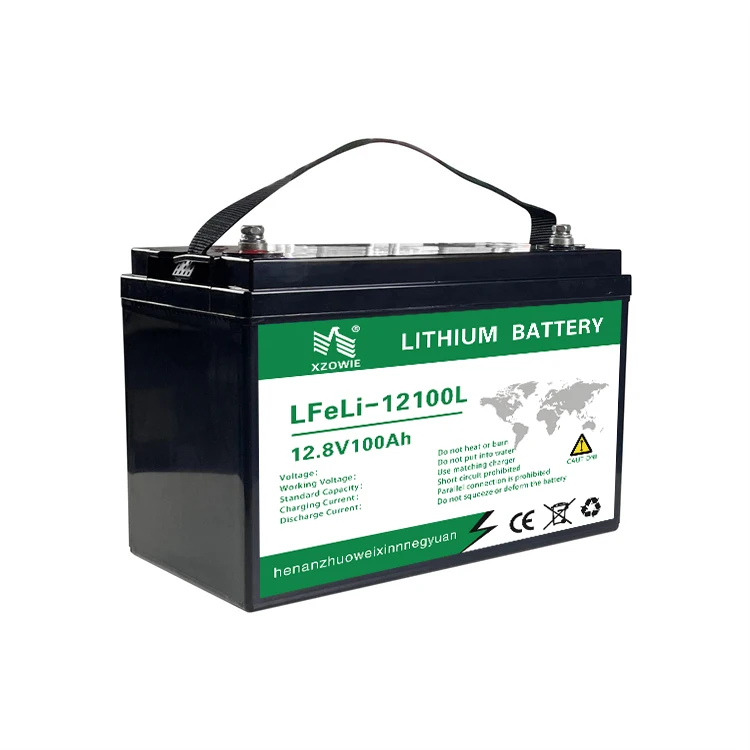

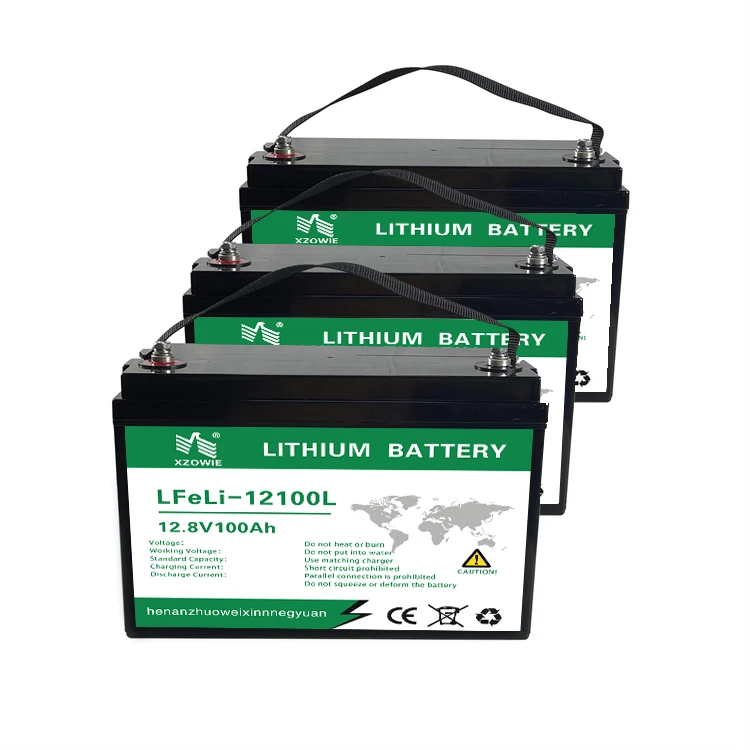

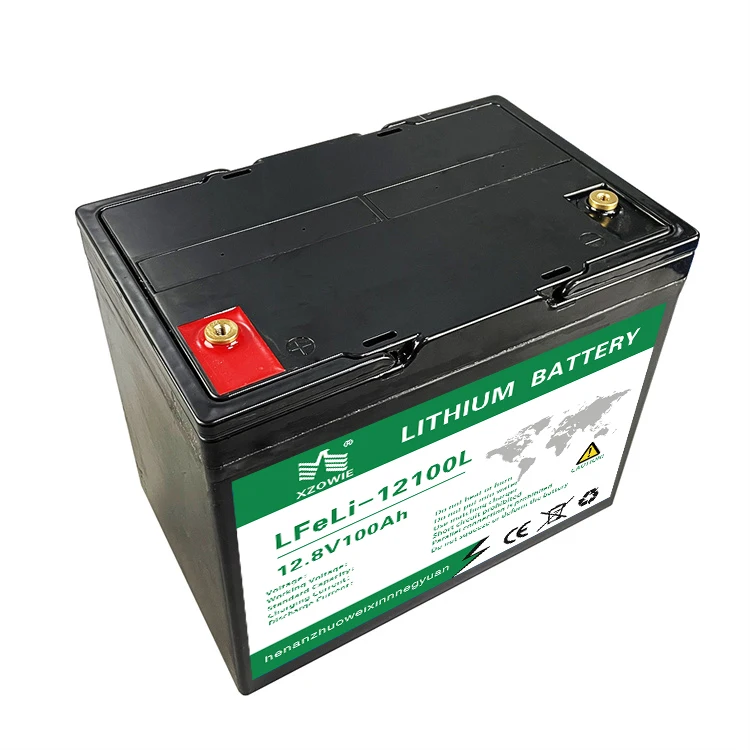

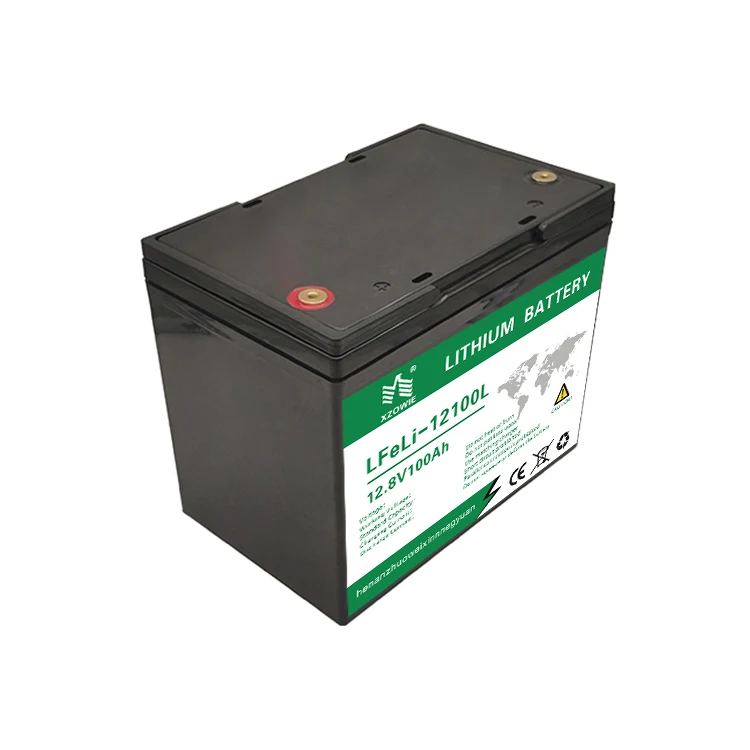

High Quality zhuowei Battery Pack Backup Battery with DC 12v/9v/5v Output Lithium Battery for Digital
- Category: >>>
- Supplier: Henan Zhuowei New Energy Technology Co. Ltd.
Share on (1600427593369):
Product Overview
Description
Products Description
No | Item | Data |

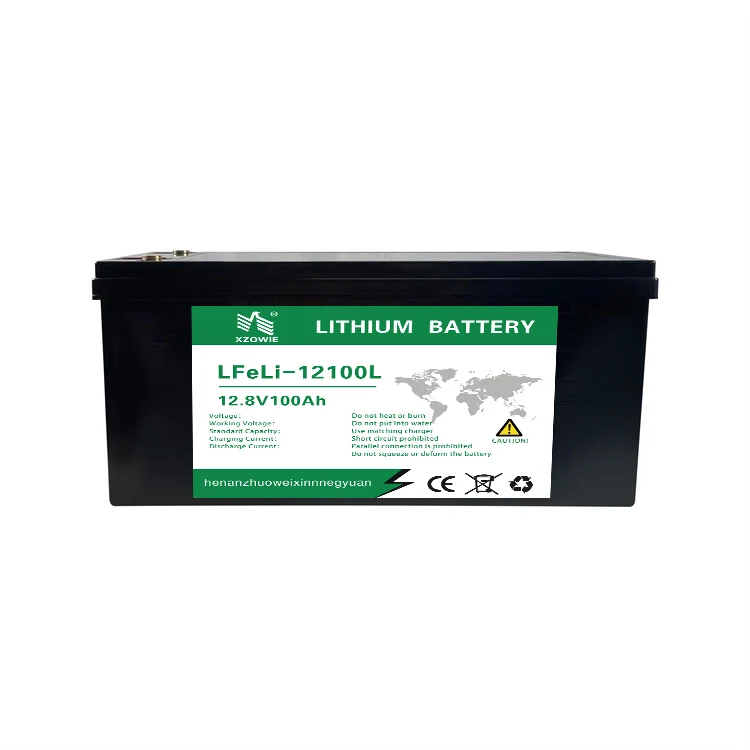

1 | Model | LFeLi-12100M 12.8V100Ah |
2 | Nominal Voltage | 12.8V |
3 | Nominal Capacity | 100Ah |
4 | Energy | 1280Wh |
5 | Internal Resistance(AC) | ≤20mΩ |
6 | Cycle Life | >2000 cycles @1C 100%DOD |
7 | Months Self Discharge | <3% |
8 | Efficiency of Charge | 100% @0.5C |
9 | Efficiency of Discharge | 96~99% @1C |
10 | Charge Voltage | 14.6V±0.2V |
11 | Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
12 | Charge Current | 50A |
13 | Max. Charge Current | 100A |
14 | Charge Cut-off Voltage | 14.6V±0.2V |
15 | Rated Discharge Current | 50A |
16 | Max. Discharge Current | 100A |
17 | Discharge Cut-off Voltage | 10.0V |
18 | Charge Temperature | 0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
19 | Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
20 | Storage Temperature | -20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity |
21 | IP Class | IP65 |
22 | Plastic Case | ABS |
23 | Approx. Dimensions | 330mm*173mm*220mm(12.99in.*6.81in.*8.66in.) |
24 | Approx. Weight | 13.10kg (28.66lbs) |
25 | Terminal | M8 |
OEM/ODM Service
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where it is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more information about us and products.
Application
Application
Where you need energy, lithium battery will be applicable.
Small volume drives big future, only because of new technological breakthroughs
Recommend Products

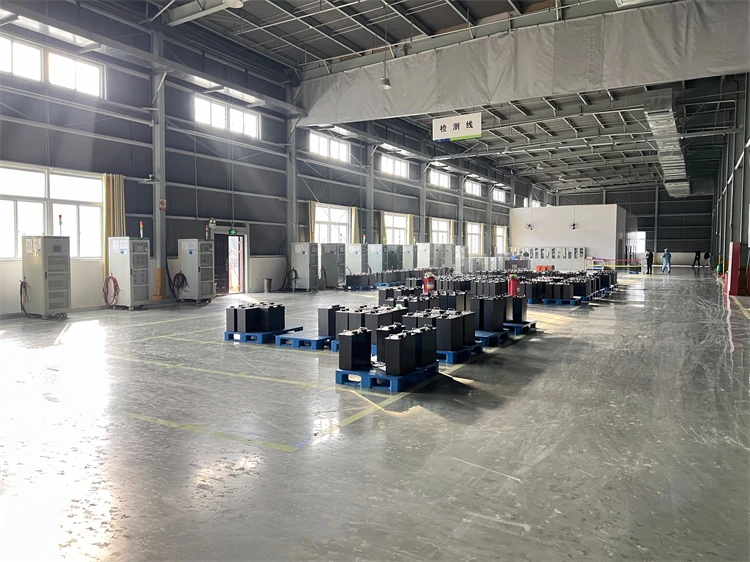

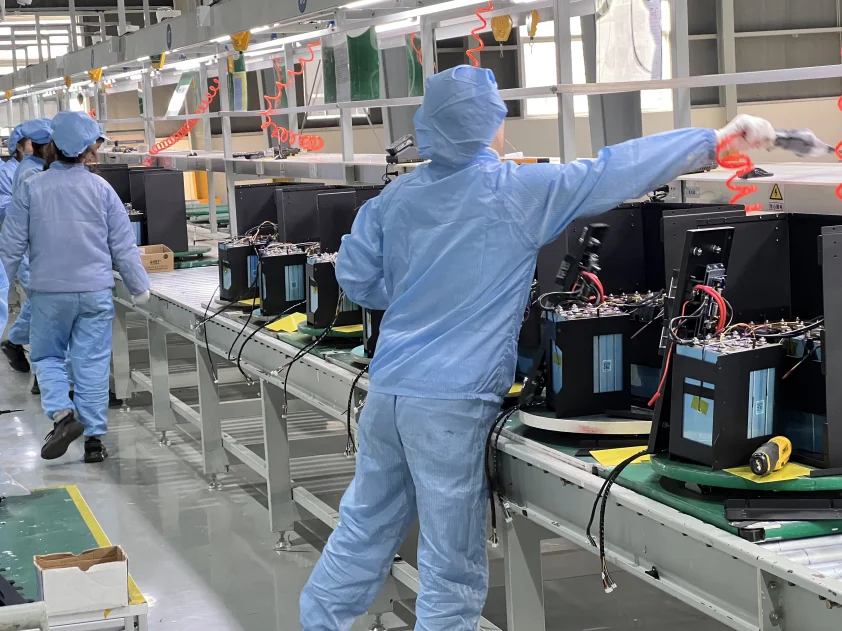

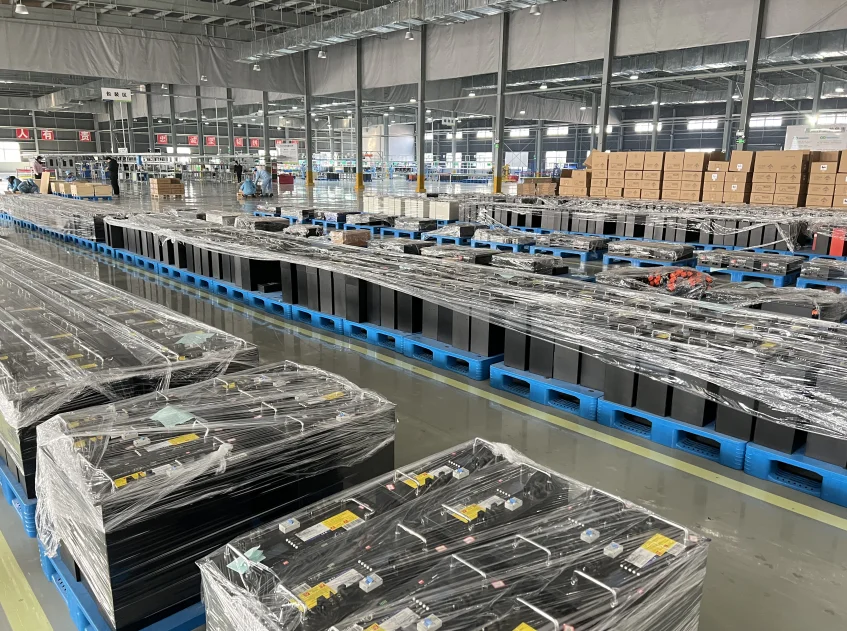

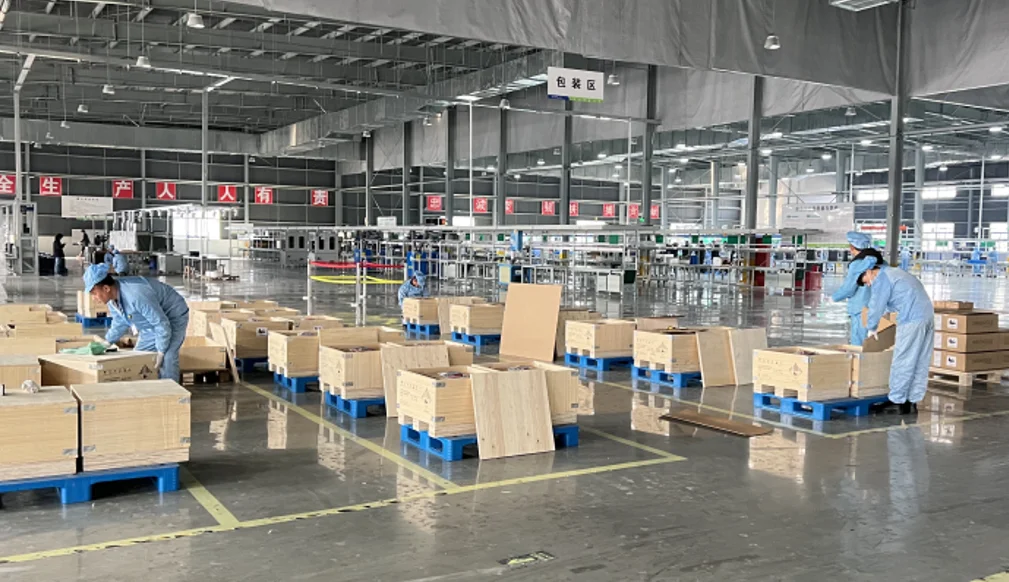

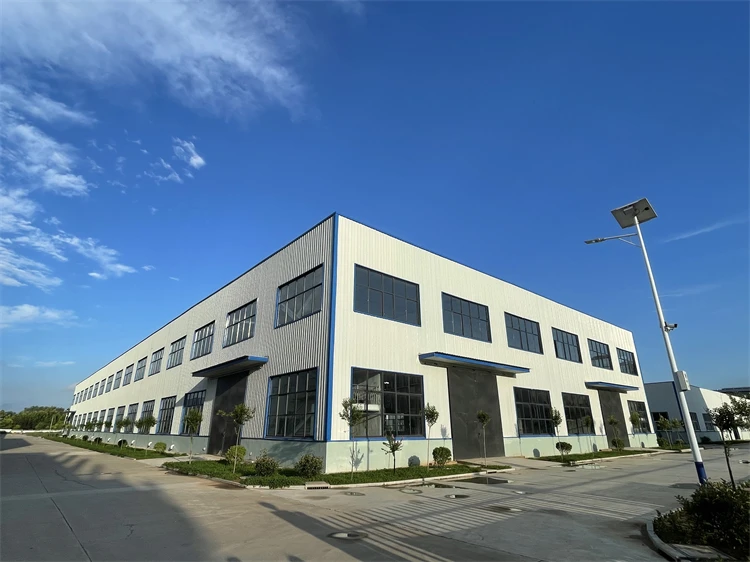

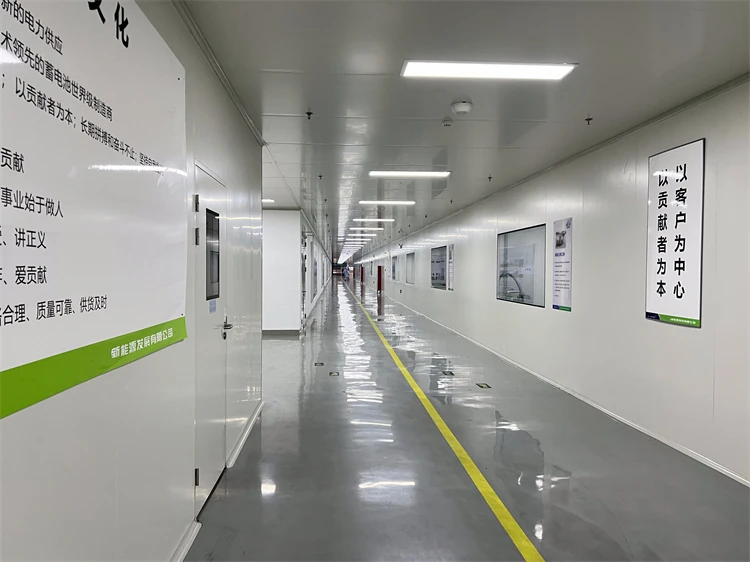

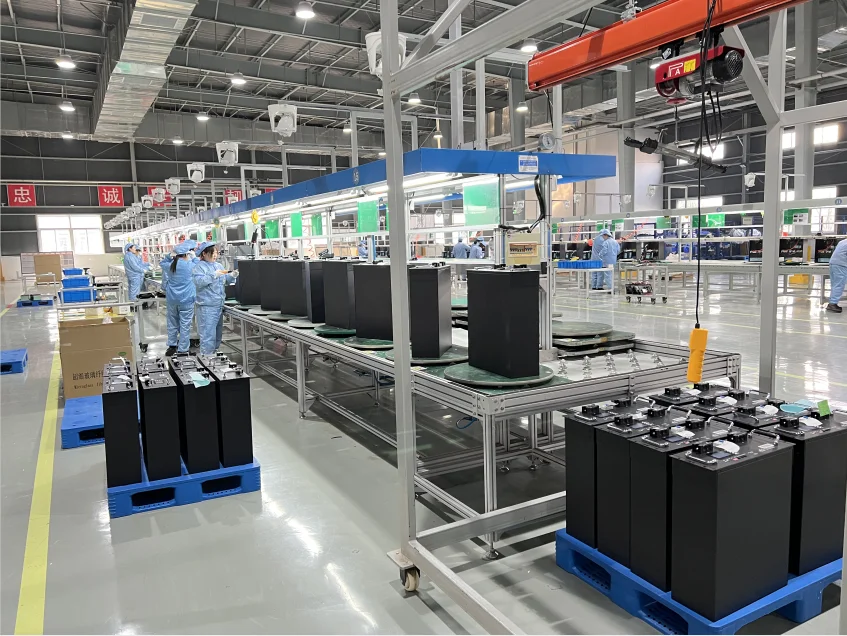

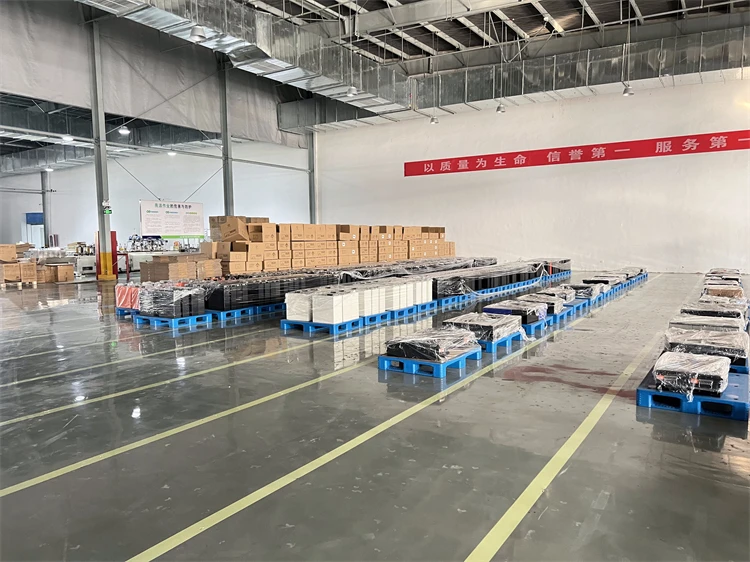

Company Introduction
Zhuowei new energy Co., Ltd. was founded in 1999. It is an international high-tech enterprise specializing in the research, development, manufacturing and sales of batteries. Through and exporters, Zhuowei new energy has more than 10000 employees. With the development of sales scale in 2018, Zhuowei new energy has grown into a world-famous battery manufacturer and exporter with more than 10 billion employees. The enterprise is located in the United States, Europe Overseas sales companies have been established in Asia Pacific and other places, including overseas sales companies and warehouses, as well as nearly 50 domestic sales companies and offices, and the products are sold to more than 110 countries and regions around the world.
Why Choose Us
Zhuowei new energy has focused on the field of battery for many years, providing competitive solutions, products and services for operators, enterprise customers and consumers. The R&D and manufacturing of a full range of standby, starting and power batteries has competitiveness and influence in the global competition, and is widely used in communication, electric power, radio, television, railway, new energy Data center, UPS, emergency lights, security, alarm, gardening tools, automobiles, motorcycles, golf carts, forklifts, electric vehicles, baby carriages and other related industries, with an annual production capacity of more than 20 million KVA.

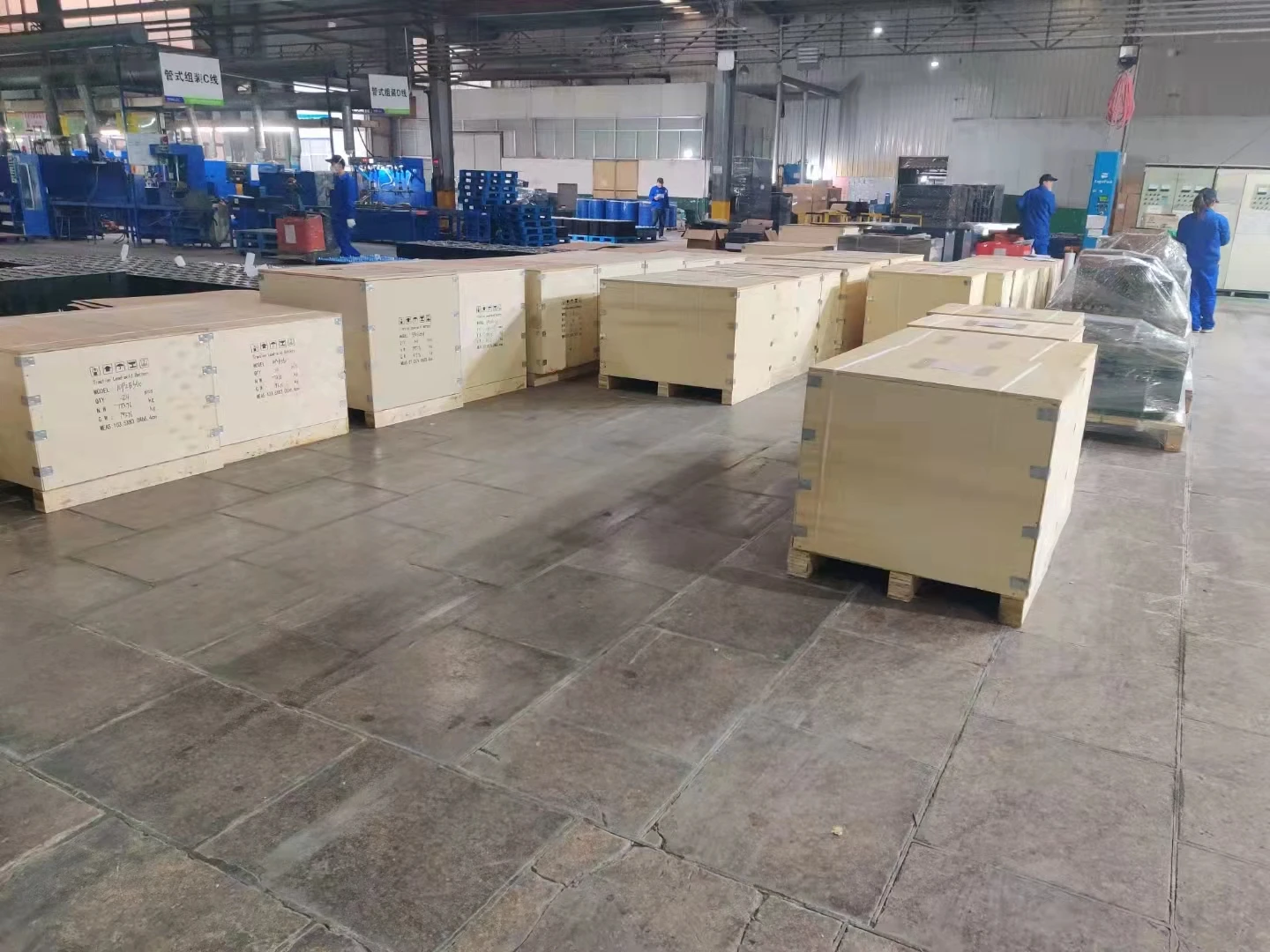

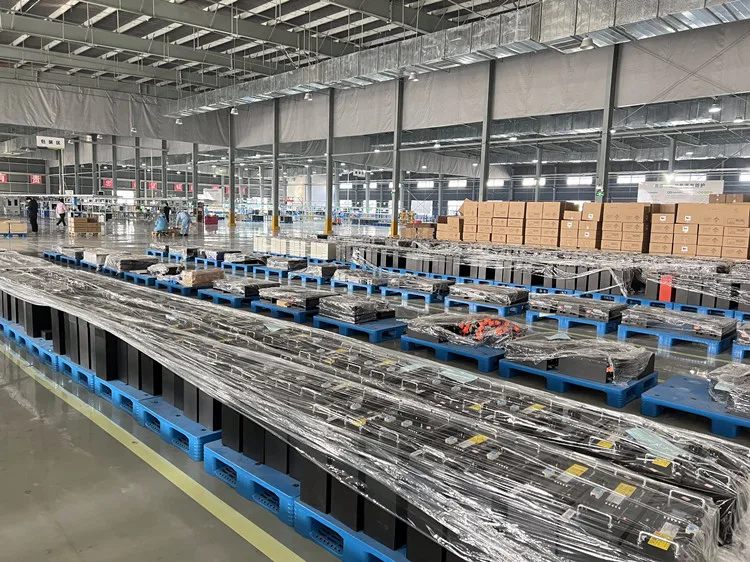

Shipment&Payment
Precautions for the use of lithium batteries
1. The battery needs to be handled gently during use to avoid damage to internal components;
2. Batteries are not allowed to be used in series or parallel;
3. The battery module shall not be loose, shake, squeeze and deform when placed inside the battery shell;
3. The battery module shall not be loose, shake, squeeze and deform when placed inside the battery shell;
4. It is forbidden to plug the positive and negative wires of the battery into each other,reverse the load, or connect with the load of an electric vehicle that does not match;
5. The battery needs to be charged in time or within 24 hours after discharge;
5. The battery needs to be charged in time or within 24 hours after discharge;
6. During battery storage, charge the battery every 1 month;
7. It must be charged with a matching charger, and the use of lead-acid battery charger is strictly prohibited;
7. It must be charged with a matching charger, and the use of lead-acid battery charger is strictly prohibited;
8. Unauthorized disassembly is strictly prohibited during use;
9. It is strictly forbidden to use and leave the battery near a heat source or high temperature source (such as fire, heater, etc.);
10. It is strictly forbidden to immerse the battery in water, and place it in a cool and dry environment when it is not in use.
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Samples neeeds 10-15 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.How about warranty?
A. 2 years warranty.
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Samples neeeds 10-15 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.How about warranty?
A. 2 years warranty.
