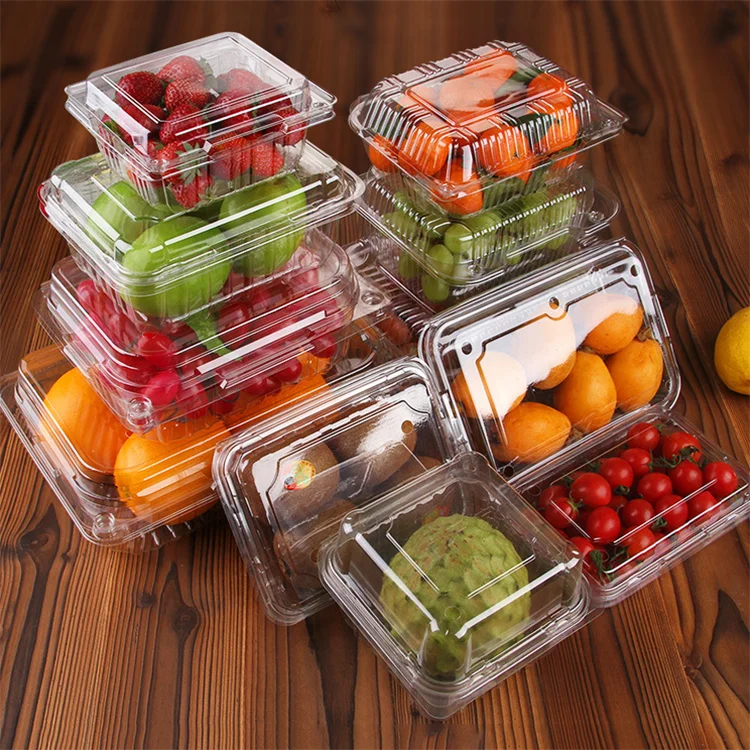

Custom Fresh Fruit Strawberry Transparent Packaging Box Disposable Plastic Clamshell Food Packing Container Machine
- Category: >>>
- Supplier: Dongguan Sams Technology Co. Ltd.
Share on (1600427595498):
Product Overview
Description
Product Overview

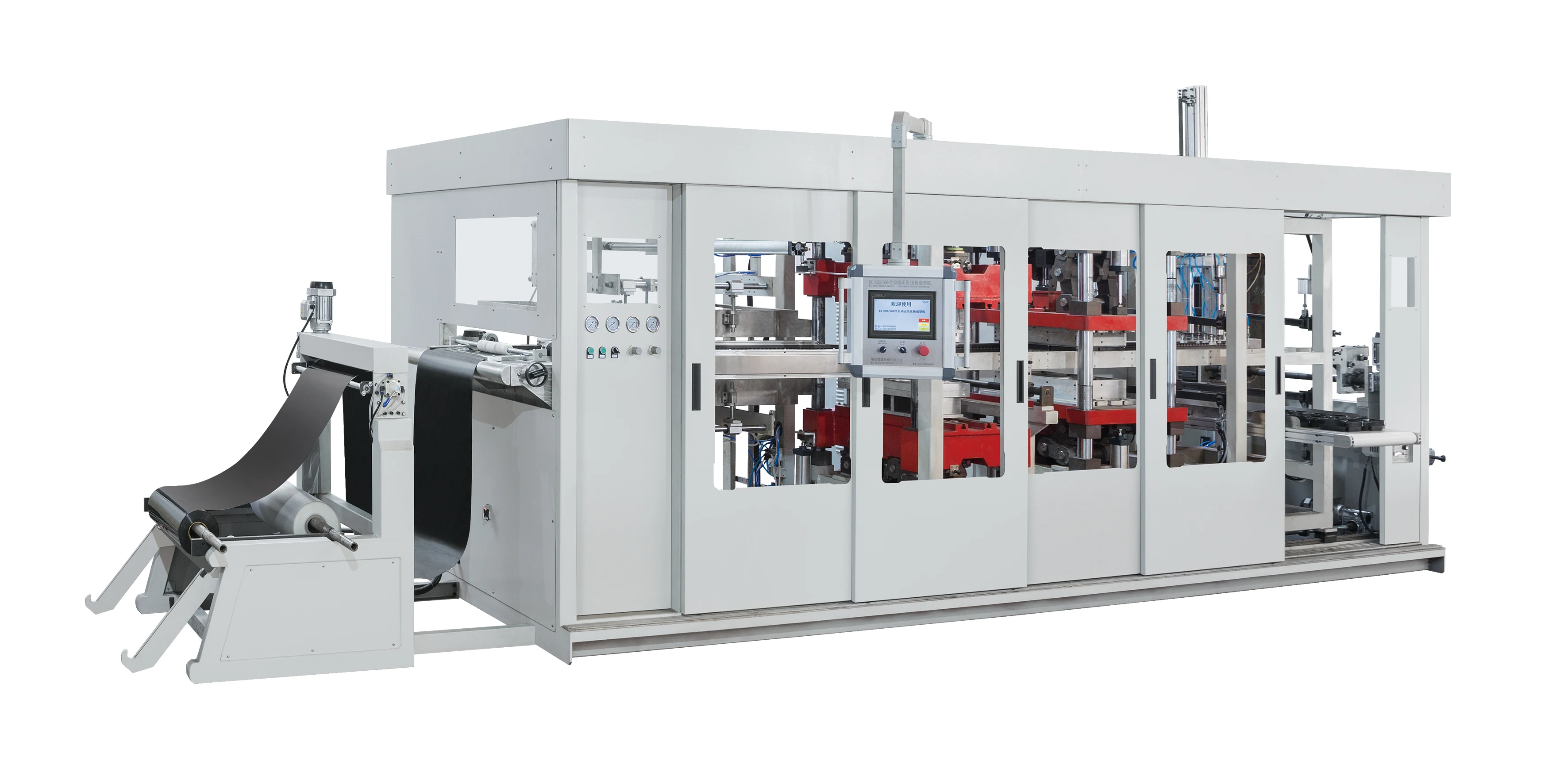

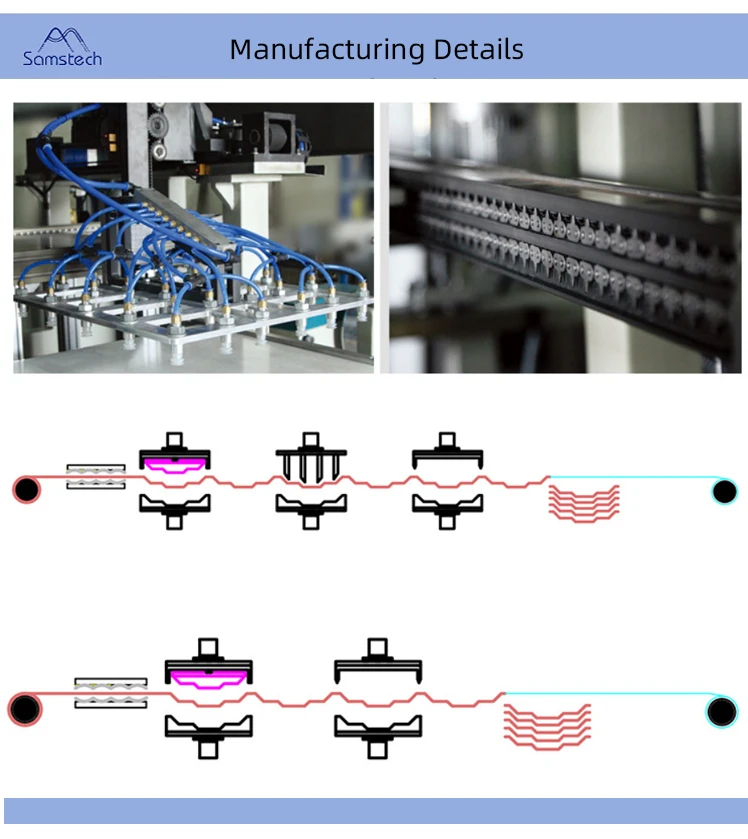

This Plastic Tray Thermoforming Machine is a combination of mechanical,electrical and pneumatic components, adopts the most advanced thermoforming technology.The whole system is controlled by micro PLC and operated by the man-machine interface. It combines the feeding,heating,forming, cutting and stacking into one process.
FEATURES AT A GLANCE
Application:
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.
Types of thermoforming molds:
* Wood Patterns;
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.
Types of thermoforming molds:
* Wood Patterns;
* Cast aluminum Molds;
* Machined aluminum Molds;
* Composite Molds;
Features:
1. In the digital temperature controller, temperature setting is convenient, high precision of temperature control;
2. Ceramic and radiant-panel oven heaters generally provide more precise and thorough sheet heating Allow for zoning of ovens into areas of adjustable heat;
3. rather than air cylinders which have traditionally been the industry standard, giving more precise control over closing and opening speeds and timing of the tooling;
4. The ability to place formed sheet into an inline trim station for more precise trim registration has been hugely improved due to the common use of electric motors for chain indexing versus air cylinders, gear racks, and clutches on older machines;
5.Heavy-duty industrial design
6.Plug/grid assist adjustable from touch screen
2. Ceramic and radiant-panel oven heaters generally provide more precise and thorough sheet heating Allow for zoning of ovens into areas of adjustable heat;
3. rather than air cylinders which have traditionally been the industry standard, giving more precise control over closing and opening speeds and timing of the tooling;
4. The ability to place formed sheet into an inline trim station for more precise trim registration has been hugely improved due to the common use of electric motors for chain indexing versus air cylinders, gear racks, and clutches on older machines;
5.Heavy-duty industrial design
6.Plug/grid assist adjustable from touch screen
7.High-powered cooling blower and water-cooled mold plate to reduce process time
8.Electrical cabinet and installation to CE standard
8.Electrical cabinet and installation to CE standard

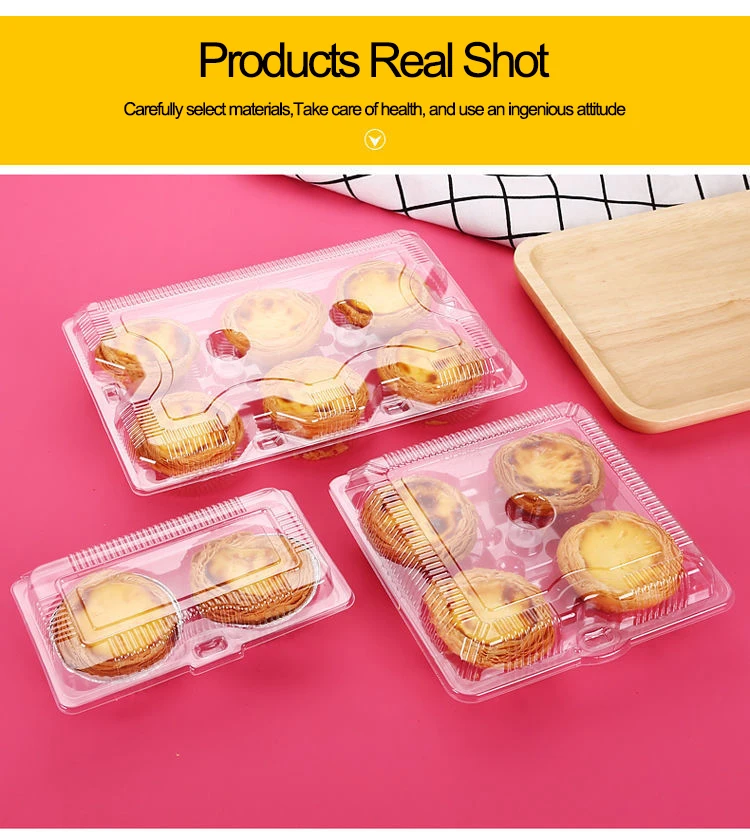

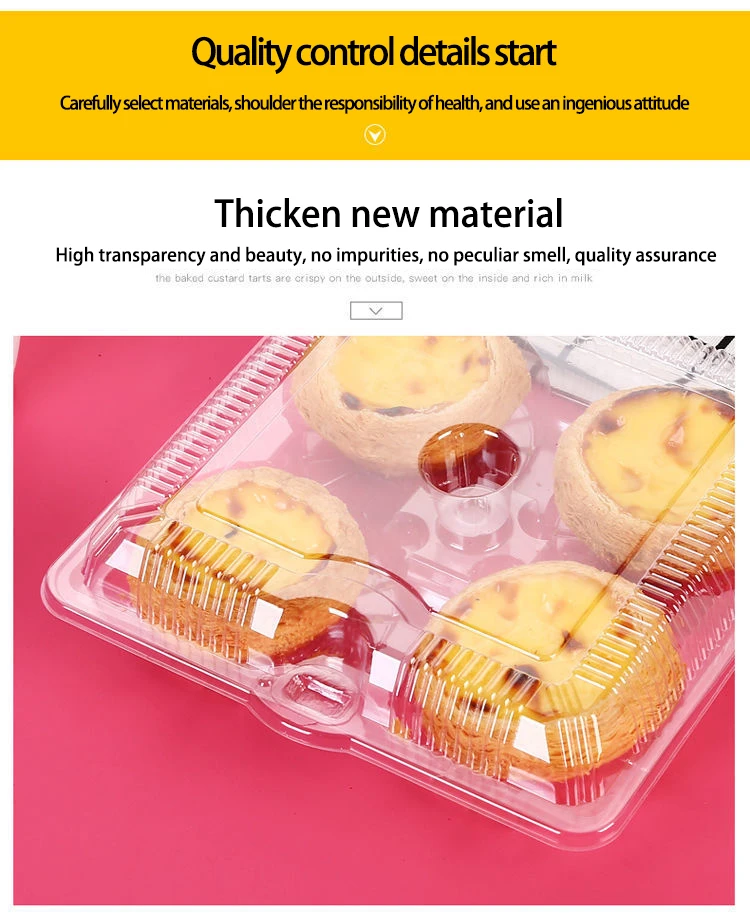

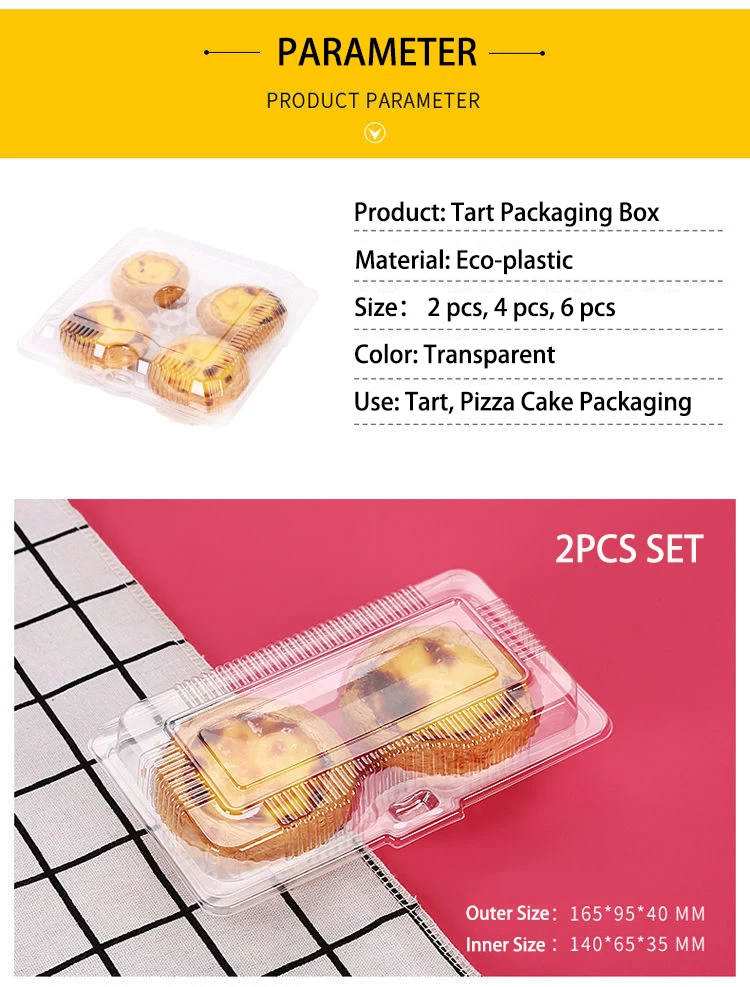

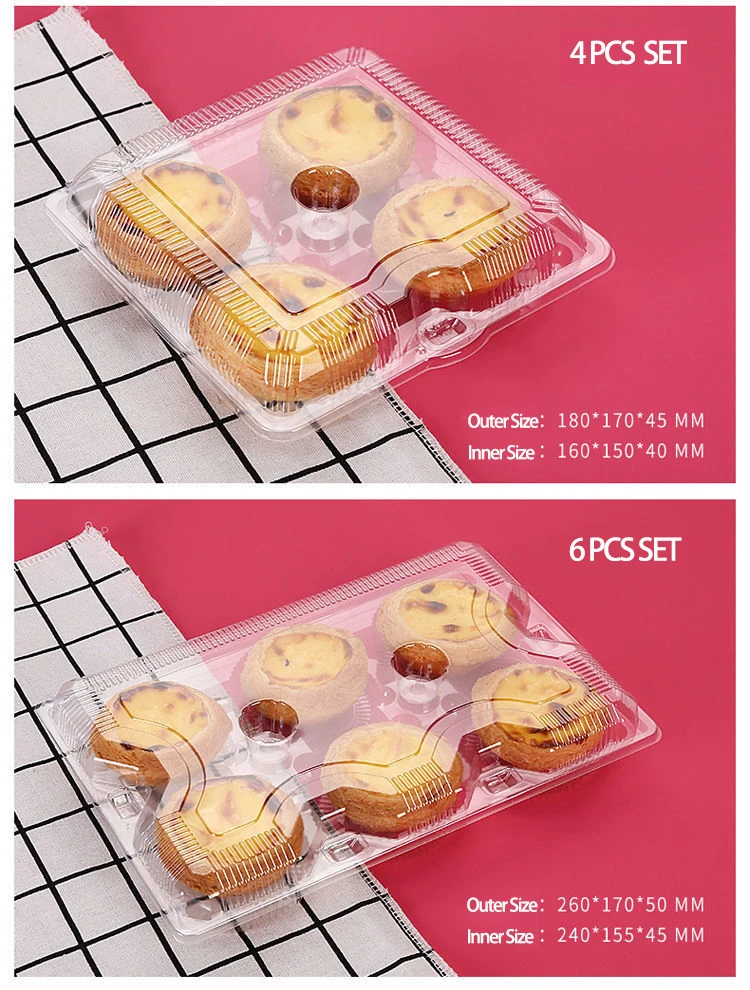

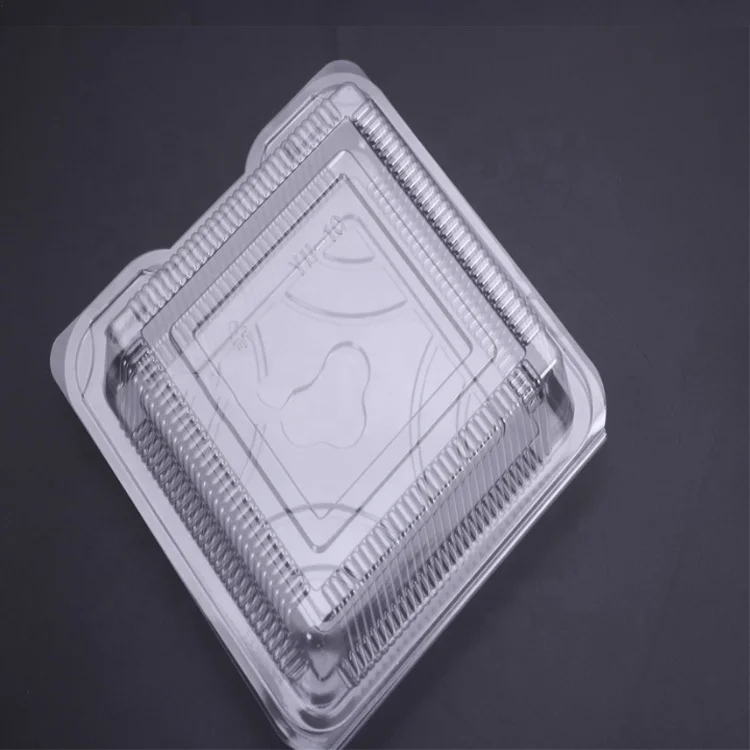

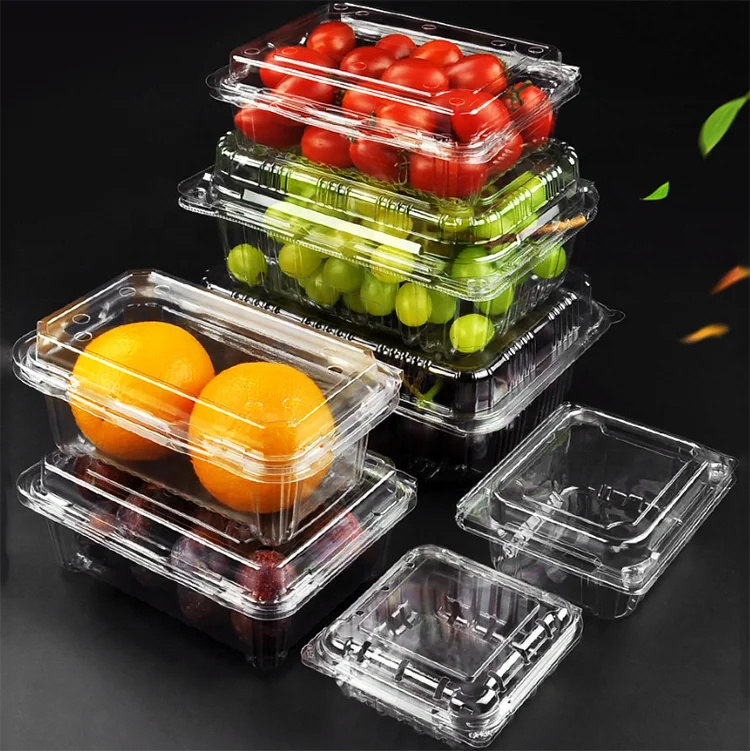

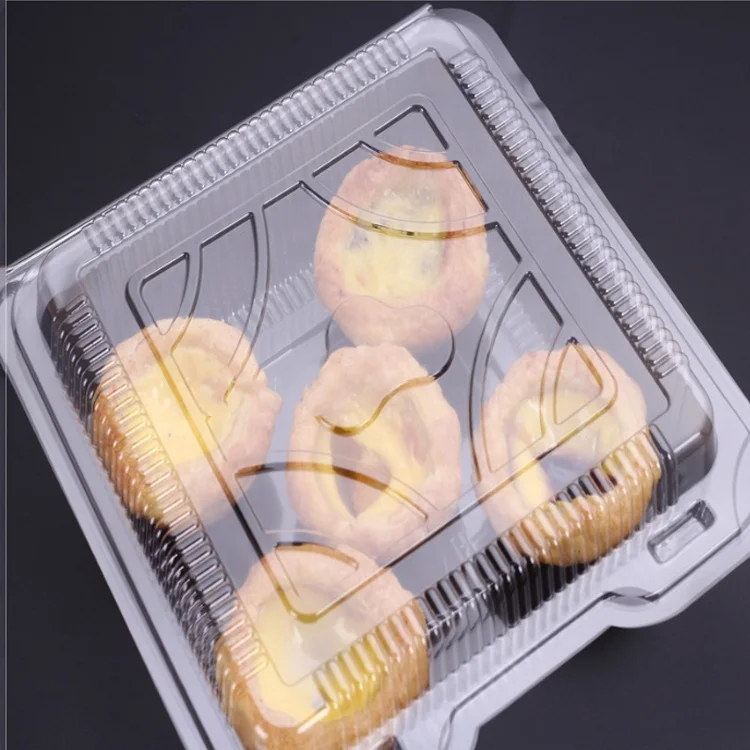

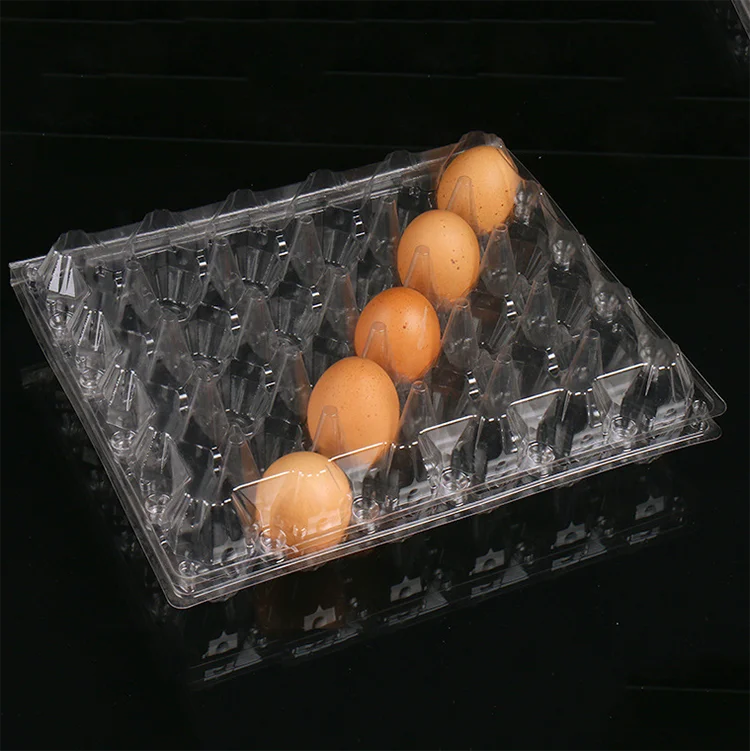

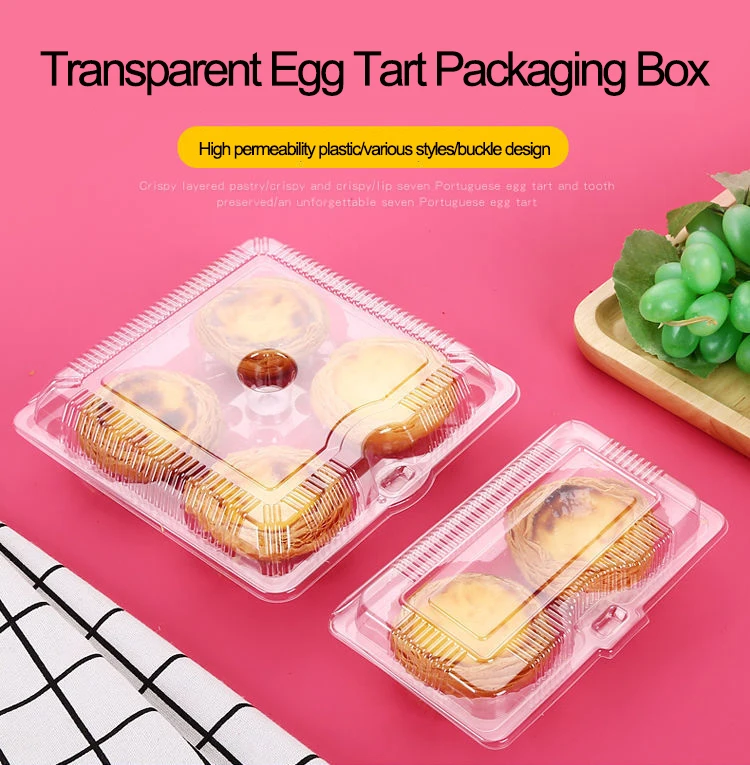

Product Sample 1
Product Sample 2
Product Sample 3
Product Demo
Kindly check the plastic boxes manufactured by our machine. Provided by our customers. For reference only.
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Forming Depth (mm) | 100/100mm | ||
2 | Forming Width(mm) | 680x420mm (Adjustable) | ||
3 | Roll material width(mm) | 1200mm (Adjustable) | ||
4 | Material Thickness(mm) | 0.1-2.0mm | ||
5 | Material | PVC,PET,PP,PS,HIPS,ABS,ACRYLIC | ||
6 | Material type | Roll | ||
7 | Heater(pcs) | 60 pcs | ||
8 | Total Installed Powe(Kw) | 120KW |

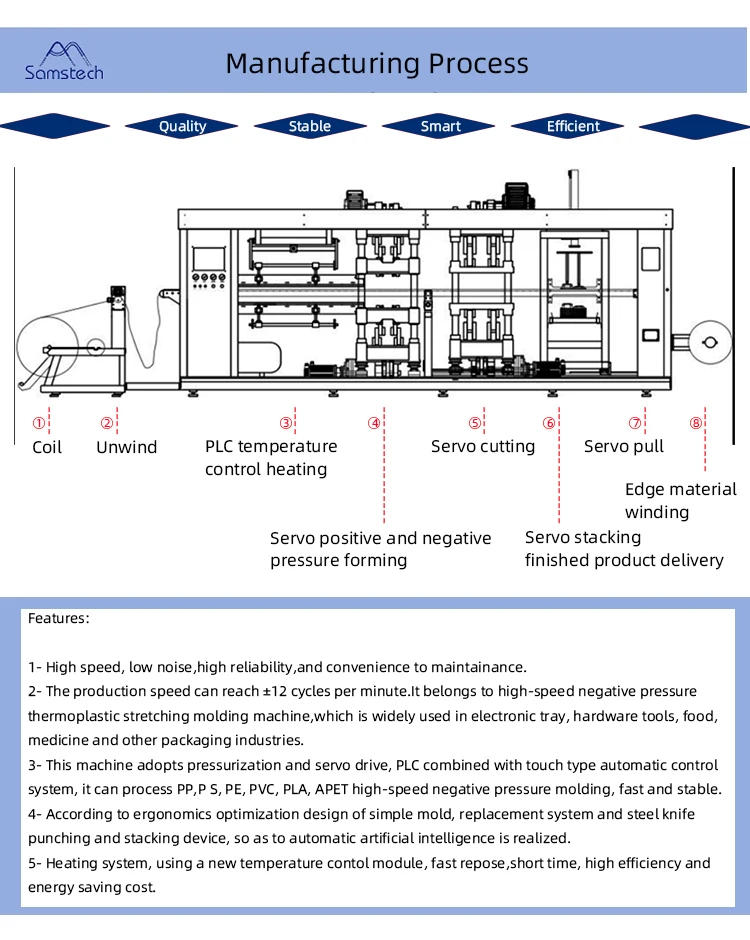

PRODUCT CONFIGURATION
Feeding
Moulding
Finishing
Machine Function
PLC Control with 10'' Touch Screen
400 Programme Memory Ceramic Heaters with Variable Standby
Mold table with Cooling
Mould Table with Height adjust Pneumatic Heater Drive
Electric motor Plug Assist Pneumatically Powered Clamping Frame
Vacuum Receiver Tank
Digital Timer
60 Independently Controllable Heating Zones Ceramic Heaters with Full Temperature Feedback
Auto-level
Upward air blown gas
Digital Temperature Control or PLC(OPTIONAL)
Vacuum Flow Regulator Automatic finished unloader Twin Cooling Fans
Vacuum and Pressure Gauges Cooling Bolster
Rietschie Thomas Vacuum Pump
Dynamoelectric conveyor with Rack and Pinion
Safety Light Curtain
2 Stage Clamping
12 Spray Gun (Spray Mist) Automatic Reel Feed
PLC Control with 10'' Touch Screen
400 Programme Memory Ceramic Heaters with Variable Standby
Mold table with Cooling
Mould Table with Height adjust Pneumatic Heater Drive
Electric motor Plug Assist Pneumatically Powered Clamping Frame
Vacuum Receiver Tank
Digital Timer
60 Independently Controllable Heating Zones Ceramic Heaters with Full Temperature Feedback
Auto-level
Upward air blown gas
Digital Temperature Control or PLC(OPTIONAL)
Vacuum Flow Regulator Automatic finished unloader Twin Cooling Fans
Vacuum and Pressure Gauges Cooling Bolster
Rietschie Thomas Vacuum Pump
Dynamoelectric conveyor with Rack and Pinion
Safety Light Curtain
2 Stage Clamping
12 Spray Gun (Spray Mist) Automatic Reel Feed
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: What is the price of shipping?
A3: Depending upon the port of delivery, prices varies.
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: What is the price of shipping?
A3: Depending upon the port of delivery, prices varies.
A4: How many days will you finish installing ?
Q4: We will finish installation and training within 15 days.
A5: How long is your machine's warranty period?
Q5: All our machine have one year guarantee, starting from finished installation.
A6: How could we do if the parts broken within warranty?
Q6: Free replacement parts will be sent during the warranty date.
Q4: We will finish installation and training within 15 days.
A5: How long is your machine's warranty period?
Q5: All our machine have one year guarantee, starting from finished installation.
A6: How could we do if the parts broken within warranty?
Q6: Free replacement parts will be sent during the warranty date.
