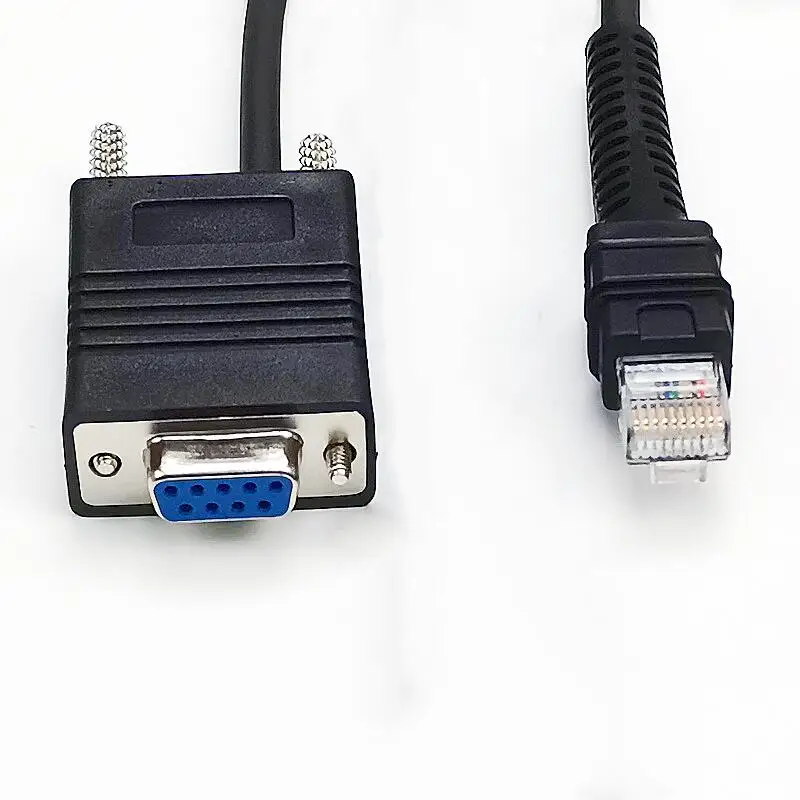

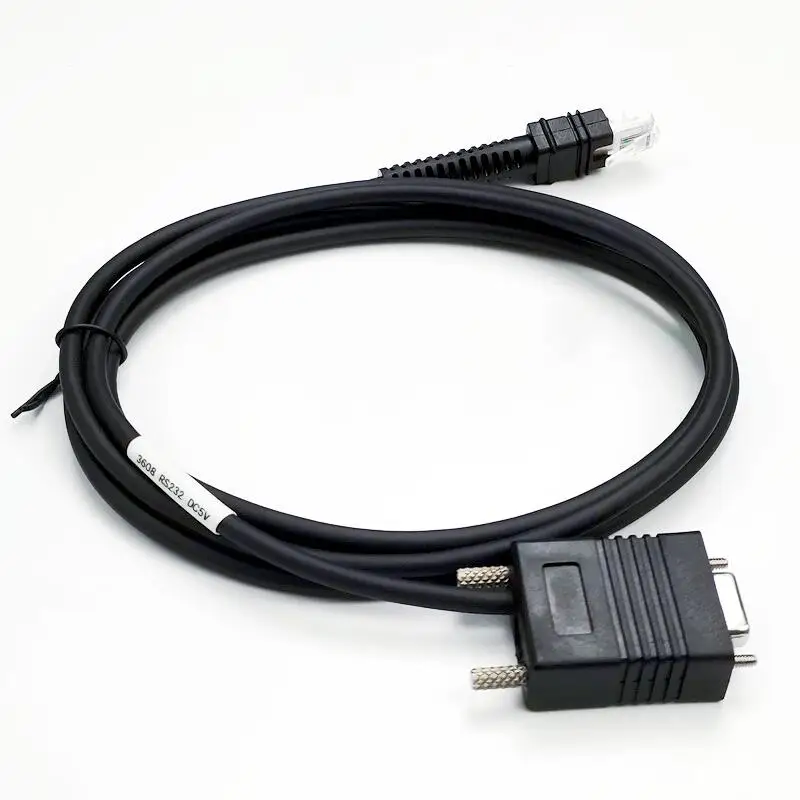

SOTESIN 3m serial RS232 cable Barcode Scanner cable For Zebra LI3608 LI3678 DS3608 DS3678 VCC 12V Coiled Spiral line
- Category: >>>
- Supplier: Huizhou Sotesin Technology Co. Ltd.
Share on (1600427608015):
Product Overview
Description
Related Products
Product Name | SOTESIN 3m serial RS232 cable Barcode Scanner cable For Zebra LI3608 LI3678 DS3608 DS3678 VCC 12V Coiled Spiral line | ||||||
Material | 100% Pure Copper conductor+ PVC Jacket | ||||||

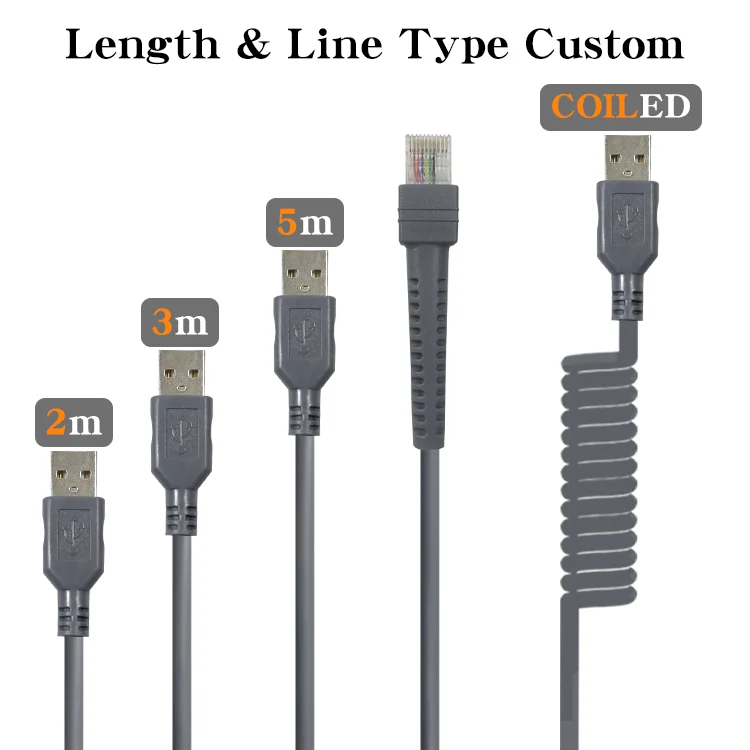

Length | 2M/3M/5M or Customized Length | ||||||
Type | Straight or Coiled cable | ||||||
Shielding | Braid | ||||||
Connectors | RS232 Male to RJ45/RJ50 Male | ||||||
The connector surface treatment | Standard nickel plating and gold plated/custom nickel plating, gold plating salt spray for 24 h, 48 h salt spr | ||||||
Functions | Charging+Data Transfer | ||||||
Use | Barcode Scanner, Scanner, barcode scanners, pos terminals | ||||||
Product testing | 100% full inspection,rest assured the safe use | ||||||
Color | Gray and Black, Customized | ||||||
Product Certification | ROHS,FCC,CE,ISO | ||||||
Compatible Models | For Zebra LI3608-SR LI3678-SR DS3608-HP DS3678-DP | ||||||
Package Type | 1 Piece in a PE bag, 100PCS in a Carton Box or Customized Package | ||||||
Warranty | 1 Year | ||||||

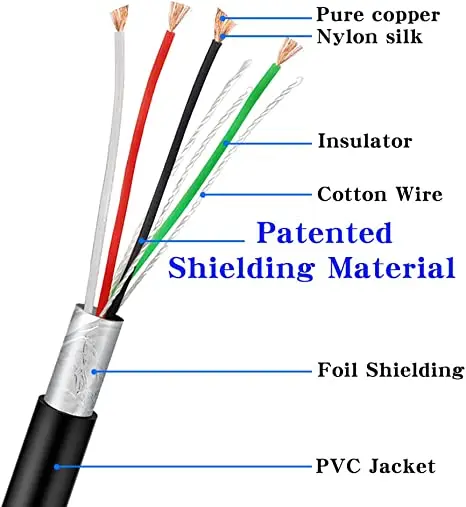

Appellation | Good specifications √ | Explain | General specification × | Explain |
Conductor | 26AWG Pure copper or Tinned copper | Good conduction and long service life | Less copper or copper-plated steel wire | Large resistance value and short service life |
Nylon yarn | 250D nylon wire | Increase life | Ordinary PVCWithout | Short service life |
Cotton thread | 3 Cotton threads | Increase life | Without | Short service life |
Core wire coverage | HDPE insulation | Long life span, which is good for signal transmission | Ordinary PVC | Short service life and large signal attenuation |
GND coverage | Patented conductive HDPE | Conduction with tin foil to strengthen anti-interference | Ordinary PVC | Short service life |
Tin foil | Connect the tin foil to GND | Replace metal braided shield, good anti-interference, low price, long bending life | Insulated from GND | Poor anti-interference performance |
Jacket | Low temperature resistant soft material | Long service life in normal or low temperature environments | Ordinary PVC | Short service life in low temperature environment |
White and green wires twisted in pairs | Standard Twisted Wire | Enhance signal transmission | No twist | Large signal attenuation |
RJ45 RJ48 RJ50
Two injection molding, the inner mold is made of transparent PE, which better guarantees the conduction and service life.
RJ45 RJ48 RJ50
One-time injection molding, the inner and outer molds are made of the same material, which is unsightly and has a short service life.
DB9 RS232/COM
Two-shot injection, the inner mold is made of transparent PE, which better guarantees the overall hardness and service life.
DB9 RS232/COM
One-time injection, the inner and outer molds are made of the same material, and the overall hardness is soft, which affects the service life.
Main Products

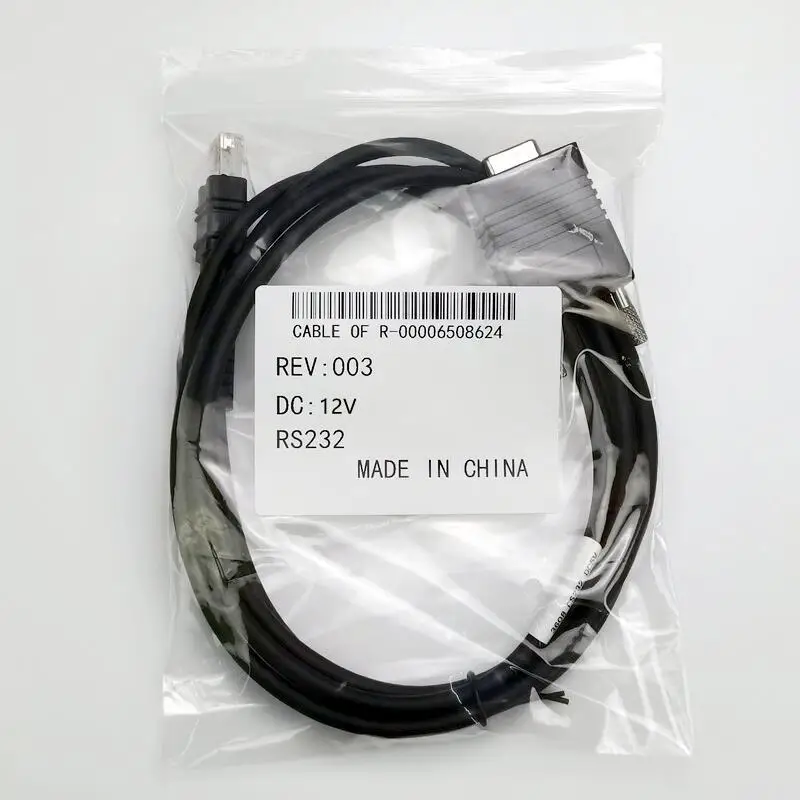

Packing & Delivery
Company Profile
Sotesin is a Technology-Based Enterprise Specializing In The Production Of Data Cables For Barcode Scanning Equipment, Various Spring Data Cables, Musical Instrument Cables And Customizing Data Cables For Other Electronic Equipment.
With More Than 15 Years Of Experience, We Provide Substitute Data Lines For Major Global Barcode Scanning Equipment Brand And Support Data Lines For Other Electronic Equipment Brands, Or Develop And Customize Production For Customer Needs. We Are Well-Known enterprises In The Industry With The Most Cost Advantage, Capacity Advantages and Competitiveness.
With More Than 15 Years Of Experience, We Provide Substitute Data Lines For Major Global Barcode Scanning Equipment Brand And Support Data Lines For Other Electronic Equipment Brands, Or Develop And Customize Production For Customer Needs. We Are Well-Known enterprises In The Industry With The Most Cost Advantage, Capacity Advantages and Competitiveness.
We Are An Oem Factory, We Have Our Own Original Equipment And Factory. We Can Accept A Series Of Customized Services Including Logo, Accessories, Colors, Sizes, Interiors, Materials, Etc, To Help You Build Your Own Brand.Forming Long-Term Strategic Cooperation With Many Well-Known Brand Manufacturers/Agents Around The World, We Are Committed To A Smart World Where All Data Lines Are Connected.
Sotesin Will Always Be Customer-Centric, And Use Continuous Development To Meet New Market Demands...
Look Forward To Cooperation With You!
Factory Office
Our professional team
Factory Show
Quality Control
Warehouse
Nanjing Exhibition
Certificate display
Why Choose Us
Standardized process
It has multiple sets of complete data line production and testing
equipment: from copper wire extraction to extrusion molding, functional testing, life verification, anti-interference
test and other equipment are available;
equipment: from copper wire extraction to extrusion molding, functional testing, life verification, anti-interference
test and other equipment are available;
high-quality
The product has passed SGS, FCC, EMC and other international certifications;
SOTESIN was rated as a high-quality supplier by Alibaba International etc.
Contact our engineering team
FAQ
-What products can you supply?
-Our products include Scanner cables, audio&video cables, spring cables, usb cables, car aviation cables and so on. Also, we can accept customized cables according to your design pictures.
-Can I get a sample to check your quality?
-No problem. Usually 1-2 pcs of sample would be supported, and customer afford the shipping cost.
-Whether these products quality assured?
Most of plugs are certificated. Also, we have strict QC, all products are 100% testedbefore delivery. Quality is assured.
-When I want customized products, how to do?
We have Equipped with professional equipment, technicians & skilled employees, OEM& customized service is welcome.Drawings / samples are required.
-Are you a manufacturer or trading company?
-We are a manufacturer with more than 15 years experience.
-Do you support OEM?
-Yes, we could produce the products according to your own design.
-What certification do you have?
-Our quality control system & products' quality approved by CE & ISO & ROHS & FCC.
-What's your payment term?
-Usually T/T 50% in advance + 50% before shipment, negotiatable.
-When can I get reply?
Within 24 hours after we get your inquiry.
