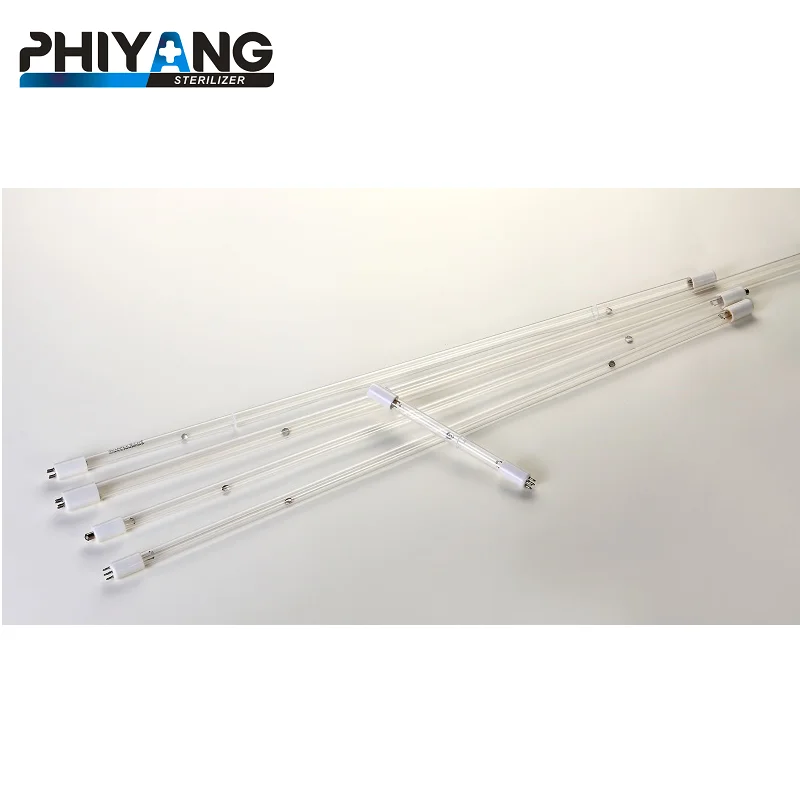

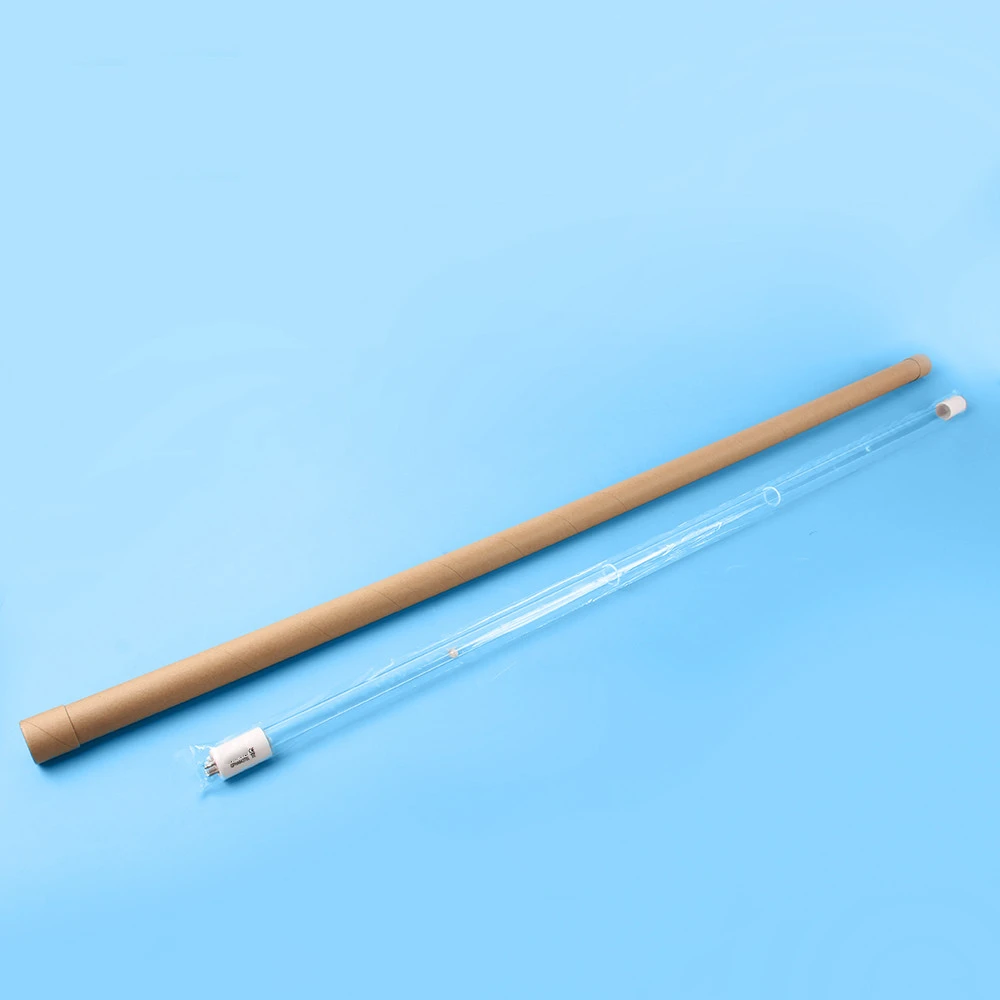

Amalgam UVC Lamp GPHA357T5L 42w 357mm UV light 254nm Ozone Generating 185nm
- Category: >>>
- Supplier: Jiangyin Feiyang Instrument Co. Ltd.
Share on (1600427622753):
Product Overview
Description
Product Description
Type | Lamp Tube diameter (mm) | BF-BF | Power | Current (MA) | Voltage at50/60(v) | UV Output | Rated life (hrs) | ||
(mm) | (W) | (uw/cm2) | (w) | ||||||
T5 | |||||||||
GPHA357T5L | 15 | 357 | 42 | 1200 | 36 | 110 | 11 | 13000 | |
GPHA843T5L | 15 | 843 | 105 | 1200 | 88 | 320 | 35 | 13000 | |
GPHA1000T5L | 15 | 1000 | 127 | 1200 | 107 | 370 | 42 | 13000 | |
GPHA1554T5L | 15 | 1554 | 190 | 1200 | 164 | 500 | 68 | 13000 | |
T6 | |||||||||
GPHA357T6L | 19 | 357 | 57 | 1800 | 32 | 130 | 13 | 13000 | |
GPHA843T6L | 19 | 843 | 130 | 1800 | 71 | 400 | 43 | 13000 | |
GPHA1000T6L | 19 | 1000 | 150 | 1800 | 84 | 460 | 52 | 13000 | |
GPHA1554T6L | 19 | 1554 | 240 | 1800 | 134 | 600 | 84 | 13000 | |
GPHHA357T6L | 19 | 357 | 65 | 2100 | 31 | 140 | 14 | 13000 | |
GPHHA843T6L | 19 | 843 | 172 | 2100 | 82 | 490 | 54 | 13000 | |
GPHHA1000T6L | 19 | 1000 | 207 | 2100 | 99 | 570 | 65 | 13000 | |
GPHHA1554T6L | 19 | 1554 | 320 | 2100 | 154 | 750 | 105 | 13000 | |
Function

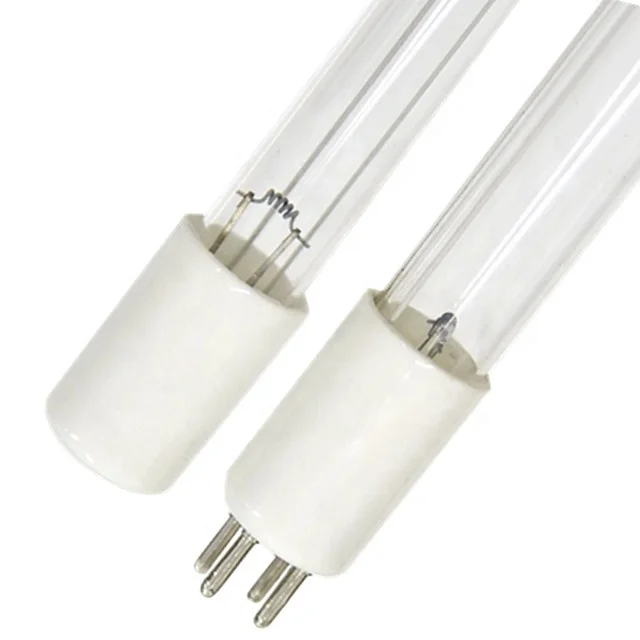

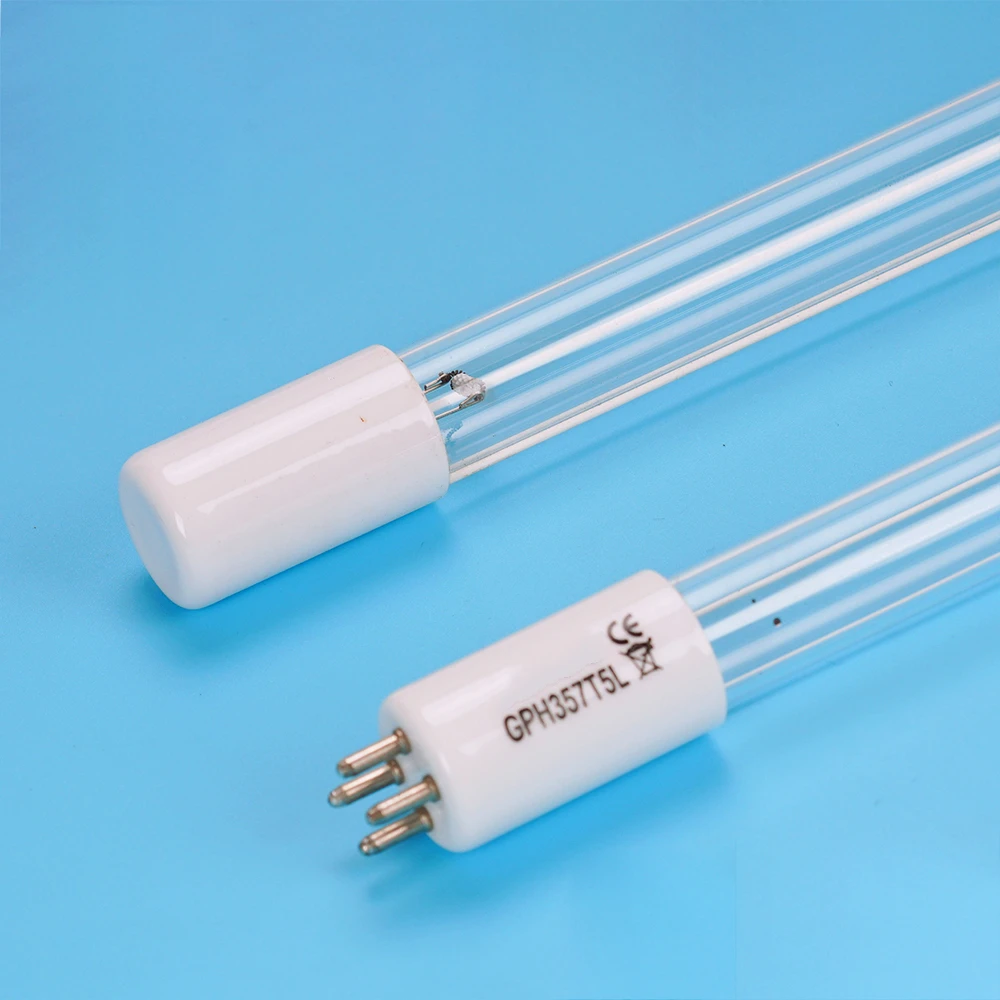

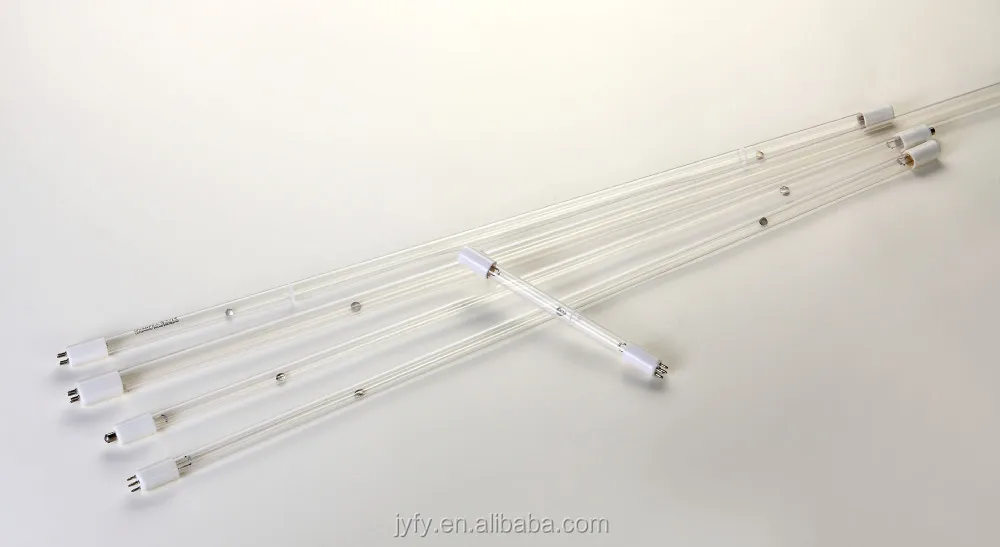

1. Four-Pin, single ended UV germicidal lamps.
2. Made of high quality quartz.
3. Average lamp life is 10,000 hours.
4. Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.

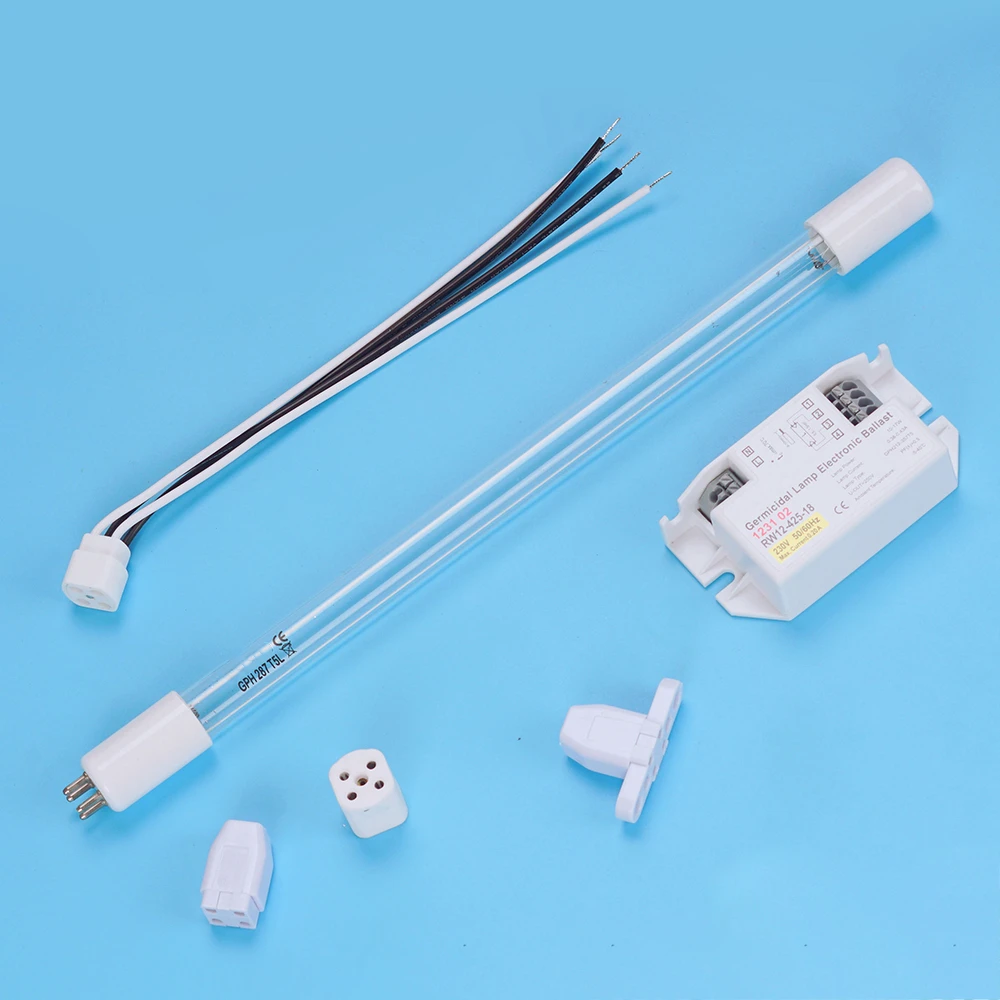

5. Quartz sleeves and ballasts are available.
3. Average lamp life is 10,000 hours.
4. Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.
5. Quartz sleeves and ballasts are available.
Good reputation

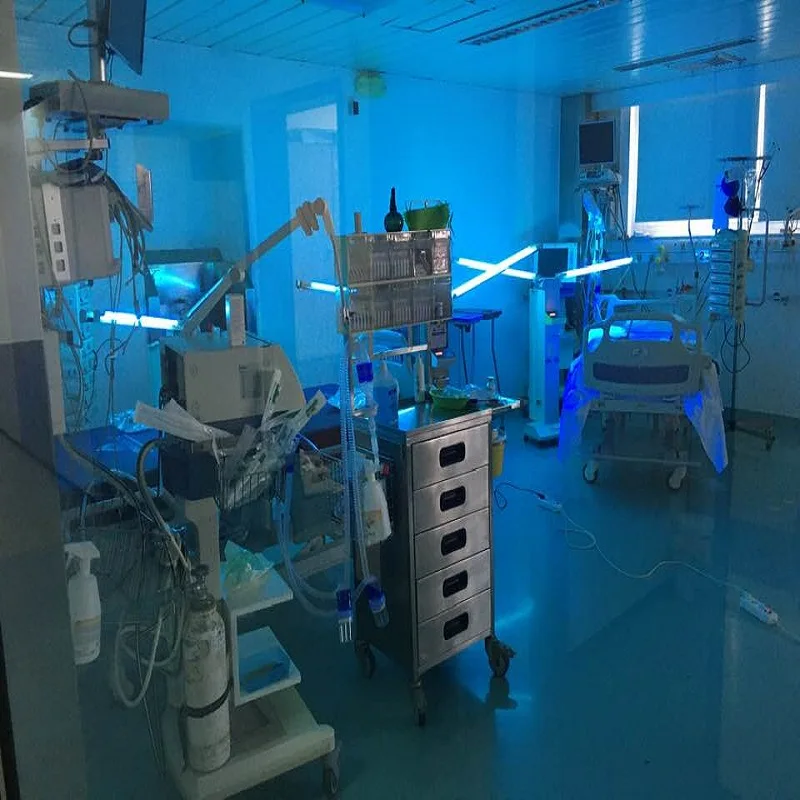

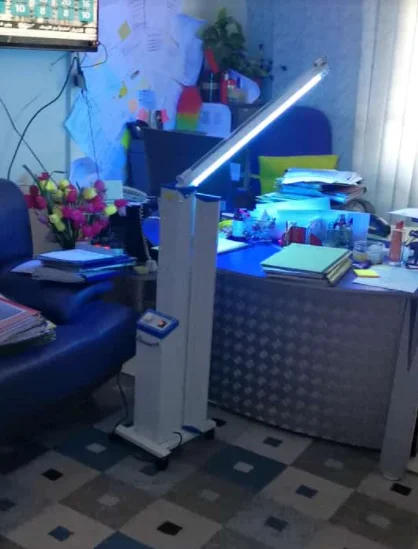

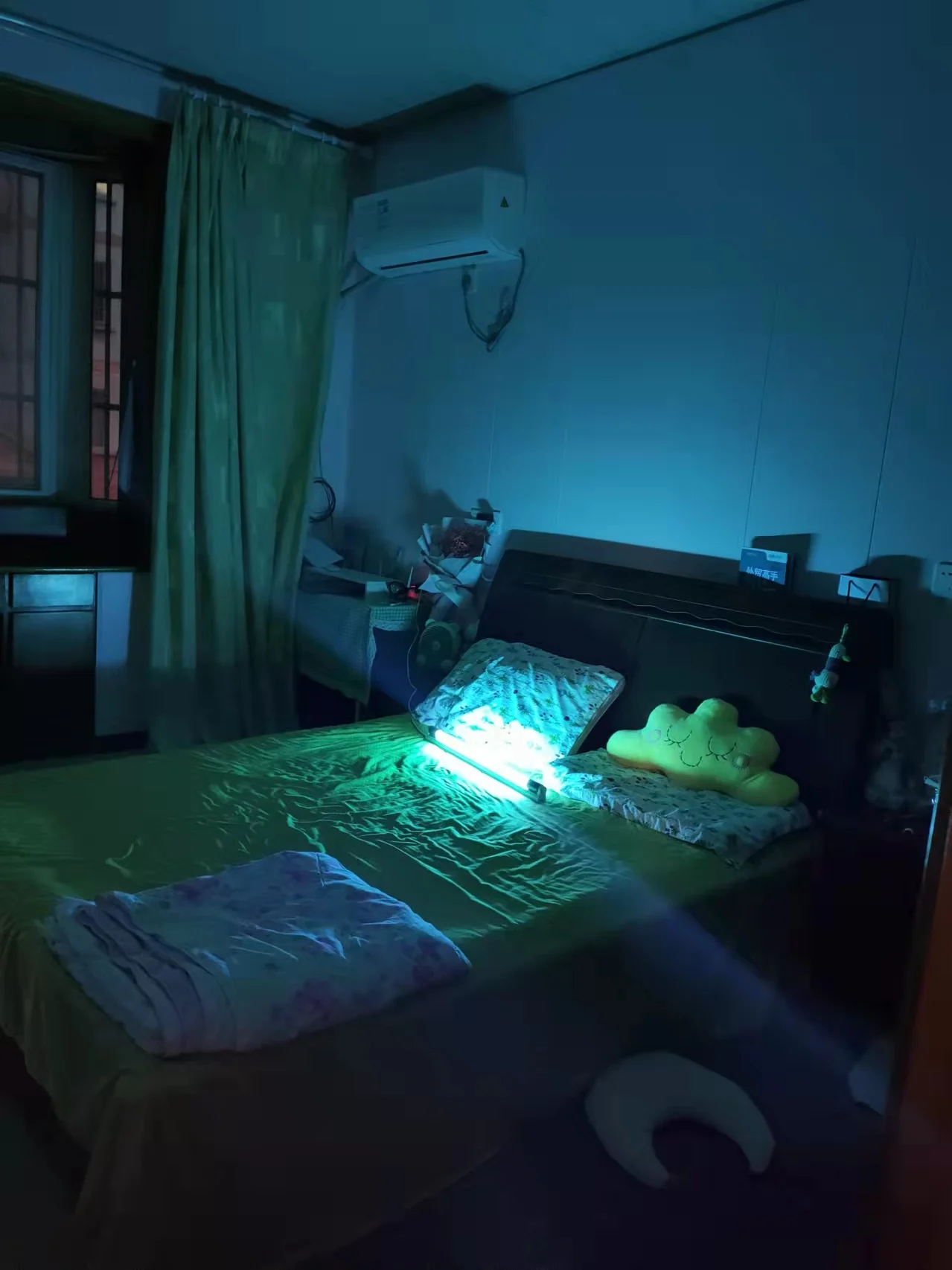

UVC Application Places

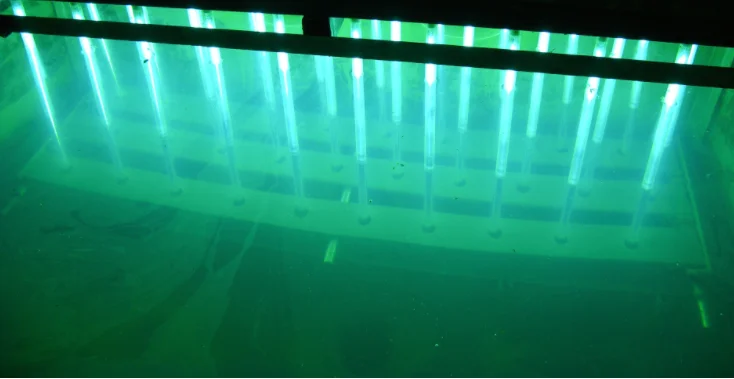

Application Areas
