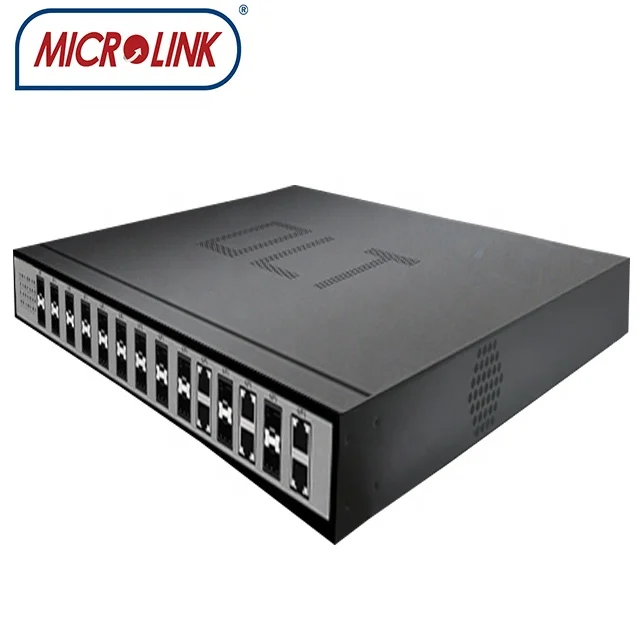

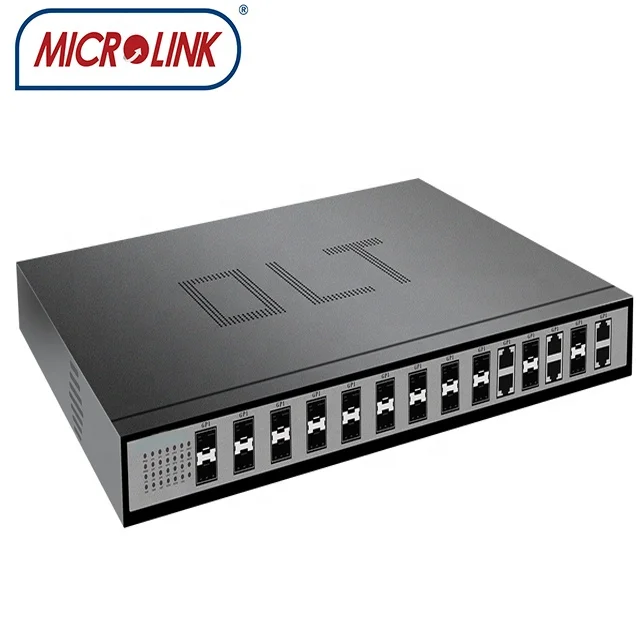

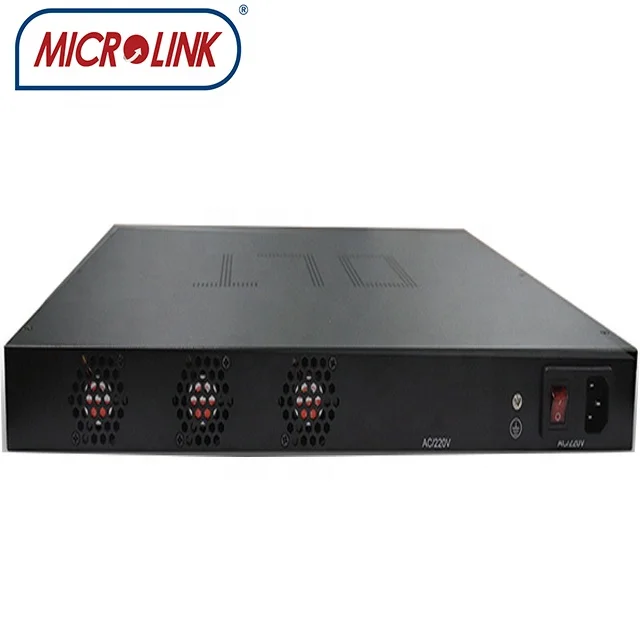

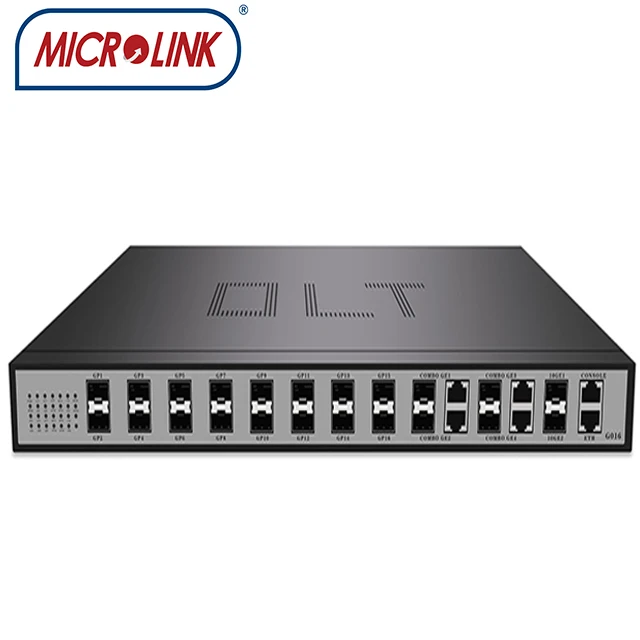

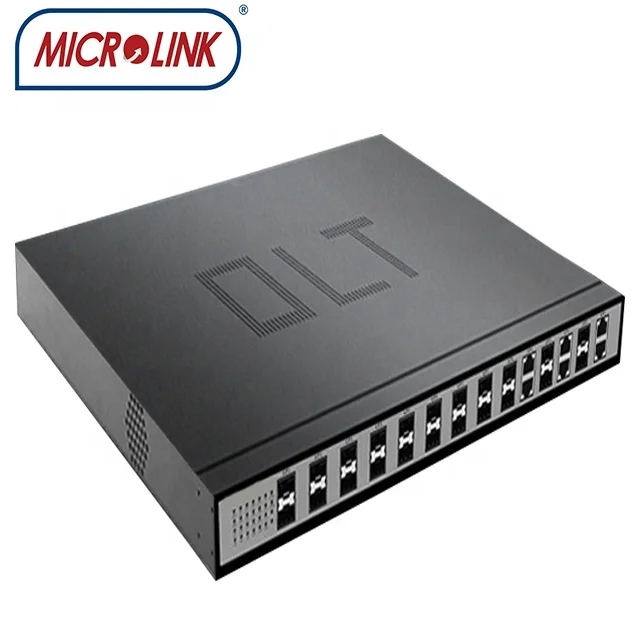

1U 19 inch 16 Pon Ports Gpon OLT 3 layers uplink 4* GE combo and 2*10GE SFP Ports Optical Line Terminal GPON OLT
- Category: >>>
- Supplier: Microlink Electronics Co. Ltd.
Share on (1600427627084):
Product Overview
Description
1U 19 inch 16 Pon Ports Gpon OLT 3 layers uplink 4* GE combo and 2*10GE SFP+ Ports Optical Line Terminal GPON OLT
Product Description
DESCRIPTION

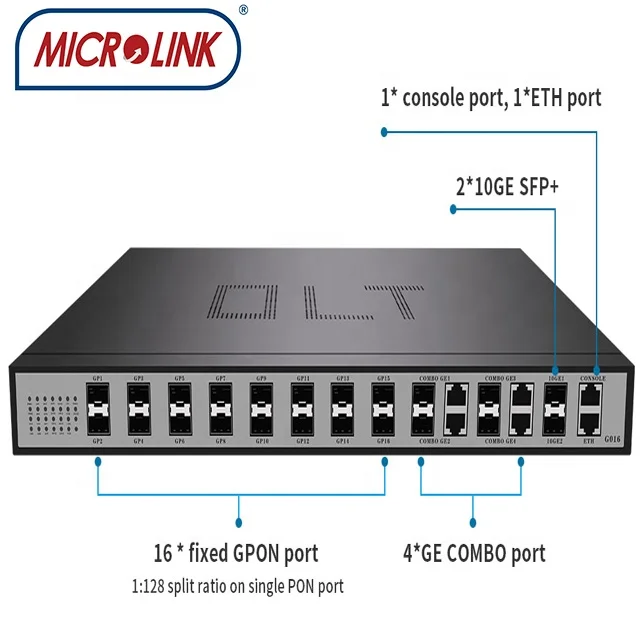

ML-OLT-G016 16 Pon Ports Gpon OLT 3 layers is designed for chassis OLTdevice which provides 16 downlink 1000M
PON ports, 4 uplink GE Combo ports and 2*10G uplink optic SFP+ ports. The height is only 1U for easy installation
and space saving. Each PON supports up to 128 terminals, the whole device supports up to 2048 ONUs under full
configuration. ML-OLT-G016 adopts advanced technology to support SLA and DBA to keep strong Nfunction on the
Ethernet and QoS features. It is applied for commercial and grid network digital management to provide perfect, smart, strong, advanced, professional solutions for “automatic distribution” and “electricity information collection”
in the implemented project for the national grid.
Carrier-class stability and network resiliency
Adopt large-scale NGB operation system with intellectual property rights in the global carrier network
Support PON fiber redundancy protection and device redundancy protection protocol
Support rich security features to protect the users, devices and network.
Adopt large-scale NGB operation system with intellectual property rights in the global carrier network
Support PON fiber redundancy protection and device redundancy protection protocol
Support rich security features to protect the users, devices and network.
Dual power supply input and power redundancy
All PON and GE ports provide L2/L3 full-line speed without losing packets
Full PON Service
Each PON support 1:64 splitting ratio ( The maximum quantity of 64 ONU)
Hot plug PON fibber module design, the farthest 20Km transmission distance
Support 128 bits triple churning function to ensure the confidential for the data transmission
Support dynamic bandwidth distribution DBA algorithm
Powerful OAM
Use packet forwarding based on hardware to be effective for feature detection and packet filtering
Support auto protection and user blocking for ARP attack based on MAC address
Support all kinds of protecting DDoS, CPU over-current and VRRP etc
Support BFD, FlexLink, auto linkage aggregation and Ethernet Ring protection
All PON and GE ports provide L2/L3 full-line speed without losing packets
Full PON Service
Each PON support 1:64 splitting ratio ( The maximum quantity of 64 ONU)
Hot plug PON fibber module design, the farthest 20Km transmission distance
Support 128 bits triple churning function to ensure the confidential for the data transmission
Support dynamic bandwidth distribution DBA algorithm
Powerful OAM
Use packet forwarding based on hardware to be effective for feature detection and packet filtering
Support auto protection and user blocking for ARP attack based on MAC address
Support all kinds of protecting DDoS, CPU over-current and VRRP etc
Support BFD, FlexLink, auto linkage aggregation and Ethernet Ring protection

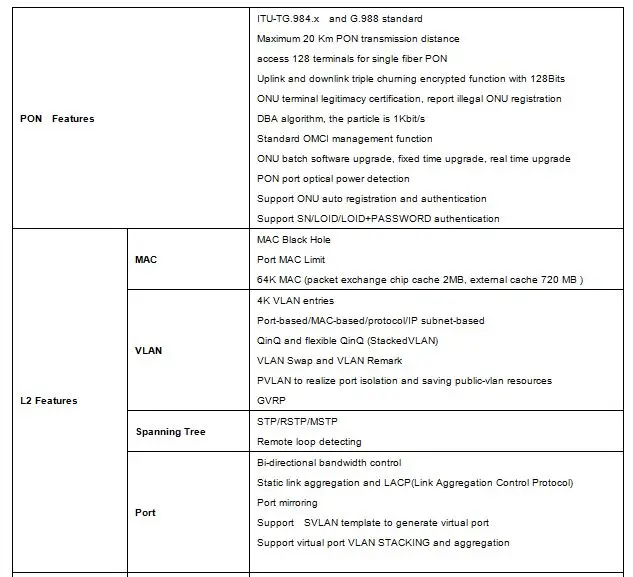

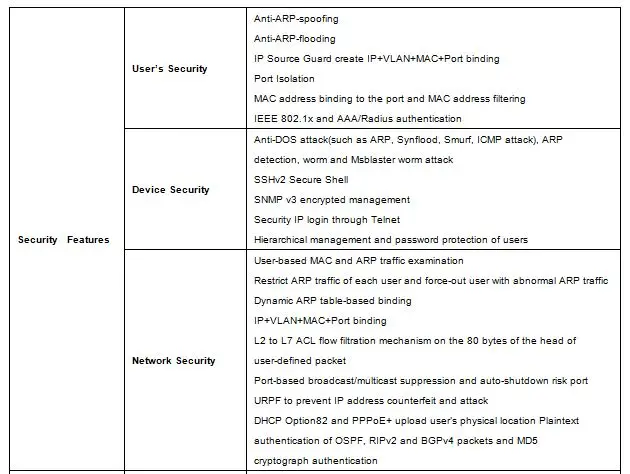

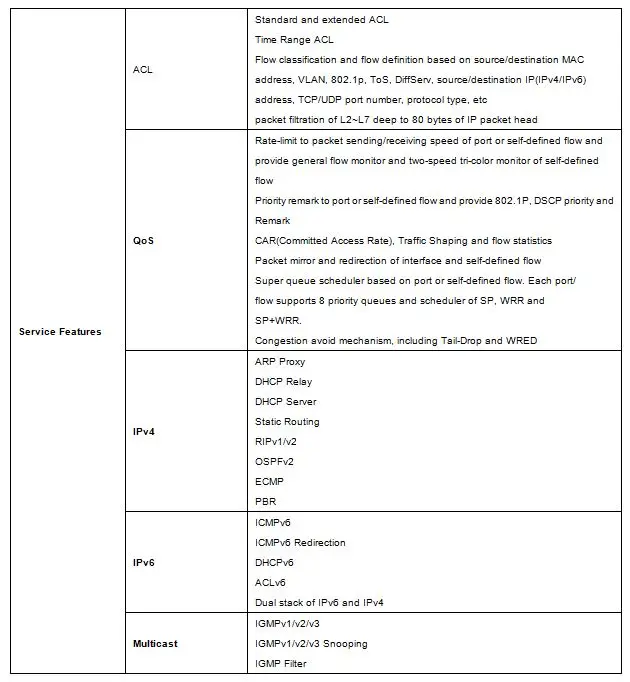

DATASHEET
ITEM | 1U GPON OLT 16 PORTS | ||||||
Fiber Type | Single Mode &Multi Mode fiber cable | ||||||
Service Port | 16*PON port, 4GE COMBO port, 2*10GE sfp+ port | ||||||
Switching Capacity | 108Gbps | ||||||
Forwarding Capacity(Ipv4/Ipv6) | 95.23Mbps | ||||||
Management Ports | CONSOLE port/NMS PORT | ||||||
Power Supply | AC: input 90~264V 47/63Hz; DC: input -36V~-72V; ( optional) | ||||||
Redundancy Design | Dual power supply (Support AC input, double DC input and AC+DC input) | ||||||
Power Consumption | Less than 110W | ||||||
Dimensions (Width x Height x Depth) | 440mm×44mm×380mm | ||||||
Weight (Full-Loaded) | 3KGS | ||||||
Working Temperature | -10°C~55°C | ||||||
Storage Temperature | -40°C~70°C | ||||||
Relative Humidity | 10%~90%, non-condensing | ||||||
