Hpgr Tungsten Carbide Grinding Studs

Category: Cemented Carbide >>>
Supplier: Zigong,Tianyi,Industry,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Production Overview

Production Overview

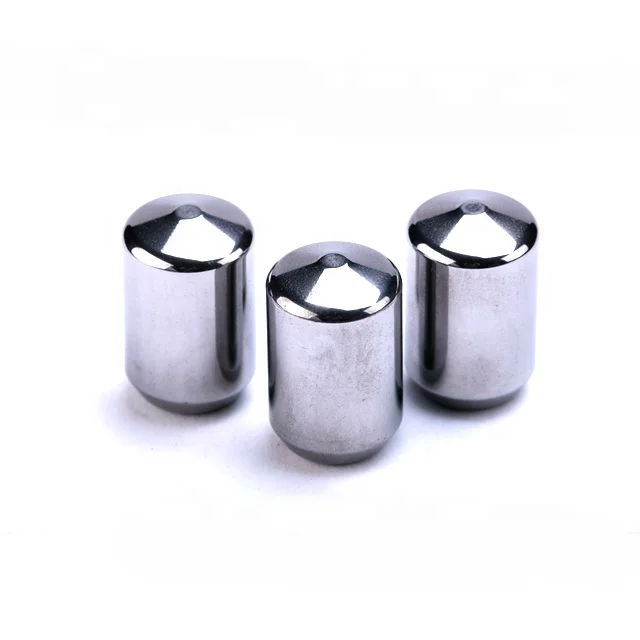

HPGR Carbide Stud

This is a kind of tungsten carbide button for high pressure grinding roll.The high-pressure grinding roll has gradually been widely recognized by the market for its advantages of high crushing efficiency, low energy consumption, and high material yield.

The performance of its carbide studs determines the operating conditions of the roller press. The good operation of the roller press requires high-quality cemented carbide roller studs.

Quick Details

Place of Origin: Zigong, Sichuan China
Brand Name: TIANYI
Product Name: HPGR carbide button
Other name: Tungsten Carbide Button;
Cemented Carbide Stud;
Hard Alloy Pin and so on.
Dimensions: Custom According to Customer's Drawing

Supply Ability

Supply Ability : 20000 Kilograms per Month

Packaging & Delivery

Packaging Details： box and wooden. Put HPGR carbide stud into the boxs then put these boxs into a wooden carton or packed as customers'requests.

Port: any as required

Products Description

Product Description

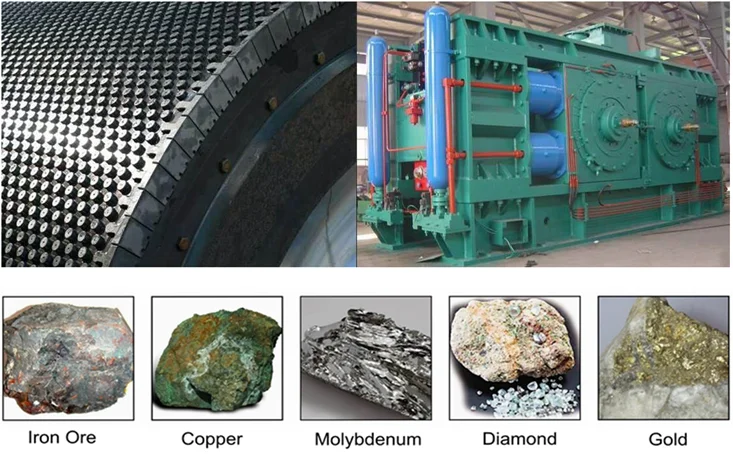

1、Application

2、Tungsten Carbide Button Specification

① High efficient in crushing
② Low energy consumption
③ Long service life

④ Easy to replace
⑤ 100% virgin raw material
⑥ Advanced production equipment
⑦ With production experience over 20 years

3、Reference Size of Carbide stud (mm)

H	Φ	Approx Weight （g）
70	21.9	364
60	21.9	311
50	21.9	257
40	21.9	204
30	21.9	151

4、Reference Grade of Carbide Stud

Grade	Physical Properties
Grade		Density g/cm³	Coercivity KA/m	Hardness HRA	TRS ≥N/mm²
YG6	14.82-15.05	12.5-17.5 13.0-17.0	90.5-92.0	1720
YG6K	14.85-15.0	8.5-12	89.4-90.2	2200
YG8	14.62-14.82	10.0-15.0 11.0-15.5	89.5-91.0	1800
YG8C	14.6-14.8	6.3-9.3	87.5-89.0	2000
ZE20	14.85-15.05	-	90.5-91.5	2880
ZK20	14.88-14.98	13.0-13.8	>91	2800
More

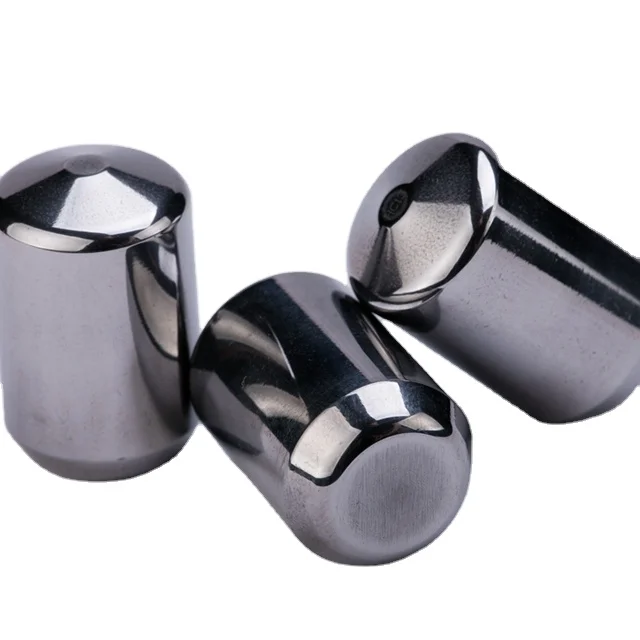

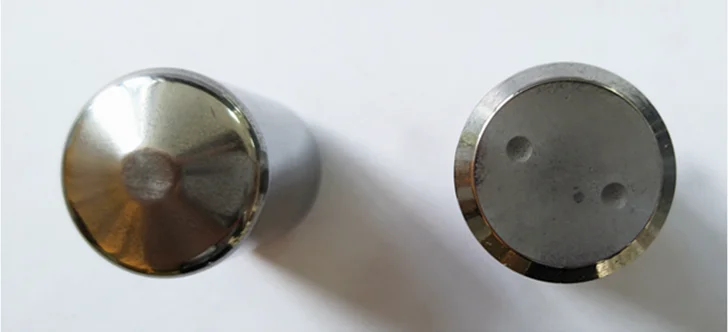

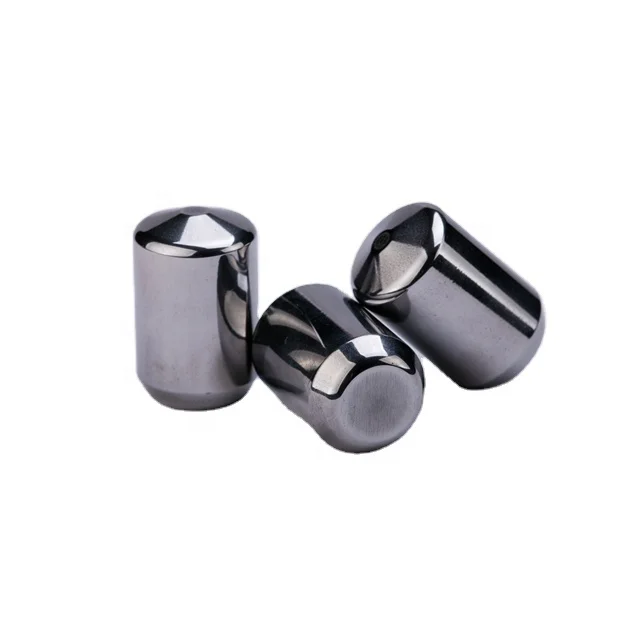

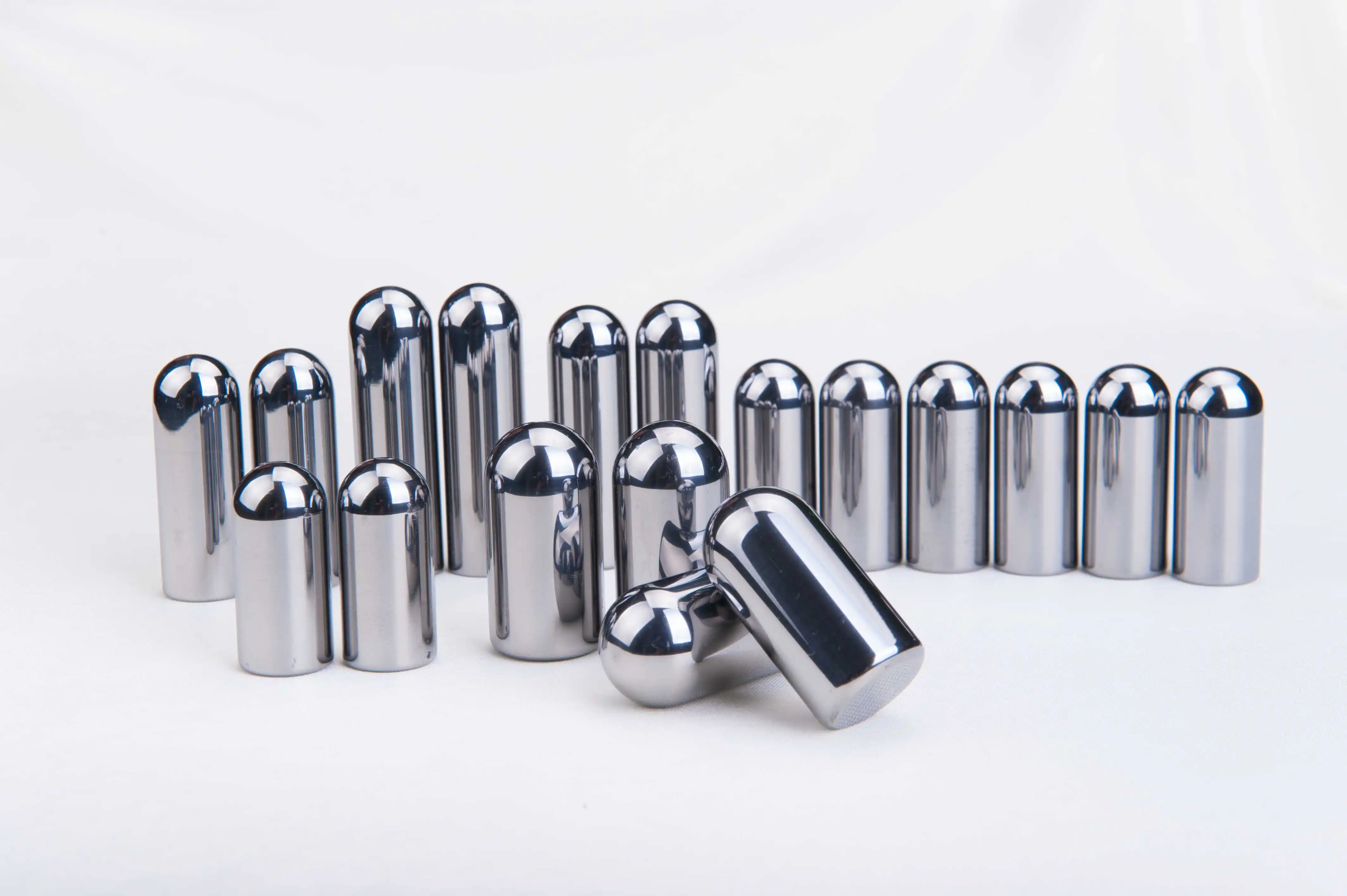

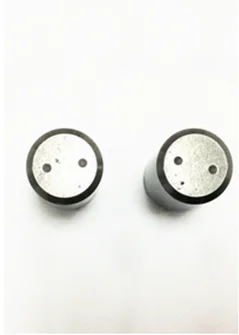

5、 Detail Pictures of Product

Recommend Products

6、Transport & Payment

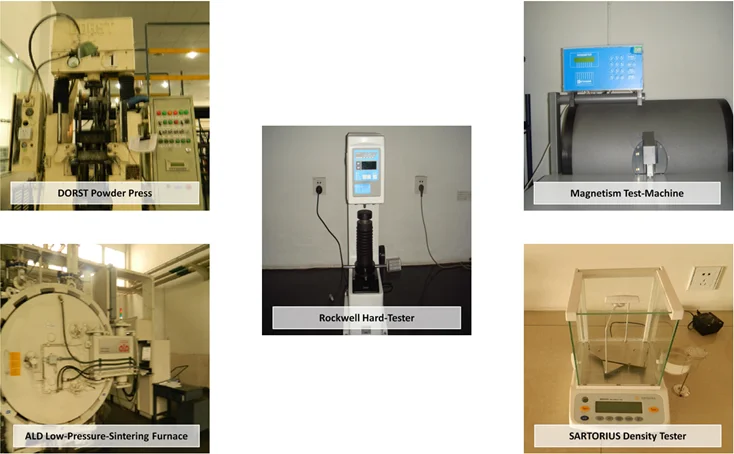

7、Quality Contral

Company Profile

Company Inforamtion

Zigong Tianyi Industrial Co., Ltd

Zigong Tianyi Industrial Co., Ltd located in southwest China, supply cemented carbide wear parts series as well as provide complete solution to meet customer's requirements due to we have a professional team in research & design. It is one of the largest professional suppliers in China of rotor tip for VSI crusher & carbide stud for high pressure grinding roll (HPGR). With decades of sales & marketing and relevant application experience,our products enjoy high reputation both at home and abroad.

Web: https://zgtianyi.en.alibaba.com/

Contact Us

FAQ

Q&A

Q: How long is your delivery time?
A: Generally it is 20~30 days if the goods are not in stock, according to the quantity.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How about after-sale service?
A: We provide complete solution and we also dispatch our technicians to assist the erection and using when needed.
