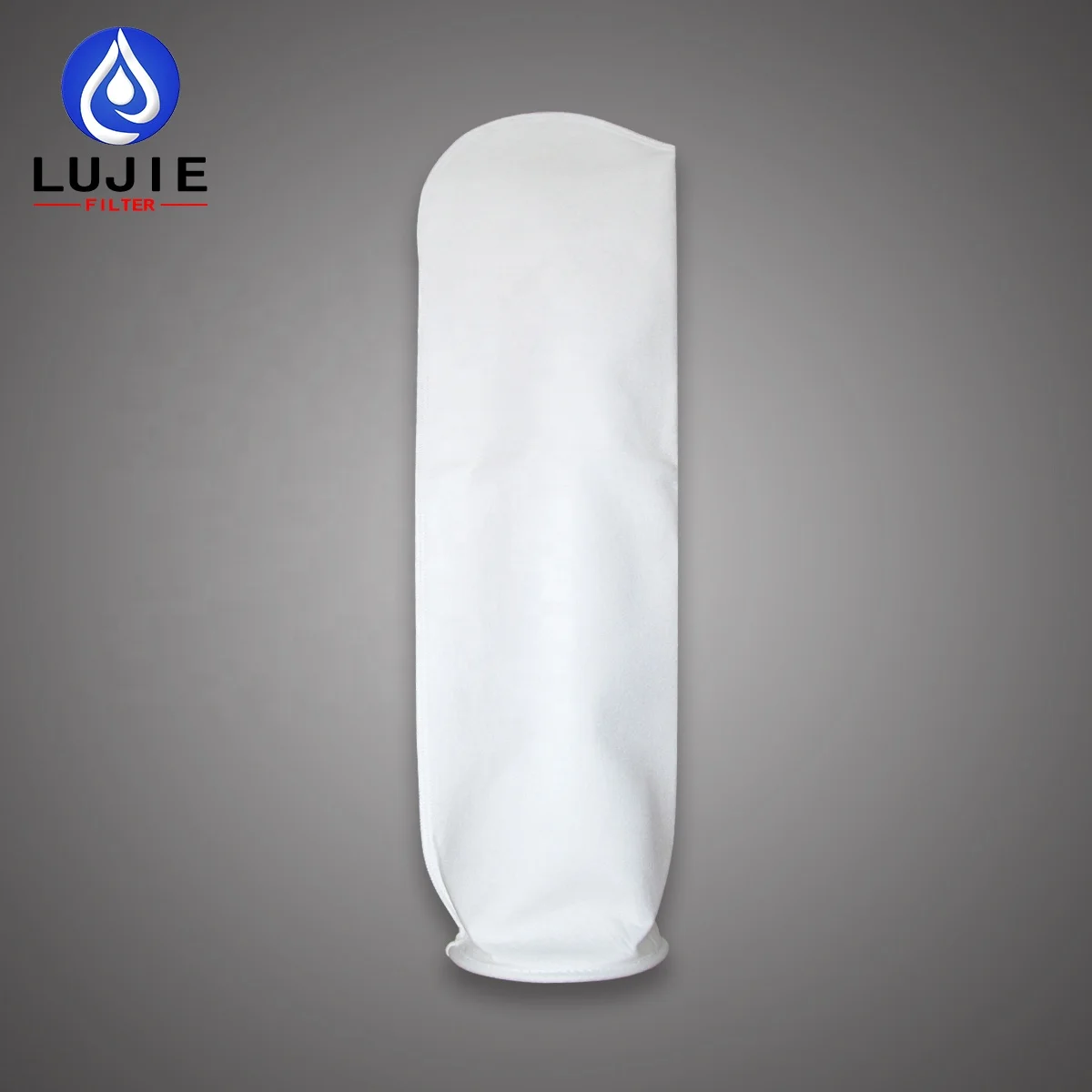

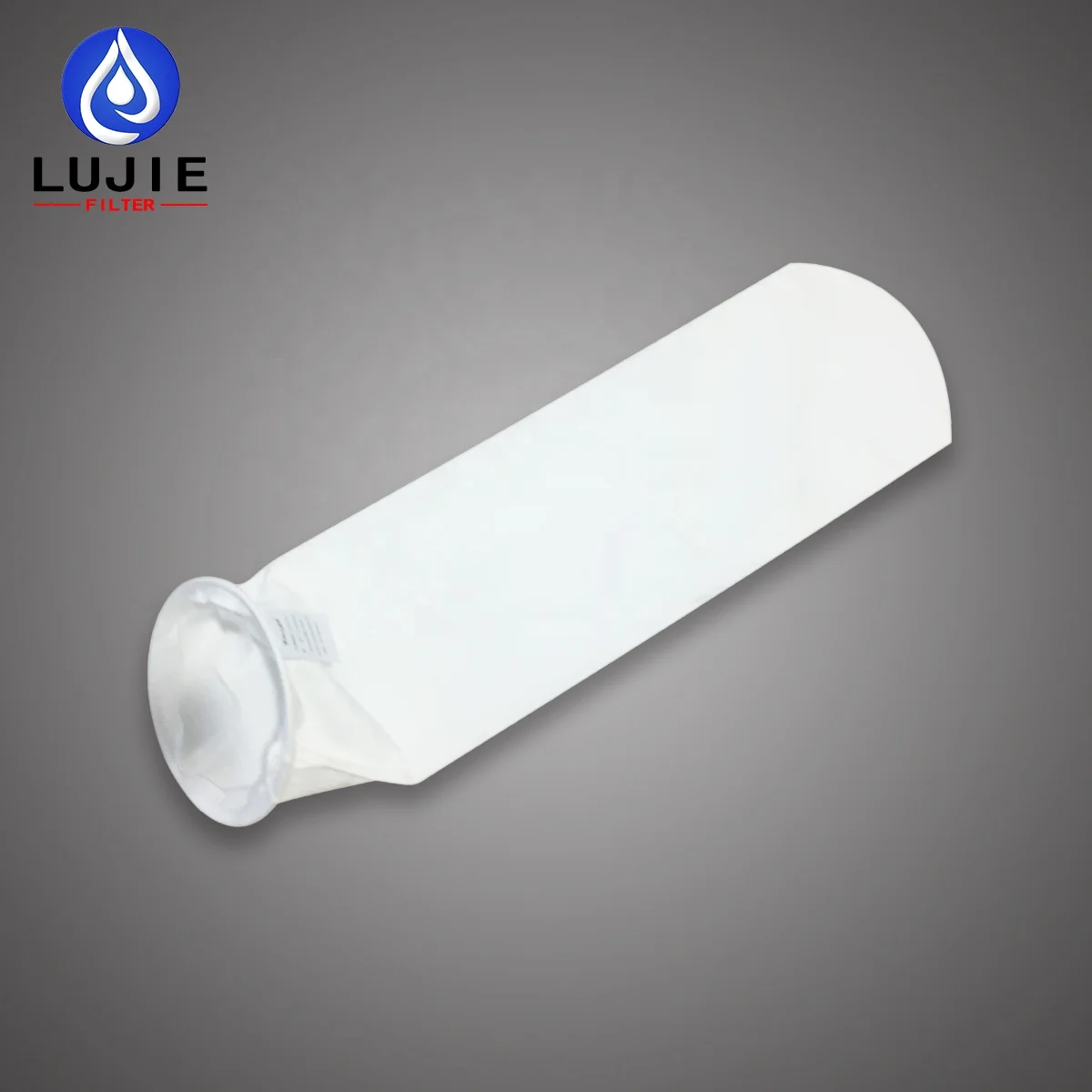

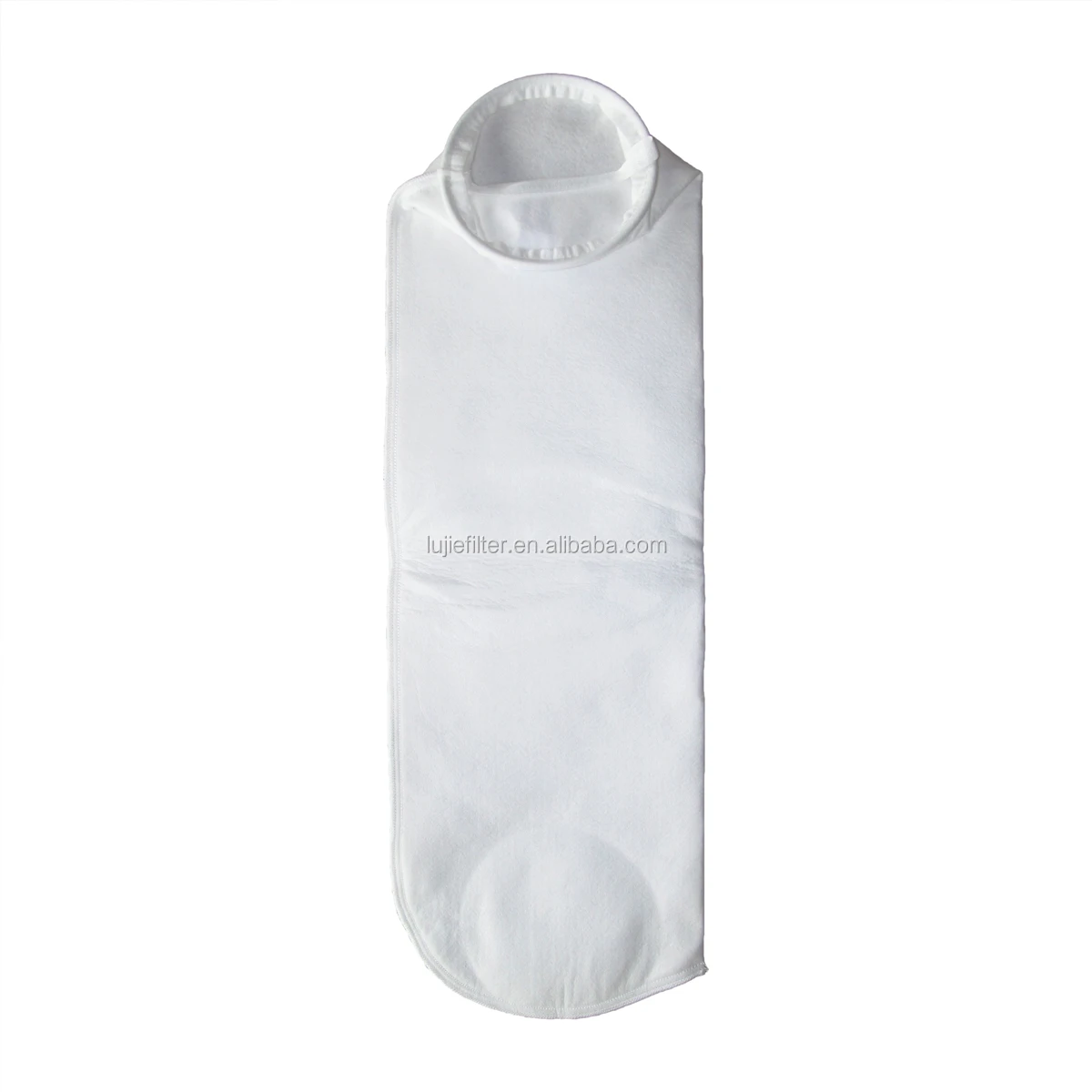

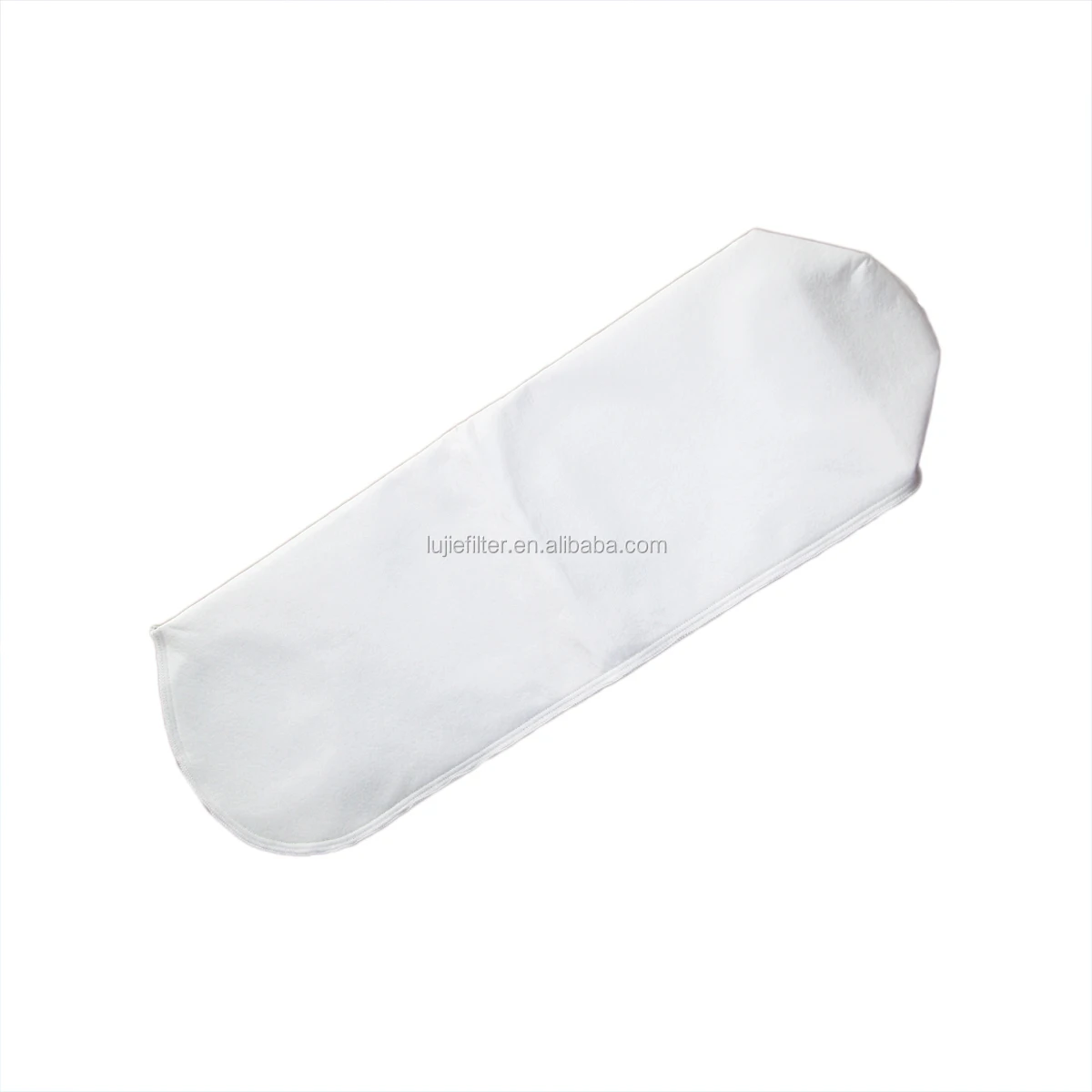

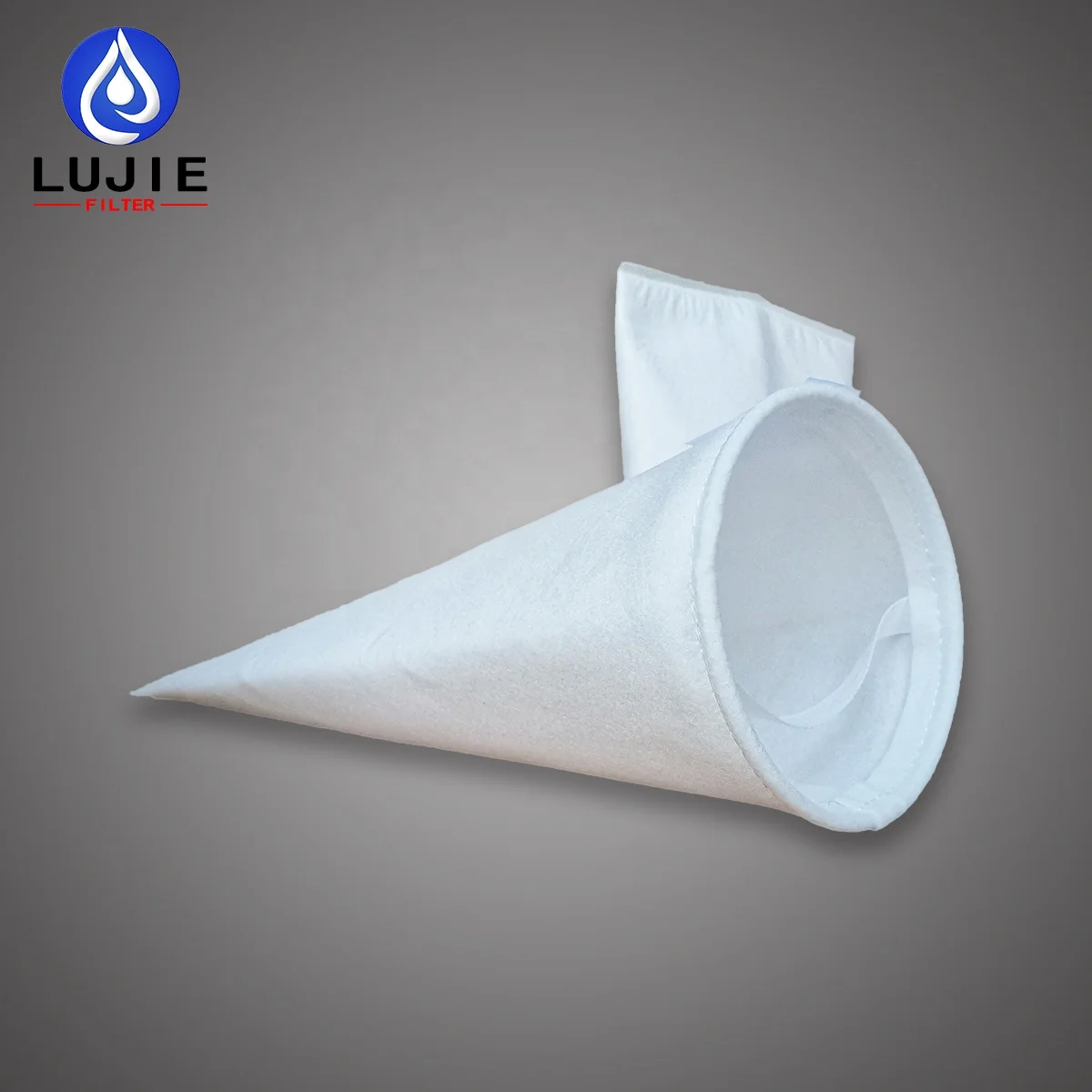

LUJIE 5 Micron 7*32 Inch Polypropylene PP Needle Felt Liquid Water PP Filter Bag
- Category: Filter Supplies >>>
- Supplier: Shanghai Lujie Filtration Technology Co. Ltd.
Share on (1600427657393):
Product Overview
Description
Products Description
Liquid Filter Bag
Matching Bag Filter Housing, Multi-functional Filter Bag Can Be Customized According To Customer Requirements.
CUSTOMER REQUEST | SOLUTION |
Excess Oil | Composite Oil-absorbing Filter Bag |
High precision requirements | Absolute Precision Filter Bag, |
Remove pigment | Activated Carbon Filter Bag, |
High Temperature | 304 Stainless Steel Mesh Filter Bag |
Acid-Base Liquid | Polypropylene Filter Bag, |
Washable | Nylon monofilament filter bag |
Strong Corrosive Liquid | PTFE Filter Bag |
Increase Filter Area | Double filter bag |
other | Customized Development For Customer Service |
Product Paramenters
Product Name | Liquid Filter Bag |
Brand Name | LUJIE |
Product Material | PP/PE/NMO PPS/PTFE |
Size | Table below |
bag ring | Steel ring Plastic ring |
Conventional filter bag size | ||||||||||
Model | Filter bag size | Maximum flow | Filtration area | Bag volume | ||||||
01# | φ7"×17" | φ180mm×440mm | 20 m³/h | 0.25 ㎡ | 8 L | |||||
02# | φ7"×32" | φ180mm×820mm | 40 m³/h | 0.45 ㎡ | 17 L | |||||
03# | φ4"×9" | φ105mm×230mm | 6 m³/h | 0.08 ㎡ | 1.3 L | |||||
04# | φ4"×15" | φ105mm×380mm | 12 m³/h | 0.13 ㎡ | 2.5 L | |||||
05# | φ6"×20" | φ155mm×510mm | 18 m³/h | 0.25 ㎡ | 7 L | |||||
06# | φ6"×32" | φ155mm×820mm | 32 m³/h | 0.4 ㎡ | 15 L | |||||
11# | φ6"×17" | φ230mm×440mm | 25 m³/h | 0.3 ㎡ | 10 L | |||||
12# | φ6"×32" | φ230mm×820mm | 50 m³/h | 0.6 ㎡ | 20 L | |||||
Pressure difference, viscosity and other factors will affect the flow rate！！ | ||||||||||
Fiber | Filtration accuracy | Temperature(℃) | Abrasion Resistance | Weakly Acid | Strongly Acid | Weakly Alkali | Strongly Alkaly | Solvent | ||
PE | Polyester | 1μm-300μm | 130-150 | Very Good | Very Good | Good | Good | Poor | Good | |
PP | Polypropylene | 1μm-300μm | 90-110 | Very Good | Excellent | Excellent | Excellent | Excellent | General | |
Nylon | Nylon mesh | 10μm-1000μm | 135-149 | Excellent | General | Poor | Excellent | Excellent | Good | |
SS | Stainless steel mesh | 10μm-1000μm | 550-750 | Very Good | Good | Good | Good | Very Good | Good | |
pps | Polyphenylene sulfide | 5μm-50μm | 160-190 | Excellent | Good | Very Good | Good | Good | General | |
ptfe | Teflon | 5μm-50μm | 240-260 | Excellent | Very Good | Very Good | Very Good | Very Good | Good | |
Comparison table of powder particle mesh and particle diameter | ||||||||||||||
Conversion formula: mesh number × aperture (micron number) = 15000 (for reference only) | ||||||||||||||
Mesh | Micron | Mesh | Micron | Mesh | Micron | |||||||||
10000 | 1.3 μm | 175 | 86 μm | 42 | 355 μm | |||||||||
8000 | 1.6 μm | 170 | 90 μm | 40 | 380 μm | |||||||||
5000 | 2.6 μm | 160 | 86 μm | 35 | 425 μm | |||||||||
2000 | 6.5 μm | 150 | 106 μm | 32 | 500 μm | |||||||||
1340 | 10 μm | 140 | 109 μm | 30 | 550 μm | |||||||||
1000 | 13 μm | 130 | 113 μm | 28 | 600 μm | |||||||||
800 | 18 μm | 125 | 115 μm | 24 | 700 μm | |||||||||
600 | 23 μm | 120 | 120 μm | 20 | 830 μm | |||||||||
500 | 25 μm | 115 | 125 μm | 18 | 880 μm | |||||||||
400 | 38 μm | 100 | 150 μm | 16 | 1000 μm | |||||||||
325 | 45 μm | 90 | 160 μm | 14 | 1180 μm | |||||||||
300 | 48 μm | 80 | 180 μm | 12 | 1400 μm | |||||||||
270 | 53 μm | 70 | 212 μm | 10 | 1700 μm | |||||||||
250 | 58 μm | 65 | 230 μm | 8 | 2360 μm | |||||||||
240 | 61 μm | 60 | 250 μm | 7 | 2800 μm | |||||||||
230 | 62 μm | 50 | 270 μm | 6 | 3350 μm | |||||||||
200 | 75 μm | 48 | 300 μm | 5 | 4000 μm | |||||||||
180 | 80 μm | 45 | 325 μm | 4 | 4750 μm | |||||||||
Product Details
CHOOSE
MATERIALS CAREFULLY
Choose Different Materials According To Different Working Conditions To Improve Filtration Efficiency.

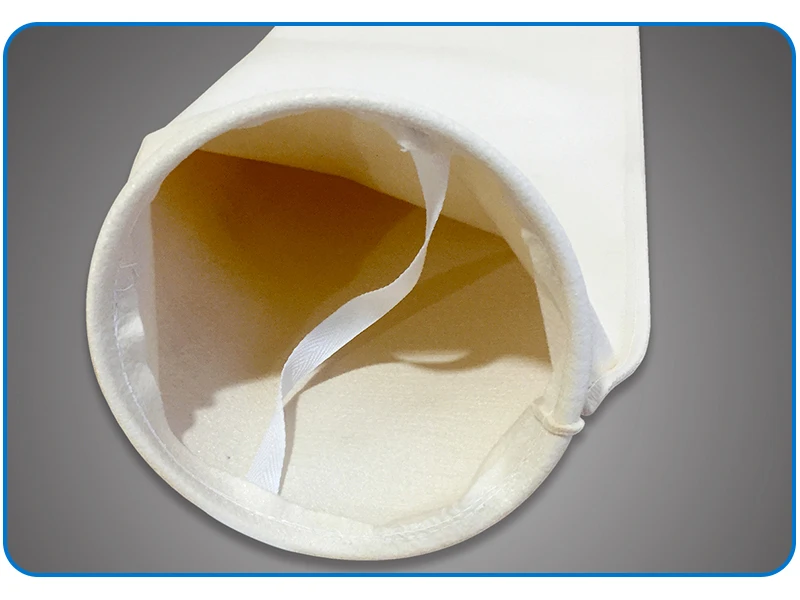

SEWING PROCESS
Using Hot-melt Seamless Welding Technology,
There Will Be No Fall-off Or Disconnection During Use.

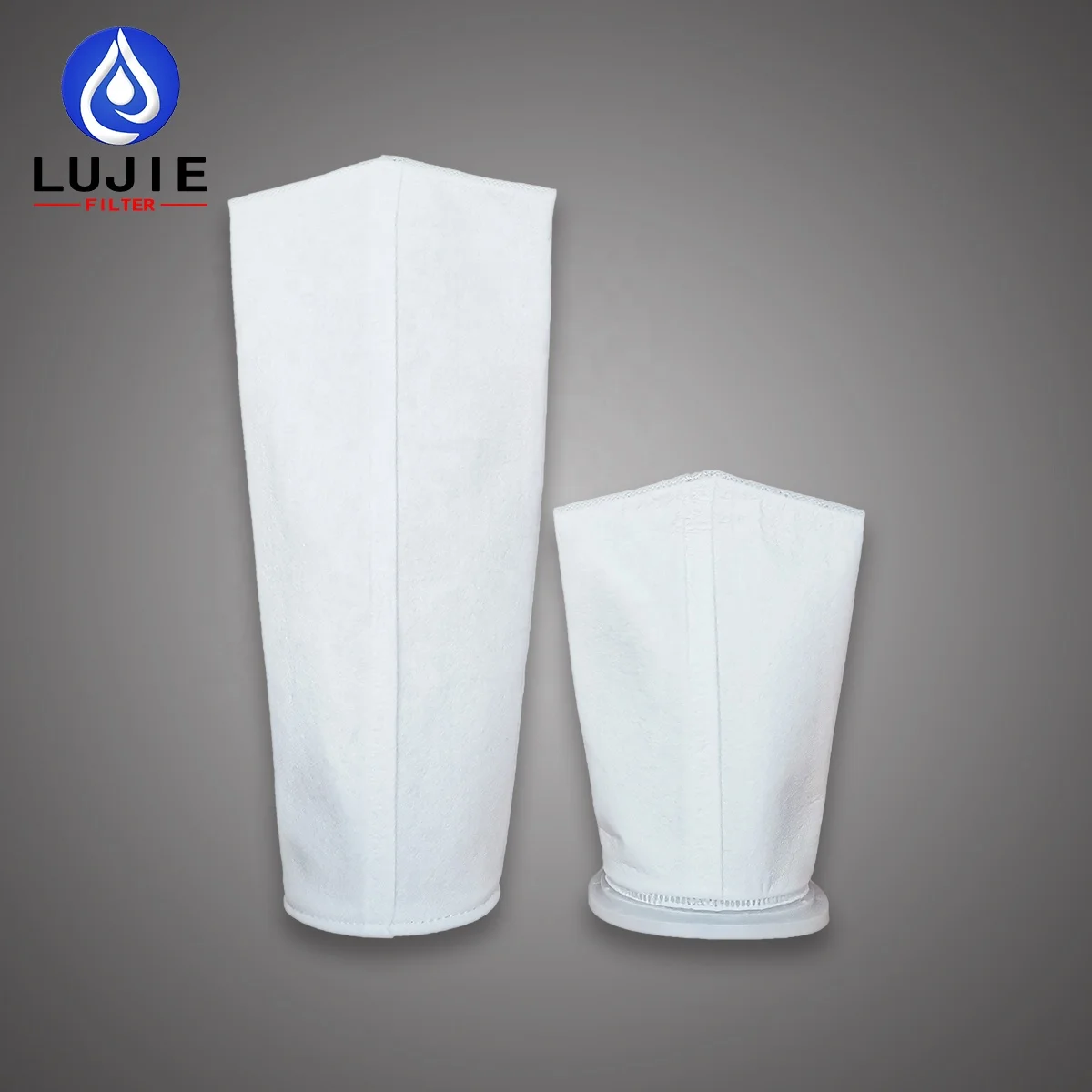

On-demand Customization
According To The Different Needs Of Customers, Different Sizes Of Filter Bags Can Be Customized.

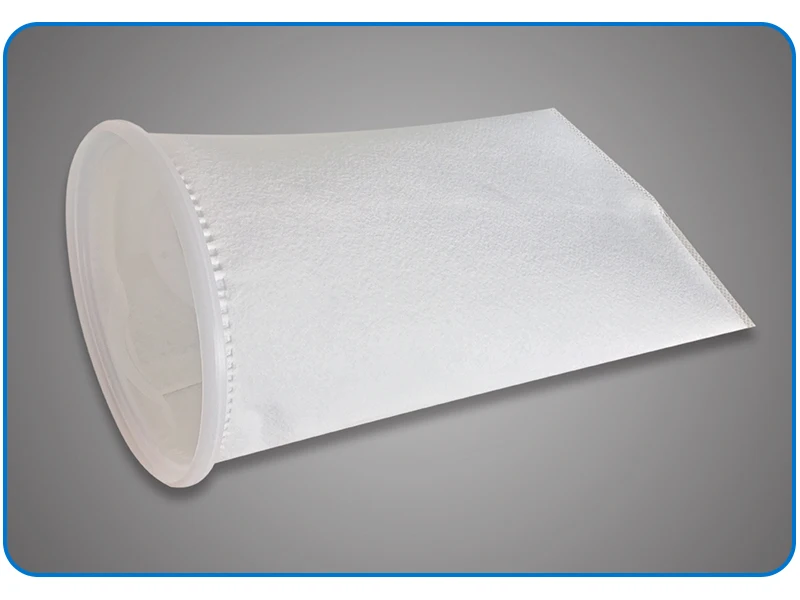

SINTERING TECHNOLOGY SMOOTH SURFACE TREATMENT
High-temperature Surface Heat Treatment Can Effectively Prevent The Fibers From Being Dissipated Due To The High-speed Impact Of The Liquid During Filtration, And Ensure That There Is No Phenomenon Of Filtrate Pollution Caused By Fiber Detachment.
Individually Packaged
Carton Packaged
Multiple Packages
Products Show
Recommend Products
Packing & Shipping
1.packaging
2.Suitable carton size
3. Suitable wooden
box or pallet
4.Transport to a port
or warehouse.
5.Professional
6.Perfect delivery service
FAQ
Q1 : Are you manufacturer or Trade Company?
A : We are a manufacturing and trading company with
A : We are a manufacturing and trading company with
nearly 20 years of production experience.
Q2 : Where is your factory located?
A : Our company is headquartered in Shanghai, and has branch factories
Q2 : Where is your factory located?
A : Our company is headquartered in Shanghai, and has branch factories
in Kunshan City,Jiangsu Province, Jiaxing City, Zhejiang Province,
and Jinan City, Shandong Province.
Q3 : Is your price competitive ?
A : Yes,our price is competitive under the same quality.
A : Yes,our price is competitive under the same quality.
We have multiple fully automatic production lines,
which can save a lot of labor costs while ensuring quality.
Q4 : Do you provide OEM service?
A : Yes, absolutely we can, and we can production totally according
Q4 : Do you provide OEM service?
A : Yes, absolutely we can, and we can production totally according
to your design standard.We will keep your sample confidential.
Q5 : What is your sample policy?
A : Base on the sample quantity and express cost,
A : Base on the sample quantity and express cost,
sample fee will be refund when you place a order.
Q6: What is your terms of payment ?\t
A: Payment<=1500USD, 100% in advance.
Payment>=1500USD, 30% T/T in advance ,balance before shippment.\t
Q7 : How about your delivery time?
A : Generally, it will take 10 to 15 days after receiving your advance payment.
Q6: What is your terms of payment ?\t
A: Payment<=1500USD, 100% in advance.
Payment>=1500USD, 30% T/T in advance ,balance before shippment.\t
Q7 : How about your delivery time?
A : Generally, it will take 10 to 15 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q8: What kind of packing and transportation do you choose?
A : We usually pack them in cartons or wooden
cases and transport them by Cargo ship or plane.
We will choose the most suitable packing and transportation mode
to ensure that the goods will not be damaged during transportation.
Q8: What kind of packing and transportation do you choose?
A : We usually pack them in cartons or wooden
cases and transport them by Cargo ship or plane.
We will choose the most suitable packing and transportation mode
to ensure that the goods will not be damaged during transportation.
Q9: What is your terms of delivery?
A : CIF, DDU.EXW, FOB, CFR,DAP, FCA
Q10 : Do you test all your goods before delivery?
A : Yes, we have 100% test before delivery。
A : CIF, DDU.EXW, FOB, CFR,DAP, FCA
Q10 : Do you test all your goods before delivery?
A : Yes, we have 100% test before delivery。
