Rotary thin film evaporator
- Category: >>>
- Supplier: Wenzhou Sijin Machinery Co. Ltd.
Share on (1600427670251):
Product Overview
Description
Product Description
Product name | Scraper thin film evaporator | ||||||
Usage | Herbal, milk, juice, etc. | ||||||
Material | 304/316L Stainless Steel | ||||||
Capacity | 10L-2000L per hour | ||||||
Color | As picture | ||||||
OEM/ODM | Customization Service Provided | ||||||
Agitated thin film evaporator
Application
Agitated thin film evaporator is a kind of evaporator with the latest international structure, it uses centrifugal sliding groove rotator that may form film e vent with every small flow. The shoal materials in the liquid deposited on the surface of internal wall in evaporation section of the barrel will be blow removed by movable scraper, its evaporation capacity improves about 40-60% compare with scraper evaporator with fixed gap. The device is used in China and western pharmacy, food, light industry, petrochemical, environmental protection industries etc.The biggest point is not affected by
material viscosity.
Specification
1) Material: SS304/316L
2) High heat transfer coefficient
3) High evaporation capacity
4) Without being limited by viscosity
5) Short heating time
6) Liquid material viscosity
7) Packaging details: Packed in waterproof cloth first and then packed in wooden cases
Features
1) Its heat transfer coefficient value is high, and its evaporation capacity & strength can achieve 200kg/m2 · hr, with high
thermal efficiency.
2)Material heating time is short, from 5 seconds to 10 seconds. Under vacuum conditions, the equipment can favorably retain heat-sensitive material's various ingredients, and produce non-decomposition, to ensure the quality of products.
3) This equipment is adopted to wide range of viscosity. Material of high viscosity can also be processed. Material viscosity can be as high as 10 million per cent tabor (CP).
4) Changing the rotation direction of the scraper groove, can adjust the process time of material in the evaporator.
5) The wall of evaporation cylinder body is after precision milling and polishing processing, so its surface is not easy to
generate coking, fouling.
6) It is convenient to operate, and easy to regulate in product index. In airtight condition, continuity production can be
auto-controlled.
7) Equipment covers a small area, with simple structure. It is easy to clean and convenient to maintenance.
Application
Agitated thin film evaporator is a kind of evaporator with the latest international structure, it uses centrifugal sliding groove rotator that may form film e vent with every small flow. The shoal materials in the liquid deposited on the surface of internal wall in evaporation section of the barrel will be blow removed by movable scraper, its evaporation capacity improves about 40-60% compare with scraper evaporator with fixed gap. The device is used in China and western pharmacy, food, light industry, petrochemical, environmental protection industries etc.The biggest point is not affected by
material viscosity.
Specification
1) Material: SS304/316L
2) High heat transfer coefficient
3) High evaporation capacity
4) Without being limited by viscosity
5) Short heating time
6) Liquid material viscosity
7) Packaging details: Packed in waterproof cloth first and then packed in wooden cases
Features
1) Its heat transfer coefficient value is high, and its evaporation capacity & strength can achieve 200kg/m2 · hr, with high
thermal efficiency.
2)Material heating time is short, from 5 seconds to 10 seconds. Under vacuum conditions, the equipment can favorably retain heat-sensitive material's various ingredients, and produce non-decomposition, to ensure the quality of products.
3) This equipment is adopted to wide range of viscosity. Material of high viscosity can also be processed. Material viscosity can be as high as 10 million per cent tabor (CP).
4) Changing the rotation direction of the scraper groove, can adjust the process time of material in the evaporator.
5) The wall of evaporation cylinder body is after precision milling and polishing processing, so its surface is not easy to
generate coking, fouling.
6) It is convenient to operate, and easy to regulate in product index. In airtight condition, continuity production can be
auto-controlled.
7) Equipment covers a small area, with simple structure. It is easy to clean and convenient to maintenance.

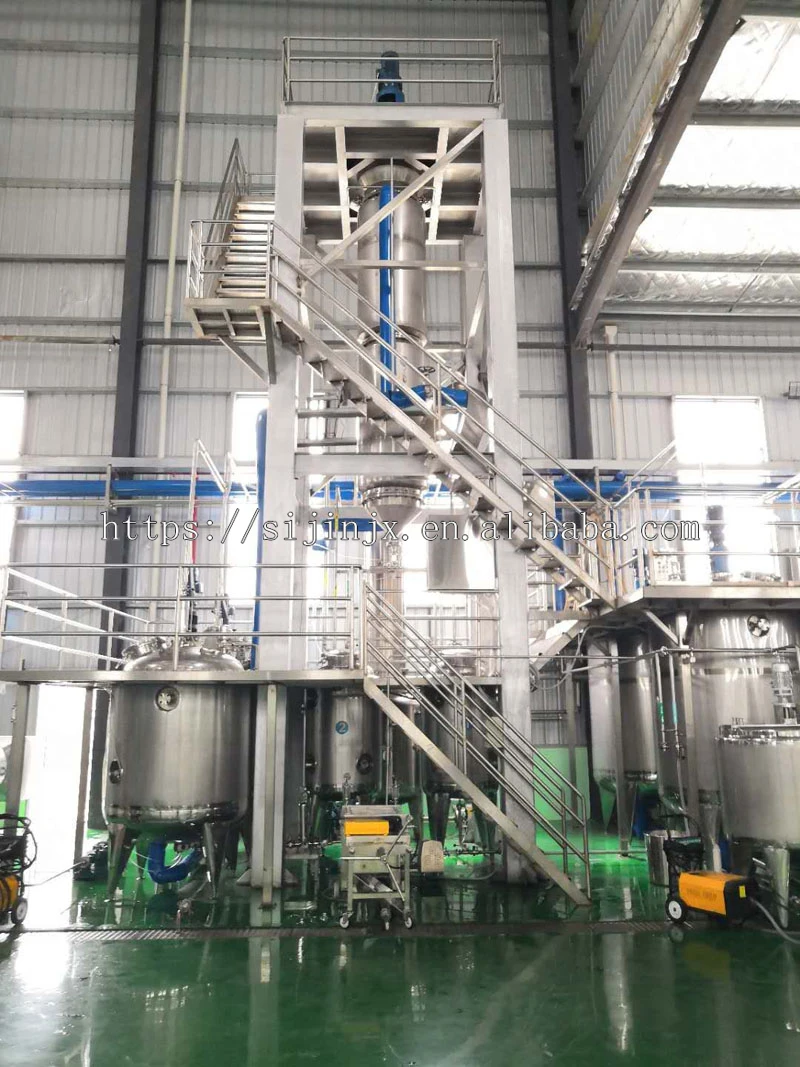

Product show
Company Information
Wenzhou Sijin Machinery Co., Ltd.
Wenzhou Sijin Machinery Co., Ltd. is a professional manufacturer with 12 years of manufacturing experience in evaporation equipment, pharmaceutical equipment, dairy equipment, juice and beverage equipment in China. Our factory covers an area of 4200 square meters and has 47 skilled workers. So far, we have produced and installed more than 140 projects at home and abroad. Such as Southeast Asia, India, Africa, Britain, Canada, Turkey, Germany, Honduras, Peru, Argentina, etc.
Our products are widely used in the pharmaceutical, dairy, beverage, juice, food and chemical industries. Sijin company is responsible for the design, production, installation, commissioning, training, and thoughtful after-sales service.Our mission is to offer high quality machines with satisfactory prices.
Welcome to visit our factory. We are happy to show you our machines and projects.
We look forward to establishing business relationships with you and growing together.
Packaging & Shipping
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Q7:Why choose us?
A7:Sijin products sell well at home and abroad, and are exported to Europe, America, Southeast Asia, India, Africa and other countries and regions, and are widely trusted and praised by users.
Q8:Are we a factory?
A8::Yes.
