Wholesales ready to ship outdoor 320x160mm P5 LED Display Module outdoor P5 LED module SMD1921 LED panel in stock
- Category: >>>
- Supplier: Shenzhen Colourful Technology Co. Ltd.
Share on (1600427688149):
Product Overview
Description
Wholesales ready to ship outdoor 320x160mm P5 LED Display Module outdoor P5 LED module SMD1921 LED panel in stock

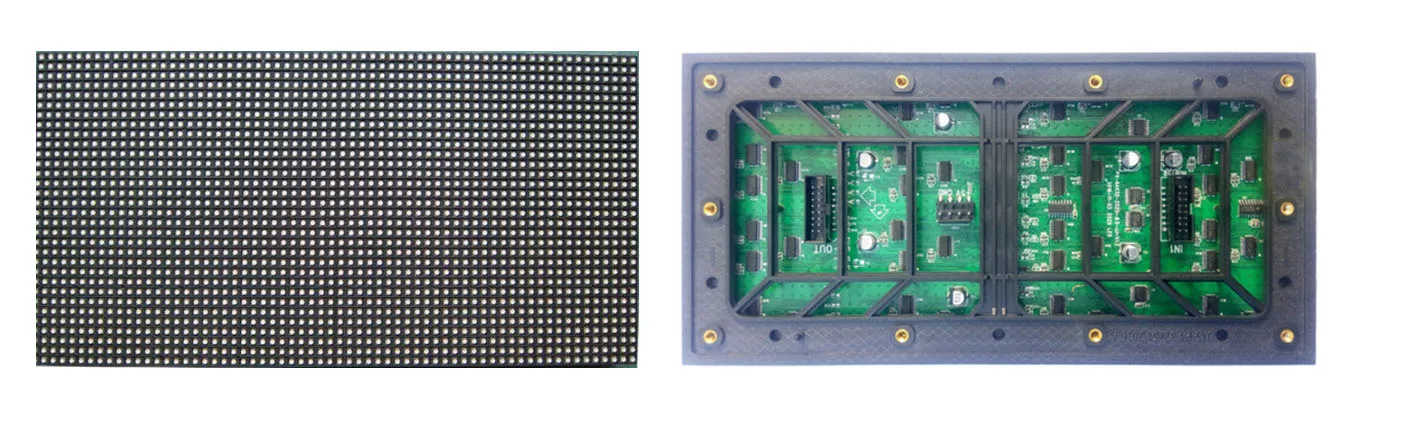

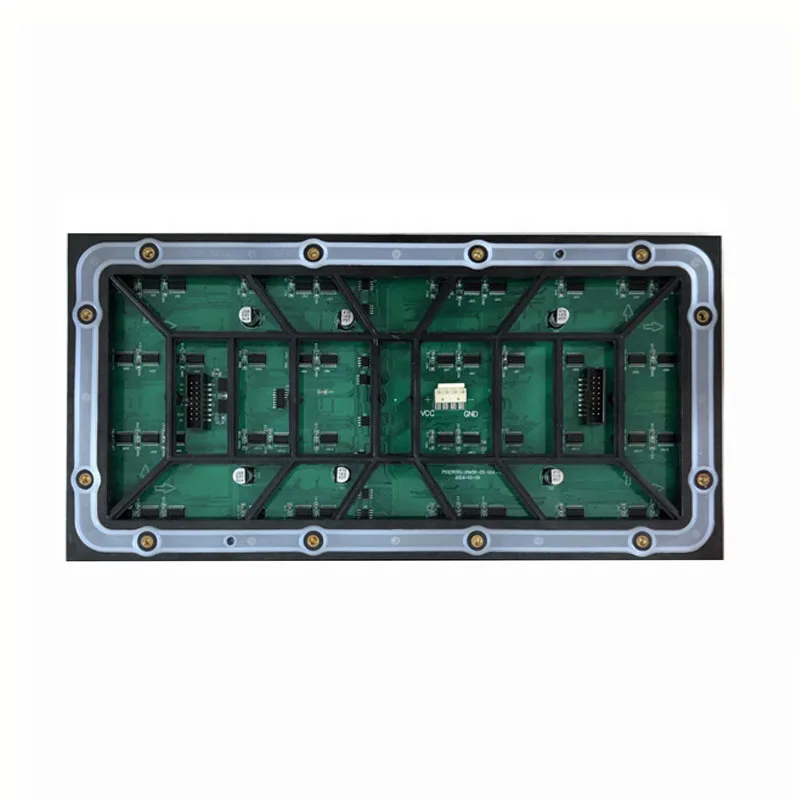

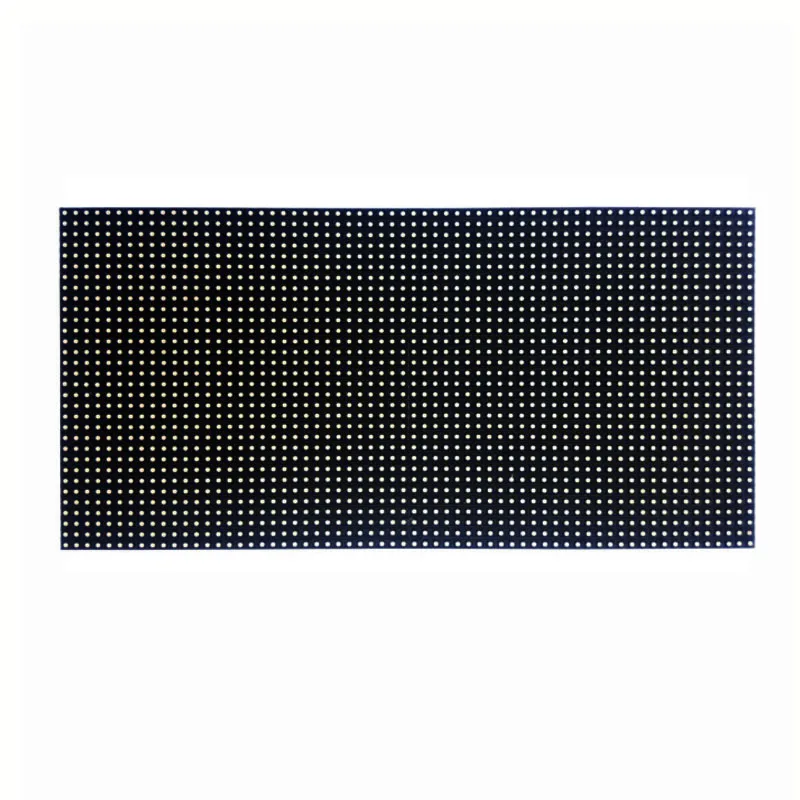

Led Module
1.LED Light Parameter
LED | LED brand | LED type | wave Length(nm) | (mcd) | Test Condition |
Red(R) | Sanan | SMD 1921 | 620-625nm | 600-900mcd | 25℃,20mA |
Green(G) | Huacan | 516-530nm | 1000-1500mcd | 25℃,15mA | |
Blue(B) | Huacan | 465-475nm | 260-360mcd | 25℃,10mA |
2.Pixel/Module
No | Item | Parameter |
1 | Pixel Pitch | 5 mm |
2 | Pixel Configuration | 1R1G1B / R:G:B=3:6:1 |
3 | LED Lamp | Full color |
4 | Density | 40000dot/m2 |
5 | Module Size | 320*160mm |
6 | Module Pixel | 64*32=2048dot |
7 | Module Thickness | 16mm |
8 | Module Weight | 520g |
9 | Module Power | ≤43W |
10 | Drive Voltage | DC5V |
11 | Module Electric Current | 7.5-8.5A |
12 | Port Type | HUB-75D/B |
Note: LED lamp and IC can be customized, please check the price with us if you have special requirement .Thanks !
Packing : (Standard packing is paper carton, also can packed with wooden case as customer's requirement, packing cost need to pay seperately)

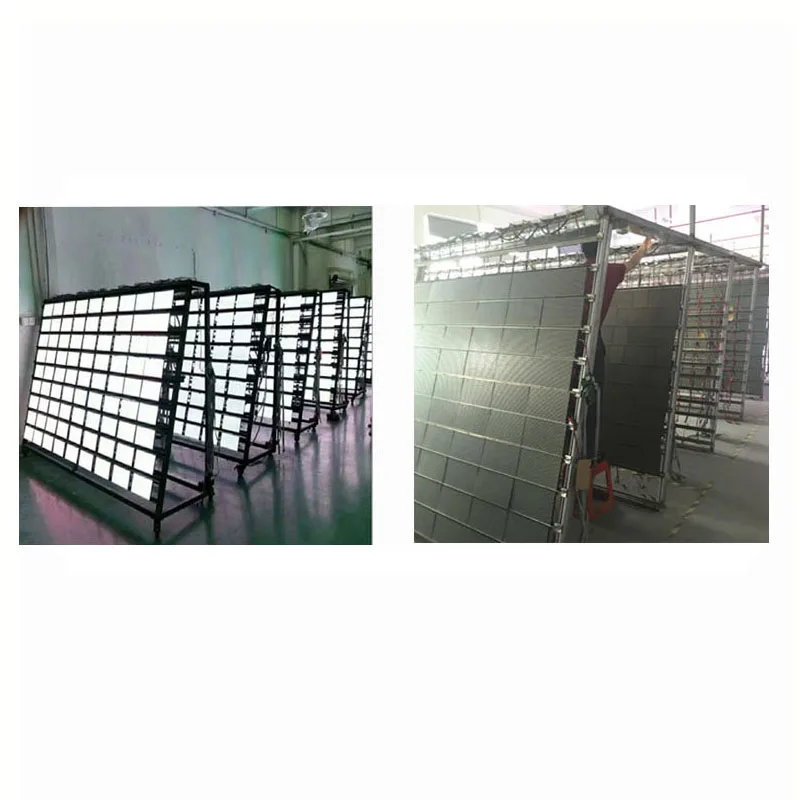

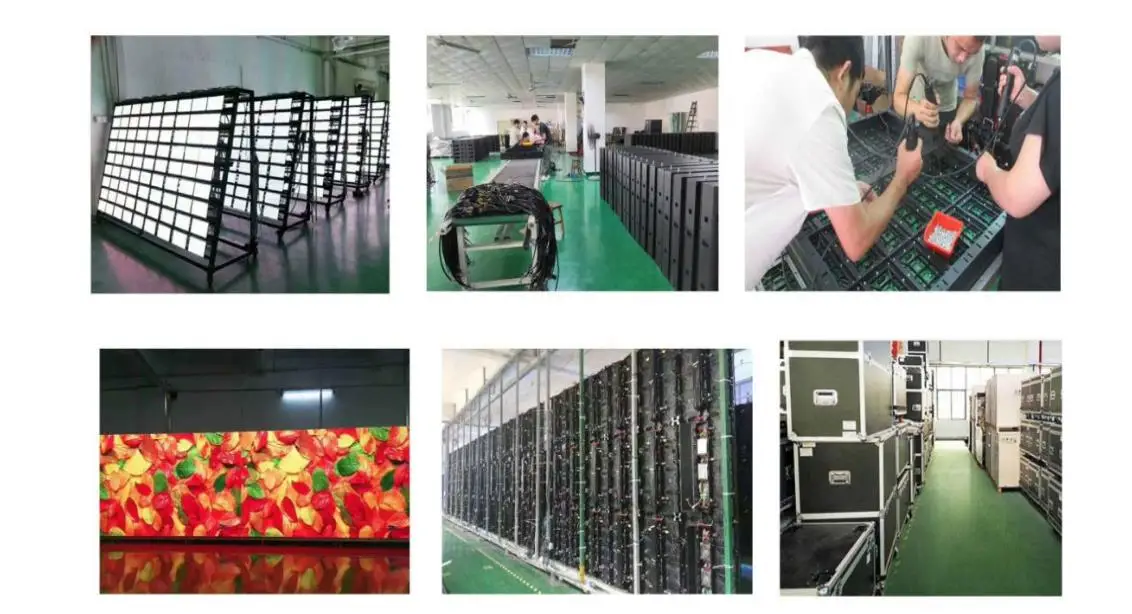

Company show:
