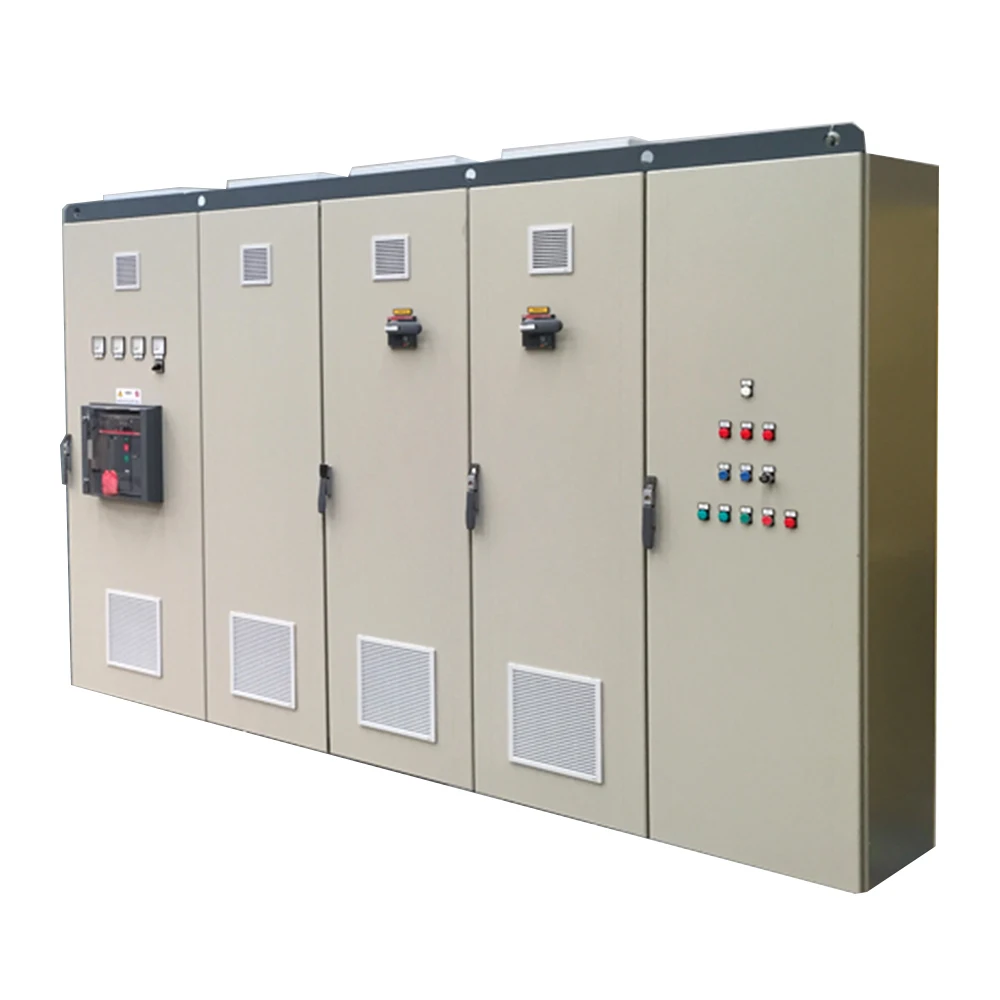

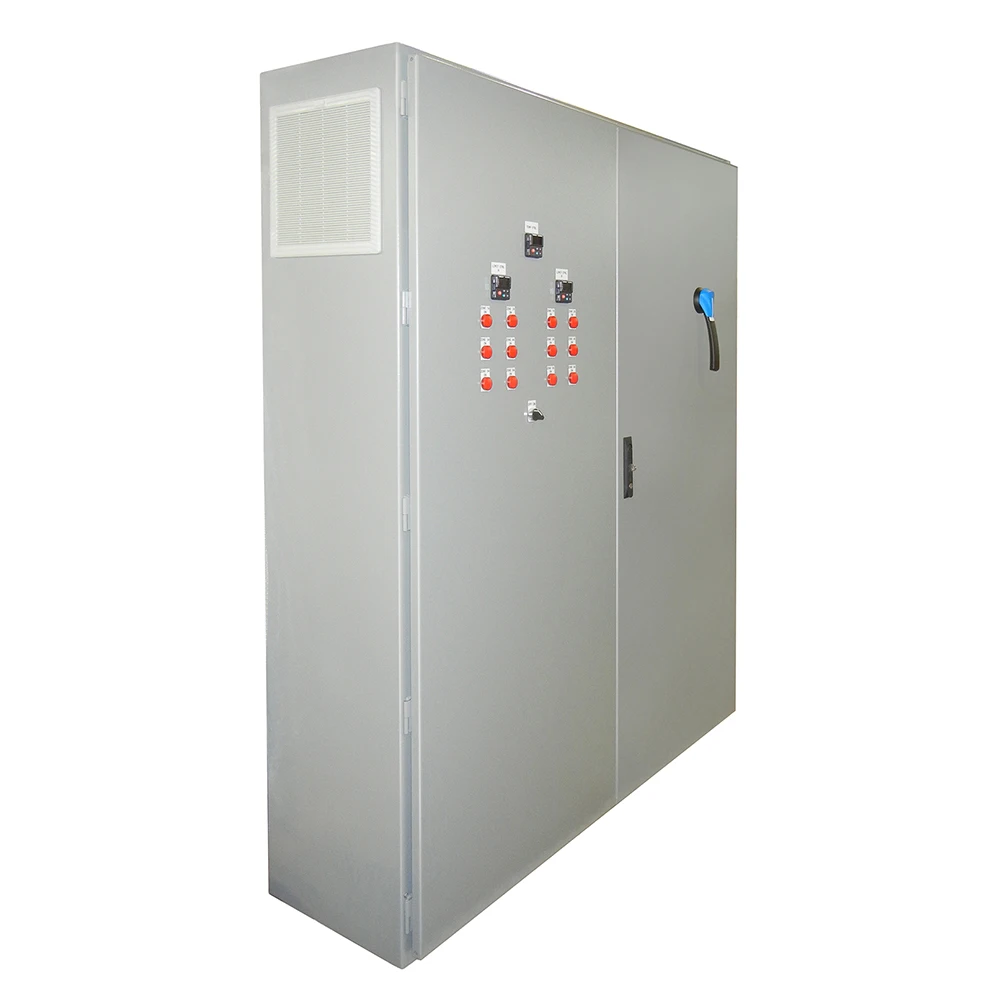

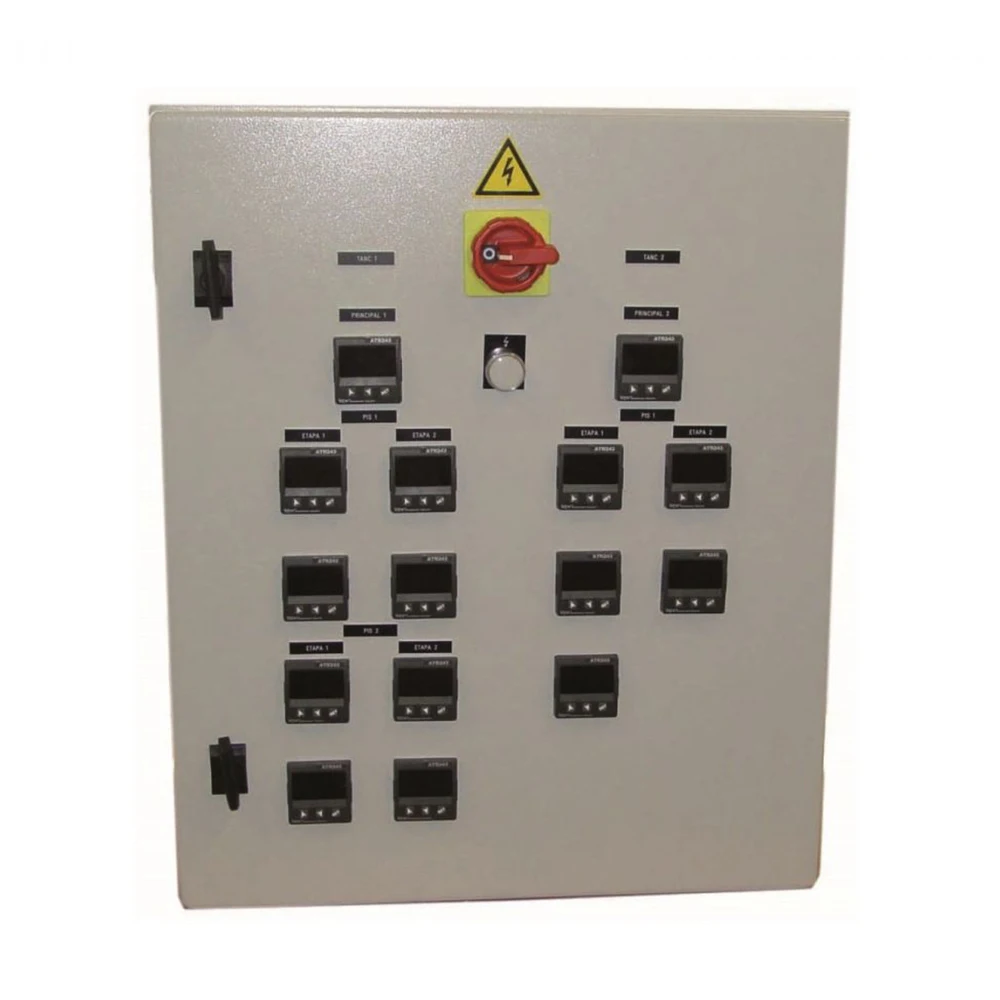

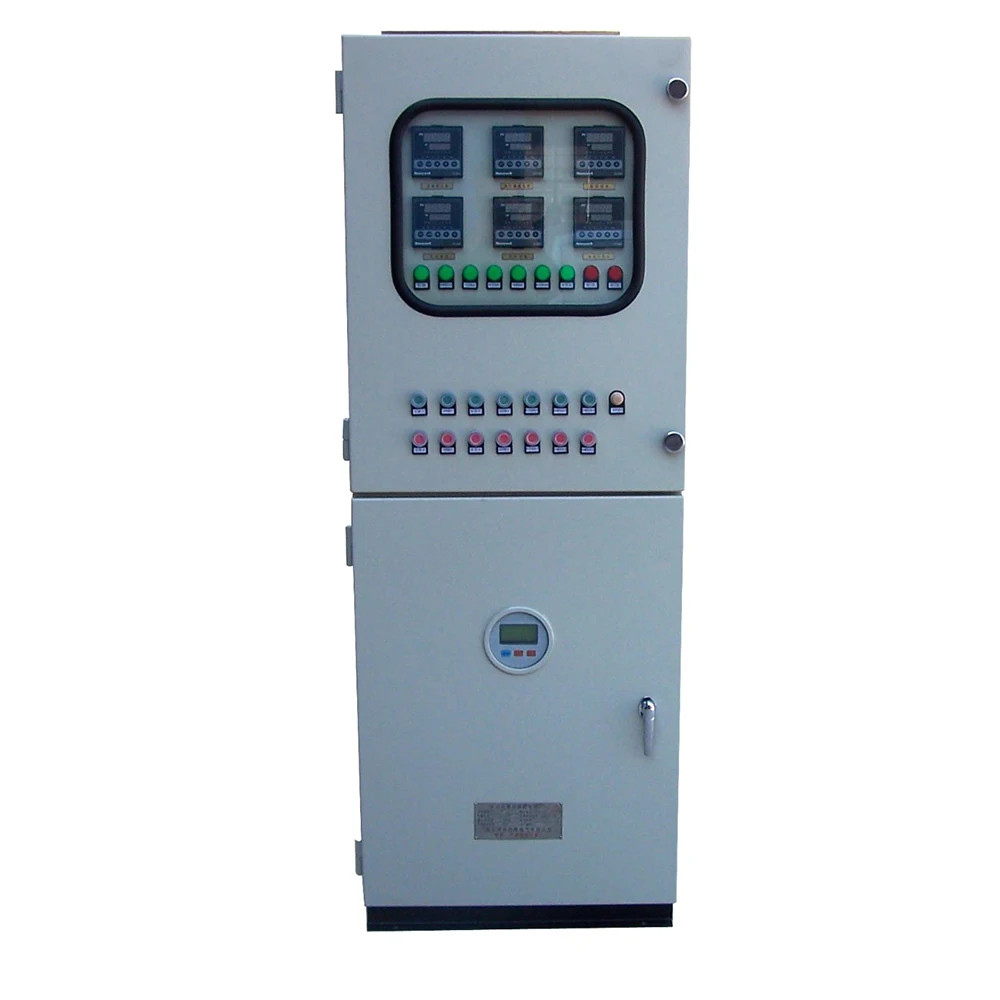

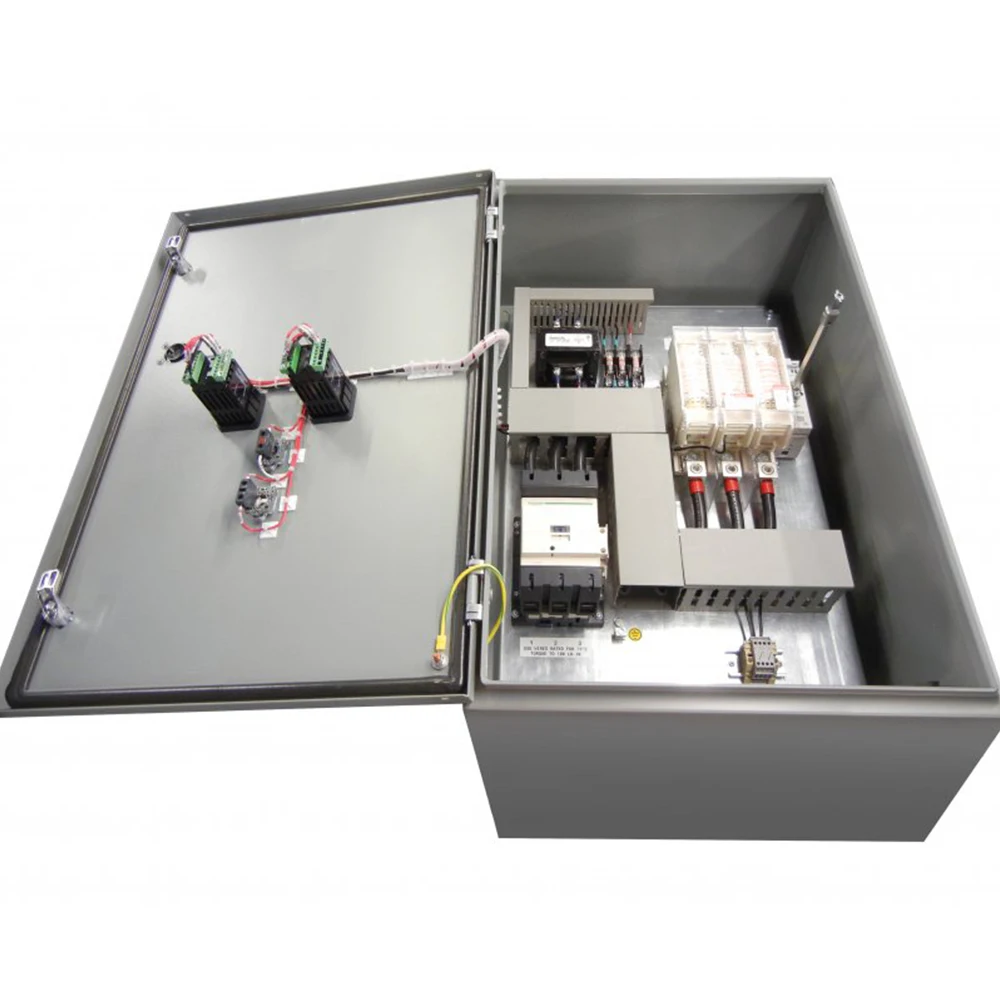

IECEx certificated electric control panel
- Category: >>>
- Supplier: Jiangsu Weineng Electric Co. Ltd.
Share on (1600427704204):
Product Overview
Description
Product Description
Product Name

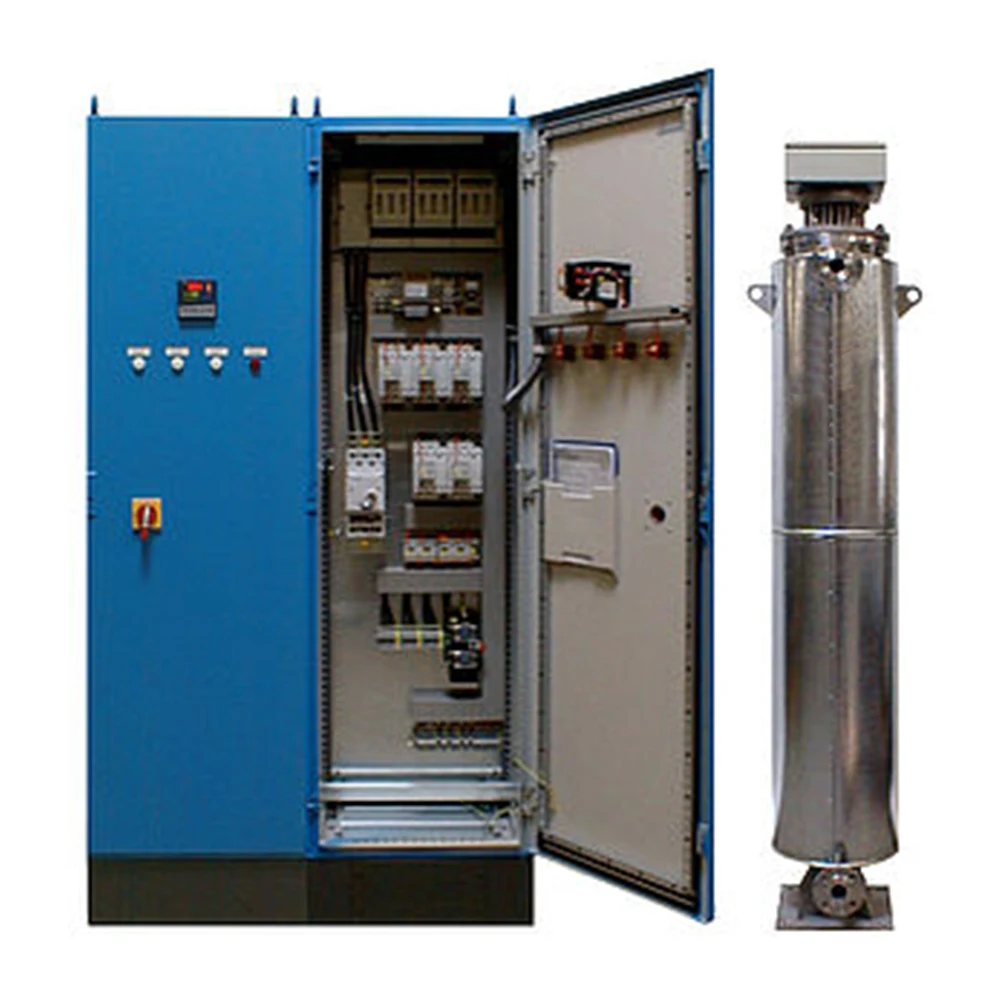

Positive pressure explosion-proof cabinet / explosion proof control cabinet
Feature
The product adopts GGD power distribution cabinet frame, adopts main and auxiliary panel structure, the whole cabinet includes ventilation system, pressure sensing system, automatic control system, ventilation system, measurement system and electrical system;
The product can be equipped with detection instruments, analytical instruments, display instruments, low-voltage electrical appliances, frequency converters, soft starters or computer control systems, which can be used as central signal processing systems and central control systems;
The protection device is complete, and the control cabinet is equipped with a ventilation and power supply interlocking device. Only after the specified ventilation time is reached, the power can be automatically transmitted, and there is a low-pressure automatic alarm and automatic air supply device, and high-pressure automatic air shutoff function;
The sealing performance is reliable, the shell adopts multiple sealing protections, the pressure holding time is long, and the operating cost is saved;
This cabinet adopts cable trench seat installation form, and the user needs to be equipped with clean or inert gas source;
Multiple units can be installed side by side and run online;
When manufacturing, the user needs to provide a complete electrical system diagram and control system built-in material list.
The product can be equipped with detection instruments, analytical instruments, display instruments, low-voltage electrical appliances, frequency converters, soft starters or computer control systems, which can be used as central signal processing systems and central control systems;
The protection device is complete, and the control cabinet is equipped with a ventilation and power supply interlocking device. Only after the specified ventilation time is reached, the power can be automatically transmitted, and there is a low-pressure automatic alarm and automatic air supply device, and high-pressure automatic air shutoff function;
The sealing performance is reliable, the shell adopts multiple sealing protections, the pressure holding time is long, and the operating cost is saved;
This cabinet adopts cable trench seat installation form, and the user needs to be equipped with clean or inert gas source;
Multiple units can be installed side by side and run online;
When manufacturing, the user needs to provide a complete electrical system diagram and control system built-in material list.
Application
Zone 1, Zone 2 hazardous locations: IIA, IIB, IIC explosive gas environment; combustible dust environment 20, 21, 22; temperature group is T1-T6 environment.
Power | 500w~3000kw |
Voltage | 110v~690v |
Size | As required |
Color | As required |
Packing | Wooden pallet or as required |

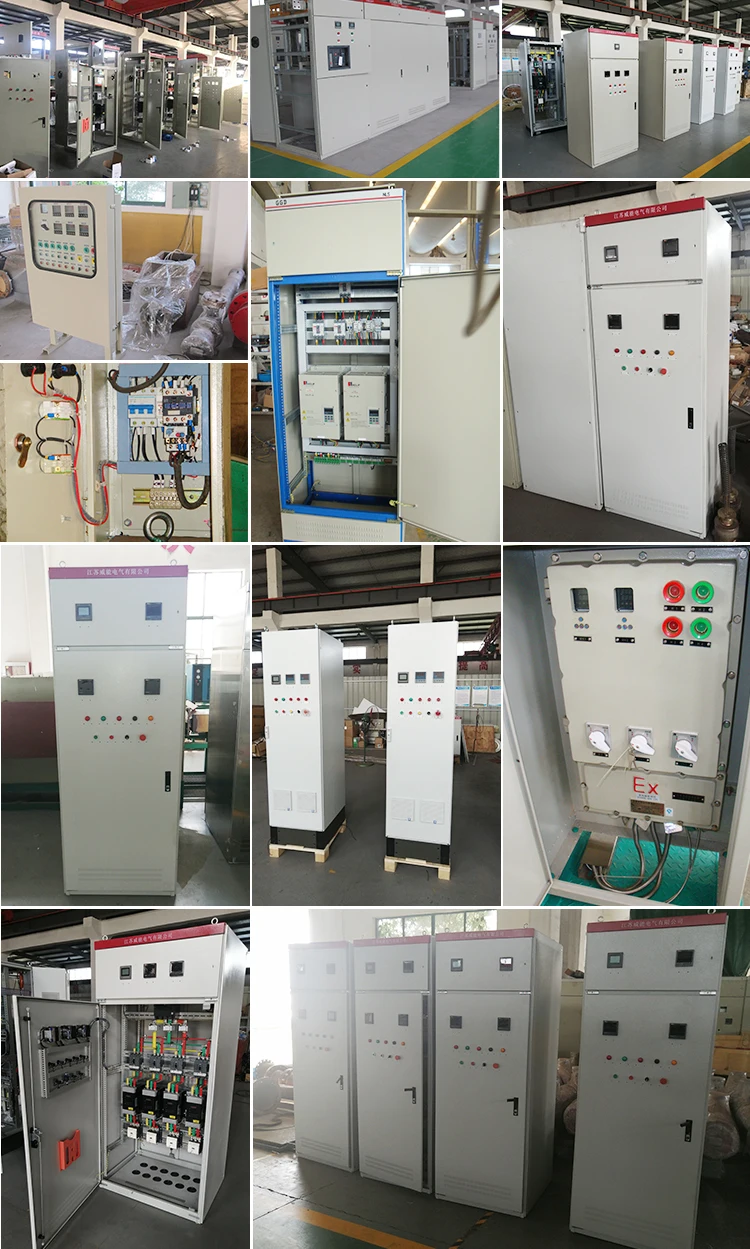

Product packaging
Production Process
Company Profile
Jiangsu Weineng Electric Co., Ltd. is a new high-tech enterprise, we can provide the electric heater and solutions for industrial use. We are manufacturer of explosion proof electric heater, and have rich experience in design, producing and commissioning.
The technology, quality and scale of our company are in the domestic mainstream status. We use high quality raw materials, elements, advanced production technology, high performance manufacturing and processing equipment (CNC wire winding machine, 28m CNC powder filling machine, CNC roller tube shrinking machine, high temperature sintering furnace, CNC tube sheet argon arc welding machine, CNC machining equipment) and testing equipment to keep our products working safely and chronically.
Our company insists on technological innovation, we have three professors of engineering and dozens of experienced young engineers, organizing a professional engineering team. We cooperate with universities and academies to research and develop new high-tech products.
Certifications
Exhibition
FAQ
1. Are you factry?
Yes, we are factory, all customers are more than welcome to visit our factory .
2. How can I pay with?
Our acceptable payment terms of electric heater are:1). Normally we accpet T/T;
1). Normally we accpet T/T;
1). Normally we accpet T/T;
2). For the small amount, for examples less than USD5000, you can pay by Alibaba tradesure order or T/T.
3. Can I order one for each for samples?
Yes, of course.
4. What Type of package do you use?
Safe wooden case or as required.
5. Which Items do you inspect in each processing stage?
External dimension; Insulation puncture test; Insulation resistance test; hydrotest...
6. How long is the warranty time for your product?
Our officially promised warranty time is 2 year after delivering at best.
For Further Questions Please Click Here To Contact Us.
