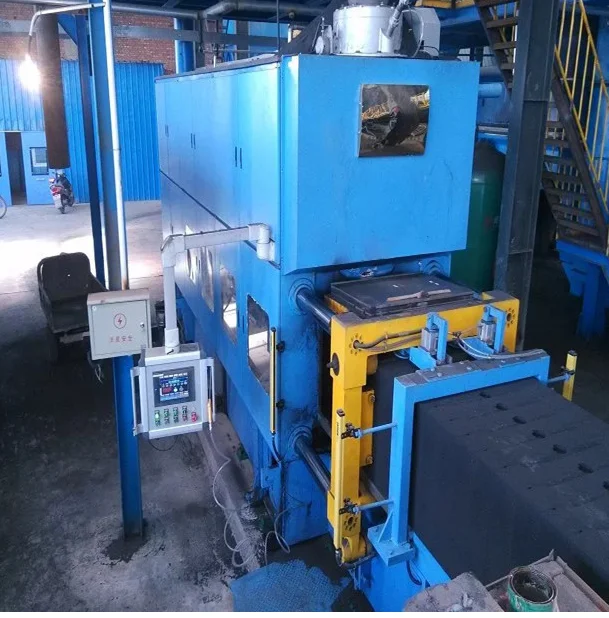

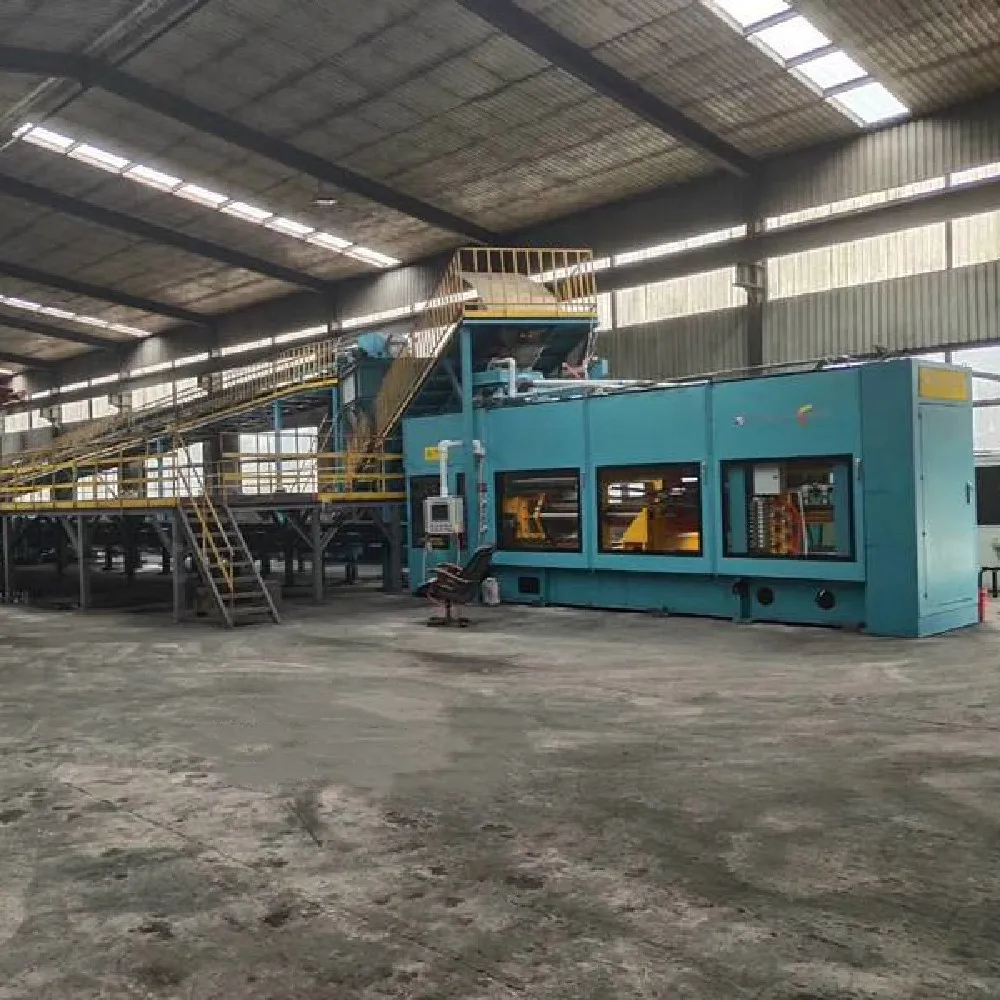

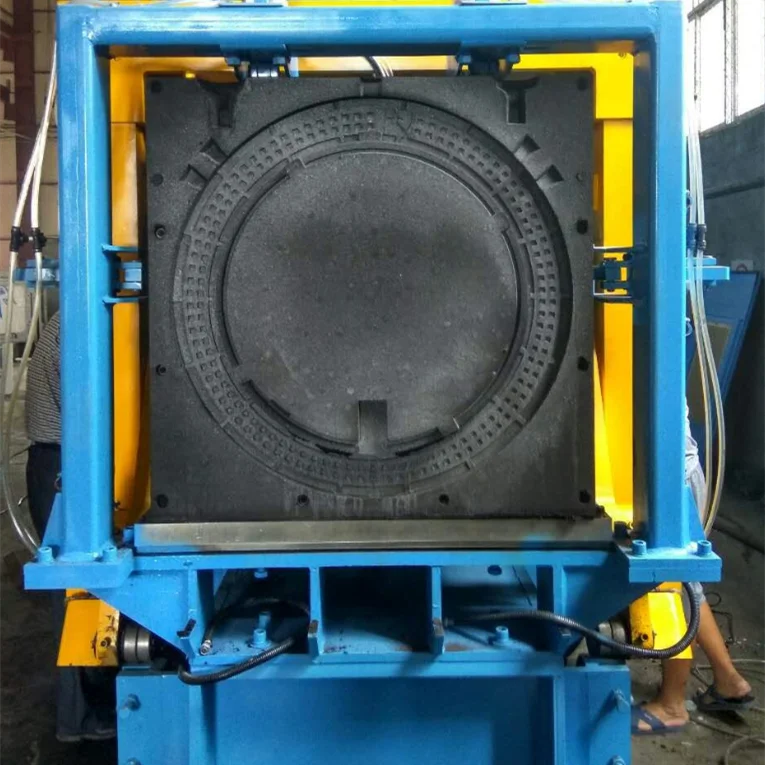

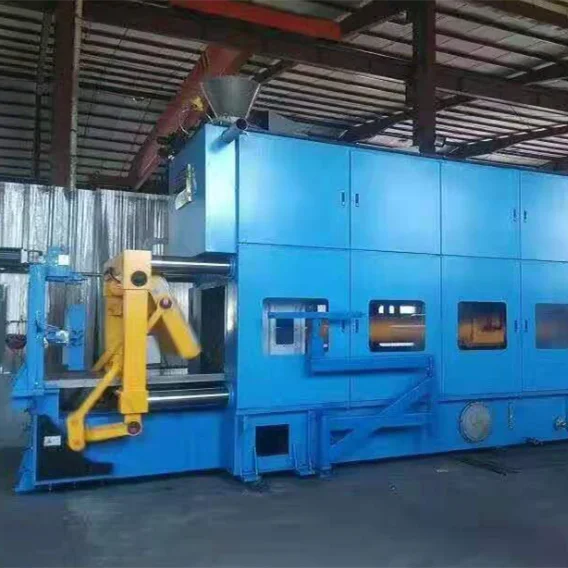

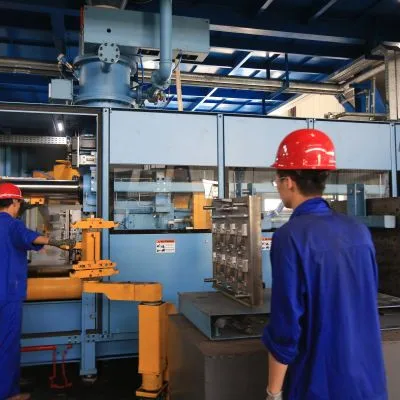

Автоматическая зеленая песчаная литейная машина литейная производственная линия
- Category: >>>
- Supplier: Qingdao Tianzhuang Casting Machine Industry And Trade Co. Ltd.
Share on (1600427705234):
Product Overview
Description
Products Description

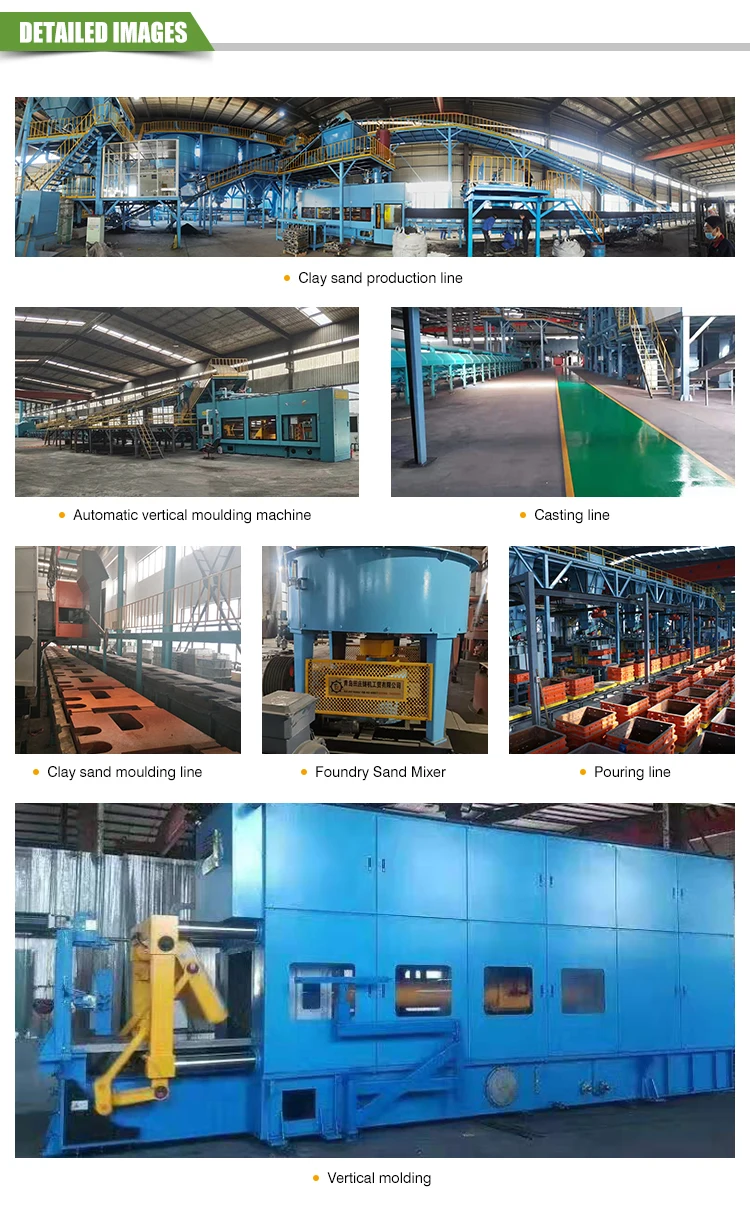

Details Images
Product Paramenters
Technical parameter for Foundry Vertical Flaskless Sand Casting Molding Machine
Item/Model | TZ416A | TZ416B | TZ417B | TZ418B |
Molding room size | 600*500mm | 650x535mm | 700x535mm | 800*600mm |
Mold Thickness | 120-150mm | 150-250mm | 150-250mm | 150-300mm |
Capcity | 250 molds/h | 300molds/h | 250molds/h | 220molds/h |
Sand consumption | 12-15t/h | 20-35t/h | 20-35t/h | 25-40t/h |
Power | 22 kw | 42.5 kw | 55.5kw | 75KW |
Track Length | 20-28m | 24-36m | 24-36m | 24-36m |
Technical parameters of GS series high-efficiency rotor sand mixer
Model | Disc diameter（mm） | Feeding amount at one time（kg） | Productivity （t/h） | Main motor power（kw） | Rotor motor power（kw） | Speed of mainshaft (r/min) | Rotor speed (r/min) | Size（mm） | Weight（t) |
GS16-30 | φ1600 | 600-800 | 15-20 | 30 | 2×15 | 34 | 980 | 2650*2160*2386 | 4.5 |
GS20-55 | φ2000 | 900-1000 | 25-32 | 75 | 2×22 | 31.72 | 980 | 3577*3423*3256 | 11.5 |
GS20-75 | φ2000 | 1000-1300 | 30-35 | 75 | 2×30 | 27.32 | 975 | 3577*3423*3256 | 11.8 |
GS22-90 | φ2240 | 1300-1500 | 35-40 | 90 | 2×37 | 27.32 | 975 | 3600*3868*3578 | 13.5 |
GS25-110 | φ2500 | 1500-1800 | 40-50 | 110 | 2×45 | 27.3 | 950 | 4305*4150*3511 | 16.8 |
GS25-132 | φ2500 | 2000-2500 | 50-60 | 132 | 2×55 | 27.32 | 950 | 4062*3616*3511 | 17.8 |
GS26-160 | φ2600 | 2500-3000 | 80-100 | 160 | 2×55 | 27.32 | |||
GS29-200 | φ2850 | 60-80 | 200 | 2×55 | 25.4 | 850 | 4576*4482*3734 | 22.5 |

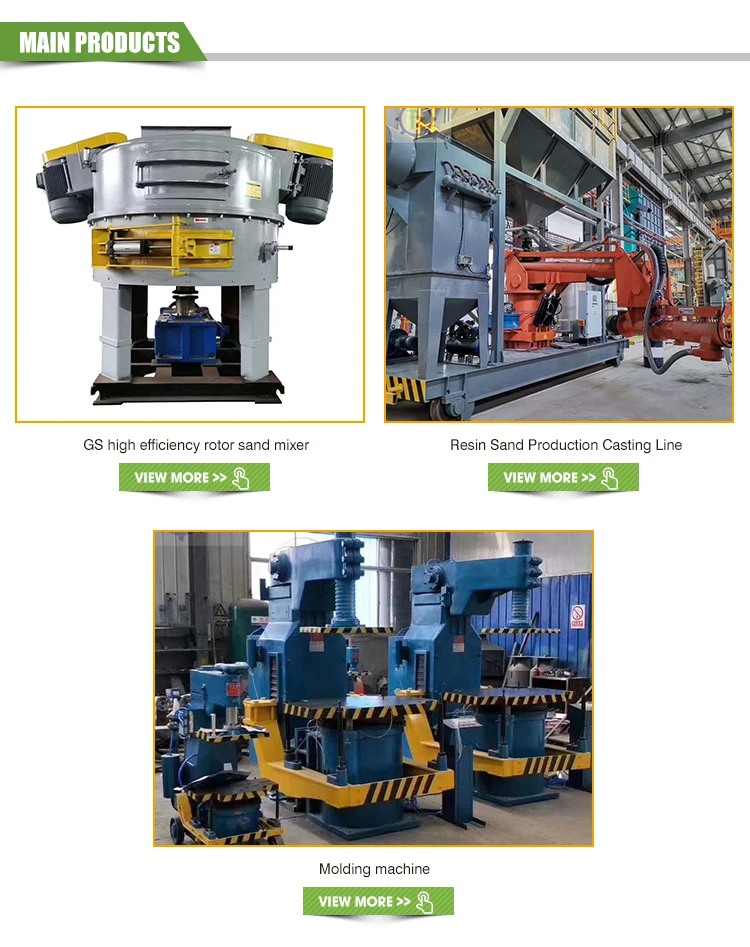

Main Products
Company Profile
Packing&Shipping
Q1: Can i have your quotation?
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
Q2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Qingdao city,Shandong province,China. You can fly to Qingdao air port, we will pick you up.
Q4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
Q2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Qingdao city,Shandong province,China. You can fly to Qingdao air port, we will pick you up.
Q4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
