item | value |
Usage | Oil Well |
Applicable Industries | Energy & Mining, Oil Well |
Local Service Location | Egypt, Turkey, Brazil, Peru, Saudi Arabia, Indonesia, India, Russia, Thailand, Malaysia, Kenya, Argentina, UAE, Colombia, Algeria, Bangladesh, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan |
Showroom Location | none |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Main equipment sparts |
Condition | New |

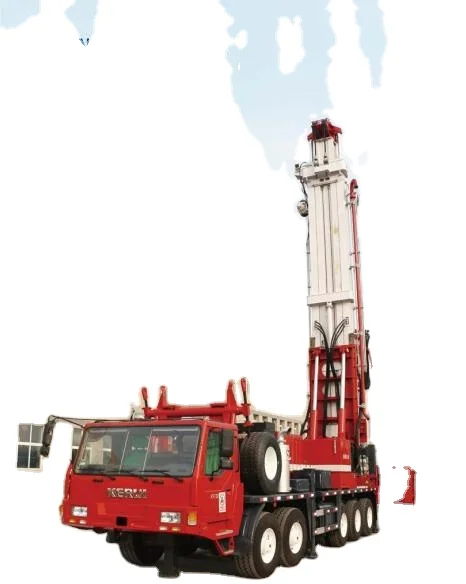

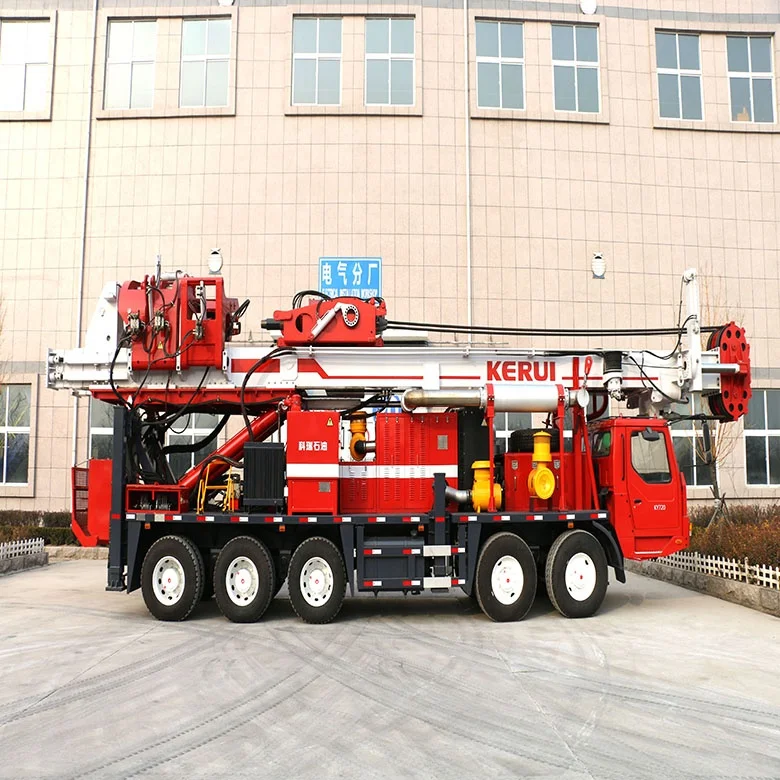

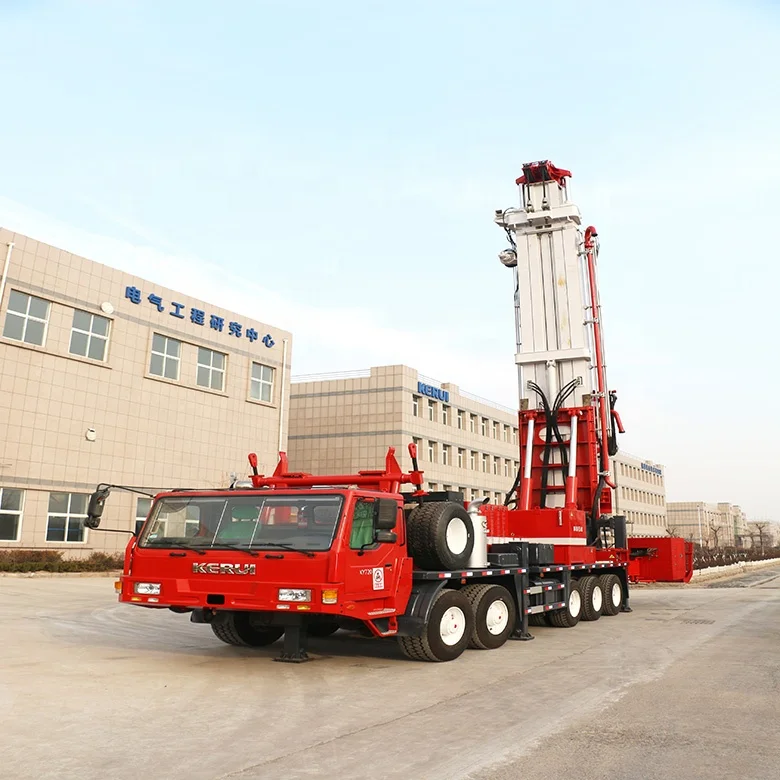

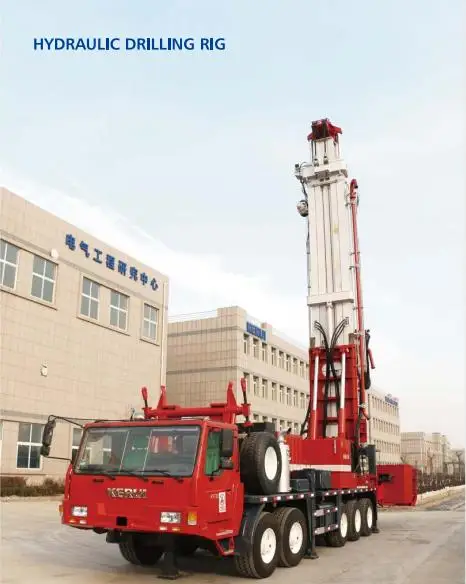

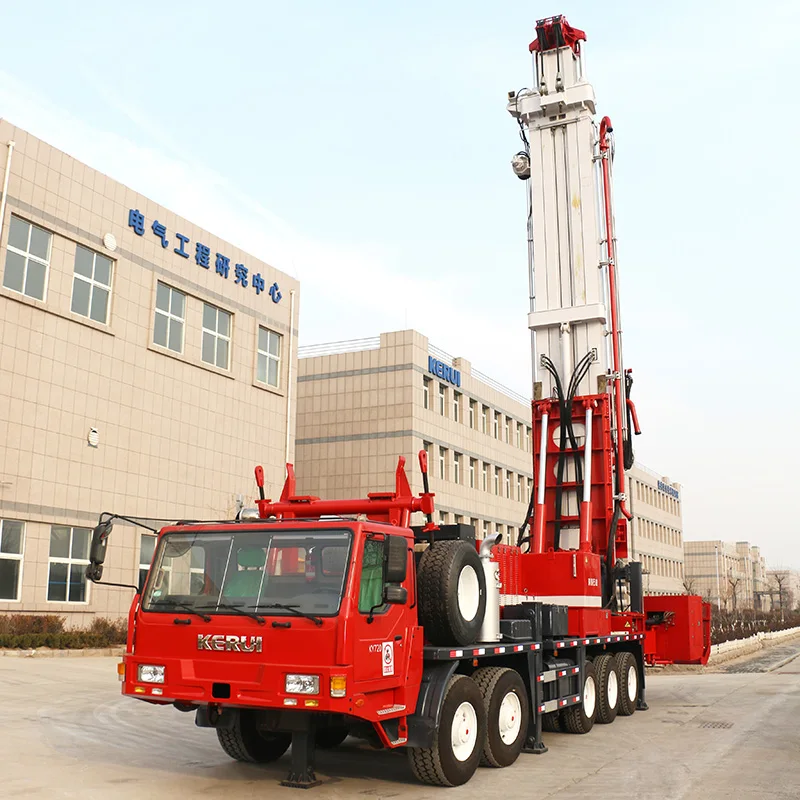

Type | Rotary Drilling Rig |
Power Type | Diesel |
Place of Origin | China |
Brand Name | KERUI |
Model Number | KY720/KY900/KY1000 |
Voltage | Designed according to the well condition |
Dimension(L*W*H) | Actual Height |
Weight | Actual Weight |
Certification | API |
Warranty | 1 Year |
Video technical support, Field installation, commissioning and training, Field maintenance and repair service | |
Stype | KY720 |
Travel of mast upper section | 7.5m |
Drive type | 10X6 |
Radius of turning circle | 14m |
Max. hook load | Form 720kN to 1000KN |
Hydraulic system pressure | 31MPa |
Electric control system | 24V |
Diameter of drilling line | Diameter 40mm |
Transport size mm | 14000X2855X4580 |
Power system | CAT C18+STIEBEL A4380 Transfer case |

Model | KY720 | KY900 | KY1000 |
4-1/2" DP ft m 5" DP ft m | 2034~3937/620~1200 1903~3412/580~1040 | 2625~4921/800~1500 2297~4593/700~1400 | 2953~5249/900~1600 2625~4921/800~1500 |
Lifting Force Ib kN | 158700/160 | 198400/900 | 220000/1000 |
Down Force Ib kN | 35000/160 | 35000/160 | 44000/200 |
Power Swivel Travel ft m | 49/15 | 49/15 | 49/15 |
Max. Lifting Speed of Power Swivel m/min | 20 | 20 | 20 |
Max. Lowering Speed of Power Swivel m/min | 50.8 | 60 | 60 |
Torque/Speed of Power Swivel kN m r/min | 16/0-85 8/0-170 | 24/0-100 12/0-200 | 24/0-100 12/0-200 |
ROP of Power Swivel m/min | 0~6.5 | 0~6.5 | 0~6.5 |
