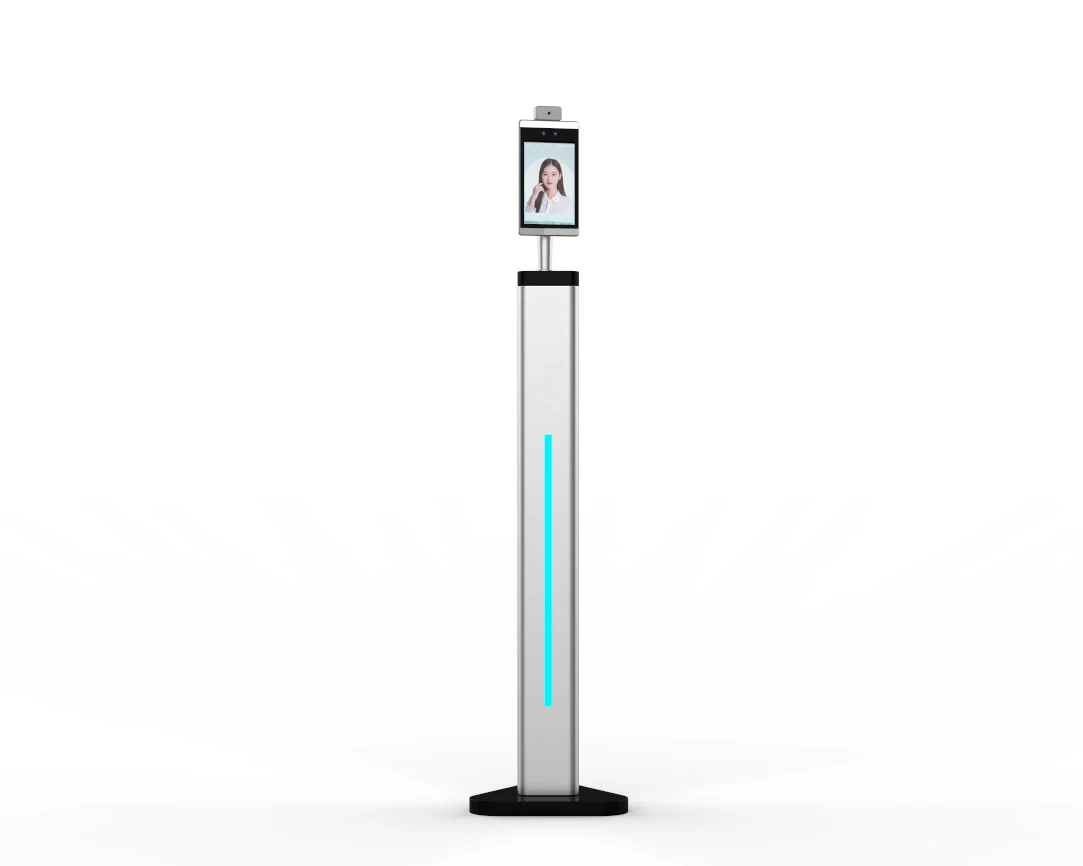

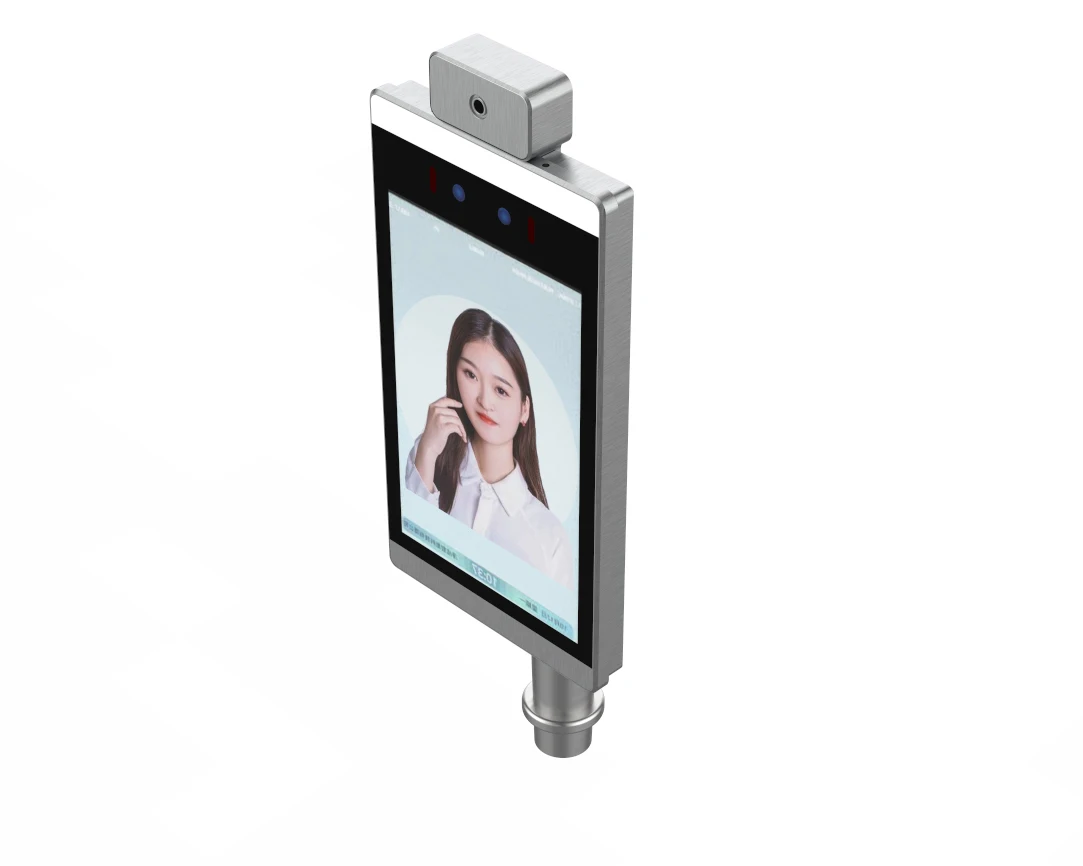

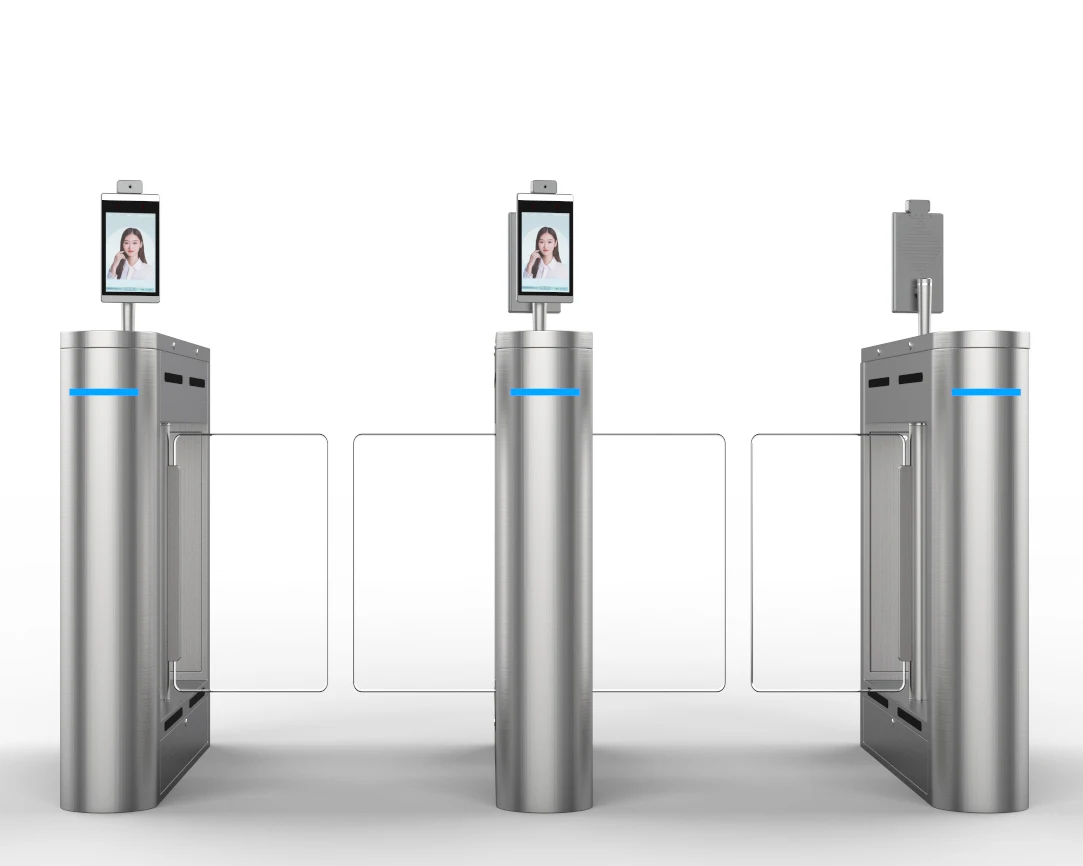

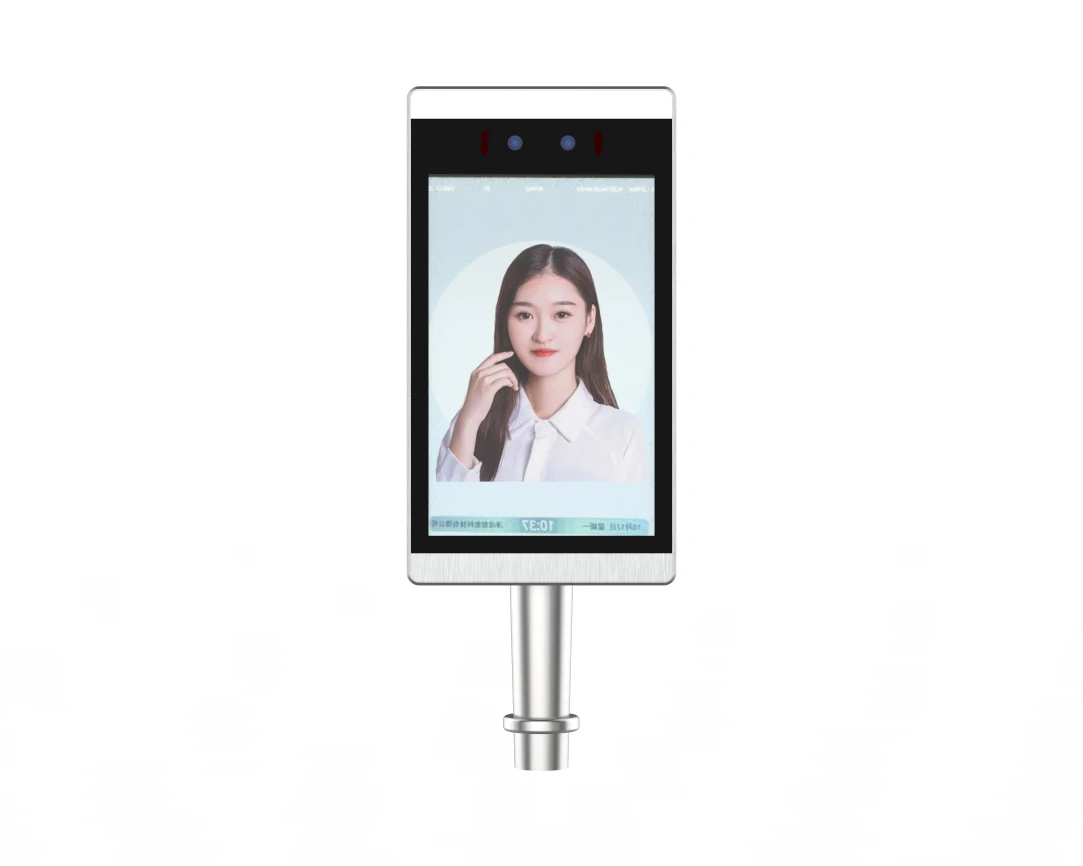

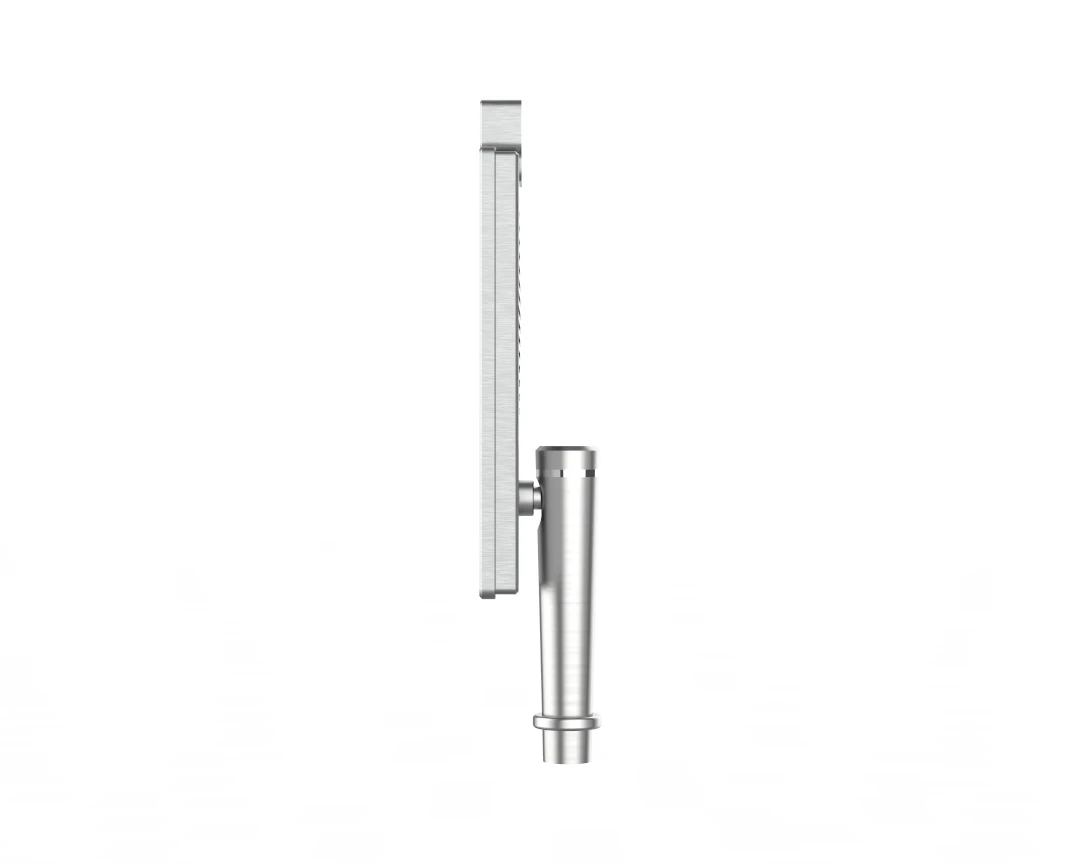

Biometric Face Recognition Standalone Single Door Access Control System
- Category: >>>
- Supplier: Guangdong Zecheng Intelligent Technology Co. Ltd.
Share on (1600427742357):
Product Overview
Description
Products Description
Benefit and Advantages:

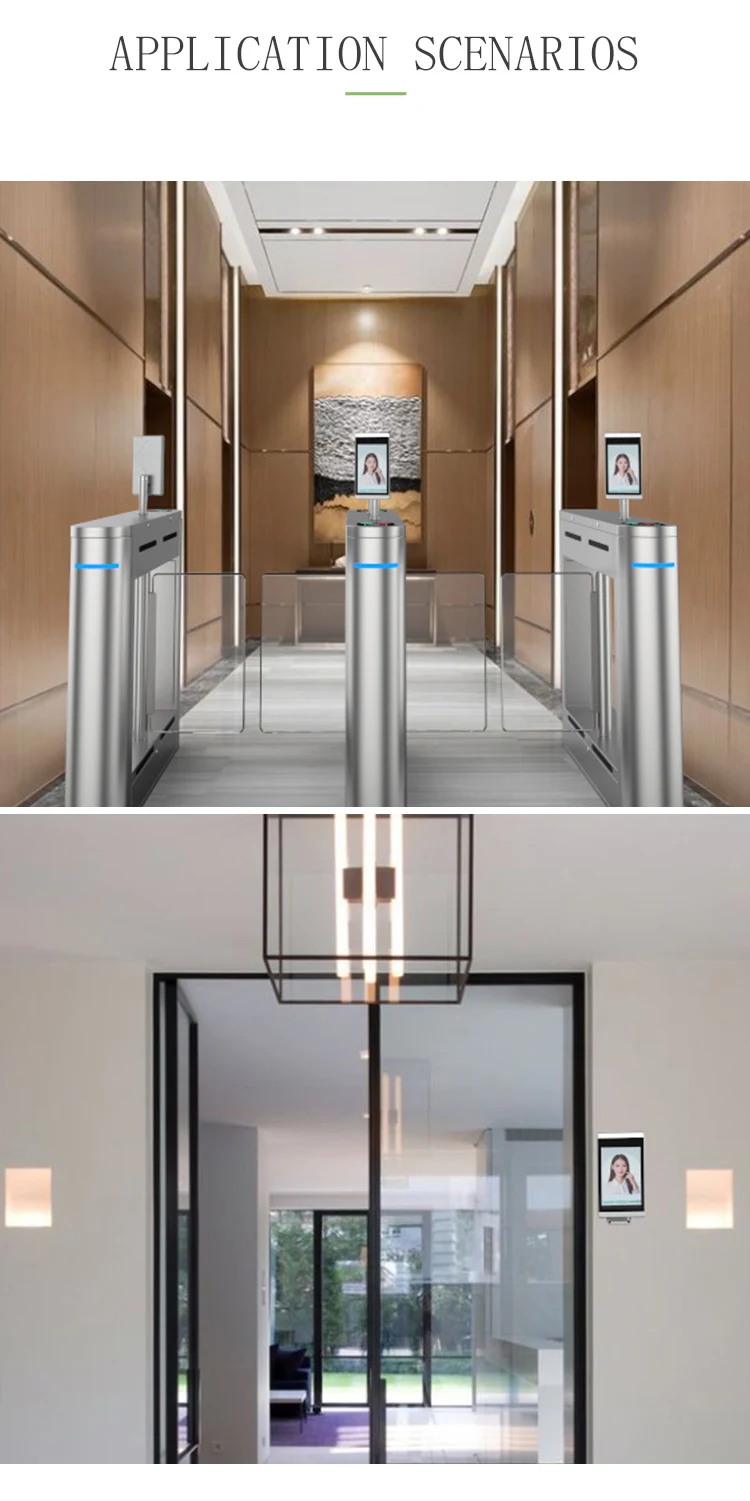

(1)The ZC-Face63 smart terminal is a convenient and safe visual face recognition terminal. The product can
be applied to traffic scenarios in smart communities, access control channels, facial attendance, hotels, office buildings,
schools, shopping malls and other places, helping to achieve intelligent security management and control.
(2)The ZC-Face63 smart terminal uses leading face detection and live recognition algorithms; under the 10,000 faces database, the live detection + face recognition time is less than 0.25 seconds. The host runs the Android 8.1 operating system, and the face can support up to 20,000 faces base library
(3)Minimum face detection 40px * 40px
(4)Detection speed <100ms
(5)Tracking speed 10ms
(6)RGB living body speed 100ms
(7)Near-infrared living body speed <50ms
(8)Body waterproof grade IP66
(9)Support distance adjustment for distance recognition
(10)Support night time adjustment of fill light
be applied to traffic scenarios in smart communities, access control channels, facial attendance, hotels, office buildings,
schools, shopping malls and other places, helping to achieve intelligent security management and control.
(2)The ZC-Face63 smart terminal uses leading face detection and live recognition algorithms; under the 10,000 faces database, the live detection + face recognition time is less than 0.25 seconds. The host runs the Android 8.1 operating system, and the face can support up to 20,000 faces base library
(3)Minimum face detection 40px * 40px
(4)Detection speed <100ms
(5)Tracking speed 10ms
(6)RGB living body speed 100ms
(7)Near-infrared living body speed <50ms
(8)Body waterproof grade IP66
(9)Support distance adjustment for distance recognition
(10)Support night time adjustment of fill light
Product Paramenters
Name | Specification/Model | Description |
CPU | RK3288 | 4 Core\\Cortex-A17 |
System | Android 8.1 | Multi-lingual |
Wide dynamic | 2(Number of dual USB:2)/Pixel: 200W | |
White light fill light | Included | |
Infrared fill light | Included | |
Display screen | MIPI screen | 8 inches, 1280*800 resolution |
Touch screen | Capacitance | Optional |
RAM | DDR | 2G |
ROM | EMMC | 8G |
WIFI | - | Support |
Bluetooth | - | Support |
MIC | - | MIC |
Speaker | - | 8Ω1W |
Network port | Rj45 | 10/100/1000Mbps Ethernet |
Power | Adapter | DC12V/2A |
Device power consumption | - | 30W max |
Wiegand | - | Support Wiegand send and Wiegand receive, support Wiegand 26, 34 format |
Relay interface | - | COM/NO |
RS232 interface | Support extended functions | |
Rapid body temperature screening module by thermal imaging | ||
Body temperature measurement error is ± 0.3 ℃ | ||
The best distance for body temperature measurement: within 0.8 meters | ||
Sensor measuring human body temperature range: 30 ℃ to 42 ℃ | ||
Body temperature environment: 0 ℃ to 36 ℃ | ||
A: First register the face, verify the successful display of body temperature, 3 alarms exceeding the standard, for fixed personnel places | ||
B: Faces are not registered. Faces are captured and only body temperature is monitored and displayed. Exceeding standard alarms are used in places where there are no fixed personnel. |
Scope of application
Certifications
Company Profile

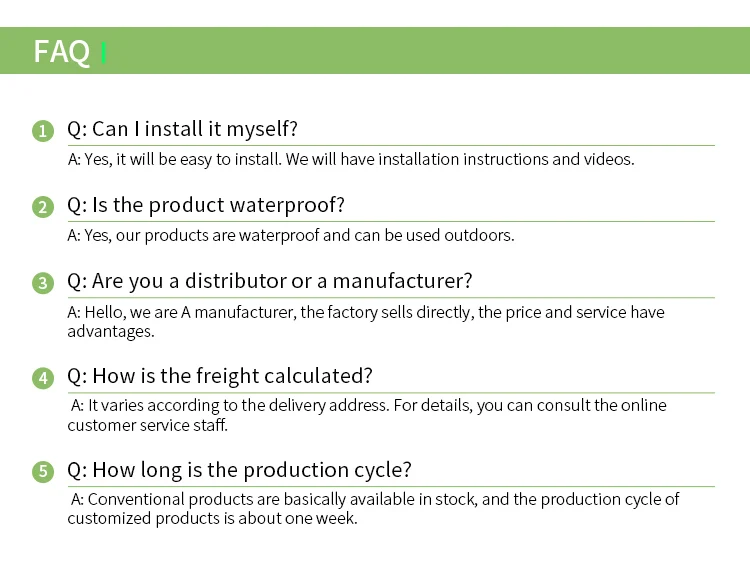

FAQ
