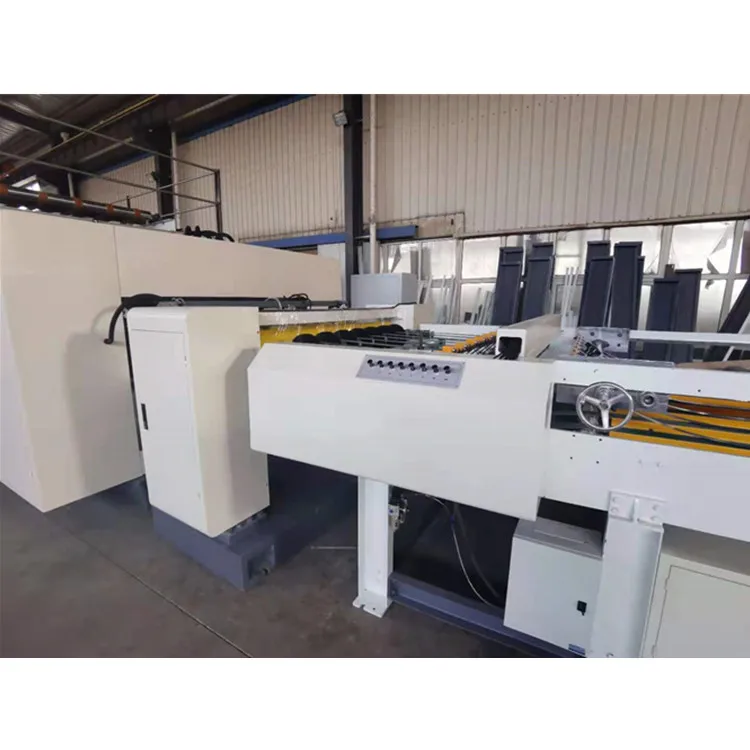

Carton Box Maker / Automatic Corrugated Cardboard production Line

Structural features:

1,Store 200 groups of orders, the man-machine interface, the screen displays information can be found at any time, modify, append, cancel.

2,Germany KEB servo motor drive controller, high-performance synchronous servo motor drive.

3,Cutting Machine adopts inlaid front steel blade structure, hardened gear grinding backlash-free transmission, high precision and long life.

4,Host wall of gray cast iron, rigidity, vibration resistance.

5,stacking adopt gantry platform lifting, Reach a certain number of right-angle transverse,Three sections of the paper,Some hair design paper roll straight bend output,Second overlapping fixed-length buffer,three part points Pneumatic separate ,Accelerated export cardboard.Improve working efficiency. The maximum length of stacked is 1.6 meters .This machine is suitable for efficient production color printing business.

6,Full servo motor control, change order fast, for a single time 1-3 seconds.

7,Using thin tungsten alloy steel knife,blade sharp,the using life is more than 8000000 meters.

8,Brothers for computer-controlled, automatic or manual knife sharpener can be divided trimming knife edge, increase productivity.

9,Imported synchronous drive system, precision accurate, long life, low operating noise.

10,From high-quality imported industrial computers and high-performance programmable controller configuration, lower computer control system.

 technical parameters:

The maximum working width	2200mm
operation direction	left or right(Determined in accordance with customer plant)
The maximum mechanical speed	180m/min
Mechanical configuration	Computer spiral knife crosscutting
Cutting length	300-1600mm
Minimum slitting width	180mm
Precision Cutter	±1mm(Uniform) ±1.5mm(Non-uniform)
Cross on the knife shaft diameter	200mm    156mm
groups	200blades







Power motors and electrical parameters:

Main drive motor power	12.5KW  Full AC synchronous servo motors
Pull the paper motor power	3KW(Frequency Control)
Feed motor power	1.5KW(Frequency Control)
Transverse motor power	0.75KW(Frequency Control)



Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
AC servo motor	Shanghai futian	12.5KW
Feeding frequency synchronous motors	Taiwan  CPG
bearing	HRB,ZWZ,LYC or zhejiang direction
Up sleeve	Xianyang chaoyue
Seat belt bearing	Zhejiang wuhuan
Contacor	France Schneider
Proximity switches, photoelectric switch	Japan OMRAN
Flying shear servo control system	American Emerson
Slitting PLC	France Schneider
Rotary encoder	Korea Autonics
Feeding frequency motor	France Schneider
HMI	Germany Kinco
Sun gear	China shenzhen
Pneumatic components	Japan SMC or Taiwan Airtac
