Domestic Air Source Water Heater Heat Pump Controller OEM ODM PCBA PCB Control Board
- Category: >>>
- Supplier: Guangdong Chico Electronic Inc.
Share on (1600427764040):
Product Overview
Description
Product Description

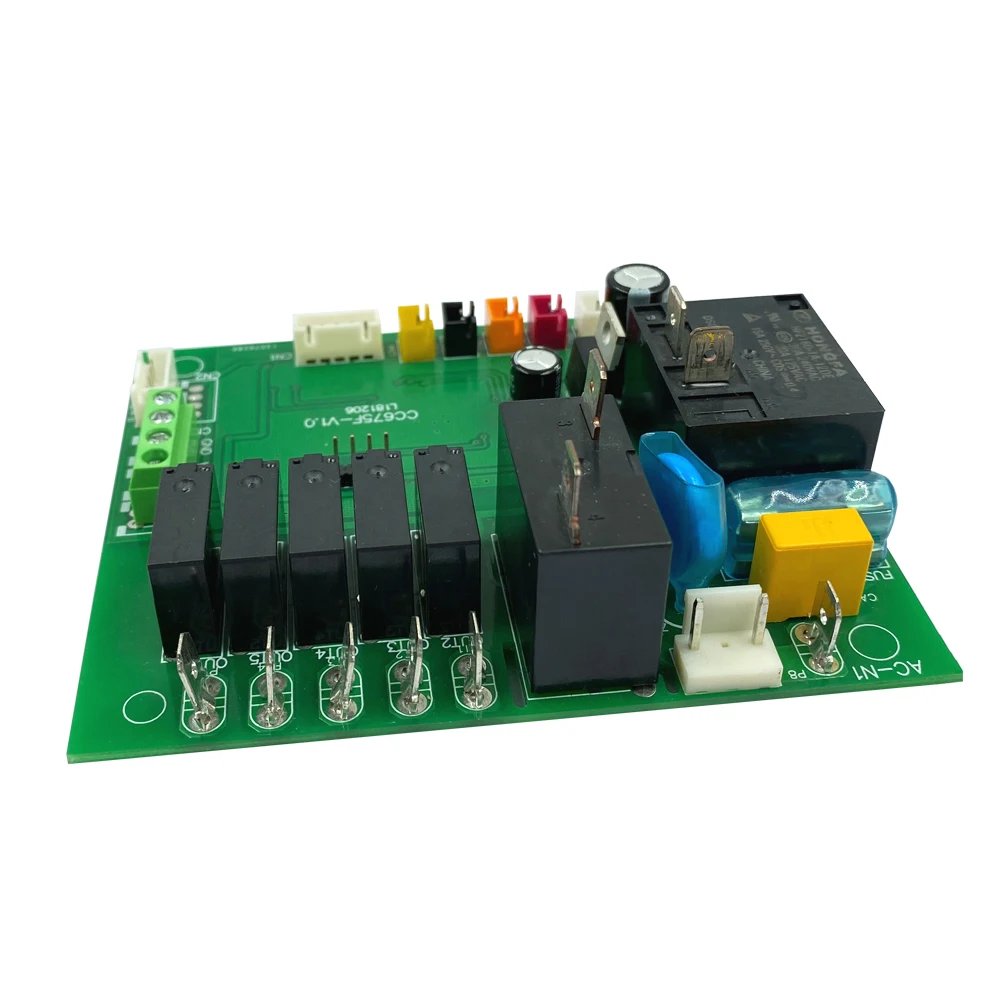

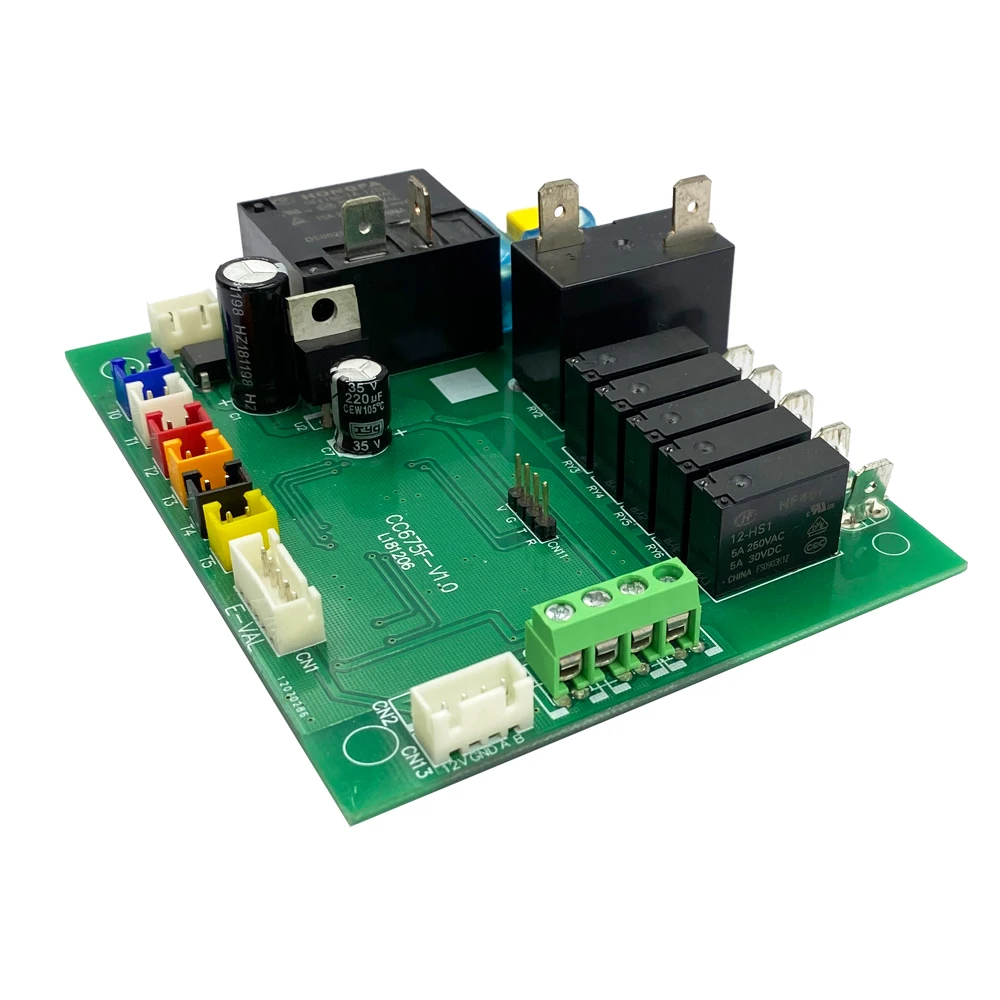

CC675F domestic water heater heat pump controller pcba control board
Designed for: domestic heat pump water heater machine
Suitable for: all in one heat pump or split type heat pump.
Single compressor control , strongly system protection , EMC certificate.
Suitable for: all in one heat pump or split type heat pump.
Single compressor control , strongly system protection , EMC certificate.
Air source and water source are optional.

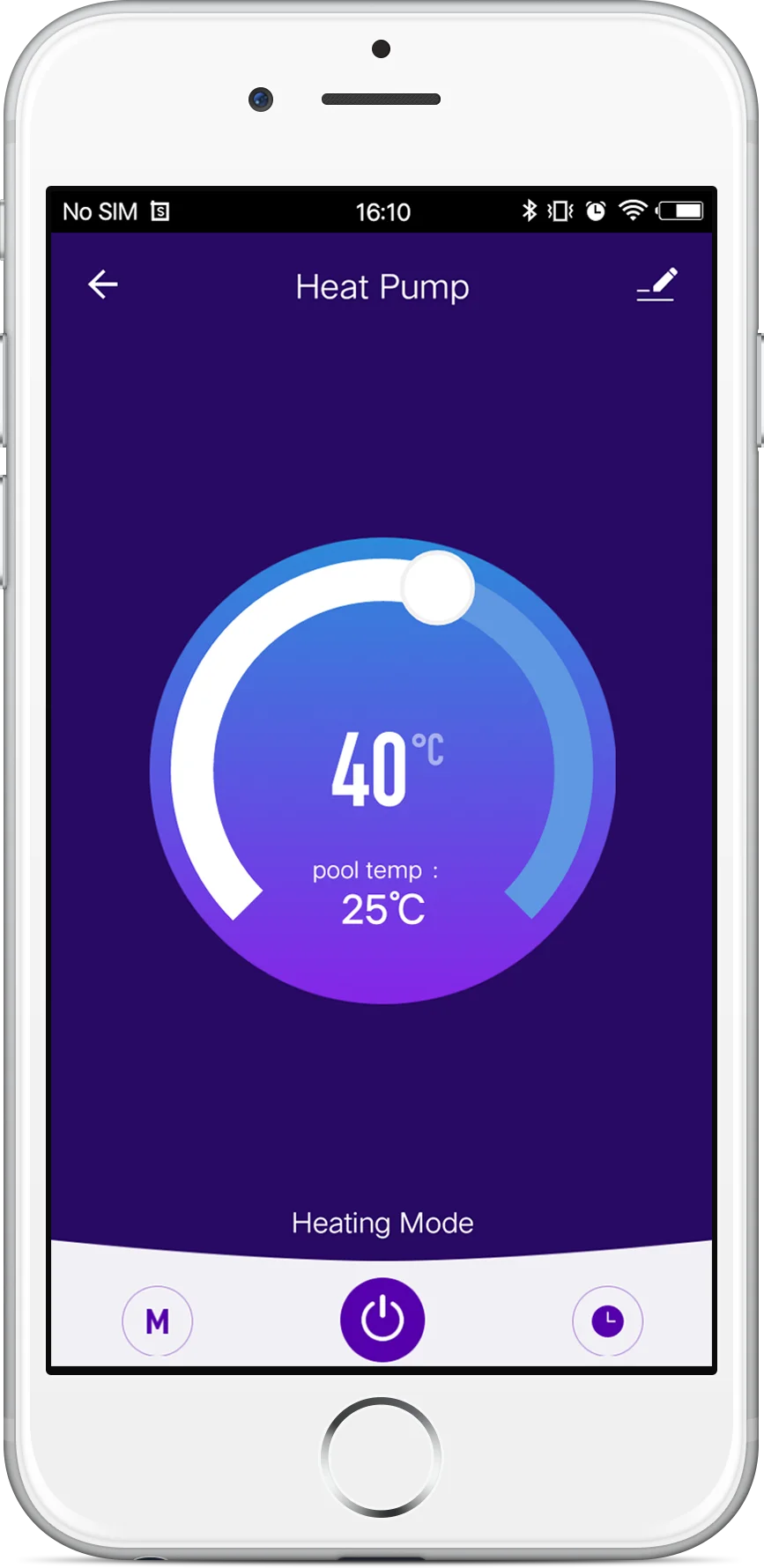

Can be controled by wifi Tuya App.
Our heat pump control board are suitable for home and commercial hot water heater machines, swimming pool machines, air-conditioning cooling and heating, chiller, and so on. Different application may need different technical data, please send us an inquiry with specific requirements, we will contact you immediately.
The biggest advantage of ELECHICO is our ability to customize products for our customers to meet their diverse requirements. We are mainly exporting OEM/ODM services.
Technical Data
Measuring range | -30°C~99°C | ||
Controlling range | -30°C~99°C; | ||
Accuracy | -30°C~50°C,±1°C±0.5dig; others, ±2°C±0.5dig | ||
Mounting size | 109×90×35mm | ||
Power supply | 220±10%(VAC), 50/60Hz | ||
Power consumption | <12W | ||
Storage temperature | -25°C~50°C | ||
Sensor type | NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K) | ||
Relay output capacity | Compressor | 30A/240VAC | |
Cycle water pump | 20A/250VAC | ||
Others | 5A/250VAC | ||
Product list | Mainboard(1pcs) | ||
LCD display(1pcs) | |||
Connect wire(1pcs) | |||
Transformer(1pcs) | |||
Temp. sensor(6pcs) | |||
Product Features

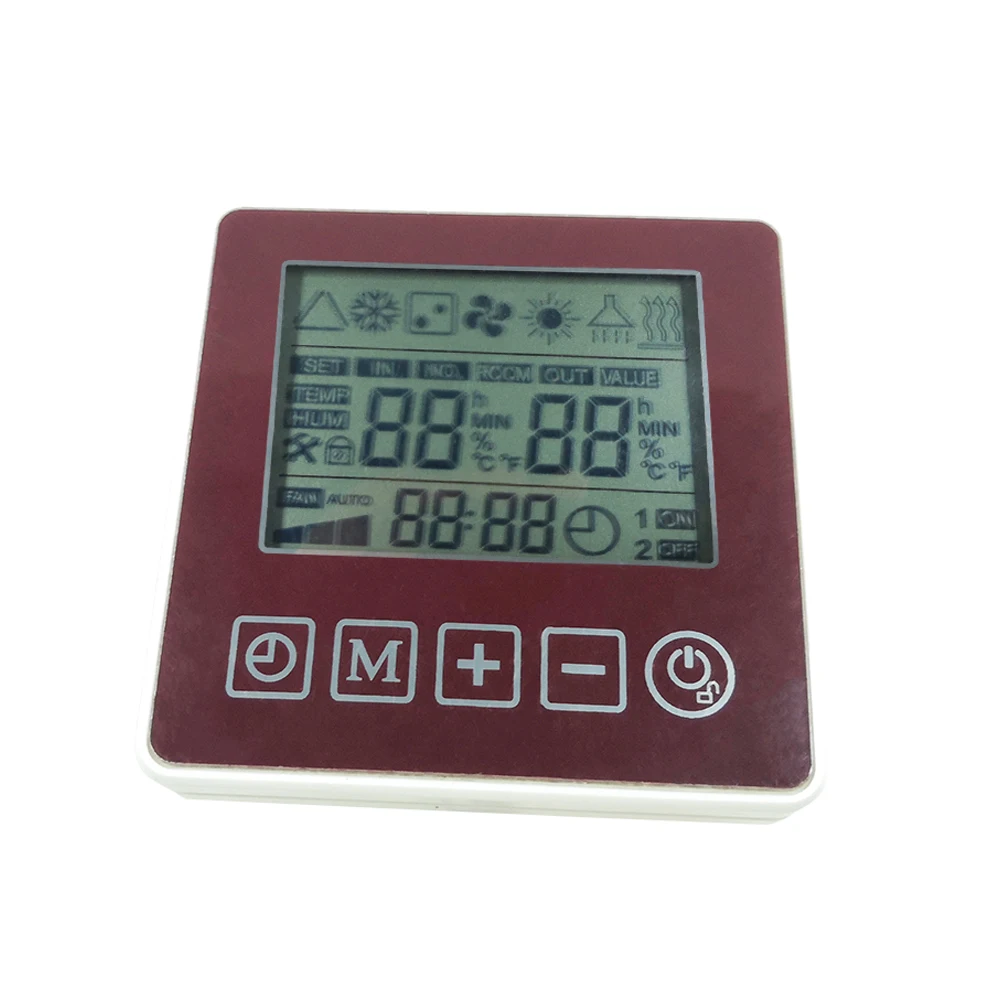

1 | Touch key LCD display , quick parameter setting, easy operation | ||||||
2 | Intelligent defrost control mode | ||||||
3 | Auto restart function | ||||||
4 | EEV control function | ||||||
5 | Two work modes: Energy-saving mode, heating mode | ||||||
6 | The product has built-in Wi-Fi module, which can realize remote control of the device through mobile APP. | ||||||
7 | Five way control output: | Compressor | Cycle water pump | Fan motor | |||
Electrical heater | 4 way valve | - | |||||
8 | Six way sensor input: | Water tank temp. sensor | Outlet water temp. sensor | Ambient temp. sensor | |||
Evaporator temp. sensor | Exhaust temp. sensor | Suction temp. sensor | |||||
9 | Three way switch input: | Compressor high pressure switch | Compressor low pressure switch | Water flow switch | |||

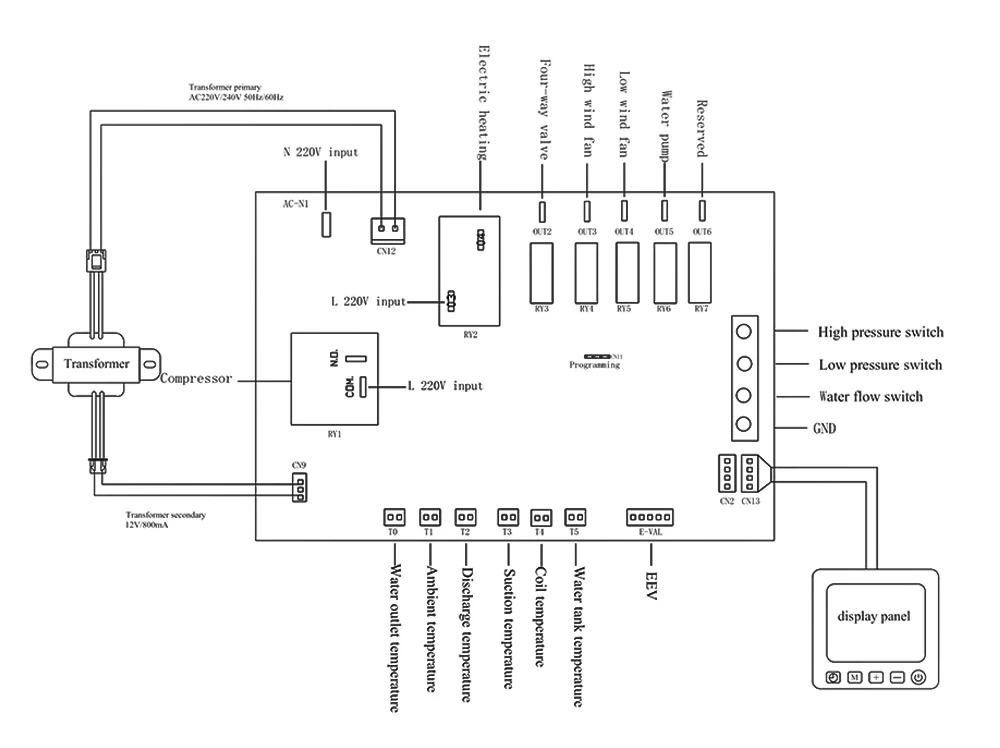

Wiring diagram
Packaging Details

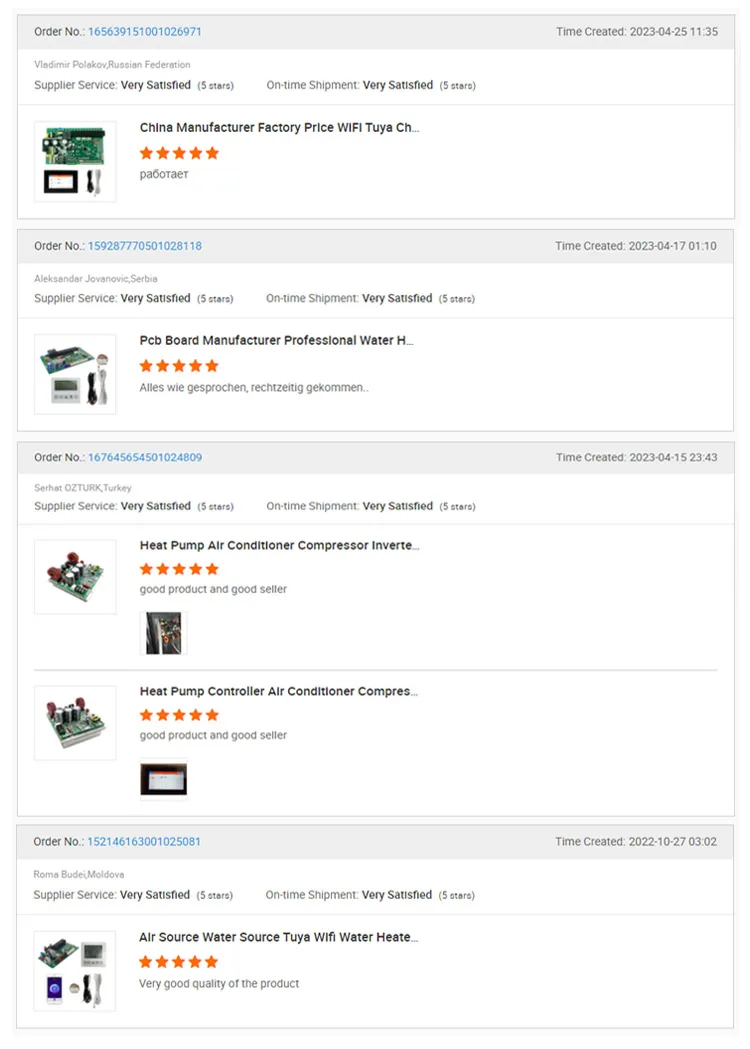

Customer feedback
