Product Overview
Description
Operation Principle
The planar moving parking equipment is similar to the three-dimensional warehouse, the vehicle only needs to park to the entrance and exit, it's very safe to park or pick up.

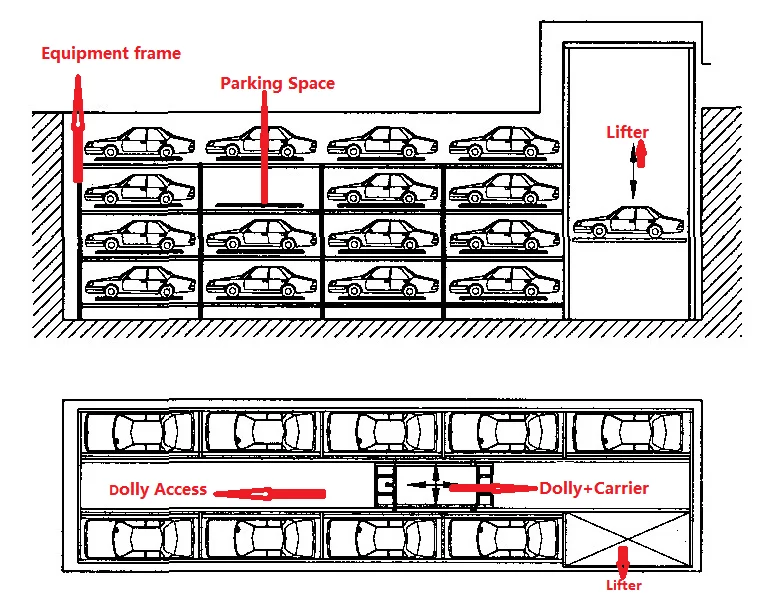

The operation is mainly done by lift, vehicle handler and turntable. The lift can take the dolly, the carrier and the car to do up and down movement, the dolly can drive the carrier and the car to move laterally in the aisle of each floor, and the car is carried to the dolly of the lift by the carrier, the lifter lifts the car to the corresponding floor by lifting and lowering, the dolly moves the carrier containing the car laterally to the berth entrance, and then the car is transported to the berth by the carrier.
The work sequence of storing cars and picking up cars is reversed.
Technical Prameters
| Model | PPY-N-D S L |
| Parking Floors | 2-15 |
| Parking Spaces | 30-120 Spaces/Set |
| Car Size Requirement | ≤5300*1950*1550mm |
| Car Weight | ≤2350kg |
| Max. Lifting Speed | 90m/min |
| Max. Dolly's Speed | 70m/min |
| Carrying Time of Carrier | 23s |
| Lifting Motor Power | 7.5 KW X2 |
| Transversing Motor Power | 2.2 kw x2 |
| Carrier Motor Power | 0.75-1.3 KW |
| Power Supply | 3-Phase AC380V 50Hz |
| Safety Assurance | Guidance indication, emergency stop switch, vibration dampening device, brake holding device, positioning system, leakage device, camera monitoring device, etc. |

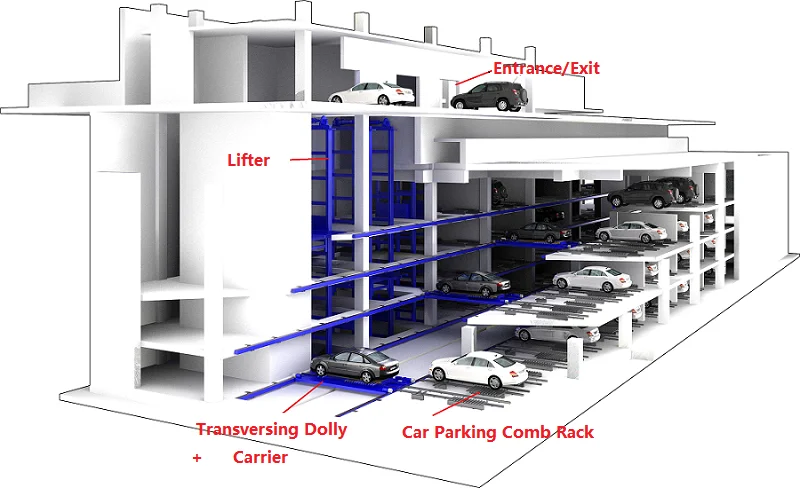

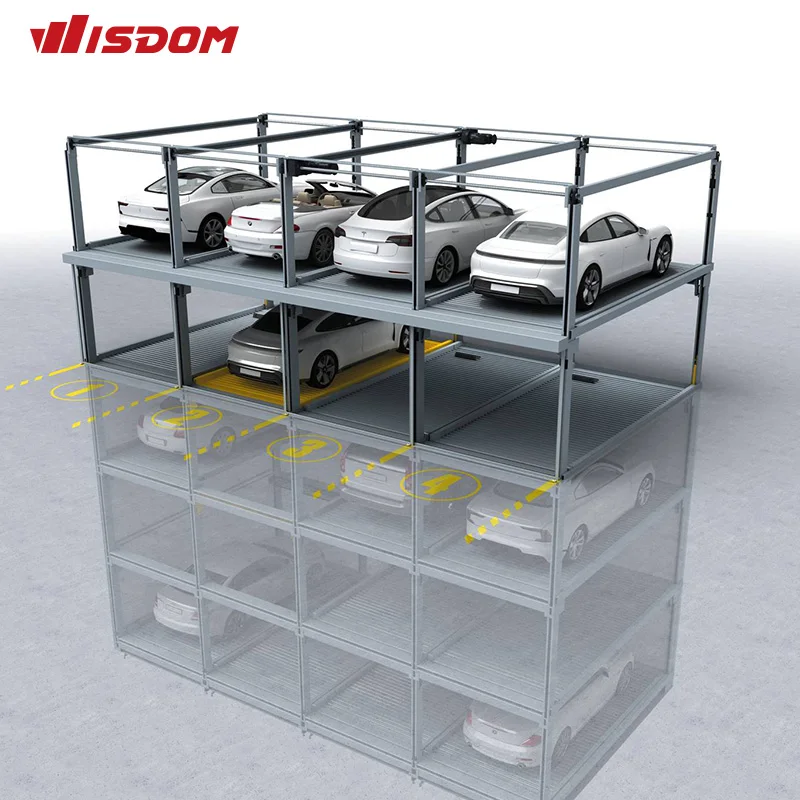

Three-dimensional Effect
Main Structure

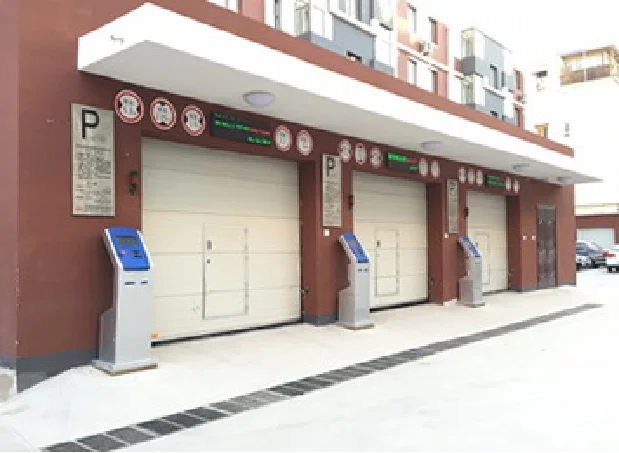

| Entance/Exit | Parking Space |
 |  |

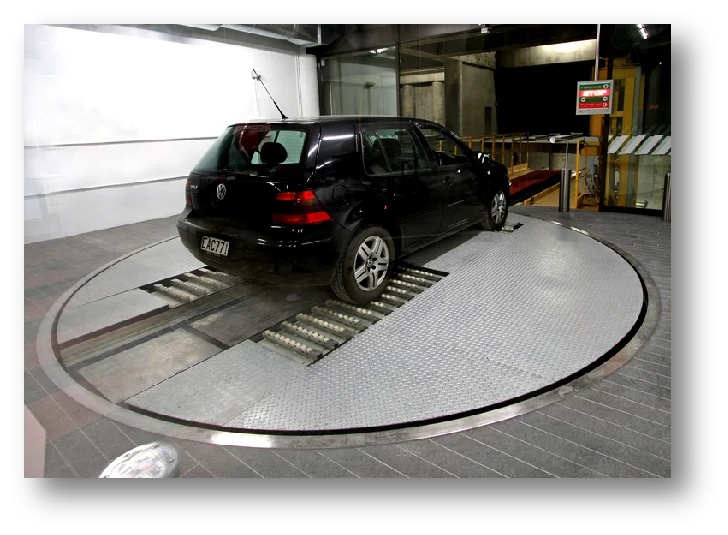

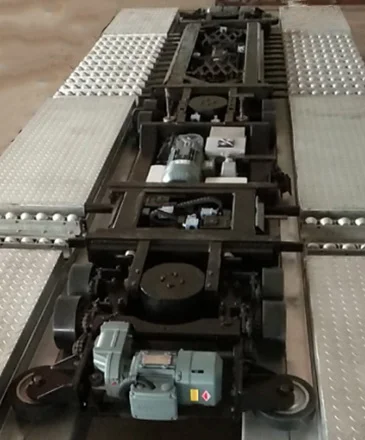

| Parking Room - Roatry | Dolly&Carrier |
 |  |

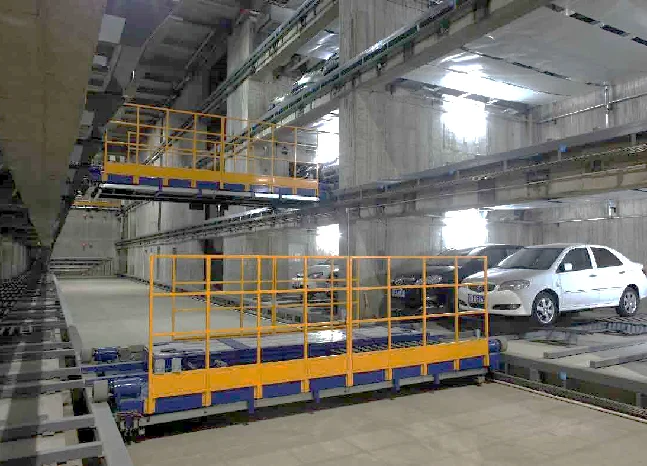

| Telescopic tooth moving intelligent trolley handler | |
 | |
Scope of application
Mainly suitable for large residential areas, large business offices, hospitals, government agencies for the construction of large parking lot (library), and intelligent parking management system can be combined to form a large intelligent parking system.
Equipment features
-- Can reduce lane area, increase parking density and improve space utilization;
-- Flexible layout, the use of single-layer or multi-layer, can be built in a fully underground, fully above ground or semi-underground, semi-above ground equipment system in a variety of ways;
-- High degree of intelligence and automation of equipment and fast access to vehicles;
-- The equipment has a complete safety detection system, safe and reliable operation.
Certificates and Patents
Company Profile
Qingdao Wisdom Intelligent Equipment Co., Ltd.,
Wisdom Intelligent Equipment Co., Ltd., is a high-tech enterprise integrating product design, R&D, production and sales with technological innovation and intelligent manufacturing. We specializes in high-power laser cutting, pipe cutting, welding, robotic production lines and smart car parking systems .

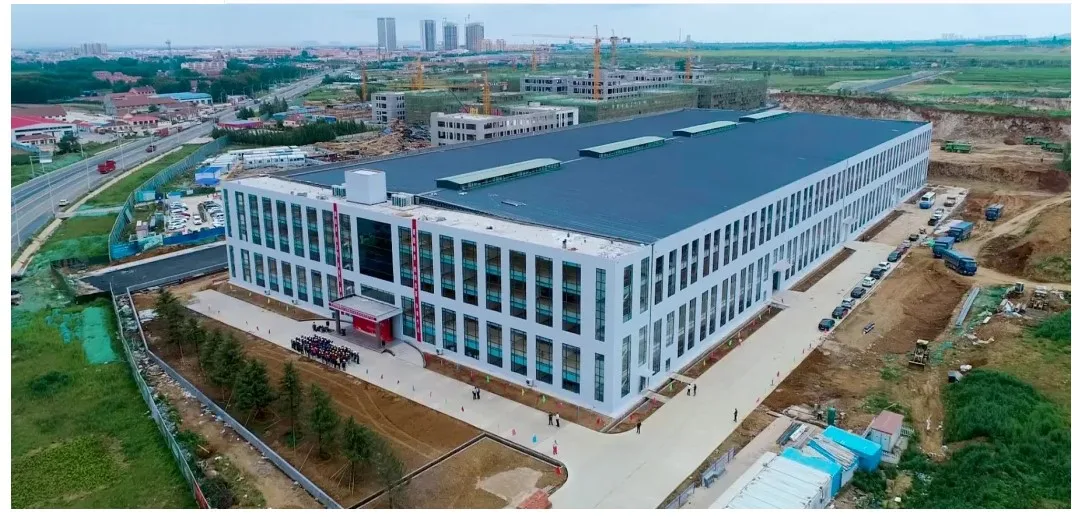

We are located in the new and old kinetic energy conversion demonstration park of Wangtai Town, West Coast of Qingdao. It covers an area of 150, 000 square meters.

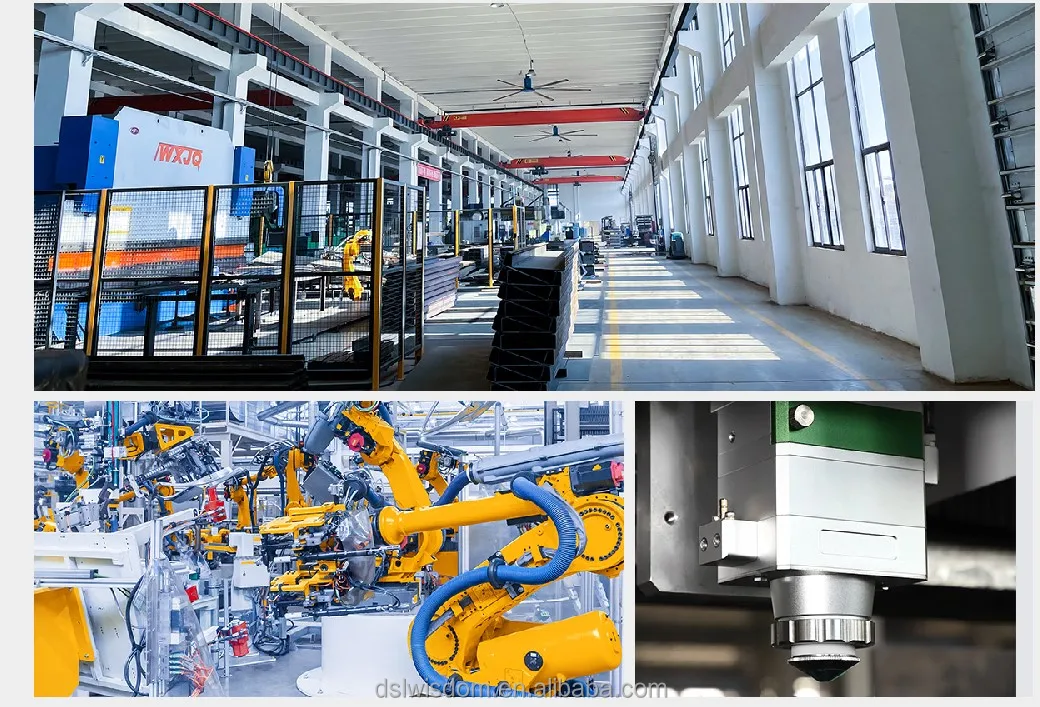

We have more than 600 sets of various types of advanced equipment, including machining centers, large floor boring machines, large gantry planer machines, gantry milling machines, cylindrical grinding, CNC shears, CNC bending, CNC flame cutting, laser cutting, multi-function mill lines, column punching hole and rolling line, beam rolling mill line, beam rolling mill, electrostatic powder coating assembly line.
Since the establishment, we have always adhered to people-oriented, management-based, technological innovation as the driving force, quality for development, expansion of the market by variety, customer satisfaction to establish a brand, and continuous creation of a unique enterprise culture, innovating in work, and established a good sales service system, quality assurance system and modern scientific management system. Our goal is to strive for a world-famous brand. By high-quality products and good services, all staff will work hard and sincerely cooperate to create a better future together.
We are located in the new and old kinetic energy conversion demonstration park of Wangtai Town, West Coast of Qingdao. It covers an area of 150, 000 square meters.
We have more than 600 sets of various types of advanced equipment, including machining centers, large floor boring machines, large gantry planer machines, gantry milling machines, cylindrical grinding, CNC shears, CNC bending, CNC flame cutting, laser cutting, multi-function mill lines, column punching hole and rolling line, beam rolling mill line, beam rolling mill, electrostatic powder coating assembly line.
Since the establishment, we have always adhered to people-oriented, management-based, technological innovation as the driving force, quality for development, expansion of the market by variety, customer satisfaction to establish a brand, and continuous creation of a unique enterprise culture, innovating in work, and established a good sales service system, quality assurance system and modern scientific management system. Our goal is to strive for a world-famous brand. By high-quality products and good services, all staff will work hard and sincerely cooperate to create a better future together.

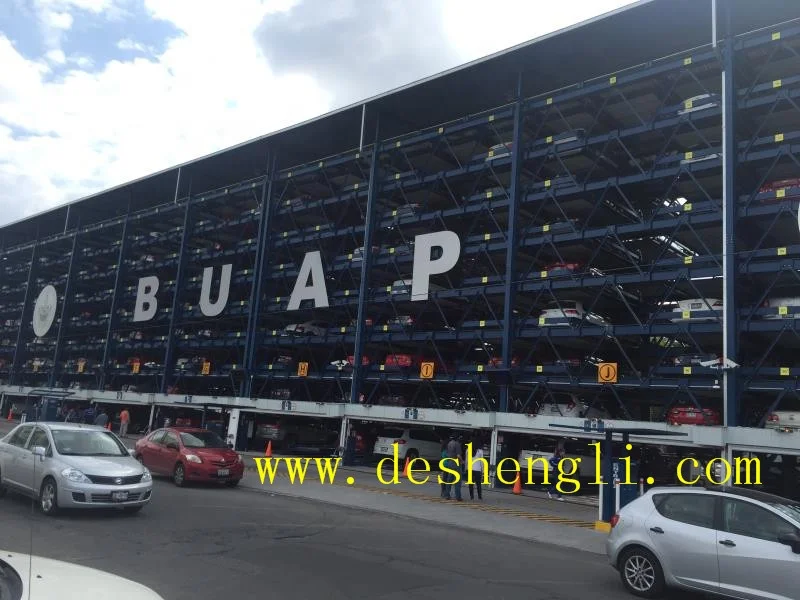

Successful Projects

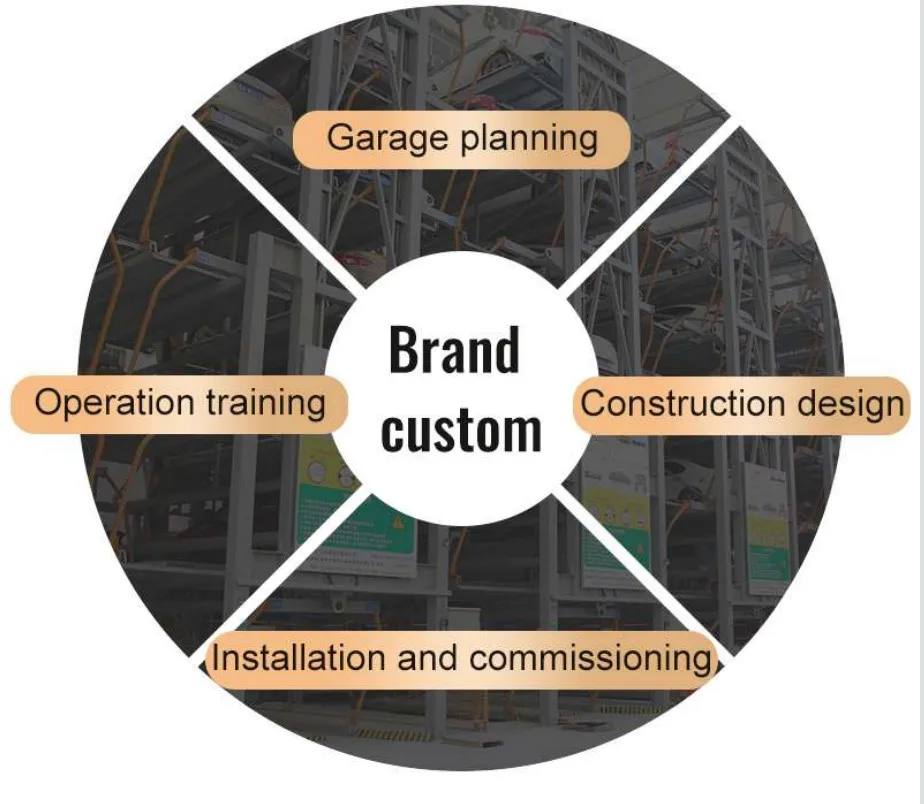

DSL Wisdom Service
