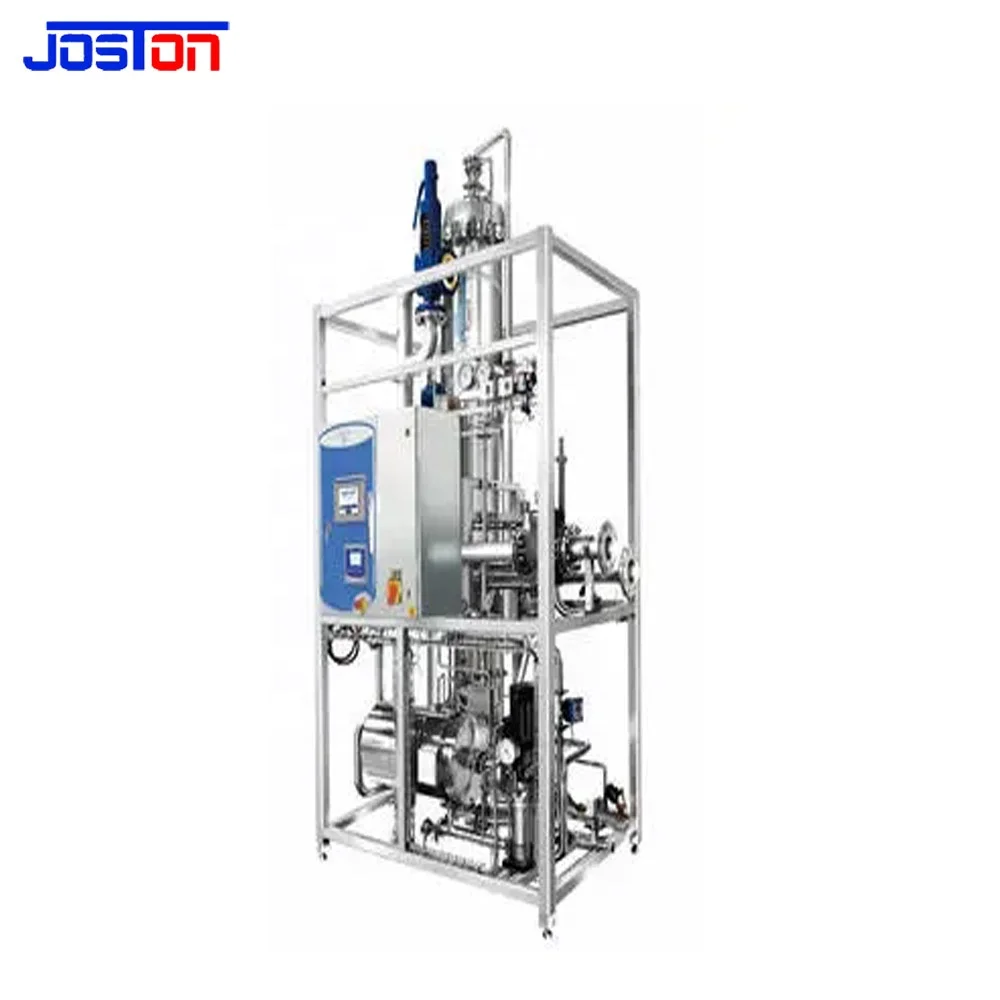

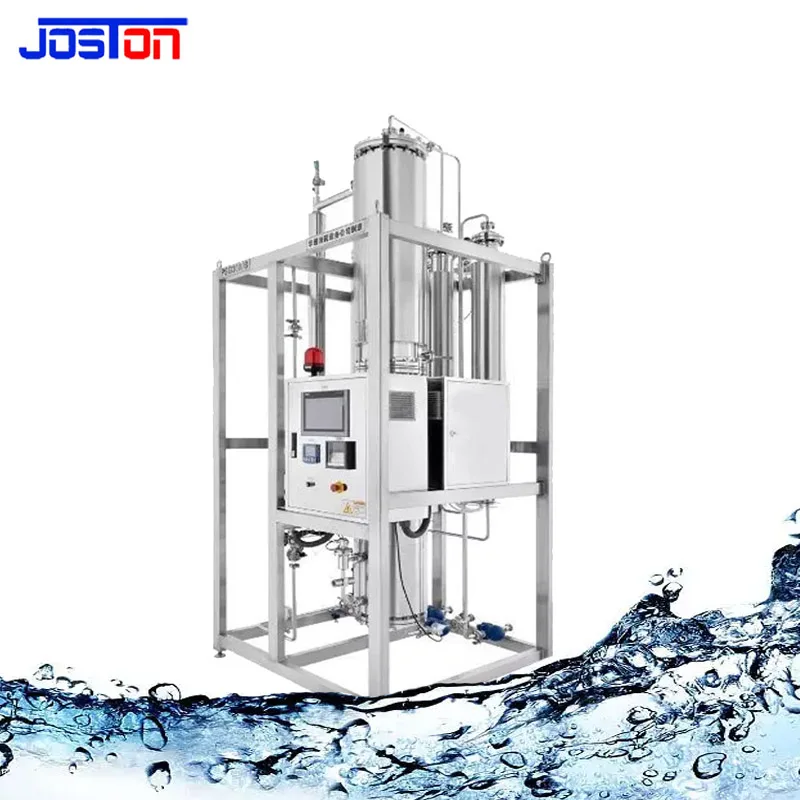

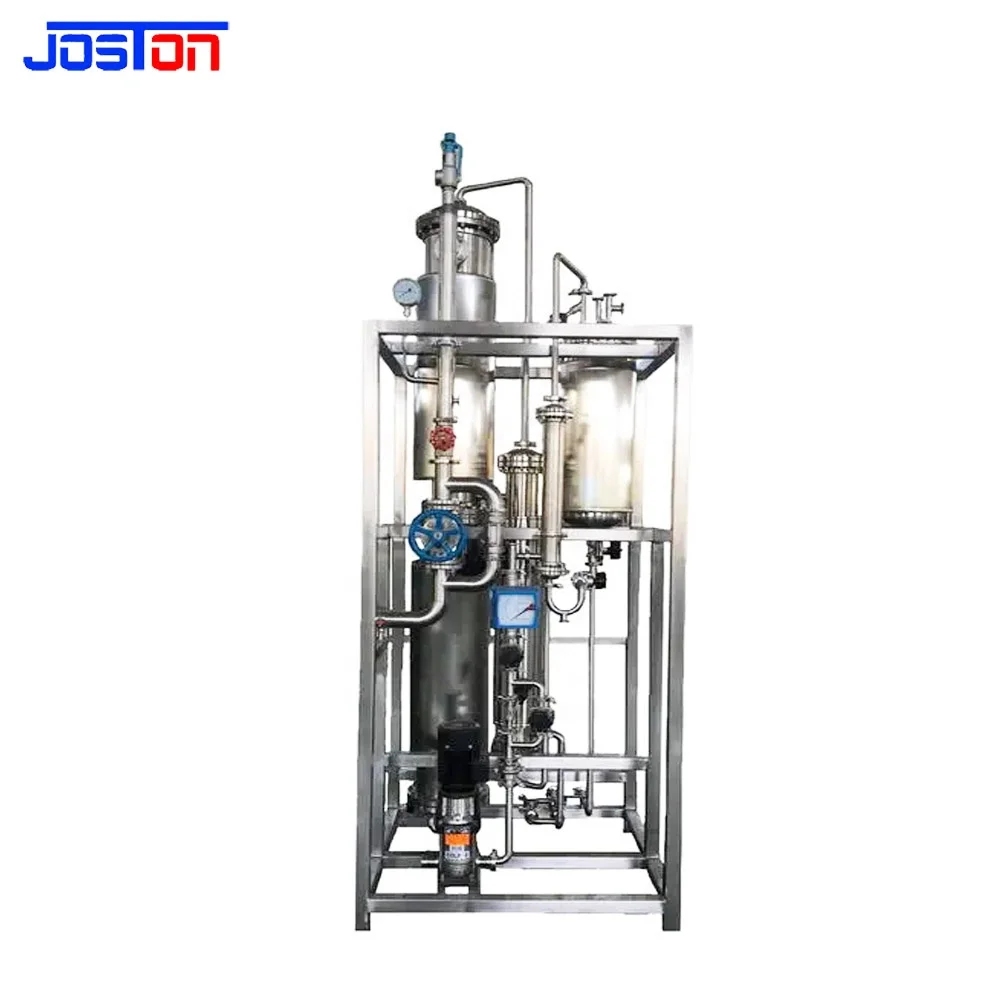

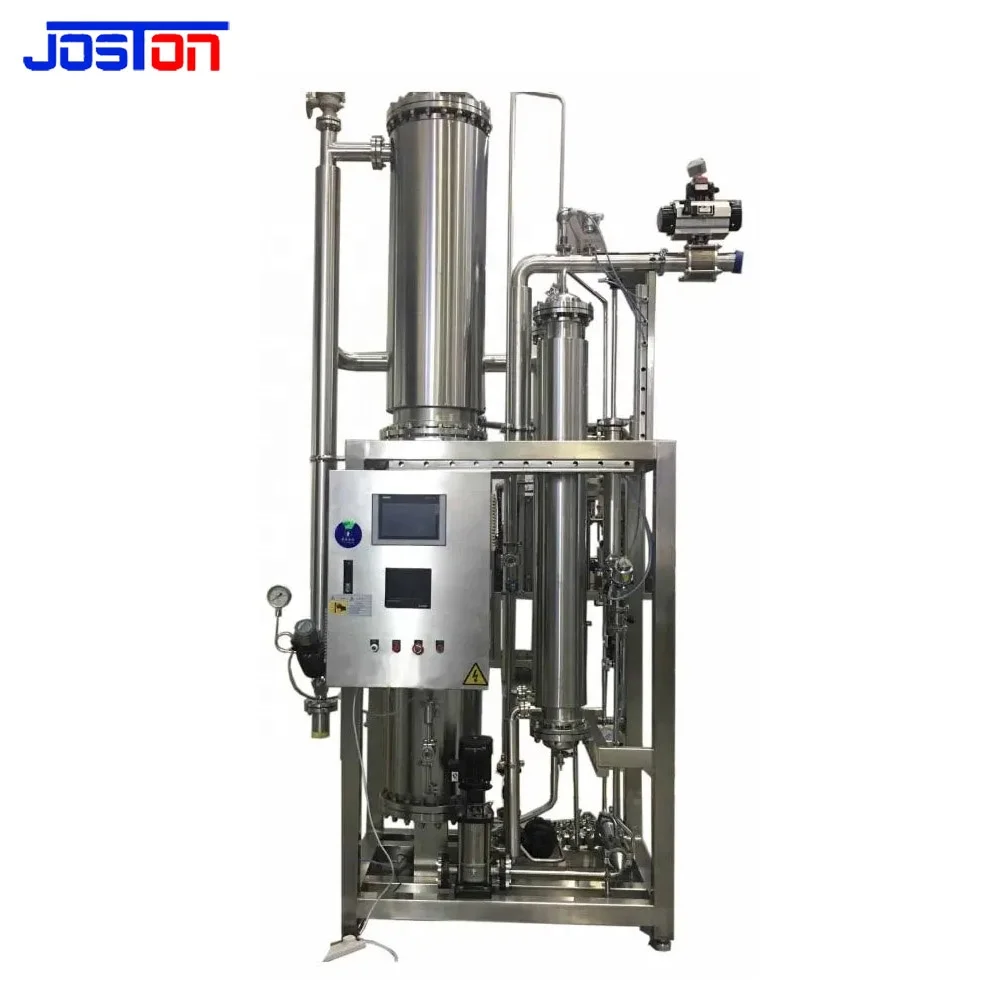

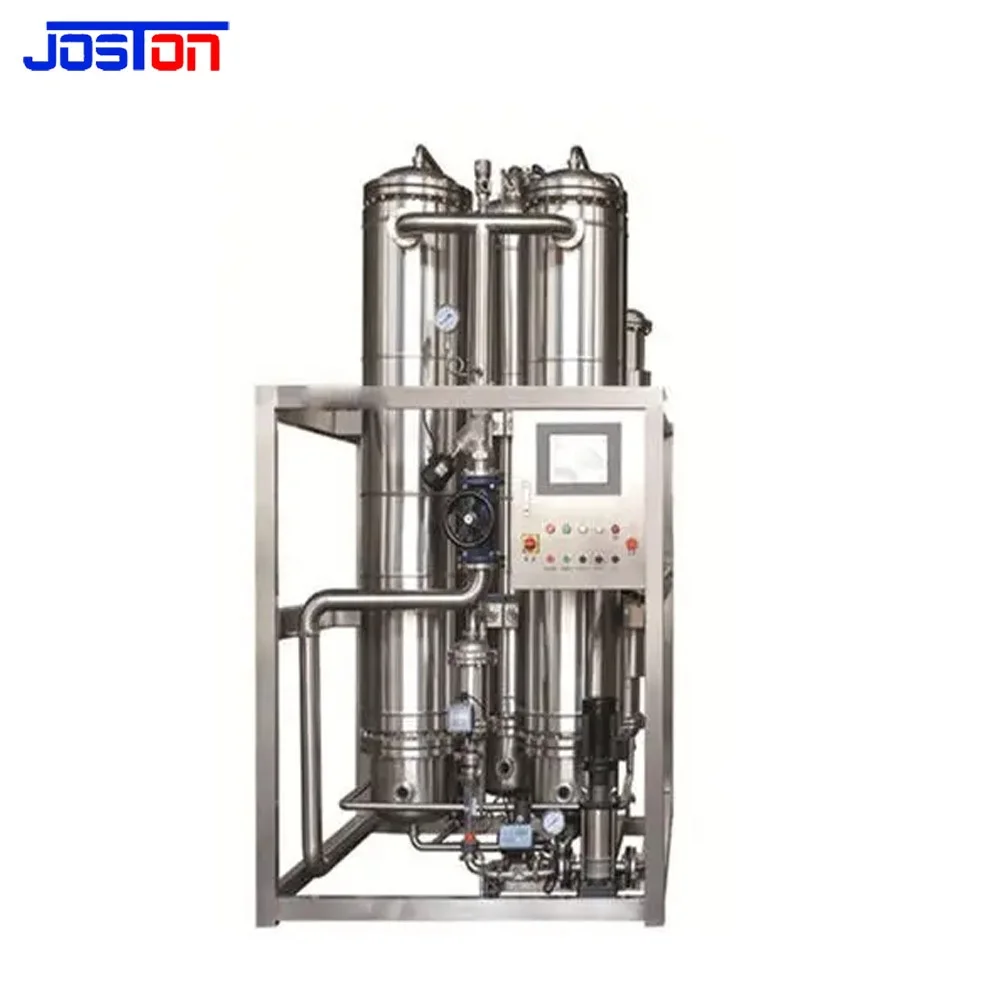

JOSTON Clean Electric Pure Sip Machine For Stainless Steel Steam Generator
- Category: >>>
- Supplier: Wenzhou Yinuo Machinery Co. Ltd.
Share on (1600427794039):
Product Overview
Description
Video Description
Products Description
Pure Steam generator is a kind of equipment which uses water for injection or purified water to produce pure steam. It is widely used in the sterilization and disinfection of medical and health care, biopharmaceutical industry, food industry and the disinfection of related instruments, effectively preventing the re pollution of heavy metals, pyrogens and other impurities
Pure steam generator is a kind of equipment which uses deionized water as raw material and uses steam heating to produce pure steam. It has reasonable structure, simple operation, high thermal efficiency and low energy consumption. It is an ideal equipment for sterilization and disinfection in hospitals, pharmaceutical, electronic, food and beverage industries, and the first choice for pharmaceutical industry to meet the cGMP standard.
Pure steam generator is composed of evaporator, preheater and electric automatic control part. In order to ensure the quality of pure steam, the evaporator adopts a unique three-stage separation method: falling film evaporation, gravity settling, wire mesh demisting.

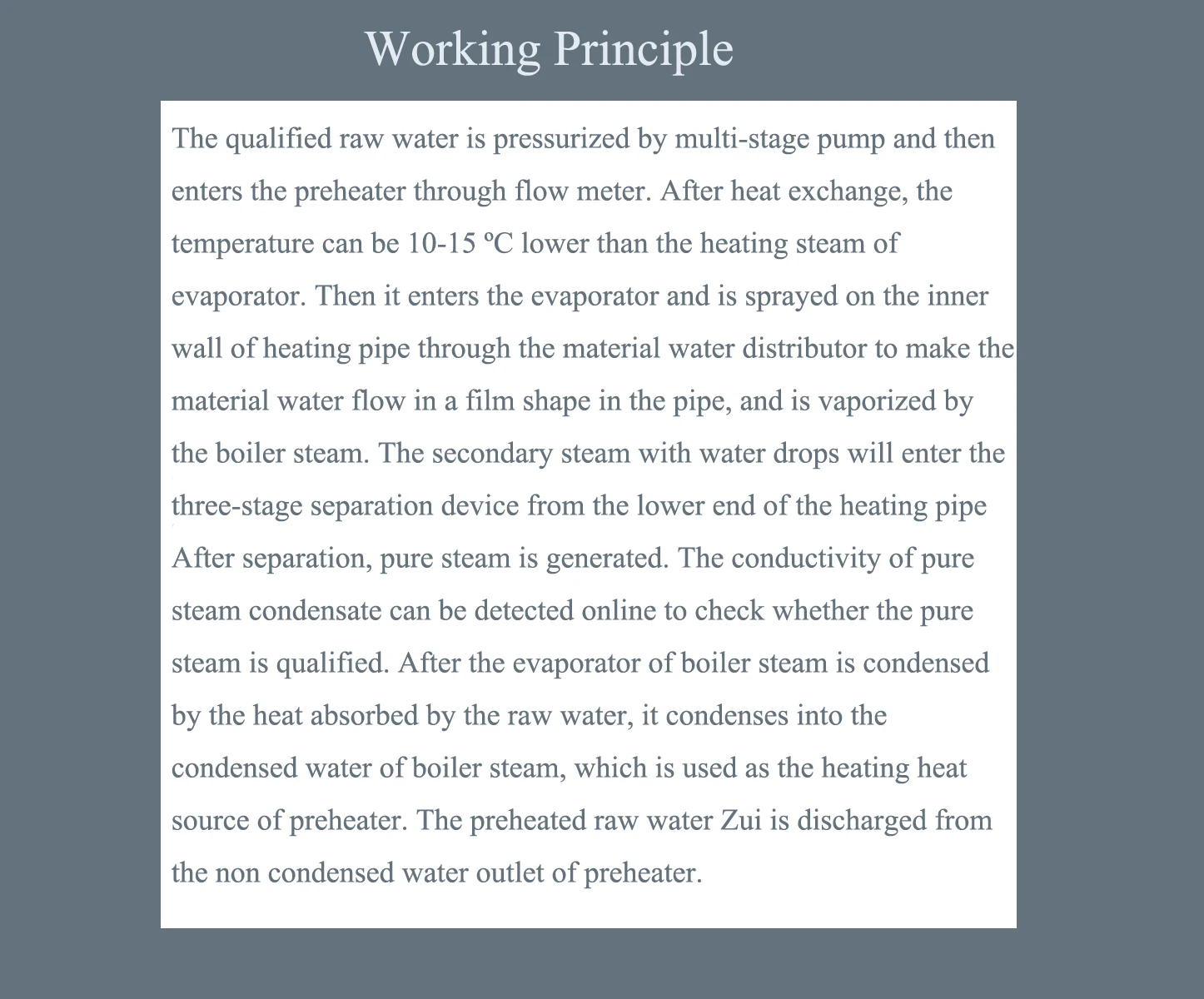

PLC Full Automatic Stainless Steel Pure Clean Steam Generator For SIP Process working principle:
The qualified raw water is pressurized by multi-stage pump and then enters the preheater through flow meter. After heat exchange, the temperature can be 10-15 ºC lower than the heating steam of evaporator. Then it enters the evaporator and is sprayed on the inner wall of heating pipe through the material water distributor to make the material water flow in a film shape in the pipe, and is vaporized by the boiler steam. The secondary steam with water drops will enter the three-stage separation device from the lower end of the heating pipe After separation, pure steam is generated. The conductivity of pure steam condensate can be detected online to check whether the pure steam is qualified. After the evaporator of boiler steam is condensed by the heat absorbed by the raw water, it condenses into the condensed water of boiler steam, which is used as the heating heat source of preheater. The preheated raw water Zui is discharged from the non condensed water outlet of preheater.
Pure steam generator is a kind of equipment which uses deionized water as raw material and uses steam heating to produce pure steam. It has reasonable structure, simple operation, high thermal efficiency and low energy consumption. It is an ideal equipment for sterilization and disinfection in hospitals, pharmaceutical, electronic, food and beverage industries, and the first choice for pharmaceutical industry to meet the cGMP standard.
Pure steam generator is composed of evaporator, preheater and electric automatic control part. In order to ensure the quality of pure steam, the evaporator adopts a unique three-stage separation method: falling film evaporation, gravity settling, wire mesh demisting.
PLC Full Automatic Stainless Steel Pure Clean Steam Generator For SIP Process working principle:
The qualified raw water is pressurized by multi-stage pump and then enters the preheater through flow meter. After heat exchange, the temperature can be 10-15 ºC lower than the heating steam of evaporator. Then it enters the evaporator and is sprayed on the inner wall of heating pipe through the material water distributor to make the material water flow in a film shape in the pipe, and is vaporized by the boiler steam. The secondary steam with water drops will enter the three-stage separation device from the lower end of the heating pipe After separation, pure steam is generated. The conductivity of pure steam condensate can be detected online to check whether the pure steam is qualified. After the evaporator of boiler steam is condensed by the heat absorbed by the raw water, it condenses into the condensed water of boiler steam, which is used as the heating heat source of preheater. The preheated raw water Zui is discharged from the non condensed water outlet of preheater.

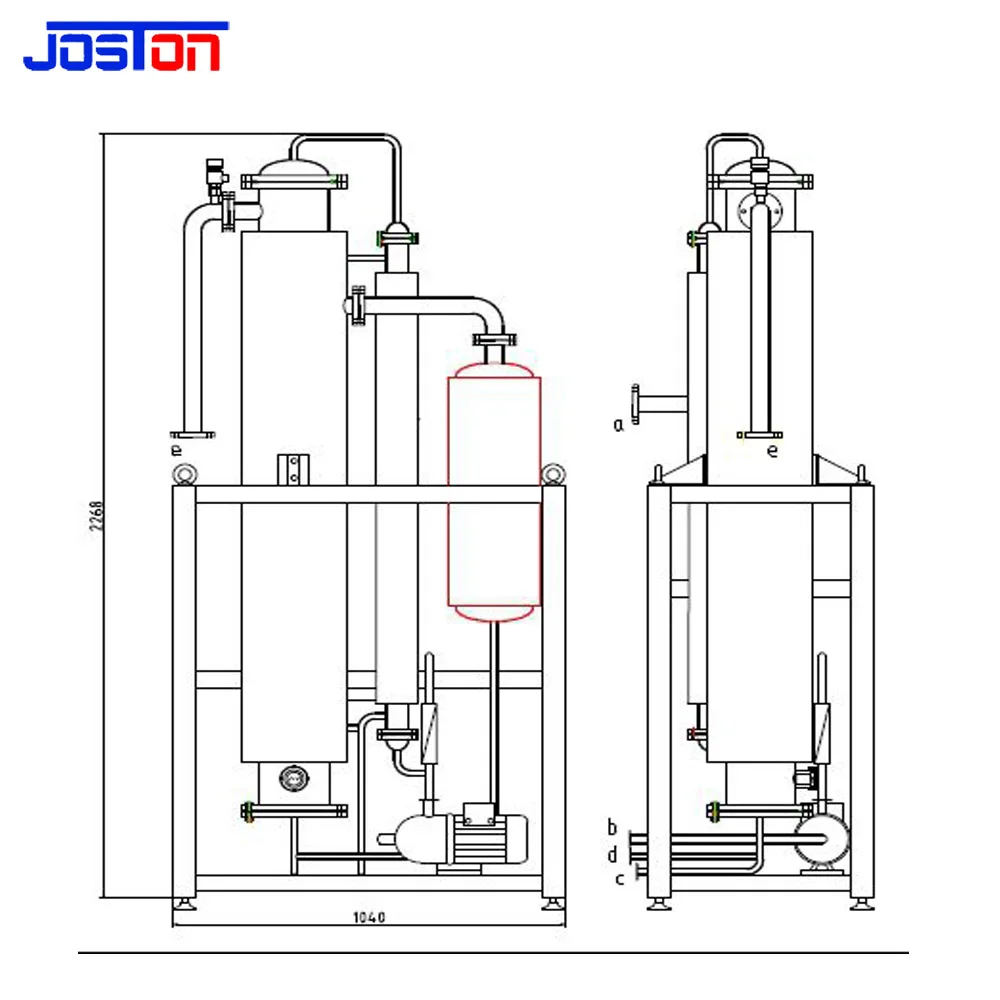

MODEL | Capacity Lt/h | Water Kg/h | Industry steam Kg/h | Height: mm | Length :mm | Width:mm |
PSG100 | 100 | 115 | 130 | 2100 | 900 | 570 |
PSG200 | 200 | 230 | 250 | 2500 | 900 | 570 |
PSG300 | 300 | 345 | 370 | 2500 | 1110 | 680 |
PSG400 | 400 | 460 | 480 | 2600 | 1110 | 680 |
PSG500 | 500 | 575 | 173 | 2600 | 1170 | 720 |
PSG800 | 800 | 920 | 960 | 3500 | 1775 | 930 |
PSG1000 | 1000 | 1150 | 1200 | 3700 | 1775 | 930 |
PSG2000 | 2000 | 2300 | 2400 | 4000 | 2030 | 1900 |
PSG3000 | 3000 | 34500 | 3600 | 4850 | 2030 | 1900 |
PSG4000 | 4000 | 4600 | 4800 | 5100 | 2200 | 2100 |
Products Description
Recommend Products
About Us
Service
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technology document (Quotation PI )
4.Engineering and Manufacturing (Production &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technology document (Quotation PI )
4.Engineering and Manufacturing (Production &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 year warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the running.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accordingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale service ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
