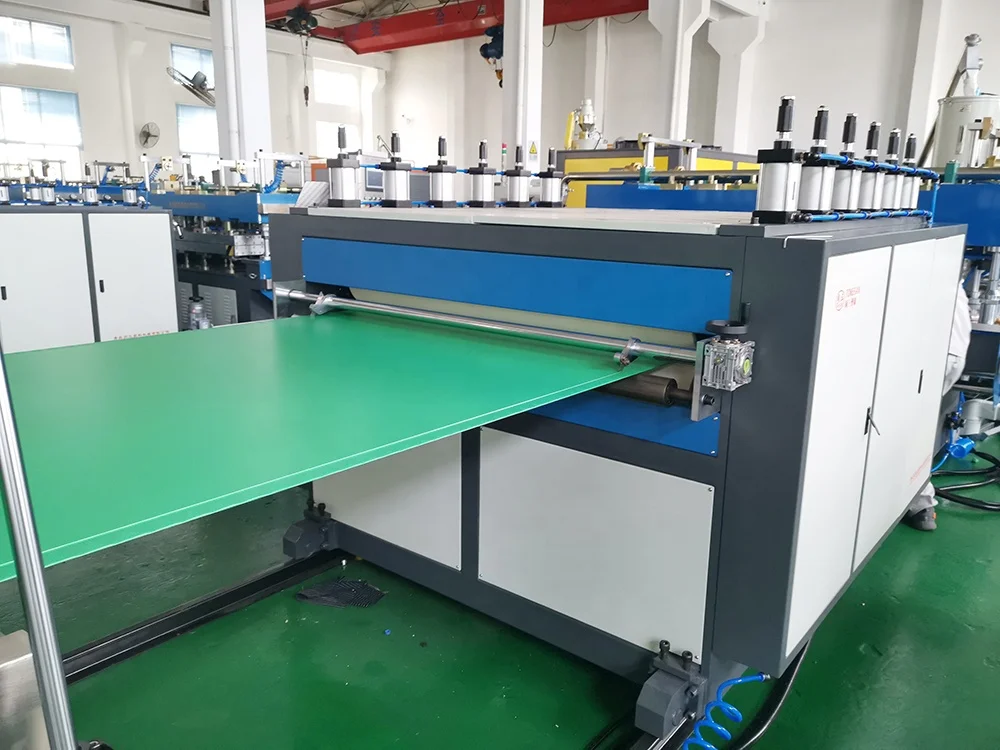

MACHINE MANUFACTURER SINCE 1997 Plastic Coroplast PP Hollow Board Sheet Making Machine

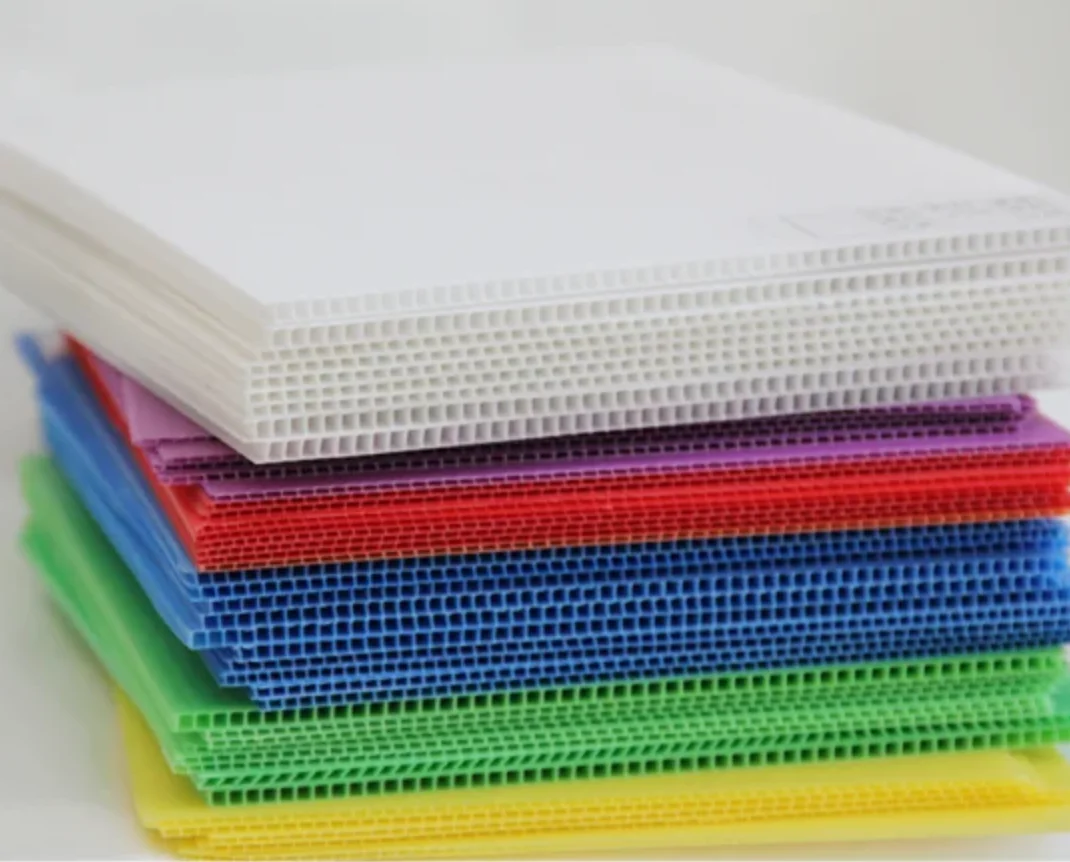

Coroplast PP Hollow Board Making Machine realizes continuous production of PC/PE/PP hollow grid plate, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. PE/PP hollow grid plate is an ideal substitute for paper box in making packaging box. It is characterized by light weight, high intensity, dampproof, and anticorrosion. The width of the products is 1220-3000mm, and the thickness is 2mm-12mm.
FEATURES AT A GLANCE
High efficiency single screw extruder
The specially designed screw and the advanced controlling system ensure excellent plasticization,high output and stable extruding.
Our machine can add 70% filler to reduce cost for customer.
Our machine can add 70% filler to reduce cost for customer.
Mold by customized
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

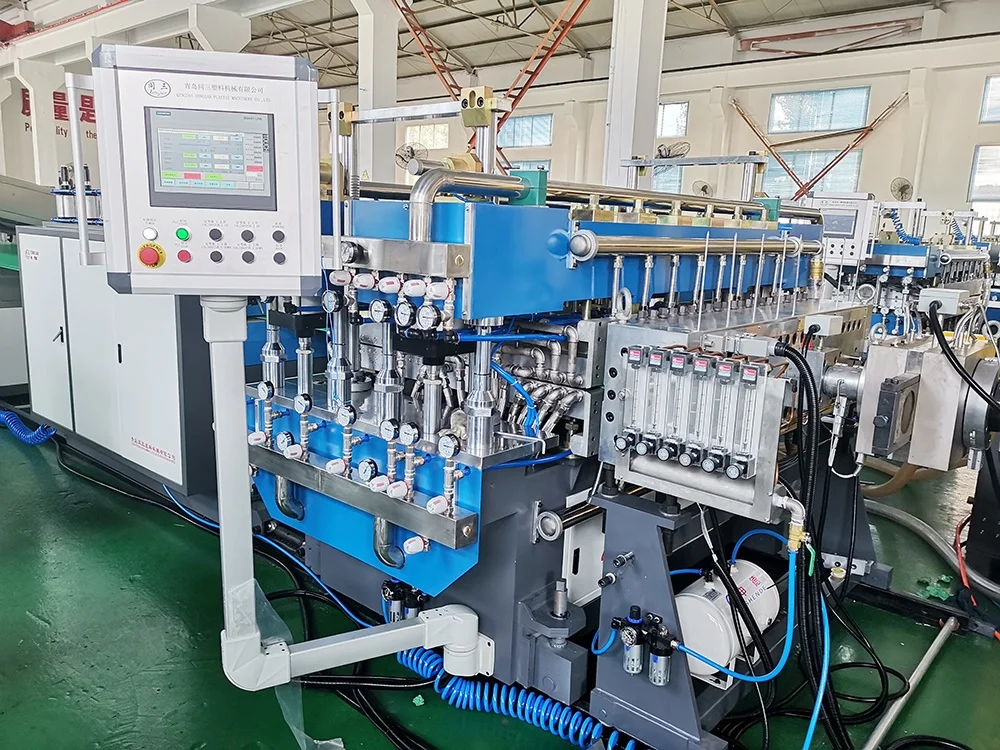

Vacuum calibrating table
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system,which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display
system that realize even and stable vacuum degree of plate surface.
system that realize even and stable vacuum degree of plate surface.
Haul-off device
There are two tractors. The first one is high power, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.
Heating oven
Air cooling system
Cutter
Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting.
Stress remover corona treatment device
The advanced large area conductive heating mode can effectively remove the stress of plate and further improve planeness of the plate
Mixer
Used for mixing PP ,filer masterbacth, color masterbacth.
The design is more user-friendly, with a ladder attached, which is easy to operate.The material will come to the extruder feeding hopper directly.
The design is more user-friendly, with a ladder attached, which is easy to operate.The material will come to the extruder feeding hopper directly.
Cut wasted edge crusher
The PP hollow plate should be cut the edge ,
This cutter is connected with the production line,during the production, the cut waste edge can be cut into flake and used again.
PRODUCT SPECIFICATIONS
Model | Sheet width | Sheet thickness | Extruder model | Motor power |
TSGZB-1400 | 1250MM | 2-6,8-12MM | 100/36 | 75KW |
TSGZB-1860 | 1700MM | 2-6,8-12MM | 120/36 | 90KW |
TSGZB-2300 | 2150MM | 2-6,8-12MM | 120/36 | 110KW |
TSGZB-2600 | 2450MM | 2-6,8-12MM | 120/36 | 110KW |
TSGZB-3000 | 2800MM | 2-6,8-12MM | 150/36 | 132KW |
TSGZB-2600(F) | 2450MM | 2-6,8-12MM | 120/36&80/36 | 110+37KW |
Successful Project
We have exported the machines to many countries,including Sri Lanka,Iran,India,Vietnam,Ecuador,Qatar,Uzbekistan,
Mexico,Dominica,Malaysia,etc.
Mexico,Dominica,Malaysia,etc.

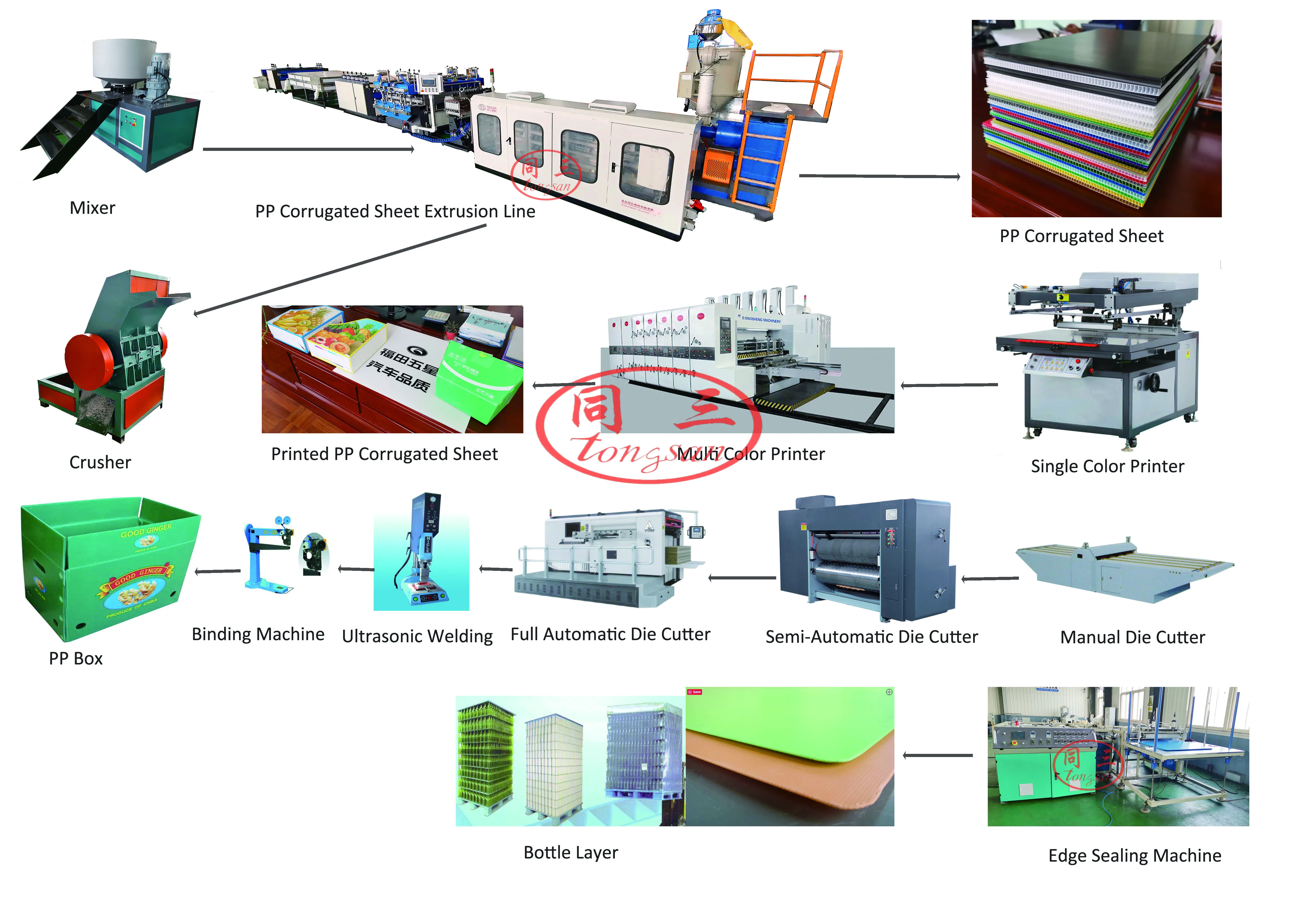

From PP hollow sheet making to packaging box(pass box) making.
Die cutting machine
PP sheet printing machine
The application of PP hollow sheet/corrugated hollow board
1)Industrial product packaging turnover: electronic components packaging turnover box, plastic parts turnover box, box partition knife card, anti-static hollow board turnover box, conductive hollow board turnover box.
2) Carrier board: lining board, backing board and partition board.
3)Advertising industry: PP hollow board display box, display rack, advertising board, corona board.

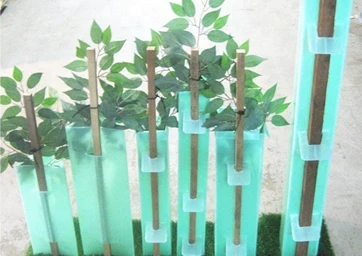

4)Agriculture: various fruit boxes, vegetable boxes, pesticide boxes, food boxes, beverage boxes; The roof of a greenhouse.
5) Automotive industry: steering wheel pad, car rear partition, pad.
2) Carrier board: lining board, backing board and partition board.
3)Advertising industry: PP hollow board display box, display rack, advertising board, corona board.
4)Agriculture: various fruit boxes, vegetable boxes, pesticide boxes, food boxes, beverage boxes; The roof of a greenhouse.
5) Automotive industry: steering wheel pad, car rear partition, pad.
We are the professional machine manufacturer since 1997.

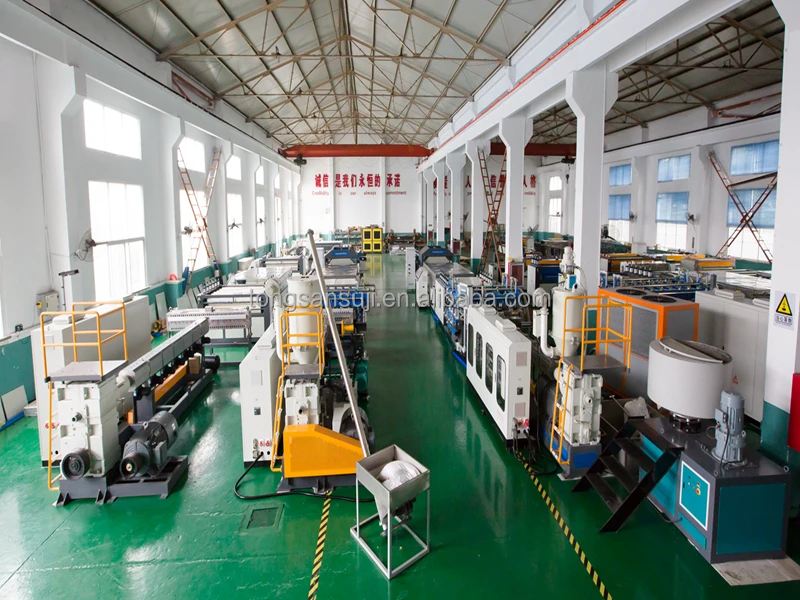

We have our own factory,Ready made machines in stock.
if you are interested in our Coroplast PP Hollow Board Making Machine, please contact me any time.
Looking forward to your inquiry.
