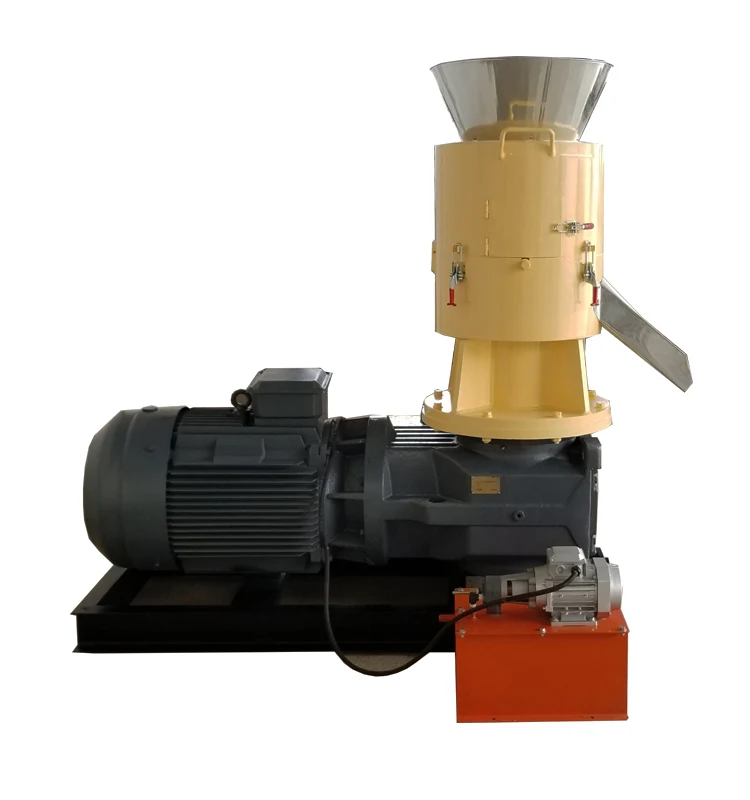

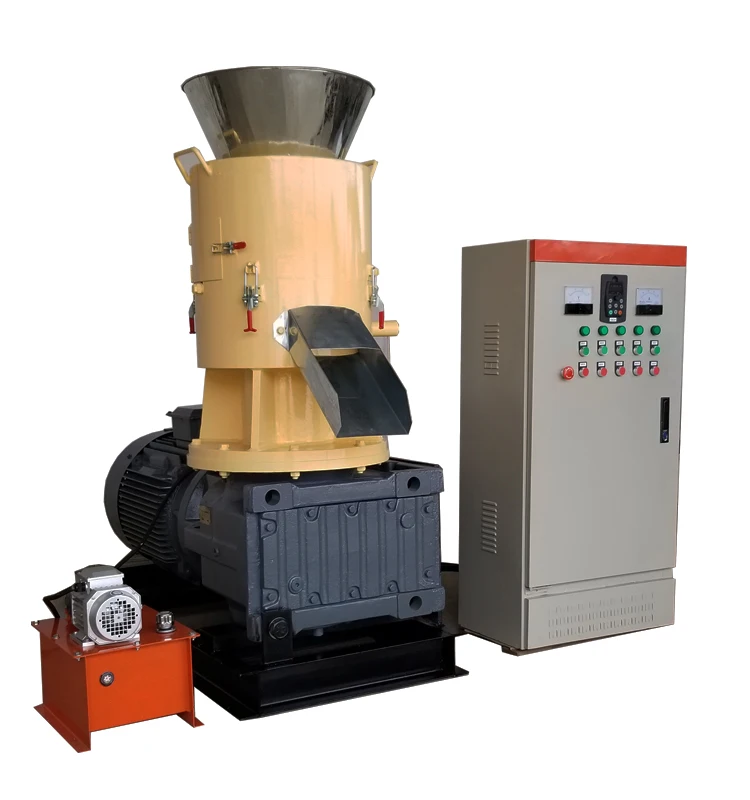

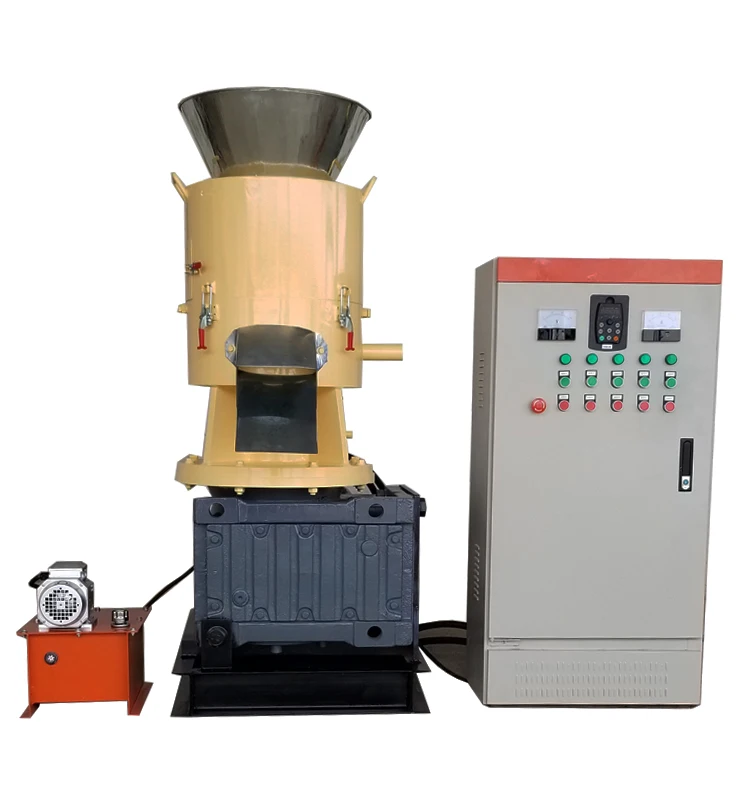

Retail elm 55kw wood scraps kingwood waste recuperation wood pellet machine wood pellet mill
- Category: >>>
- Supplier: Shandong Halo Imp& Exp Co. Ltd.
Share on (1600427830492):
Product Overview
Description
Product Description
Raw material and working principle
Biomass pellet raw materials from a wide range of sources, wood processing and wood-based panel produced in the sawdust, shavings,bark, sanding powder, waste wood, branches;All kinds of stalks produced after the harvest of crops;Other kinds of combustible biomass as raw material, do not need to add adhesive, through the equipment processing, can be biomass pellet fuel.

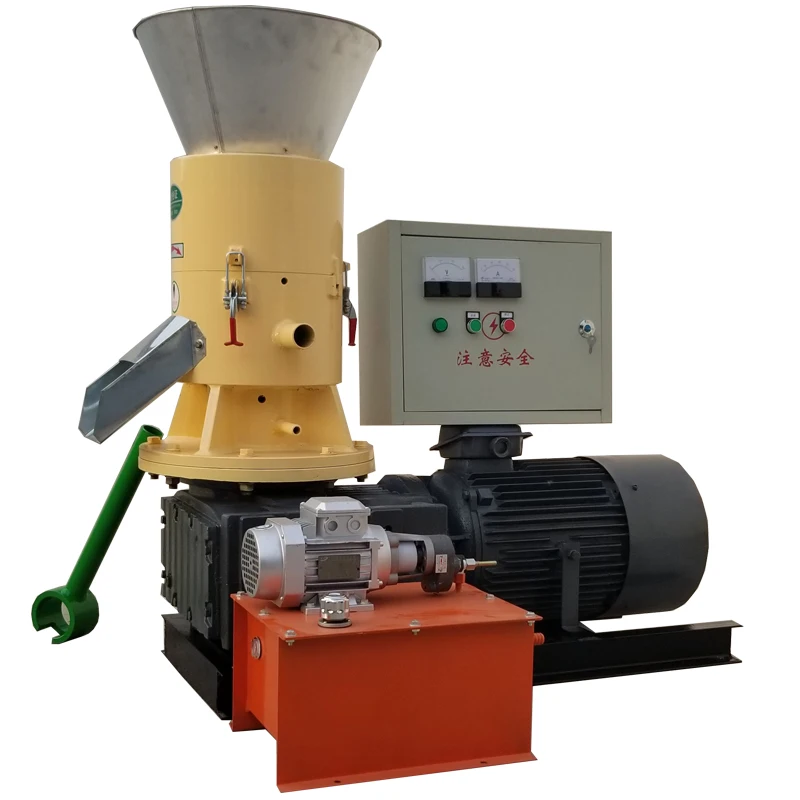

The sawdust pellet machine is a two-stage transmission with belt and worm gear, with stable rotation and low noise. It is a pellet mill that is very popular among consumers.The wood pellet motor drives the main shaft through the reducer, and the main shaft drives the press wheel.The press wheel revolves around the main shaft and rotates around the grinding disc.Biomass, when the particles are processed raw material is fed into flat die machine feeding chamber, under the common role of distributor and scraper evenly on the flat die,driven spindle roller continuous rolled material layer, squeezing material into the die, material in the die hole forming type,such as process, after a certain time in cylindrical form being squeezed out, rotating knife cutting the material, the formation of particles, particles composed sweep plate will send out.
The sawdust pellet machine is a two-stage transmission with belt and worm gear, with stable rotation and low noise. It is a pellet mill that is very popular among consumers.The wood pellet motor drives the main shaft through the reducer, and the main shaft drives the press wheel.The press wheel revolves around the main shaft and rotates around the grinding disc.Biomass, when the particles are processed raw material is fed into flat die machine feeding chamber, under the common role of distributor and scraper evenly on the flat die,driven spindle roller continuous rolled material layer, squeezing material into the die, material in the die hole forming type,such as process, after a certain time in cylindrical form being squeezed out, rotating knife cutting the material, the formation of particles, particles composed sweep plate will send out.

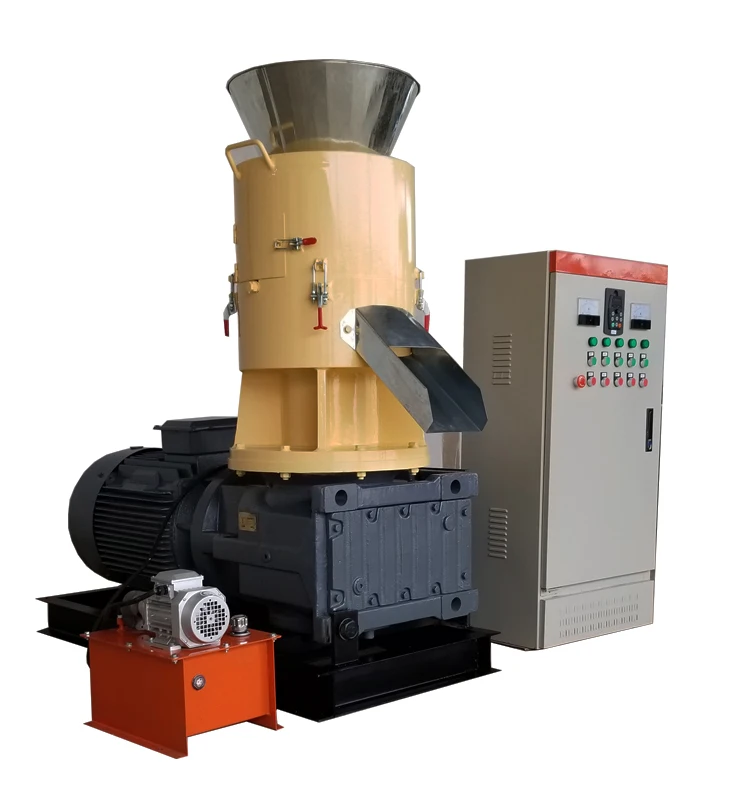

Model | Motor power | Output (KG/H) | Size(MM) | Weight | Contain equipment |
ML-250 | 15 kw | 100-200 | 1120*440*1060 | 350 kg | Main engine，electric control box |
ML-300 | 22 kw | 200-300 | 1280*560*1220 | 550 kg | Main engine, electric control box, automatic circulating oil pump |
ML-350 | 30 kw | 300-400 | 1300*620*1300 | 800 kg | Main engine, electric control box, automatic circulating oil pump |
ML-450 | 45 kw | 500-700 | 1620*700*1600 | 1500 kg | Main engine, electric control box, frequency converter, automatic circulating oil pump |
ML-550 | 55 kw | 700-900 | 1700*700*1600 | 1600 kg | Main engine, electric control box, frequency converter, automatic circulating oil pump |

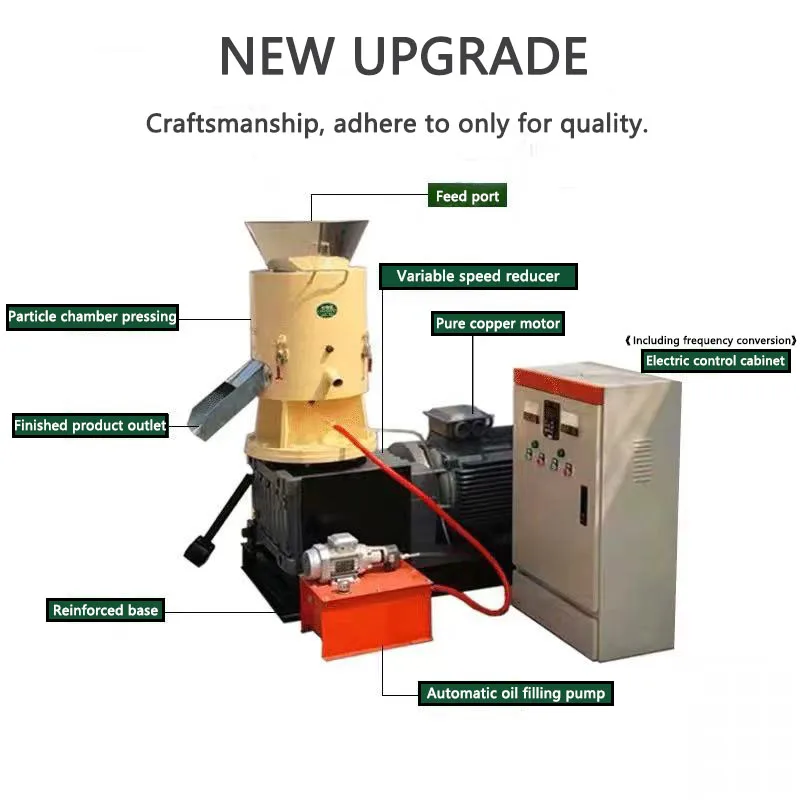

Main performance and characteristics

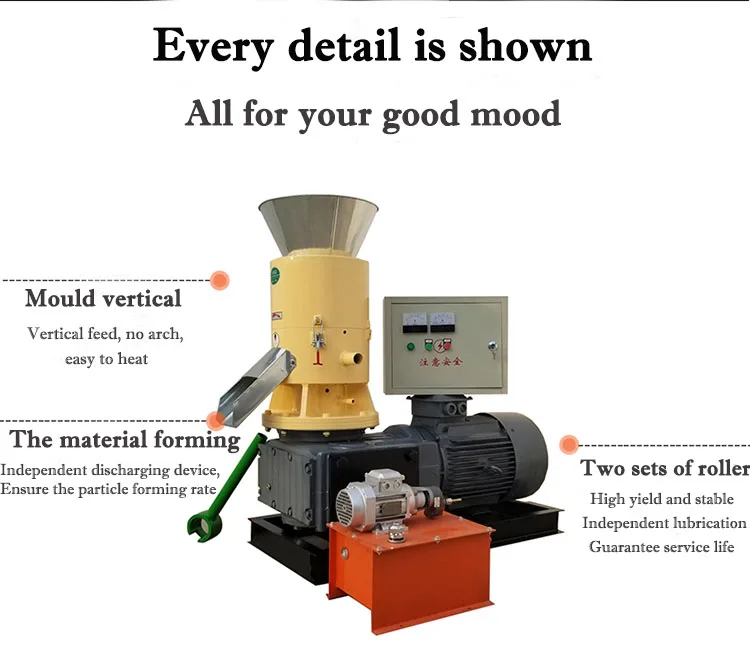

1. Vertical feed, directly in place.2. The grinding disc is stationary, the pressure wheel rotates, the material is centrifugal, and the distribution is uniform.
3. Double layer grinding tools, positive and negative dual use, reduce costs, high production and energy saving.
4. The main force parts are made of high alloy wear-resistant materials, and the life of the vulnerable parts is twice as long as that of similar products.
5. 24 hours operation, automatic lubrication.
6. High output, low energy consumption, low noise, low fault, machine fatigue resistance, economic and durable.
3. Double layer grinding tools, positive and negative dual use, reduce costs, high production and energy saving.
4. The main force parts are made of high alloy wear-resistant materials, and the life of the vulnerable parts is twice as long as that of similar products.
5. 24 hours operation, automatic lubrication.
6. High output, low energy consumption, low noise, low fault, machine fatigue resistance, economic and durable.
Specification
Lubricating oil circulation pump
Wood pellet mill with a grease-free automatic lubrication system, which automatically lubricates the spindle, free of maintenance, increases work efficiency and reduces production costs.

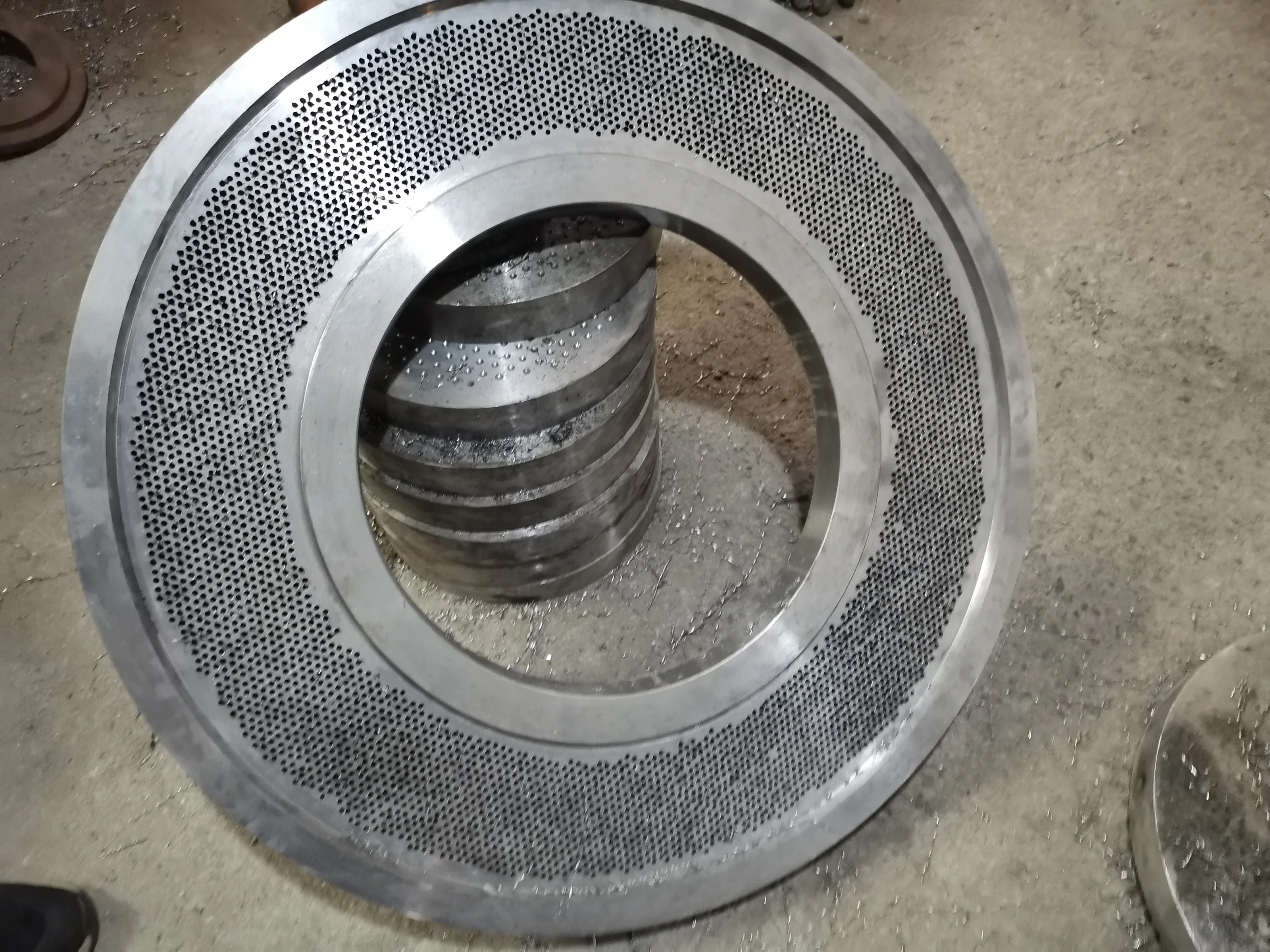

Double-sided grinding tool
Using 20 chromium manganese titanium material, After carburizing quenching, low temperature tempering, greatly increase the durability of the grinding tools.

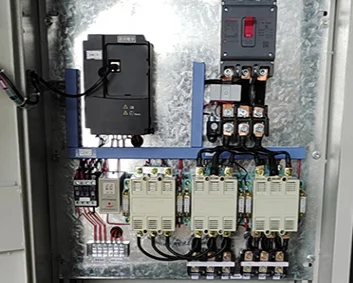

Distribution box
The use of well-known brands of electrical equipment makes the control system more precise and smooth, and ensures the safety and stability of equipment operation.

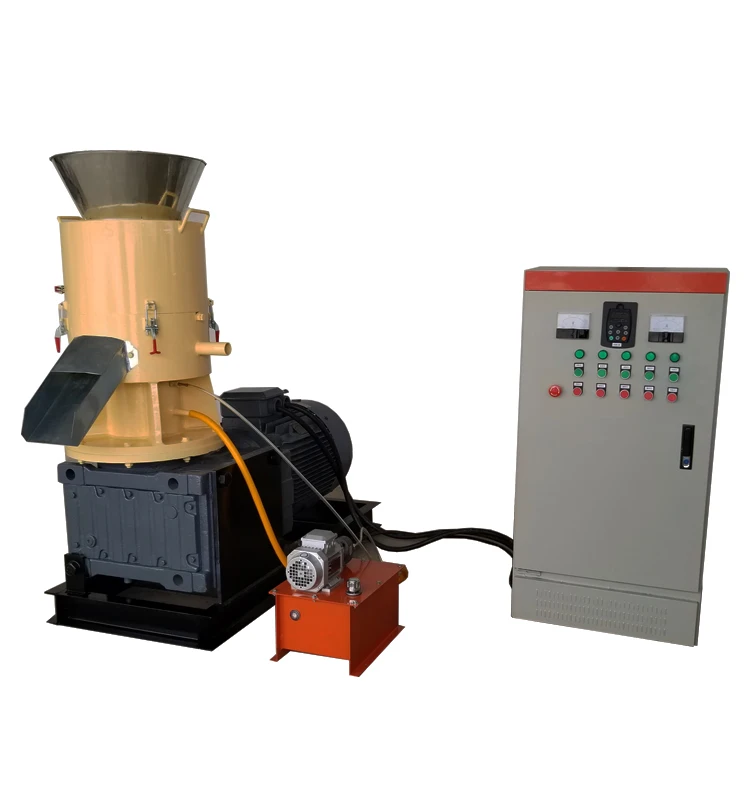

Electrical control system
Use a complete control system to adjust the operation of the motor, protect the motor, and avoid overload operation.
Packing & Delivery
Wood pellet mill machine packaging instructions
Wood pellet making machine is packed in wooden boxes, which ensures that the equipment has enough storage space during transportation to avoid collisions and equipment deformation.
Company Profile
Shandong Halo Imp&Exp Co., Ltd. is a professional machine manufacturer. located in Jinan city, Shandong Province, China and near to Qingdao port.
Our main products are feed processing machines wood pellet machine wood pellet stove electric flat cart etc. High quality, standard-tested, long-term foreign buyers such as:, Africa, Southeast Asia, Europe and America, and finally South America etc.We can support OEM at the same time.
We have a mature, first-class production team, hoping to give each other an opportunity to meet our own needs. Looking forward to establish business with you!Welcome to visit us!
FAQ
Q: Are you a manufacturer or an agent?
We are a manufacturer and can provide any spare parts for the machine.
Q: Can your company help me design the machine model I want?
We can help you design the model and output of the machine you need for free, and make our suggestions scientifically.
Q: What are your pre-sale services?
We provide you with free raw material testing videos and photos, and test the performance indicators of each machine before shipment. The machine will be packed and packed in wooden boxes before leaving the factory.
Q: How long is your after-sales service?
We provide one-year after-sales service. During the warranty period, we provide related accessories for free.
Q: Can your company help me design the machine model I want?
We can help you design the model and output of the machine you need for free, and make our suggestions scientifically.
Q: What are your pre-sale services?
We provide you with free raw material testing videos and photos, and test the performance indicators of each machine before shipment. The machine will be packed and packed in wooden boxes before leaving the factory.
Q: How long is your after-sales service?
We provide one-year after-sales service. During the warranty period, we provide related accessories for free.
