New non woven round piece makeup remover pad making machine
- Category: >>>
- Supplier: Lianyungang Zhixinjie Machinery Co. Ltd
Share on (1600427849970):
Product Overview
Description

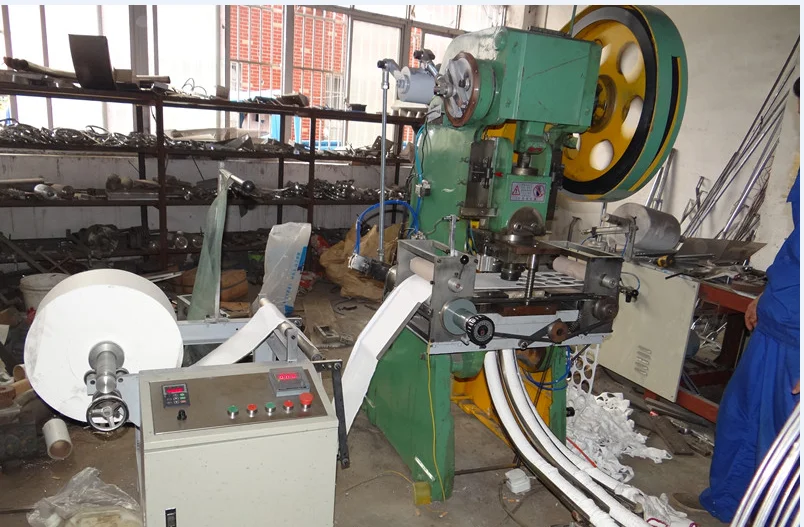

Overall display of equipment
Technical Paramenters
Model 型号 | DL-XY New non-woven round piece makeup remover pad making machine DL-XY新型无纺布圆片卸妆棉片机 |
Counting 设备计数 | Mechanical counting机械式计数 |
Material width 材料宽度 | 200Mm |
Discharge channel出料通道 | Three 一出三 |
Punching die冲切模具 | Gr12mov material 采用Gr12MOV材质 |
Maximum width of raw material设备有效门幅 | 230MM |
Operating system 操作系统 | Touch screen触摸屏 |
Punching circle diameter 冲切圆直径 | 57MM |
Unwiding diameter 放卷直径 | 1000MM |
The machine frame 整机机架 | I-shaped channel steel 工型槽钢 |
Embossing roller压花辊 | Steel to steel 1 set of corrosion roller 钢对钢1套腐蚀辊 |
Motor 电机 | Grand Tiger 威虎 |
Frequency converter 变频器 | Mitsubishi，E-control 三菱，易控 |
Worm gear case 蜗轮箱 | Location Yixing, Jiangsu Province 江苏宜兴 |
Control switch 控制开关 | Made by Huayu Group华宇集团产 |
Contactor 接触器 | Chint Group正泰 |
温控 | Chint Group正泰 |
Bearing 轴承 | The main parts are produced by Harbin General Factory |
Other bearing其他部位轴承 | Shanghai, hangzhou上海 杭州 |
production speed 生产速度 | 200-300pcs/min |
Nominal voltage 额定电压 | 380V |
Rated frequency额定频率 | 50Hz |
Total power总功率 | 5.5kw |
Overall size外形尺寸约 | L1000mm×W1000mm×H2000mm |
Weight 设备重量 | 2300kg |
Function and Characteristic
The performance structure and characteristics of the equipment 设备的性能结构及特点
1.Working principle of the equipment: raw material servo loading - heating embossing - automatic conveying → stamping and cutting → arranging and discharging → counting - fully automatic completion
设备的工作原理： 原料伺服卷放料-加温压花-自动输送→冲压裁片→排列出料→计数--全自动完成.
2.The equipment is equipped with a set of heating embossing device for steel roll. When embossing is required, the embossing can be adjusted. When embossing is not required, the embossing roll can be raised to achieve the purpose of no embossing (patterns can be customized according to customer requirements)
设备配钢辊对钢辊加温压花装置1套，需要压花时调节压花,不需要压花时可将压花辊升起,达到不压花的目的.(可根据客户要求定做花纹）
The equipment is equipped with a complete set of circular cutter forming molds, which are made of special steel , three groups of circular cutters are arranged in a reasonable dislocation mode, which reduces the loss of raw materials, reduces the relative product cost and improves the quality of products
设备配有一整套圆形切刀成型模具,材料均采用特种钢材制作.其中三组圆形切刀以合理的错位式排列,使原材料损耗量降至低程度,相对产品成本降低,提高了
4.The equipment is equipped with three tension control devices to adapt to the production of various materials And equipped with waste automatic winding device, which can automatically recycle waste.
设备配有三处调节涨力控制装置，以便适应各种材料的生产.并配废料自动收卷装置,可自动回收废料。
5.The transmission of the equipment cutter adopts cam type mechanical transmission, with accurate punching and no burr
设备切刀部位的传动采用凸轮式机械传动，冲切准确,无毛边.
6.The whole frame is made of international standard formed steel with rust proof treatment on the surface. The welding size of the frame is accurate. The main components of standard screws are domestic 45# steel and hexagon socket screws The table top and parts that are easy to cause sanitary impact on the product are all made of 304 stainless steel.
整体机架采用国际标准成型钢材,表面作防锈处理,机架焊接尺寸准确,标准件螺丝主要部件采用国产45#钢和内六角螺丝.台面及对产品易造成卫生影响的部位全部采用304不锈钢材料制作。
7.The equipment adopts high-precision frequency conversion and related electrical control operation. The wiring of electrical parts is standardized and reasonable, safe, neat and easy to operate.
设备采用高精度变频及相关电器控制操作，电器部位布线规范合理，安全，整齐,操作简便。
设备的工作原理： 原料伺服卷放料-加温压花-自动输送→冲压裁片→排列出料→计数--全自动完成.
2.The equipment is equipped with a set of heating embossing device for steel roll. When embossing is required, the embossing can be adjusted. When embossing is not required, the embossing roll can be raised to achieve the purpose of no embossing (patterns can be customized according to customer requirements)
设备配钢辊对钢辊加温压花装置1套，需要压花时调节压花,不需要压花时可将压花辊升起,达到不压花的目的.(可根据客户要求定做花纹）
The equipment is equipped with a complete set of circular cutter forming molds, which are made of special steel , three groups of circular cutters are arranged in a reasonable dislocation mode, which reduces the loss of raw materials, reduces the relative product cost and improves the quality of products
设备配有一整套圆形切刀成型模具,材料均采用特种钢材制作.其中三组圆形切刀以合理的错位式排列,使原材料损耗量降至低程度,相对产品成本降低,提高了
4.The equipment is equipped with three tension control devices to adapt to the production of various materials And equipped with waste automatic winding device, which can automatically recycle waste.
设备配有三处调节涨力控制装置，以便适应各种材料的生产.并配废料自动收卷装置,可自动回收废料。
5.The transmission of the equipment cutter adopts cam type mechanical transmission, with accurate punching and no burr
设备切刀部位的传动采用凸轮式机械传动，冲切准确,无毛边.
6.The whole frame is made of international standard formed steel with rust proof treatment on the surface. The welding size of the frame is accurate. The main components of standard screws are domestic 45# steel and hexagon socket screws The table top and parts that are easy to cause sanitary impact on the product are all made of 304 stainless steel.
整体机架采用国际标准成型钢材,表面作防锈处理,机架焊接尺寸准确,标准件螺丝主要部件采用国产45#钢和内六角螺丝.台面及对产品易造成卫生影响的部位全部采用304不锈钢材料制作。
7.The equipment adopts high-precision frequency conversion and related electrical control operation. The wiring of electrical parts is standardized and reasonable, safe, neat and easy to operate.
设备采用高精度变频及相关电器控制操作，电器部位布线规范合理，安全，整齐,操作简便。
