Wholesale Automatic Maxi Roll Making Machine Production Line For Small Business Ideas
- Category: >>>
- Supplier: Fujian Xinyun Machinery Development Co. Ltd.
Share on (1600427911521):
Product Overview
Description
Wholesale Automatic Maxi Roll Making Machine Production Line For Small Business Ideas
Technical performance characteristic：

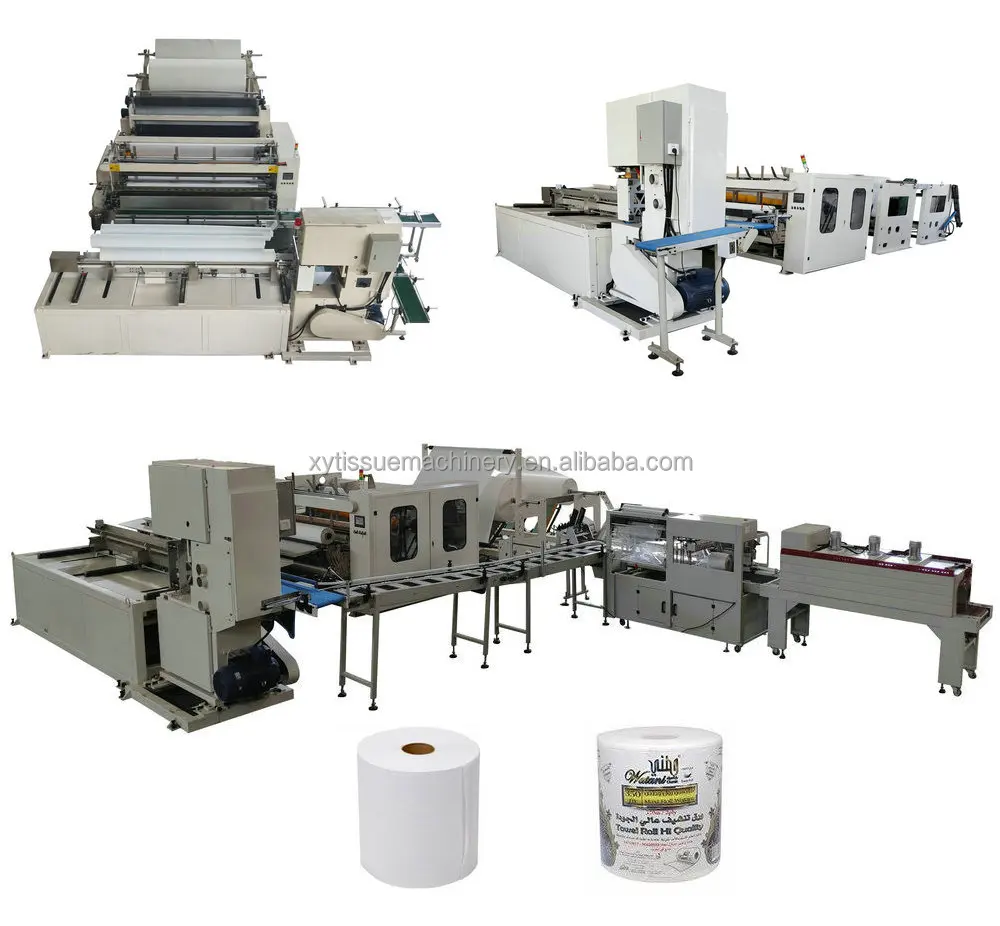

This production line consists of :
XY-TQ-B Full Automatic Maxi Roll Rewinding Machine,
XY-AI-500 Full Automatic Maxi Roll Band Saw Cutting Machine
XY-TN-269 Full Automatic Maxi Roll Heat Shrink Packing Machine
From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll paper products.
This production line consists of :
XY-TQ-B Full Automatic Maxi Roll Rewinding Machine,
XY-AI-500 Full Automatic Maxi Roll Band Saw Cutting Machine
XY-TN-269 Full Automatic Maxi Roll Heat Shrink Packing Machine
From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing maxi roll paper products.

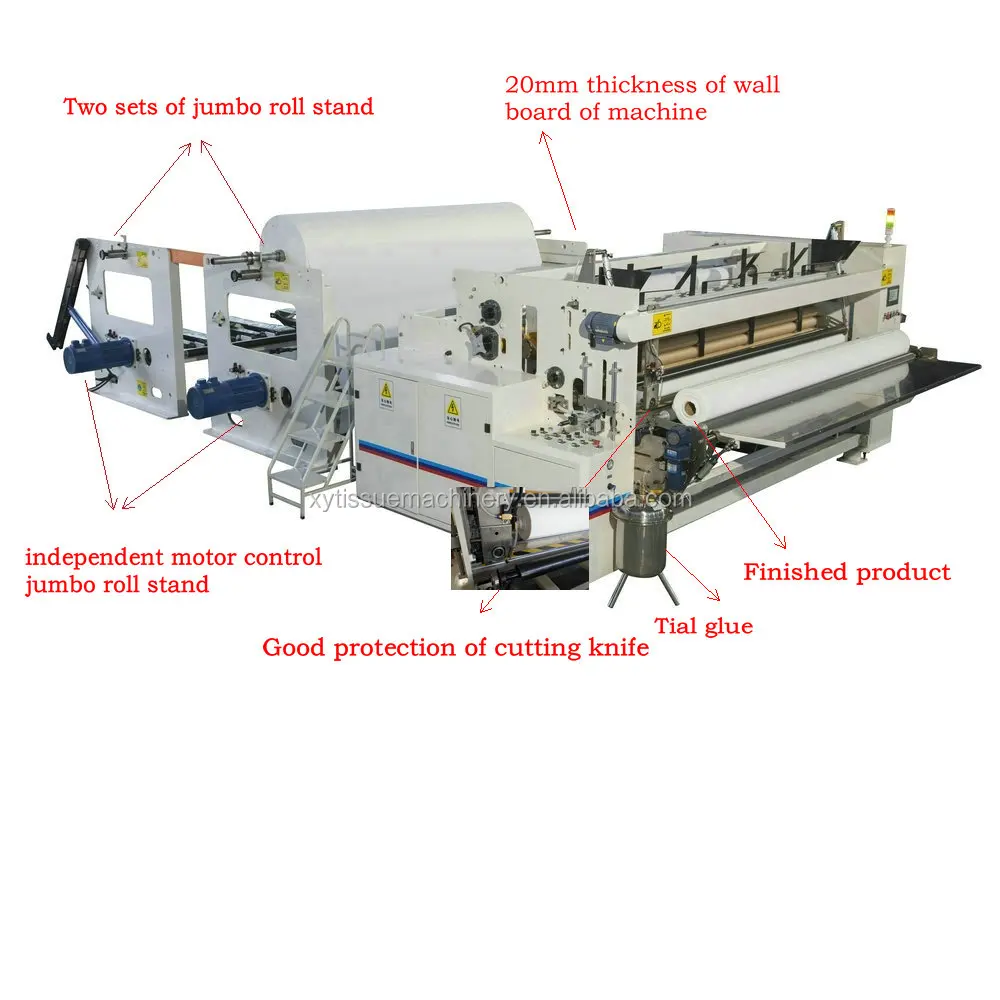

XY-TQ-B Full Automatic Maxi Roll Rewinding Machine,
Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Model | XY-TQ-B Full automatic maxi roll rewinding machine |
Jumbo Roll Max Width | 2800mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
Perforation Distance | 4 anvil Blades（115mm）(Other size can be specified) |
Finished Product Diameter | Φ90~φ280mm |
Finished Product Core Diameter | φ38~φ76mm |
Production Speed | 200~230m/min |
Program Controller | PLC( INVT ) |
Unwind Stands | 2 Stands（Need to be specified） |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user） |
Main Power | 14KW 380V 50HZ |
Dimension | 7000*4000*1900(L*W*H) |
Weight | About 7T |
Edge-Line Embossing | Steel to steel (Pneumatic Control) |
Full Embossment | Steel to rubber. |

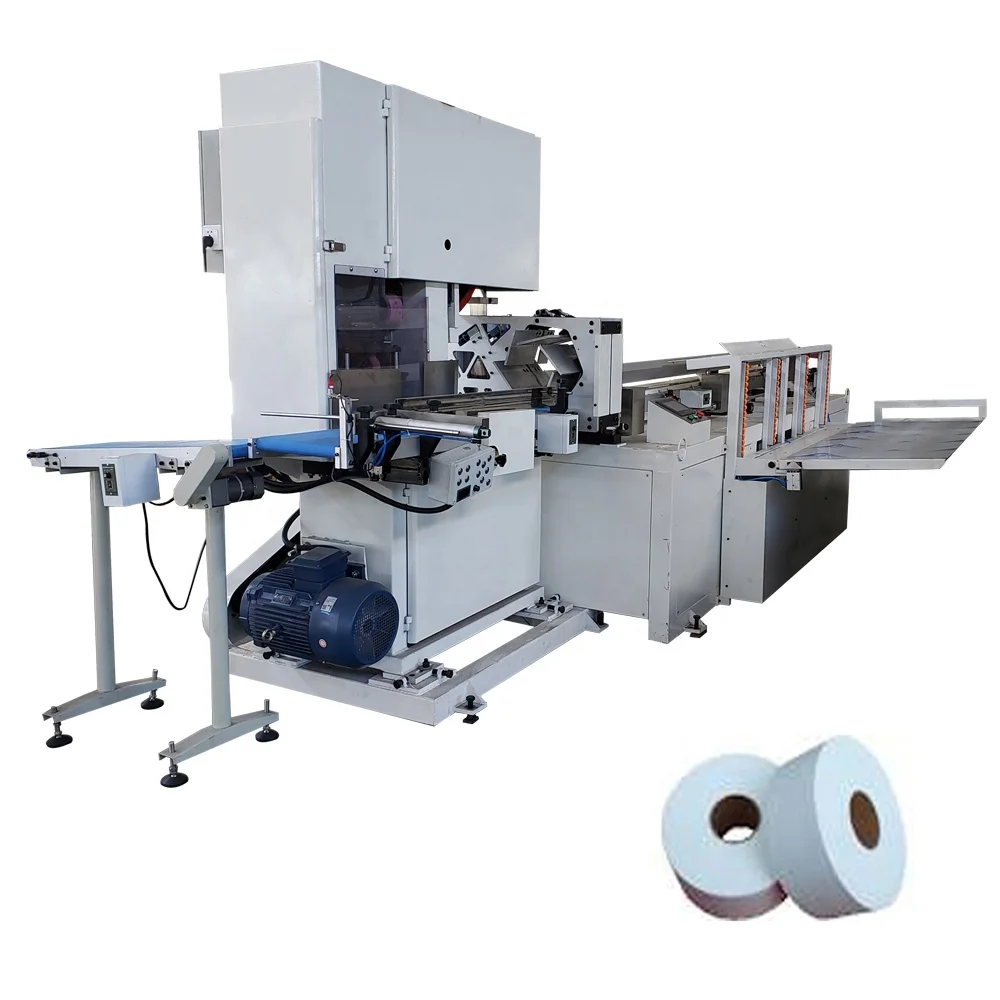

XY-AI-500 Full Automatic Maxi Roll Band Saw Cutting Machine
Technical performance characteristic：
The equipment is the latest research and development which is the extension of the company with the current market situation.Using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electro-mechanical integration control and other international advanced technology con automatically detect each key action, has good fault
information prompt system, make the whole production line achieving the best working state.
The equipment is the latest research and development which is the extension of the company with the current market situation.Using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electro-mechanical integration control and other international advanced technology con automatically detect each key action, has good fault
information prompt system, make the whole production line achieving the best working state.
Model | XY-AI-500 Full Automatic Maxi Roll Band Saw Cutting Machine |
Cutting speed | 15-25 cuts/min |
Cutting blade | band saw blade(size 5180*100*1.05) |
Toilet log length | 2200 mm/2850 mm |
Finished toilet roll length | 300 mm |
Finished toilet roll diameter | 150-300 mm |
Cutting tolerance | +- 2 mm |
Power supply | 15KW 380V 50HZ |
Overall size(L*W*H) | 2800*1500*2100 mm |
Weight | 1100 KG |

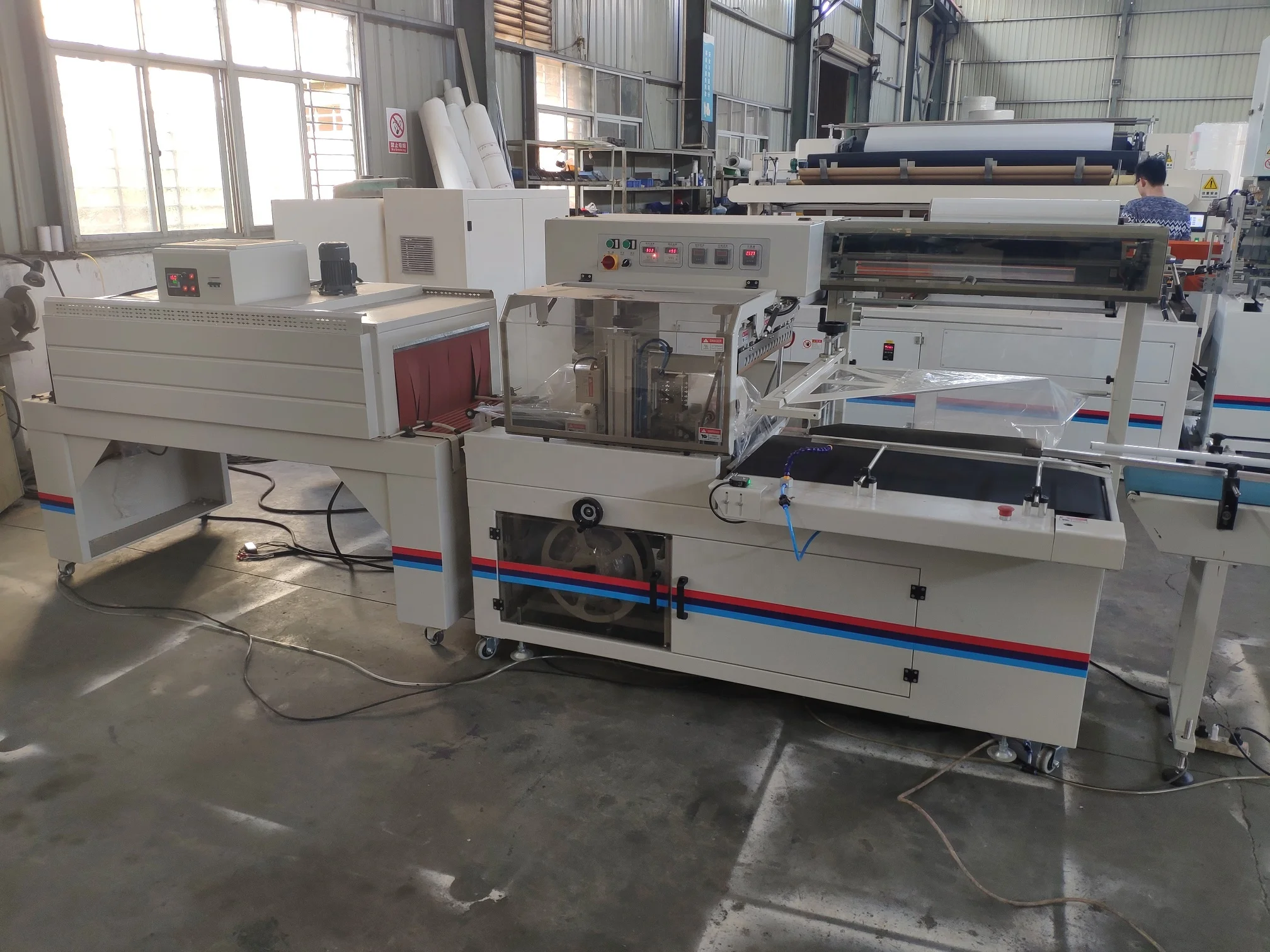

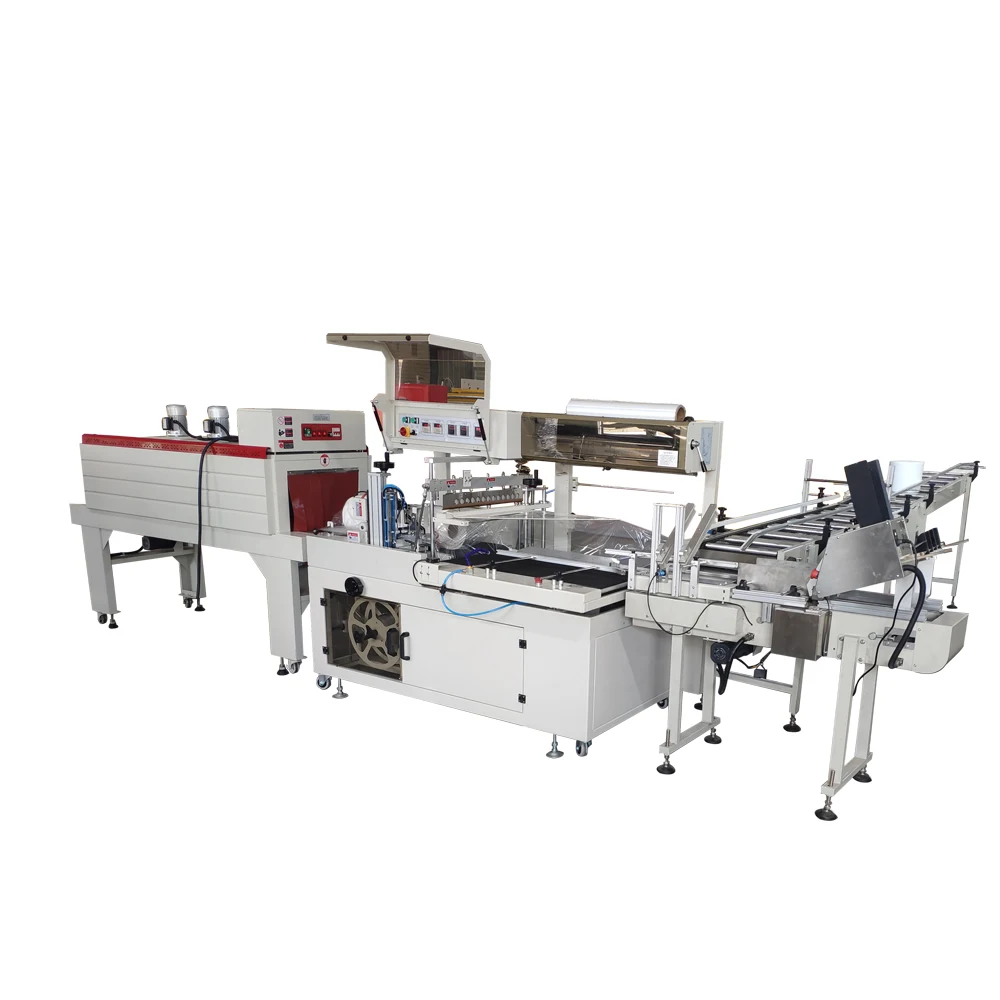

XY-TN-269 Full Automatic Maxi Roll Heat Shrink Packing Machine
Description of the equipment:
The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
Model | 4525L cutting and sealing machine |
Speed (bags / min) | 20-40 rolls/min |
Packing size (mm) | L800*W400*H200MM |
Main Power | 1.55KW 220V 50Hz/60Hz |
Dimension(mm) | L1500×W750×H1360mm |
Weight | About 300KG |
Material of film | POF |
Model | 4525 temperature shrink machine | ||
Speed (bags / min) | 0-10m/min | ||
Max width of film(mm) | 430 | ||
Packing size (mm) | L450*W220*H120 mm | ||
Main Power | 12KW 380V 50/60Hz | ||
Dimension(mm) | L1600×W700×H1300mm | ||
Weight | About 150KG | ||
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
