Низкая цена, оптовая продажа, индивидуальная высота, 4 ножки, самонесущая телескопическая башня
- Category: >>>
- Supplier: Guangzhou Guangxin Communication Equipment Co. Ltd.
Share on (1600427912746):
Product Overview
Description
Products Description
Product name | Telescopic Transmission Steel Tower |
Certification | ISO9001 |
Minimum Order Quantity | 1 set |
Surface Finish | Hot Dip Galvanization |
Wind Load | 0.35-0.85kN/sqm |
Steel Type | Steel Type |
Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
Yield Strength | Fy≥235MPa |
Tensile Strength | Fu≥400MPa |
Elongation | σ≥20% |
Galvanized layer | T≥65μm |
Height | customized to requests |
Design | 4 legs self-supporting or free standing lattice tower |
Structure | Multiple platforms and brackets for mounting power cables or wires, customized to requests. |
Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
Fixing/Fastening | Bolts and nuts, connecting plates |
Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
Wind Load | 0.35-1.0kN/sqm |
Warranty | 3 Years |
Material | Weldable Structural Angle Steel Plates Or Pipes |
Lifespan | 20-50 Years |
Lead Time | 20-30 Days |

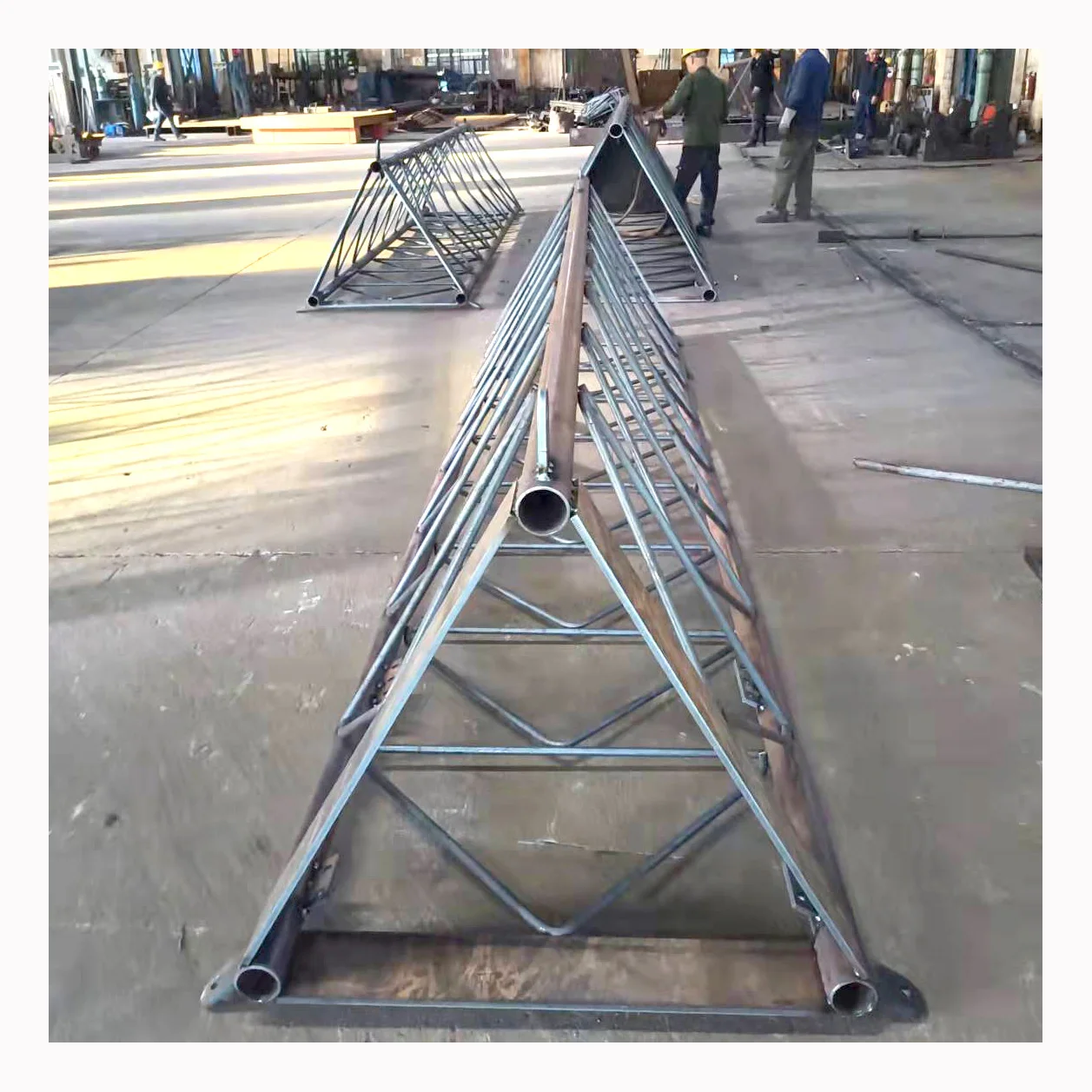

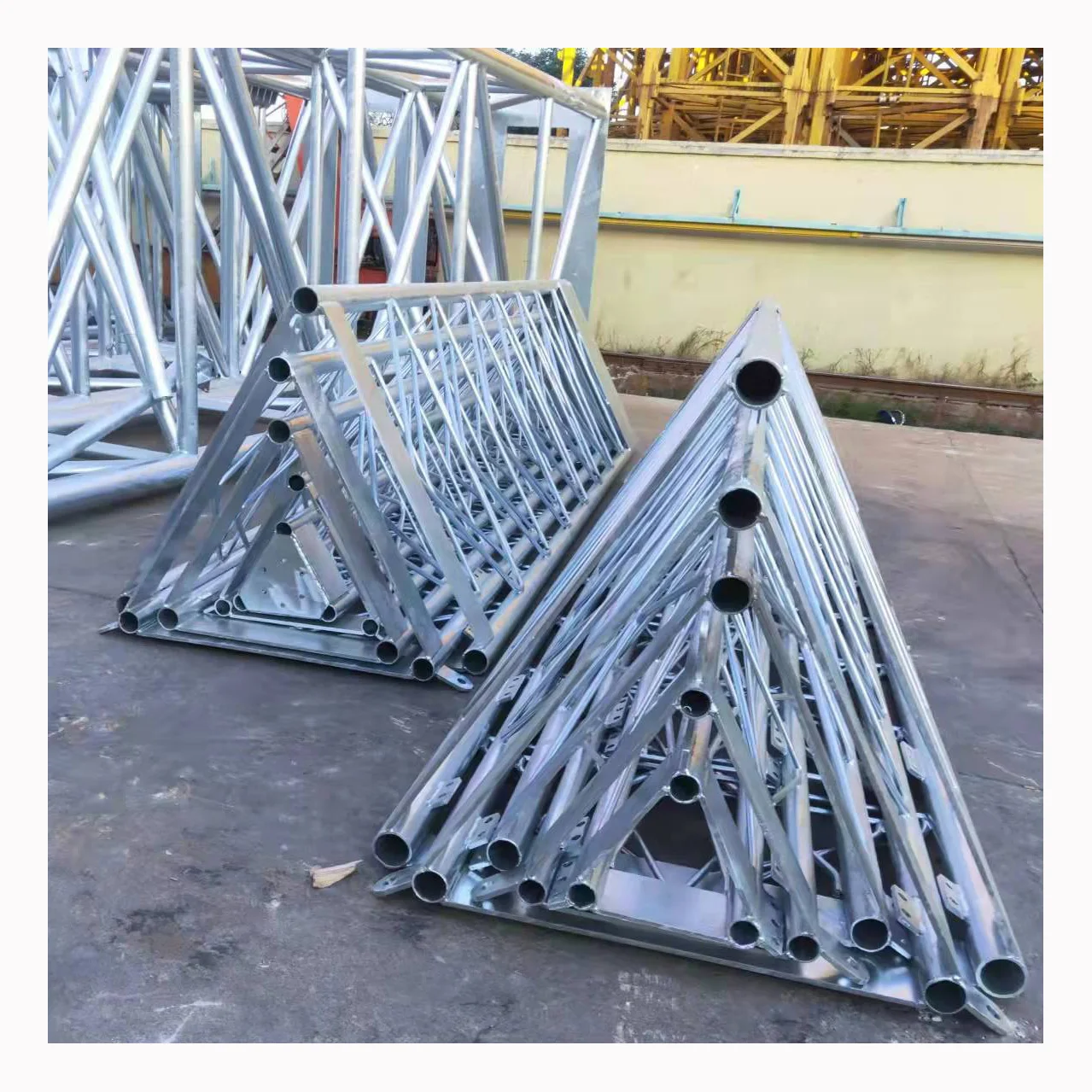

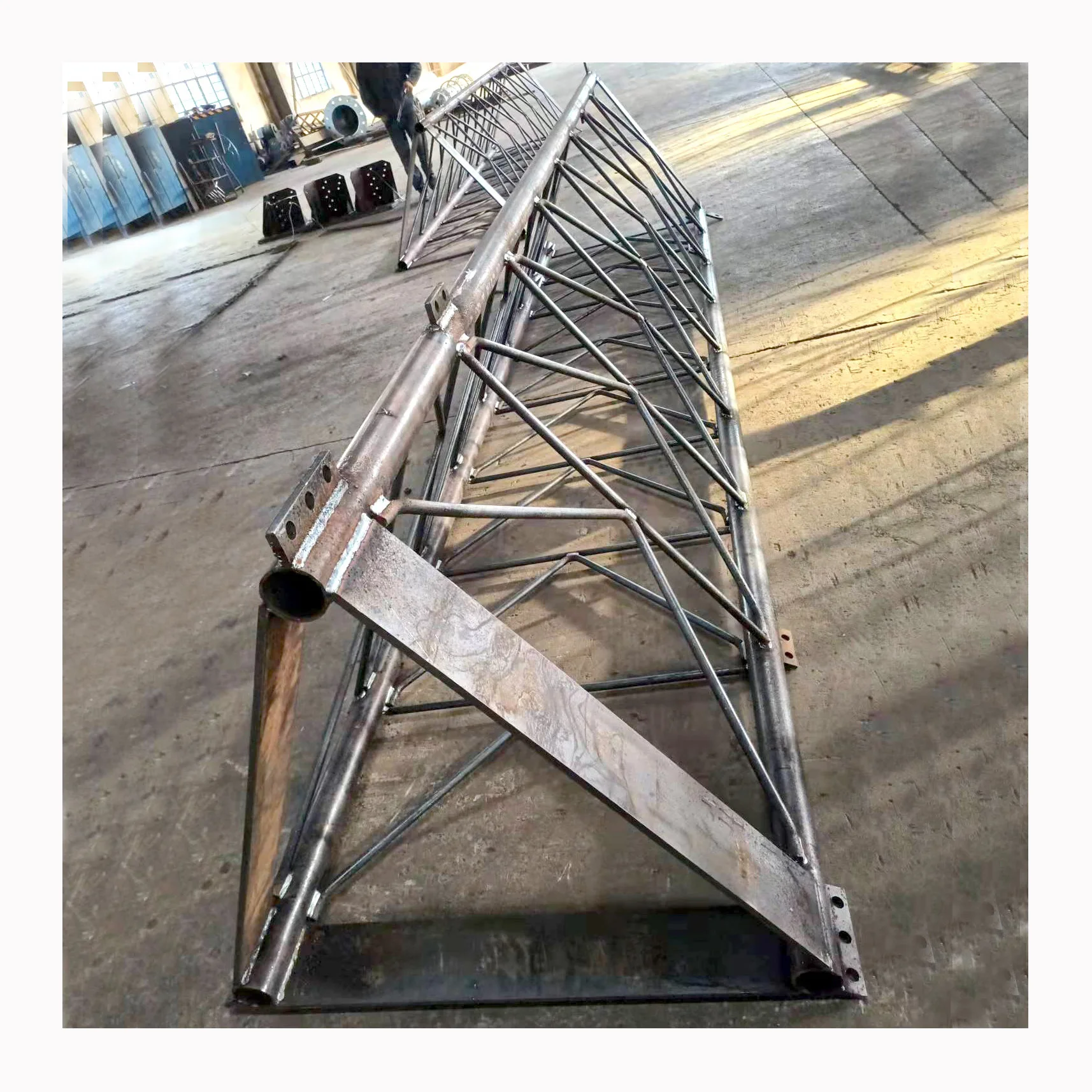

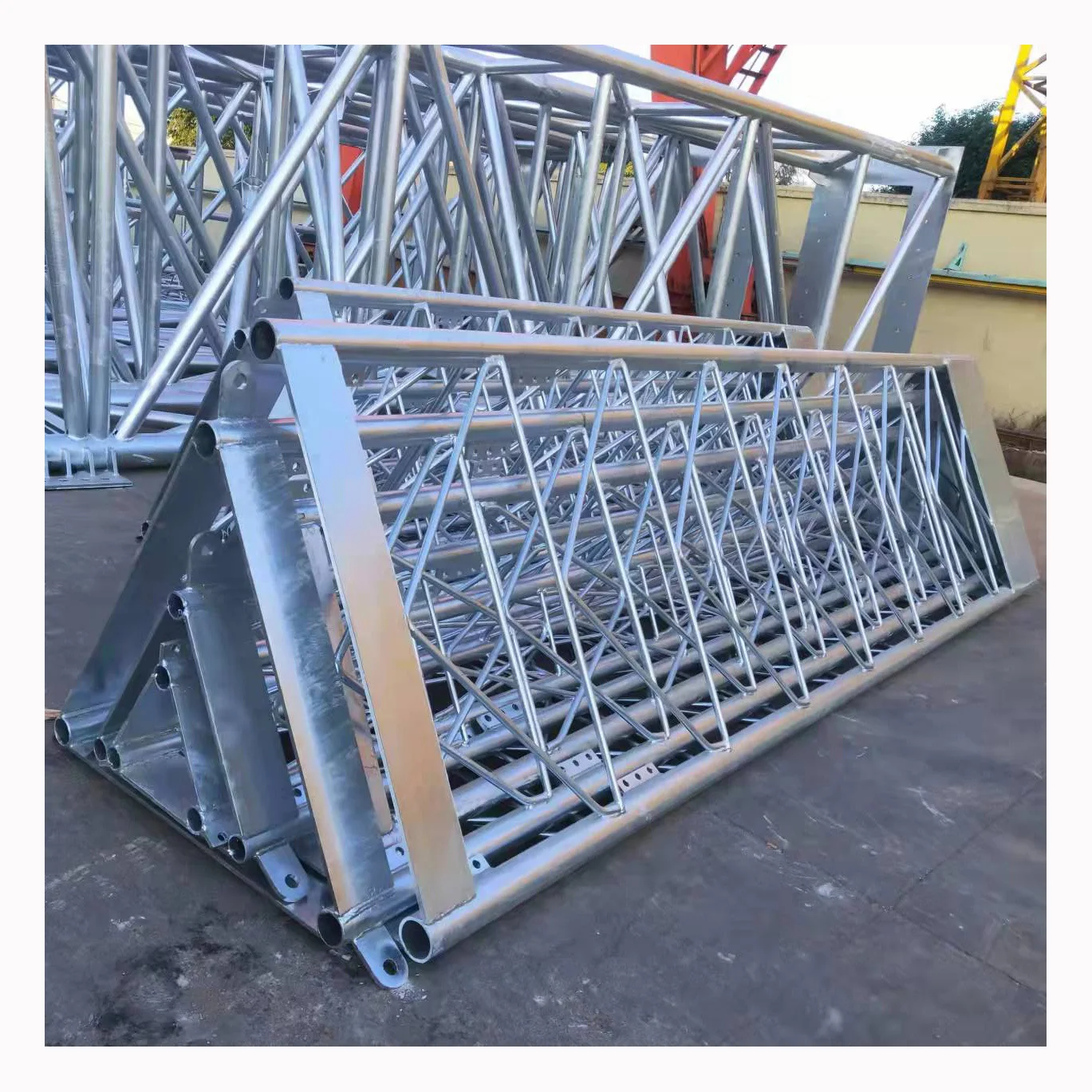

Details Images
Recommend Products
Company Profile
Guangzhou Guangxin Telecommunication Equipment Co., Ltd.
Registered and established on August 29, 2009, with capital of 101,000,000 Yuan, Guangzhou Guangxin Telecommunication Equipment Co., Ltd. is large scale manufacturer of telecommunications and traffic facilities, including telecommunications monopoles and towers, street light poles and towers, power grid & electricity wire towers, lightning protection poles, artificial bionic trees for camouflaged telecommunications, CCTV security monitor and landscaping, steel structure portal frames for LED display screens, billboards, guideboards, plants etc.
Our Factory
Covering over 10,000 square meters of manufacturing base, Guangxin factory is equipped with 13m long and large one-stop forming and bending machine, Versacup plasma cutting machines, BL2020 CNC steel profile manufacturing line, PJ103 CNC hydraulic punching machines, vertical straightening machines etc. The factory was approved and certified with ISO9001:2008 management system, Building Steel Structure Contractor Class 3 and many Software Copyrights and patents. With these certifications and copyrights and patents, we can provide a comprehensive services for design, manufacturing and installation as well as OEM/ODM customization.
