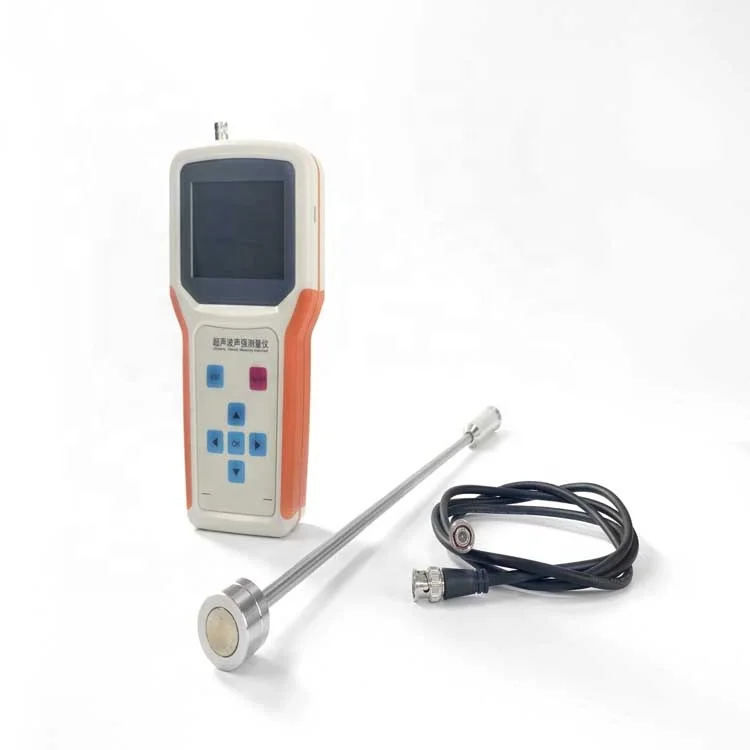

Ultrasonic cleaner sound intensity measuring instrument meter power measuring meter ultrasonic testing equipment

Product Overview

Description

1, Testing principle of sound intensity measuring instrument

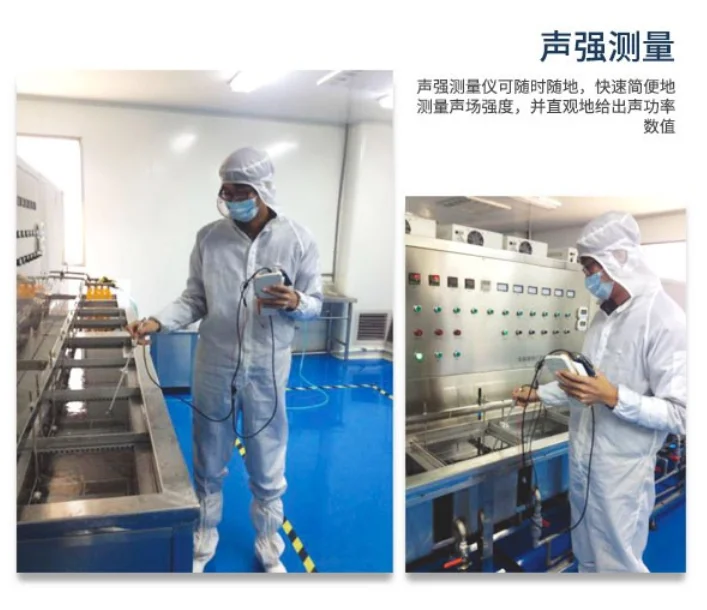

Ultrasonic intensity (sound power) in liquid sound field is one of the most important indexes of ultrasonic system. It has a direct influence on the cleaning effect of the cleaning machine and the working efficiency of the ultrasonic processor. The sound intensity measuring instrument can measure the intensity of sound field quickly and conveniently at any time and place, and give the value of sound power intuitively.



main characteristic



l  Realize one key automatic measurement and display sound intensity value and waveform automatically

l  Above 200I series With digital readout sound intensity value and frequency

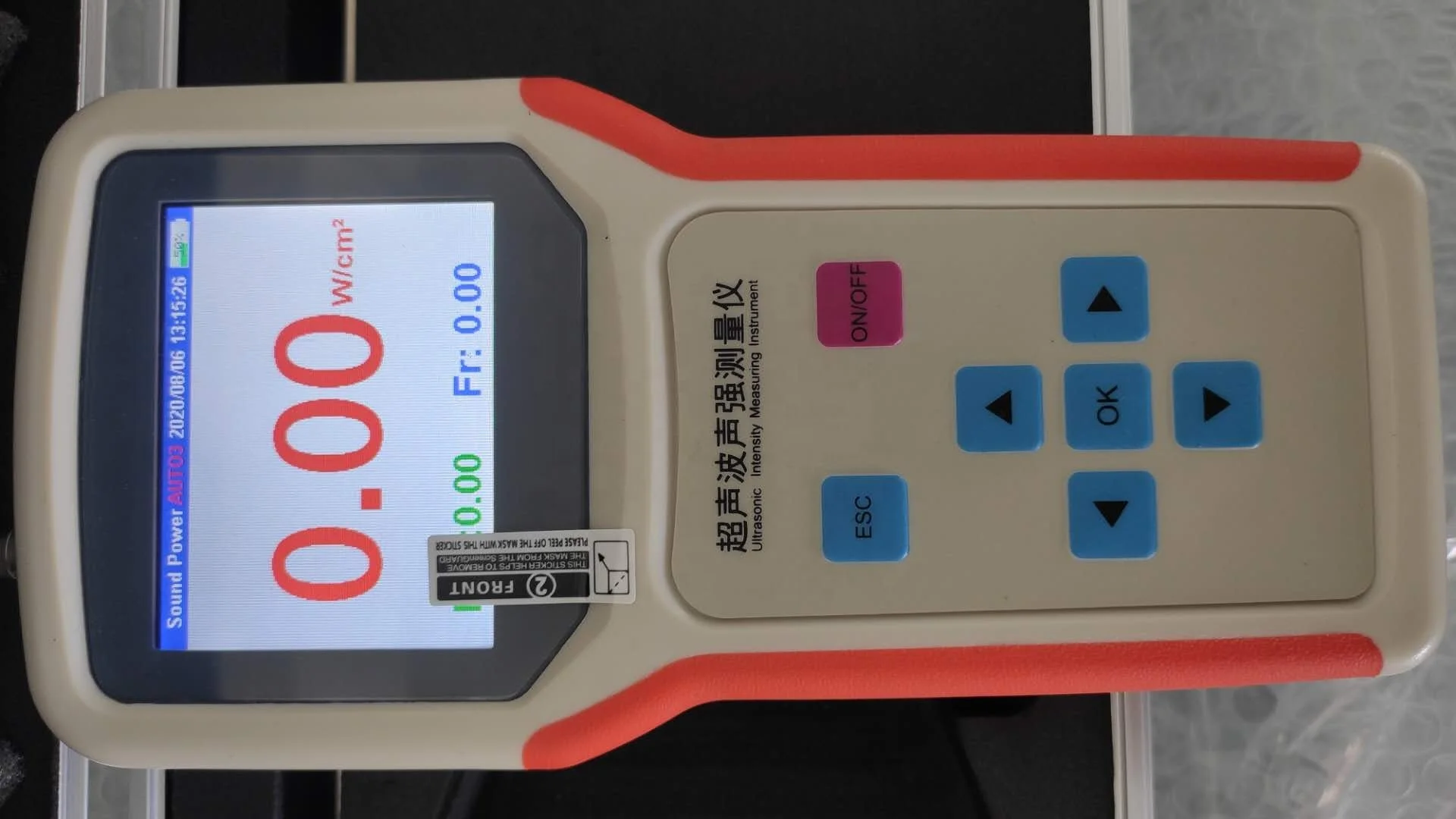

l  320 × 240 3.2 inch color LCD with LED backlight

l  Built in 2300mah lithium battery pack, external AC power adapter

l  Automatic shutdown without signal input within 10 minutes





Product advantages



1,This instrument is simple to use and accurate in measurement.

2,Frequency measurement above 200I series has intelligent gear setting mode without manual selection.

3,Real time power detection to remind users in time.

4,Power saving mode, long working time.



Product advantages



1,This instrument is simple to use and accurate in measurement.

2,Frequency measurement above 200I series has intelligent gear setting mode without manual selection.

3,Real time power detection to remind users in time.

4,Power saving mode, long working time.

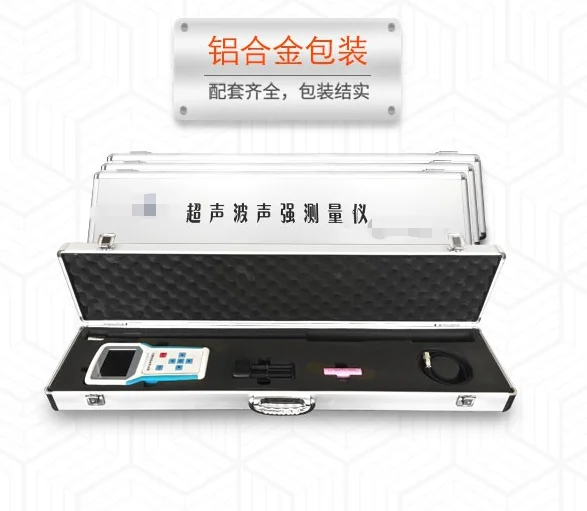

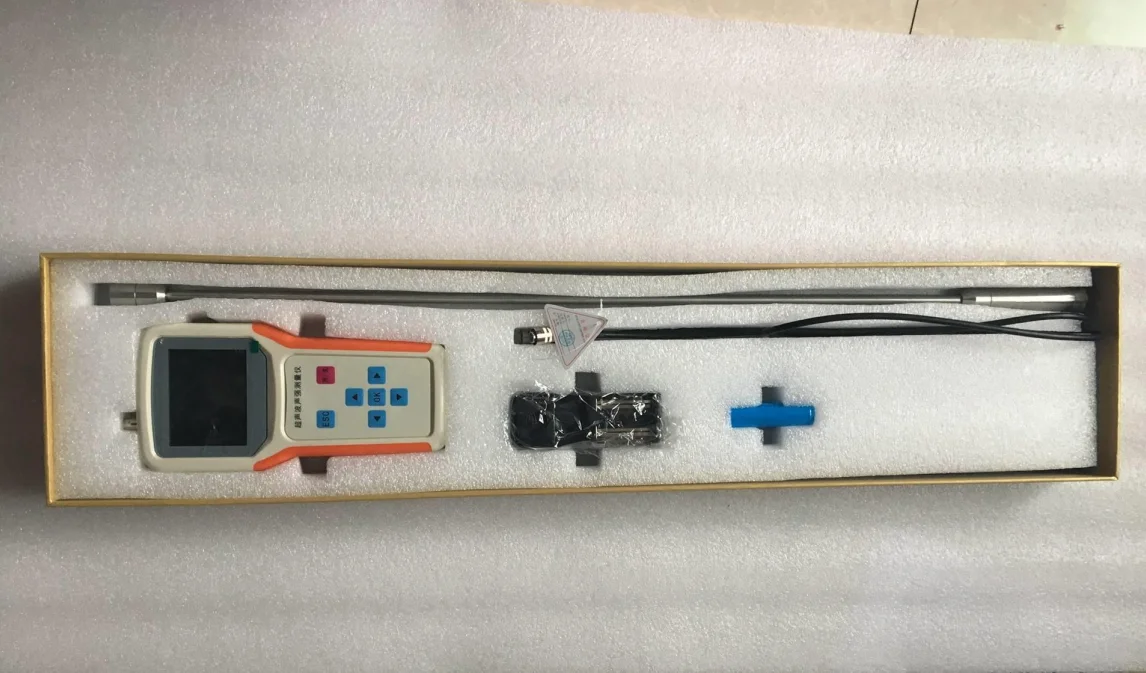

                                                                     packing
