Product Overview
Description
Products Description
High-Speed TMT Rebar Rolling Mill Production Line
Billet size: 150*150*12000mm
Product specifications: Ø8-Ø32mm, 12000mm length rebar

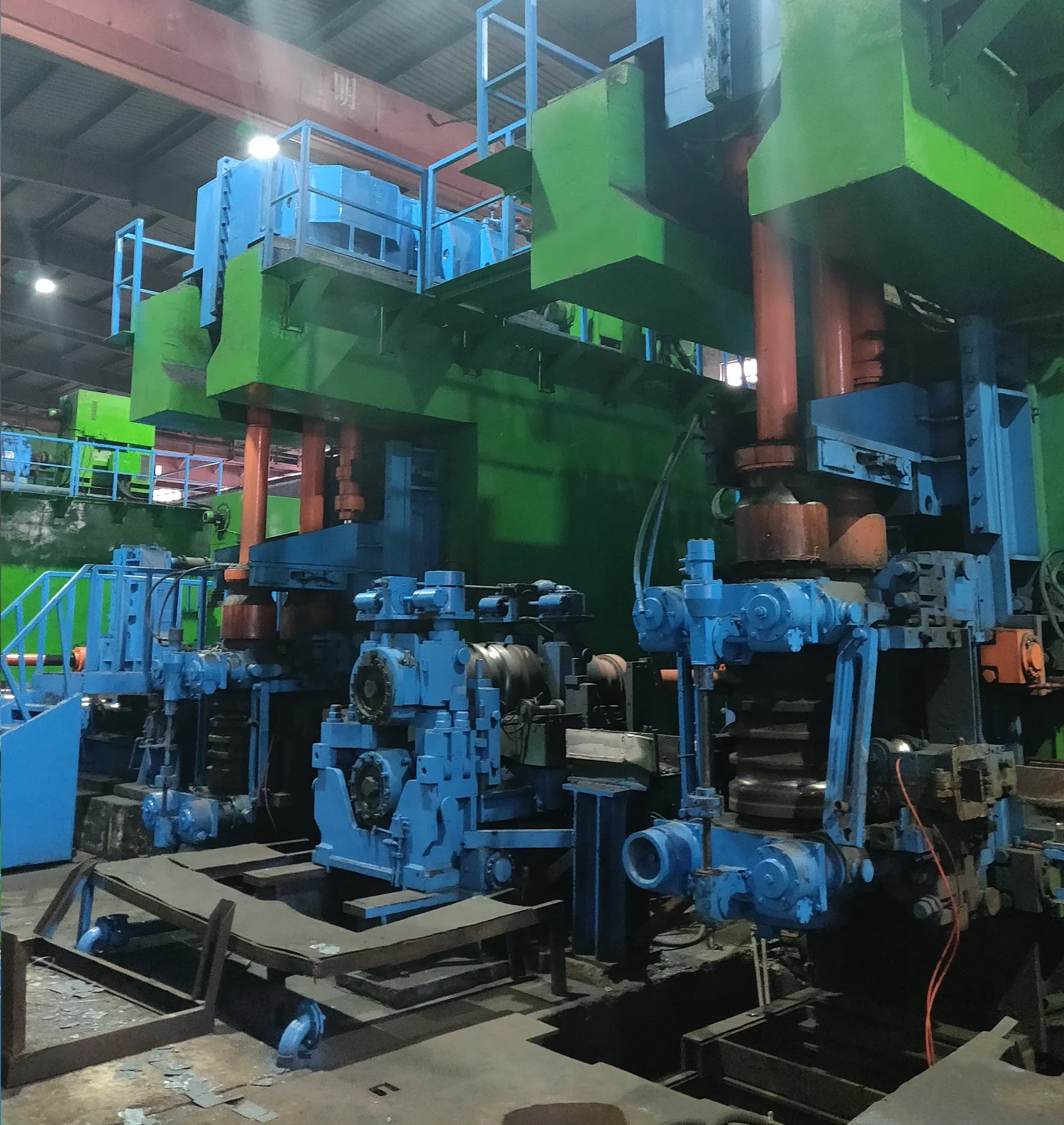

Roughing rolling mill stands: Ø550 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.
Intermediate rolling mill stands: Ø420 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.
Finishing rolling mill stands: Ø320 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands. 3 of the rolling mill stands are horizontal/vertical interchangeable rolling mill stands.
Rolling speed: 12-18 meters/second
Rolling Mill Type | High-Speed TMT Rebar Rolling Mill Production Line |
Input Material | 150x150x12000mm Steel Billet |
Steel Grade | High/Low Alloy Steel, Structure Steel, Carbon Steel |
Rolling Speed | 12-18 meters/second |
Finished Product Size | Rebar: Φ8 mm, Φ 10 mm, Φ 12mm,Φ14 mm, Φ16mm, Φ 20 mm,Φ24mm,Φ32 mm Length: 12000mm |
Annual Capacity | 600,000 Ton/Year |
Advantages
Each and every piece of the machinery we provide can be operated smoothly.
The operating noise meets the national standard.
The supplier will provide technical support and guidance on-site while the demand covering the cost.
The rolling line is compact and can be operated smoothly at a low cost.
The rolling line also has achieved a high degree of automated production, saving great quantity costs.
The supplier will provide technical support and guidance on-site while the demand covering the cost.
The rolling line is compact and can be operated smoothly at a low cost.
The rolling line also has achieved a high degree of automated production, saving great quantity costs.
Our Company Profile
INSTRUCTION OF OUR FACTORY
Hani is Hot Rolling Mill manufacturing company working mainly in the area of the bar and wire rod mills, high-speed wire rod mills, high-speed rebar rolling mills, TMT rolling mills, flying shear, cold strip rolling mill, reheating furnace, induction furnace, intermediate frequency furnace, electric arc furnace, Ladle refining furnace, blast furnace, continuous casting machine.
Hani is the one-stop supplier able to design, manufacture, install and commission your hot rolling mill plant from A to Z.
SERVICE
We can also design, manufacture and revamp, upgrade your rolling mill plant according to your requirements.
Upgrading your existing Bar and Wire Rod mills, to increase production and improve efficiency and product quality, is our
specialization.
Our Rolling Mill Machinery not only has a ready installed in the domestic market but are also exported to Ethiopia,
Kazakhstan, Thailand, Vietnam, Indonesia, India, Myanmar, and other countries and regions.
Detailed Images
TMT Rebar Rolling Mill Line Lay Out
Process Flow: (Scrap steel melting furnace, continuous casting machine, billet heating furnace) Reheating furnace→ Roughing mil l→ Intermediate mill→ 3#Flying shear → Pre-finishing mills → Mono Block Mills/Finishing Mill → Cooling Bed → Sizing → Collecting → Packing →Labeling → Storage

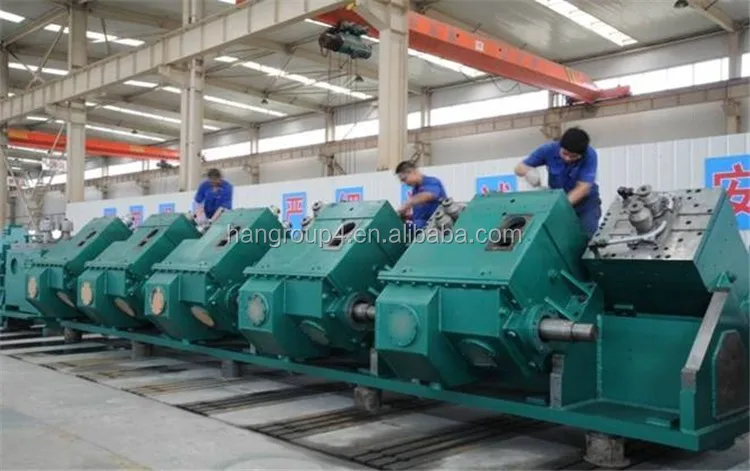

Finishing Mill/Mono Block Mill
●Mill stand use top crossed 45℃ composition form to achieve no twisting, no contact axis, little axis and shock for equipment,
besides, it decrease the center of gravity height, the stability increased as well, while, the total weight has decreased and it
is very easy to maintain. Ten stands are concentrated transmission.
●Roll frame is composed of roller box, bevel gearbox and spare parts of bevel gearbox.
●Roller box and bevel gearbox adopt outside combinational instruction.
●Roller loop is tungsten carbide, it is connected on the cantilever roll shaft, we use the specific hydraulic changing roll
equipment to replace roll loop, it is convenient and easy.
besides, it decrease the center of gravity height, the stability increased as well, while, the total weight has decreased and it
is very easy to maintain. Ten stands are concentrated transmission.
●Roll frame is composed of roller box, bevel gearbox and spare parts of bevel gearbox.
●Roller box and bevel gearbox adopt outside combinational instruction.
●Roller loop is tungsten carbide, it is connected on the cantilever roll shaft, we use the specific hydraulic changing roll
equipment to replace roll loop, it is convenient and easy.
3 # Flying Shear
Flying shear is composed of transmission equipment, cutting support base, and upper & lower spindle. The upper spindle has
an optical-electricity-encoder to control the start-stop position of the shear blade in the processing of the cutting. The flying
shear is after conveying guide groove, it’s for cutting head of rolled piece and emergency accident.
As the head and rear part of the rolling parts have some defect or the temperature of steel is too low, the flying shear needs to cut the head and rear to ensure the quality of the rolling parts before it gets into the finishing mill.
an optical-electricity-encoder to control the start-stop position of the shear blade in the processing of the cutting. The flying
shear is after conveying guide groove, it’s for cutting head of rolled piece and emergency accident.
As the head and rear part of the rolling parts have some defect or the temperature of steel is too low, the flying shear needs to cut the head and rear to ensure the quality of the rolling parts before it gets into the finishing mill.
Walking Beam Reheating Furnace
Billet section specifications: 150×150mm
Reheating furnace body: 24m×6m L×W
Billet length: 4m/6m
Billet loading method: Single row
Steel grade: Carbon structural steel and low alloy (Q235, G40, G60, G75)
Furnace type: end feeding, side discharging, air-heated pusher heating furnace
Billet heating furnace temperature: 1100-1150℃。
The furnace efficiency shall above 65 %.
Reheating furnace body: 24m×6m L×W
Billet length: 4m/6m
Billet loading method: Single row
Steel grade: Carbon structural steel and low alloy (Q235, G40, G60, G75)
Furnace type: end feeding, side discharging, air-heated pusher heating furnace
Billet heating furnace temperature: 1100-1150℃。
The furnace efficiency shall above 65 %.
TMT Quenching System
The Function of the Vertical Looper: The tension fluctuation caused by the dynamic interference of the wire rod in the high-speed rolling process, which leads to the fluctuation of the rolling size, the vertical looper can eliminate part of the tension to ensure the rolling accuracy of the rolled sheet.
The Structure of the Vertical Looper; the vertical looper is composed of a set-up roller, a support roller and a looper groove driven by a cylinder. The set-up roll is used to help form the sleeve, and the side wall is used to support the rolling piece forming the vertical sleeve. The sleeve is installed in a central column, which is easy to rotate and open to adjust the guide guard of the rolling mill.
The cylinder diameter of the set-up roller is φ160mm; the stroke is 200mm.
The working height of the looper is 100mm above the rolling center line.
The maximum height of the looper is 400mm above the rolling center line.
The Structure of the Vertical Looper; the vertical looper is composed of a set-up roller, a support roller and a looper groove driven by a cylinder. The set-up roll is used to help form the sleeve, and the side wall is used to support the rolling piece forming the vertical sleeve. The sleeve is installed in a central column, which is easy to rotate and open to adjust the guide guard of the rolling mill.
The cylinder diameter of the set-up roller is φ160mm; the stroke is 200mm.
The working height of the looper is 100mm above the rolling center line.
The maximum height of the looper is 400mm above the rolling center line.

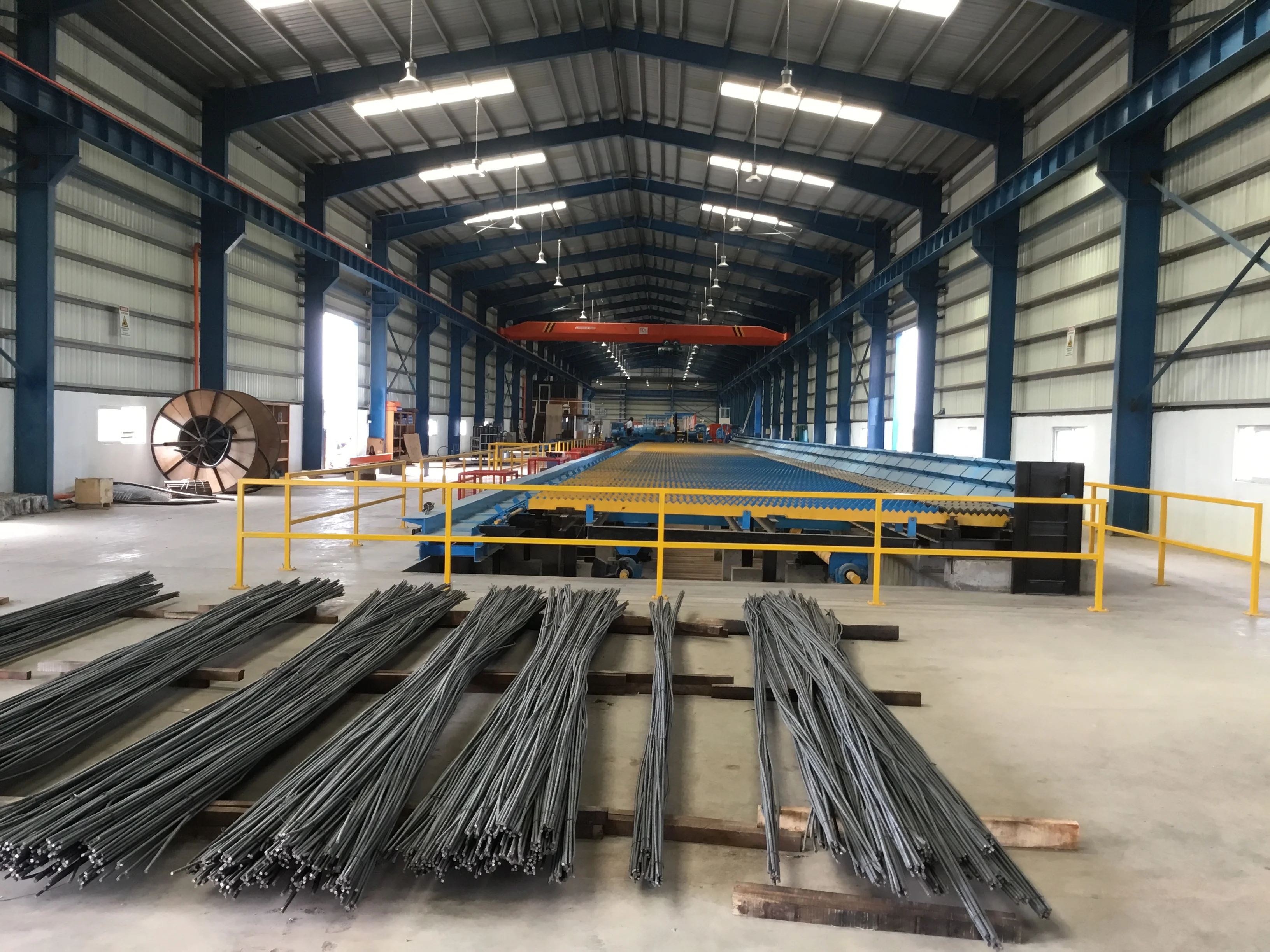

Walking Beam Cooling Bed
The equipment of the walking beam cooling bed area includes multi-lengths flying shear run-out roller table, cooling bed run-in roller table, cooling bed frame, alignment roller, transfer trolley, and cooling bed run-out roller table.
Walking beam cooling bed consists of the following main parts: cooling bed transmission device, moving beam, static beam, moving beam bracket, static beam pillar, moving rack, and static rack. The cooling bed transmission device includes motor, reducer, long shaft, and eccentric wheel.
Walking beam cooling bed consists of the following main parts: cooling bed transmission device, moving beam, static beam, moving beam bracket, static beam pillar, moving rack, and static rack. The cooling bed transmission device includes motor, reducer, long shaft, and eccentric wheel.
Walking Beam Cooling bed capacity: 60 t/h
Cooling type: air cooling
Cooling rebar size: Ф8~Ф32mm
The entry temperature of the rolled piece into
the cooling bed: 550℃-650℃
the cooling bed: 550℃-650℃
Maximum cooling temperature: max300℃ Cooling bed area:70×8m
Dynamic and static pitch: 80mm
One step rack movement stroke: 80mm
Spacing between static and dynamic racks: 200mm
Rack material: 16Mn
Automatic Bar Bundling Machine
Packing length: 12/16 m
Packing Rolling Weight: 3t~4t
Bundle Shape: Round/Elliptical
Rolling temperature: ≤300℃
Binding mode: single-wound single-junction
Control mode: PLC automatic control/manual, production line chain, communication
The supply includes the bar bundling body, matching hydraulic system, matching control system, belt-threading device, etc.
Certifications
Packing & Delivery
Packaging Details: The equipment shall be packed in containers as per the international packaging standard or customers' requirements to ensure long distance sea-transportation and well protect against change of climate, moisture and shock.
Delivery details: within 3 months after the payment.
