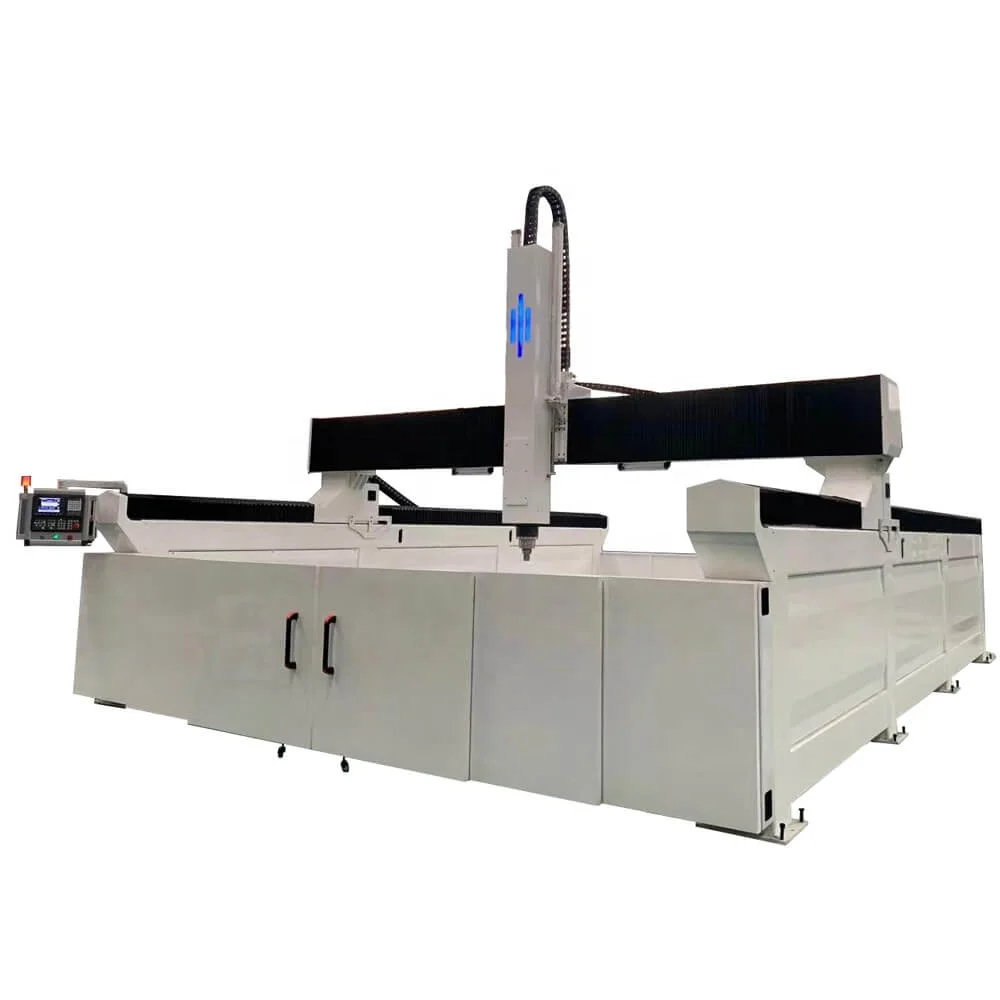

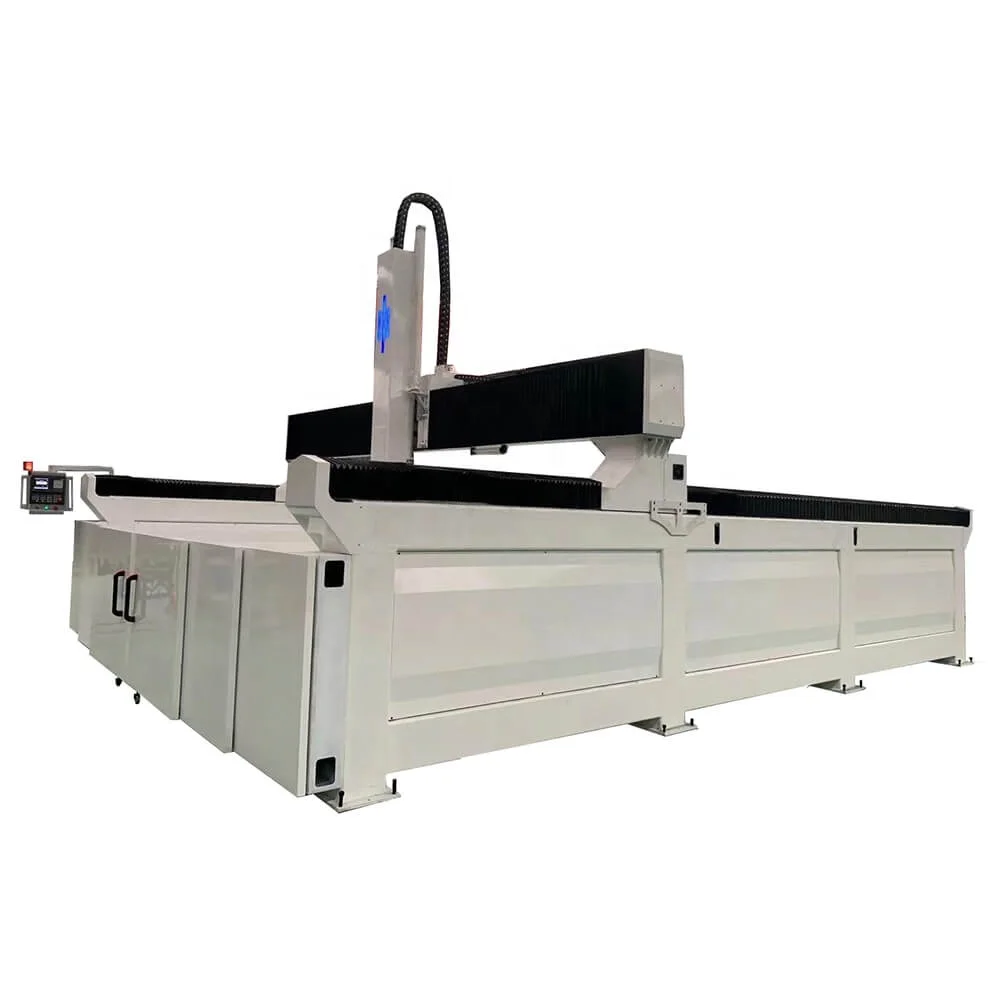

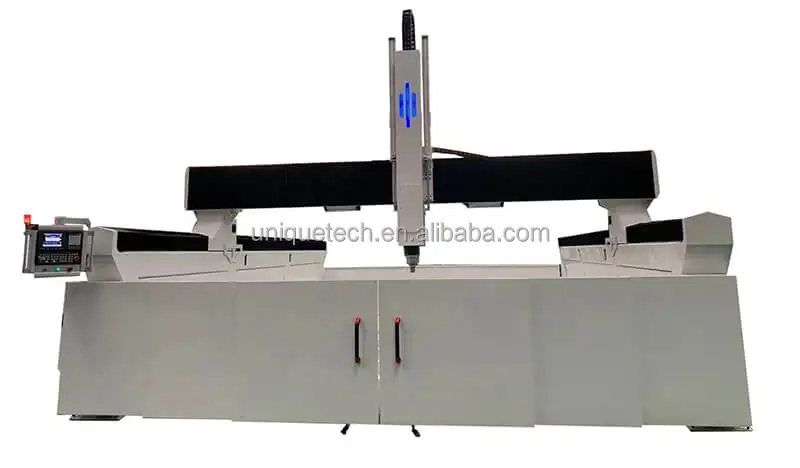

hard solid wood large size high Z mold cnc router machining center with BT40 spindle
- Category: >>>
- Supplier: Jinan Unique Cnc Equipment Co. Ltd.
Share on (1600427926074):
Product Overview
Description
Product Description
Applications of the hard solid wood large size high Z mold mould cnc router maching center with BT40 spindle:
- Wood pattern industry: wood casting pattern, wood foundry pattern, wooden model aviation, and many other wooden models
- Styrofoam EPS foam Pattern industry: Figurative/characters sculpture, animal sculpture, outdoor sculpture, modern sculpture, theme park display, 3d sculptures.
- 3D model industry: Cars models, aerospace models, boat ship marine yacht vessel models, transportation spare parts.
- Materials: wood, styrofoam, polyurethane foam, sand, epoxy, wood with a nail inside, MDF, plastic, FGRP and so on.

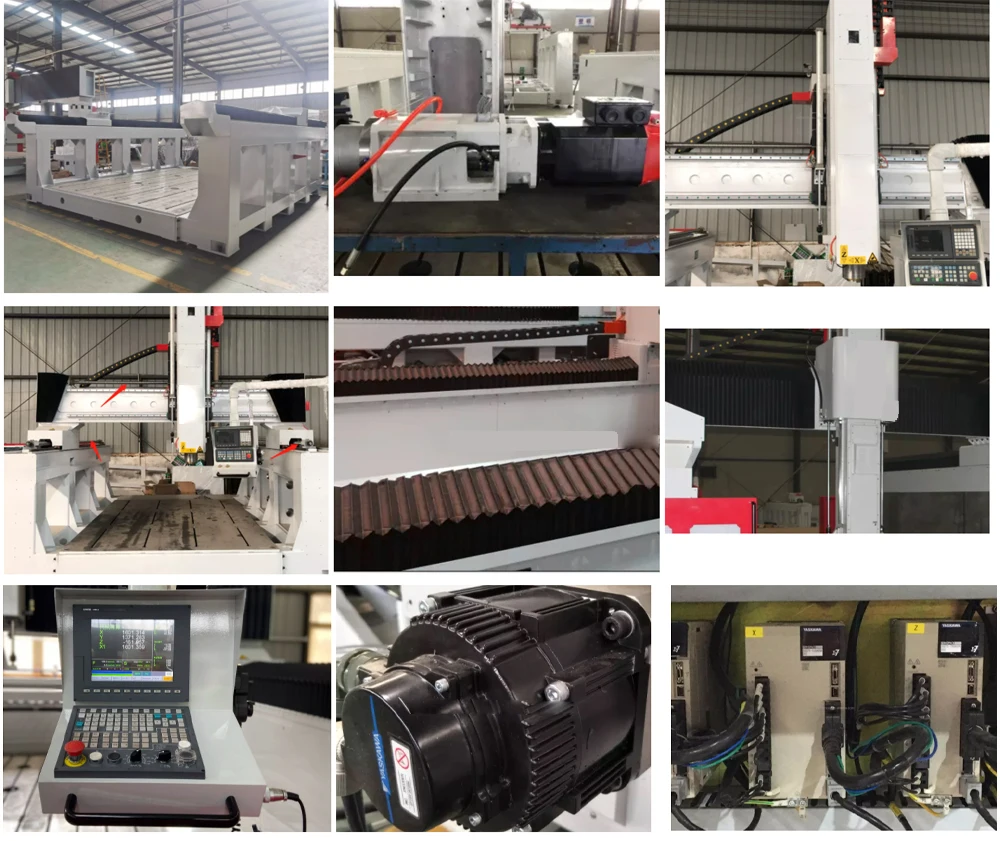

Main features of the hard solid wood large size high Z mold mould cnc router maching center with BT40 spindle:
1.Taiwan SYNTEC cnc milling router control system with handle
2. Taiwan brand high quality strong BT40 electrical spindle with 5.5KW or 7.5KW servo
3. Yaskawa or Syntec brand 1700W driving servo
4. Taiwa original high level rolling ball screws transmission for X,Y and Z axis
5. Machine weigth: 6000KG
6. Heavy and rigid structure, weight up to 6tons.
7. Beautiful and scientific design. There are dust covers which can protect the inside rails and avoid the rails from dusting.
No. | Description | Parameter |
1 | Model No. | U-2030M/2040M/2540M/3040M/3050M/3550M/4050M/5070M |
2 | Axis | 3 axis |
3 | X,Y Working Area | 2*3M / 2*4M / 2.5*4M/ 3*4M / 3*5M / 3.5*5M / 4*5M / 5*7M |
4 | Z feeding height | 1.2M |
5 | X,Y,Z repositioning Accuracy | ±0.05mm |
6 | Cutting precision | ±0.1mm |
7 | Table structure | T-slot table (Vaccum table,steel table,cast iron tables are optional) |
8 | X,Y,Z Transmit | Taiwan made 40mm thick ballscrews, linear guide rails |
9 | Spindle | BT40 spindle (0-12000rpm), with 5.5KW or 7.5KW servo motor |
10 | Spindle cooling way | Water cooling |
11 | Tools changing | Manal,there is tools change button on the spindle |
| 12 | Driving system | 1700W servo |
13 | Max. Rapid Travel Rate | 25m/min |
14 | Max. Working Speed | 15m/min |
15 | Control system | Taiwan Syntec |
| 16 | System Interface | USB |
| 17 | Command language | G code |
18 | Running Environment Temperature | 0-50 Centigrade |
19 | Relative Humidity | 30% - 75% |
20 | Optional Parts/function | Vacuum table,steel table or cast iron table |
Dust collector | ||
Mist-cooling system for soft metal processing | ||
Rotary attachment for process columns round materials |

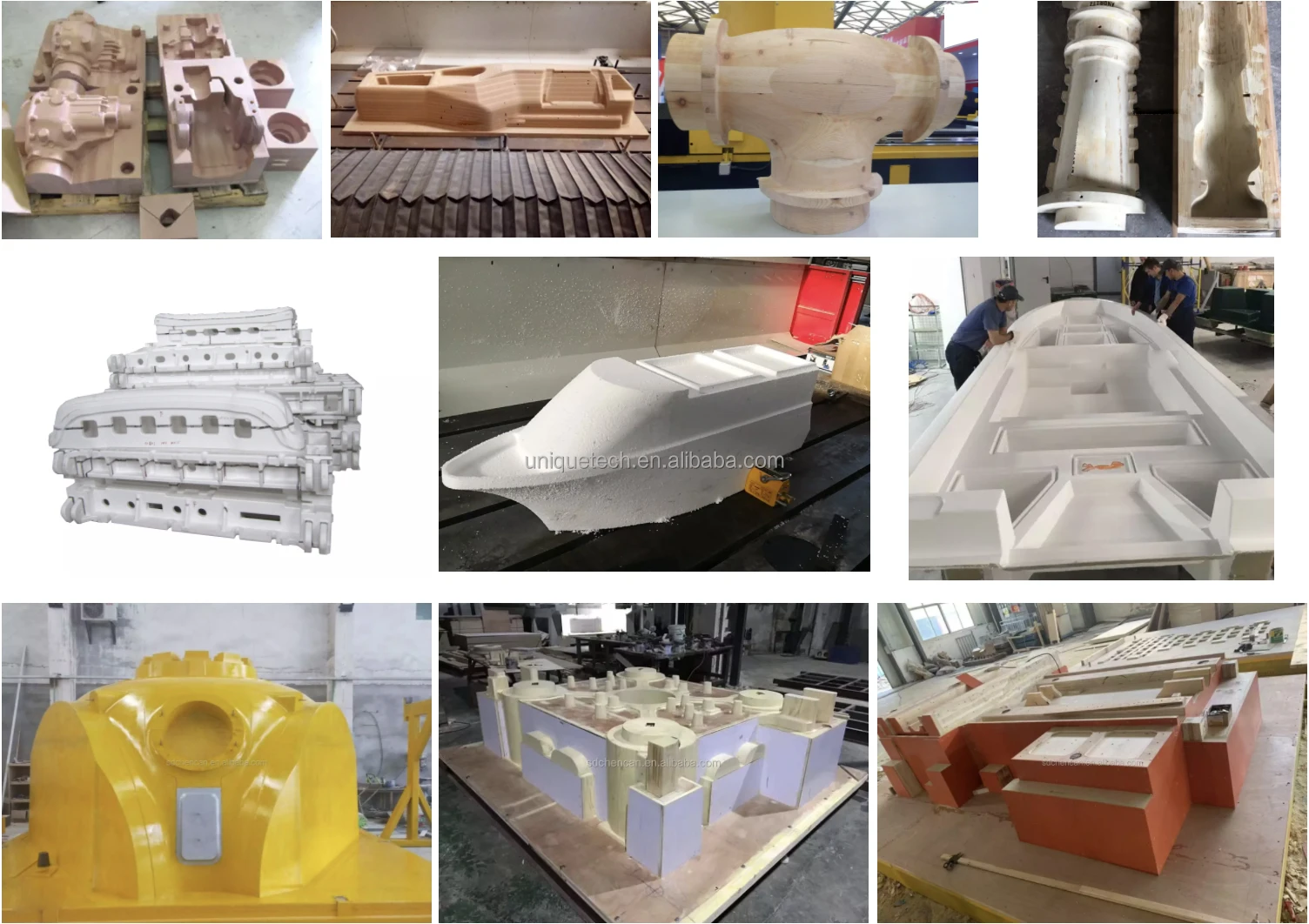

Samples
FAQ
You may consider the following aspects when need an mold CNC Router:
- Materials. What materials will you process by the machine? Styrofoam,wood,aluminum or others? Different materials need different configurations.
- Machine size. Decide the machine size according to your products sizes. Do you want to process a whole product, or process piece by piece?
- Do you need a 3-axis,4-axis or 5-axis machine?
- Spindle. For foam carving,can use 6-9KW or bigger spindle,no matter water cooled or air cooled. For wood and aluminum, it is better to use stronger power motor BT spindles.
- How many tools do you need? If the mold is complicated, can choose auto tool change EPS CNC Router.
- What kinds of worktable do you need? Foam machine can use clamp table, wood and aluminum can choose clamp table,steel table or cast iron table.
- Designing software. Artcam, Powermill,UG,Mastercam, and other CAM softwares can work with the EPS CNC Router machines. 4-axis and 5-axis machines will need post process to generate correct toolpath,can buy or rent the software from supplier.
- Do you need RTCP ((Rotating Tool Center Point) function? For 4-axis, we suggest RTCP if have enough budget, for 5-axis,RTCP is necessary. RTCP advantages: no need to set every bits` compensation when programming, easier,higher precision and save time.
