T28AD Door sensor switch no touch motion led sensor switch manufacturer motion sensor switch
- Category: >>>
- Supplier: Shenzhen Tuoanda Electronics Co. Ltd.
Share on (1600427929785):
Product Overview
Description
Specification
TAD-T28AD
86-type - 86, bipolar, all kinds of loads, high-power 1000 W
1. Operating voltage: ACll0-250V (50/60Hz)
2. Ambient temperature: -20 'C - +50' C
3. Own power: <0.016W
4. Load type: Incandescent lamp, ventilating fan, various types of lamps, be available to all electric apparatus.
5. Load power: 25W-200W; 5W-200W; OW-1000 W; (Note: when connecting the inductive load, the maximum power will drop 40 percent).
2. Ambient temperature: -20 'C - +50' C
3. Own power: <0.016W
4. Load type: Incandescent lamp, ventilating fan, various types of lamps, be available to all electric apparatus.
5. Load power: 25W-200W; 5W-200W; OW-1000 W; (Note: when connecting the inductive load, the maximum power will drop 40 percent).
6. Output forms: positive output (be close usually, open after induction); reverse output
(be open usually, close after induction), with beep alarm (about 70 decibels)
(be open usually, close after induction), with beep alarm (about 70 decibels)
7. Optical control range (adjustable): 5Lux-500Lux ± 20% (default setting is 5 Lux ± 20%)
8. Time delay closing time (adjustable): 16-350 seconds ±30% (default setting is 16seconds ±30%)

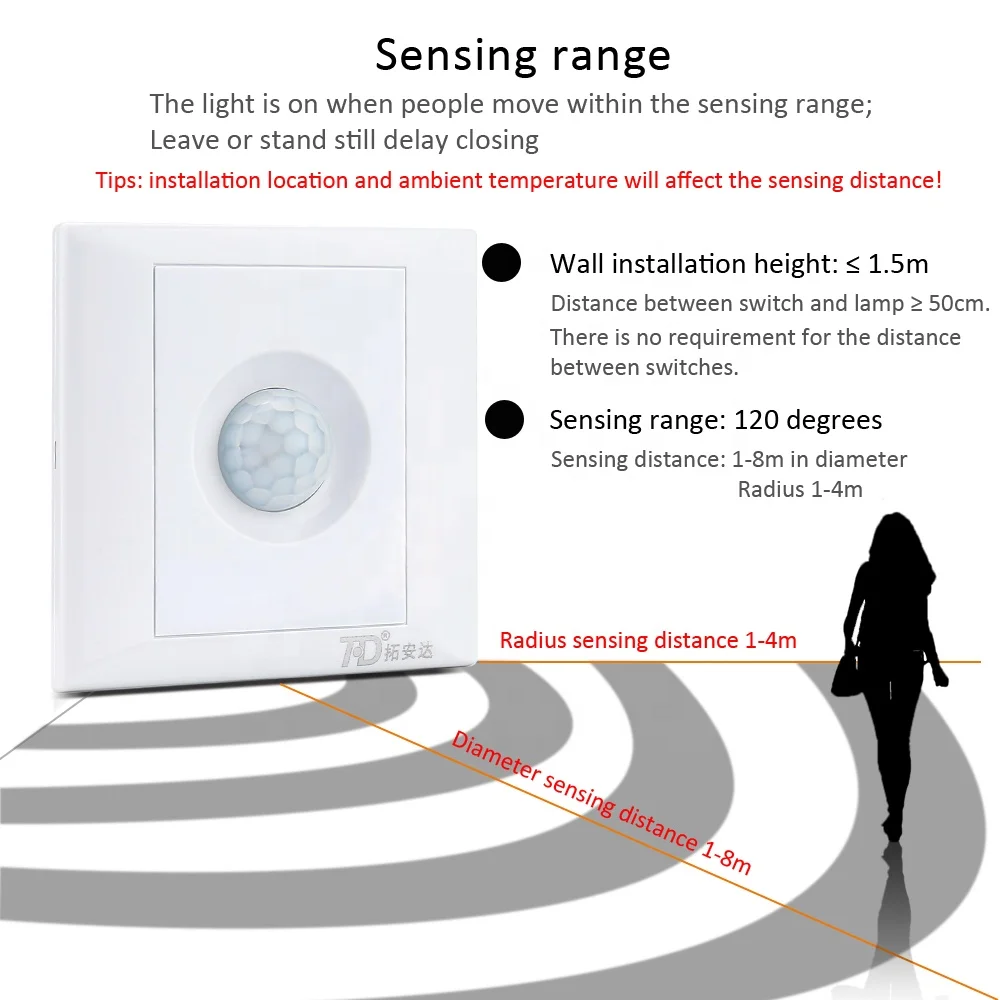

9. Induction range: (if installed on the wall, the height from the ground is about 1. 5m)
8. Time delay closing time (adjustable): 16-350 seconds ±30% (default setting is 16seconds ±30%)
9. Induction range: (if installed on the wall, the height from the ground is about 1. 5m)
(Ceiling attached installation: the point-suction type is recommended, its induction is up
to 360 degree, otherwise, it will be constrained by the installing height, the infrared signal
of the leg part of human body is weak, the induction distance is also relative short, and
therefore, the actual induction range will be smaller)
to 360 degree, otherwise, it will be constrained by the installing height, the infrared signal
of the leg part of human body is weak, the induction distance is also relative short, and
therefore, the actual induction range will be smaller)
Product Description
Packing & Delivery
Company Profile
Shen Zhen Toada Electronics Co., Ltd. was established in 2004 and is specialized in PIR motion sensor、IR sensor、Microwave sensor switch、Wireless remote control switch、Motion Sensor Light 、Smart home products. We are a high-tech enterprise integrating R&D, design, production and sales.
Certifications
FAQ
Q1: Are you factory direct?
A: Yes, we have our own factory, all of our led products are with competitive factory price.
Q2: Do you accept OEM/ODM orders?
A: Sure, customizations including packaging design, logo silk printing are accepted with low MOQ. Also we have professional R&D team to support ODM business from product sampling to finished products.
Q3: What payment terms do you accept?
A: Paypal, Credit Card, T/T, Alibaba Trade Assurance.
Q4. What's your delivery time?
A: It depends on your order quantity and requests, normally goods can be shipped out within 1-3 working days.For big quantity and OEM orders, we will give exact lead time upon your requests.
Q5.How is the quality of the product?
A: You can rest assured that we are producing products with strict quality control for every link.
Q6.Can we buy samples for testing?
A: Yes, welcome sample orders.
A: Yes, we have our own factory, all of our led products are with competitive factory price.
Q2: Do you accept OEM/ODM orders?
A: Sure, customizations including packaging design, logo silk printing are accepted with low MOQ. Also we have professional R&D team to support ODM business from product sampling to finished products.
Q3: What payment terms do you accept?
A: Paypal, Credit Card, T/T, Alibaba Trade Assurance.
Q4. What's your delivery time?
A: It depends on your order quantity and requests, normally goods can be shipped out within 1-3 working days.For big quantity and OEM orders, we will give exact lead time upon your requests.
Q5.How is the quality of the product?
A: You can rest assured that we are producing products with strict quality control for every link.
Q6.Can we buy samples for testing?
A: Yes, welcome sample orders.
