Surgical Cautery Machine Coagulation Straight/Bayonet Bipolar Forceps Medical Electrosurgical Bipolar Forceps
- Category: >>>
- Supplier: Baisheng Medical Co. Ltd.
Share on (1600427932426):
Product Overview
Description
Reusable Electrosurgical Bipolar Forceps
Product Features：
1、Biocompatible Material，latex free in construction.
2、Ratchet handles are designed ergonomically which comfortably fit into the surgeon's hand.
3、Good quality coating resists abrasion and provides superb insulation.
4、Well balanced and highly polished tips aids fine control.
5、50 time autoclave.
1、Biocompatible Material，latex free in construction.
2、Ratchet handles are designed ergonomically which comfortably fit into the surgeon's hand.
3、Good quality coating resists abrasion and provides superb insulation.
4、Well balanced and highly polished tips aids fine control.
5、50 time autoclave.
Intended Use：
Mainly used to bipolar subtle coagulation in microsurgery, neurosurgery, spine surgery and medical cosmetology.
Mainly used to bipolar subtle coagulation in microsurgery, neurosurgery, spine surgery and medical cosmetology.
Cautions and Warnings：
* These devices are restriced to sale by or on the order of a physician.
* These devices are not sterilized and should be sterilzed and should be sterilized for initial use in accordance with the instruction for sterilization contained herein .These devices are designed for 30 repeated uses.
* Discard of these devices should be according to the relevant local regulations.
* These devices are used together with HF surgical equipments.It is prohibited to use these devices in environments which are in the presence of flammable and explosive substance.
* The patient should not come into contact with metal parts to prevent the rist of HF electromagnetics concentrated which may cause burn occur over HF radiation and vortex.
Safety Tips：
* Use lowest possible power setting on the electrosurgical genertor capable of achieving desred surgical effect.Activation time should be as short as possible.
* Never allow the cables connected to these devices to be in contact with skin of the patient of operator during electrosurgical activations.
* Do not permit the cables connected to these devices to be parallel and in does proximity to the leads of other electrical devices.
* Always place unused accociated electrosurgical accessories in a safe insulated location such as holster when not in use.
* Inspect and test each device before use.
* Discard devices that have reached their life expectancy.
Inspection：
These devices should be inspected before each use.Visually examine the devices for obvious physical damage including：
* Cracked,braken or otherwise distorted plastic parts.
* Broken or significantly bent connector contacts.
* Damage including cuts,punctures,nicks,abriasions,unusual lumps，significant discoloration.
* Tips for damage,corrosion or misalignment.
Reuse：
These devices are designed for 30 repeated uses when untilized in accordance with the the validated instructions contained
herein.Care in use and handing can extend useful life.
* These devices are restriced to sale by or on the order of a physician.
* These devices are not sterilized and should be sterilzed and should be sterilized for initial use in accordance with the instruction for sterilization contained herein .These devices are designed for 30 repeated uses.
* Discard of these devices should be according to the relevant local regulations.
* These devices are used together with HF surgical equipments.It is prohibited to use these devices in environments which are in the presence of flammable and explosive substance.
* The patient should not come into contact with metal parts to prevent the rist of HF electromagnetics concentrated which may cause burn occur over HF radiation and vortex.
* Use lowest possible power setting on the electrosurgical genertor capable of achieving desred surgical effect.Activation time should be as short as possible.
* Never allow the cables connected to these devices to be in contact with skin of the patient of operator during electrosurgical activations.
* Do not permit the cables connected to these devices to be parallel and in does proximity to the leads of other electrical devices.
* Always place unused accociated electrosurgical accessories in a safe insulated location such as holster when not in use.
* Inspect and test each device before use.
* Discard devices that have reached their life expectancy.
These devices should be inspected before each use.Visually examine the devices for obvious physical damage including：
* Cracked,braken or otherwise distorted plastic parts.
* Broken or significantly bent connector contacts.
* Damage including cuts,punctures,nicks,abriasions,unusual lumps，significant discoloration.
* Tips for damage,corrosion or misalignment.
These devices are designed for 30 repeated uses when untilized in accordance with the the validated instructions contained
herein.Care in use and handing can extend useful life.
Remove any obvious debris accumulated during use from the device with a soft,non-metallic instrument deaning brush plus mild detergent and sterile purified water solution.Rinse thorougly with sterile,purifiede water until free of detergent residual and debris,then thoroughly dry dusing a sterile wipe,(Do not fully immerse in fluids).
Sterilization by steam autoclave.Selecting a recommended program and parameters according to the autoclave instruction：121-134℃，12-35 minutes,2 bars
These products are guaranteed against material and workmanship.The warranty is null and void should damage occure as a result of imporper handling use.Care must be taken in the use and reprocessing of these products.Sterility guaranteed unless package has been opened，broken or damaged.
Product Description
Specification
item | Value |
Place of Origin | China |
Guangdong | |
Brand Name | OBS |
Model Number | OBS-Rp |
Power Source | Electricity |
Warranty | 3 years |
After-sale Service | Return and Replacement |
Material | Metal, plastic, Steel |
Shelf Life | 3 years |
Quality Certification | ce |
Instrument classification | Class II |
Safety standard | IEC60601-2-2 |
Properties | The Basis of Surgical Instruments |
Type | Tweezers,Clip,Pincers |

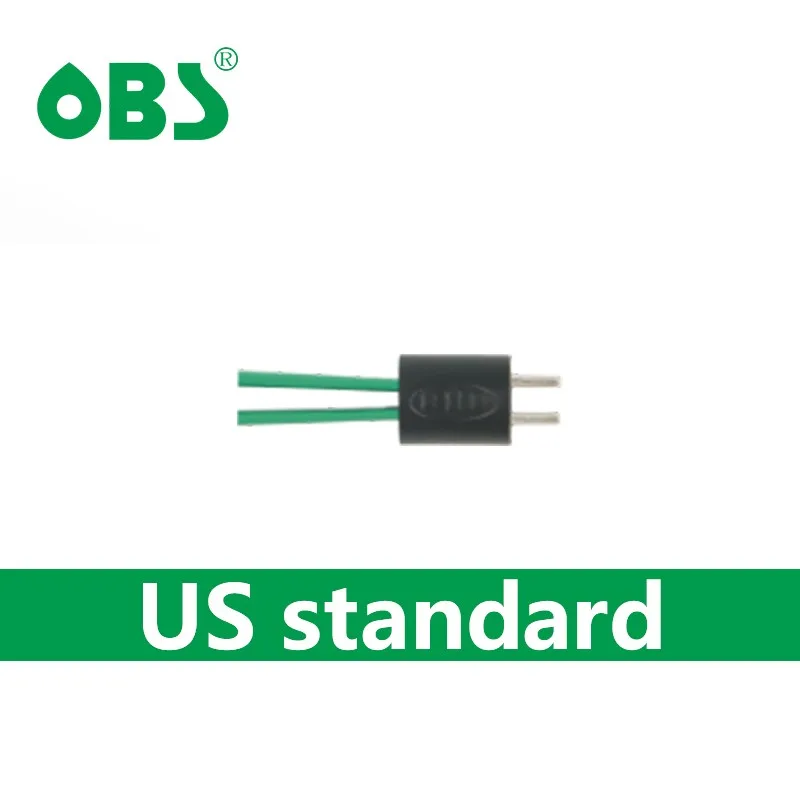

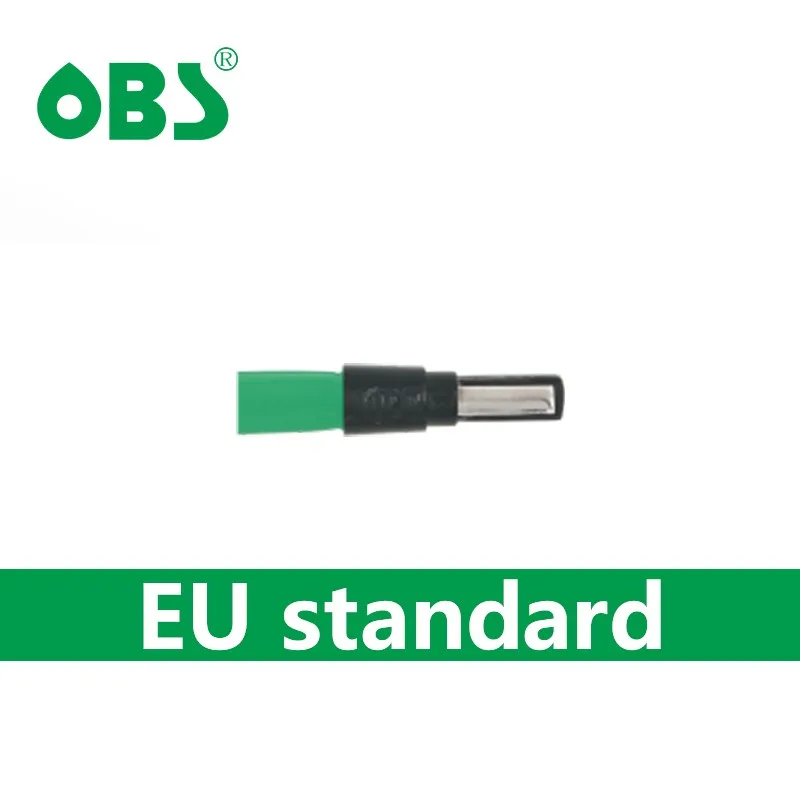

Plug | 2 Pin Plug/Flat Plug (US/European Connector) |
Material | Stainless Steel |

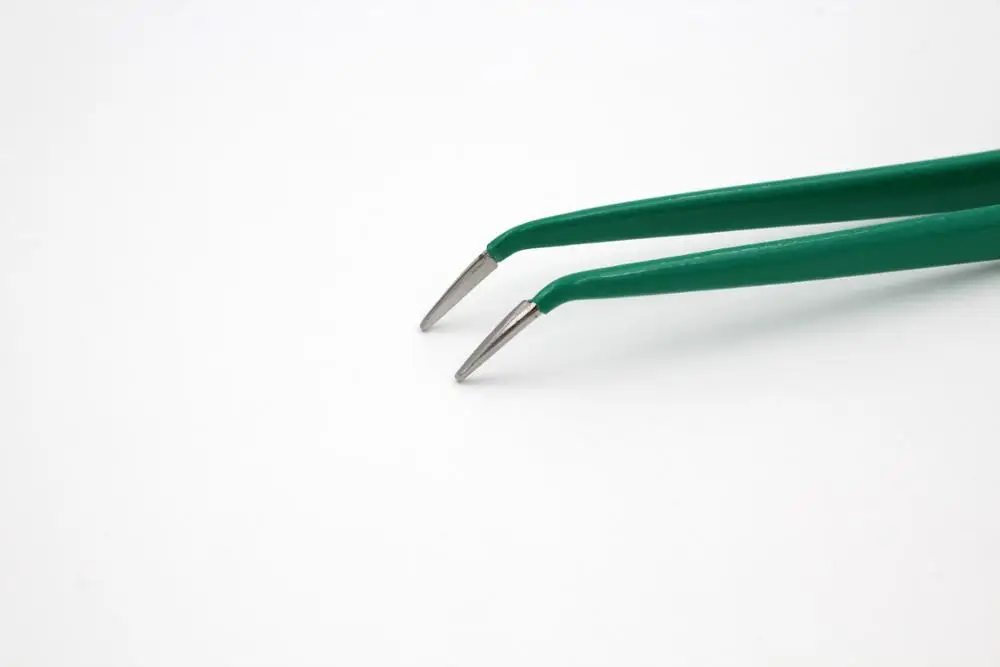

Tip Shape | Straight/Angled |
Shape | Bayonet/Straight/Jeweler |
Tip Polish | Standard / Non-stick |
Tip Size | 0.5mm/1.0mm/2.0mm |
Sterilization | Yes |
Body lenght | 100~200mm |

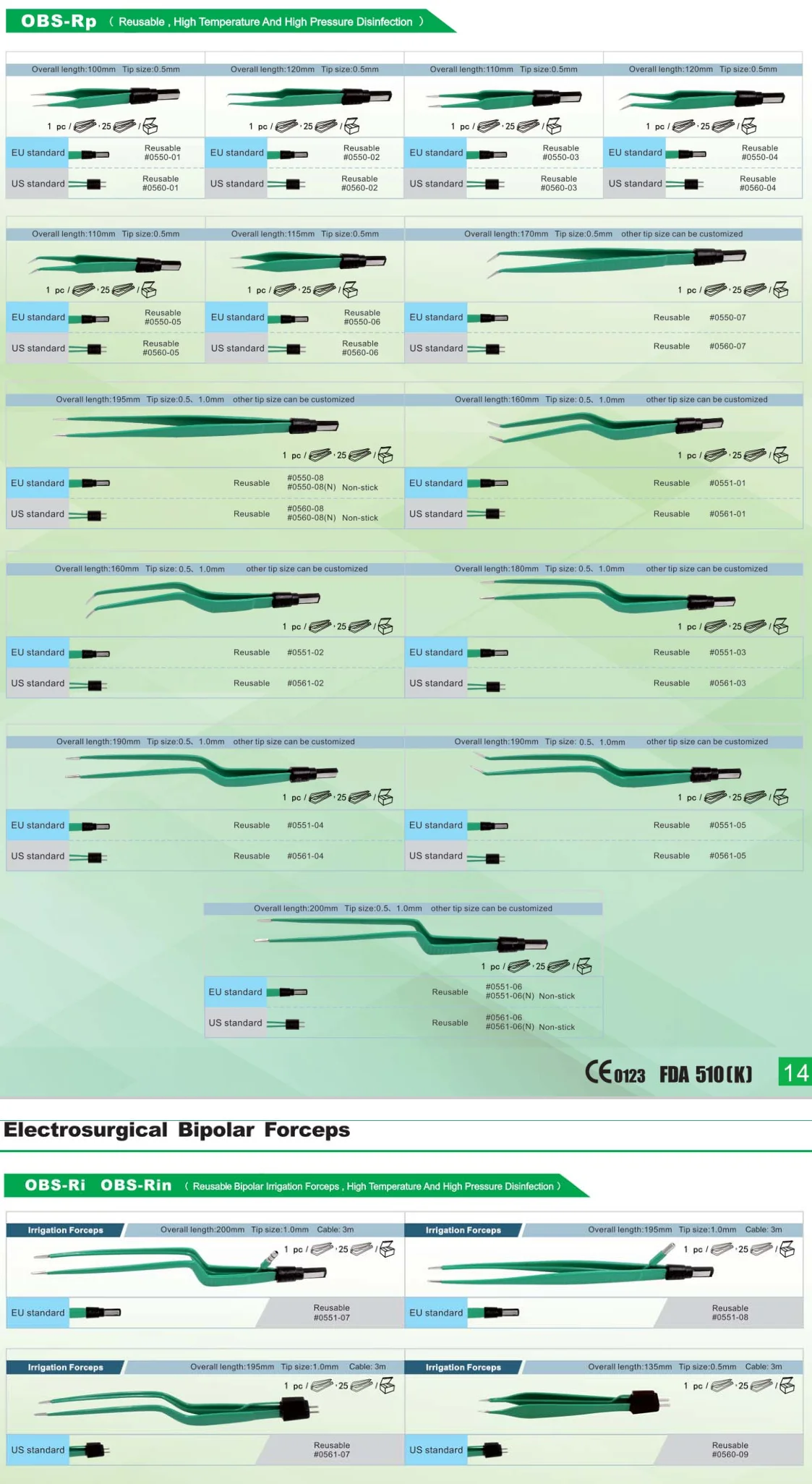

Type | Overall length | Tip size | ||
EU standard | US standard | |||
0050-01 | 0560-01 | 100mm | 0.5mm | |
0050-02 | 0560-02 | 120mm | 0.5mm | |
0550-03 | 0560-03 | 110mm | 0.5mm | |
0550-04 | 0560-04 | 120mm | 0.5mm | |
0550-05 | 0560-05 | 110mm | 0.5mm | |
0550-06 | 0560-06 | 115mm | 0.5mm | |
0550-07 | 0560-07 | 170mm | 0.5mm | |
0550-08/0550-08(n) | 0560-08/0560-08(n) | 195 | 0.5mm/1.0mm | |
0551-01 | 0561-01 | 160mm | 0.5mm/1.0mm | |
0551-02 | 0561-02 | 160mm | 0.5mm/1.0mm | |
0551-03 | 0561-03 | 180mm | 0.5mm/1.0mm | |
0551-04 | 0561-04 | 190mm | 0.5mm/1.0mm | |
0551-05 | 0561-05 | 190mm | 0.5mm/1.0mm | |
0551-06/0551-06(n) | 0561-06/0561-06(n) | 200mm | 0.5mm/1.0mm | |
0551-07 | 200mm | 1.0mm | ||
0551-08 | 195mm | 1.0mm | ||
0561-07 | 195mm | 1.0mm | ||
0560-09 | 135mm | 0.5mm | ||
Packing & Delivery

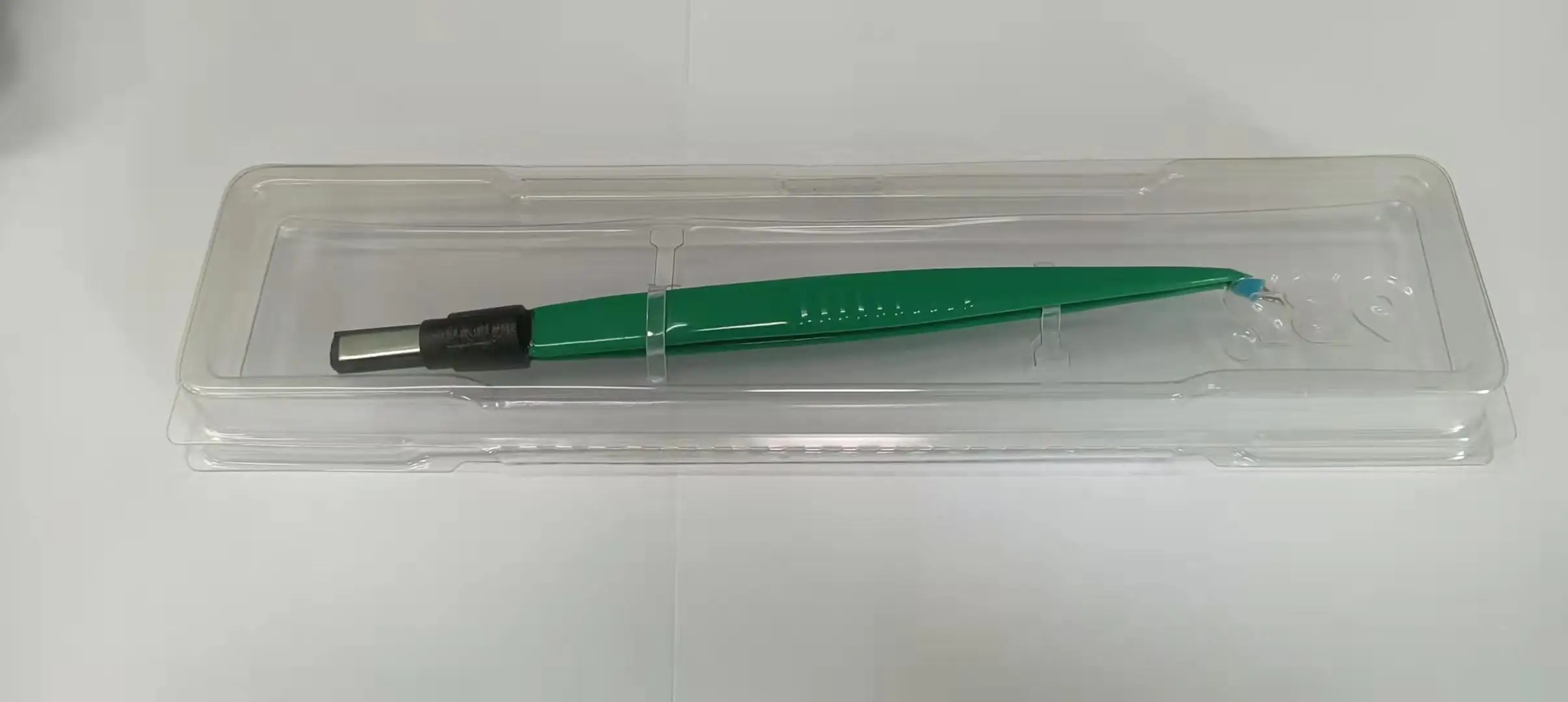

1 pc / blister
Company Profile
FAQ
Q: Can you a factory or a trading company?
A: We are a Chinese Medical instruments manufacturer. All the products are made of our workers
Q: Can you accept the OEM ?
A: Yes! We offer”OBS” brand to you. But if you want we can do the OEM service for you.
Q: Which areas are you products usually sold to?
A: Our products usually exported to North America, South America, The Middle East, South-east Asia, Europe and so on. Q: What’s your deliver time?
A: If we have the stock, it will be delivered with 3 days. If it is very large, it will be delivered within 8-20 days.
Q: What’s the address of your company?
A: Our address is
Add: No.11, Fusheng Road, Xinhui District, Jiangmen, Guangdong, China.
Tel.: +86-750-6628113 ext 821；
A: We are a Chinese Medical instruments manufacturer. All the products are made of our workers
A: Yes! We offer”OBS” brand to you. But if you want we can do the OEM service for you.
A: Our products usually exported to North America, South America, The Middle East, South-east Asia, Europe and so on.
A: If we have the stock, it will be delivered with 3 days. If it is very large, it will be delivered within 8-20 days.
A: Our address is
Add: No.11, Fusheng Road, Xinhui District, Jiangmen, Guangdong, China.
Tel.: +86-750-6628113 ext 821；
Fax.: +86-750-6616122；
Cell: +86-18675001475；
P.C.: 529100；
Cell: +86-18675001475；
P.C.: 529100；
www.obs-medical.com.
