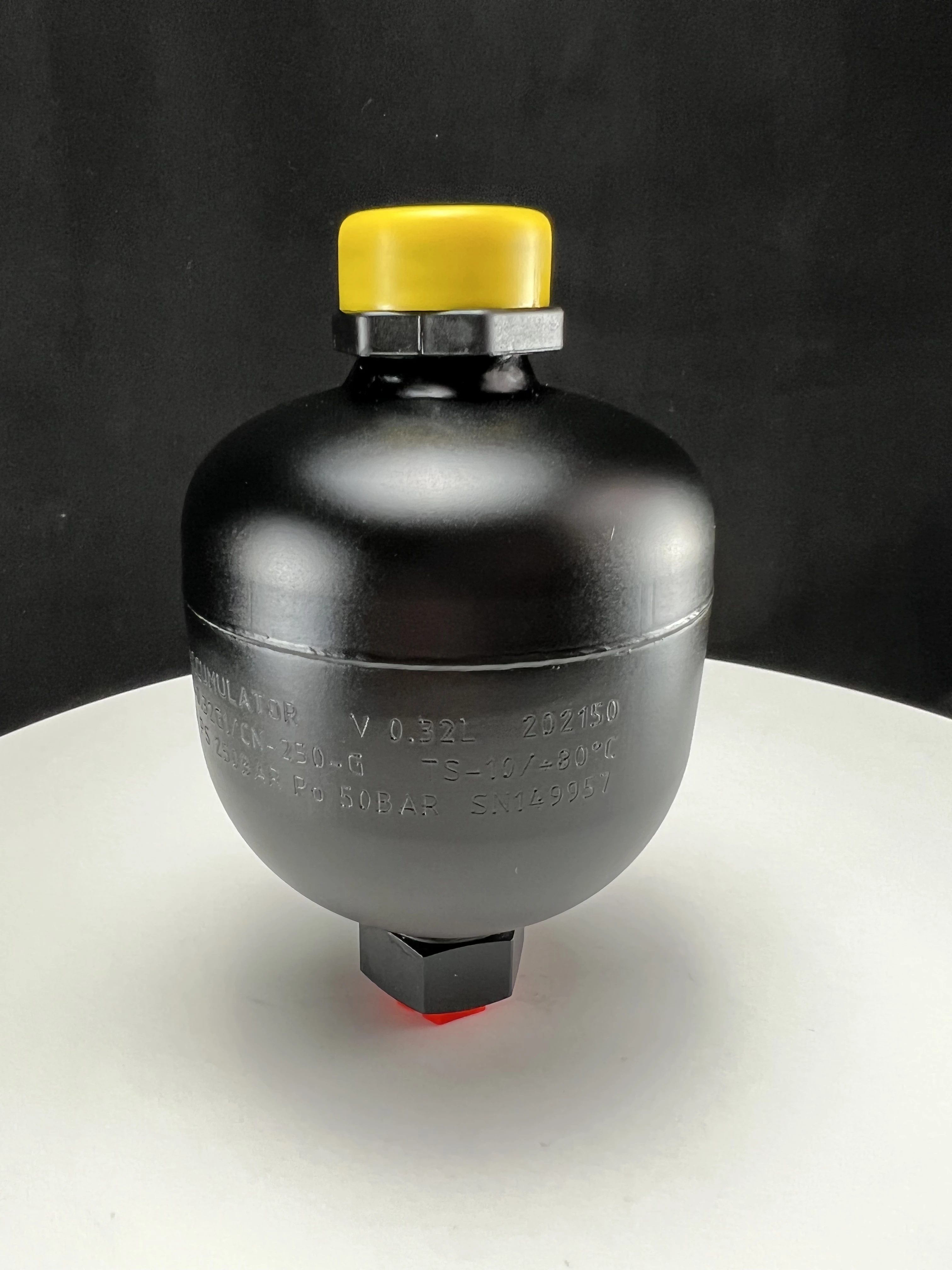

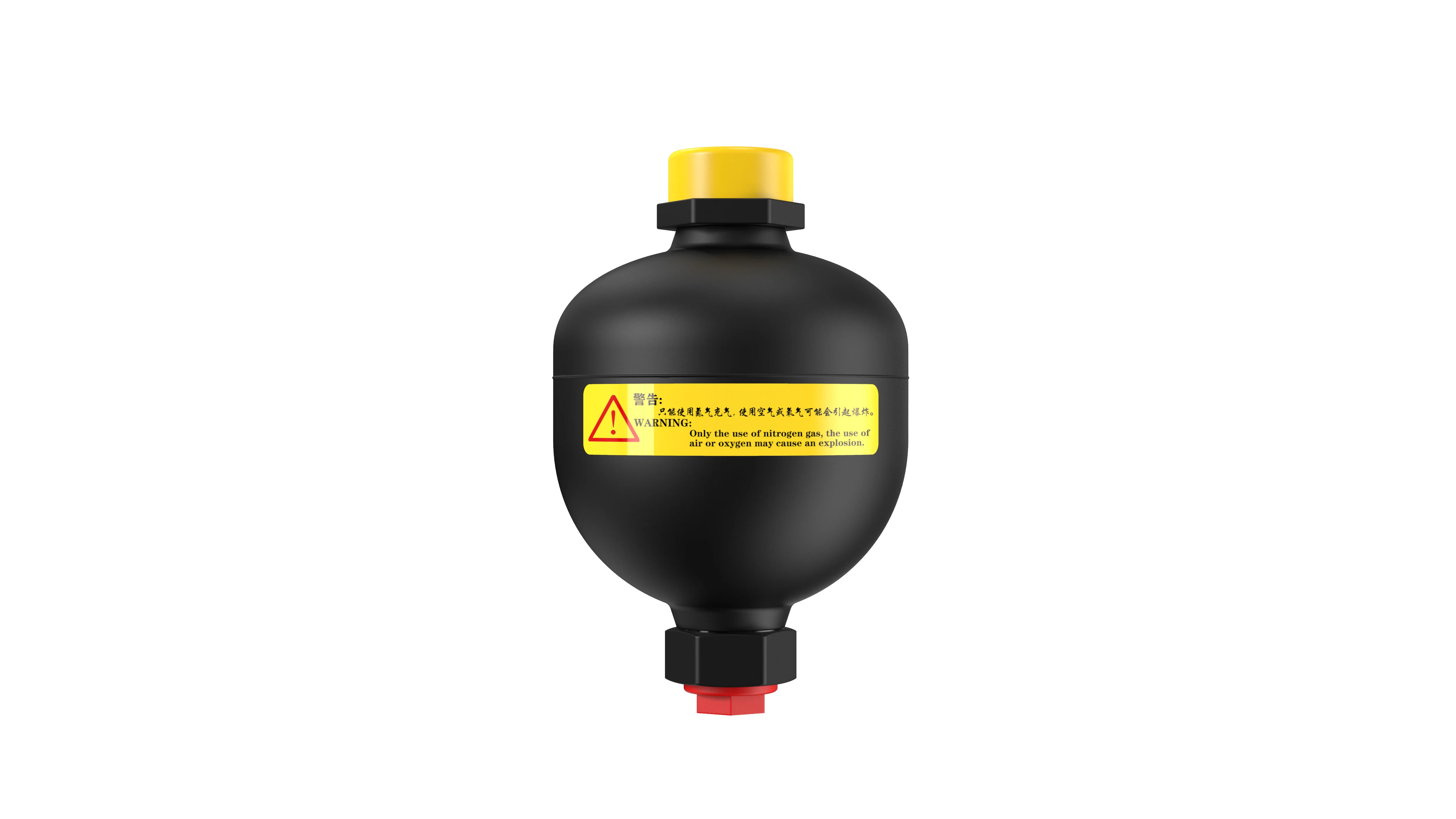

Hydraulic Diaphragm Accumulator 0.16L 0.32L 0.5L 0.75L 1L
- Category: >>>
- Supplier: Ningbo Milehertz Machinery Co. Ltd.
Share on (1600427935870):
Product Overview
Description
Product Description
Product Name | Diaphragm Accumulator |
Material | Carbon Steel |
Volume | 0.16L/0.32L/0.5L/0.75L/1L/1.4L/2L/2.8L |
Max Working Pressure | 25Mpa/33Mpa |
Working Principle
The diaphragm accumulator uses the rubber diaphragm to divide the inside body into two parts. One part is precharged with nitrogen and the other part is connected to the liquid end. The nitrogen compression is used to adjust the pressure change at the liquid end, so as to play the role of shock absorption and buffer.
Details Images

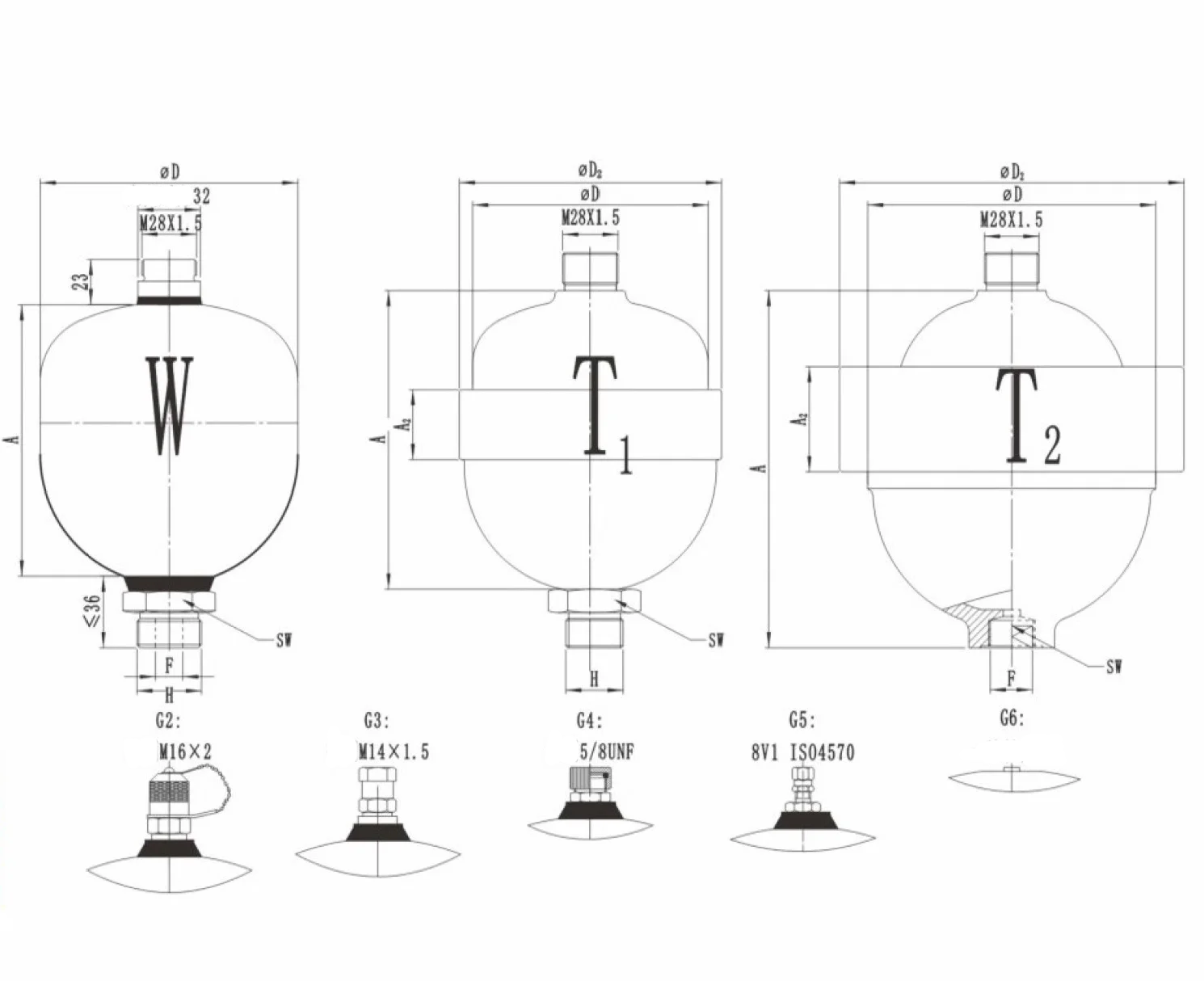

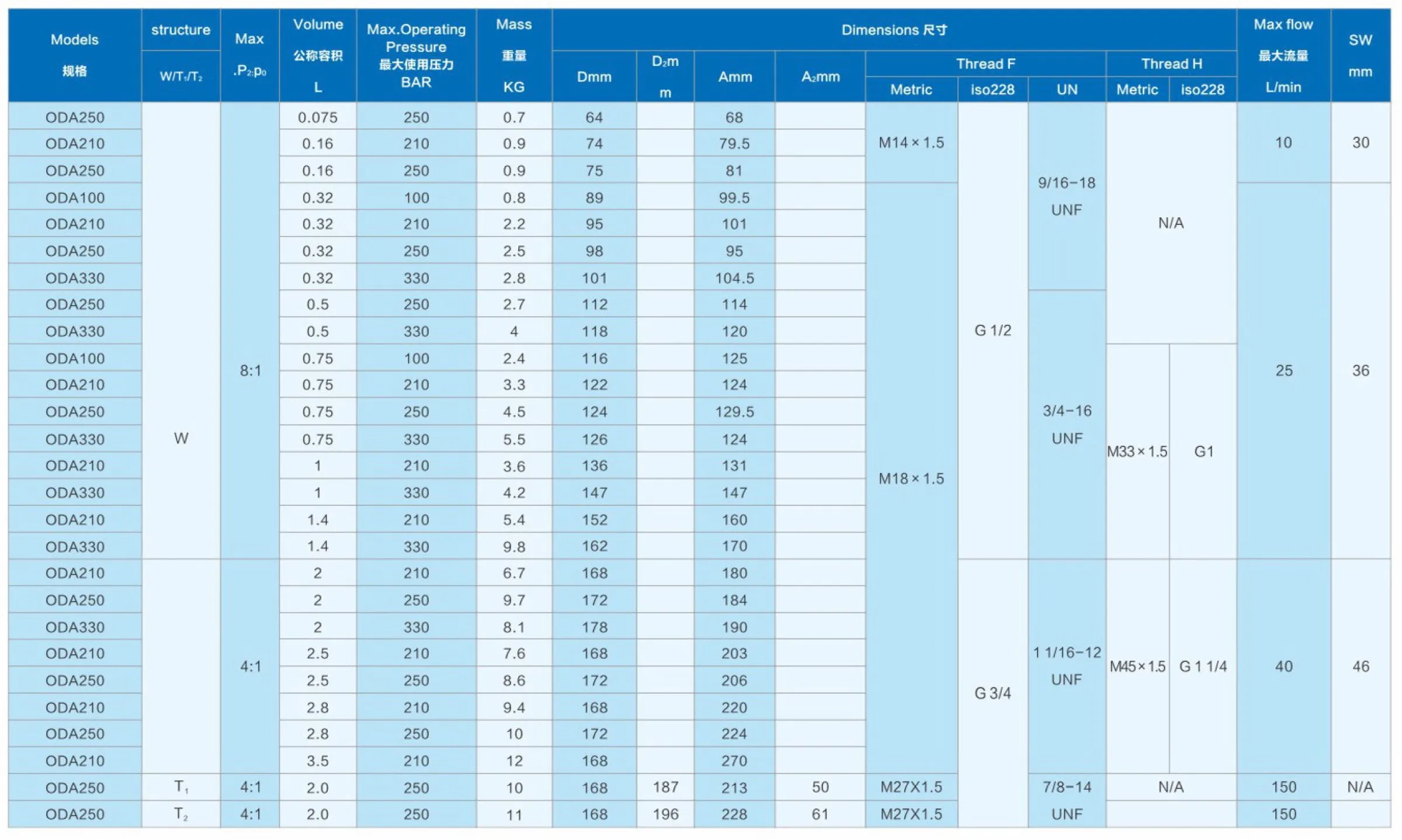

Product Parameters
Details Images
The quality of the diaphragm is very good and every part of the accumulator is perfect.

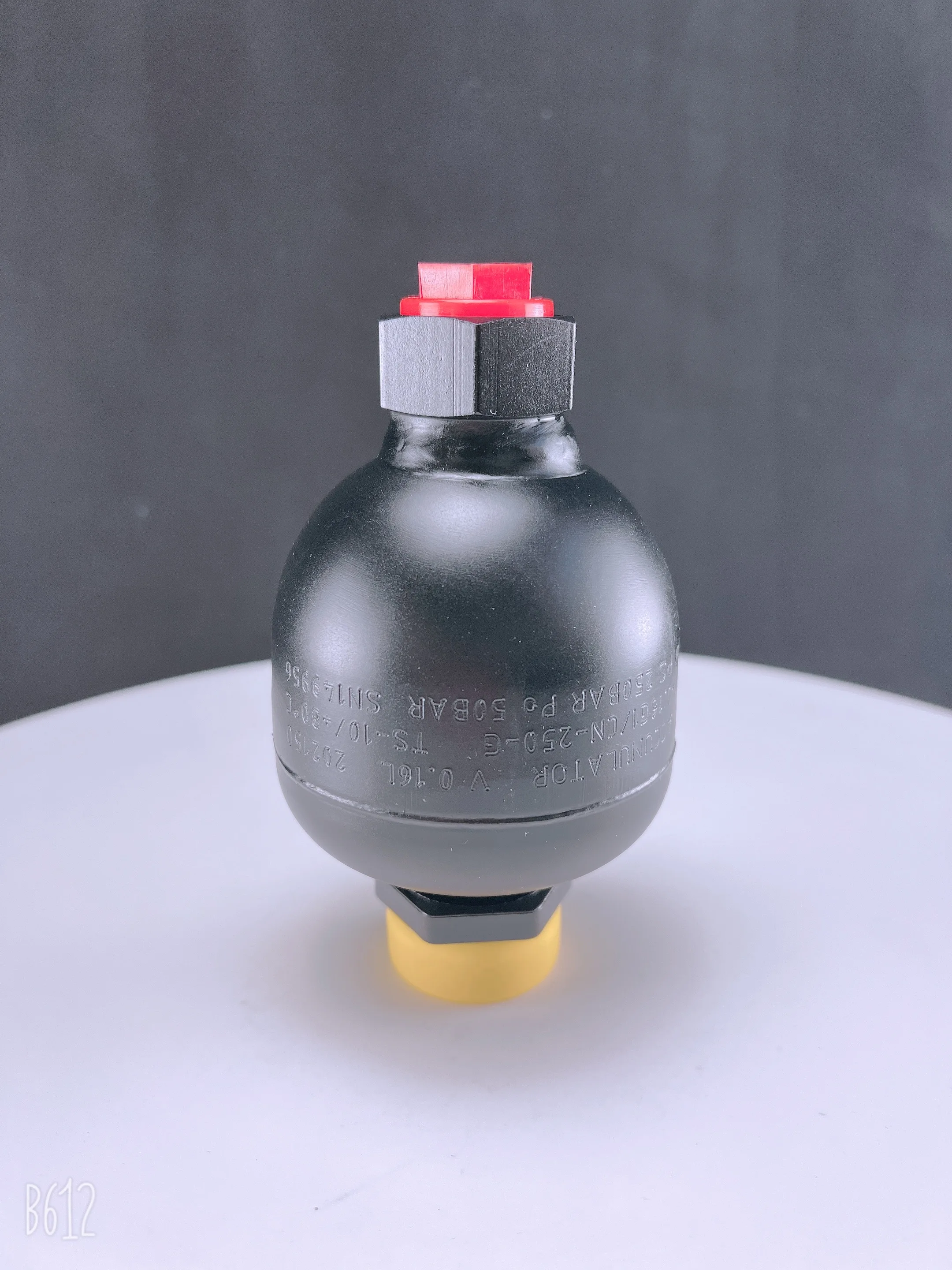

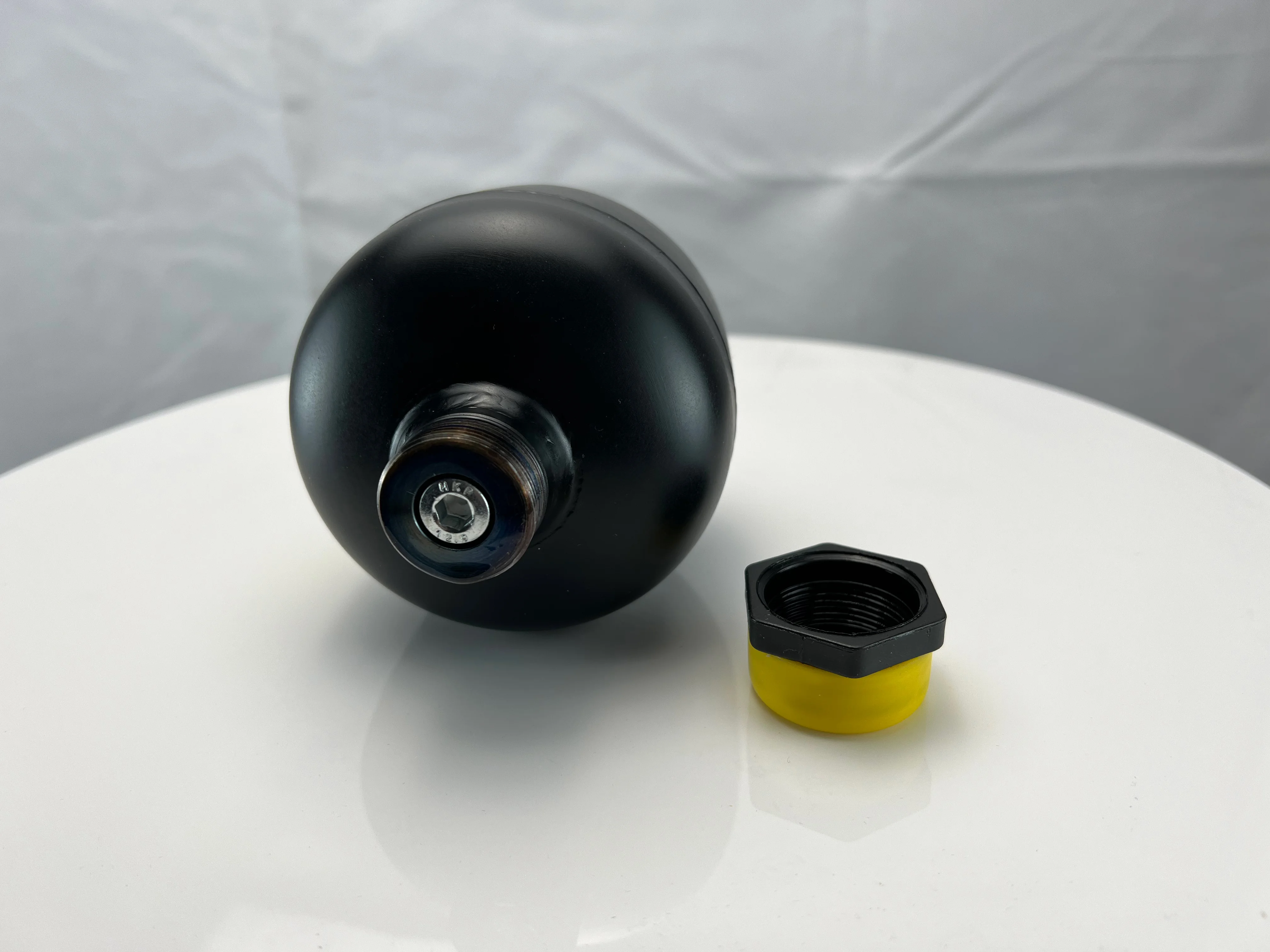

Nitrogen Charging Valve Port
Size: M28X1.5
This size is used for most diaphragm accumulators and also can be made to other size according to every customer's requirement.
The Main Shell Body
Made with high quality carbon steel and is welded with professional electron beam welder. The weld is smooth and flawless

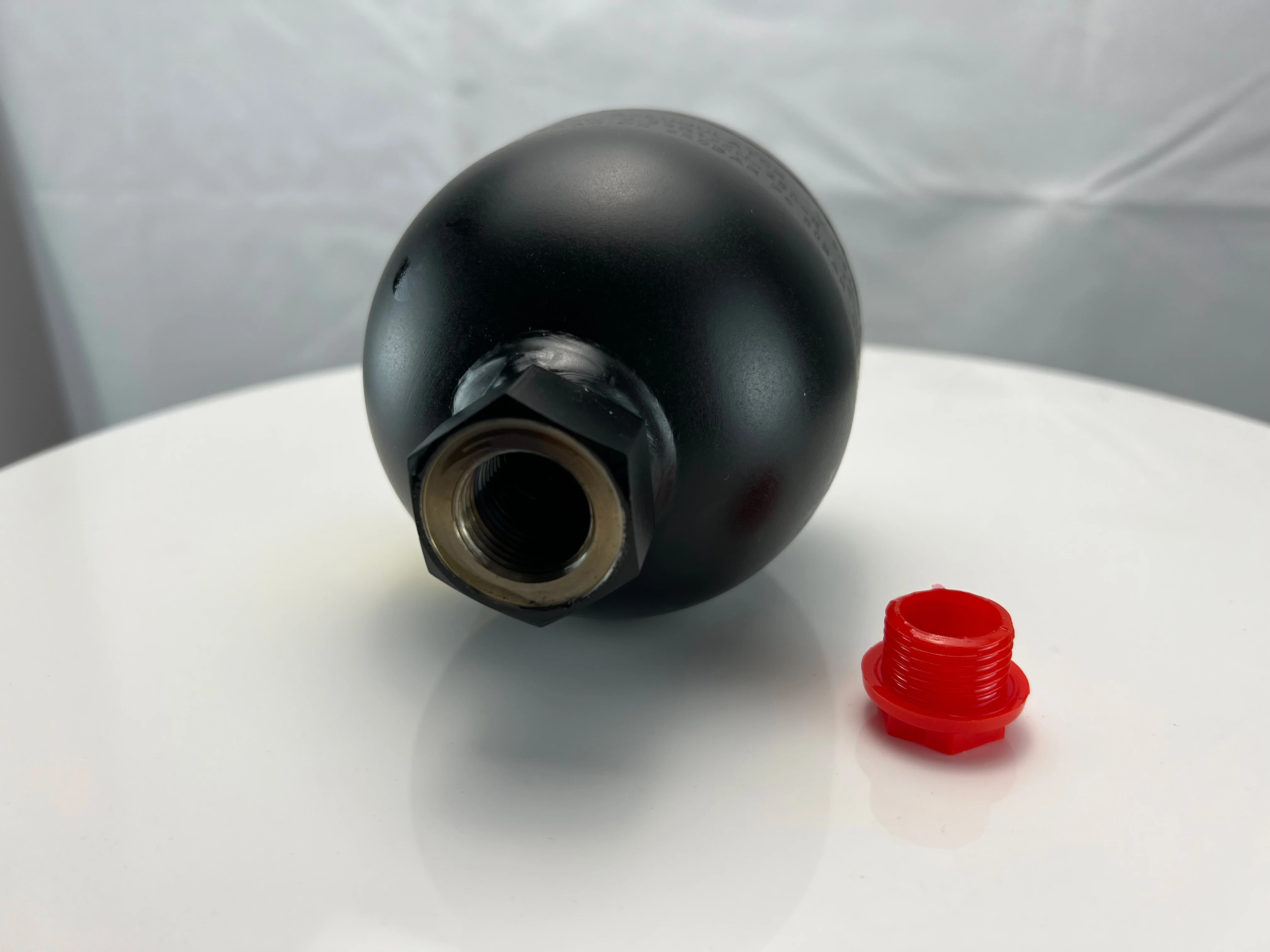

Fluid Connection Port
Fluid port have many kinds of thread size such as G, M, UNF, NPT. It can be made according to every customer's requirement.
Product Usage
Reserve Energy Storage
The accumulator can assist the pump body by adjusting the release of internal hydraulic oil. After the accumulator is equipped,
the specification requirements of the pump can be appropriately reduced to achieve scientific energy conservation and efficiency
Reduce Pulsation Impact
In the fluid circuit, due to the flow of liquid, it will more or less produce pulsating impact on the equipment, and even produce
stronger impact when various valves are closed and the circuit fluid changes sharply. After installing the accumulator, it can be
used as a buffer to effectively reduce pulsation and impact
stronger impact when various valves are closed and the circuit fluid changes sharply. After installing the accumulator, it can be
used as a buffer to effectively reduce pulsation and impact
Maintain Stability
When the external pressure or weight has an impact on the equipment system, the accumulator can well bear the change of external
weight by adjusting its internal gas and liquid balance, so as to avoid severe shaking and fluctuation of the equipment and
maintain the balance and stability of the equipment.
weight by adjusting its internal gas and liquid balance, so as to avoid severe shaking and fluctuation of the equipment and
maintain the balance and stability of the equipment.
Pressure Volume Compensation
In the pressure circuit, in case of internal leakage or changes in external factors such as pressure and temperature, which
changes the volume of liquid oil in the system and affects the stability of internal pressure of the system, the accumulator can
be used as timely compensation to maintain the stability of the hydraulic system
changes the volume of liquid oil in the system and affects the stability of internal pressure of the system, the accumulator can
be used as timely compensation to maintain the stability of the hydraulic system
Packing&Shipping
The products are packed with pressure resistant pearl cotton to ensure that there is no damage to the products when customers receive the goods.

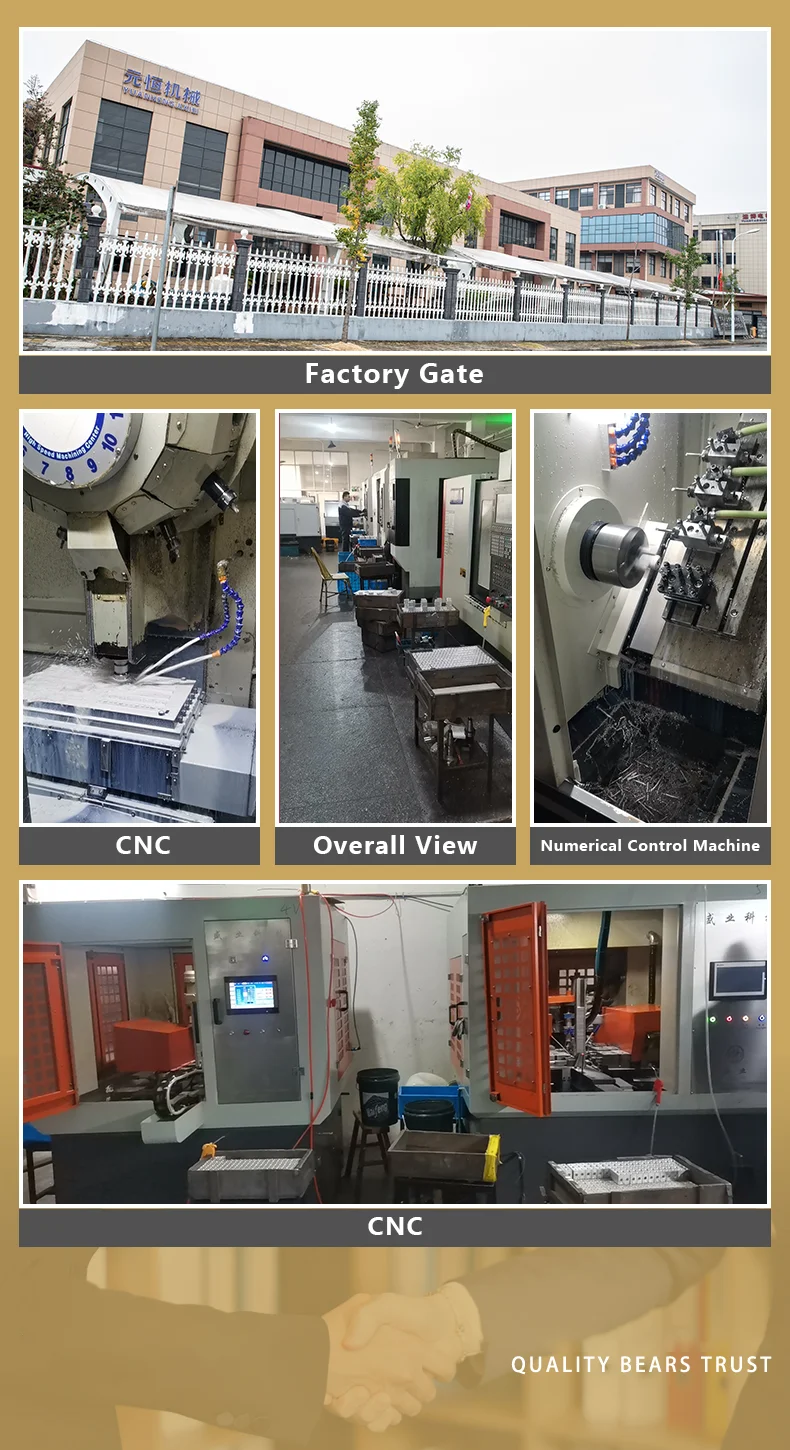

Company Profile
