Product Overview
Description

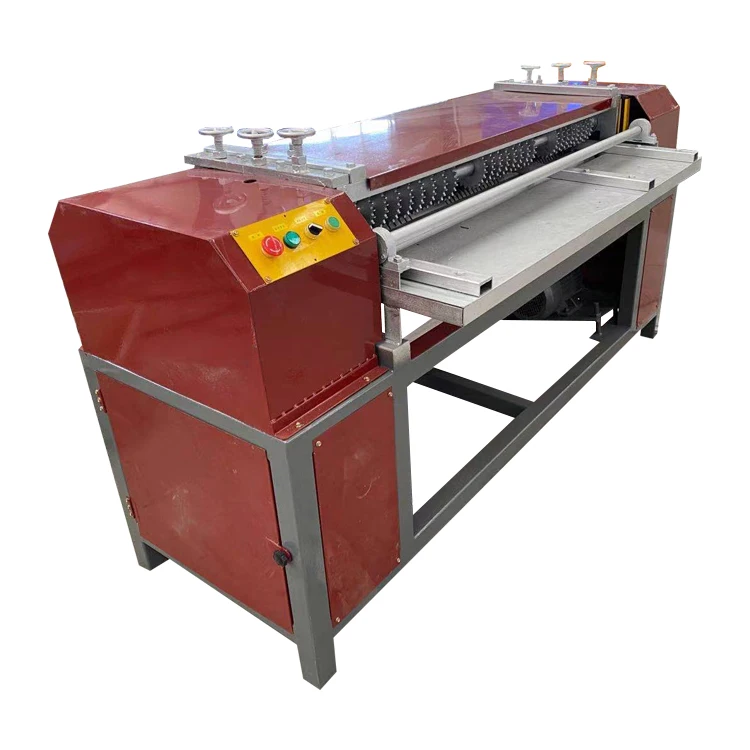

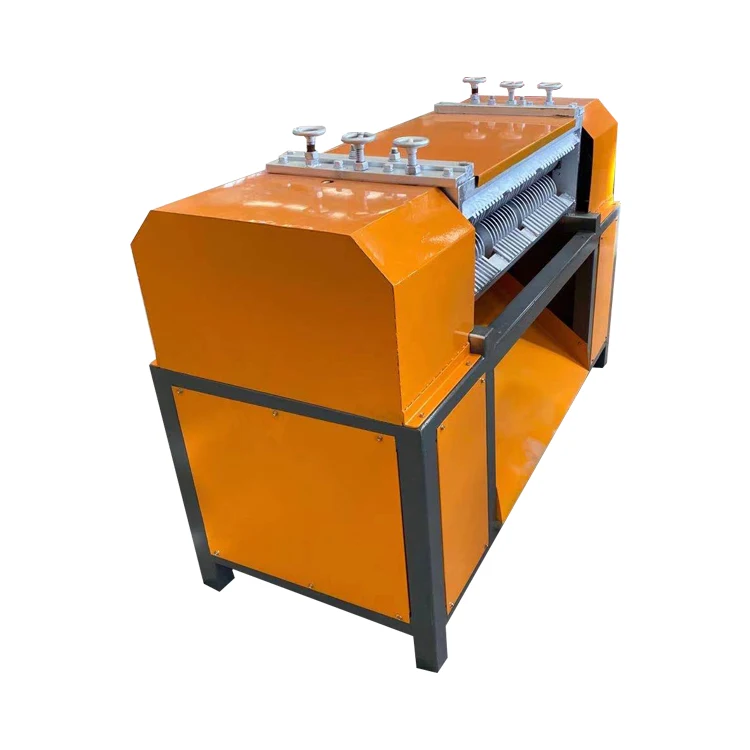

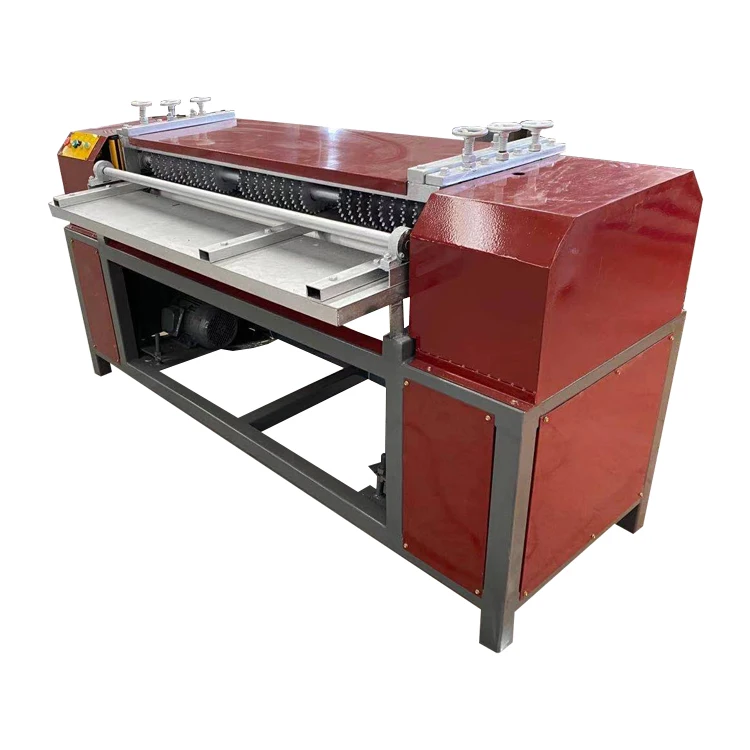

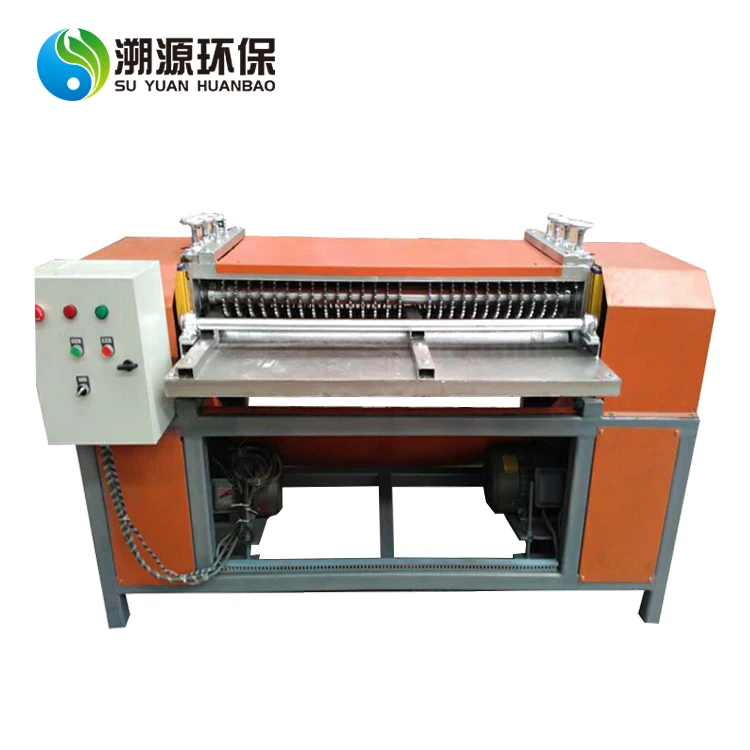

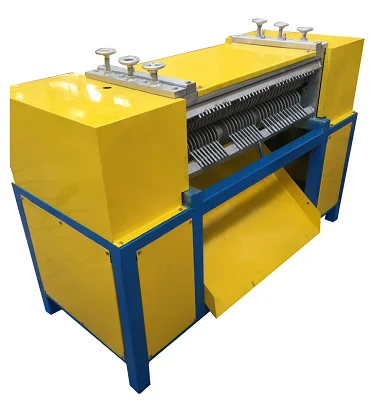

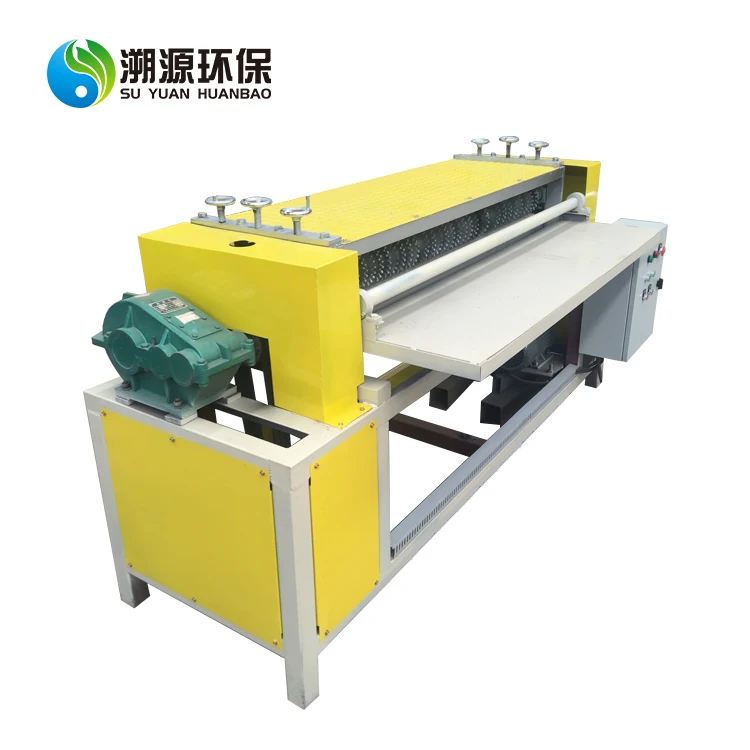

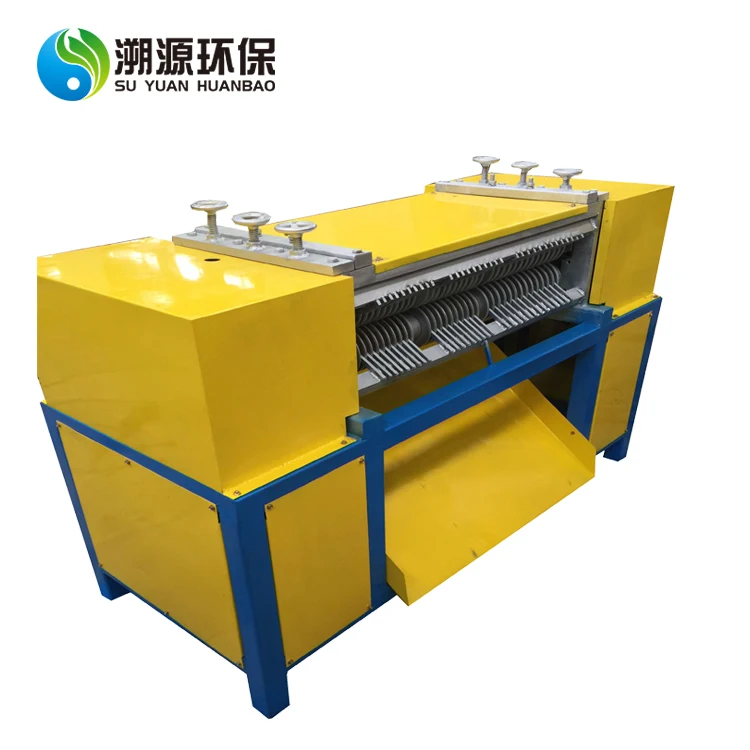

High Productivity Chinese Brand SY-1200 Scrap Radiator Separating equipment Copper Pipes Aluminum Separator Equipment
Product Description
It is used for separating the outside aluminium foil and the inside copper pipe of wasted air conditioning radiator. Each set of this kind of machine can separate two different specification radiators. Because the interval width of the copper pipe are different in the radiator, so we need you can offer us the width of the copper pipe of the radiator. In China, the width of the radiator copper pipe is 21MM, 25MM, and 19MM. Besides, the thickness is one layer and two layers. If the thickness is 3 to 4 layer, the Band Saw Machine is necessary.
External dimension (mm) | External dimension (mm) | Diameter of blade (mm) | Number of platens (per platen) | Diameter of platen (mm) | Power (kw) | Weight (kg) | Weight (kg) |
SY-850 | 1700*1000*1100 | 65 | 105+100 | 70 | 125 | 7 | 750 |
SY-1200 | 2100*1150*1100 | 117 | 105+100 | 121 | 125 | 7 | 1250 |
Raw Material & Final Product
Operation Steps
1. Turn the reversing switch and check the rotating direction.
2. Inject oil into the two oil holes in the left and right side of the machine to lubricate transmission gears.
3. Push different radiator into different material inlets according to their specs; the left side of radiators must touch the left side of material inlets; or the right side of radiators must touch the right side of material inlets.
4. After radiators are taken into the machine, copper pipes and aluminum are separated and come out of the machine automatically.
5. According to the layers of radiators and their height, adjust each pair of Adjusting Wheels on the machine.
2. Inject oil into the two oil holes in the left and right side of the machine to lubricate transmission gears.
3. Push different radiator into different material inlets according to their specs; the left side of radiators must touch the left side of material inlets; or the right side of radiators must touch the right side of material inlets.
4. After radiators are taken into the machine, copper pipes and aluminum are separated and come out of the machine automatically.
5. According to the layers of radiators and their height, adjust each pair of Adjusting Wheels on the machine.
Our Advantages
1、The radiator separator is suitable for dismantling and separating the copper and aluminum inside the waste air conditioner, old radiator and scrap water tank.
2、The radiator separator can quickly separate the copper and aluminum inside the waste radiator and keep the original block shape;
2、The radiator separator can quickly separate the copper and aluminum inside the waste radiator and keep the original block shape;
3、The disassembly process of radiator decomposing machine is completed by one machine without the assistance of other equipment.
4、Copper tube aluminum foil separation speed, high efficiency, simple operation, easy maintenance;
4、Copper tube aluminum foil separation speed, high efficiency, simple operation, easy maintenance;
5、Radiator decomposing machine multi-purpose, no band saw, the size of the radiator are completed by a machine.
6、Radiator decomposer copper tube aluminum foil separation speed, high efficiency, simple operation, easy maintenance.
6、Radiator decomposer copper tube aluminum foil separation speed, high efficiency, simple operation, easy maintenance.
Packaging & Shipping
Our Service
1. We not only provide you machines but also offer the professional technical guidance and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.

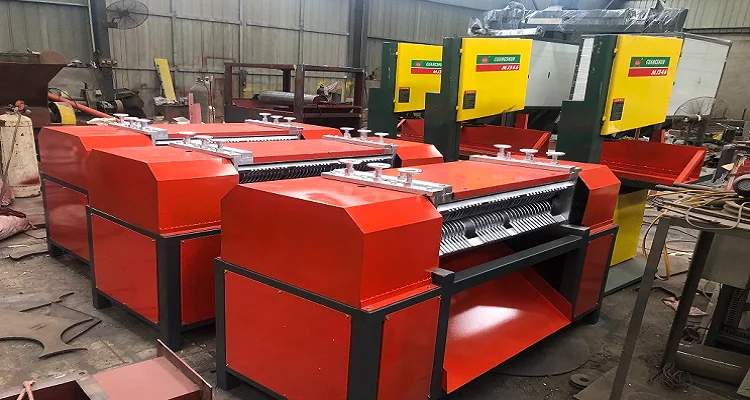

Company Profile
OUR FACTORY:
Xinxiang Traceability Environmental Protection Equipment Co. Ltd. was established in the end of 2002.For more than 20 years, wehave been committed to the research and manufacture of various waste resources separation and sorting recycling equipments.
The company has always adhered to the principle of “ Service First, Customer First ”. We will serve the new and old customers with high quality products and service. We will contribute to create a healthy and environmental world together !
The company has always adhered to the principle of “ Service First, Customer First ”. We will serve the new and old customers with high quality products and service. We will contribute to create a healthy and environmental world together !
Certifications
FAQ
Q: Why Choose Us?
1). Several Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not Dealer
Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
3). Fast Delivery:
We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?
A: Yes, you can. It depends on the difference of blades teeth and quantity, which can be customized.
Q: Which brand of motor will you use?
A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
1). Several Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not Dealer
Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
3). Fast Delivery:
We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?
A: Yes, you can. It depends on the difference of blades teeth and quantity, which can be customized.
Q: Which brand of motor will you use?
A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
