Tissue Paper Dispenser Napkin Folding Printing Machine 15 Set/sets Per Month Production Capacity 40 140 Cm Electric
- Category: >>>
- Supplier: Liuzhou Zode Machinery Sci-Tech Co. Ltd.
Share on (1600427952230):
Product Overview
Description
Product Description

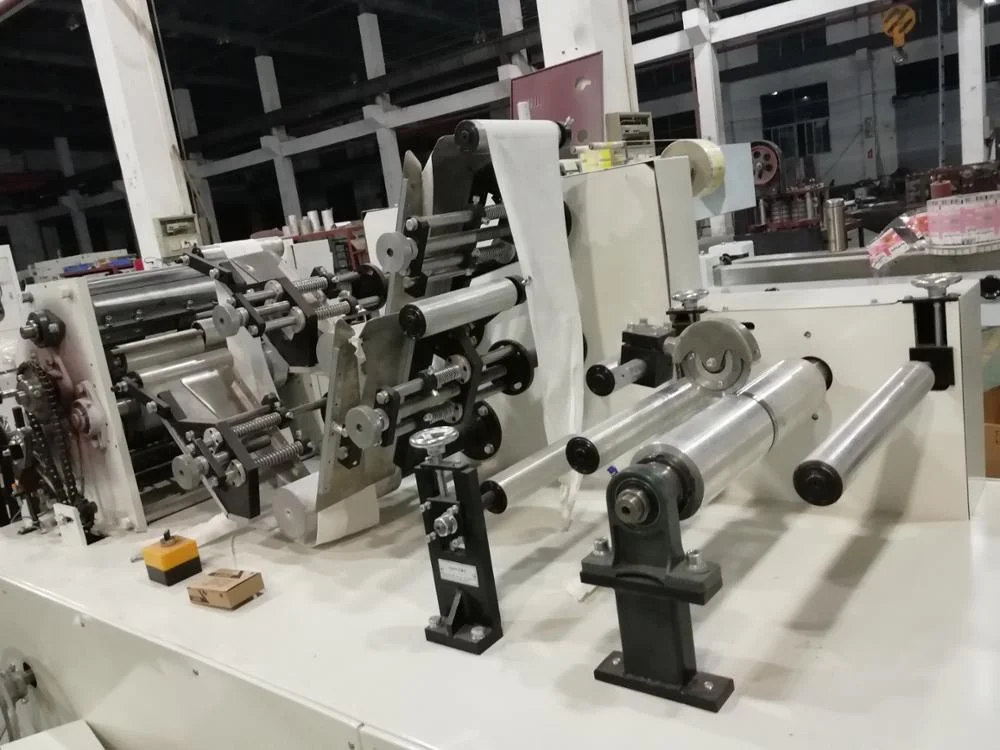

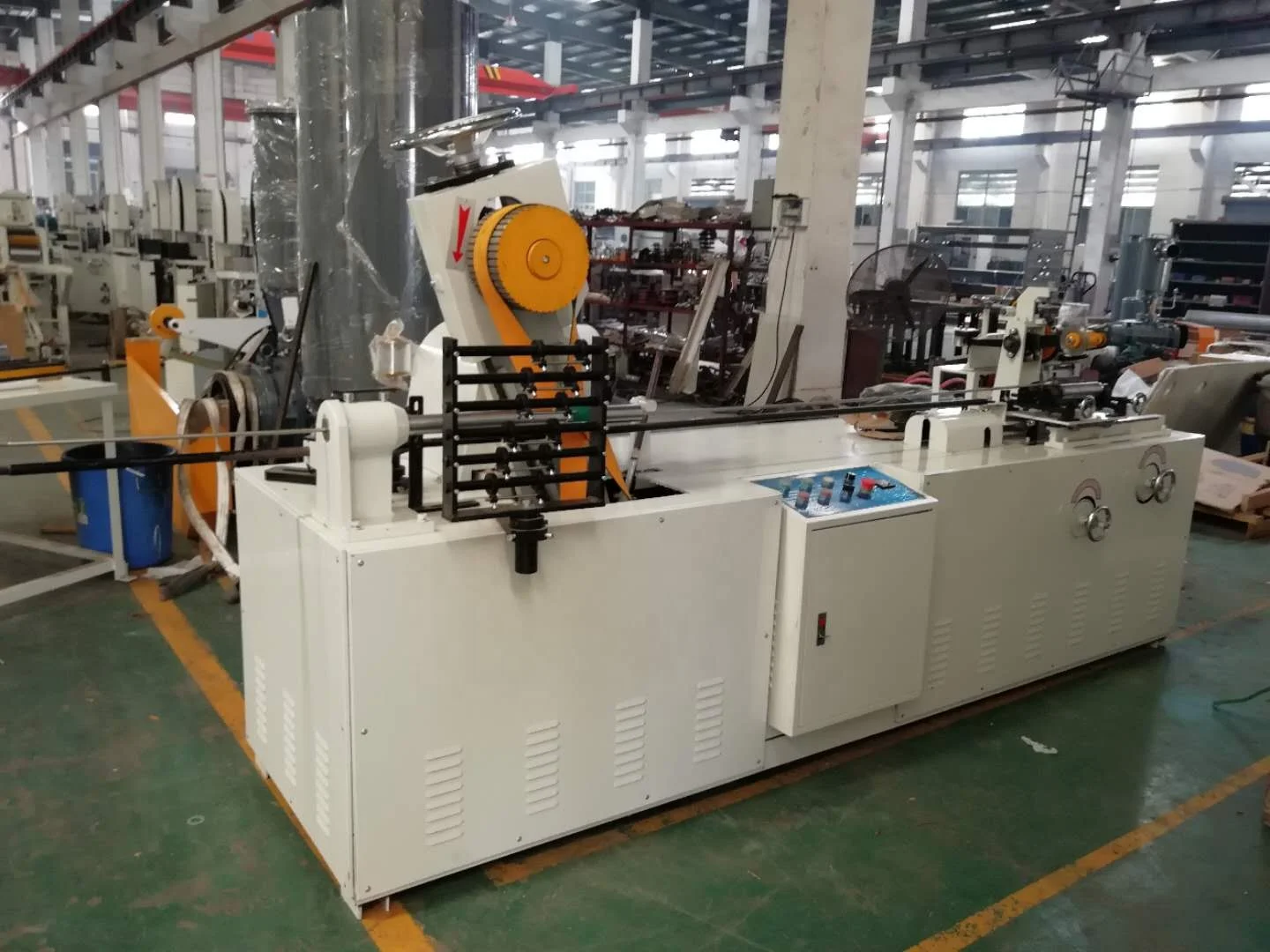

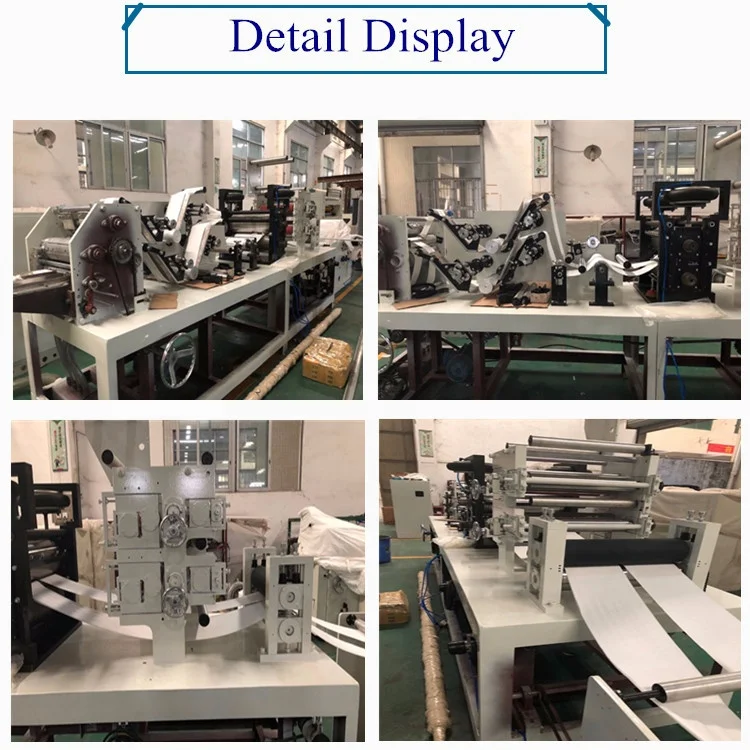

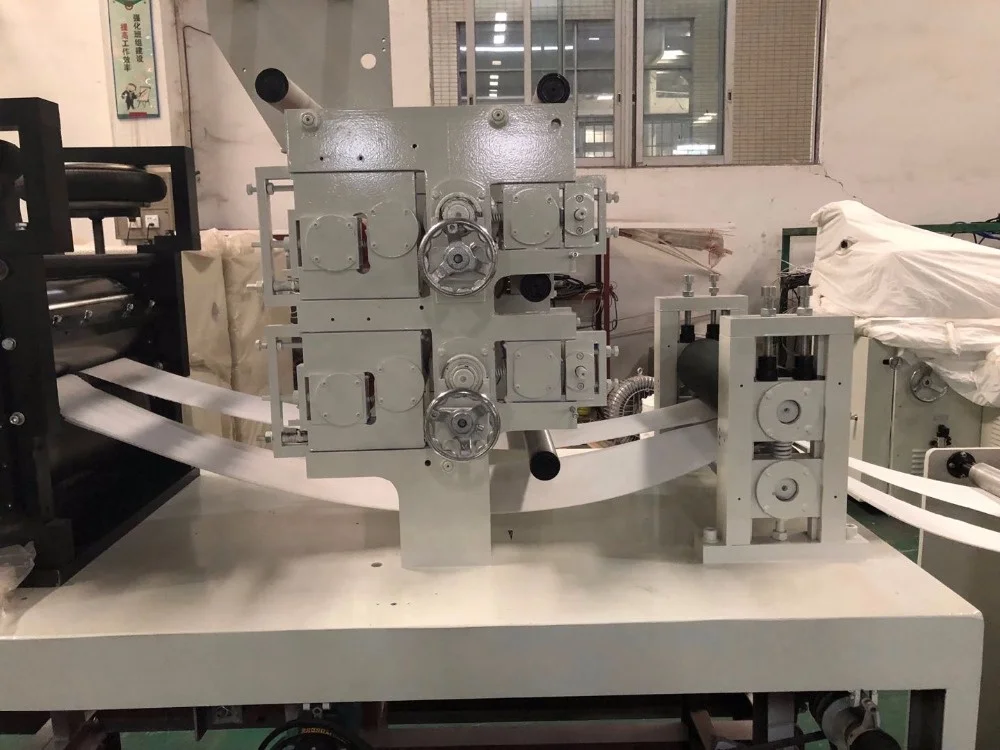

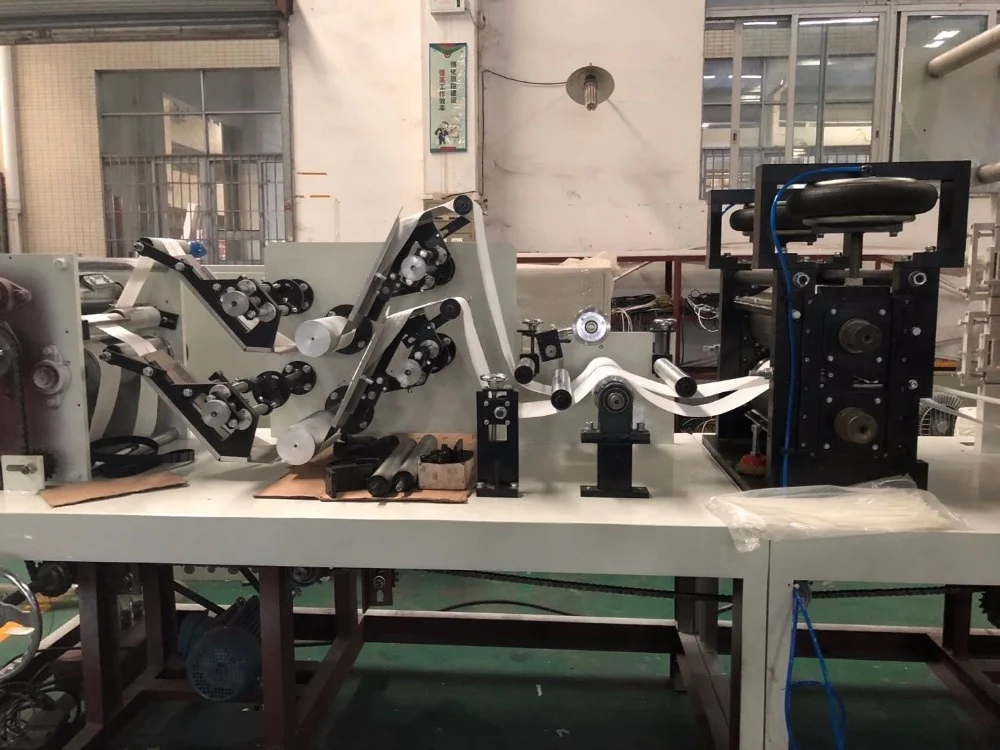

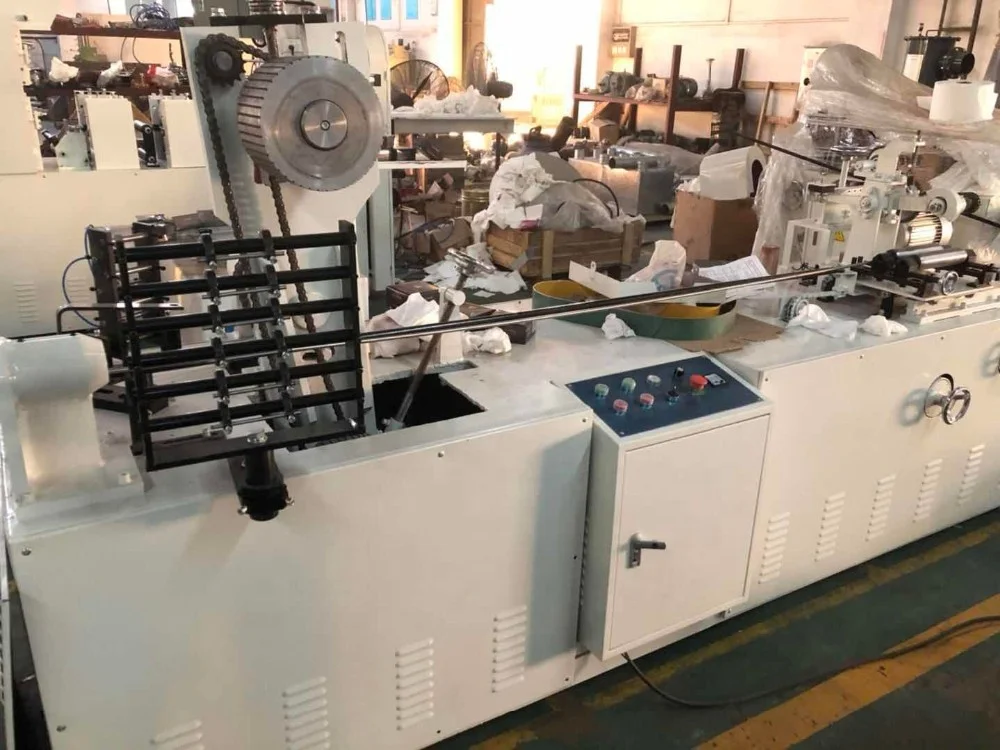

Automatic 1/4 folding tissue napkin paper printing machine
ZD-Z4L napkin folding machine is using jumbo rolls as raw paper to process various sizes of napkin paper. The machine start from raw material feeding, embossment, folding and cutting to form to be one line , and then packaging. The product is of sanitation and cleanness. If customers need to produce various kind sizes (180 to 500) of napkin paper , the machine can be customized.
Specification
SPECIFICATIONS | ||
Max width of jumbo roll | 800-1400mm | |
Diameter of jumbo roll(mm) | 1100(Other specification, please specify) | |
Core inner dia. of jumbo roll | 76mm(Other specification, please specify) | |
Production speed | 0~180 meters/min. | |
Power | 3 phase, 380V/50HZ, | |
Controller | Frequency control | |
Cutting system | point cut by pneumatic type | |
Vacuum system | 22 KW Roots vacuum system | |
Pneumatic system | 3P Air compressor ,minimum pressure 5kg per square meter Pa( prepared by customer) | |
Host Power | 7.5kw | |
Main Features
1. Count automatically and output in order
2. Adopting screw turning knife to cut and vacuum absorption to fold.
3. Adopting step less adjusting speed to roll to fix different tension of raw paper.
4. electricity control, easy to operate.
5. This equipment can have embossing unit.
6. Wide range of production width for selection.
7. The machine can equipped with PLC according to requirement.
8. This machine can equip with single color and double color printing unit,the embossing pattern have very vivid designs and beautiful colors.
2. Adopting screw turning knife to cut and vacuum absorption to fold.
3. Adopting step less adjusting speed to roll to fix different tension of raw paper.
4. electricity control, easy to operate.
5. This equipment can have embossing unit.
6. Wide range of production width for selection.
7. The machine can equipped with PLC according to requirement.
8. This machine can equip with single color and double color printing unit,the embossing pattern have very vivid designs and beautiful colors.

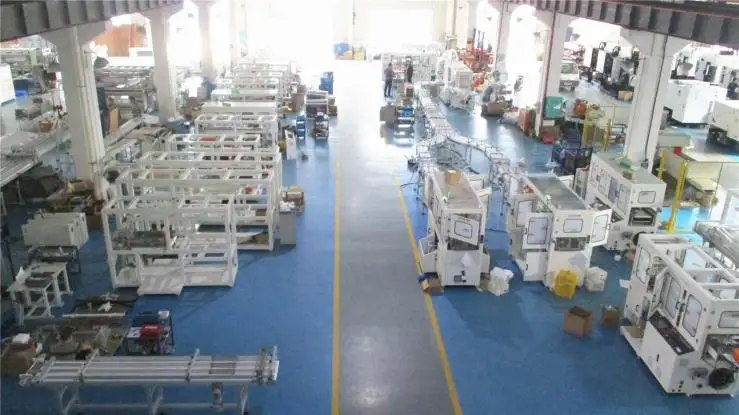

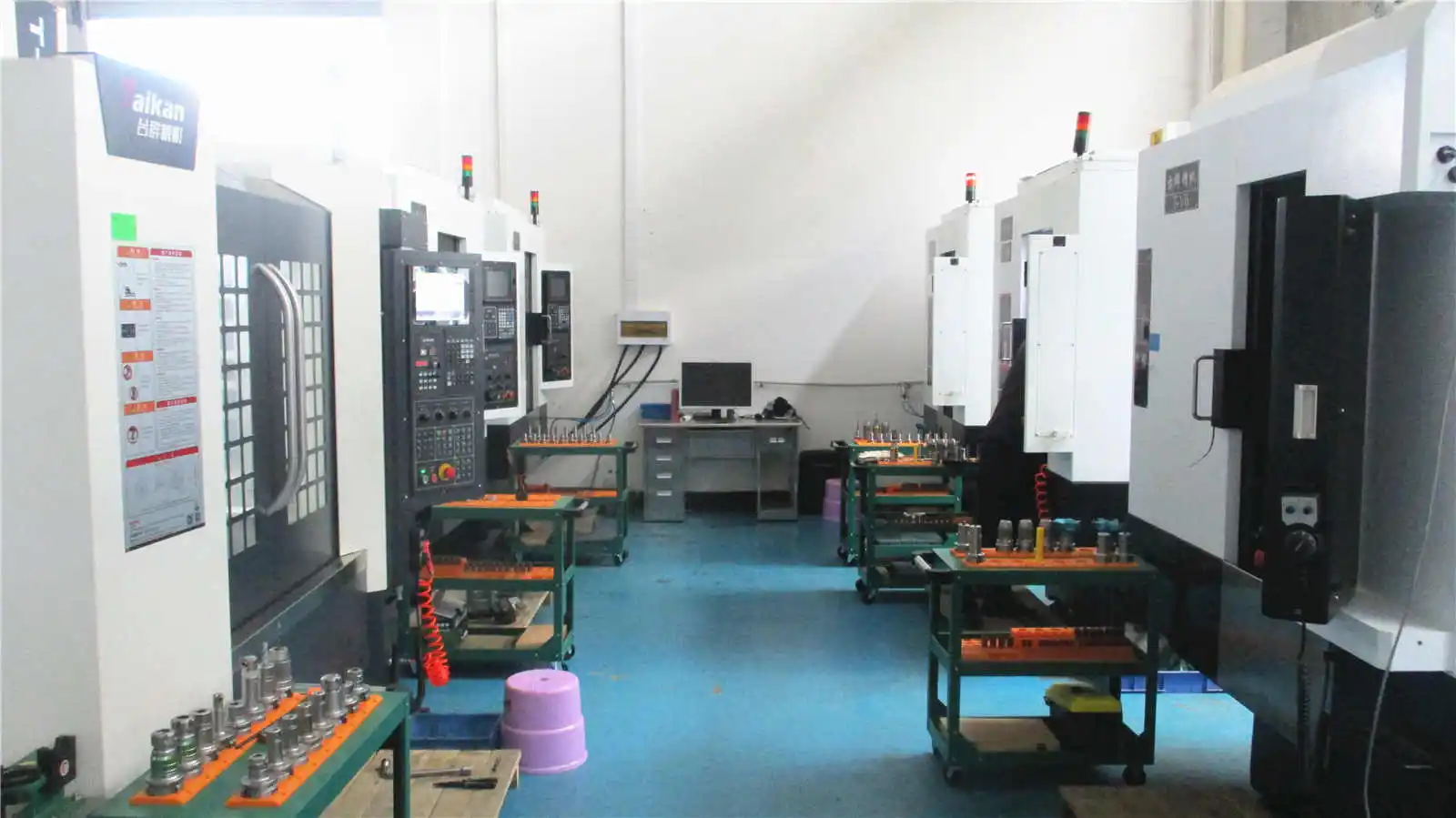

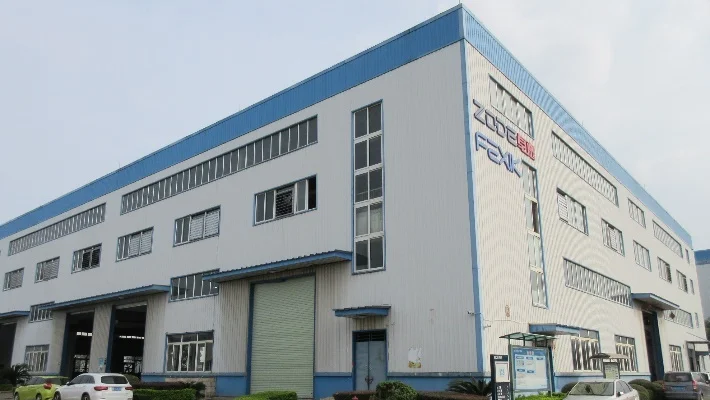

Company Profile
Liuzhou Zhoude Machinery Sci-Tech Co., Ltd. is a Scientific research enterprise focused on researching and developing automated packaging equipment .Product application scope is mainly related to some automated packaging such as household paper, diapers and disposable items of the infant. After many years of continuous development and innovation of packaging equipment, has made a number of utility model patents.
We continue to innovate and forge ahead, focus on the field of bag packaging, follow the "excellent quality, reputation Quartet" of the production and business philosophy, committed to build a first-class domestic paper bag packaging equipment manufacturers, provide the full automatic bag packaging solutions of the lowest cost to achieve the highest efficiency for the majority of enterprises.
We continue to innovate and forge ahead, focus on the field of bag packaging, follow the "excellent quality, reputation Quartet" of the production and business philosophy, committed to build a first-class domestic paper bag packaging equipment manufacturers, provide the full automatic bag packaging solutions of the lowest cost to achieve the highest efficiency for the majority of enterprises.

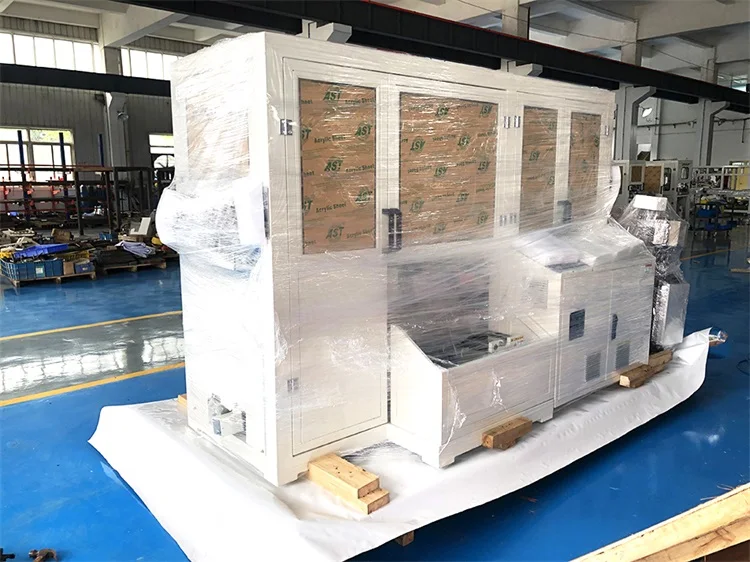

Packing & Delivery
1/4 folding serviette tissue napkin color printing machine
1) Cover with plastic film
2) Vacuum package
3) Export wooden packing
1) Cover with plastic film
2) Vacuum package
3) Export wooden packing
FAQ
1: Are you trading company or manufacturer ?
A: We are factory.
2: How long is your delivery time?
A:30-60 days after received a deposit, it is according to quantity.
3: Do you provide design ?
A:we can provide solutions to customers from products choosing, designing, installing and training.
4: What is your terms of payment ?
A: 30% T/T in advance , balance before shipment.
5. How much area the whole production line needs?
A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.
6. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ
and so on.
A: We are factory.
2: How long is your delivery time?
A:30-60 days after received a deposit, it is according to quantity.
3: Do you provide design ?
A:we can provide solutions to customers from products choosing, designing, installing and training.
4: What is your terms of payment ?
A: 30% T/T in advance , balance before shipment.
5. How much area the whole production line needs?
A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.
6. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ
and so on.
