Hot Sale Gas Burner Boiler Parts Gas Burners Oil Fired Burner
US $5.00-$279.00
Курильница промышленного назначения, запасные части, двойное топливо, тяжелое масло и газовая горелка, дизельное топливо, газовая горелка Baltur
- Category: Boiler Parts >>>
- Supplier: Henan Zhongde Environmental Protection Technology Co. Ltd.
Share on (1600427952894):
Product Overview
Description
Product Description

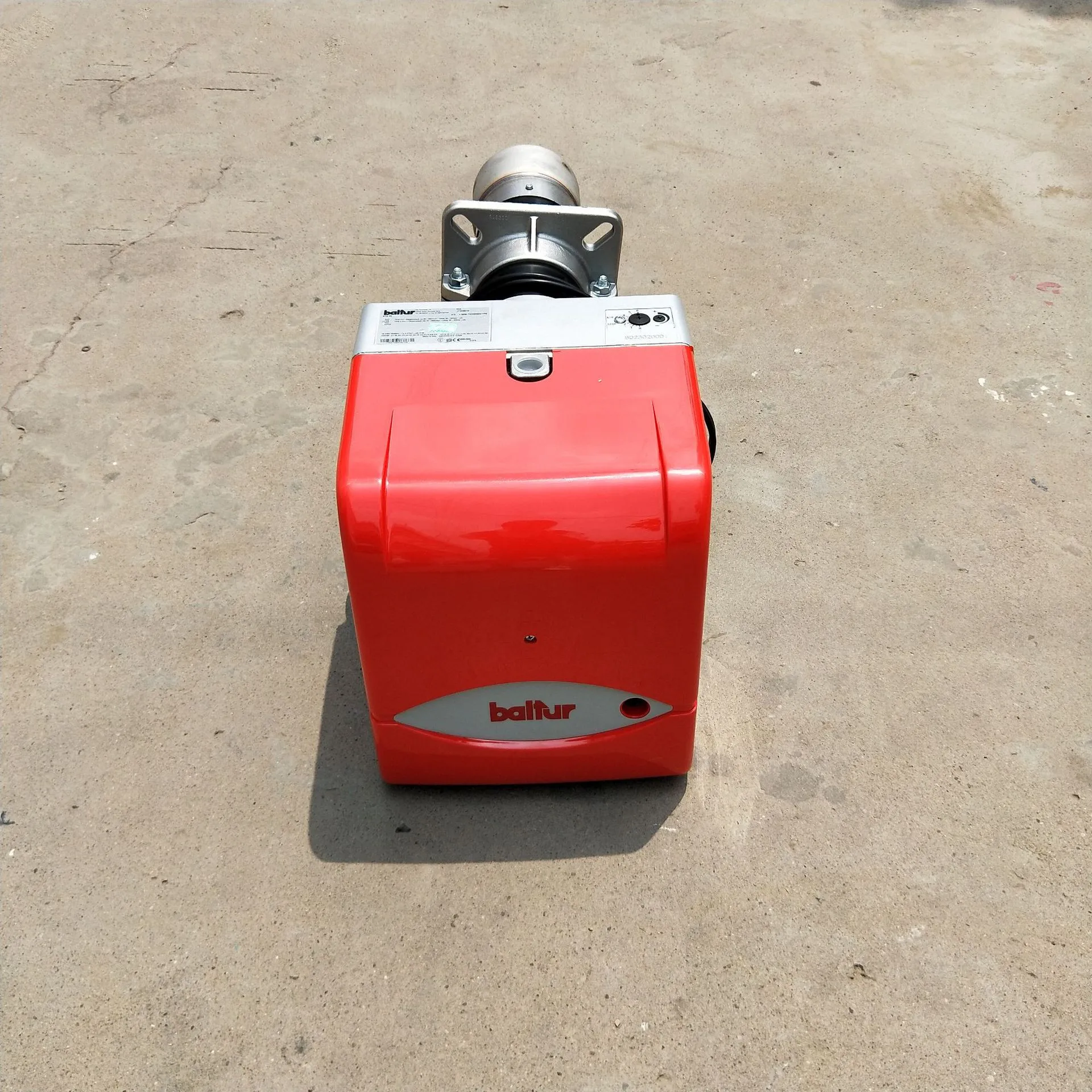

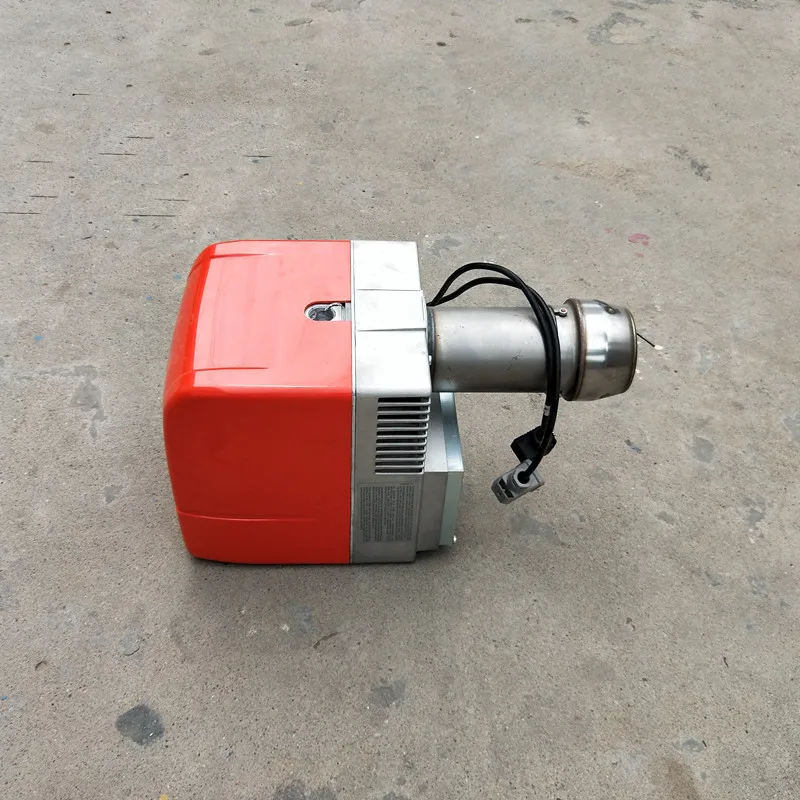

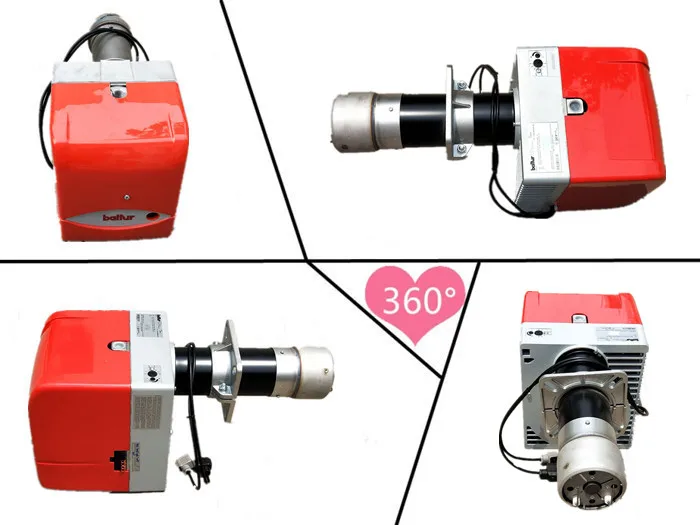

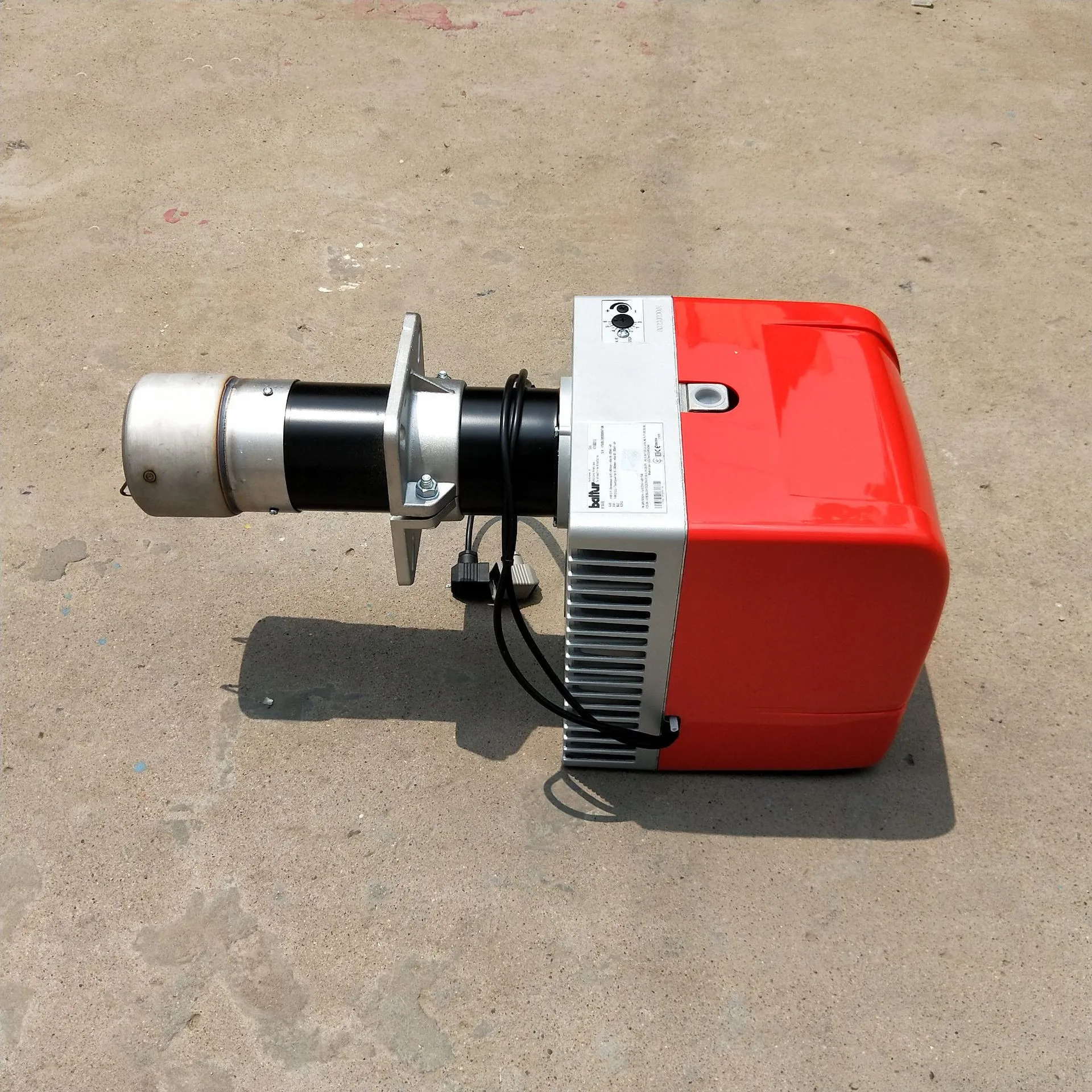

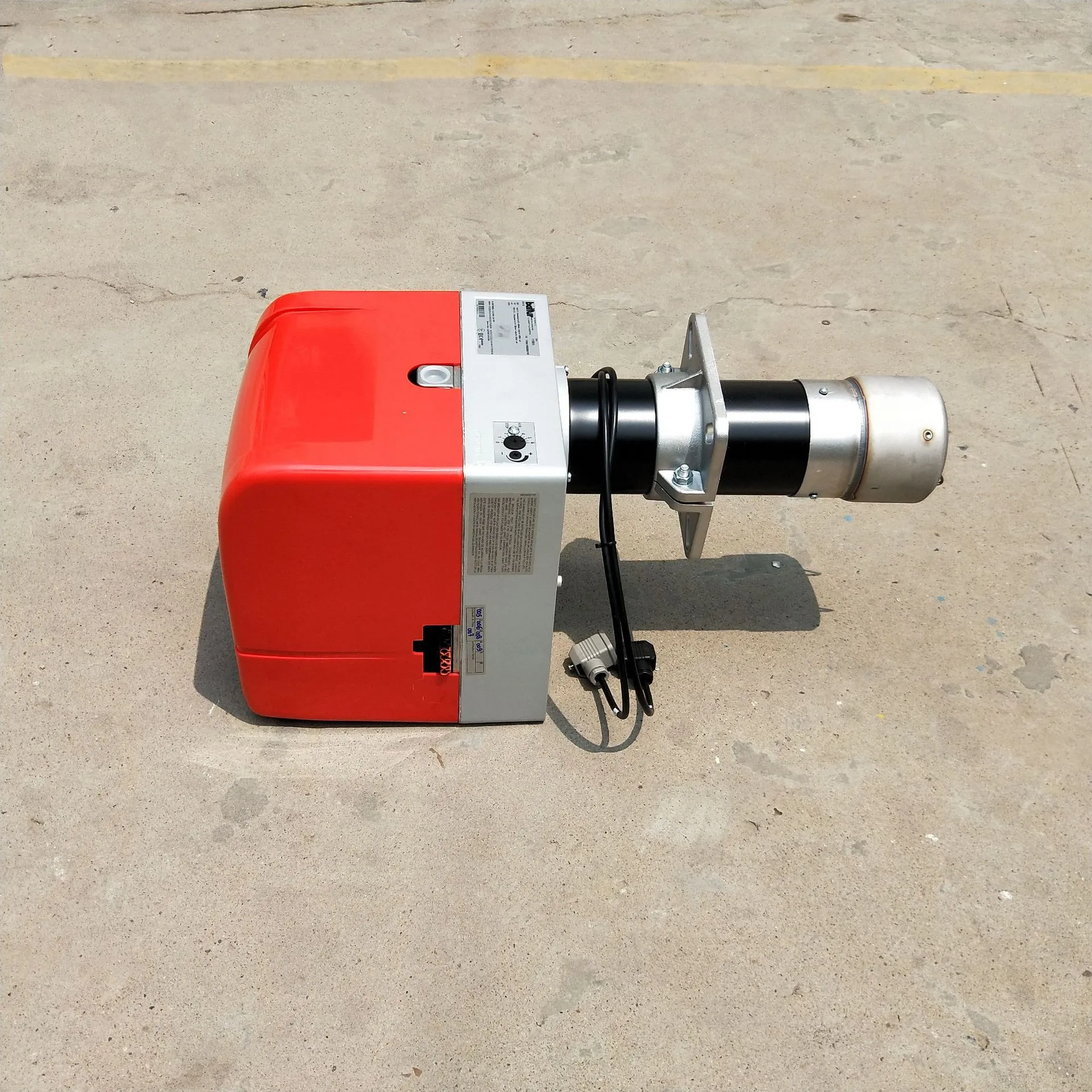

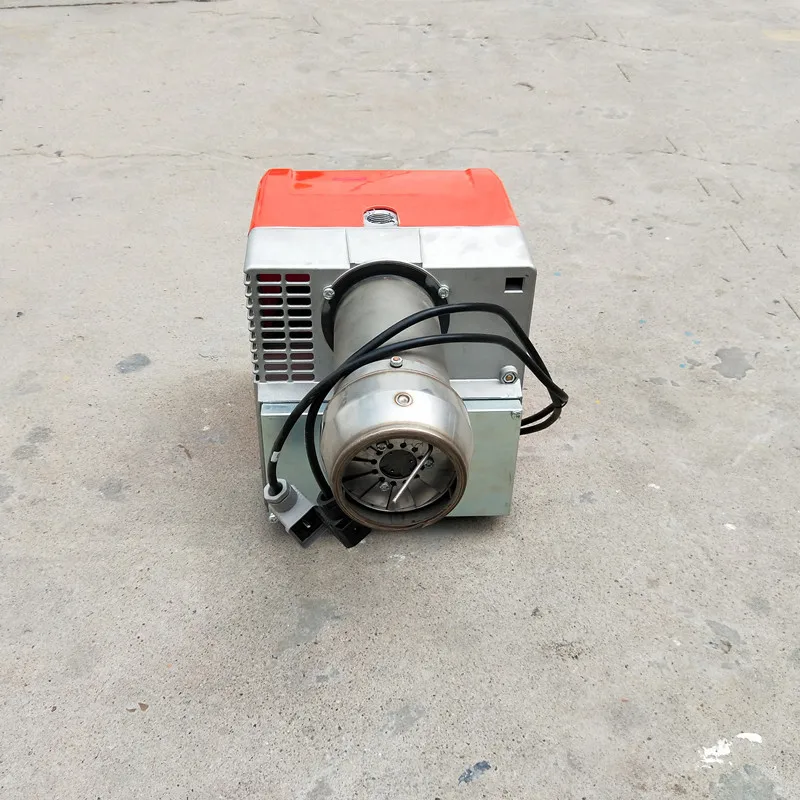

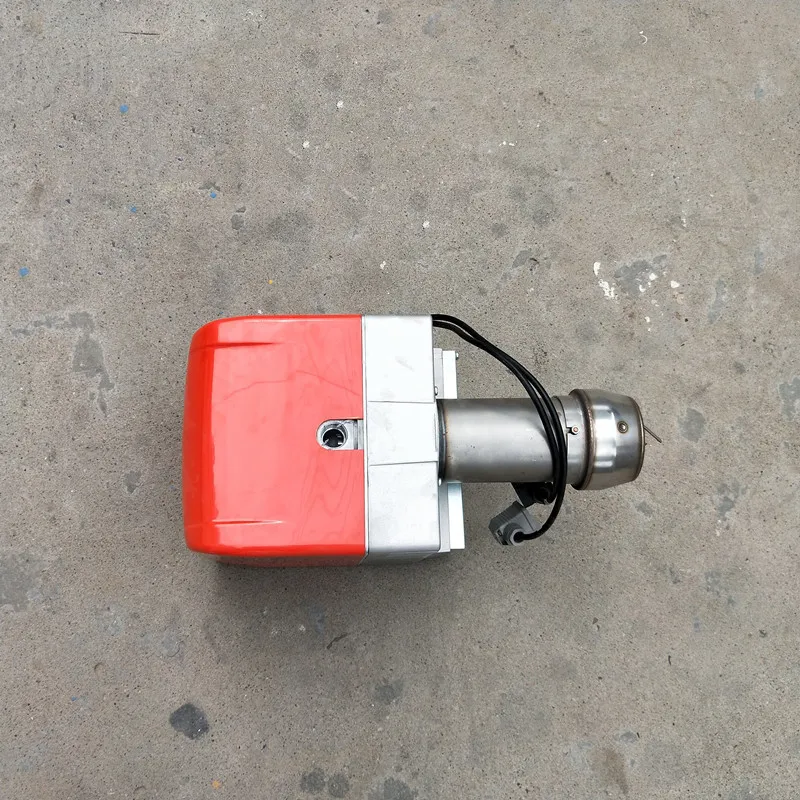

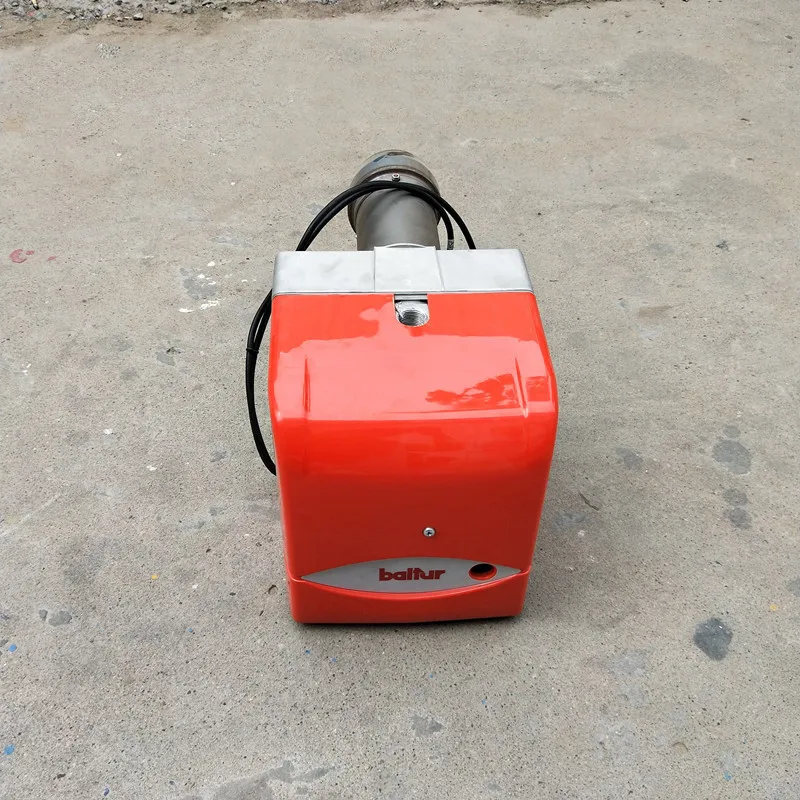

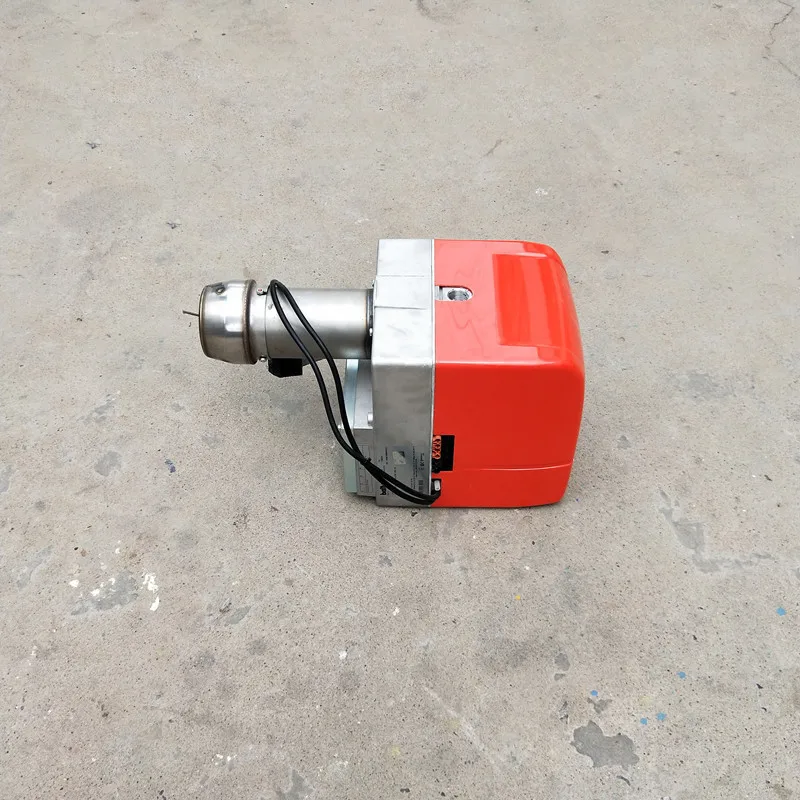

(Baltur) burner is a general term for devices that enable fuel and air to be ejected and burned in a certain way. Burners are divided into industrial burners, combustors, civil burners and special burners according to types and application fields. Made of high temperature resistant material. The burner has the properties of high atomization efficiency, low noise, stable flame, high absorption sensitivity and determination precision.

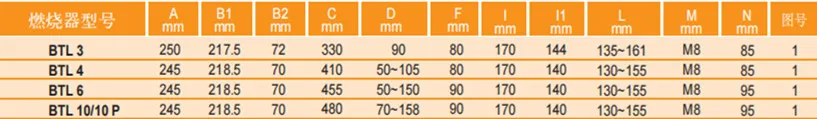

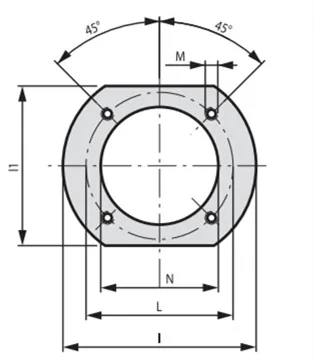

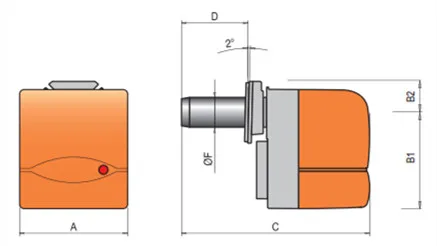

Structural Diagram

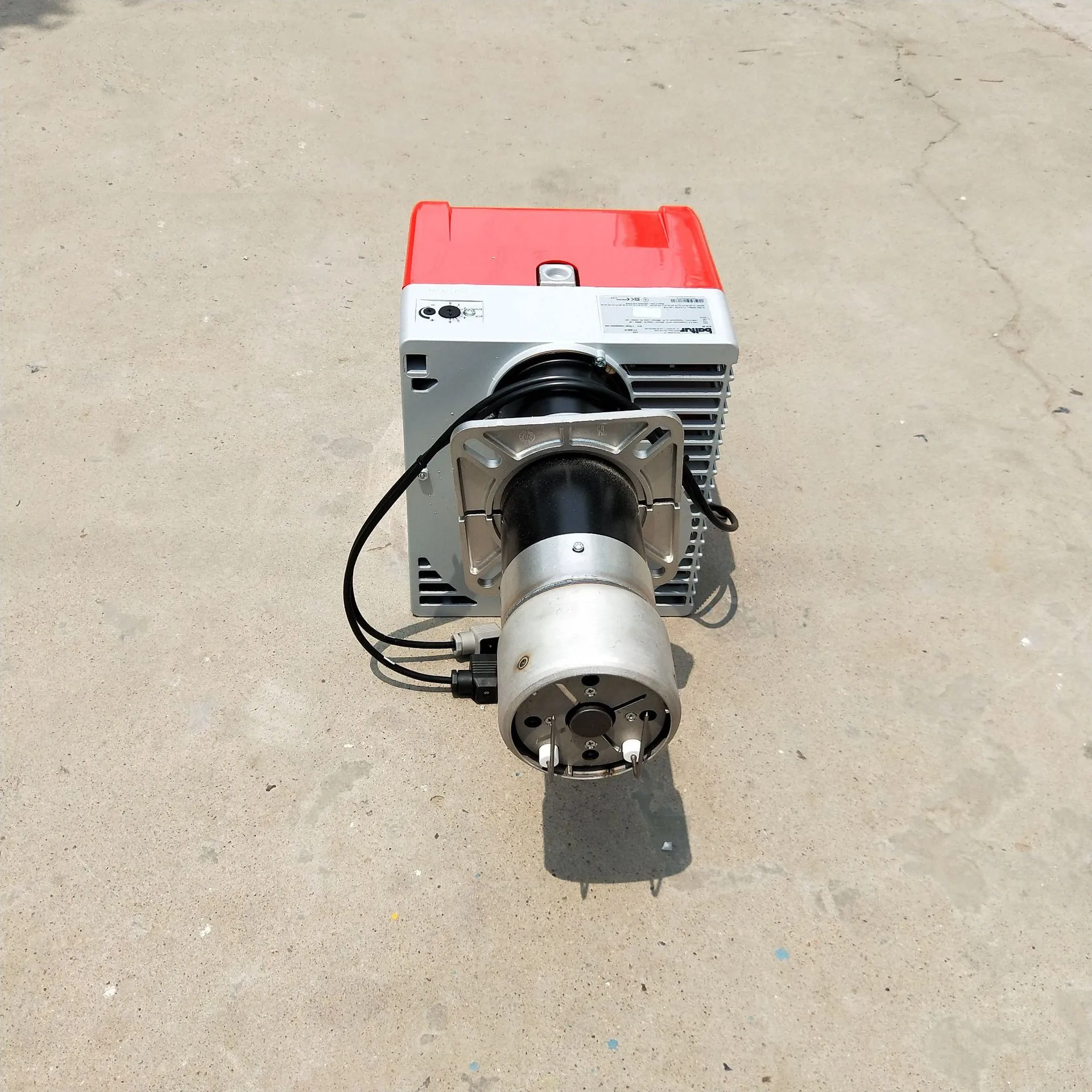

Product Details
Technology and performance characteristics
● mechanical pressure atomization.
● when biodiesel (plant-based) is used, the following components are specified: hose, on-line filter and oil pump.
● long combustion head and biodiesel operation can be provided as required.
● combustion air inlet with flow regulator; Automatically close the damper.
● gear pump with pressure regulator and stop valve.
● photoresist detects flame.
● the fan motor meets the European standard IE1.
● the electrical protection grade of standard configuration is IP40. If required, the electrical protection grade can be improved.
● silencing plastic protective cover.
● when biodiesel (plant-based) is used, the following components are specified: hose, on-line filter and oil pump.
● long combustion head and biodiesel operation can be provided as required.
● combustion air inlet with flow regulator; Automatically close the damper.
● gear pump with pressure regulator and stop valve.
● photoresist detects flame.
● the fan motor meets the European standard IE1.
● the electrical protection grade of standard configuration is IP40. If required, the electrical protection grade can be improved.
● silencing plastic protective cover.
● single section operation (on / off).
● manually adjust the air flow.
● the sliding flange matched with various boiler flanges can adjust the position of the burner extending into the boiler (except BTL 3).
● provide seven hole for burner electrical and temperature controller coupling outlet.
● manually adjust the air flow.
● the sliding flange matched with various boiler flanges can adjust the position of the burner extending into the boiler (except BTL 3).
● provide seven hole for burner electrical and temperature controller coupling outlet.
● two stage operation (high / low fire).
● servo motor is used to regulate the air flow of the first and second sections; When the burner is suspended, the damper is closed to reduce the heat loss in the furnace.
● the sliding flange matched with various boiler flanges can adjust the position of the burner extending into the boiler.
● seven hole connection outlet shall be provided for burner electrical and temperature controller, and four hole connection outlet shall be provided for the second section control.
● servo motor is used to regulate the air flow of the first and second sections; When the burner is suspended, the damper is closed to reduce the heat loss in the furnace.
● the sliding flange matched with various boiler flanges can adjust the position of the burner extending into the boiler.
● seven hole connection outlet shall be provided for burner electrical and temperature controller, and four hole connection outlet shall be provided for the second section control.

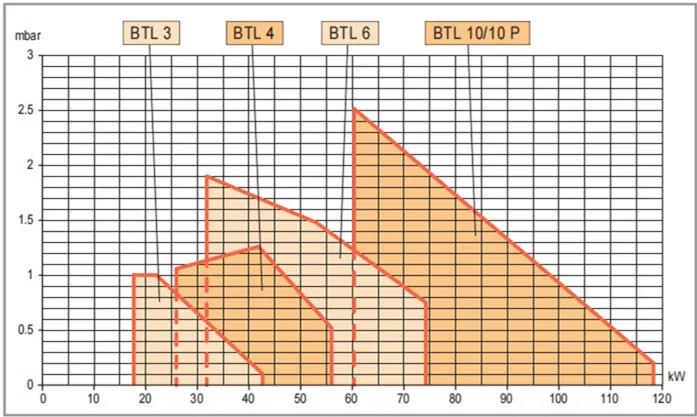

Product specification
Power (kW) | Light oil flow (kg/h) | Burner model | Maximum viscosity (˚E@20˚C) | Power Supply | Motor power (kW) | Package size (L x P x H mm) | Weight (kg) |
17.8~42.7 | 1.5 ~ 3.6 | BTL 3 | 1.5 | 1N AC 50Hz 230V | 0.09 | 400 x 280x 280 | 10 |
26.0~56.1 | 2.2 ~ 4.7 | BTL 4 | 1.5 | 1N AC 50Hz 230V | 0.10 | 540 x 300x 320 | 12 |
31.9~74.3 | 2.7 ~ 6.3 | BTL 6 | 1.5 | 1N AC 50Hz 230V | 0.10 | 540 x 300 x 320 | 12 |
60.2~118 | 5.1 ~ 10 | BTL 10 | 1.5 | 1N AC 50Hz 230V | 0.10 | 540 x 300 x 320 | 12 |
60.2~118 | 5.1 ~ 10 | BTL 10P | 1.5 | 1N AC 50Hz 230V | 0.10 | 540 x 300 x 320 | 12 |
Company Profile
Henan Zhongde Environmental Protection Technology Co., Ltd. is located in the beautiful Fu Cao Lou Industrial Park, Taikang County, on the Eastern Henan Plain. The company has a plant area of 80,000 square meters and more than 100 employees. It mainly engages in the R&D, manufacturing and sales of hot water boilers, steam generators, electric heating boilers, oil-fired gas steam boilers, and high and medium temperature hot blast stoves. Based on the manufacture of hot water boilers and steam generators, the company has established an industrial system integrating product development, engineering project design, equipment manufacturing, engineering installation, system commissioning, pre-sales, in-sales, and after-sales services. The company's products are not only sold in the domestic market, but also exported to more than 10 countries and regions including South Korea, Vietnam, Myanmar, Mongolia, the Philippines, and Indonesia. Excellent employees, advanced technology, sophisticated equipment, and strict management are the foundation for the company's continuous development and expansion and the products that can win the dependence of users.
Certifications
CE
CE
Boiler Manufacturing License
ISO9001
ISO14001
ISO45001
Our survice
Pre-sale service:
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
FAQ
Q1:How many shops you have on Alibaba?
A1:Only one, when you buy Zhongde Boiler, please confirm Zhongde boiler, 1976.
Q2:How many days will get boiler after payment?
A2:According to boiler capacity, usually 10-45 days.
Q3: How to buy a good boiler?
A3: a.Choose a good supplier, A grade boiler manufacturer. b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on c. Price is not the only problem, quality and service also important.
Q4: What is your main product?
A4:Steam boiler, hot water boiler, thermal oil boiler. Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler. Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler, power plant boiler,textile mill boiler, garment industry boiler and so on.
Q5:Will your company accept L/C payment
A5: Yes, customer bank should be meet national standard. and L/C type should be at sight.
Q6:Why choose us?
A6: 1) We have enthusiastic business personnel to provide you with 24-hour online service to solve your doubts 2) We have professional designers and workers to design and produce your boiler products 3) We have a sound after-sales service system to ensure that you buy the most suitable boiler products for you
Other more questions please contact us online.
